Grillo CL75 Walk Behind Mower and Brush Cutter - 78cm
Model: 8Y1AZAG
Grillo CL75 Walk Behind Mower and Brush Cutter - 78cm
Model: 8Y1AZAG

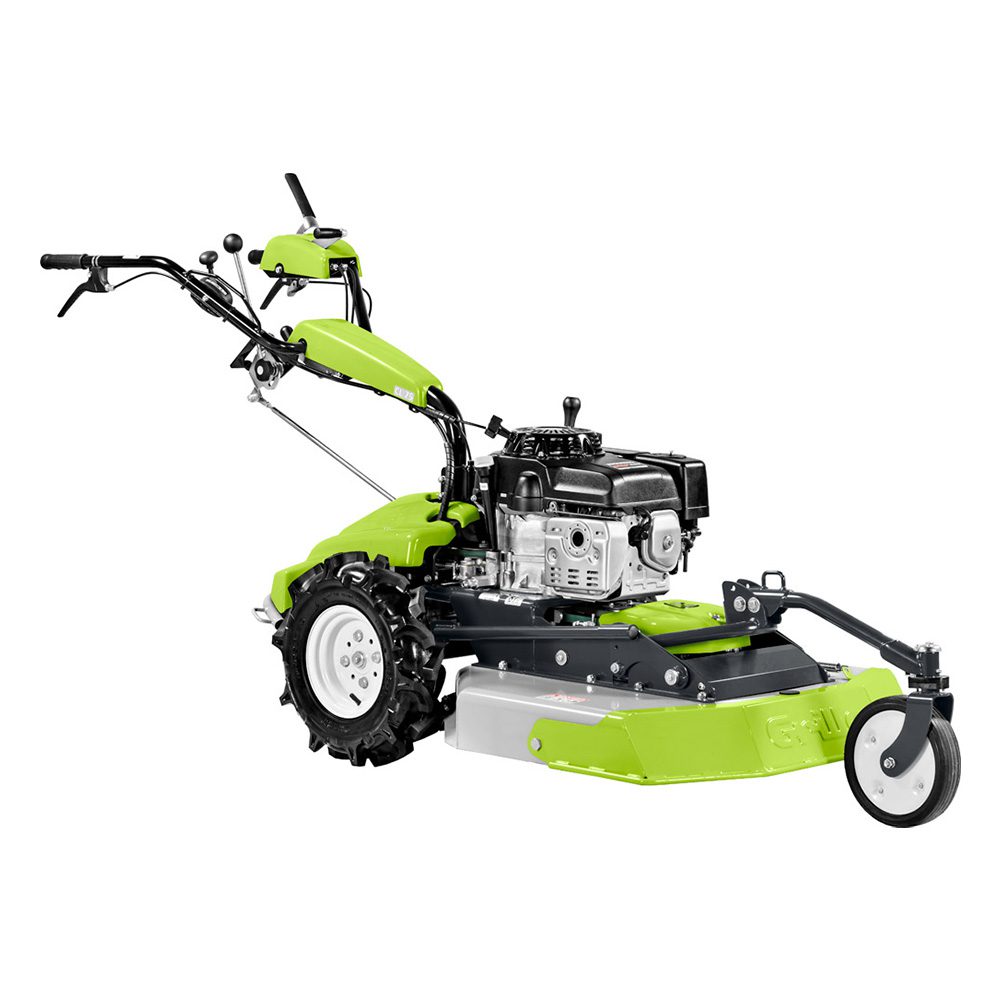

CL75 is a hydrostatic walk-behind mower is perfect for dealing with challenging areas of your property, including high grass, weeds and bush. The cutter deck’s front aperture lifts up automatically when entering high vegetation without crushing it down, considerably increasing the efficiency of the cut. Also under extreme conditions, such as extremely steep slopes and uneven ground, mowing is easy thanks to 4 ply wheels mounted on ball bearings. CL 75’s transmission is hydrostatic with differential lock. It’s possible to progressively adjust the speed by means of a lever on the handlebar from 0 to 6 km/h and in reverse gear up to 3,5 km/h.
It’s possible to hold the handlebars with one hand whilst working; this allows the adjustment of the drive and engagement of reverse gear by a handy lever. When cutting on slopes, near trees and obstacles or if you are cutting in coppices and bushes near low branches , adjusting the grass cutter’s drive so easily is a major advantage! The handlebar has a double adjustment capability – height adjustment, in order to meet the operators’ requirements, and lateral adjustment to make cutting easier in difficult areas such as under low positioned branches or in the presence of obstacles.
- Shock-resistant swinging tip steel blades
- Rear discharge
- Honda GXV340 OHV petrol engine
- Fabricated steel cutter deck

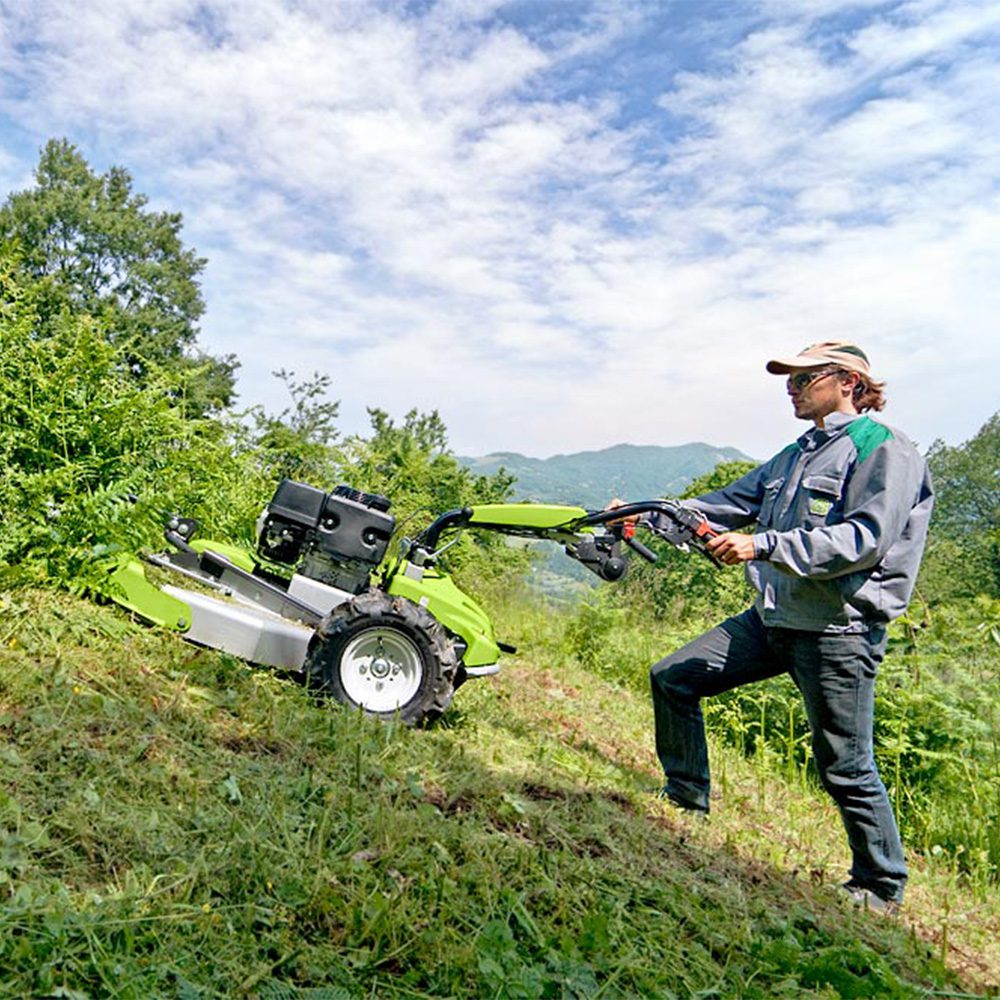

- Great on slopes
- Easily adjustable cutting height.
Efficient Front-Mounted Deck

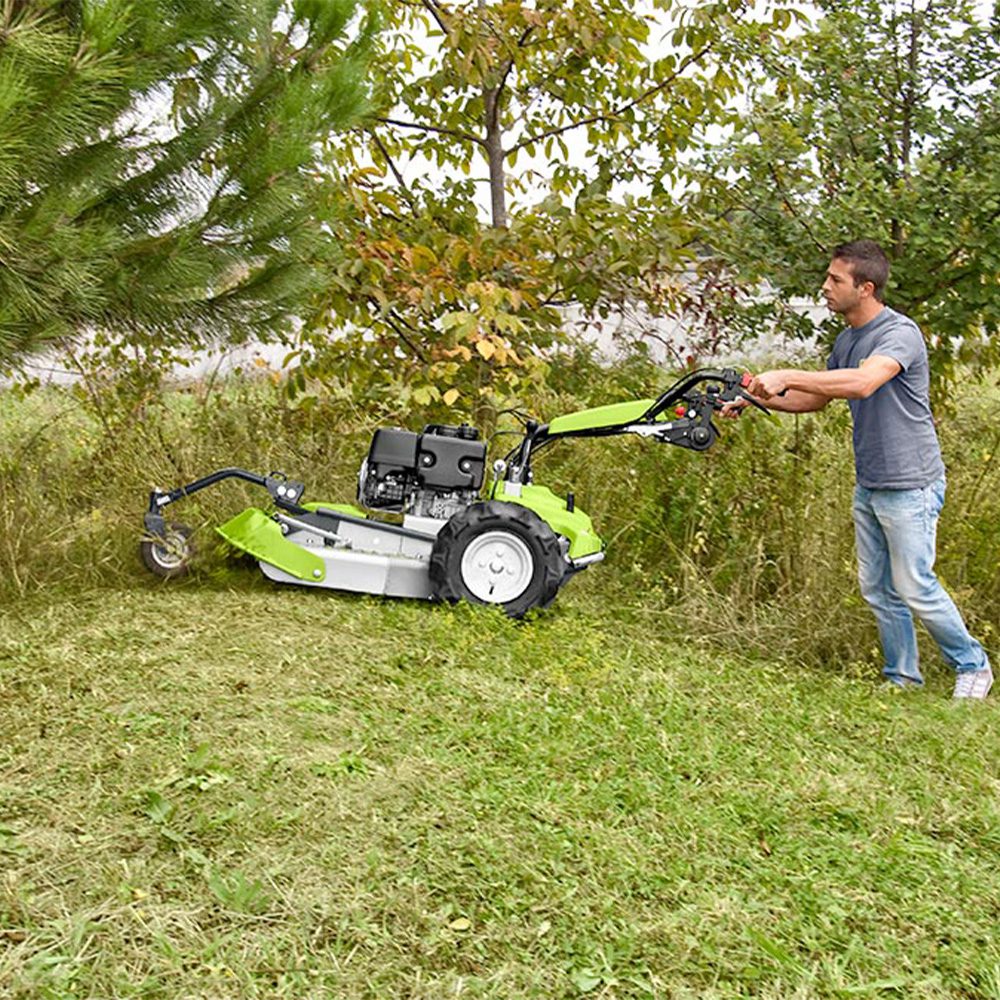

The front-mounted deck allows cutting under low branches or bushes with ease. High grass and bushes are guided in and cut by special steel blades, then discharged at the rear for optimal performance.
Perfect Balance and Control

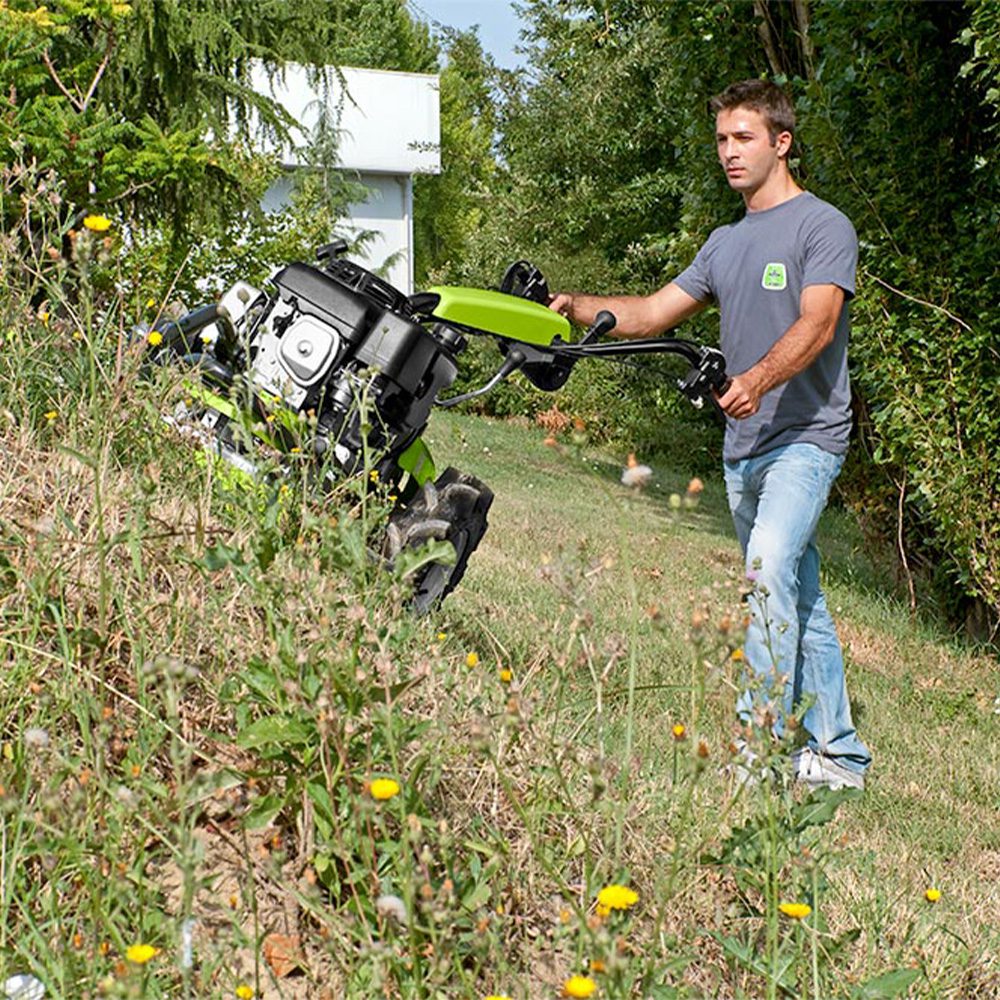

With ideal weight distribution and a low centre of gravity, the CL 75 offers exceptional balance. One-handed handlebar use allows easy drive adjustments and reverse engagement, perfect for cutting on slopes or around obstacles.
Easy Maintenance and Premium Build

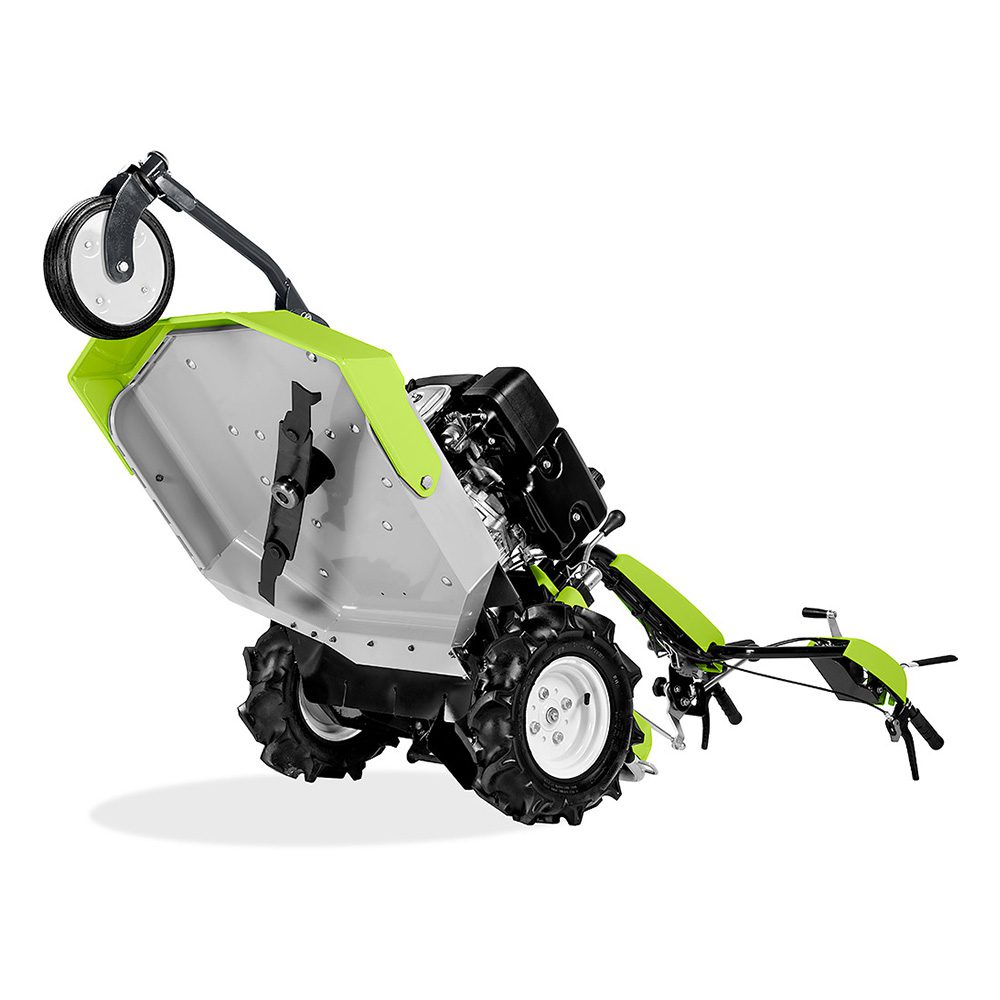

The CL 75 stands vertically for simple maintenance and cleaning. Its self-adjusting belt and parallelogram lift system ensure durability, while all components, including the chassis and cutter deck, are made with top-quality materials by Grillo.
Adjustable Handlebar for Ease
The handlebar offers both height and lateral adjustments for comfort and easier cutting in tricky areas. On steep slopes or uneven ground, the 4-ply wheels with a differential lock ensure smooth mowing.
Durable Steel Deck
The all-steel deck has an adjustable cutting height from 50mm to 150mm, easily controlled with a hand wheel. Special blade tips reduce noise, delivering a quality cut even on uneven Kiwi lawns.
Hydrostatic Transmission Control
The CL 75 features a hydrostatic transmission with a differential lock, offering speed adjustment from 0 to 6 km/h via a handlebar lever. A parking brake ensures stability on slopes, with all controls conveniently positioned.
Durable Double Powder Coating
Grillo machines undergo a double electrostatic powder coating process, ensuring durability, hardness, and shine. Each CL 75 is carefully assembled and tested by experts, with a final inspection to guarantee top-quality performance.
Powerful Honda GXV390 Engine
The CL 75 is equipped with a reliable 389cc Honda GXV390 petrol engine with a 2.1-litre fuel tank. It features low emissions, reduced vibration, and a lubrication pump, ensuring smooth operation even on slopes.
Specifications
| Engine |
Honda GXV340 OHV |
| Start |
Recoil starter |
| Fuel |
Petrol |
| Displacement |
337 cc, 1 Cylinder |
| Power |
8.9 HP (6.6 kW) @ 3300 rpm |
| Torque |
21.6 Nm @ 2500 rpm |
| Cooling |
Air cooled |
| Consumption |
2.3 Litres per hour |
| Filter |
Dry air filter with interchangeable filter cartridges |
| Fuel tank capacity |
2.6 Litre |
| Drive |
Hydrostatic transmission |
| Traction |
2WD |
| Cutting type |
Rear discharge with front swing opening |
| Cutting configuration |
1 rotating blade with 2 shockproof floating blades |
| Cutting width |
78 cm (31") |
| Cutting height |
from 5 to 15cm continuously and rapidly adjustable by means of a crank lever |
| Peripheral blade speed |
74 m/s |
| Differential locking |
Manual engaged differential lock |
| Drive wheels |
4 ply tractor wheels (4.00-8) |
| Front wheel |
8x3.00-4 puncture-proof wheel |
| Speed |
Continuously variable from 0 to 6 km/h, reverse gear from 0 to 3,5 km/h |
| Parking brake |
Differential with locking device by lever action |
| Handlebar |
by means of a rapid height and lateral adjustment |
| Mowing capacity per hour (indicative) |
2500 m2/hr |
| Length |
2150 mm |
| Width |
845 mm |
| Height |
1050 mm |
| Weight |
140 kg |
| Item no |
8Y17R |
