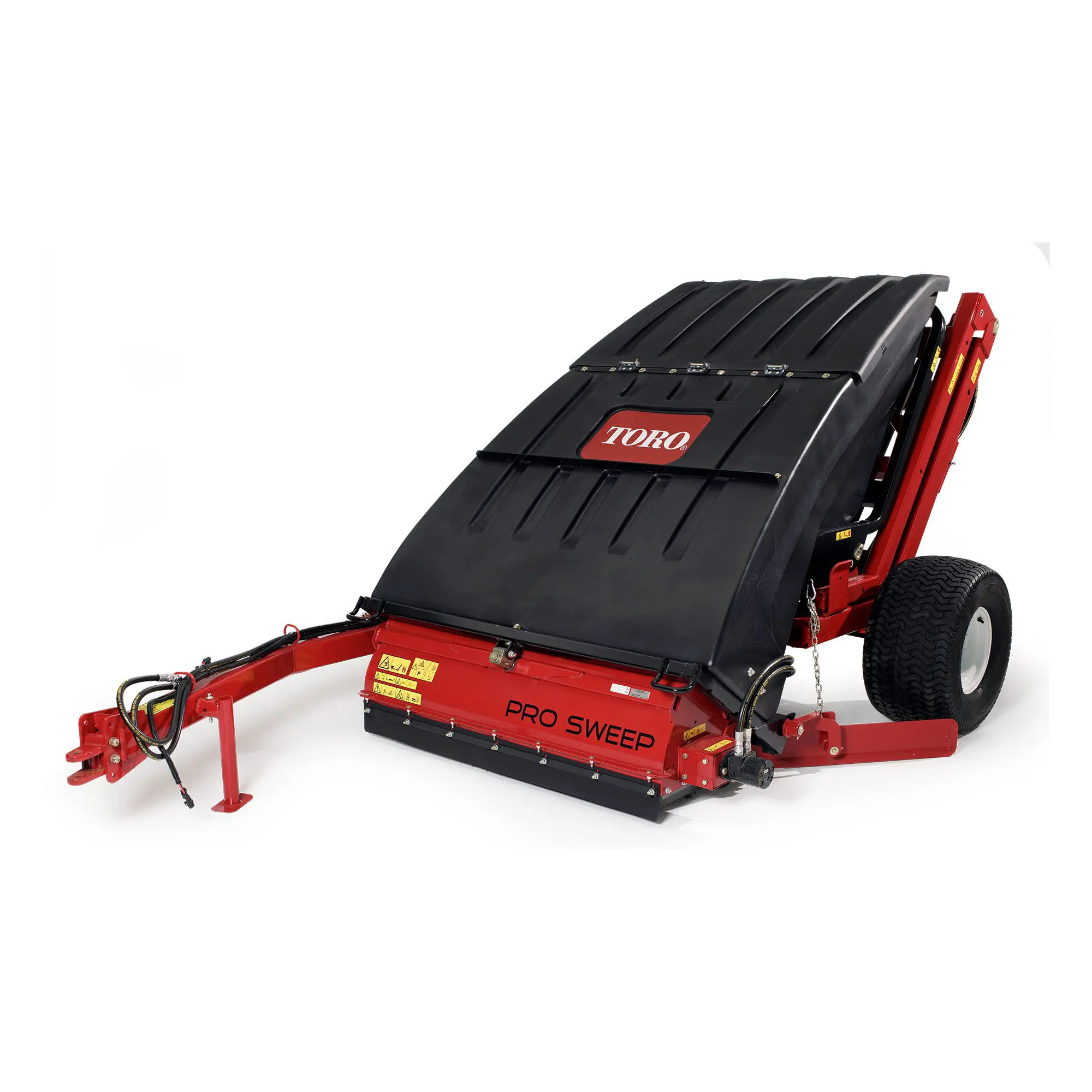

Toro Pro Sweep 5200 Tow-behind Turf Sweeper

Model: 07068
Toro

Toro Pro Sweep 5200 Tow-behind Turf Sweeper

Model: 07068
Toro

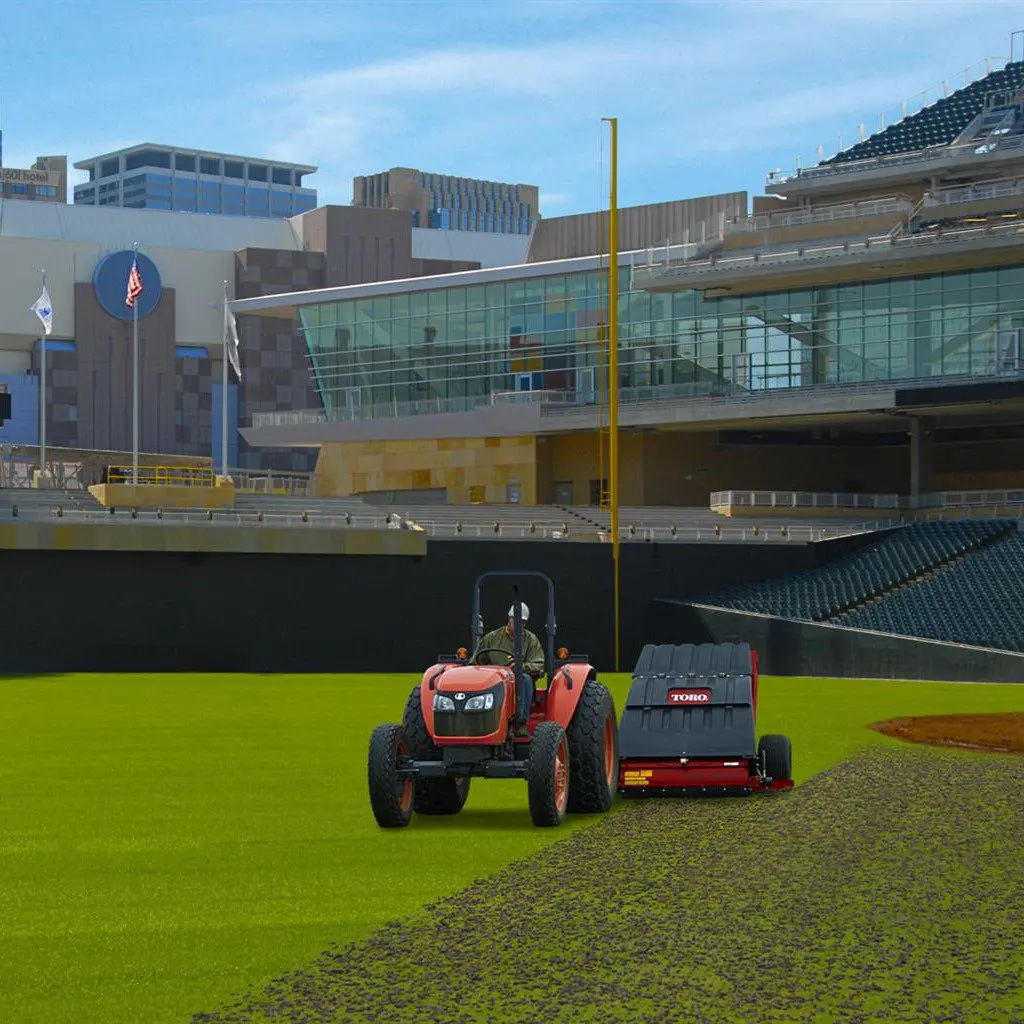

The TORO Pro Sweep is a productive tow-behind turf sweeper that easily collects cores, grass clippings, leaves and other turf debris. Faster and more effective than traditional methods of collecting cores and debris, the Pro Sweep sweeps greens, sports fields or any turf clean. If you’re looking to bring efficiency into your turf sweeping process, and return to play sooner, invest in a TORO Pro Sweep.

  • Operated with a handheld wireless RF remote to control sweeping & dumping
  • Great for golf courses, sports fields and parks.
  • Adjustable roller height for specific turf application
  • High-lift dump
  • Floating brush housing

Aerating is good for the health of your turf, just like sweeping up aeration cores faster is good for your productivity. The Pro Sweep is engineered to whisk away cores, sand and other debris more effectively than the competition, which means your course or sports field will be back in play almost as quickly as you’re able to pull cores.

The Pro Sweep is faster than traditional methods of collecting traditional aeration cores and other turf debris and is a quality collection option to save time, labour, expense and return the course to play faster. The Pro Sweep comes with a handheld wireless remote that lets you control sweeping and dumping operations with the touch of a button. It also lets you move the sweeper from tow to offset position, or stop power completely in the case of an emergency.

Fleet Finance & Leasing Options Talk to us today 0800 807 333
Enquire Call 0800 807 333
Talk to a rep Find a Store

Features

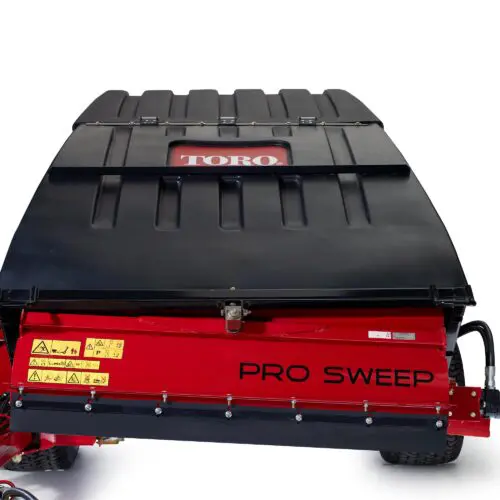

Floating Brush Housing

The exclusive floating brush housing on the Pro Sweep rotates from side to side and front to back, allowing the sweeper to collect cores on uneven terrain.

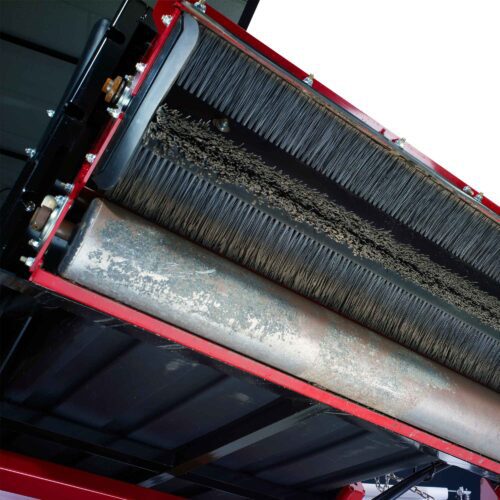

Adjustable Roller Height

The roller height is adjustable to customize for specific turf applications.

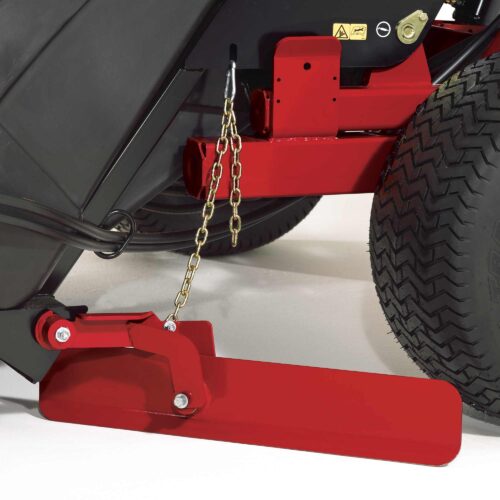

Windrow Blade

The windrow blade directs cores away from the tire so they won't be crushed.

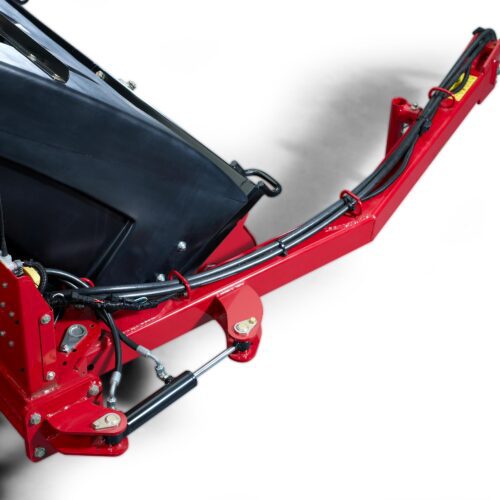

Hydraulic Offset

The standard hydraulic offset allows you to move the sweeper from the hydraulic position to the collection position.

Pivoting Sub-Frame

The pivoting sub-frame allows you to maintain positive tongue weight and gives you better traction even when the hopper is filling up.

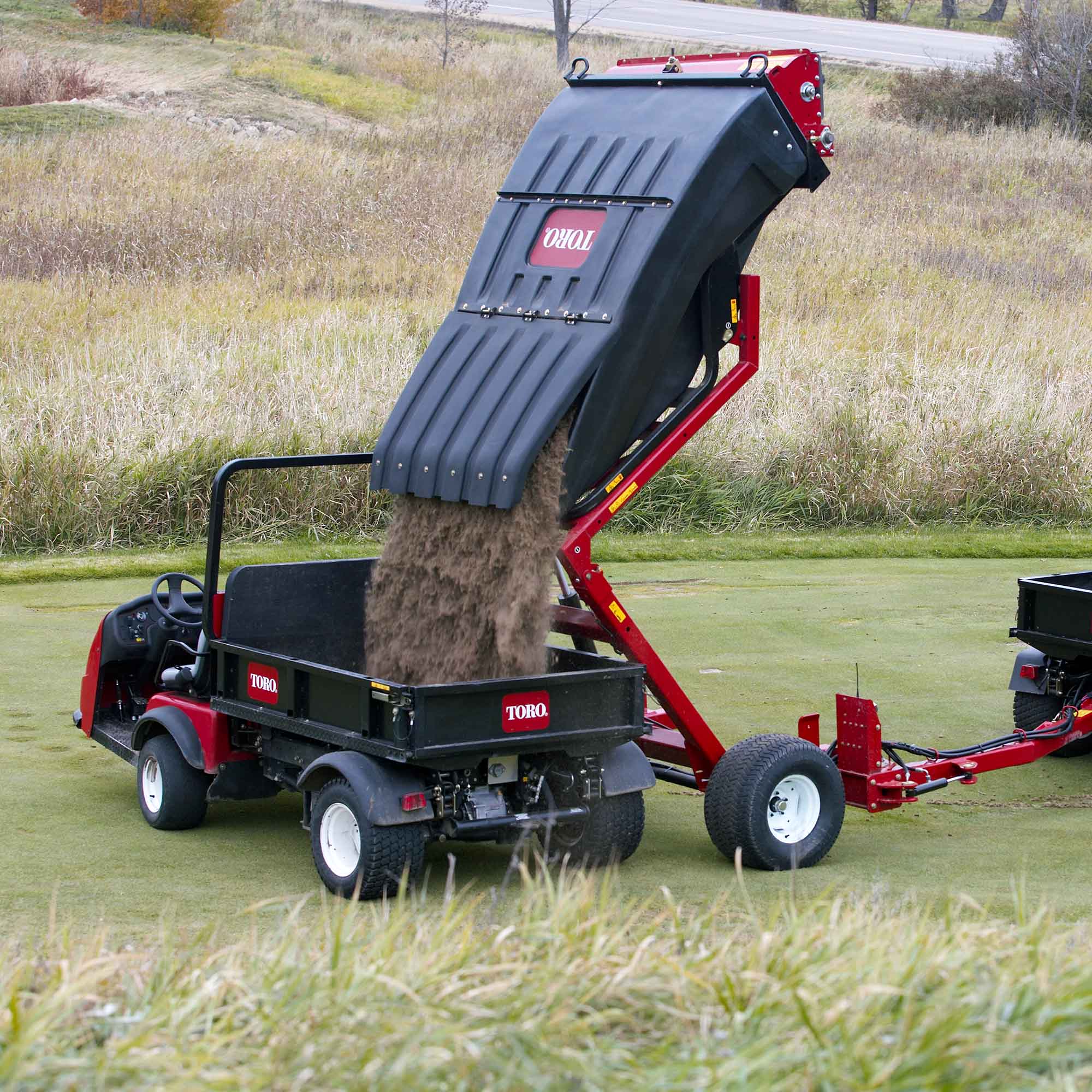

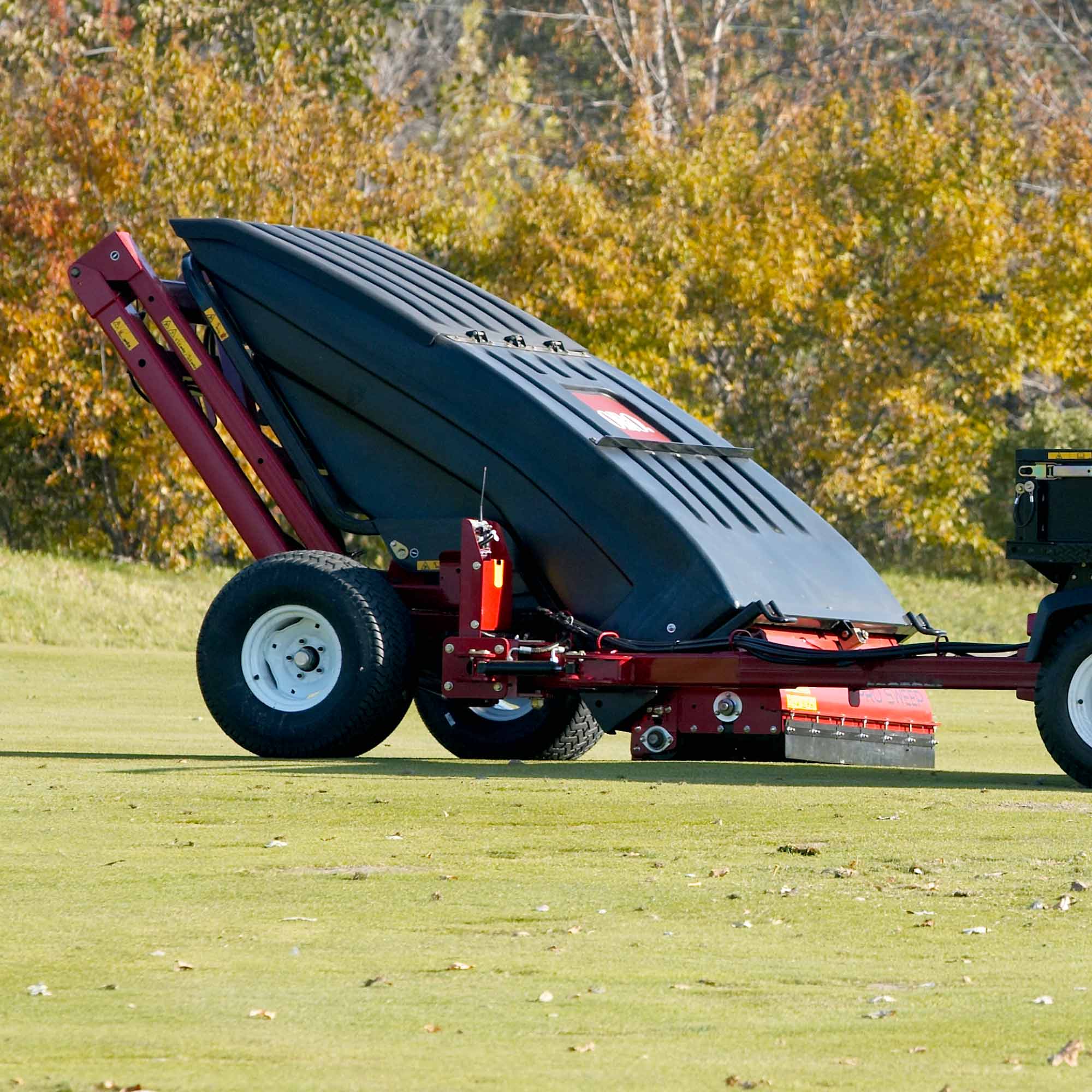

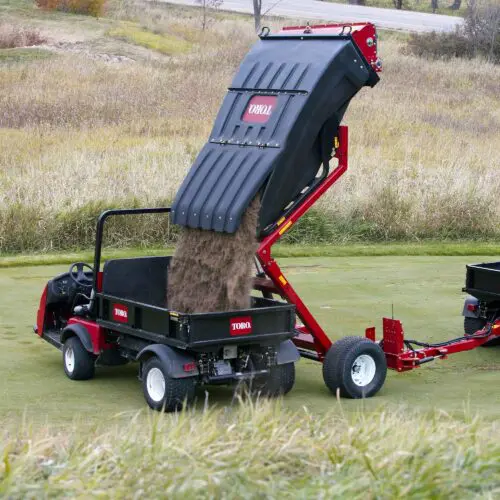

High-Lift Dump

The high-lift dump provides the ability to dump all the cores easily into the bed of a Toro Workman or trailer and empty the hopper completely.

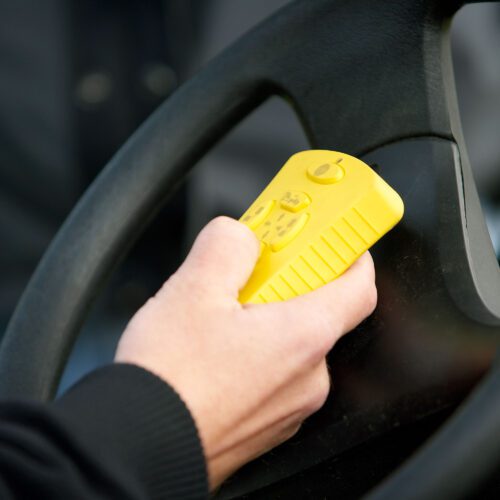

Wireless RF Remote Control

Only the Pro Sweep comes with a handheld wireless remote that lets you control sweeping and dumping operations with the touch of a button. It also lets you move the sweeper from tow to offset position, or stop power completely in the case of an emergency.

Specifications

Collection/Sweeper System Hydraulic-powered rotary brush with floating brush housing. 6" (15.2 cm) diameter full-width roller directly behind rotary brush, adjustable height.
Controls Handheld wireless RF controller provides capability to hydraulically off-set the sweeper from transport to sweep position, raise the sweeper to a turn-around height, and fully raise the sweeper to dump the collected debris.
Debris Product Type Sweeper/Vacuum
Drivetrain PTO
Dump System Hydraulic powered lift cylinder, high lift.
Ground Speed Forward sweeping speed 0 - 4 mph (0 - 6.4 km/h), infinitely variable (recommended speed 3 mph (4.8 km/h). Forward transport speed with hopper in transport down position 0 - 15 mph (0 - 24 km/h).
Height 68" (173 cm)
Length 145" (368 cm)
Width 87" (221 cm)
Weight 1,512 lbs. (686 kg) empty.
Hitch 0.75" (1.9 cm) hitch pin with safety linchpin.
Hopper Design/Capacity 25 cu. feet (0.708 cu. meters)
Hydraulic Connection 8 gpm (30.3 liters/min.) @ 2000 psi max (3600 rpm high idle), dual quick couplers with 2-hose connection, dash-mounted ON/OFF switch.
Main Frame/Chassis Steel frame.
Operating Width (Working Width) 52" (132 cm)
Optional Accessories Wheel scrapers
Power Requirements Utility vehicle with 8 gpm (30.3 liters/min.) @ 2000 psi, or tractor with a minimum of 25 hp (18.6 kW). Workman® HD Series vehicles require the high-flow hydraulics kit.
Tires 26.5 x 14 - 12 (67.3 x 35.6 - 30.5 cm)
Tongue Weight Pivoting sub frame allows for positive tongue weight.
