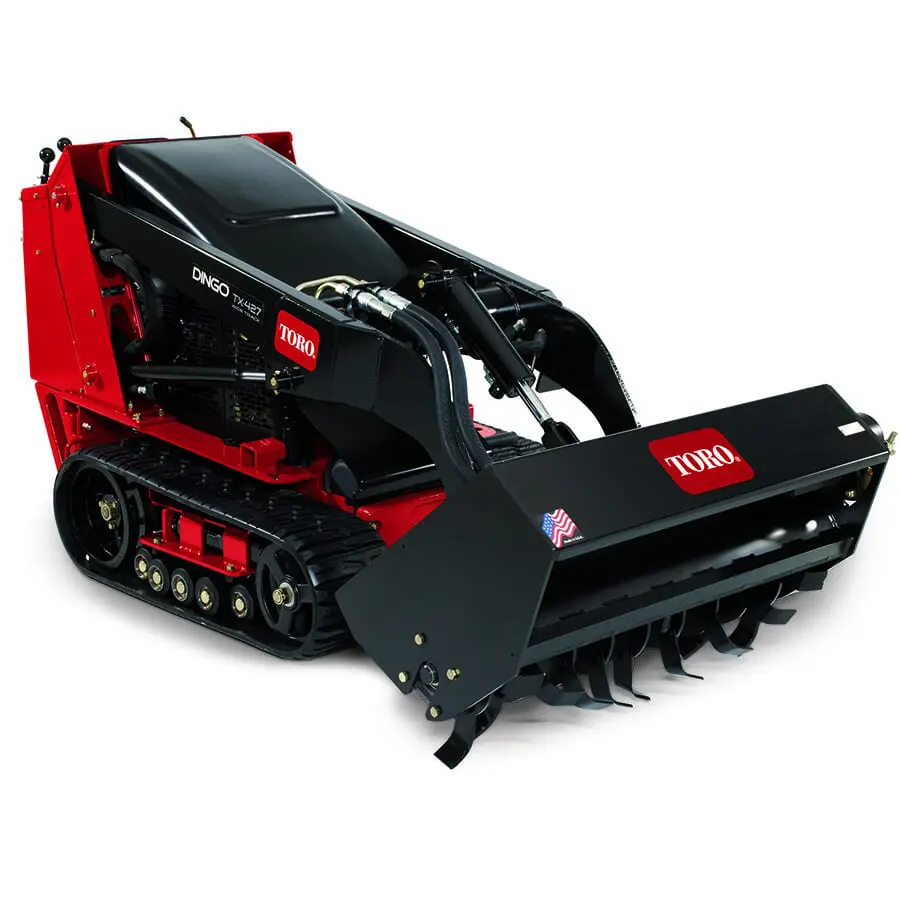

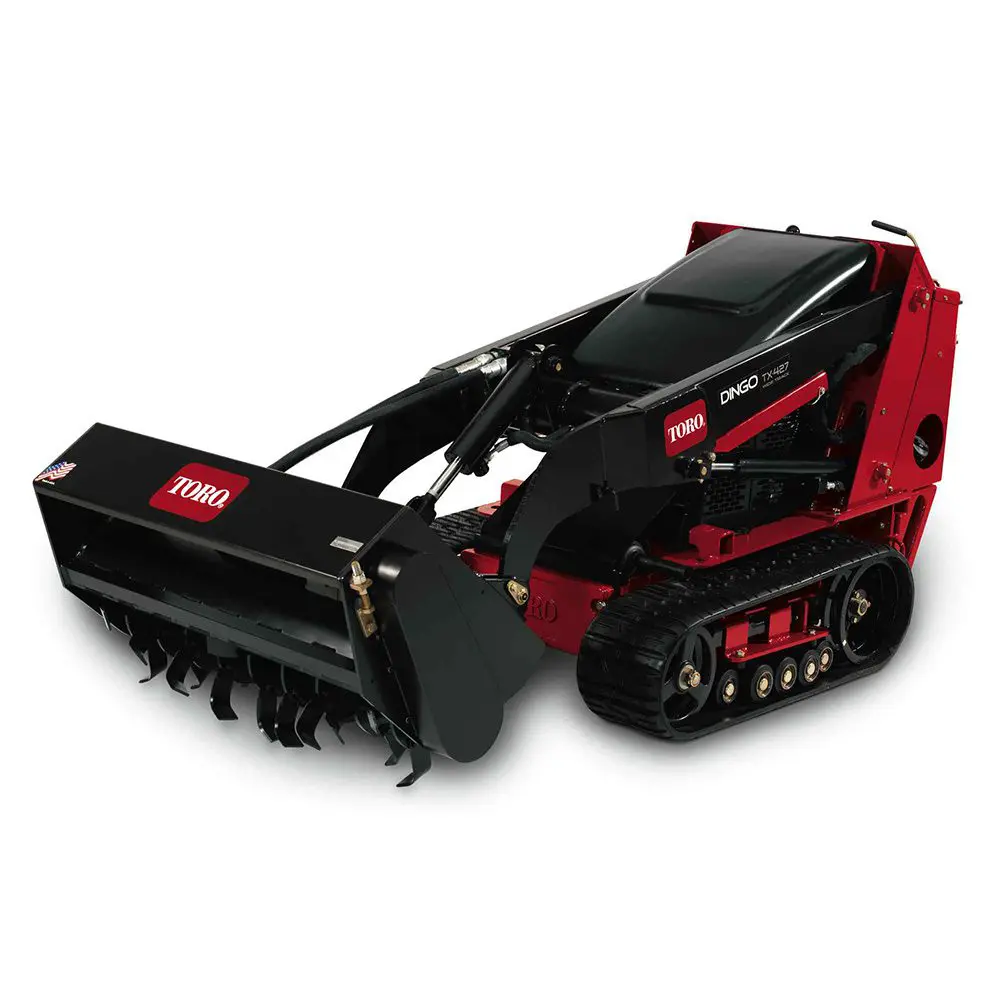

Toro Traxmaster 427 Wide Track Compact Utility Loader

Model: 22322
Toro

Toro Traxmaster 427 Wide Track Compact Utility Loader

Model: 22322
Toro

Toro TX 427 Traxmaster compact utility loaders possess the versatility to handle countless jobs on every site: dig, haul, plant and build. The TX 427 can provide a low 3.4 psi ground pressure (wide track model) which is easy on turf. Designed with workers in mind, all of its power is harnessed in only 3 easy to use controls, which makes it simple for any worker to step up and be productive immediately.

The TX 427 Traxmaster compact utility loaders feature a 243kg rated operating capacity (35% of tip capacity) and a 27-hp Kohler gasoline engine that delivers added torque for increased pulling and digging force. The narrow track version is 233.7 cm in length with bucket and a 85.6 cm width. Also available with a wide track option and customised fuel choice.

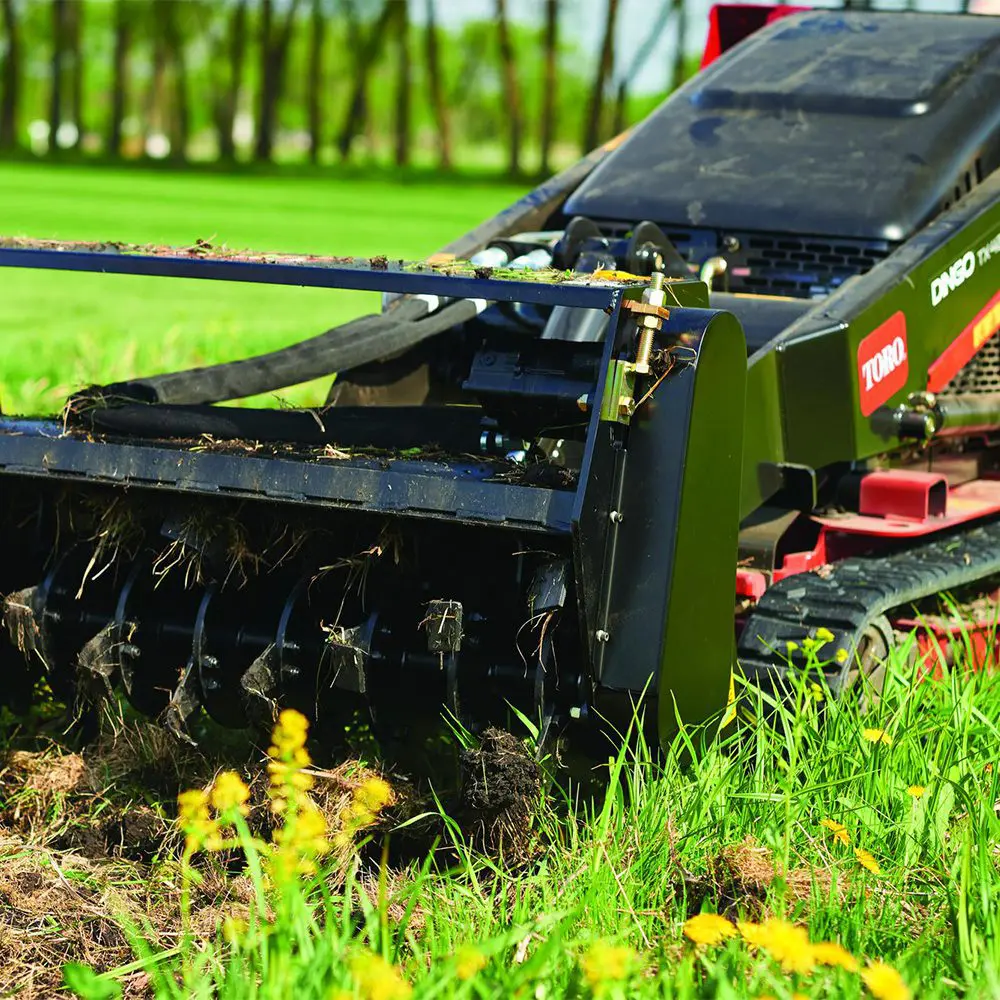

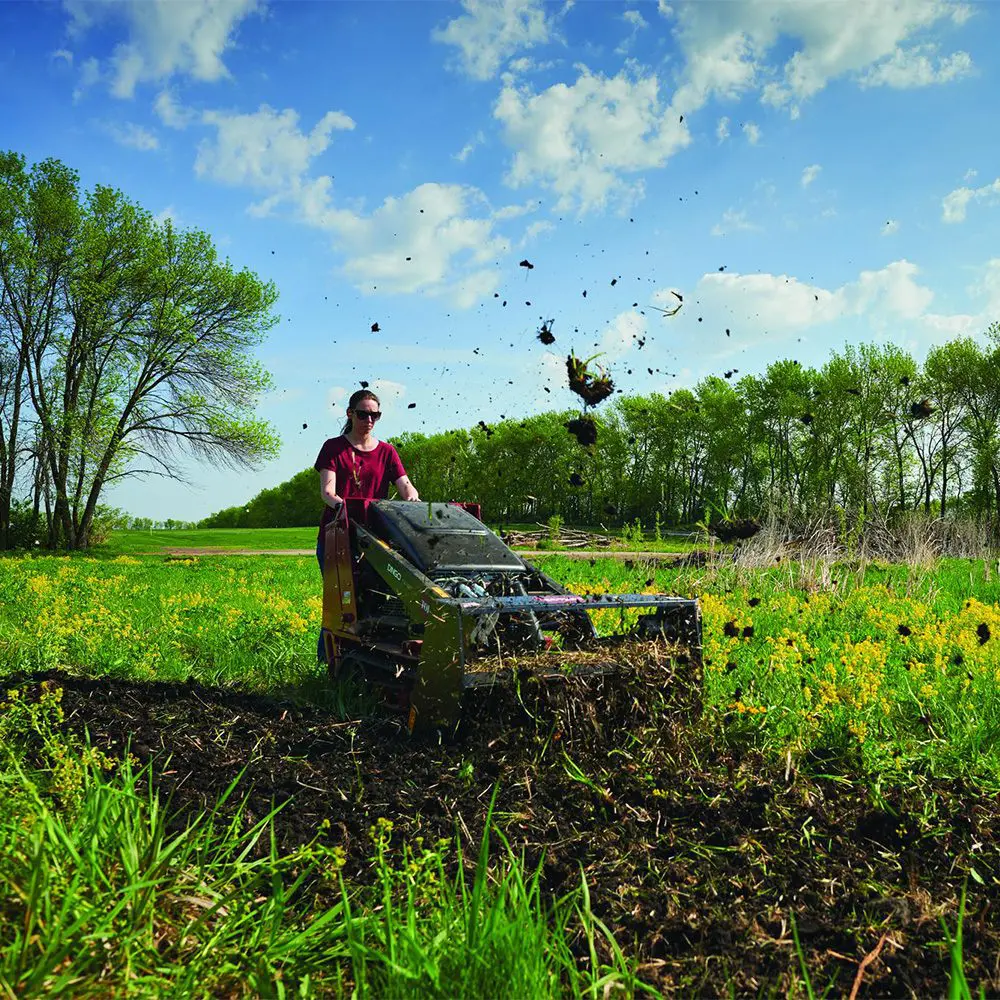

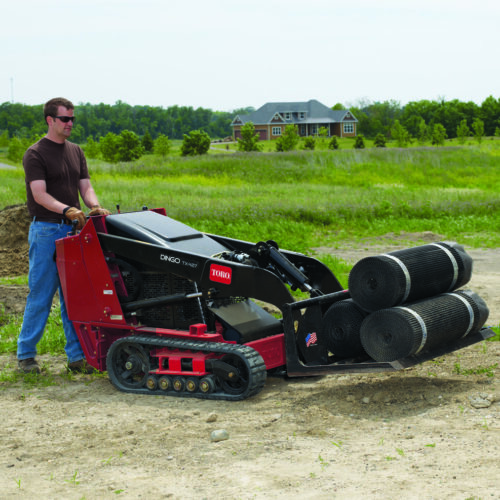

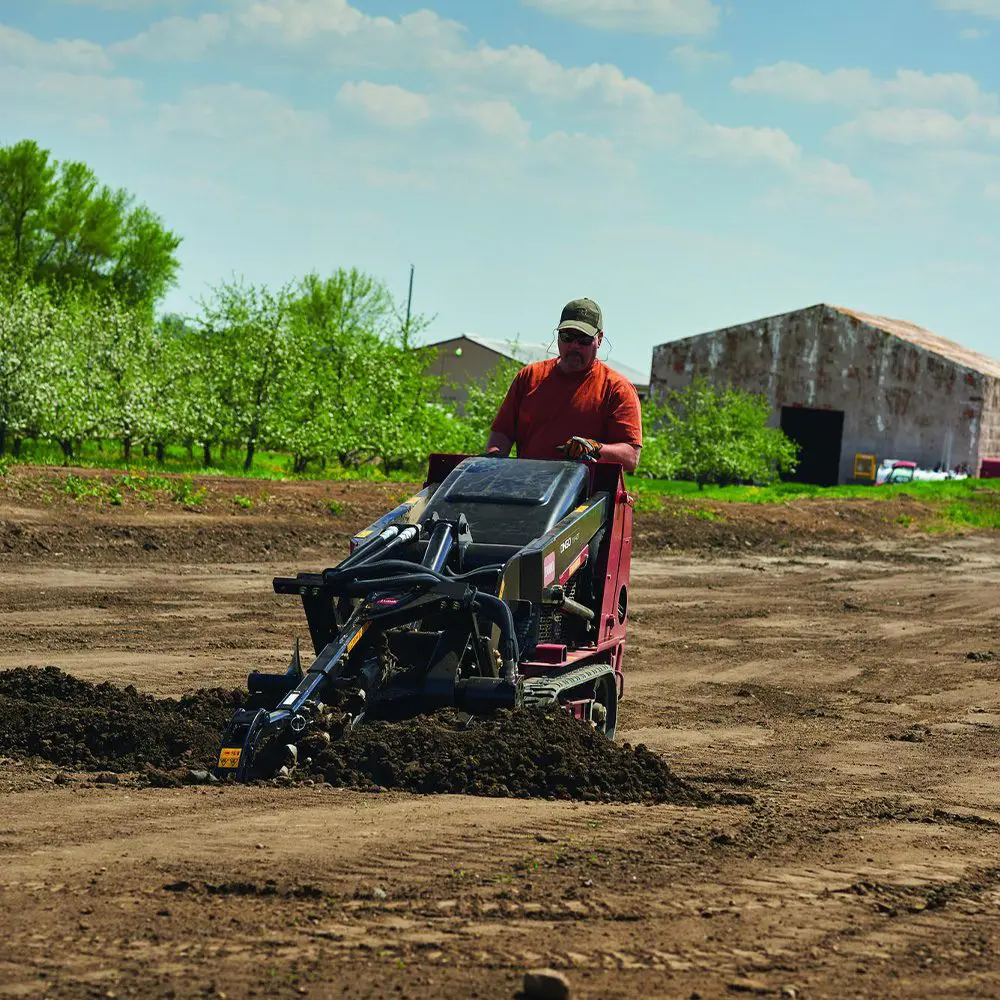

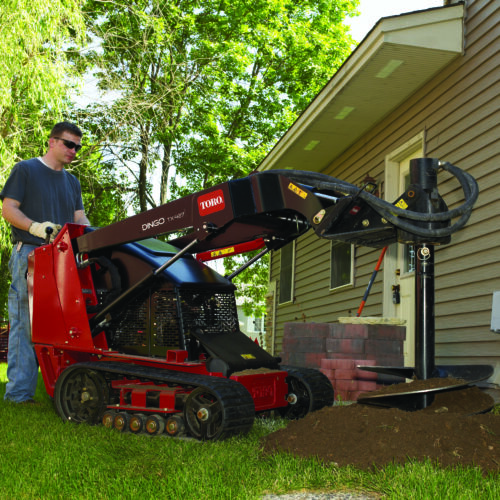

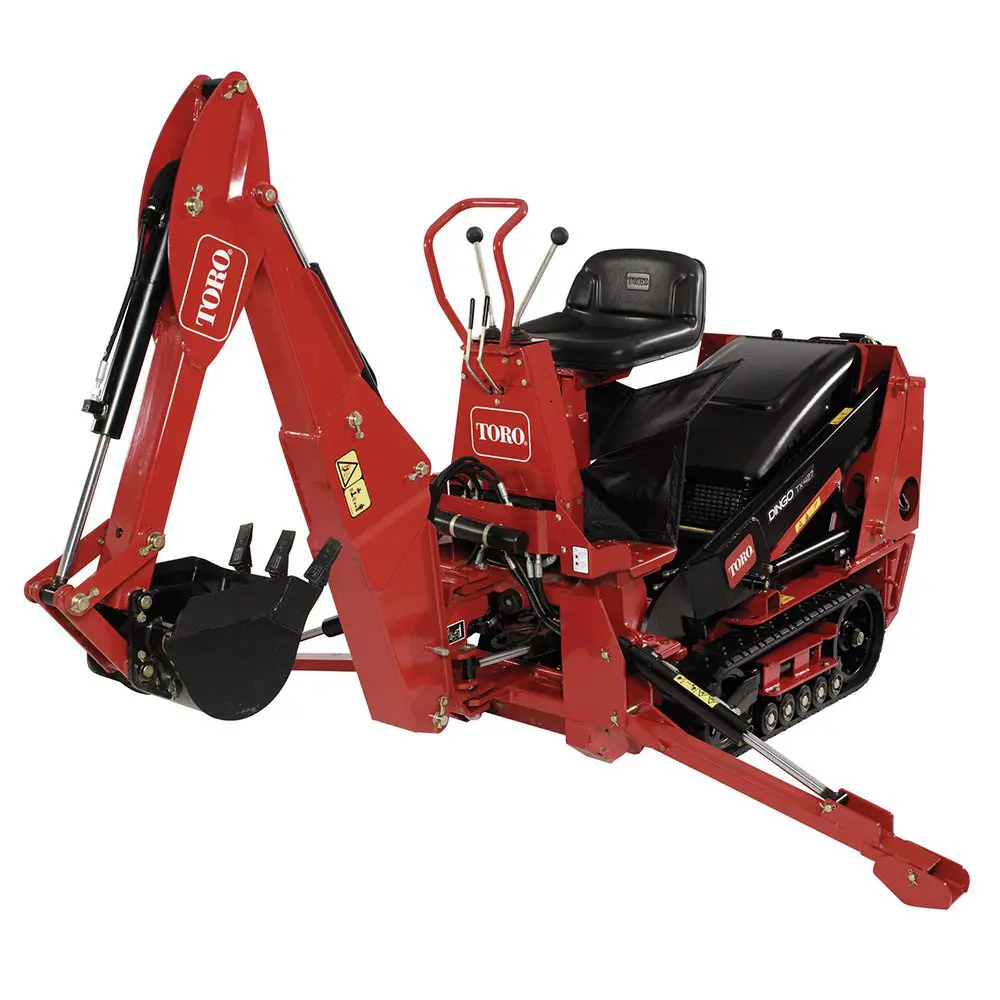

The following attachments are available: High-speed trencher, High Torque trencher, 4-in-1 narrow or wide buckets, Leveller, Vibratory Plow, Hydraulic Blade, Power Box Rake, Soil Cultivator, Multi-Purpose Tool, Tree Forks, Bore Drive Head & Rod & Reamer Kit, Buckets, Tiller, Stump grinder, Trench filler, Backhoe, Hydraulic Breaker, Grapple Rake, High-Torque Auger Power Head, Adjustable Forks, Cement Bowl, Universal Swivel Auger Power Head.

  • Easy to use controls
  • Compact size
  • 4-Pump hydraulic system
  • Reinforced tracks
Fleet Finance & Leasing Options Talk to us today 0800 807 333

Features

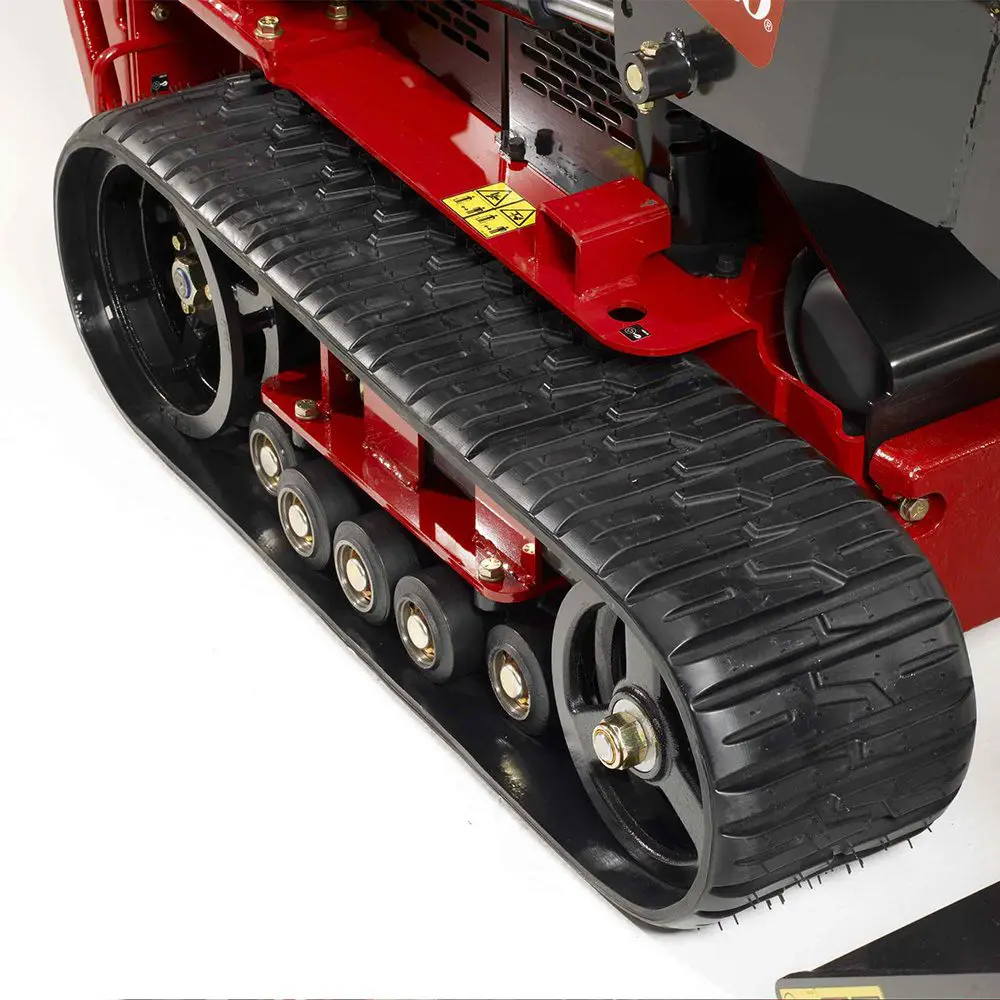

Low Impact Footprint

Long-lasting, aramid reinforced tracks disperse weight evenly for a light footprint on tur, while delivering better traction in sandy or wet ground conditions.

4-Pump Hydraulic System

4-pump hydraulic system lets you simultaneously operate the loader, bucket, traction, and auxiliary drives for increased operator efficiency. This system directs hydraulic power precisely where you need it!

Air-Cooled Petrol Engine

A 27 hp (20 kW) Kohler® engine provides the necessary power to drive any one of the multitude of Toro attachments available for the Dingo TX.

Exclusive TX Track Drive

Low centre of gravity and large footprint increase stability on side hills and provide smooth operation over rugged terrain; eliminates tyre ruts and flat tyres.

Simple Controls

Three simple controls let operators get to work fast.

Specifications

Air Filter Two-stage, heavy-duty, remote
Cooling System Air Cooled
Displacement (cc) 725
Displacement (cu. in.) 44
Dump Angle 38-degree
Dump Height (cm) 117
Dump Height (inches) 46.1
Engine Make Kohler
Engine Model Command Pro Series CH 740
Fuel Tank (gallons) 6
Fuel Tank (liters) 23
Fuel Type Petrol
Ground Clearance (cm) 11.6
Ground Clearance (inches) 4.6
Ground Pressure 0.7 bar (5.0 psi)
Ground Speed Forward (mph) 4.5
Ground Speed Foward (km/h) 7.2
Ground Speed Reverse (km/h) 3.2
Ground Speed Reverse (mph) 2
Hinge Pin Height (cm) 167.1
Hinge Pin Height (inches) 65.8
Hydraulic Flow Auxilary 11.4 gpm
Hydraulic Flow Traction 16.9 gpm (each pump)
Loader Arms Radial
Manufacturer's Gross HP Rating (HP) 25
Manufacturer's Gross HP Rating (kW) 18.6
Max Operating Height (cm) 228.9
Max Operating Height (inches) 90.1
Oil Capacity (liters) 2.95
Oil Capacity (quarts) 2
Overall Height (cm) 104.1
Overall Height w/o bucket (cm) 117
Overall Length w/bucket (cm) 233.6
Overall Length w/o bucket (cm) 179.5
Overall Width (cm) 104.1
Rated Operating Capacity - 35% of Tip Capacity (kg) 535
Reach – Fully Raised (cm) 55.3
Reservoir Capacity (liters) 37.8
RPM 3600
Track Length (cm) 245.3
Track Width (cm) 24.1
Tracks Sprocket-drive, 10 road wheels per side
Traction Dual Hydrostatic Pump
Weight (kg) 902
