Toro TurfMaster® 76cm (30") Lawn Mower with Casters

Model: 22236
Toro

Toro TurfMaster® 76cm (30") Lawn Mower with Casters

Model: 22236
Toro

The power and durability of the TurfMaster now comes with enhanced maneuverability of a front caster set-up. Navigate the efficiency of a 30” deck into tight areas on the job site. Locking casters will help the operator hold hillsides along with keeping straight finished cut lines. Durability was the focus of the design with aggressive caster forks and 2-point height of cut controls. The operator will see a significant update in mobility with the same cut and durability they would expect out of the TurfMaster.

  • Caster wheel front end set up – Locking capability to aid with holding straight lines
  • Reduced Refills – Less time refueling with the 1-gallon gas tank.
  • Toro Tough – Rubber tires with co-polymer wheels and ball bearings.
$7,200 incl. gst
or $ per week*
*Based on $1,440 deposit, an indicative interest rate of 9.9% p.a over 4 year(s). Calculate for more details.

2 in stock

Enquire

Features

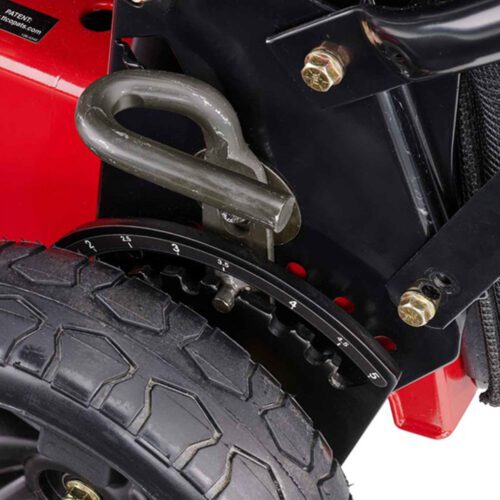

Close-up of Toro mower's caster wheel adjustment mechanism and tire, showcasing durability and design features

2-Point Height of Cut

Heavy-duty 2-point height of cut (HOC) system makes it easy to adjust deck height. No need to walk around the mower to adjust four different levers.

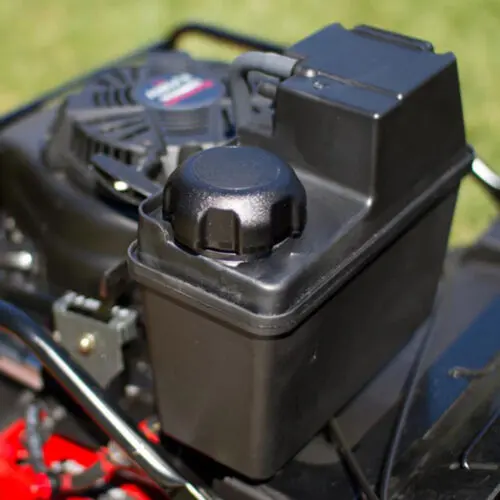

Close-up of a black fuel tank on a lawn mower engine, showcasing its design and functionality

Large 1-Gallon Gas Tank

A larger gas tank means longer mowing time between refueling.

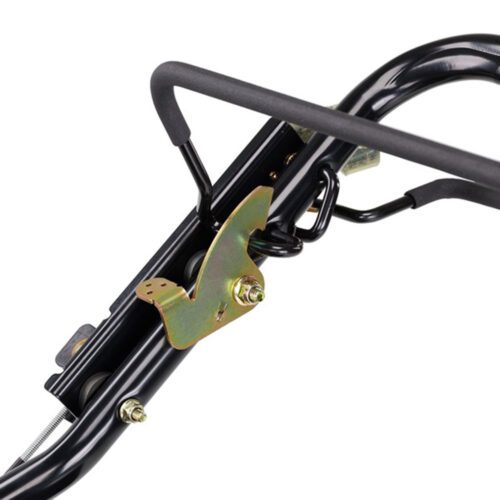

Close-up of the mower's handle assembly showcasing locking mechanism and sturdy construction

Blade Brake Clutch (BBC)

Allows the operator to disengage the blades without shutting down the engine. Saves time restarting when you have to step away momentarily to move obstacles or empty the bag.

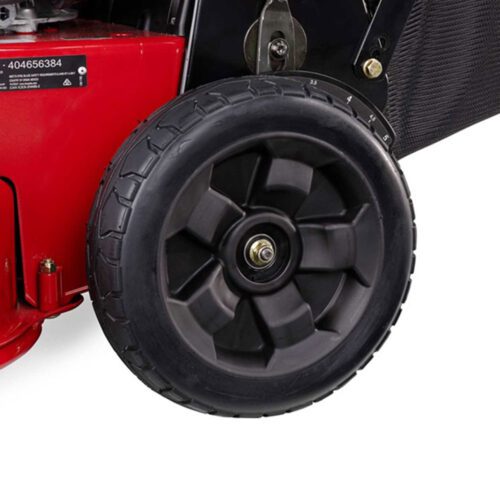

Close-up of a Toro lawn mower's front caster wheel, showcasing its durability and maneuverability features

Commercial-Grade Wheels

Rubber tires with co-polymer wheels feature precision ball bearings for long life with less downtime and lower replacement costs.

Specifications

Bagger Capacity 2.5 bushels

Blade Design 0.135 in. / 0.343 cm Thick Steel

Blade Engagement Blade Brake Clutch (BBC)

Blade Tip Speed 18,000 ft/min / 5,486 m/min

Box Dimensions 41.75 in x 33 in x 26 in / 106.0 cm x 83.8 cm x 66.0 cm

CARB Compliant CARB Compliant

Deck Material 13 Gauge Steel Deck / Cast Aluminum Frame

Deck Size 76 cm (30")
Engine Kohler CV224 Command Pro 224 cc

Engine Brand Kohler

Engine Displacement (cc) 224 cc

Forward Mowing Speed Up to 4.0 mph / 6.4 kph

Fuel Capacity 1 gal. / 3.8 L / 4 Qt.

Fuel Type Gasoline

Height of Cut 1.5 - 5.0 in. / 3.8 - 12.7 cm in 0.50 in (1.3 cm) increments

Mulch, Bag, Side Discharge Bag standard, Mulch standard, Side discharge standard

Number of Blades 2

Product Type Walk Behind Mowers

Product Use Commercial
Spindle Housing Die Cast Spindle, 17 mm Cold Formed Spindle Shafts

Start Type Pull Cord

Tires Front: 9 in. x 2 in. (22.8 cm x 5.0 cm) Rubber Tire w/Co-Polymer Caster Wheels

Rear: 10.5 in. x 3 in. (26.6 cm x 7.6 cm) Rubber Tire w/Co-Polymer Wheels
Transmission Heavy Duty Self-Propelled

Weight 195 lbs / 88.5 kg

Brochures, Parts & Manuals

Parts Search

You will need your Serial # to search for Parts, Manuals, Accessories, Specifications and Product Details on Toro.com .

ToroParts for Model: 22236 Need Help? Contact Us

Frequently Asked Questions

How can mulching improve my lawn’s soil and reduce water usage?

Mulched grass clippings improve soil structure by adding organic matter, which enhances the soil’s water absorption by up to 12%. This means less water is needed to keep your lawn healthy, making mulching a great choice in areas with water restrictions. Toro mowers with Vortex Technology increase airflow to the deck, ensuring clippings decompose quickly and effectively.

How does mulching help control weeds?

Mulching with Toro’s Recycler® Technology creates a natural barrier that helps prevent weed seeds from reaching the soil, reducing the chances of weed growth. Regular mulching also promotes thicker, healthier grass, which can outcompete weeds, further minimizing their spread​.

NOTE: If your lawn already has large sections of weeds, mulching could inadvertently spread weed seeds. In such cases, it’s better to bag the clippings to avoid spreading those weeds to other areas. Once the weeds are under control, you can return to mulching to promote a healthier lawn​.

What are the benefits of using a mulching mower, and how does it improve lawn health?

Mulching mowers, like those from Toro, help recycle grass clippings back into your lawn, providing nutrients and reducing the need for fertilizer. Studies show that mulched clippings can reduce nitrogen fertilizer usage by up to 50% since the nitrogen from the clippings is slowly released back into the soil. Toro’s Recycler® Technology finely chops the grass, creating “Lawn Vitamins” that naturally enrich your lawn’s soil​.
