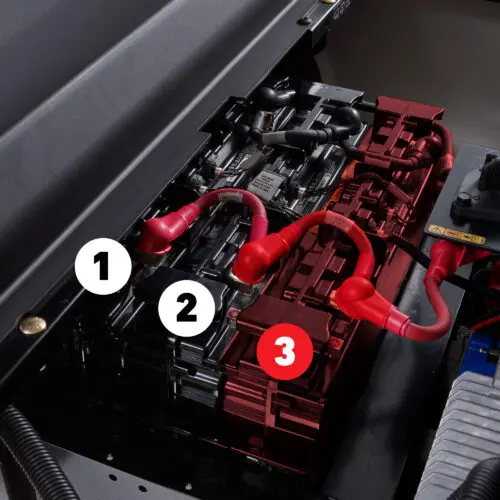

Battery | Two HyperCell lithium-ion batteries standard, option to add an additional battery
|
Charger | On-board high efficiency 900W smart charger
AC input voltage 100-240VAC
AC input Frequency 50/60 Hz
Max input Current 13.4 A |
Electric Motor | Brushless high-torque AC Induction Motor with 5.0 kW continuous power
|
Frame | Welded steel with A-coat primer and powder coat
|
Fuel / Power Source | Battery |
Gauges/Instrumentation | Display: Battery level indicator, estimated charge time, gear indicator, speedometer, diagnostics/fault codes.
Dash: USB power port, headlight switch, on/off/neutral ignition key switch, forward/reverse switch, horn switch, turn signal switch (optional), hazard switch (optional), beacon switch (optional), two-cup holders, storage compartments. |
Ground Clearance | 8.5” (21.6 cm) at the front with no operator
6.2” (15.7 cm) at the rear with no operator |
Ground Speed - Forward | 16 mph standard (25.75 km/h), adjustable from 5-19 mph (8-30.58 km/h)
|
Height | Without Roof: To top of steering wheel: 47.5” (121 cm)
With Roof: To top of canopy: 73.9” 188 cm) |
Lights | Standard LED Headlights
|
Optional Accessories | Canopy, folding windshield, turn signals, beacon, side mirrors, rear view mirror, wide angle mirror, wink mirror, cargo bed (light duty). |
Overall Width | 44” (112 cm)
|
Parking/Service Brakes | Service Brake: 4-wheel hydraulic disc
Parking Brake: Foot pedal with accelerator pedal release |
Power Train (Engine Description) | 408cc, air-cooled, single cylinder Briggs & Stratton® EFI gasoline engine
|
Product Length | 140.5” (357 cm) |
Starting | Pedal Start
|
Steering System Description | Rack and pinion
|
Suspension - Front | 4-wheel independent suspension with adjustable coil over shocks
|
Suspension - Rear | 4-wheel independent suspension with adjustable coil over shocks |
Total Vehicle Capacity | 1,520 lbs. (689 kg)
(All totals include 200 lbs. (91 kg) operator and 200 lbs. (91 kg) for each passenger, load, accessories, and attachments.) |
Vehicle Configuration | 6-passenger |
Weight | 930 lbs. (422 kg)
|
Wheelbase | 97” (246 cm)
|
