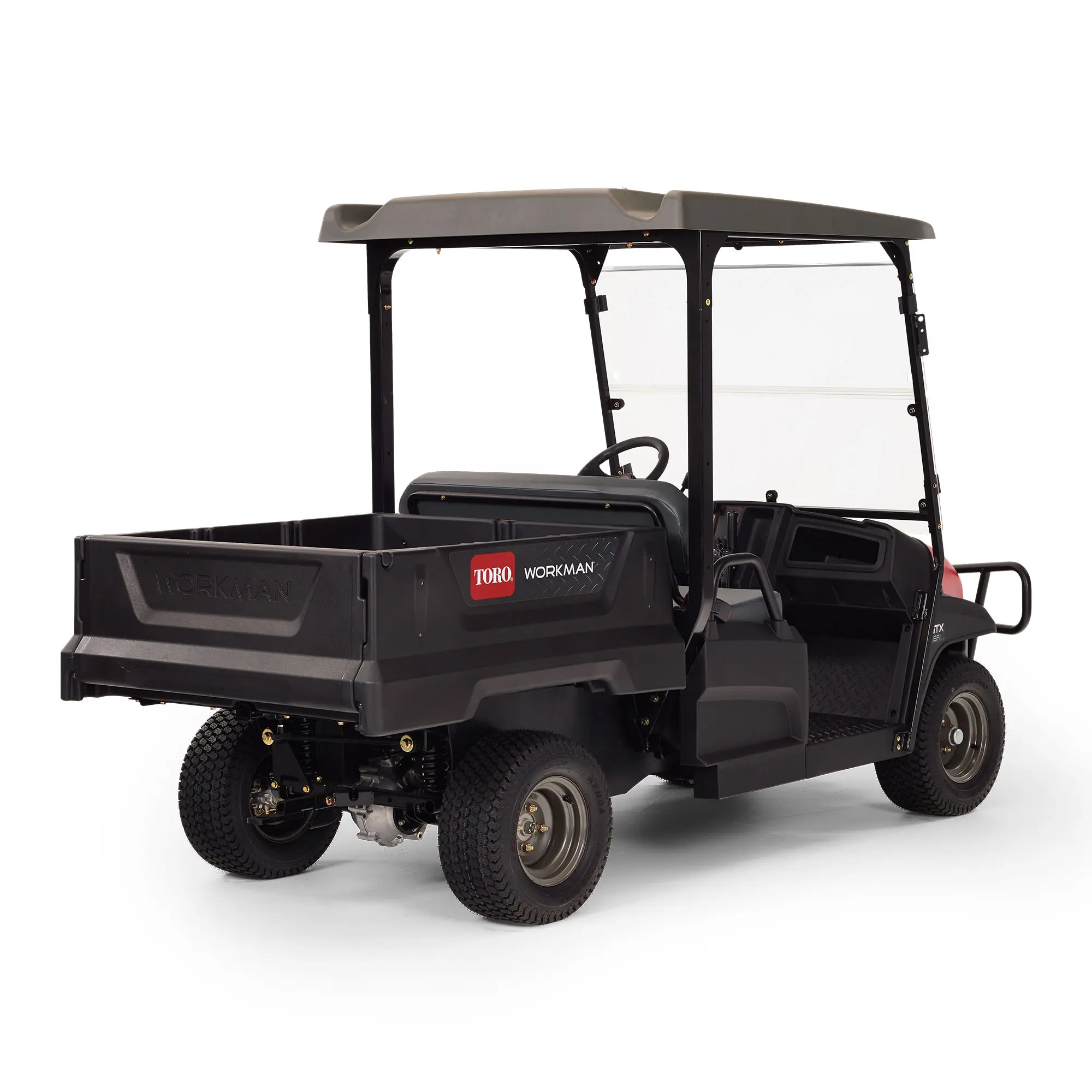

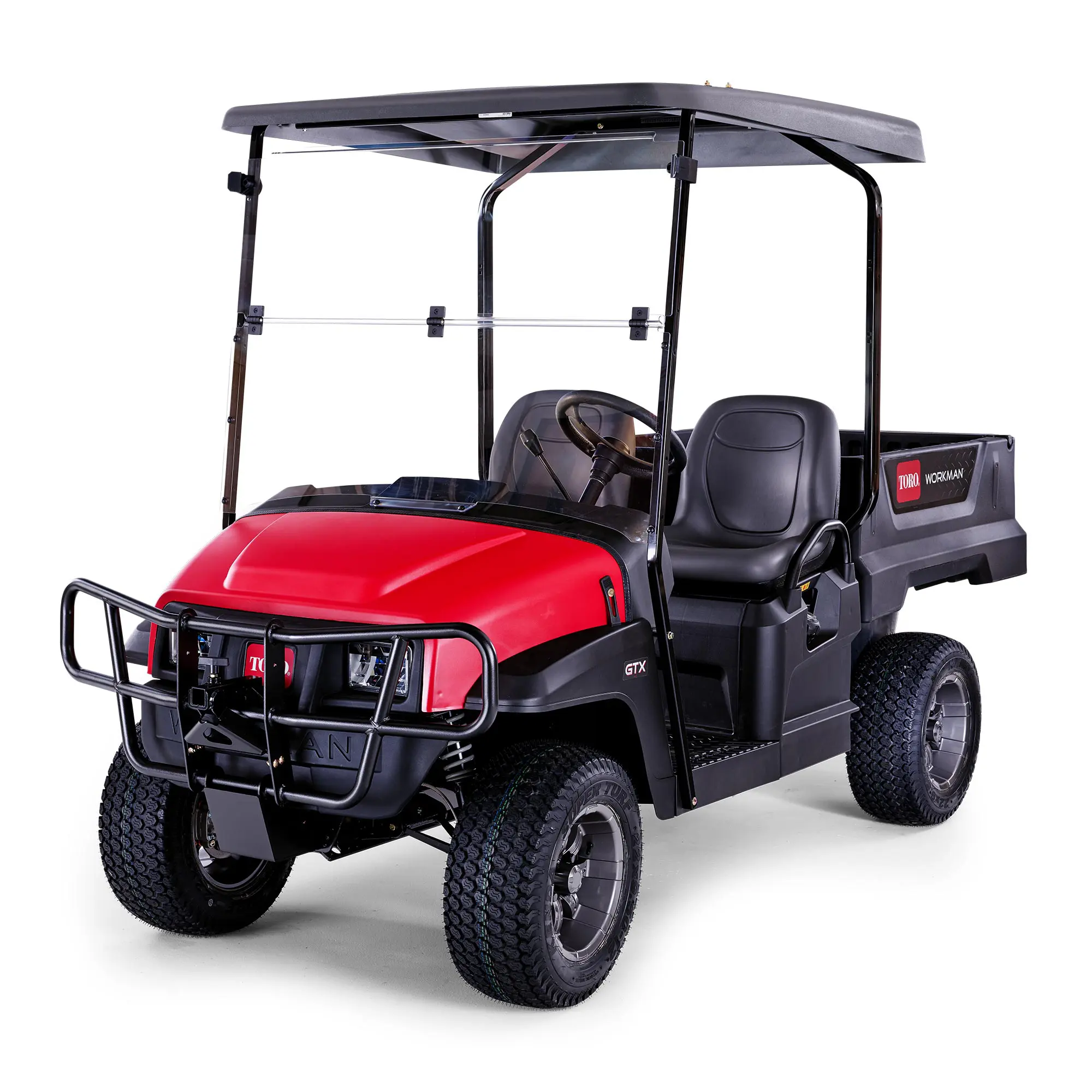

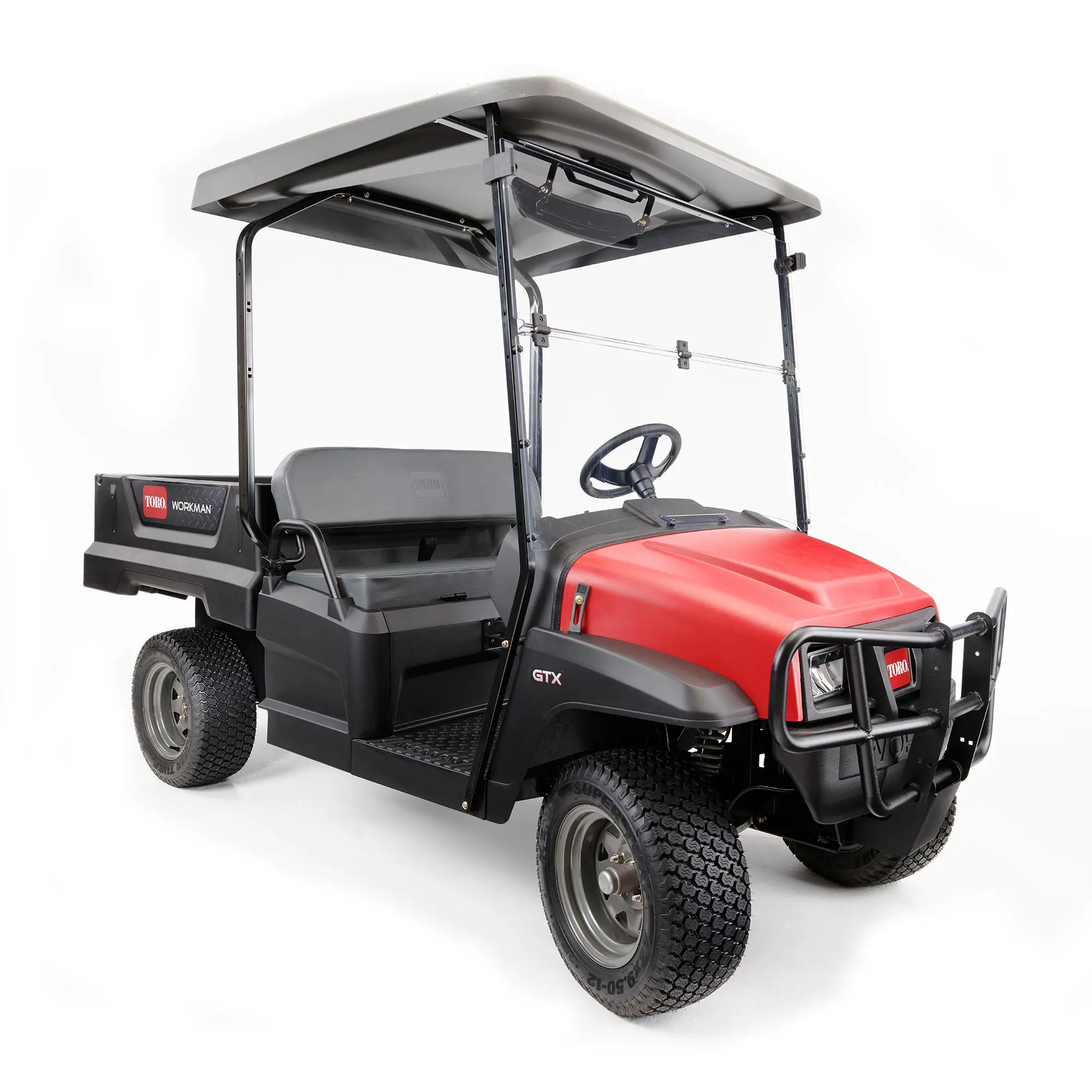

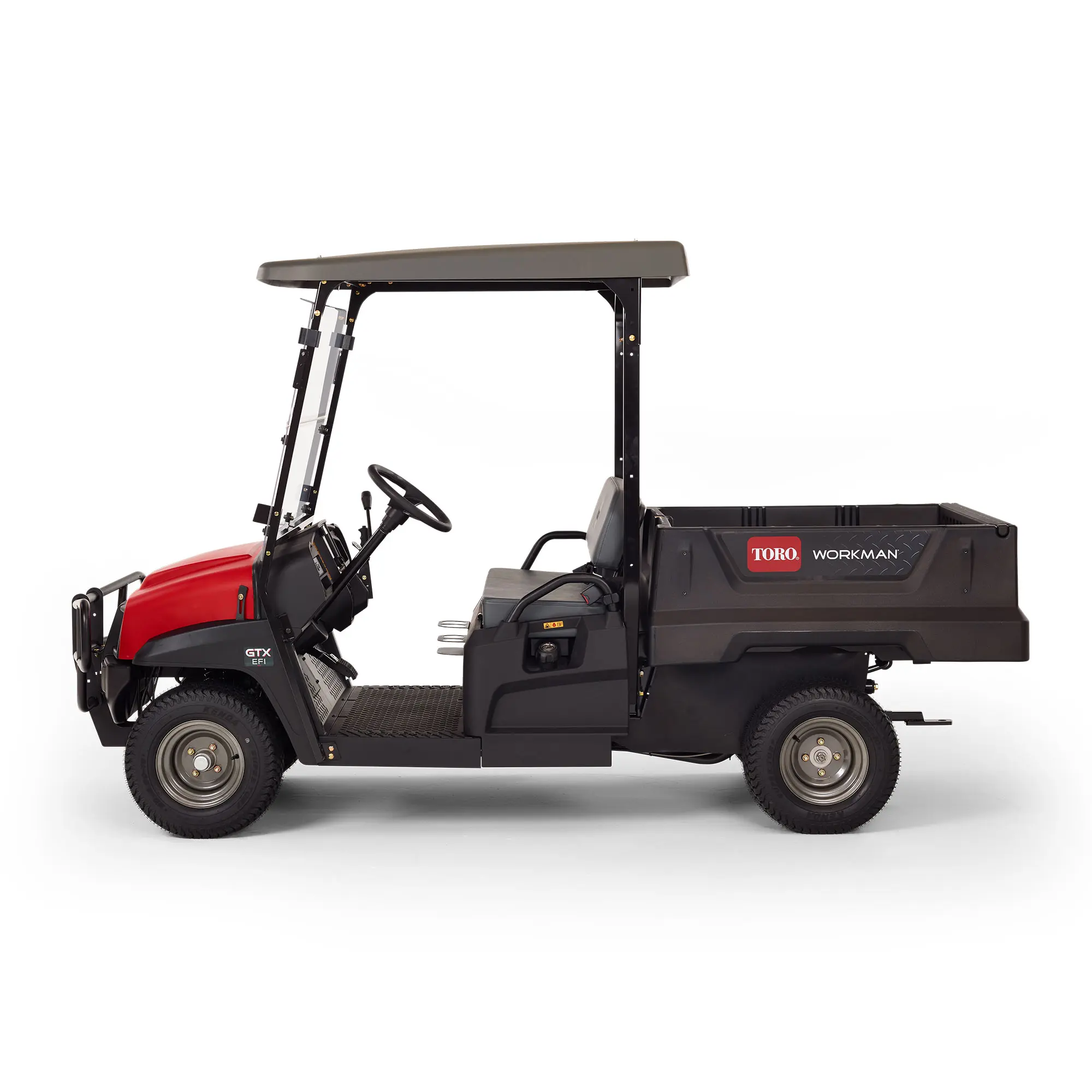

Toro Workman GTX Lifted Utility Vehicle EFI Petrol

Model: 07059TC
Toro

Toro Workman GTX Lifted Utility Vehicle EFI Petrol

Model: 07059TC
Toro

The Workman® GTX Series is a grounds and turf crossover vehicle that boasts an unequalled combination of comfort, utility and control, making it simply superior to the competition. Its increased power, improved steering and exclusive suspension and braking systems make the Workman GTX the most versatile, practical and comfortable utility vehicle in its class.

Available in gas or electric options, the Workman GTX features hundreds of configurable options that include front and rear attachments, a flat bed and four-seat option, to name a few. So whether you are running to different jobs around the property, moving people or materials, or transporting tools to crews that need them, the Workman GTX has the power and versatility to get the job done right.

  • Additional 3″ (7.6 cm) of increased ground clearance, and stylish turf friendly tires with modern aluminum wheels.
  • An improved power to weight ratio boosts payload capacity and productivity.
  • Ergonomically designed steering wheel and intuitive controls that make operation simple and easy.
  • Coil-over shocks on all four tires delivers greater suspension travel and adjustability resulting in a smoother ride and minimized operator fatigue.
Fleet Finance & Leasing Options Talk to us today 0800 807 333

Specifications

Battery One 12V starter battery
Brakes - Front Hydraulic disc
Brakes - Rear Hydraulic disc
Cooling System Air Cooled
Crated Model Yes
Displacement 429cc (26.2 ci)
Drivetrain Gas
Frame Power coated, welded steel channel and tube.
Fuel / Power Source Gasoline
Fuel Capacity 5 gallons (18.9 liters)
Gauges/Instrumentation Hour meter, fuel gauge, USB power port, headlight switch, on/off ignition key switch, gear selector and parking brake lever. Two cup holders, radio holder and three in-dash storage compartments.
Ground Clearance Front: 9" (22.8 cm) Rear: 6" (15.2 cm)
Horn Standard
Inside Turning Radius 60.25" (153 cm)
Lights Standard LED Headlights
Optional Accessories Canopy, solid folding windshield, 4-seat configuration, flat bed, 6-foot flat bed, bed sides, storage box, hose reel mounting bracket, walk spreader carrier, trash can mount, bed racking, electric bed lift, brush guard, 12V outlet, brake/tail/signal light
Power Steering No
Power Train (Engine Description) 429 cc, air-cooled, single cylinder Kohler® EFI gasoline engine.
Rear Draw Bar Standard
Roll-Over Protection (ROPS) Optional
Starting Pedal or Key Start
Steering System Description Rack and pinion system with ergonomically positioned non-adjustable column. Steering wheel has 2.75 turns lock-to-lock with a 13.75" (34.93 cm) diameter wheel.
Suspension - Front Modified MacPherson Strut. Adjustable coil over shocks at all four wheels.
Suspension - Rear Articulating Swing Arm. Adjustable coil over shocks at all four wheels.
Suspension Travel - Front 3.5" (8.9 cm)
Suspension Travel - Rear 4" (10.2 cm)
Tires - Front 20" x 8" - 10", 4-ply. Or alternate 4-ply/6-ply
Tires - Rear 20" x 8" - 10", 4-ply. Or alternate 4-ply/6-ply
Total Vehicle Capacity 1,200 lbs. (544 kg)
Towing Capacity 1,500 lbs. (680 kg)
Traction Drive (System) 2WD
Transaxle 11.47:1 Forward, 14.35:1 Reverse.
Vehicle Configuration Standard
Vehicle Type Light Duty
Wheelbase 86.6" (220 cm)
