Toro Workman® LTX Lithium Lifted Utility Vehicle

Name: Parkland Products
Price range: $$

Model: 07425LT

Toro Workman® LTX Lithium Lifted Utility Vehicle

Model: 07425LT

The next generation of light-duty utility vehicles is here. The new Workman LTX delivers everything you asked for – power, comfort, and elevated design. Powered by the Toro HyperCell lithium battery system, the LTX offers standard height, lifted, or extended models to help you tackle your toughest days. With abundant storage, enhanced options, optimal design, and rugged reliability, you don’t have to choose between strength and versatility. The Toro Workman LTX provides both because your work deserves the best.

Fleet Finance & Leasing Options Talk to us today 0800 807 333

Enquire Call 0800 807 333

Talk to a rep Find a Store

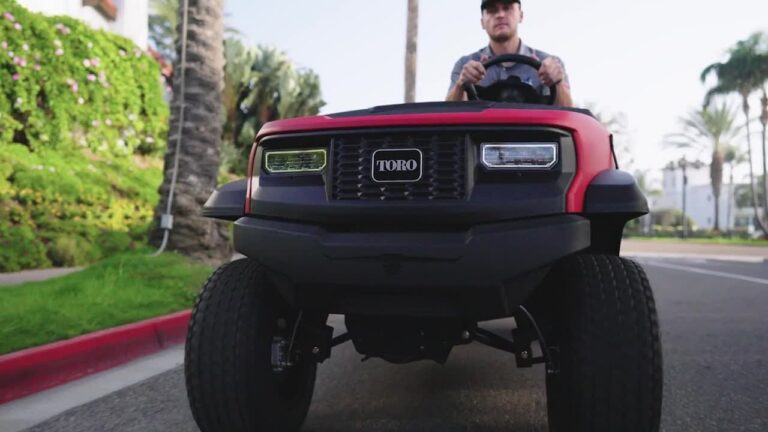

Videos

Features

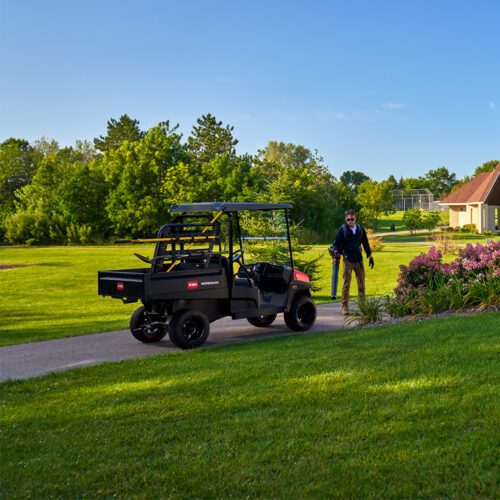

A black utility vehicle parked on a path, with a person walking nearby in a green landscape

Endless Ways to Customize

The Workman LTX gives you the flexibility to tackle any job with dozens of configuration options. Choose standard height or lifted models, extend the bed for additional hauling, or add an additional row of seats for more passengers. With accessories to match, you can make your office on wheels your own.

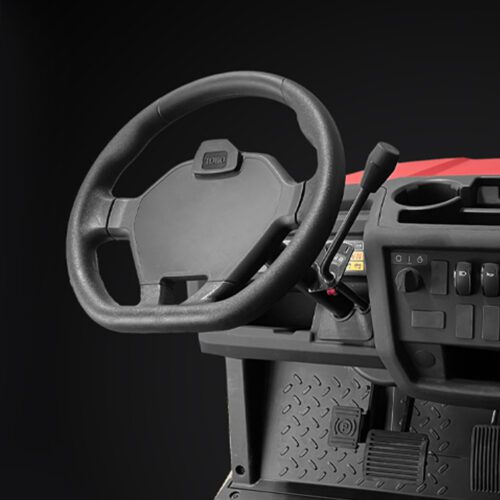

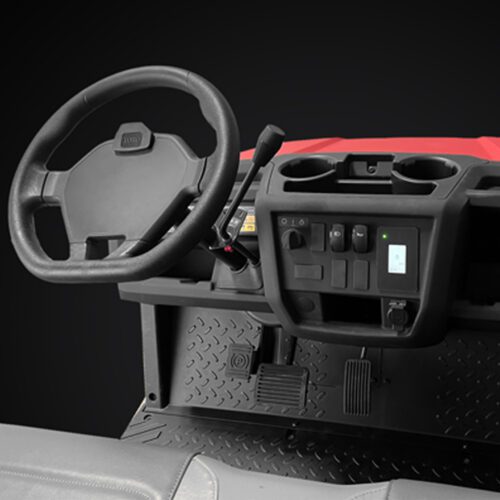

Interior view of a red utility vehicle showcasing the steering wheel, controls, and dashboard features

Intuitive Dashboard Layout

Oversized cup holders and ample storage for tools and gear. Stay in control with easy-to-reach controls and a clear LCD display. Plus, keep your devices powered on the go with integrated USB-A & C charging ports

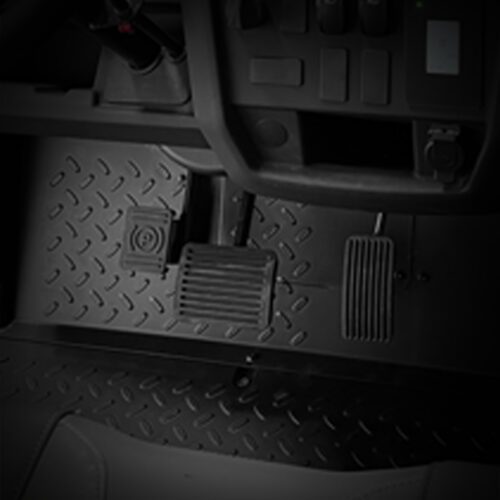

Close-up of the pedal area in a utility vehicle, showcasing textured flooring and control pedals

Braking You Can Count On

Hydraulic disc brakes deliver reliable, consistent stopping power with minimal maintenance, no cable adjustments and less pedal force than traditional mechanical brakes.

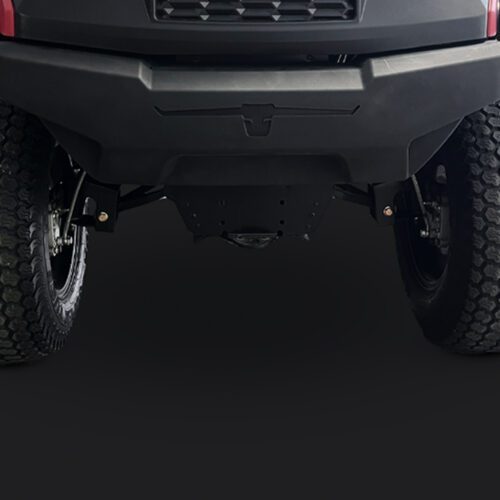

Rear view of a black utility vehicle showcasing robust tires and undercarriage design

Suspension

Coil-over shocks all around the vehicle deliver greater suspension travel and adjustability resulting in a smoother ride and minimized operator fatigue.

Steering

An automotive-grade rack and pinion steering system provides more control and lowers steering effort, while operating loaded or empty. This allows operators to focus on the task at hand and nothing else.

Full Description

Exceptional power, reliability, and efficiency, so you can tackle every job with confidence.
Choose standard height or lifted models, extend the bed for additional hauling, or add an additional row of seats for more passengers.
Stay in control with easy-to-reach controls and a clear LCD display.
Hydraulic disc brakes deliver reliable, consistent stopping power with minimal maintenance.
Electronically controlled parking brake adds an extra layer of convenience.
Coil-over shocks all around the vehicle deliver greater suspension travel and adjustability.
Automotive-grade rack and pinion steering system provides more control and lowers steering effort.

Specifications

Battery	Two HyperCell lithium-ion batteries standard, option to add an additional battery
Brakes	Hydraulic Disc
Cargo Capacity	800 lbs. (363 kg)
Charger	On-board high efficiency 900W smart charger AC input voltage 100-240VAC AC input Frequency 50/60 Hz Max input Current 13.4 A
Controller	375 amps max with regenerative motor braking, roll-away protection, thermal cutback, sealed/waterproof, status light and three power modes.
Crated Model	No
Drivetrain	Battery
Electric Motor	Brushless high-torque AC induction motor with 5.0kW continuous power
Fuel / Power Source	Battery
Gauges/Instrumentation	Hour meter, battery level indicator, USB power port, headlight switch, on/off ignition key switch, and parking brake lever. Two cup holders, radio holder, three in-dash storage compartments, speedometer, gear indicator, estimated charge time, and diagnostic/fault codes.
Ground Clearance	Front: 12” (30.4 cm) Rear: 7” (17.8 cm)
Ground Speed - Forward	16 mph (25.6 km/h) standard, adjustable up to 24 mph (38.6 km/h). Setting of 19 mph (30.6 km/h) and greater require ROPs & seatbelt.
Height	2-Seat with Bed: 53.2” (135 cm)
Horn	Standard
Inside Turning Radius	60.25" (153 cm)
Lights	Standard LED Headlights
Optional Accessories	Canopy, folding windshield, windshield w/ wiper, seat kit for EX models, steel cargo bed, plastic cargo bed, 6-foot flat bed, bed sides, electric bed lift, bed racking, brush guard, brush guard w/ front receiver, trash can mount, ROPS certified cab, cab doors, light options for cab (work lights and beacon), range cage, canopy with ROPS, mirrors, brake/tail/signal lights, back up alarm, under hood storage kit, ram mount ball, 12V power point kit, all-terrain tire kit, telematics kit. Allied accessories: drop-in beverage cart, Kimtek medical bed, Rahn Groomer
Outside Turning Radius	20.7' (6.3 m)
Power Train (Engine Description)	48V brushless AC induction drive

Product Length	2-Seat with Bed: 119" (302 cm)
Rear Draw Bar	Standard
Roll-Over Protection (ROPS)	Optional
Starting	Pedal Start
Steering System Description	Manual rack and pinion steering system with ergonomically positioned column. Steering wheel has 2.75 turns lock-to-lock with 13.75” (35 cm) diameter.
Suspension - Front	Modified MacPherson Strut, adjustable coil over shocks
Suspension - Rear	Articulating Swing Arm. Adjustable coil over shocks at all four wheels.
Suspension Travel - Front	3.5" (8.9 cm)
Suspension Travel - Rear	4" (10.2 cm)
Tires	22" x 9.5" - 12", 4-ply. Or alternate 4-ply/6-ply
Total Vehicle Capacity	1,200 lbs. (544 kg)
Towing Capacity	1,500 lbs. (680 kg)
Traction Drive (System)	2WD
Transaxle	11.47:1 Forward, 14.35:1 Reverse.
Vehicle Configuration	Lifted
Vehicle Type	Light Duty
Weight	2-Seat with Plastic Cargo Bed: 997 lbs. (452 kg)
Wheelbase	2-Seat with Bed: 77.8" (197 cm)
