Home Shop Toro Toro Workman LTX | Lithium Utility Vehicle

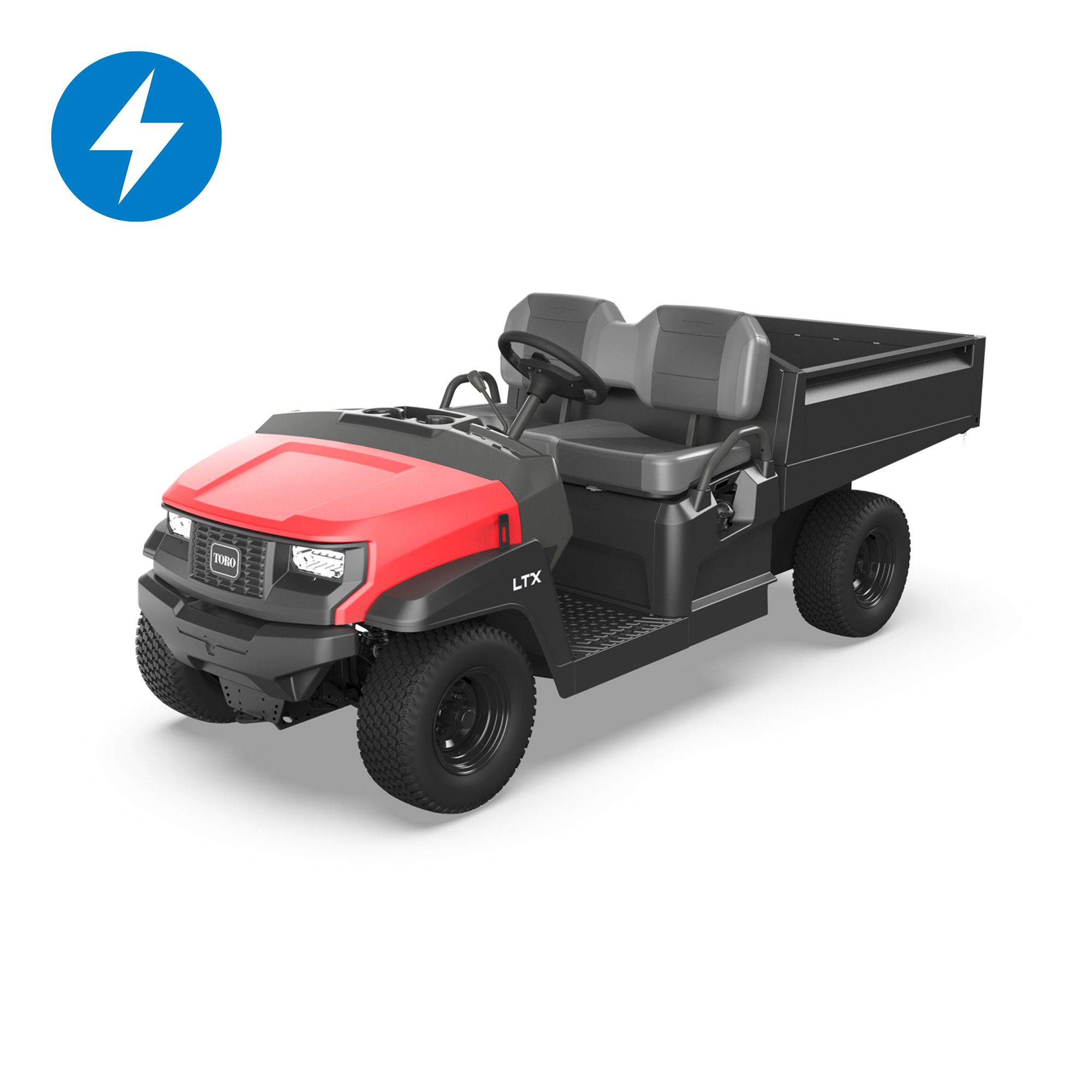

Toro Workman LTX Lithium Utility Vehicle

Model: 07425
Toro

Toro Workman LTX Lithium Utility Vehicle

Model: 07425
Toro
Fleet Finance & Leasing Options Talk to us today 0800 807 333

The next generation of light-duty utility vehicles is here. The new Workman LTX delivers everything you asked for – power, comfort, and elevated design. Powered by either the Briggs & Stratton Vanguard 400 EFI gasoline engine or the Toro HyperCell lithium battery system, the LTX offers standard height, lifted, or extended models to help you tackle your toughest days. With abundant storage, enhanced options, optimal design, and rugged reliability, you don’t have to choose between strength and versatility. The Toro Workman LTX provides both because your work deserves the best.

Enquire Call 0800 807 333
Talk to a repFind a Store

The next generation of light-duty utility vehicles is here. The new Workman LTX delivers everything you asked for – power, comfort, and elevated design. Powered by the Toro HyperCell lithium battery system, the LTX offers standard height, lifted, or extended models to help you tackle your toughest days. With abundant storage, enhanced options, optimal design, and rugged reliability, you don’t have to choose between strength and versatility. The Toro Workman LTX provides both because your work deserves the best.

  • Exceptional power, reliability, and efficiency, so you can tackle every job with confidence.
  • Choose standard height or lifted models, extend the bed for additional hauling, or add an additional row of seats for more passengers.
  • Stay in control with easy-to-reach controls and a clear LCD display.
  • Hydraulic disc brakes deliver reliable, consistent stopping power with minimal maintenance.
  • Electronically controlled parking brake adds an extra layer of convenience.
  • Coil-over shocks all around the vehicle deliver greater suspension travel and adjustability.
  • Automotive-grade rack and pinion steering system provides more control and lowers steering effort.

A black utility vehicle parked on a path, with a person walking nearby in a green landscape

Endless Ways to Customize

The Workman LTX gives you the flexibility to tackle any job with dozens of configuration options. Choose standard height or lifted models, extend the bed for additional hauling, or add an additional row of seats for more passengers. With accessories to match, you can make your office on wheels your own.

Interior view of a red utility vehicle showcasing the steering wheel, controls, and dashboard features

Intuitive Dashboard Layout

Oversized cup holders and ample storage for tools and gear. Stay in control with easy-to-reach controls and a clear LCD display. Plus, keep your devices powered on the go with integrated USB-A & C charging ports.

Close-up of the pedal area in a utility vehicle, showcasing textured flooring and control pedals

Braking You Can Count On

Hydraulic disc brakes deliver reliable, consistent stopping power with minimal maintenance, no cable adjustments and less pedal force than traditional mechanical brakes. On lithium-powered models, an electronically controlled parking brake adds an extra layer of convenience.

Rear view of a black utility vehicle showcasing robust tires and undercarriage design

Suspension

Coil-over shocks all around the vehicle deliver greater suspension travel and adjustability resulting in a smoother ride and minimized operator fatigue.

Close-up of the steering wheel and dashboard controls of a red utility vehicle

Steering

An automotive-grade rack and pinion steering system provides more control and lowers steering effort, while operating loaded or empty. This allows operators to focus on the task at hand and nothing else.

Overview

Vehicle Type Light Duty
Vehicle Configuration Standard

Engine & Drivetrain

Power Train (Engine Description) 48V brushless AC induction drive
Fuel Type Battery
Start Type Pedal Start
Motor Brushless high-torque AC induction motor with 5.0 kW continuous power
Drivetrain Battery
Transaxle 11.47:1 Forward, 14.35:1 Reverse

Battery

Battery Two HyperCell lithium-ion batteries standard, option to add an additional battery
Charger On-board high efficiency 900W smart charger; AC input voltage 100-240 VAC; AC input Frequency 50/60 Hz; Max input Current 13.4 A

Traction & Steering

Traction Drive (System) 2WD
Tyres - Front 20" x 8" - 10", 4-ply. Or alternate 4-ply/6-ply
Tyres - Rear 20" x 8" - 10", 4-ply. Or alternate 4-ply/6-ply
Steering System Description Manual rack and pinion steering system with ergonomically positioned column. Steering wheel has 2.75 turns lock-to-lock with 13.75” (35 cm) diameter.
Brakes - Front Hydraulic Disc
Brakes - Rear Hydraulic disc
Turning Radius 153 cm (60.25")
Turning Circle (Diameter) 6.3 m (20.7')
Suspension - Front Modified MacPherson Strut
Suspension - Rear Articulating Swing Arm. Adjustable coil over shocks at all four wheels.
Suspension Travel - Front 3.5” (8.9 cm)
Suspension Travel - Rear 4” (10.2 cm)

Electrical & Instruments

Gauges/Instrumentation LCD display, USB A & C power ports, headlight switch, on/off ignition key switch, horn switch, cup holders, radio holder, and large storage compartments throughout dash.
Lighting Standard LED Headlights
Controller 375 amps max with regenerative motor braking, roll-away protection, thermal cutback, sealed/waterproof, status light and three power modes.
Horn Standard

Dimensions & Weight

Height 2-Seat with Bed: 127 cm (50.2")
Product Length 2-Seat with Bed: 302 cm (119")
Wheelbase 2-Seat with Bed: 197 cm (77.8") 2-Seat with 6' Flat Bed: 290 cm (114")
Ground Clearance Front: 22.8 cm (9") Rear: 15.2 cm (6")
Weight 2-Seat with Bed: 441 kg (972 lbs.)

Performance & Capacity

Cargo Capacity 363 kg (800 lbs.)
Total Vehicle Capacity 544 kg (1,200 lbs.)
Towing Capacity 680 kg (1,500 lbs.)

Safety & Compliance

Roll-Over Protection (ROPS) Optional
Rear Draw Bar Standard

Accessories

Optional Accessories Canopy, folding windscreen, windscreen w/ wiper, seat kit for EX models, steel cargo bed, plastic cargo bed, 6-foot flat bed, bed sides, electric bed lift, bed racking, brush guard, brush guard w/ front receiver, trash can mount, ROPS certified cab, cab doors, light options for cab (work lights and beacon), range cage, canopy with ROPS, mirrors, brake/tail/signal lights, back up alarm, under hood storage kit, ram mount ball, 12V power point kit, all-terrain tyre kit, telematics kit. Allied accessories: drop-in beverage cart, Kimtek medical bed, Rahn Groomer
