Toro Workman® LTX Petrol Utility Vehicle

Name: Parkland Products
Price range: $$

Model: 07424

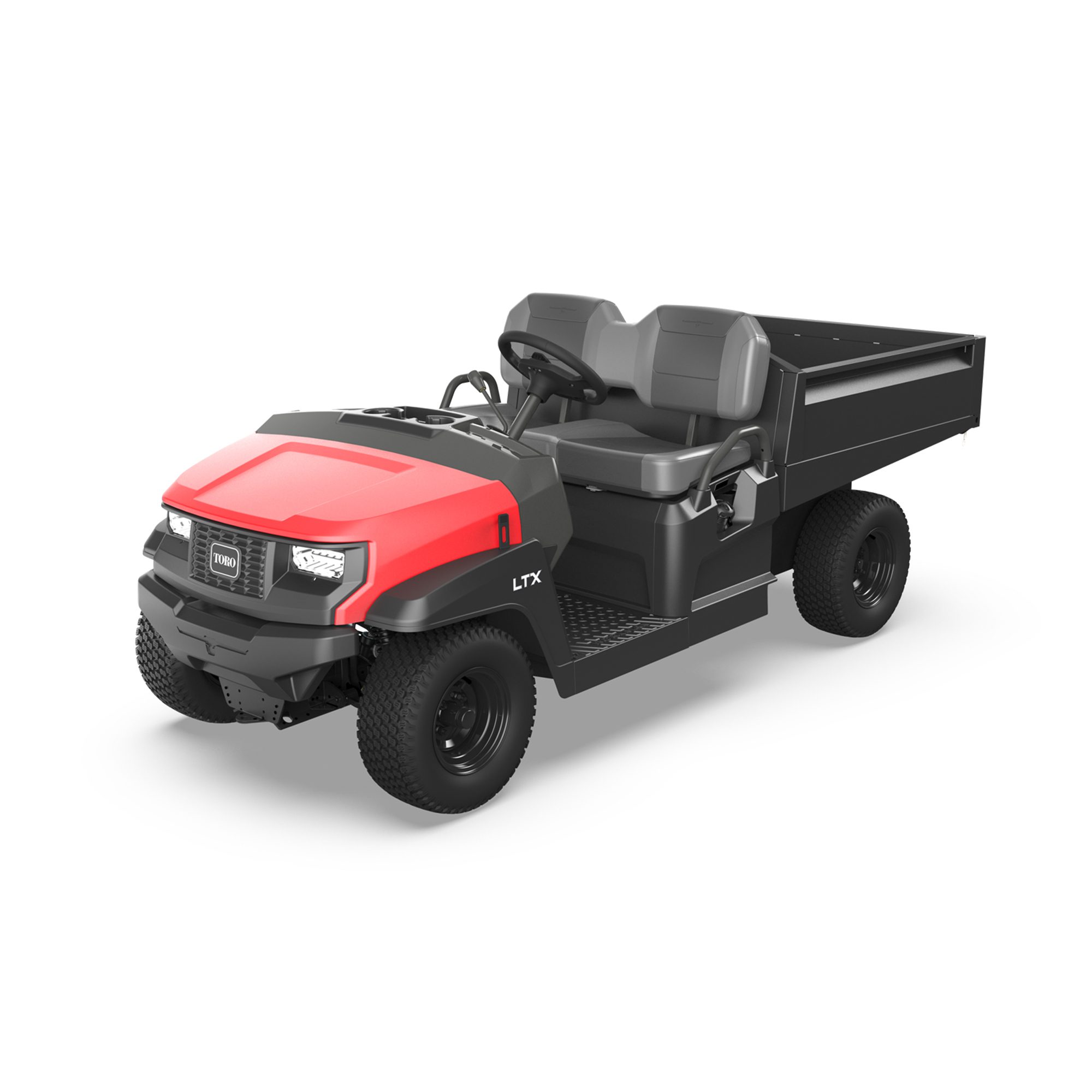

Toro Workman® LTX Petrol Utility Vehicle

Model: 07424

The next generation of light-duty utility vehicles is here. The new Workman LTX delivers everything you asked for – power, comfort, and elevated design. Powered by either the Briggs & Stratton Vanguard 400 EFI gasoline engine or the Toro HyperCell lithium battery system, the LTX offers standard height, lifted, or extended models to help you tackle your toughest days. With abundant storage, enhanced options, optimal design, and rugged reliability, you don’t have to choose between strength and versatility. The Toro Workman LTX provides both because your work deserves the best.

Fleet Finance & Leasing Options Talk to us today 0800 807 333

Enquire Call 0800 807 333

Talk to a rep Find a Store

Videos

Features

A black utility vehicle parked on a path, with a person walking nearby in a green landscape

Endless Ways to Customize

The Workman LTX gives you the flexibility to tackle any job with dozens of configuration options. Choose standard height or lifted models, extend the bed for additional hauling, or add an additional row of seats for more passengers. With accessories to match, you can make your office on wheels your own.

Interior view of a red utility vehicle showcasing the steering wheel, controls, and dashboard features

Intuitive Dashboard Layout

Oversized cup holders and ample storage for tools and gear. Stay in control with easy-to-reach controls and a clear LCD display. Plus, keep your devices powered on the go with integrated USB-A & C charging ports

Close-up of the pedal area in a utility vehicle, showcasing textured flooring and control pedals

Braking You Can Count On

Hydraulic disc brakes deliver reliable, consistent stopping power with minimal maintenance, no cable adjustments and less pedal force than traditional mechanical brakes.

Rear view of a black utility vehicle showcasing robust tires and undercarriage design

Suspension

Coil-over shocks all around the vehicle deliver greater suspension travel and adjustability resulting in a smoother ride and minimized operator fatigue.

Steering

An automotive-grade rack and pinion steering system provides more control and lowers steering effort, while operating loaded or empty. This allows operators to focus on the task at hand and nothing else.

Full Description

The next generation of light-duty utility vehicles is here. The new Workman LTX delivers everything you asked for – power, comfort, and elevated design. Powered by either the Briggs & Stratton Vanguard 400 EFI gasoline engine, the LTX offers standard height, lifted, or extended models to help you tackle your toughest days. With abundant storage, enhanced options, optimal design, and rugged reliability, you don’t have to choose between strength and versatility. The Toro Workman LTX provides both because your work deserves the best.

Exceptional power, reliability, and efficiency, so you can tackle every job with confidence
Choose standard height or lifted models, extend the bed for additional hauling, or add an additional row of seats for more passengers.
Stay in control with easy-to-reach controls and a clear LCD display.
Hydraulic disc brakes deliver reliable, consistent stopping power with minimal maintenance
Coil-over shocks all around the vehicle deliver greater suspension travel and adjustability
Automotive-grade rack and pinion steering system provides more control and lowers steering effort

Specifications

Battery	One 12V starter battery
Brakes - Front & Rear	Hydraulic Disc
Crated Model	No
Displacement	408cc (24.9 ci)
Drivetrain	Gas
Frame	Power coated, welded steel channel and tube.
Fuel / Power Source	Gasoline
Fuel Capacity	5 gallons (18.9 liters)
Gauges/Instrumentation	Hour meter, fuel gauge, USB power port, headlight switch, on/off ignition key switch, gear selector and parking brake lever. Two cup holders, radio holder and three in-dash storage compartments.
Ground Clearance	Front: 9" (22.8 cm) Rear: 6" (15.2 cm)
Height	2-Seat with Bed: 50.2" (127 cm) 4-Seat with Bed: 50.2" (127 cm) 2-Seat with 6' Flat Bed: 50.2" (127 cm)
Horn	Standard
Inside Turning Radius	60.25" (153 cm)
Lights	Standard LED Headlights
Optional Accessories	Canopy, solid folding windshield, 4-seat configuration, flat bed, 6-foot flat bed, bed sides, storage box, trash can mount, bed racking, electric bed lift, brush guard, 12V outlet, brake/tail/signal lights, ROPS certified hard cab, back up alarm kit, parking brake alarm kit, all-terrain tire kit, 2-post ROPS kit, beverage cart, range cage, glass windshield and medical-bed.
Power Steering	No
Power Train (Engine Description)	408cc, air-cooled, single cylinder Briggs & Stratton® EFI gasoline engine.
Product Length	2-Seat with Bed: 119" (302 cm) 4-Seat with Bed: 144" (366 cm) 2-Seat with 6' Flat Bed: 156" (396 cm)

Rear Draw Bar	Standard
Roll-Over Protection (ROPS)	Optional
Starting	Pedal or Key Start
Steering System Description	Rack and pinion system with ergonomically positioned non-adjustable column. Steering wheel has 2.75 turns lock-to-lock with a 13.75" (34.93 cm) diameter wheel.
Suspension - Front	Modified MacPherson Strut. Adjustable coil over shocks at all four wheels.
Suspension - Rear	Articulating Swing Arm. Adjustable coil over shocks at all four wheels.
Suspension Travel - Front	3.5" (8.9 cm)
Suspension Travel - Rear	4" (10.2 cm)
Tires	20" x 8" - 10", 4-ply. Or alternate 4-ply/6-ply
Total Vehicle Capacity	1,200 lbs. (544 kg)
Towing Capacity	1,500 lbs. (680 kg)
Traction Drive (System)	2WD
Transaxle	11.47:1 Forward, 14.35:1 Reverse.
Vehicle Configuration	Standard
Vehicle Type	Light Duty
Weight	2-Seat with Bed: 875 lbs. (397 kg) 4-Seat with Bed: 1,150 lbs. (522 kg) 2-Seat with 6' Flat Bed: 1,264 lbs. (573 kg)
Wheelbase	2-Seat with Bed: 77.8" (197 cm)
