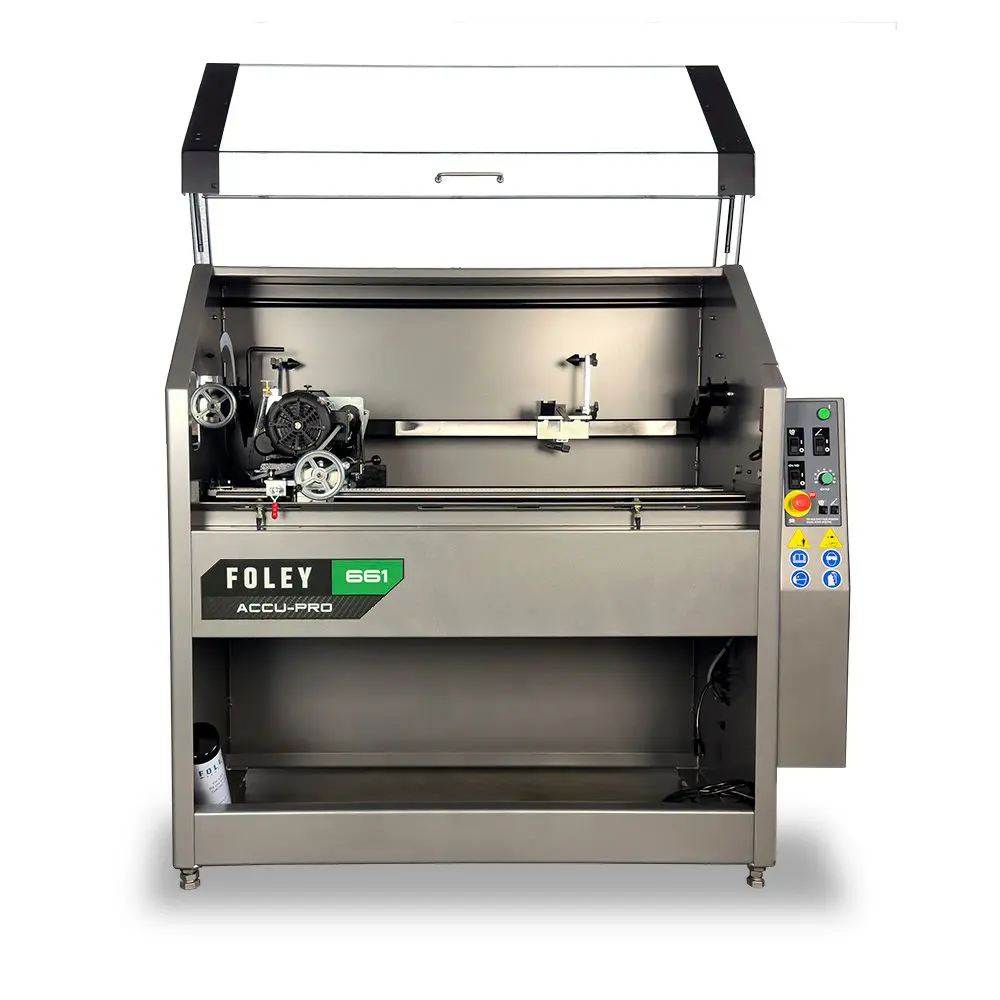

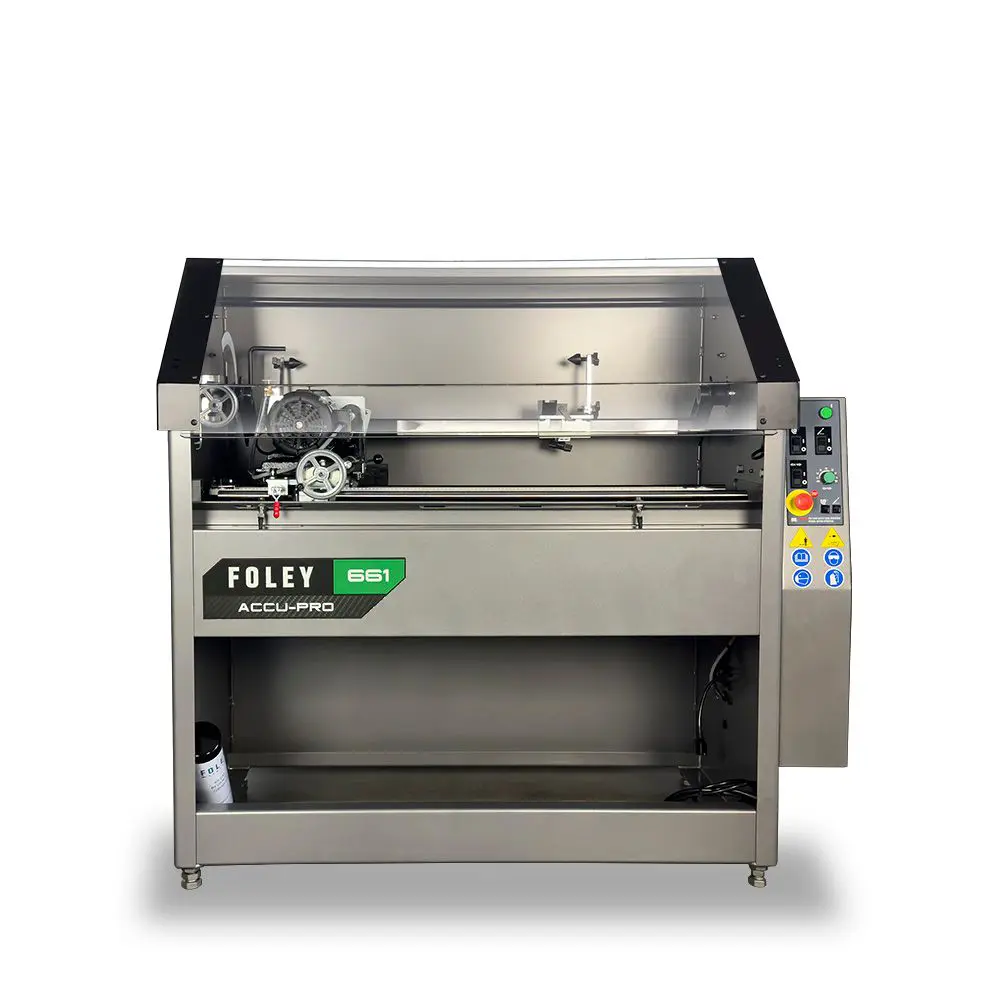

Foley 661 Accu-Pro AT Bedknife Grinder
Model: ACC661
Foley 661 Accu-Pro AT Bedknife Grinder
Model: ACC661
The 661 ACCU-Pro AT – the ultimate budget-friendly solution packed with exceptional features.Experience the unbeatable benefits of ACCU-PRO 661’s revolutionary Bedknife Support Tooling utilizes cutting-edge permanent magnet technology to securely hold the bedknife in place.
Unleash the power of our Full Featured Grinding Head Design that allows for precise incremental infeeds of just .001″ (.025mm), ensuring smooth and flawless grinding every time and experience the effortless precision of our Smooth Auto-Traverse Function, which automatically guides the grinding head along the entire length of the bedknife on two precision rails.

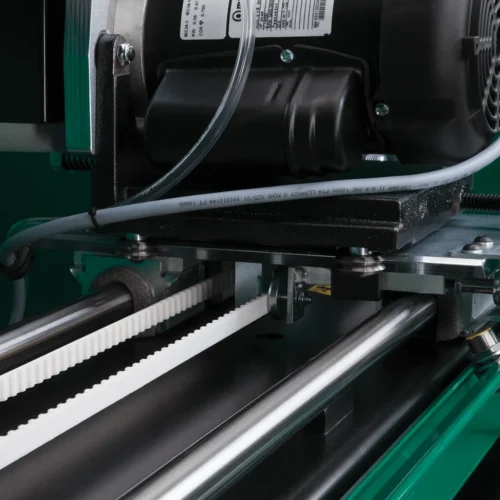

Belt Traverse System
Proximity sensors control the travel of the carriage as the maintenance free traverse belt drive system allows for a prefect grind every time.

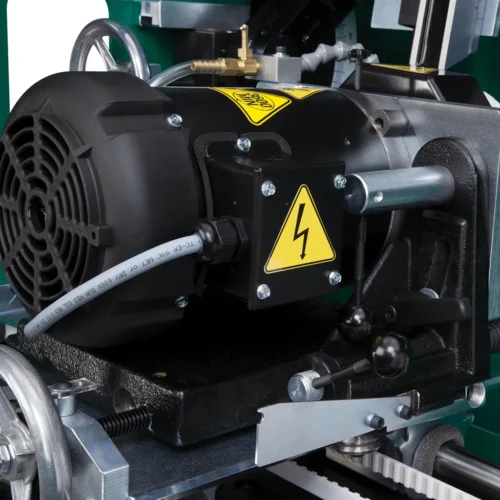

Built-in Diamond Dresser
A diamond tip dresser handle flips up to dress the grinding wheel, is easily adjusted to the wear of the stone, and stores out of the way when not in use.

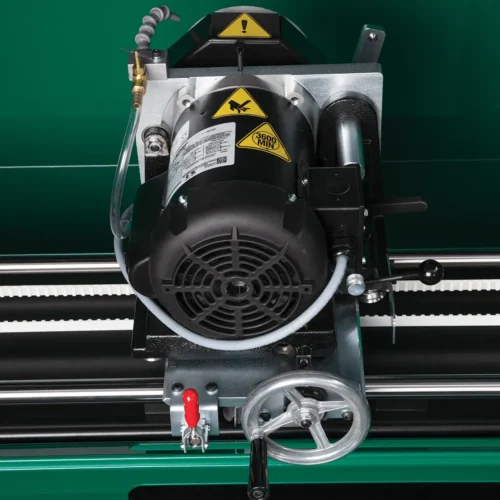

Precision Grinding Head
Robust grinding head features a single point infeed, a height adjuster to compensate for the variable width top
face bedknives, and a 3/4 HP grinding motor that smoothly removes metal for a precise grind.
Control Panel
Access to the panel is in an operator friendly location that provides variable speed for traverse, a flood coolant system, and other controls needed for quick turn-a-round and a precise grind every time. (661 AT)

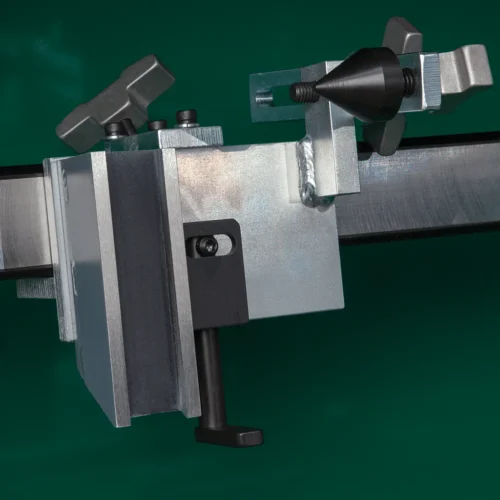

Magnetic Mounting System
Utilizes industrial style permanent magnets in conjunction with center supports to provide a precision, rigid, and stress free set-up of the bedknife.

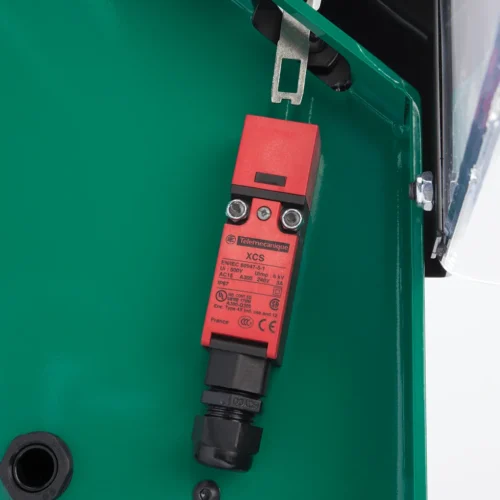

Interlock Safety Switch
Guard door with interlock safety switch securely ensures operation is only functional when the door is closed, keeping shop staff safe and out of harms way.

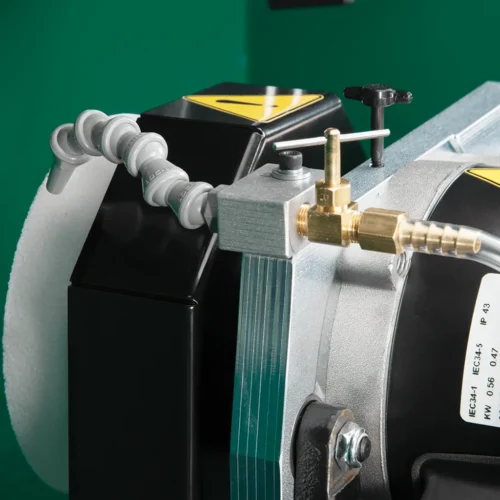

Flood Coolant System
Flexible tube enables spray to be directed where needed. A self contained water pump system filters and recirculates the water, while flow is controlled by the operator.

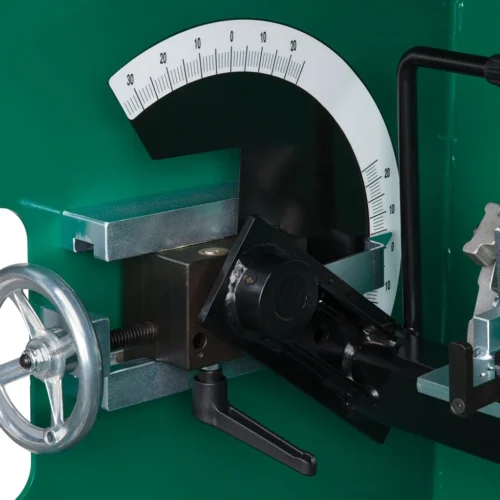

Easy Angle Positions
The easy to read permanently mounted protractor system provides the operator a fast repeatable angle as spelled out by the manufacturer specifications for each bedknife.
Specifications
| Frame |
Robust Welded-steel frame design and powder coated finish |
| Traverse System |
Automatic belt drive variable speed using proximity sensors (661 AT). Cogged traverse belt with 38” travel capacity |
| Infeed |
Manual |
| Coolant |
1 pint of flood coolant provided |
| Carriage |
“V” roller carriage single point infeed with adjustable grinding wheel height |
| Rails |
Precision ground round rails with recirculation ball bearings |
| Diamond Point Dresser System |
Self contained dresser system |
| Bedknife Set-up |
Permanent magnets with spring-loaded placement pins and centers for added support |
| Optional Accessories |
Borazon Grinding wheel for hardened bedknives - Part #3700696
|
