Grillo FD450 Grass-Collection Mower (450L)
$27,268 Excl. GST
With a floating 46″ out front collection deck, huge 450 litre collection and hydraulic hi-lift grass dump the FD450 is highly productive. Hi-lift enables lots of solutions for getting rid of the grass and the FD450 leaves a beautiful finish on lawns. Ideal for contractors, commercial properties, Government gardens and Shire Councils.
The FD450 is perfect for large properties where owners or mowing professionals want a wide cut, a top quality grass collection finish and the ability to dump the collected grass or leaf debris off-site.
The out-front floating deck allows the operator to mow into corners, under bushes and trees and offers excellent visibility. Because the deck follows the contours of the land, the mower produces a quality finish which results in a beautiful looking lawn. If you need to lift the deck to get over kerbs it’s simply a case of pushing a button to hydraulically raise it.
The FD450 collects 450 litres of grass – much larger capacity than most commercial machines and with it’s 46” out-front deck can reduce mowing time dramatically.
Sold through dealers only – click here to find your local stockist.
Price excludes shipping and dealer pre-delivery.
Description
The FD450 is perfect for large properties where owners or mowing professionals want a wide cut, a top quality grass collection finish and the ability to dump the collected grass or leaf debris off-site.
The out-front floating deck allows the operator to mow into corners, under bushes and trees and offers excellent visibility. Because the deck follows the contours of the land, the mower produces a quality finish which results in a beautiful looking lawn. If you need to lift the deck to get over kerbs it’s simply a case of pushing a button to hydraulically raise it.
The FD450 collects 450 litres of grass – much larger capacity than most commercial machines and with it’s 46” out-front deck can reduce mowing time dramatically.
The FD 450 offers extraordinarily good grass and leaf collection performance. Its unique deck shape and blade design produces excellent airflow which eliminates grass blocking. The innovative cutting system, “Grillo Overblow”, allows tremendous acceleration of the grass/air flow into the discharge chute considerably increasing its collection capability, even in damp,wet conditions whilst at the same time keeping its noise level of the whole cutting/collecting system extremely low.
- Engine: Briggs & Stratton Intek 7220 Professional Series V-Twin
- Electric start with 12 V battery
- Supply fuel: Petrol
- Displacement: 656 cc, 2 Cylinders
- Power: 22 HP (16.2 kW) @ 3300 rpm
- Torque: 38.7 Nm @ 2800 rpm
- Air cooled
- Dry air filter
- Fuel tank capacity: 17 litres (reserve tank 2.5 litres)
- Drive: K66 hydrostatic transmission 1” shaft with in-built differential locking
- Clutch: Electromagnetic PTO clutch with magnetic blade brake
- Cutting Deck: Out-front cutting deck with collection and direct discharge. Solid, puncture proof deck wheels. Deck can be raised to vertical position for blade maintenance. Water port for cleaning
- Cutting deck configuration: 3 non-timed rotating blades with external reinforcement on deck
- Cutting deck width: 1190 mm
- Cutting width: 1130 mm
- Cutting height: Step-less electric cutting height adjustment from 25 to 90 mm
- Grass collector capacity: 450 litres with full grass catcher automatic blade disengage when bin is full.
- Grass collector discharging system: Direct collection, no fan.
- Grass-catcher bin and high-lift hydraulically operated.
- Movements are activated through electric buttons. The grass-catcher bin door is automatically activated.
- Maximum Hi-Lift discharging height: 1500 mm
- Rear projection: 570 mm

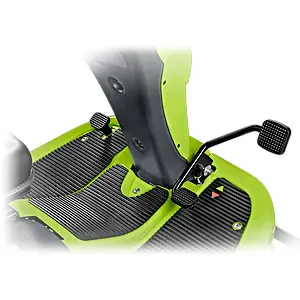

- Differential locking: Mechanical within hydrostatic gearbox with on demand foot pedal control
- Front tyres: 20x10.0-8 Turf wheels
- Rear tyres: 15x6.0-6 Turf wheels
- Steering system: Steering wheel with rack and pinion. Rear wheel steer, forward and reverse gear engaged through foot pedal
- Speed: 0-11 km/h (forward) and 0-6 km/h (reverse) through foot pedal control
- Inner turning radius: 30 cm
- Drivers Seat: Dampened, adjustable by means of a lever
- Parking brake: Disk brake
- Deck lift: Electric button
- Mowing capacity per hour (indicative): 8,000 m2/hr
- Accessories in series: Tow bar, a Mulching kit is an optional attachment
- Length: 2680 mm
- Width: 1190 mm
- Height: 1450 mm
- Weight: 385kgs
