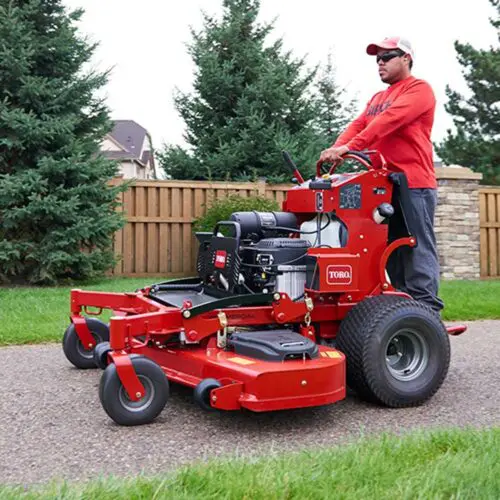

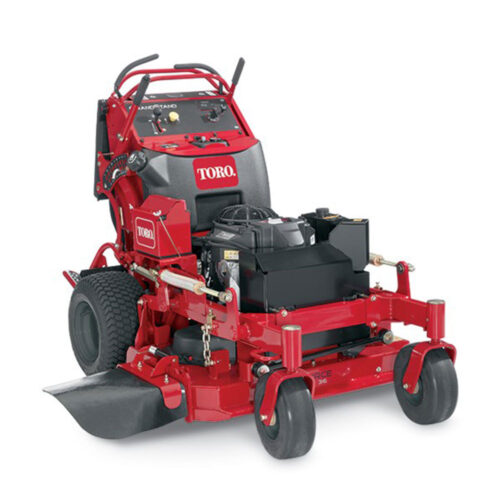

Toro GrandStand Stand-On Mower (48")

Model: 72504
Toro

Toro GrandStand Stand-On Mower (48")

Model: 72504
Toro

Rough bumps and challenging terrain are all in a day’s work, but feeling them shouldn’t have to be. The Toro GrandStand combines the speed and comfort of a zero-turn rider with the on-and-off ease of a wide area walk-behind. A faster, more maneuverable and more productive alternative. GrandStand® is even better with all-new next generation upgrades that add up to higher productivity, lower maintenance and easier service. This mower has a 22 hp Kawasaki® V-Twin 726 cc engine and 121.9cm (48 inch) cutting deck. Simply put, choosing a GrandStand® is a decision you’ll always be comfortable with.

  • 122 cm cutting deck
  • 22hp Kawasaki FX 726cc engine
  • Self-adjusting suspension
  • 39.7L fuel capacity (mow longer with fewer stops)
  • Exceptional visibility
  • The foldable operator platform instantly converts the GrandStand to a walk-behind
$27,773 incl. gst
or $ per week*
Calculate Finance
*Based on $5,555 deposit, an indicative interest rate of 9.9% p.a over 4 year(s). Calculate for more details.
Enquire
Talk to a rep Find a Store

Features

25% Faster Speeds

The 10 mph transport speed gets you to your next destination 25% faster.*

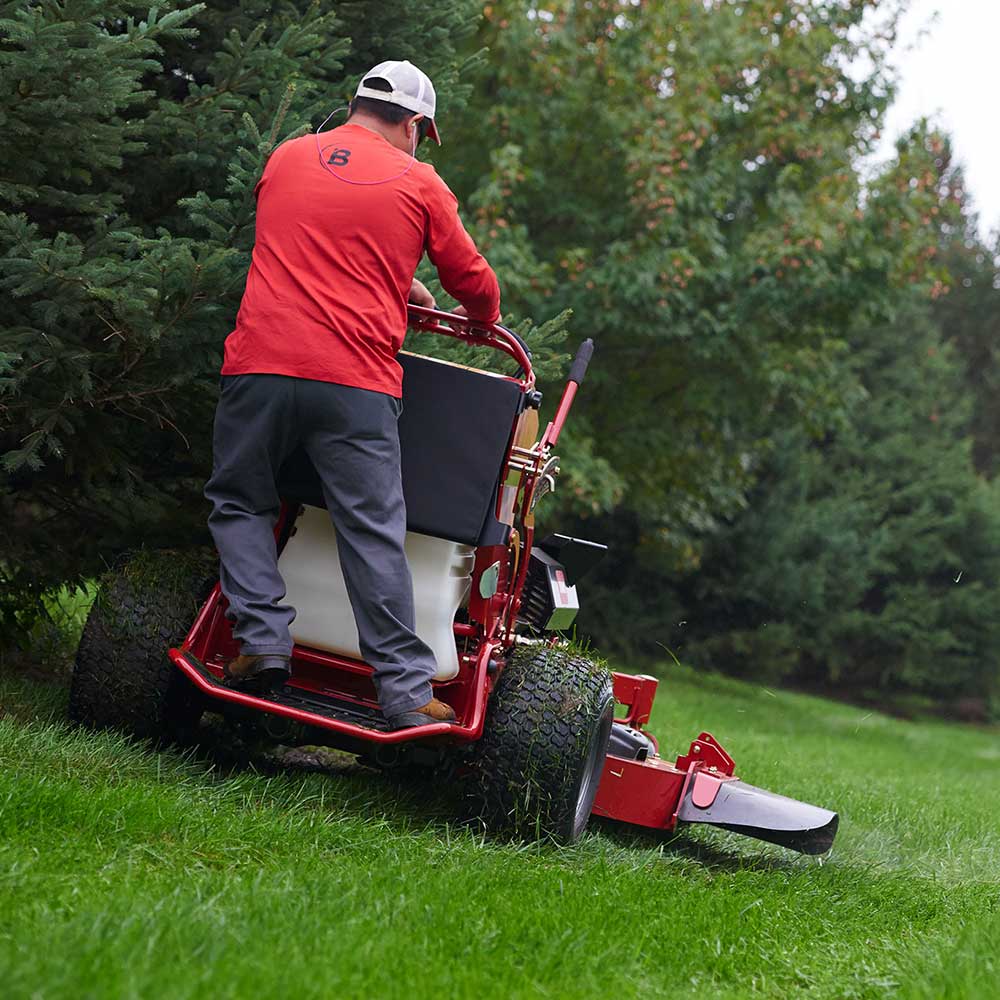

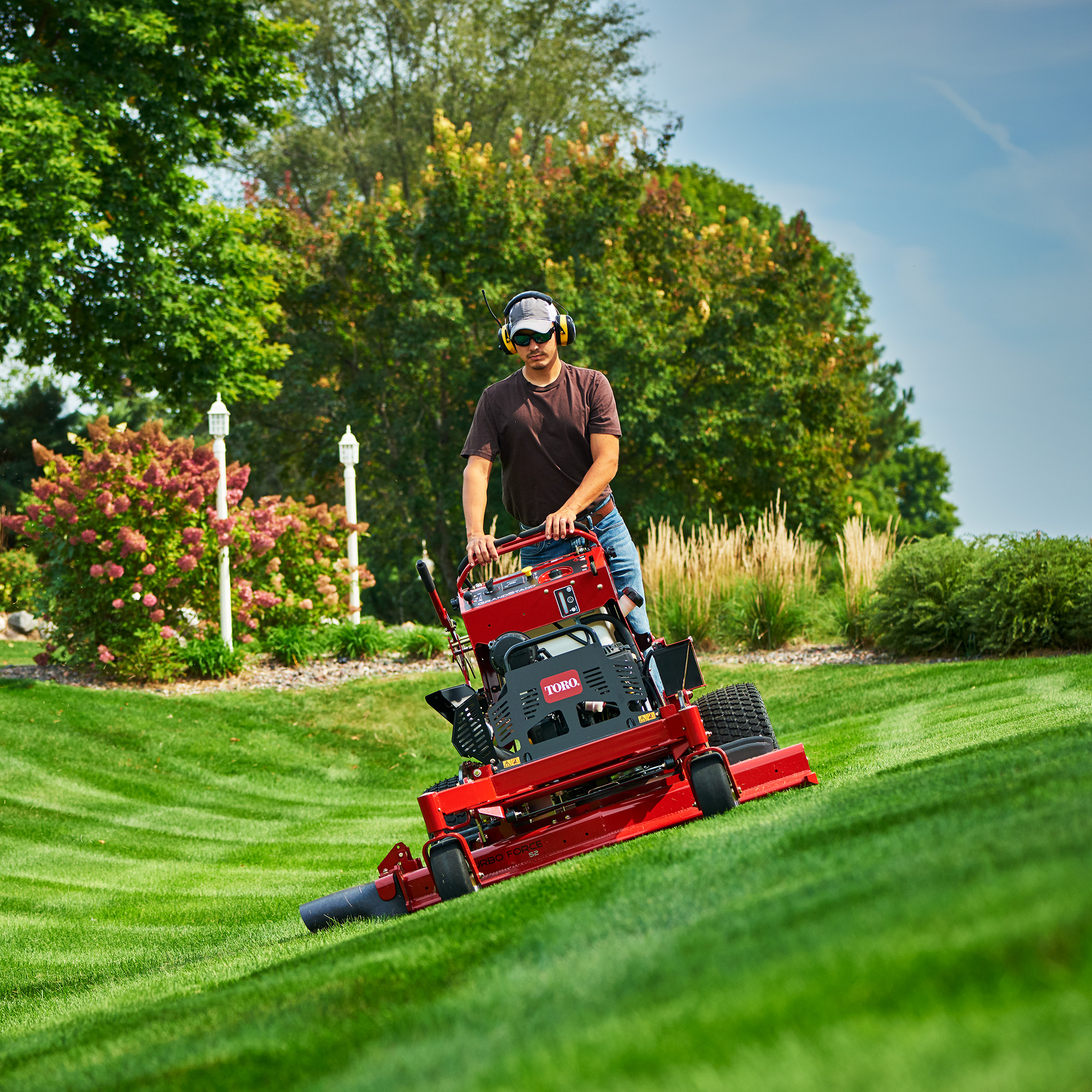

Traction On Hills

A wide stance and optimal balance enhance hillside stability and control. Operators can shift weight as needed to further enhance performance.

Proven Platform

Uses the industry-proven TURBO FORCE® cutting deck that is built to withstand the extreme conditions of long, tough days on the job.

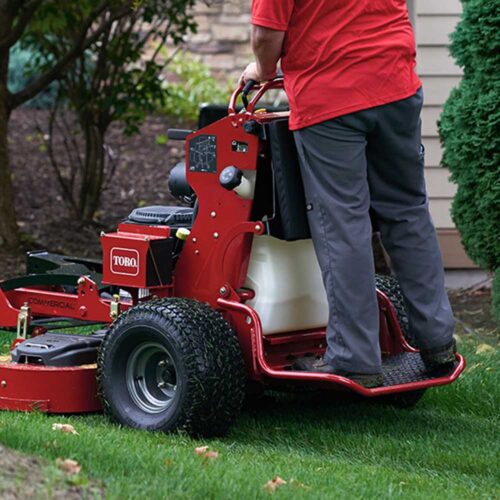

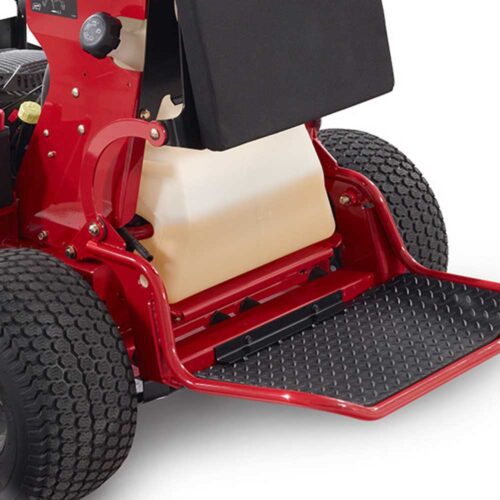

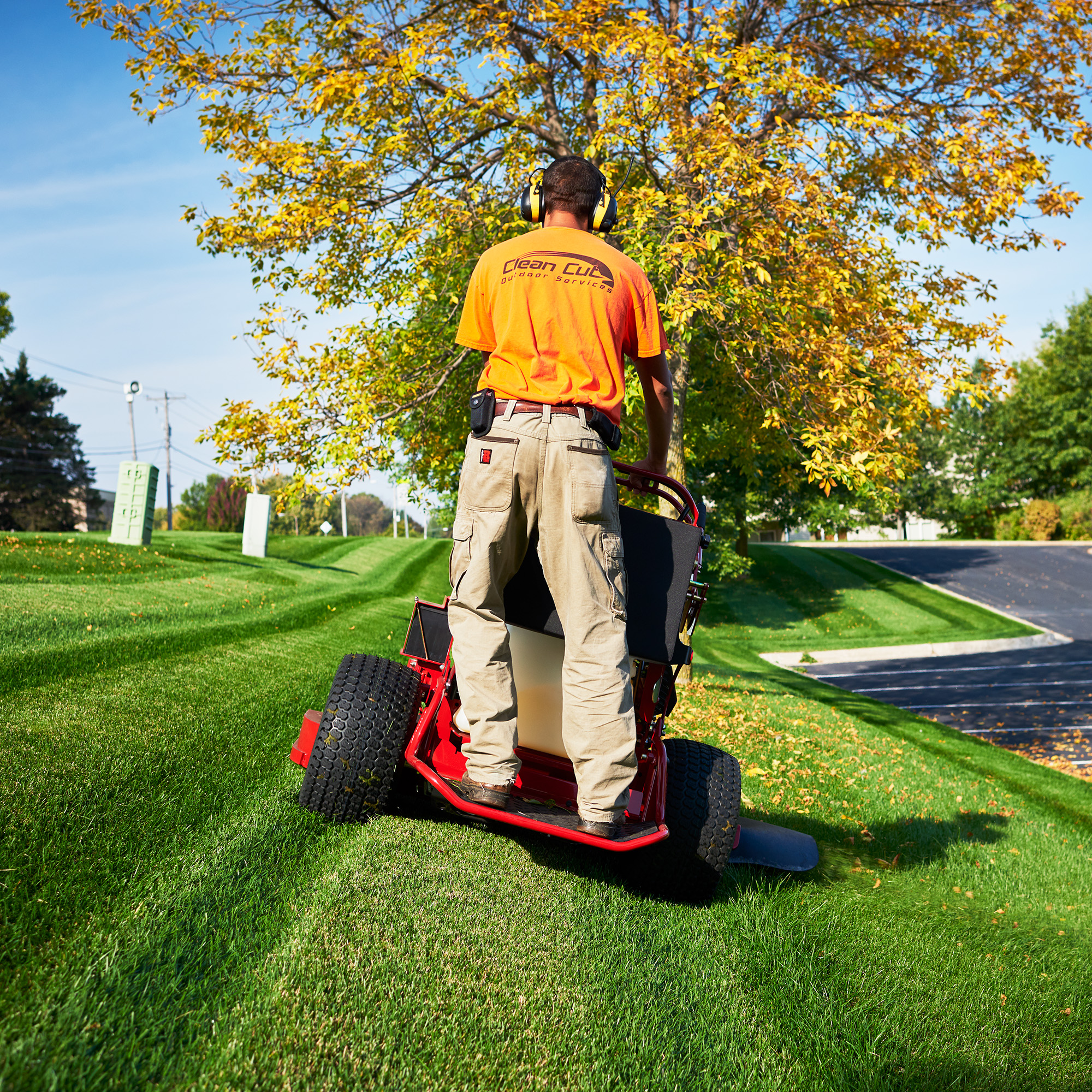

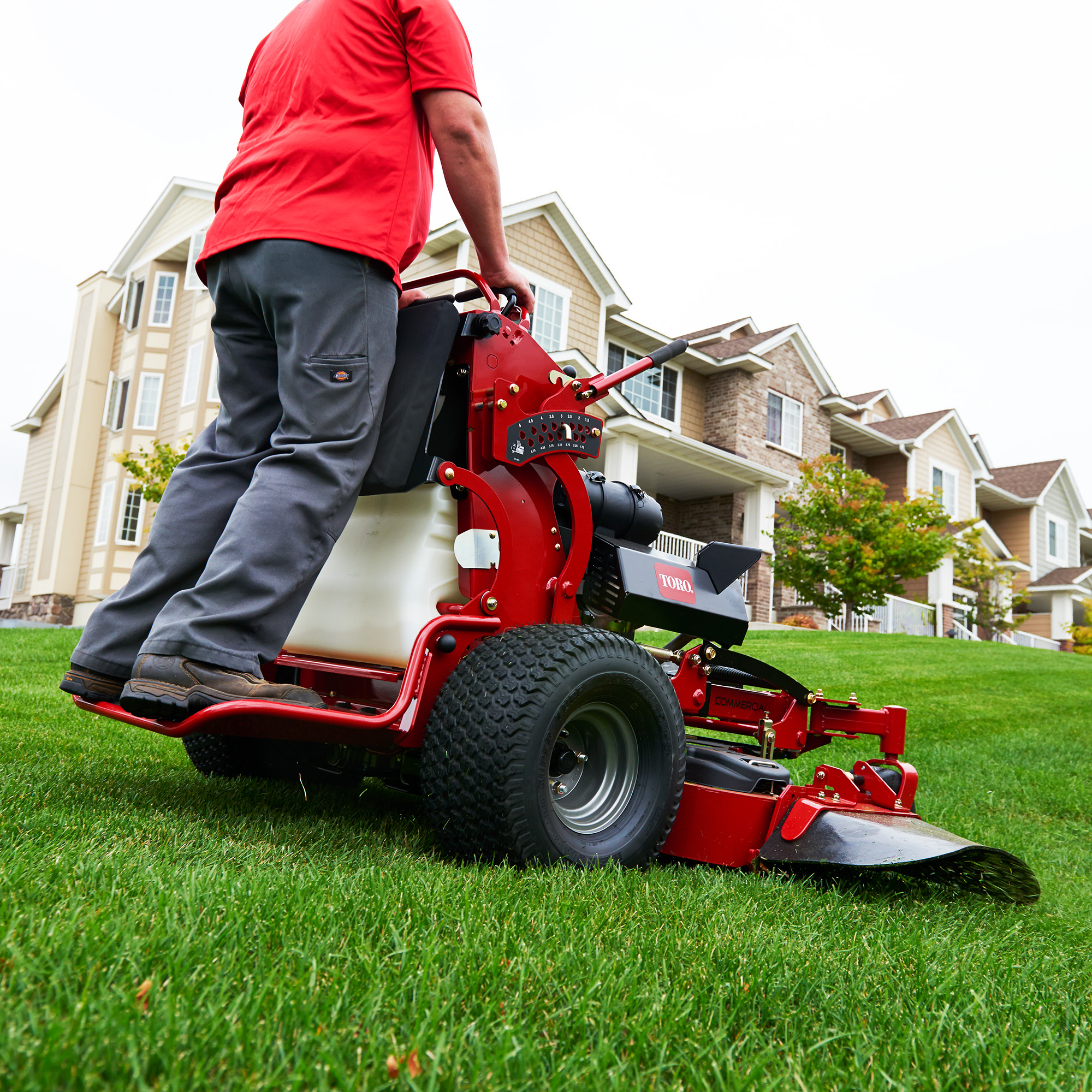

Comfortable Ride

The platform has self-adjusting suspension, a larger open area to move around, and sloped sides for a more secure stance when cutting sloped terrain.

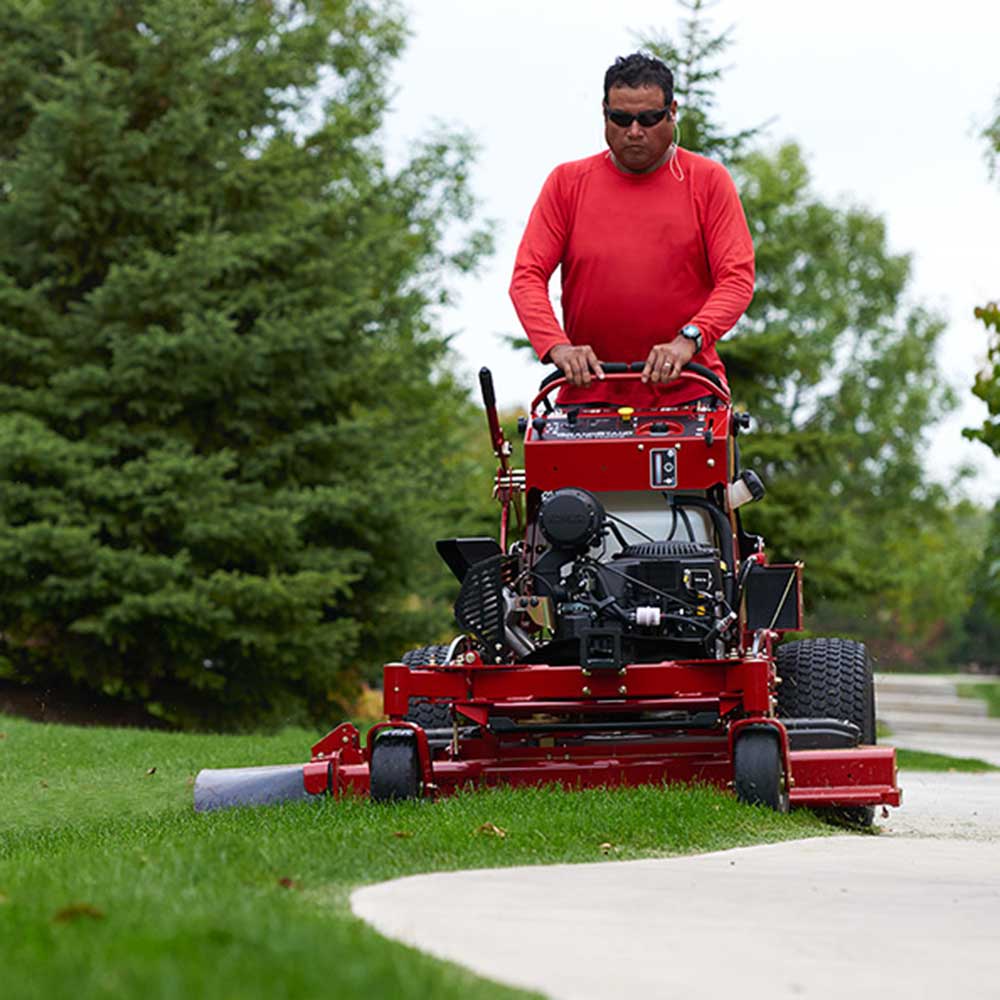

Better Visibility

Great visibility from the operator platform offers easy navigation around obstacles and under branches, protecting the operator, mower, and property.

Extra Large Fuel Tank

Improve productivity with easy access on and off the machine with up to 10.5 gallons of fuel capacity to mow longer with fewer stops. Transparent tank make it easy to gauge the fuel level.

Less Maintenance Needed

The elimination of hydraulic hoses, reduced parts, no routine greasing and simplified design, save you time.

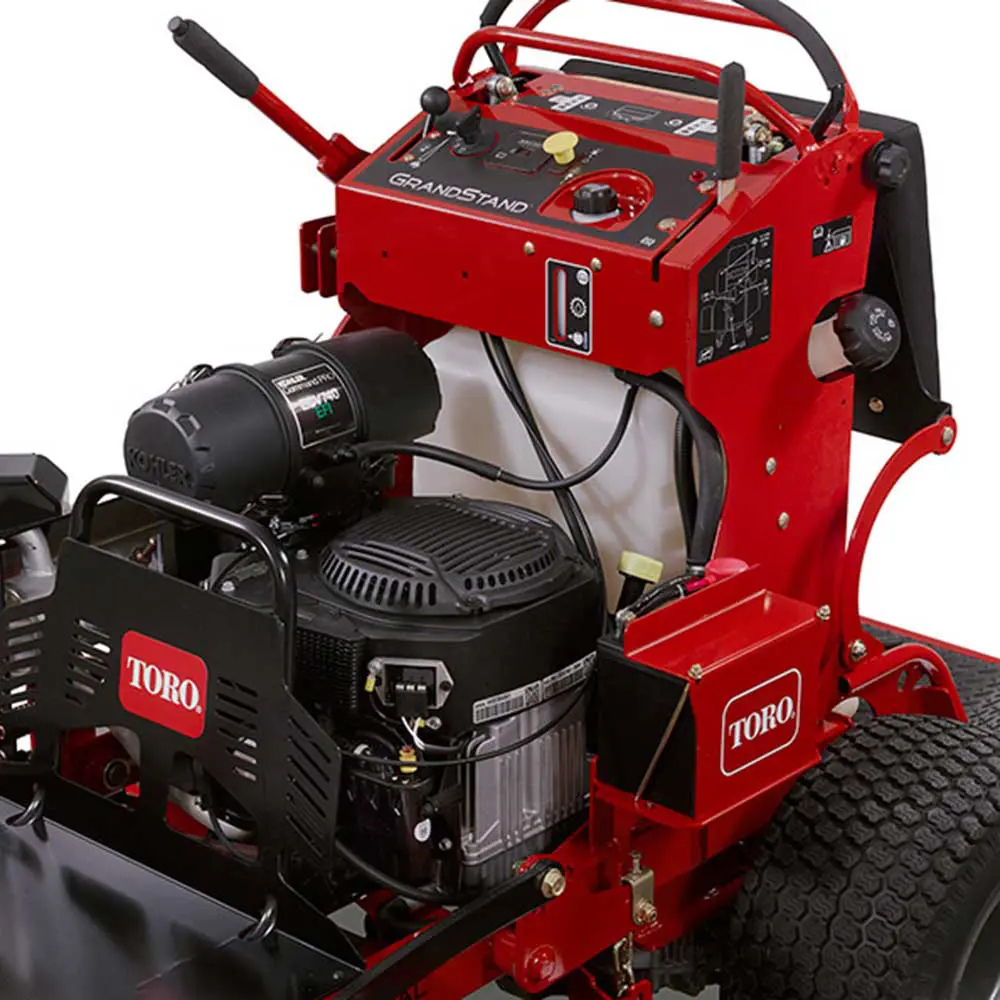

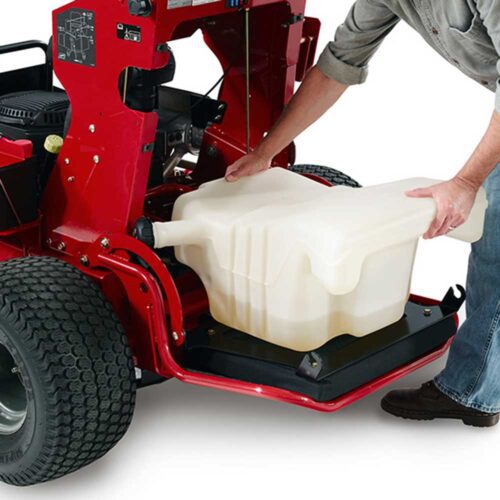

Easier Maintenance

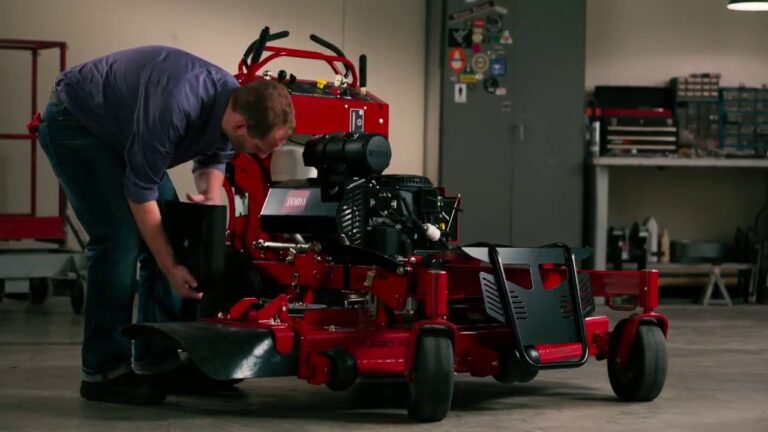

Access to both sides of the engine, hydros and controls with the easy removal of the fuel tank.

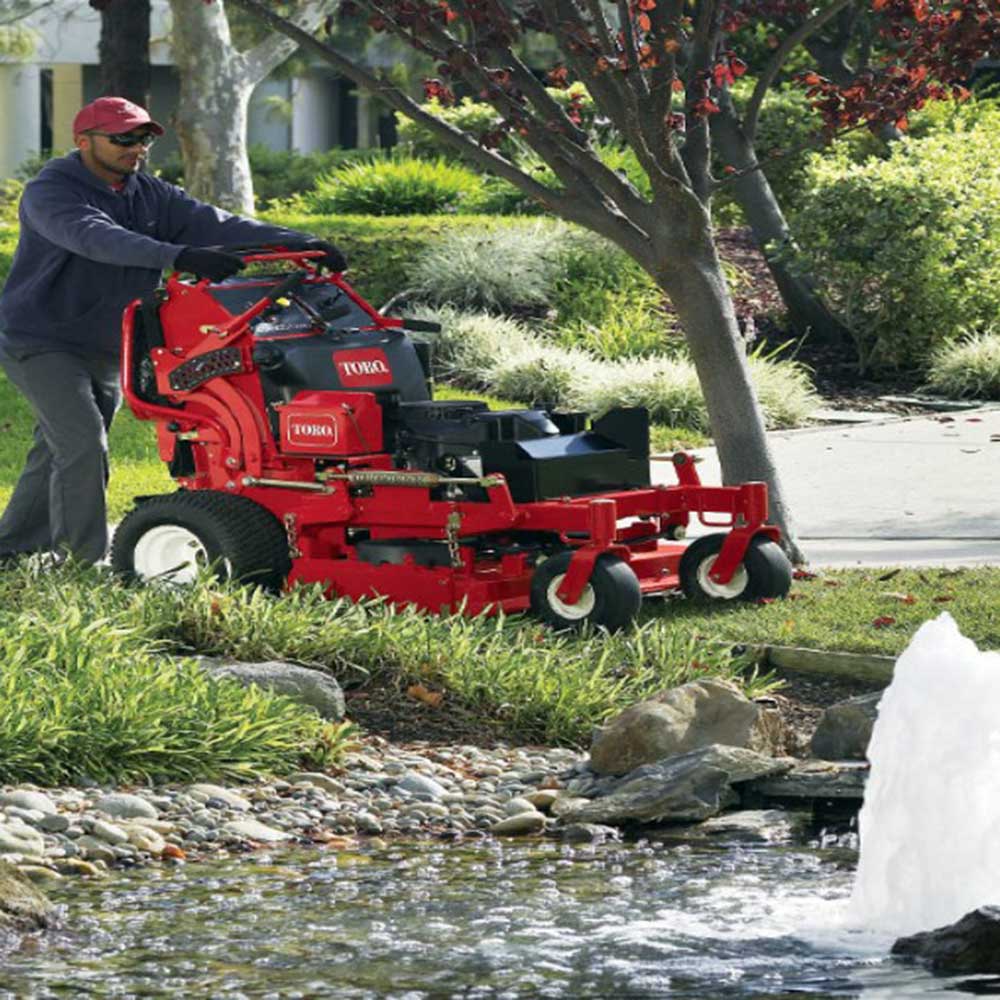

2-in-1 Versatility

Foldable operator platform instantly converts the machine to a walk-behind. It easily lowers back down when it’s time to ride, saving time and trailer space.

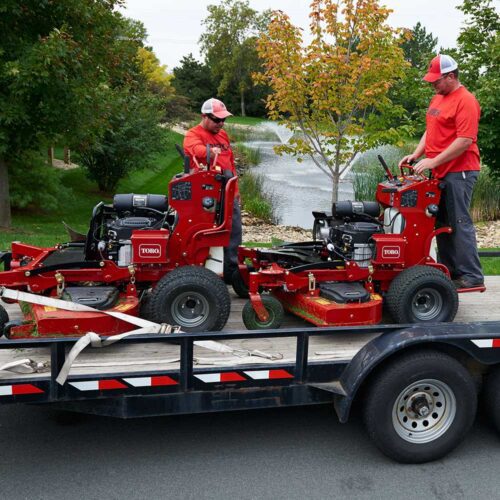

Smaller Footprint

With the platform folded, the small footprint allows you to transport more products on the trailer.

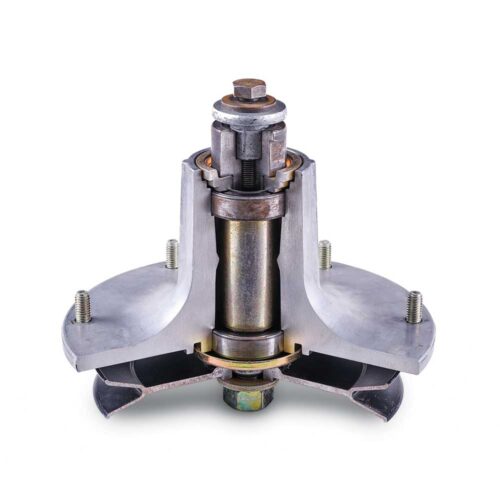

Cast Aluminum Spindle

Cools quickly for enhanced durability and performance.

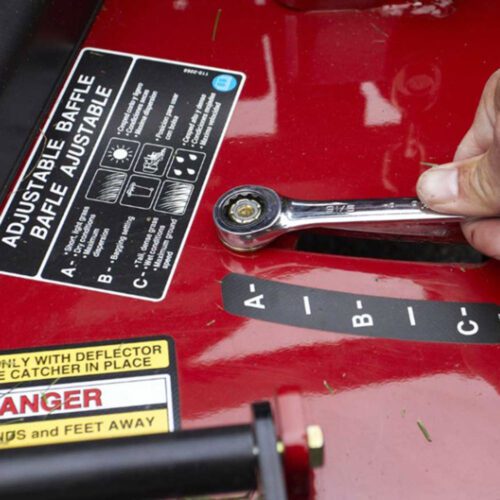

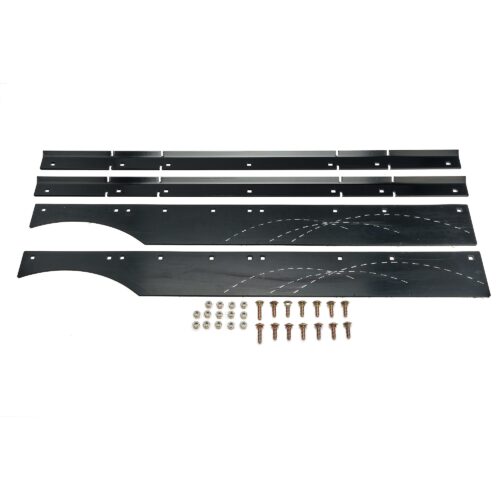

Patented Adjustable Baffle

Allows operator to achieve maximum cutting performance by fine-tuning deck to conquer changing conditions, unique job sites or different times of the season. In extreme conditions, the baffle can be opened in order to conserve power and achieve faster mowing speeds. In less demanding conditions, the baffle can be closed to yield micro-sized particles and maximize discharge velocity.

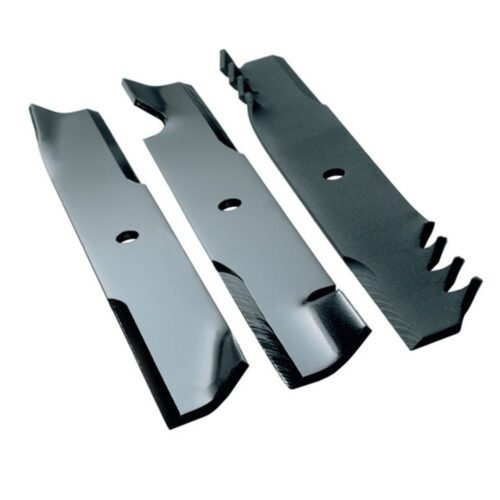

A Flat Crisp Cut with Precision Blades

(.250) thick precision blades resist flexing to provide a flat, crisp cut. High-strength, heat-treated alloy steel survives impacts and provides resistance to the rapid wear commonly associated with abrasive conditions. Options include Recycler® and Atomic® mulching blades, medium sail Bahai blades, and low sail sand blades.

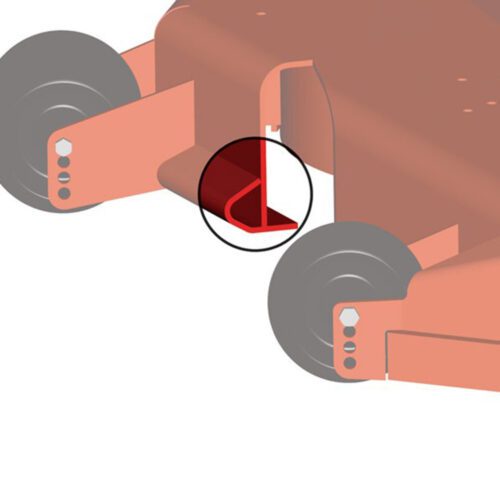

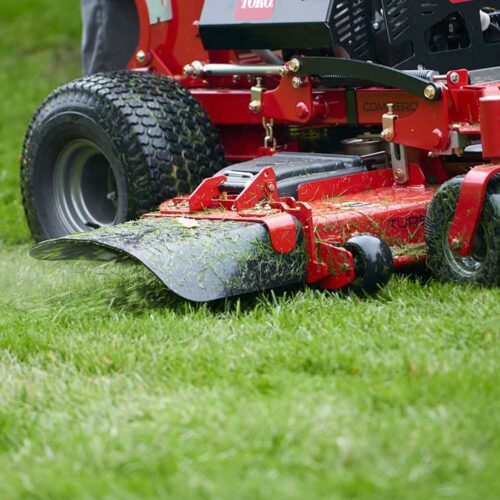

Smarter design in a bull-nose bumper.

7-gauge bull-nose bumper not only protects against frontal impacts, but also contains an integral underskirt to minimize blowout of debris and dust. The bottom, leading edge of the deck is raised 1/4" (6 mm), allowing grass to stand more upright when entering the cutting chamber, ensuring a level cut. Leaf "plowing" during spring and fall clean-up also is significantly reduced.

Specifications

Adjustable Discharge Baffle Standard
Air Filter Heavy-Duty Canister Air Cleaner

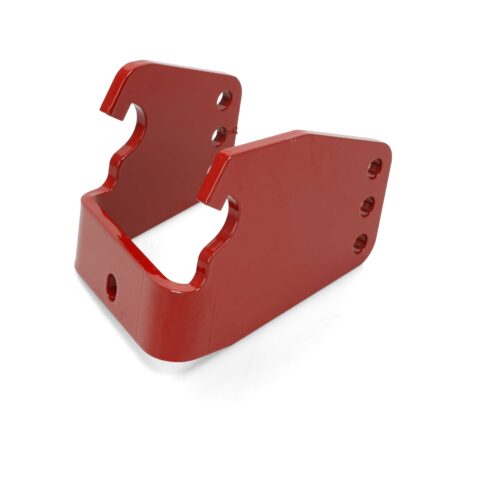

Anti Scalp Wheels Optional
Blade Tip Speed 18,500 ft/min / 5,638 m/min
Blades 0.204 in. (0.5 cm) heat-treated steel
Box Dimensions 82 in. x 63 in. x 52 in. / 208.3 cm x 160.0 cm x 132.1 cm
CARB Compliant Not CARB Compliant
Carrier Frame 3 in. x 1.5 in. x 12 gauge (7.6 cm x 3.8 cm x 12 gauge)
Caster Tires 11 in. x 4 in. - 5 in. (27.9 cm x 10.2 cm - 12.7 cm) Flat-Free Semi-Pneumatic
Clutch Electromagnetic
Comfort Platform Foldable Operator Platform with Suspension
Controls Twin lever
Deck Design 80-grade 7-gauge 48" (122 cm) TURBO FORCE® w/bull-nose bumper
Deck Material 7 Gauge Steel
Deck Size 48 in / 122 cm
Discharge Chute Rubber
Drive System Unitized Pumps 10cc rev Wheel Motors 10 cir
Drive Tires 20 in. x 10.5 in. - 8 in. (50.8 cm x 26.7 cm - 20.3 cm)
Engine 22 hp (16.4kW) Kawasaki FX691V 726 cc
Forward Ground/Transport Speed Up to 10.0 mph / 16.0 kph
Front Bumper Reinforced Bull-Nose
Fuel Capacity 10.5 gal. / 39.7 L / 42 Qt.
Fuel Type Gasoline
Height of Cut 1.5 - 5.0 in. / 3.8 - 12.7 cm
Hour Meter Standard Hour Meter
Hydraulic Fluid Premium synthetic
Spindle Bearings Maintenance-free
Spindle Housing 9.375 in / 23.8 cm Diameter Cast Iron
Start Type Electric
Steering Controls Twin Lever
