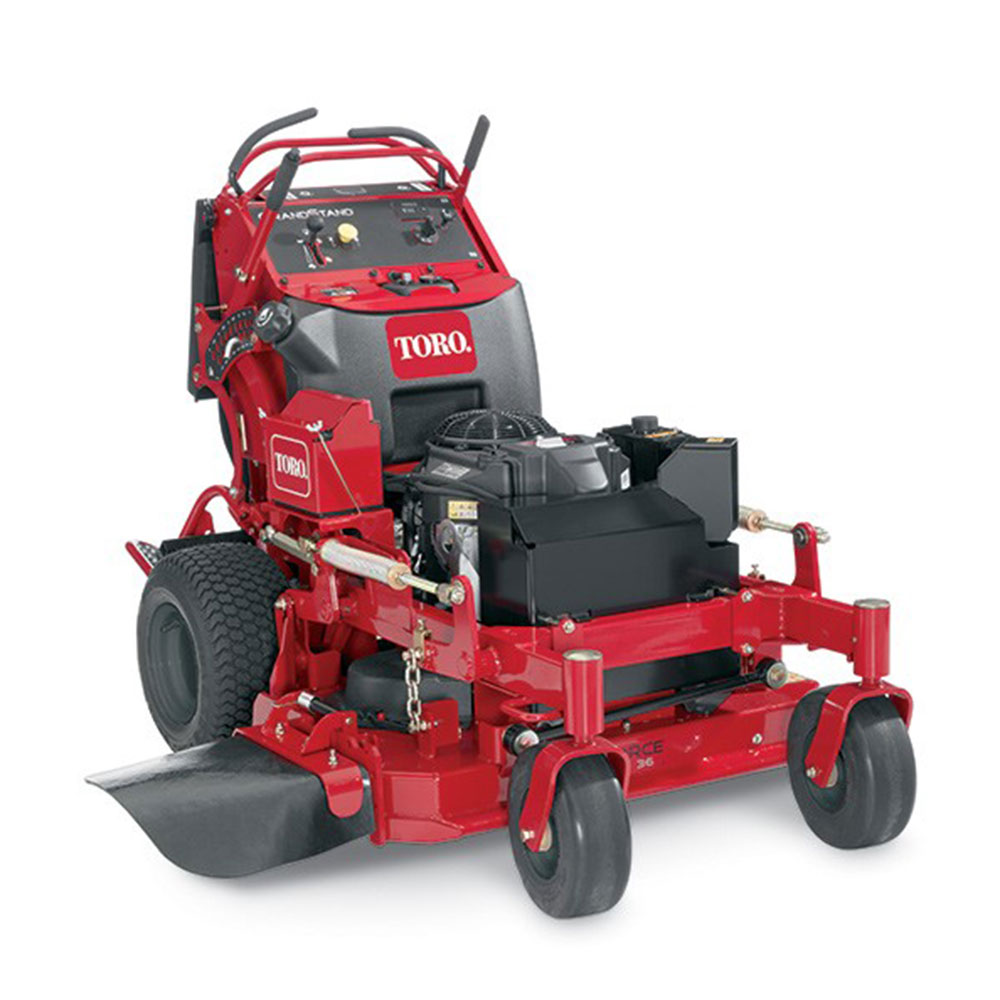

Toro GrandStand® 86cm (36") Stand-On Mower

Model: 74534
Toro

Toro GrandStand® 86cm (36") Stand-On Mower

Model: 74534
Toro

Rough bumps and challenging terrain are all in a day’s work, but feeling them shouldn’t have to be. The TORO GrandStand combines the speed and comfort of a zero-turn rider with the on-and-off ease of a wide area walk-behind — creating a fast, maneuverable and more productive alternative. The GrandStand also offers 2-in-1 versatility with the folding platform instantly converting into a walk-behind mower – saving time and money by eliminating the need for an extra mower and reducing machine length to save trailer space. This mower has a 15 hp Kawasaki® V-Twin 603 cc engine and 86.4cm (36 inch) cutting deck, a compact size necessary to maximize property versatility while minimizing the footprint on a trailer.

  • Exceptional visibility from the GrandStand protects the operator, the mower and the property. The operator is better able to steer clear of obstacles, and easily pass beneath branches.
  • TORO’s foldable operator platform instantly converts the GrandStand to a walk-behind. It easily lowers back down when its time to ride – saving time, money and trailer space by eliminating the need to switch mowers.
  • Conserves space to get more machines on your trailer, or allows for a smaller trailer and lighter load.
  • With hefty cast iron spindles including maintenance free bearings plus only annual grease points, there will be less need for routine maintenance. That means less time spent off your mower and more time generating profits with it.

* The gross horsepower of these engines was laboratory rated at 3600 rpm by the engine manufacturer in accordance with SAE J1940 or SAEJ2723. As configured to meet safety, emission and operating requirements, the actual engine horsepower on these mowers will be significantly lower.

$22,537 incl. gst
or $ per week*
*Based on $4,507 deposit, an indicative interest rate of 9.9% p.a over 4 year(s). Calculate for more details.

2 in stock

Enquire

Features

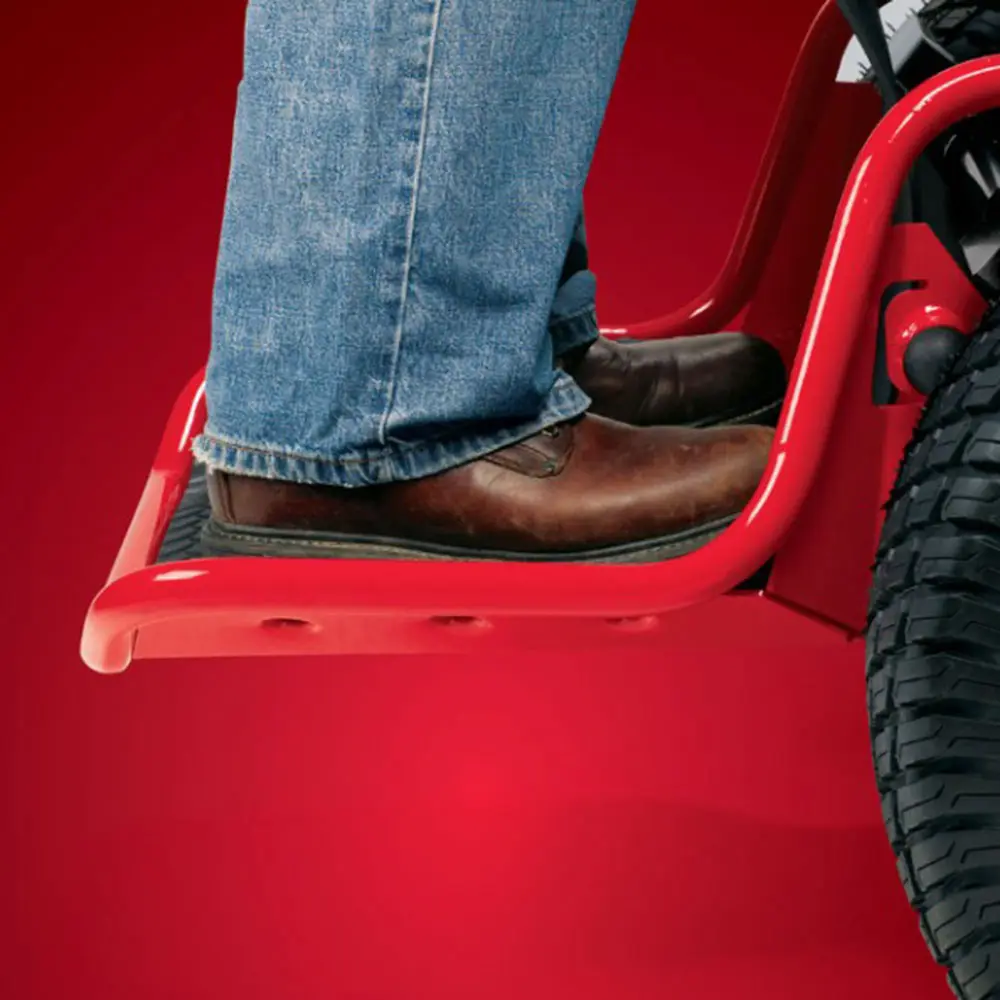

Close-up of a user’s feet on the platform of a Toro stand-on mower, showcasing comfort and grip

Fatigue-Reducing Suspension

The revolutionary Flex-Ride operator platform suspension* keeps operators fresh, resulting in less fatigue and higher productivity throughout the day. Best of all, the suspension system is self-compensating for operators of different sizes.

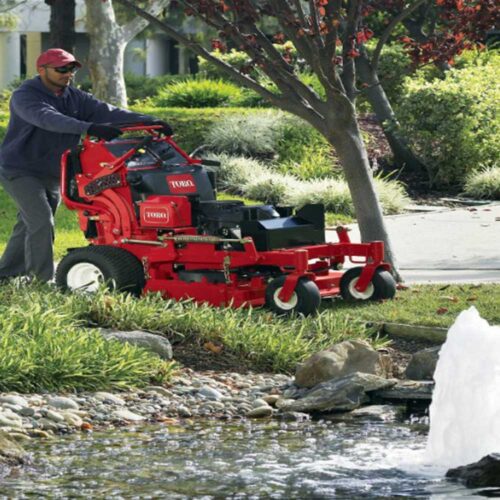

A person operates a red Toro stand-on mower near a fountain and landscaped garden

2-in-1 Versatility

Foldable operator platform instantly converts the machine to a walk-behind. It easily lowers back down when it’s time to ride, saving time and trailer space.

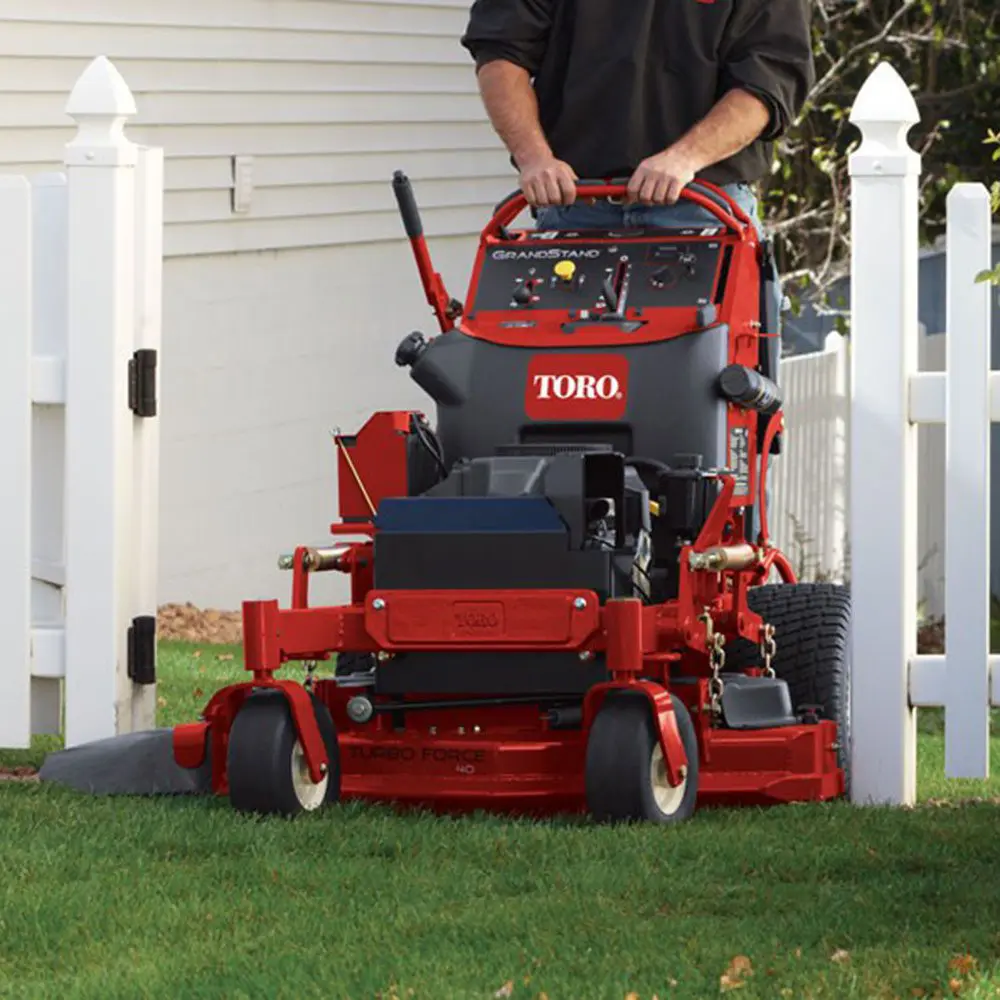

Red stand-on mower navigating a narrow pathway with a user operating it, showcasing its maneuverability

Stand-on Mower Productivity

The ability to turn easily, get in and out of tight spaces, and quickly get on and off the mower to pick up debris or move obstacles all contribute to less time spent per property. The exceptional visibility of the GrandStand protects the operator, the mower and the property. The operator is better able to steer clear of obstacles, identify upcoming changes in terrain and easily pass beneath overhanging branches.

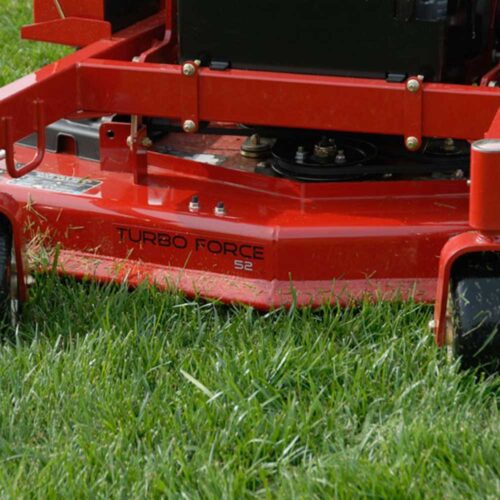

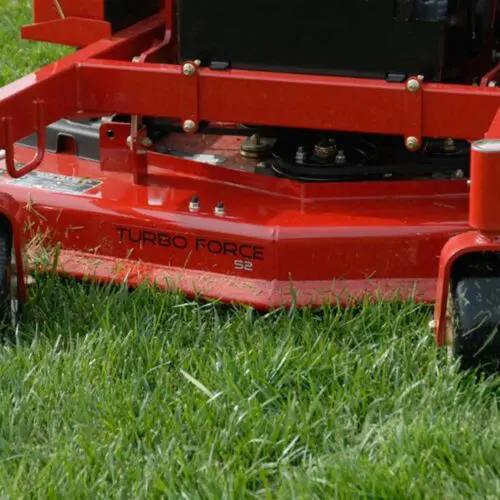

Close-up of a red mower deck on grass, showcasing the Turbo Force branding and sturdy construction

Exclusive TURBO FORCE Deck

High-capacity TURBO FORCE decks deliver unsurpassed strength, a superior cut, and increased productivity in extreme mowing conditions. Equipped with a patented adjustable baffle, TURBO FORCE decks can be fine-tuned in order to conquer changing turf conditions.

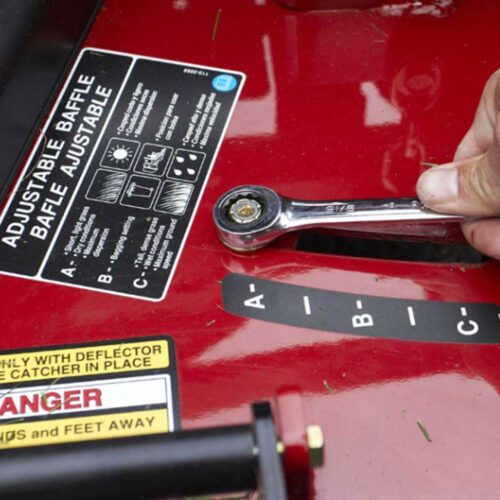

A hand adjusts the baffle on a red Toro mower, showcasing its user-friendly design and features

Patented Adjustable Baffle

Allows operator to achieve maximum cutting performance by fine-tuning deck to conquer changing conditions, unique job sites or different times of the season. In extreme conditions, the baffle can be opened in order to conserve power and achieve faster mowing speeds. In less demanding conditions, the baffle can be closed to yield micro-sized particles and maximize discharge velocity.

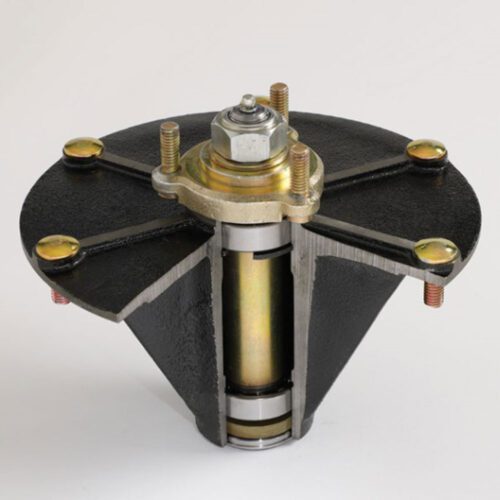

Close-up of a mower's spindle assembly showcasing its metal components and design for durability

The Industry's Toughest Spindle Assembly

Toro's rugged spindle assemblies survive impacts that would destroy lesser spindles. The cast iron housing, with a massive 9-3/8" (23.8 cm) diameter base, absorbs impact loads and distributes them across a broader area of the robust deck shell.

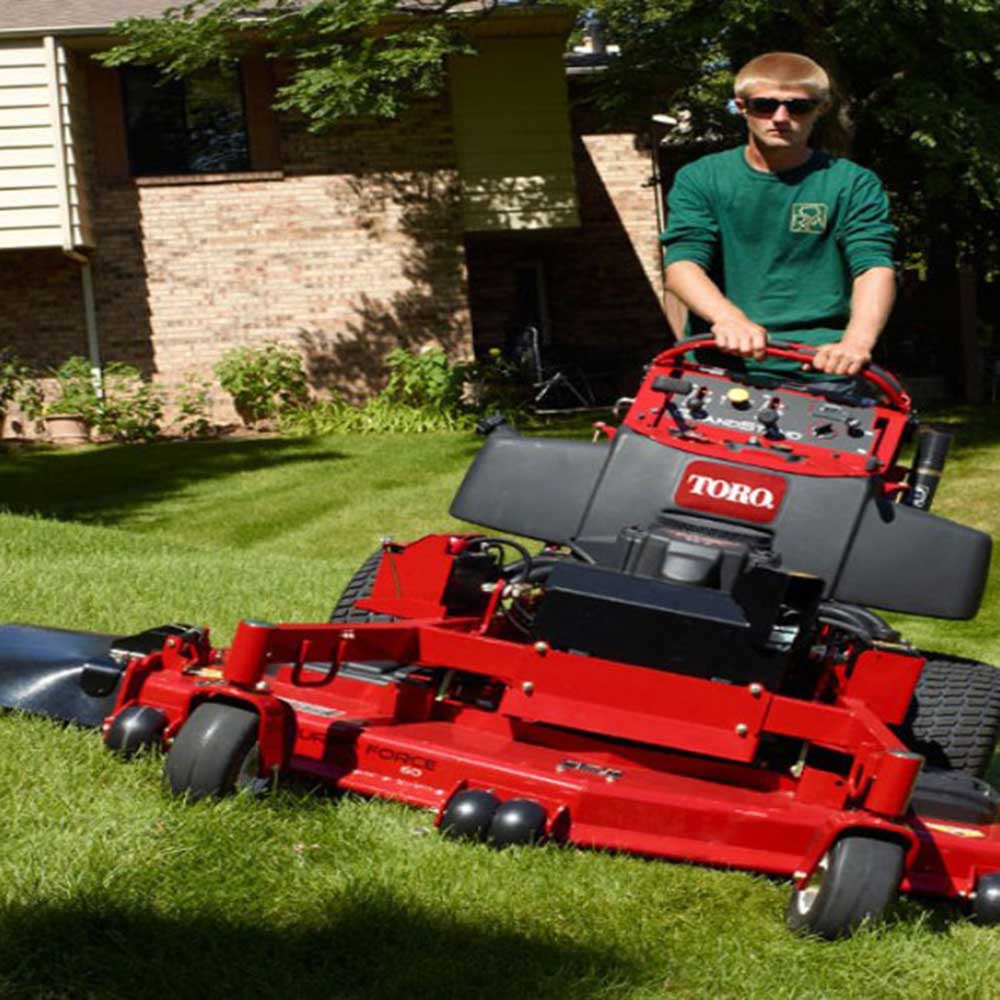

Red stand-on mower in action on grass, operated by a person wearing sunglasses and a green shirt

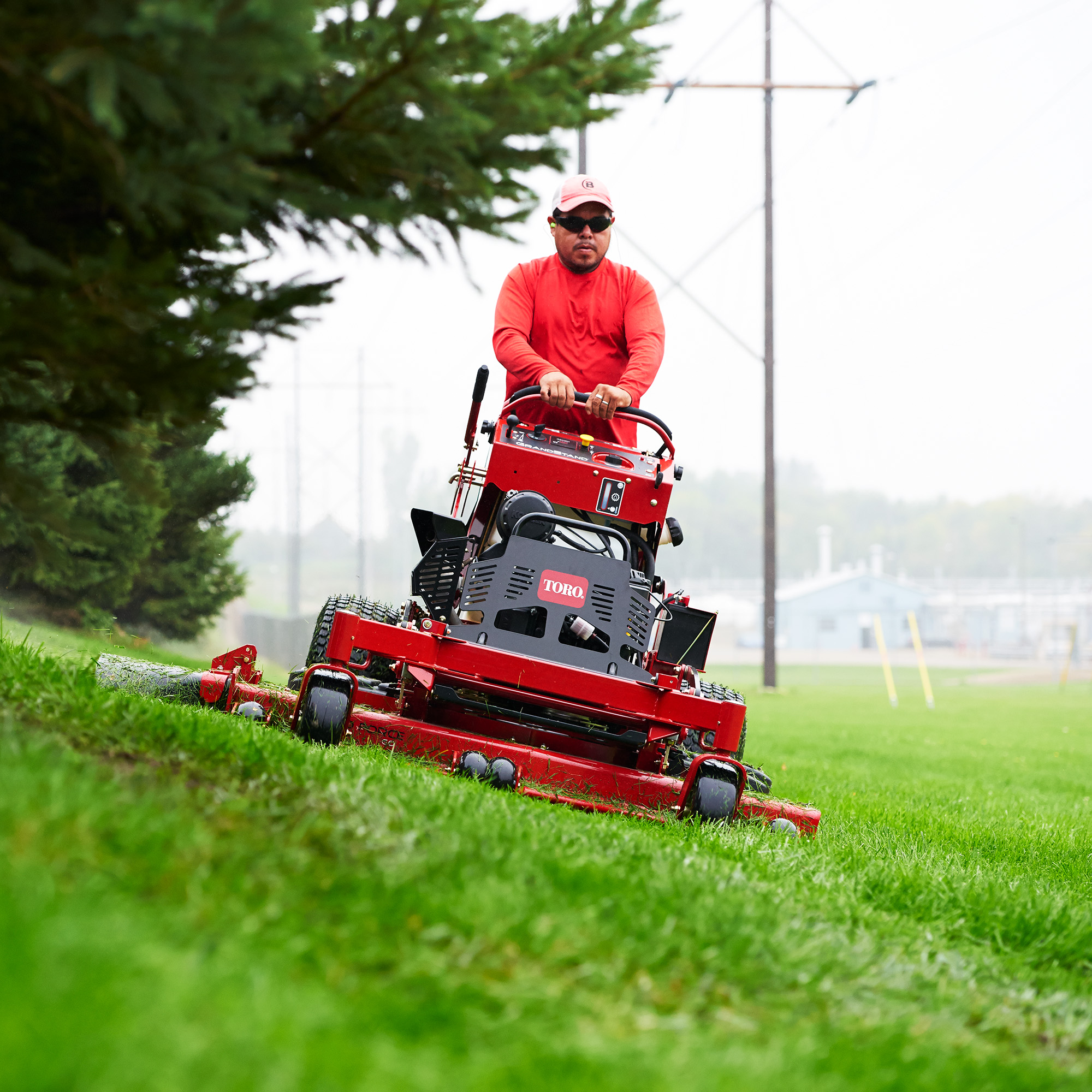

Traction and Handling

The wide stance and optimal weight balance of the GrandStand enhance hillside stability and control. Because there are no restrictions to limit operator motion, operators can shift weight as needed to further enhance the performance of the machine.

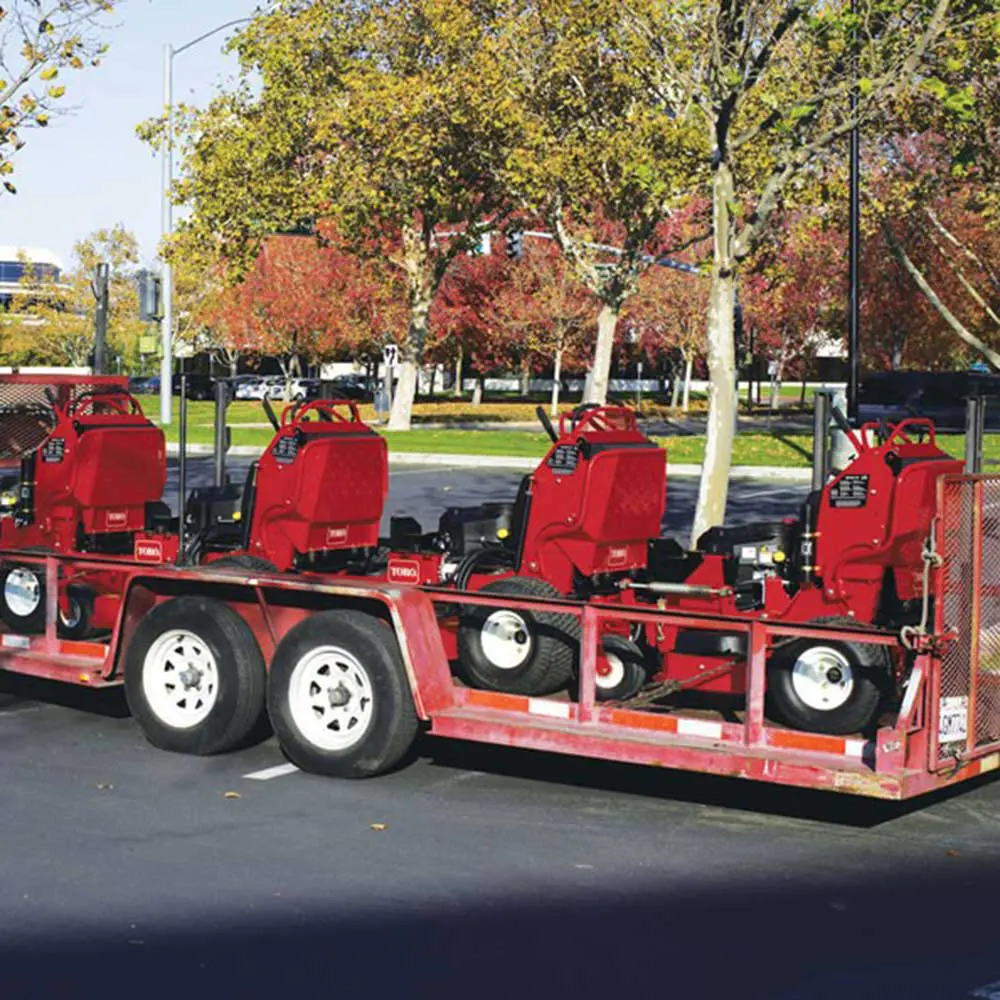

Four red Toro stand-on mowers lined up on a trailer in a park setting with autumn trees

Big on Features, Not Size

The GrandStand conserves space to get more machines on your trailer or allows for a smaller trailer and a lighter load. And the unique, foldable operator platform makes the product even more compact for transport or storage. Some property owners have negative reactions to larger, heavier-looking mowers, and are concerned that their lawns may be damaged. With the sleeker Toro GrandStand, that problem is eliminated.

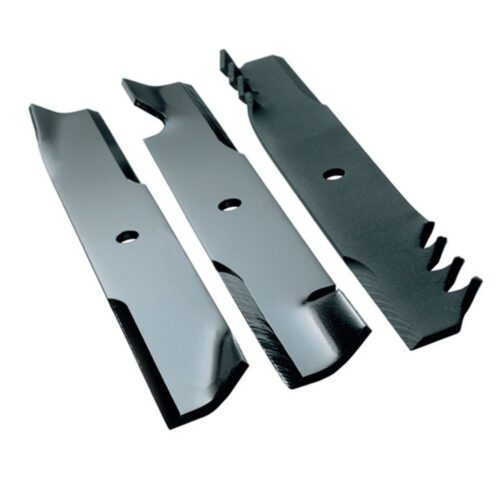

Three mower blades with varying designs, showcasing durability and cutting efficiency for challenging terrains

A Flat Crisp Cut with Precision Blades

(.250) thick precision blades resist flexing to provide a flat, crisp cut. High-strength, heat-treated alloy steel survives impacts and provides resistance to the rapid wear commonly associated with abrasive conditions. Options include Recycler® and Atomic® mulching blades, medium sail Bahai blades, and low sail sand blades.

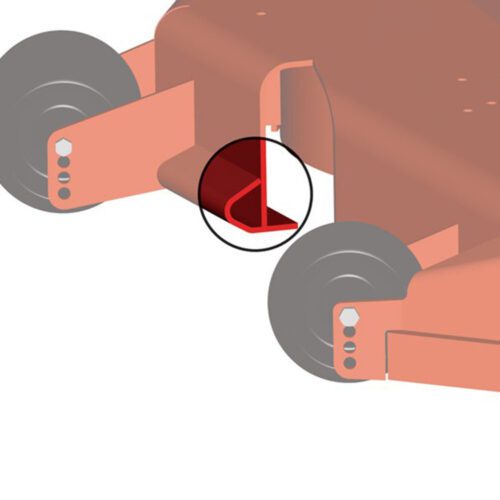

Close-up of mower deck showing wheel assembly and frame design for enhanced stability and maneuverability

Smarter design in a bull-nose bumper.

7-gauge bull-nose bumper not only protects against frontal impacts, but also contains an integral underskirt to minimize blowout of debris and dust. The bottom, leading edge of the deck is raised 1/4" (6 mm), allowing grass to stand more upright when entering the cutting chamber, ensuring a level cut. Leaf "plowing" during spring and fall clean-up also is significantly reduced.

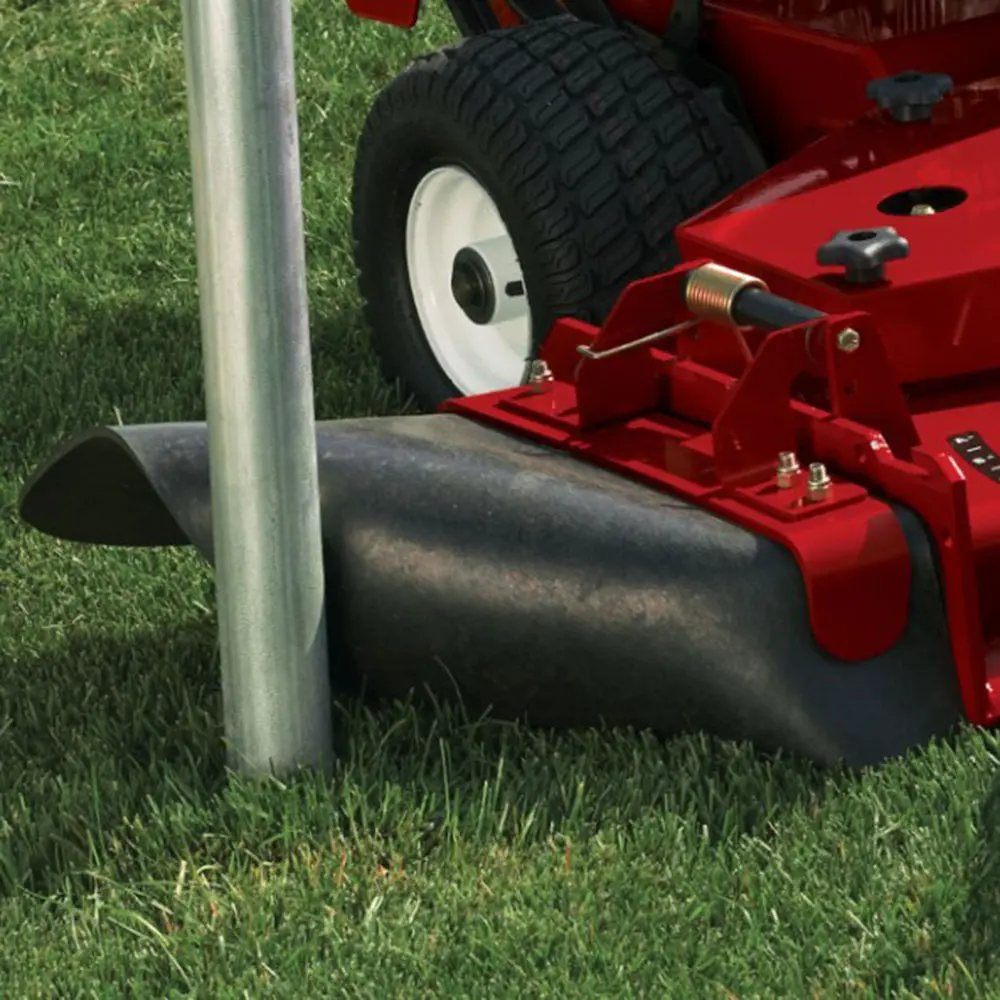

Close-up of the mower's cutting deck and wheel, showcasing robust design and durability on grass

Rubber Discharge Chute

High performance rubber discharge chute allows for close trimming without damaging chute or landscape structures. Patented design provides exceptional clipping dispersion.

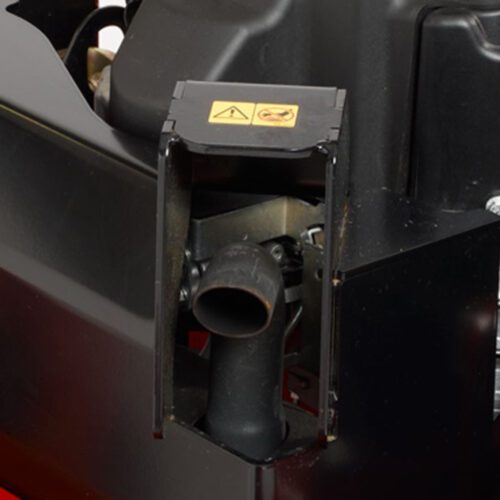

Close-up of a Toro mower's engine component with warning label and black casing

Heavy-Duty Muffler Guard

Heavy-duty, 7-gauge muffler guard protects muffler against damage.

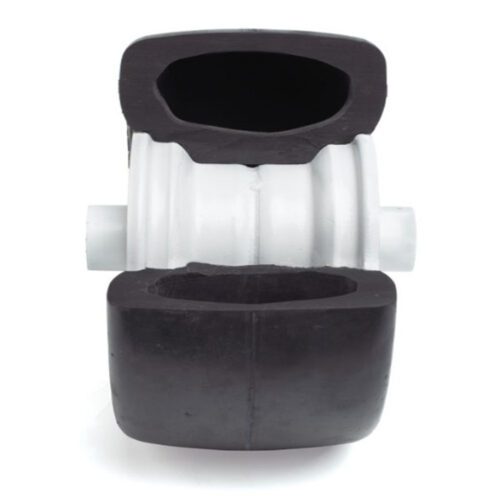

A cutaway view of a Toro mower's rubber component, showcasing its design and structure for durability

Flat-free, semi-pneumatic caster tires

Flat-free, semi-pneumatic caster tires

Specifications

Adjustable Discharge Baffle Standard
Blade Tip Speed 18,500 ft/min / 5,638 m/min
Blades 0.204 in. (0.5 cm) heat-treated steel
Box Dimensions 77.25 in. x 49 in. x 52 in. x 196.2 cm x 124.5 cm x 132.1 cm
CARB Compliant Not CARB Compliant
Carrier Frame 3 in. x 1.5 in. x 12 gauge (7.6 cm x 3.8 cm x 12 gauge)
Caster Tires 11 in. x 4 in. - 5 in. (28 cm x 10.2 cm - 12.7 cm) Flat-Free Semi-Pneumatic
Clutch Electromagnetic
Comfort Platform Foldable Operator Platform with Suspension
Controls Twin lever
Deck Design 7-gauge 36" (91 cm) TURBO FORCE® with bull-nose bumper
Deck Material 7 Gauge Steel
Deck Size 36 in / 91 cm
Discharge Chute Rubber
Drive System Pumps 10cc rev Wheel Motors 10 cir
Drive Tires 18 in. x 8.5 in. - 8 in. (46 cm x 22 cm - 20 cm)
Engine 15 hp* (11kW) Kawasaki® FS541V 603 cc
Engine Brand Kawasaki
Engine Displacement (cc) 603 cc
Engine Horsepower 15.0 hp
Forward Ground/Transport Speed Up to 8.0 mph / 12.8 kph
Front Bumper Reinforced Bull-Nose
Fuel Capacity 7.8 gal. / 29.5 L / 31.2 Qt.
Fuel Type Gasoline
Height of Cut 1.0 - 5.0 in. / 2.5 - 12.7 cm
Hour Meter Standard
Hydraulic Fluid Premium synthetic
Number of Blades 3
Product Type Stand-On Mowers
Product Use Commercial
Spindle Bearings Maintenance-free
Spindle Housing 9.375 in / 23.8 cm Diameter Cast Iron
Start Type Electric
Steering Controls Twin Lever
Weight 837 lbs / 379.7 kg
