Toro MultiPro® 5800 Turf Sprayer

Model: 41393
Toro

Toro MultiPro® 5800 Turf Sprayer

Model: 41393
Toro

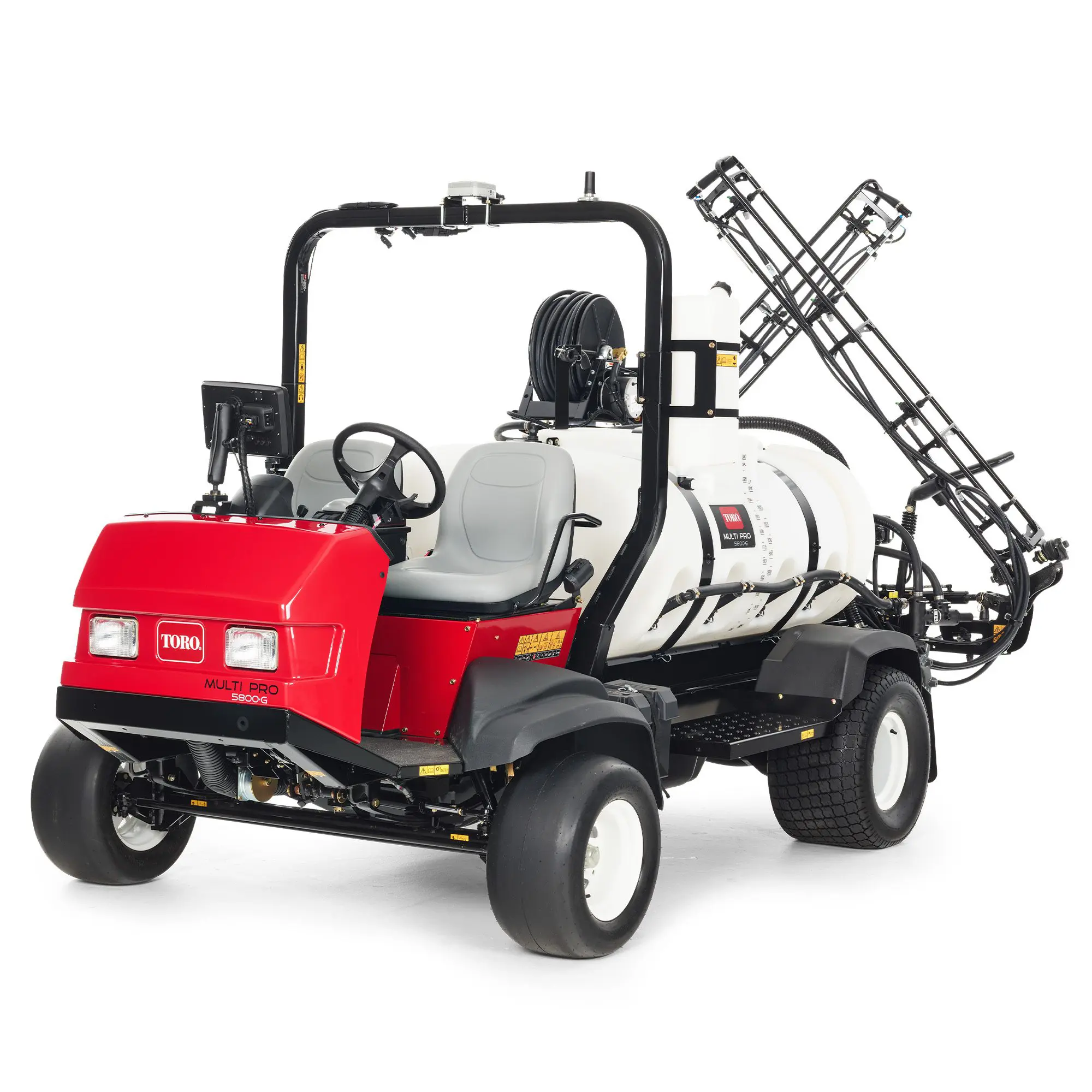

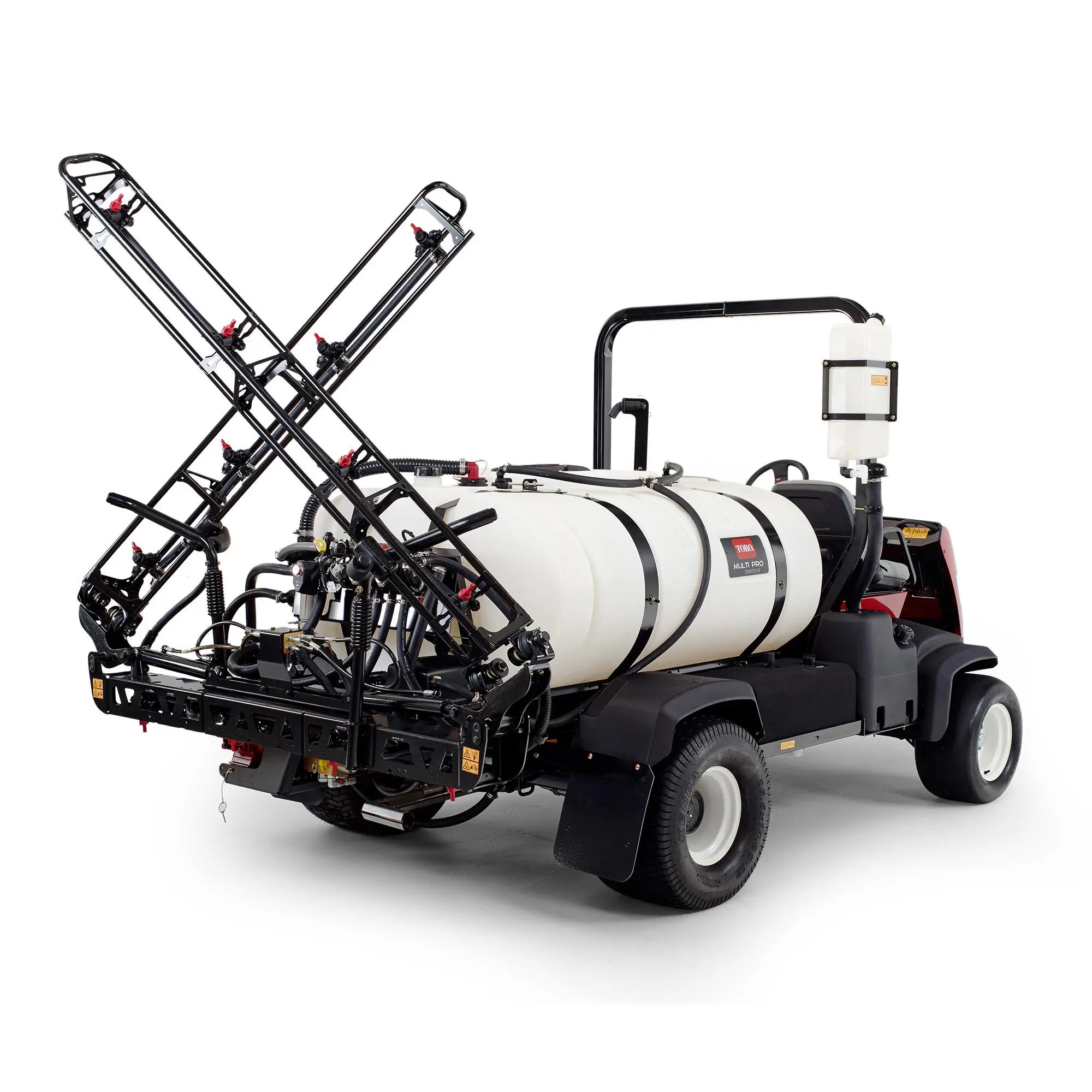

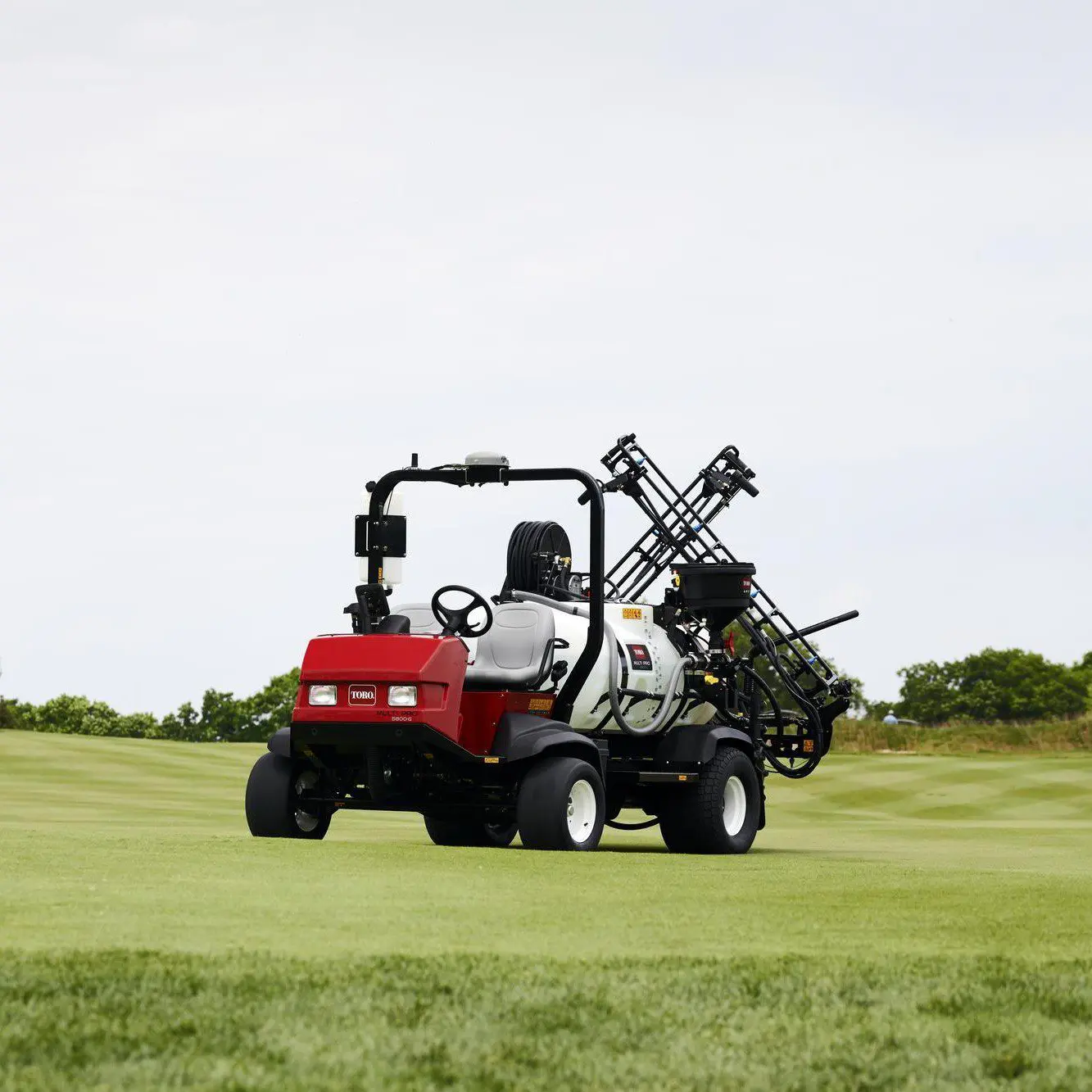

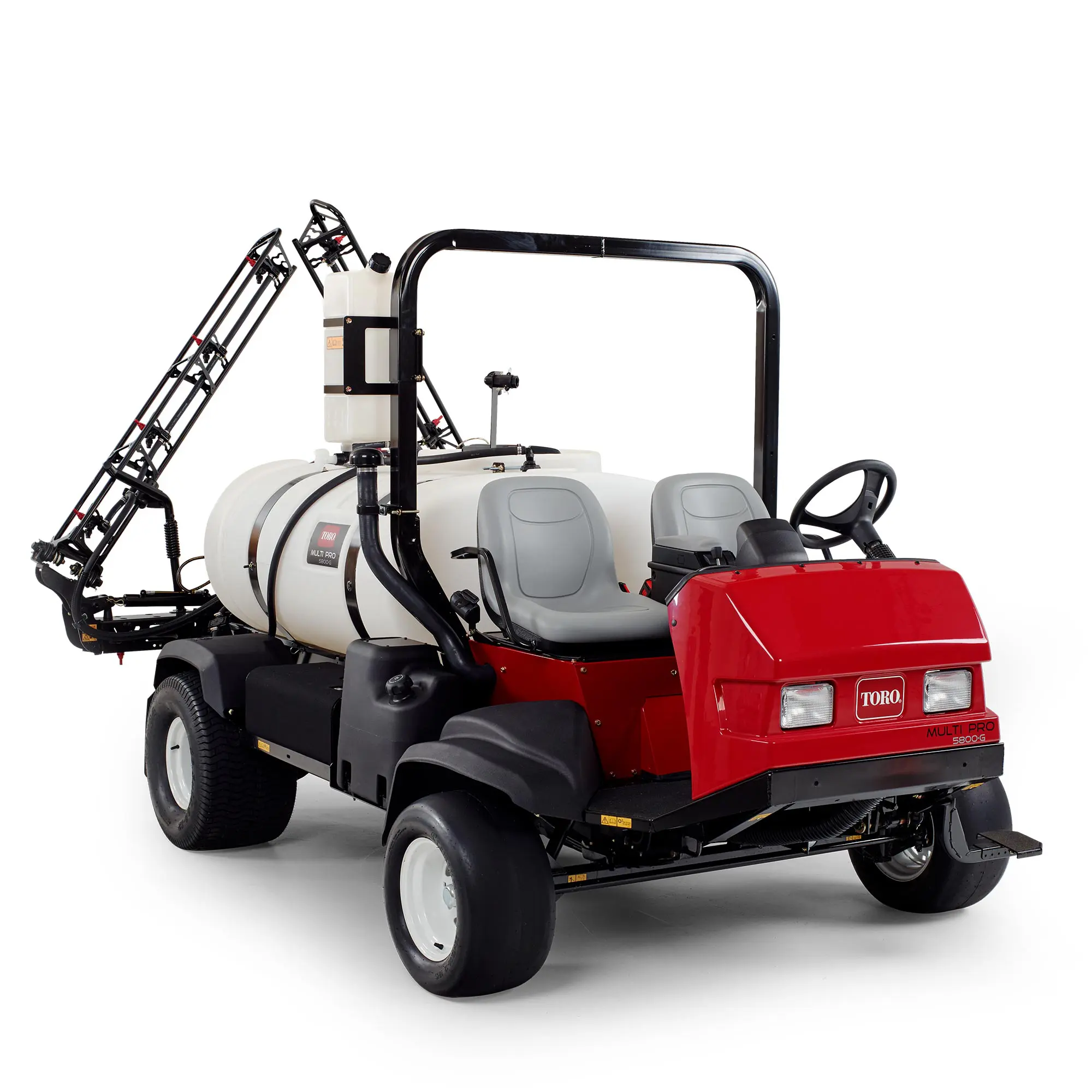

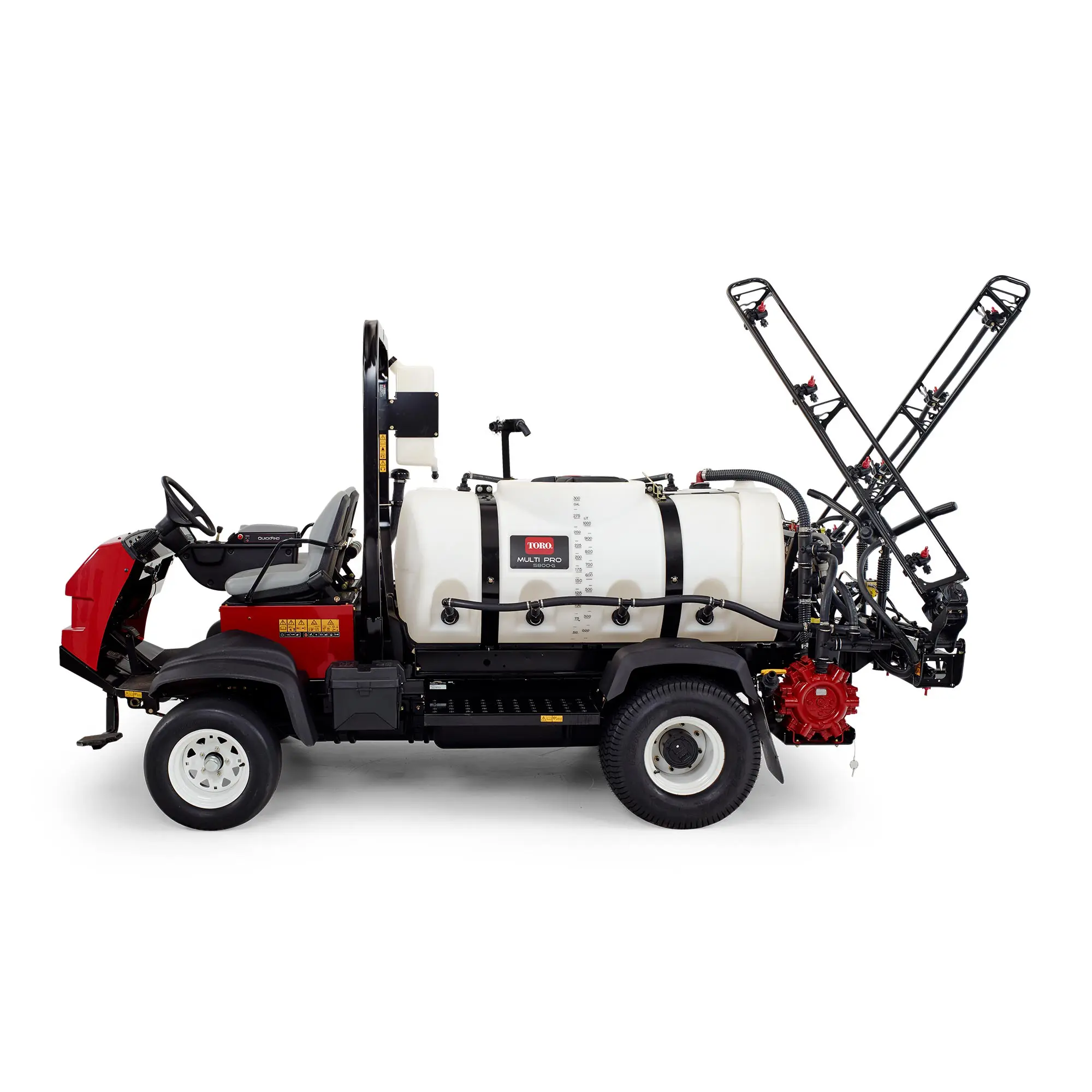

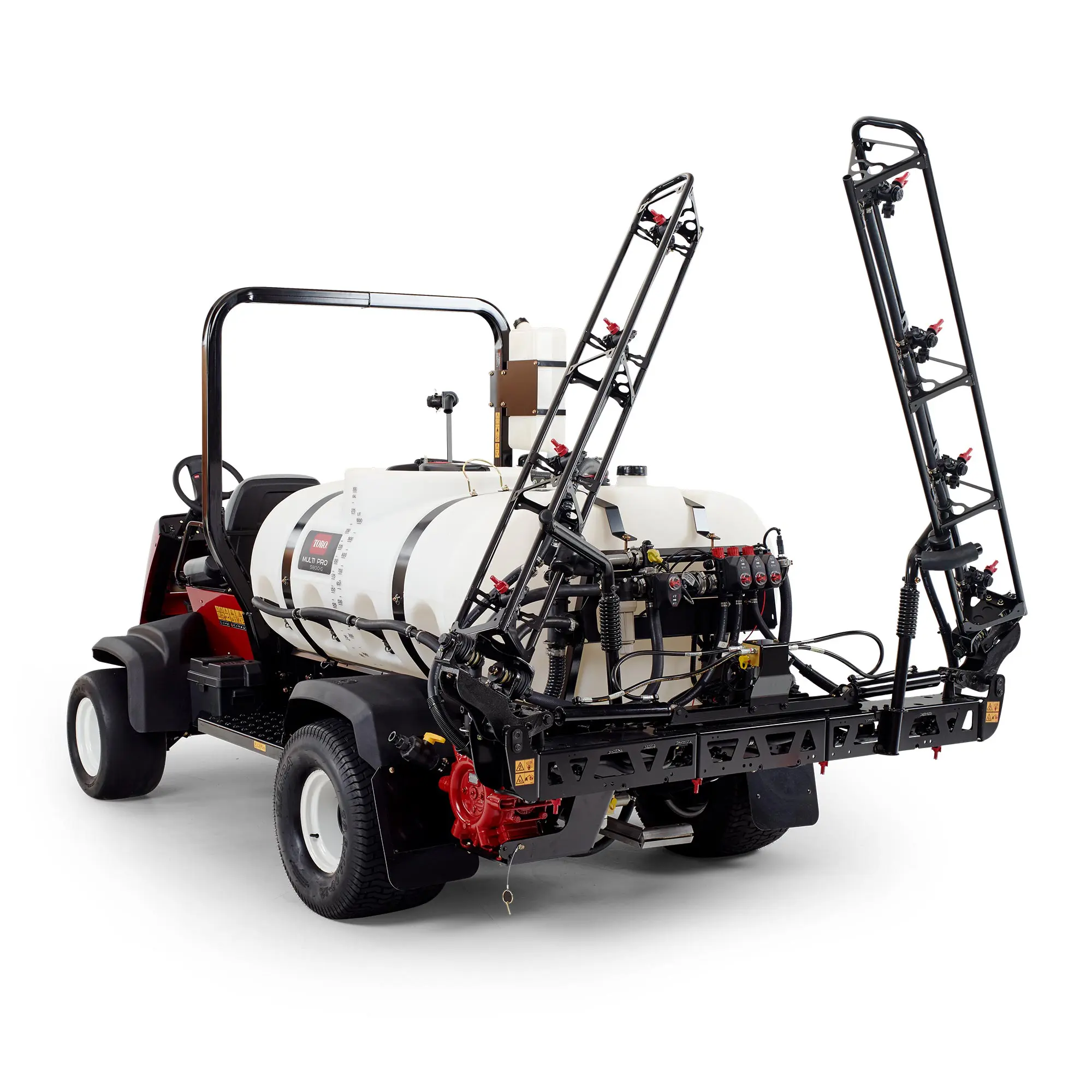

Multi Pro 5800 300-gallon dedicated sprayer
Leading sprayer technology, proven reliability and innovative accessories provide many performance and operational advancements. Every aspect of the spray system has been engineered to deliver unsurpassed spray accuracy, aggressive agitation and faster response time. Consistently delivers desired spray rates in even the most demanding environments.

Multi Pro 5800 with GeoLink® GPS Technology
This smart system knows your precise location. By automatically turning individual nozzles on and off, overlaps are virtually eliminated, resulting in substantial product savings.* You only need to map out your application area once, and the data will be saved for future applications.**

  • An industry exclusive! This oversized pump satisfies the highest spray rates while simultaneously supplying aggressive agitation flow. The self-priming, positive displacement design means the pump can be run dry without damage. Its dry sump means there’s no risk of oil/lubricant contaminating the spray application.
  • Positions operational switches and throttle at the operator’s fingertips for convenient access and control. With Quick Find™ controls, the operator can easily locate the buttons without taking their eyes off the spray path.
  • Provides a high torque traction system that prevents spinning and turf damage. A speed locking device provides a constant spraying speed.
  • Industry exclusive KZValve® electronically-activated ball valves are easily serviceable for long life and outstanding performance.
Fleet Finance & Leasing Options Talk to us today 0800 807 333
Enquire Call 0800 807 333
Talk to a rep Find a Store

Features

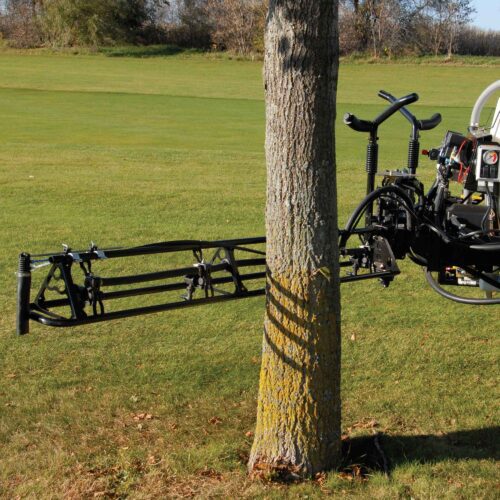

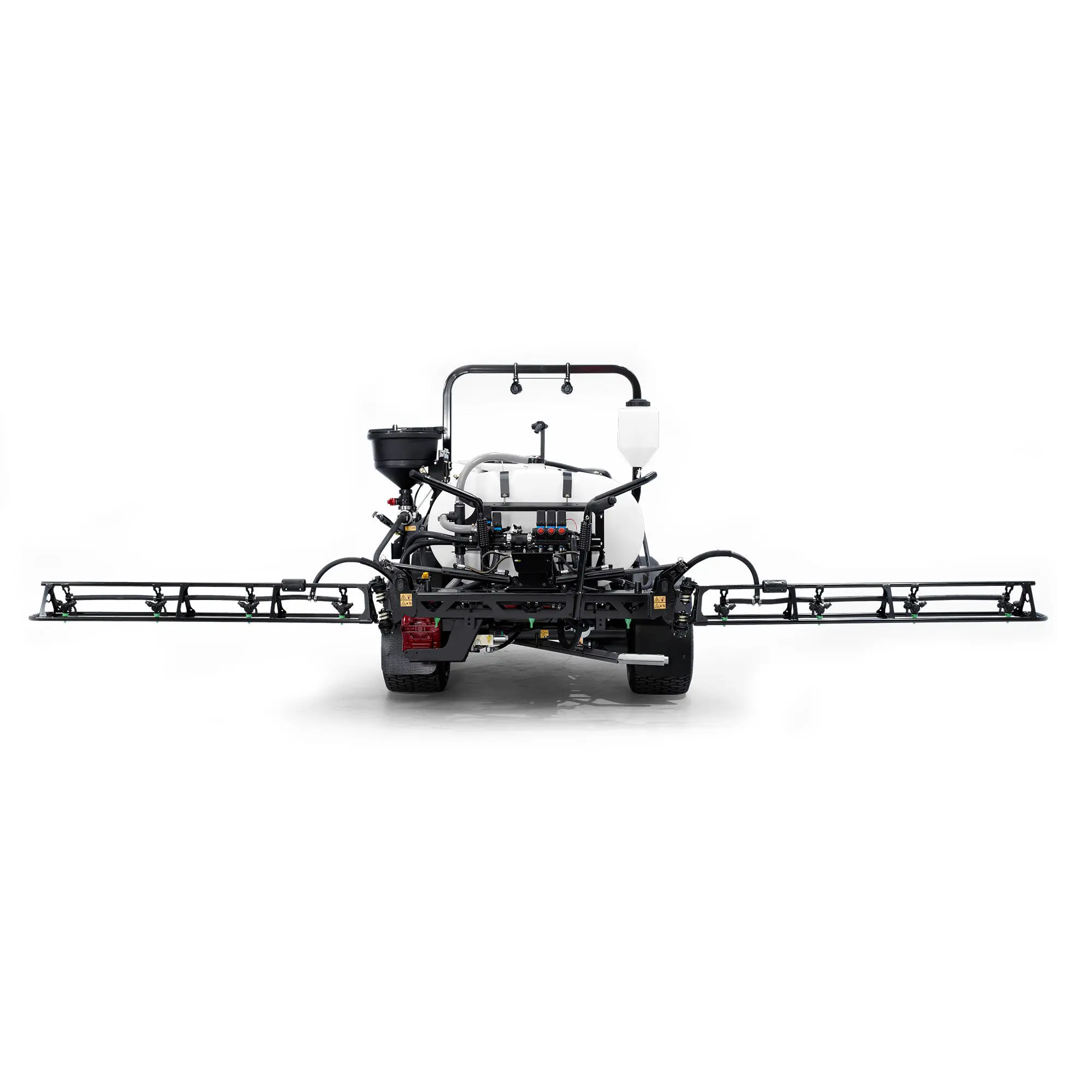

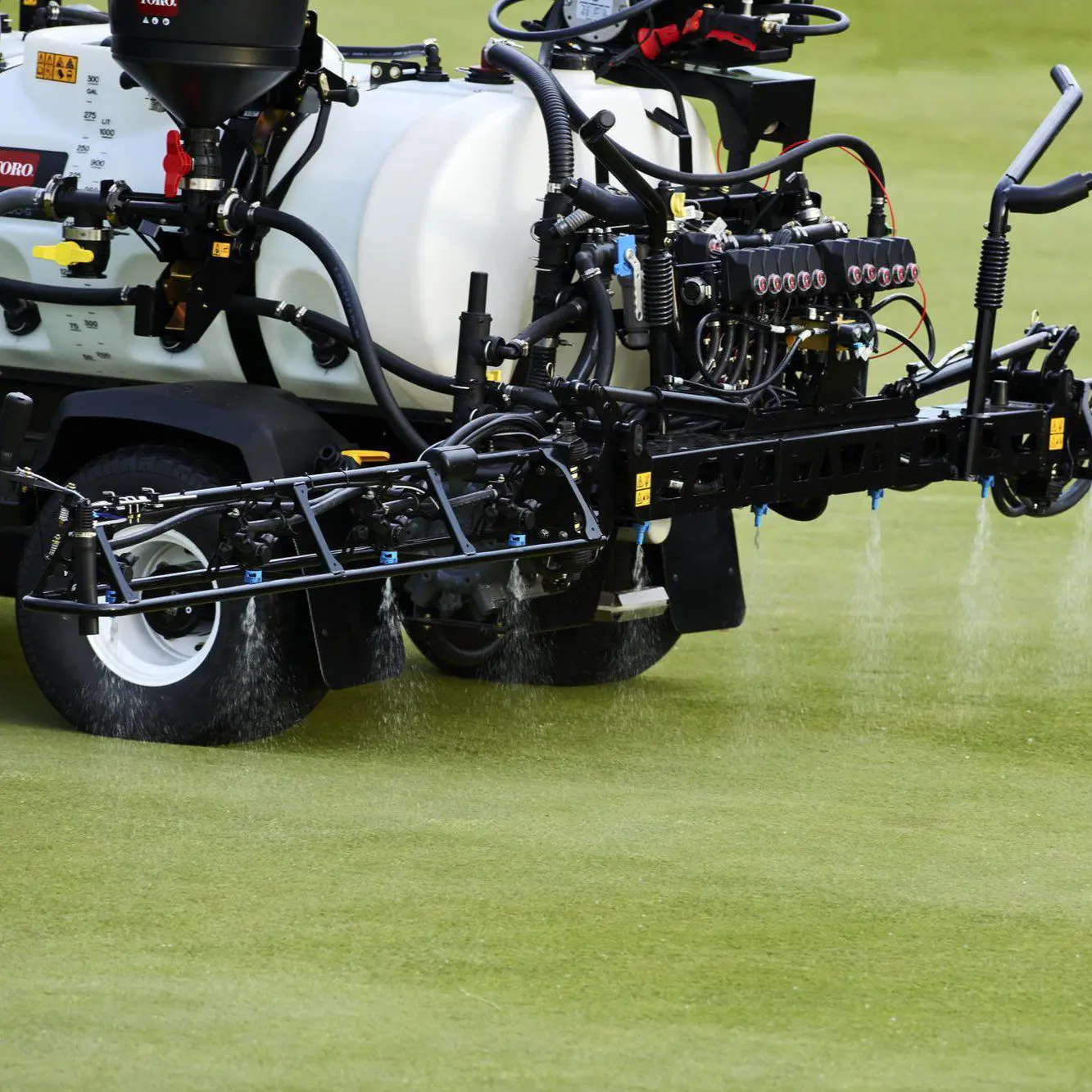

Rugged Spray Booms

The triangulated truss design provides protection to nozzlesTransport cradles with breakaway capability secure wing booms during transportLift and lower booms without leaving the seatSpring-loaded breakaway system returns boom to spray position after an impact during forward or reverse travelReduce damage to trees or other objects with specially rounded boom endsThree section 20.5’ (6.25 m) boom width

Six Diaphragm Pump

An industry exclusive! This oversized pump satisfies the highest spray rates while simultaneously supplying aggressive agitation flow. The self-priming, positive displacement design means the pump can be run dry without damage. Its dry sump means there's no risk of oil/lubricant contaminating the spray application.

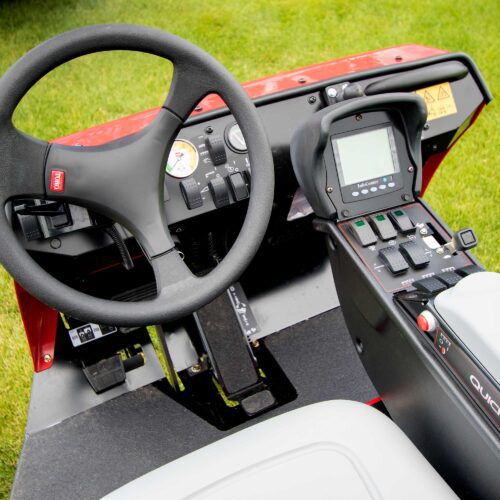

Center Control Console

Positions operational switches and throttle at the operator's fingertips for convenient access and control. With Quick Find™ controls, the operator can easily locate the buttons without taking their eyes off the spray path.

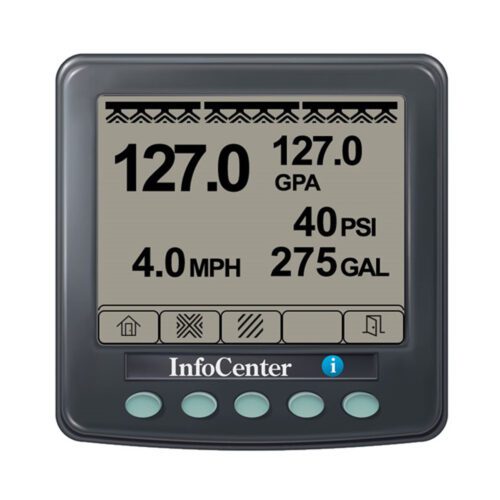

ExcelaRate™ Rate Controller

Digital pressure display, Toro-exclusive spray system icons and nomenclature, programmable vehicle parameters (width, nozzles, etc.) and understandable fault codes (engine, operator presence, parking brake, etc.) make operation simple and intuitive.Developed by Toro specifically for turf applications; delivers features that no other controller can offer. Simplified calibration, multiple application rates and a special boost feature make operating the Multi Pro 5800 easier than ever before.Tracks applications for sub areas and total spray area for accurate record keeping.

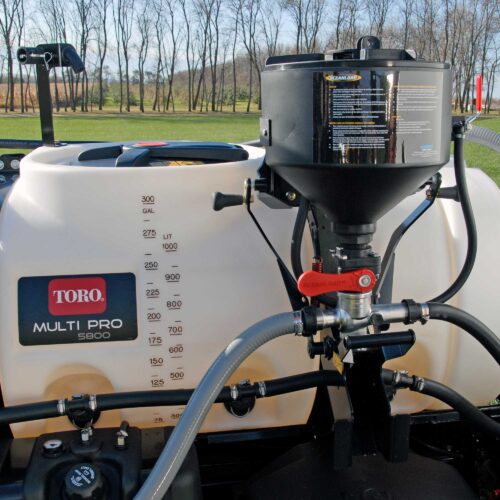

300 Gallon (1136 litre) Chemical Tank

Ready for the long haul, this completely redesigned tank incorporates four, 30 degree, side-mounted agitation nozzles to ensure the homogeneous mixing of chemicals for application accuracy. An offset fill well provides easy access for loading chemicals. Engineered polymer material won't crack, dent, rust, chip or peel.

Hydrostatic Vehicle Drive System

Provides a high torque traction system that prevents spinning and turf damage. A speed locking device provides a constant spraying speed.

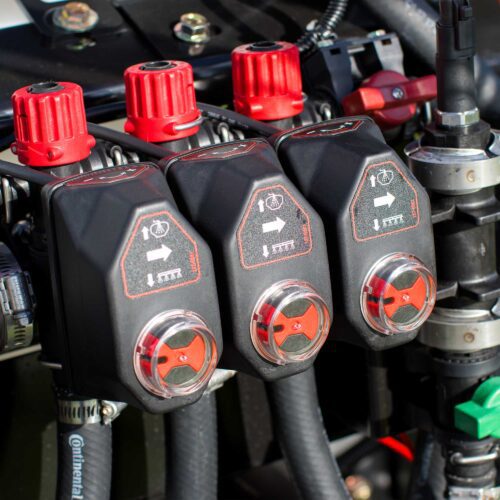

KZValve® Section Valves

Industry exclusive KZValve® electronically-activated ball valves are easily serviceable for long life and outstanding performance.

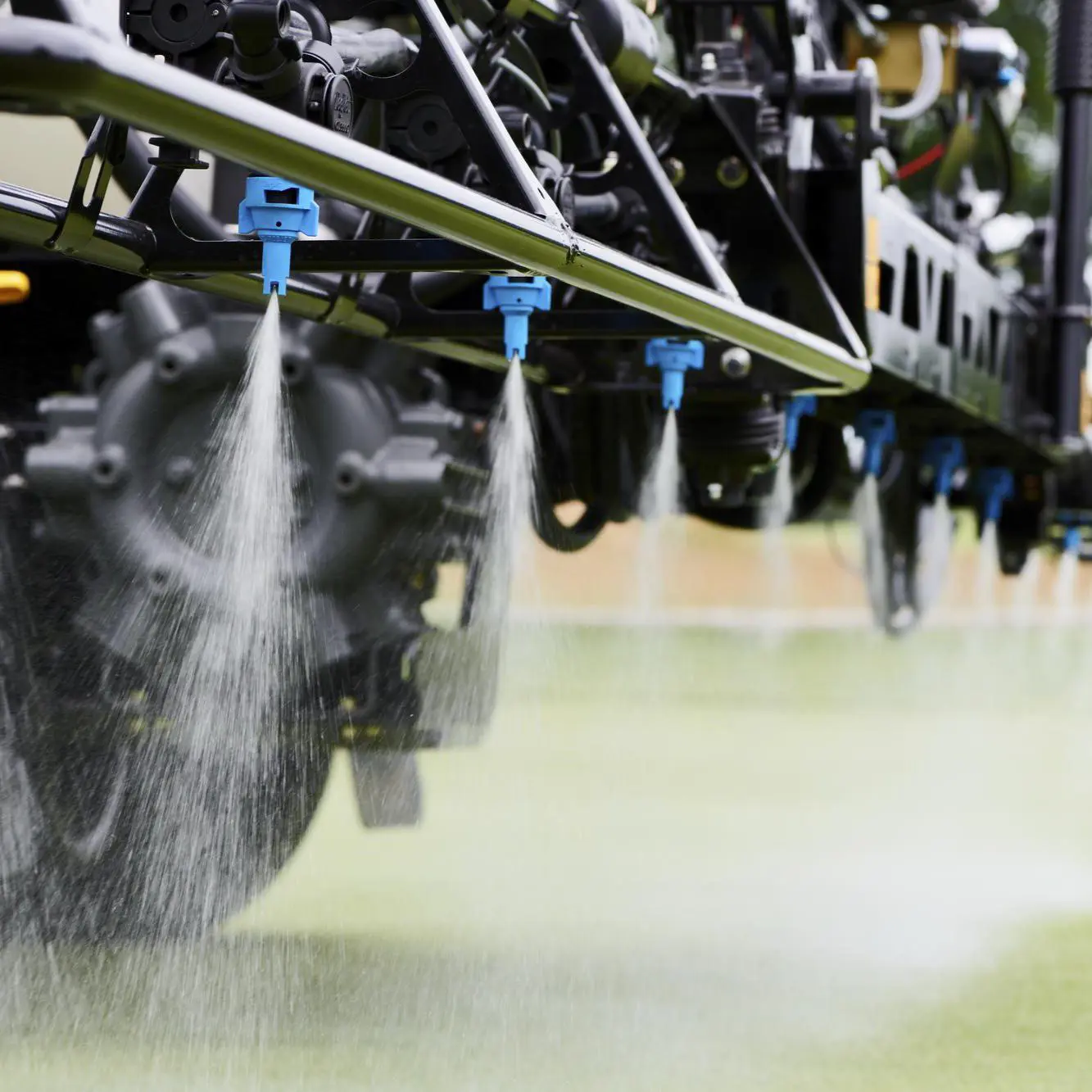

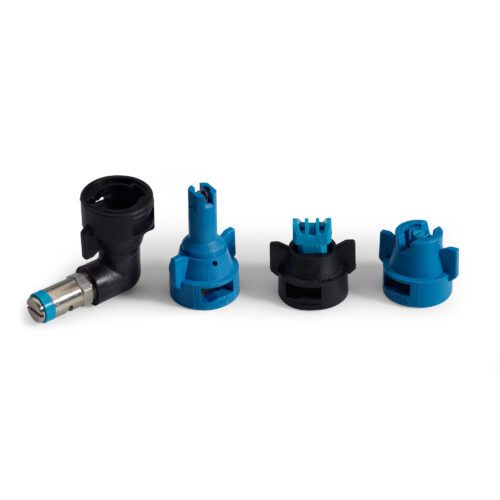

Spray Nozzles

Full range of contact, systemic and low drift nozzles are available. Air inclusion nozzles provide improved accuracy, uniform droplet size, and reduced drift and even coverage.Find the right nozzle for your application with Toro's Nozzle Selector Tool (https://sites.toro.com/nozzleselector/#/)

Specifications

Agitator Four side-mounted jet agitation nozzles for full tank agitation.
Boom Actuators Heavy-duty hydraulic lift actuators with nitro-steel plated shafts; 1-3/4" (4.4 cm) Bore x 10.06” (25.6 cm) stroke.
Boom Assembly 20.5' (6.25 m), 4 nozzles per selection, triangular truss-style open boom. 12 total triple-turret nozzle mounts with diaphragm check valves.
Brakes 2-wheel mechanical cable operated multi disc wet brakes with additional hydrostatic braking through drive train.
Cooling System Mid-mounted 3.3 U.S. qt. (3.1 L) radiator with oil cooler mounted in front.
Electrical System 12-volt battery, 690 cold cranking amps at 0° F (-18° C). 12-volt, 60 Amp alternator. Dash mounted ignition switch.
Fuel System 12 U.S. gal. (45.4 L) polyethylene/nylon low-permeation fuel tank with 1.5" (38 mm) opening on the passenger side for fueling; non-vented fuel cap with electronic fuel gauge on the console, in-tank fuel replacement filter, (unleaded gasoline), evaporative emission system with carbon cannister.
Gauges/Instrumentation Ignition key switch; analog spray system pressure gauge; fuel gauge; battery voltage lamp; oil pressure warning lamp coolant temperature warning lamp; InfoCenter™ display console.
GeoLink® Capable Yes
Ground Clearance 7.25" (18.4 cm)
Ground Speed Forward: 0-10 mph (0-16.1 km/h) Reverse: 0-4 mph (0-6.4 km/h)
Height 83.5" (212 cm) to top of ROPS
Length 154" (391 cm) [with booms forward]
Lights Rectangular 12-volt, 37.5 watt halogen sealed beam headlights.
Main Frame/Chassis Welded high strength steel tubular construction.

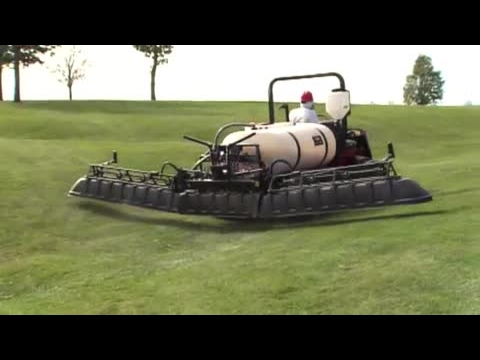

Optional Accessories CleanLoad™ eductor, fresh water rinse kit, electric hose reel, Pro Foam™ marking kit, Pro Foam™, Ultra Sonic Boom™ kit, covered boom kit, universal sunshade, hand spray wand kit, air induction turbo twin jet nozzles, contact & systemic nozzles, NozzAlert™, GeoLink® Precision Spray System
Overall Width 88" (224 cm) [with booms forward]
Power Train (Engine Description) Kubota® WG1605, rated output: 50 hp (37.3 kW), 1.6 liter, 4-cylinder liquid-cooled gasoline engine with electronic fuel injection, throttle control, three-way catalytic converter, gear-driven valve train, and a diagnostic port.
Rated Capacity 300 U.S. gal. (1,135.6 L)
Seat Bucket seats with easy tilt forward bracket; removable bolts allow for adjustment for various seat positions; seats are interchangeable from left to right.
Solution Tank Elliptical, high-density, impact-resistant polyethylene with large 16” (41 cm) fill opening.
Sound Level 90 dB(A) at operator ear under normal operation
Spray Controls Spray pump switch; tank agitation switch; individual boom section switches; master boom switch; manual/automatic spray mode switch; boom lift/lower switches; manual application rate control (pressure) switch; ExcelaRate™ automatic spray rate control (via InfoCenter).
Spray Pump Hardi 364 / 10.0 6-diaphragm positive displacement; flow rate 45 gpm (170.3 lpm), 220 psi (1500 kpa) maximums.
Steering System Description Fully hydraulic with dedicated power source, 48° steering angle.
Suspension Front: straight axle with twin independent leaf springs and dual shock absorbers. Rear: rigid with high flotation rear tires.
Tires - Front 22" x 12" - 12", 4-ply, No Tread
Tires - Rear 26.5" x 14" - 12", 6-ply
Traction System Hydrostatic system driving double planetary gear reduction rear wheel drives; foot pedal control of forward/reverse ground speed.
Turning Diameter 15'-7" (4.7 m) front tire inside 26'-7" (8.1 m) front tire outside
Valve Actuators 12 total triple-turret nozzle mounts with diaphragm check valves.
Vehicle Controls Throttle control; spray pump switch; tank agitation switch; individual boom section switches; master boom switch; speed-lock switch; manual/automatic spray mode switch; boom lift/lower switches; manual application rate control (pressure) switch; USB port; 12V power socket; ExcelaRate™ automatic spray rate control (via InfoCenter).
Weight Drive-on weight: 2,882 lbs. (1,307 kg), Shipping weight: 2,882 lbs. (1,307 kg), Empty vehicle: 2,882 lbs. (1,307 kg), Full w/ Operator: 5,692 lbs. (2,582 kg), MGVW: 6,692 lbs. (3,035 kg)
