| Air Filter | Remote-mounted 5" (12.7 cm) Virgis® air filter. 2-stage air cleaner with replaceable primary and safety elements.
|
| Armrests | Optional |
| Battery | 12V
|
| Blade Style/Type | Rotary |

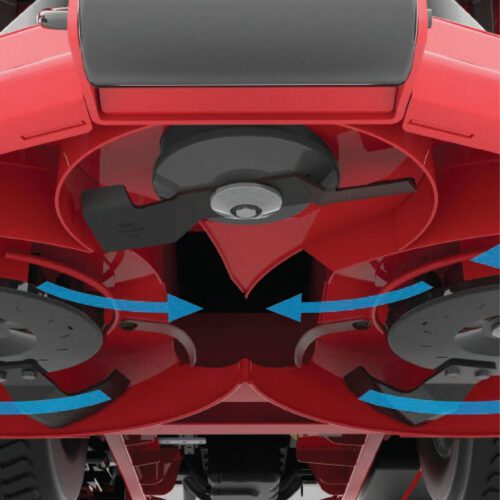

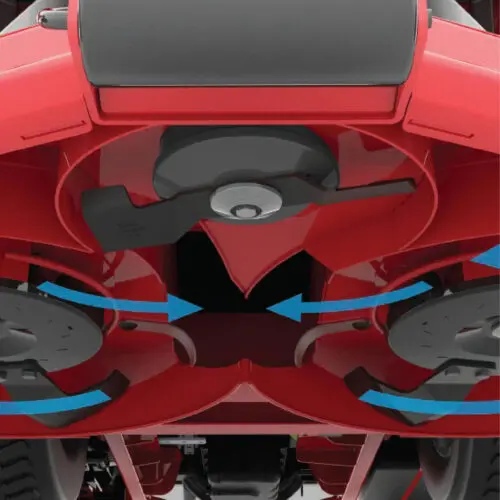

| Blade Type (Description) | 2 blades per contra-rotating spindle with integrated disc-fan impellers mounted on each spindle. Single pilot blade for the overlap between the two main blade assemblies.
|
| Cab Unit | N/A
|
| Collection System Volume | 810 litre (214 gallons / 1 cu. yd.)
|
| Collector Full Sensor | Collector Full Sensor |

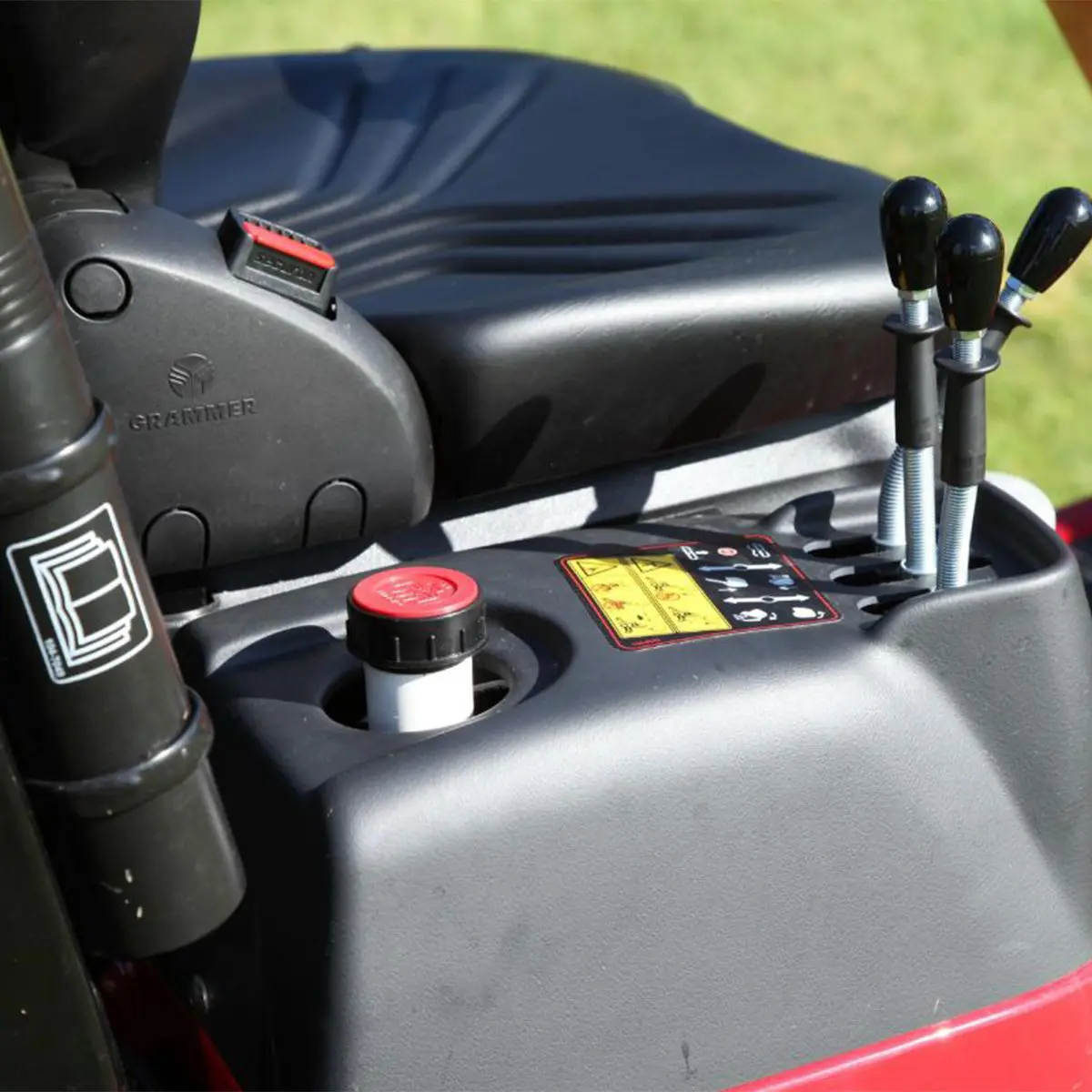

| Controls | Forward and reverse, ,parking brake, ignition key switch, engine throttle, height of cut, diff-lock, lights and flashing beacon, cooling fan (override), PTO on/off. Three hydraulic levers control deck lift/lower, hopper lift/lower, hopper dump.
|
| Cooling System Description | Side mounted radiator with automatic reverse function
|
| Cutting Unit Accessories | Mulching Kit
|

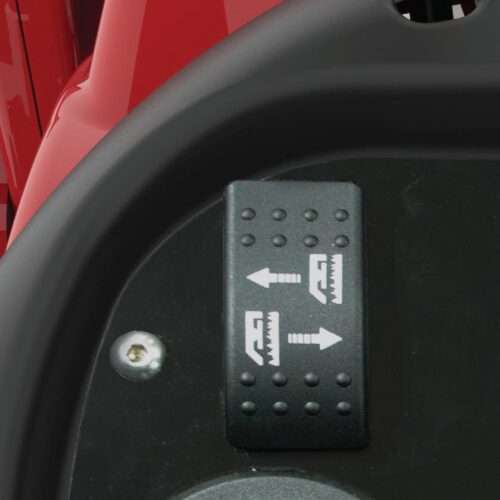

| Cutting Unit Lift/Lower | Hydraulic, adjusted from the operator position by an electronic switch
|
| Cutting Unit Type/Configuration | Two heat-treated blade segments per spindle, bolted to integral fan disc. Single pilot blade for the overlap between the two main blade assemblies.
|

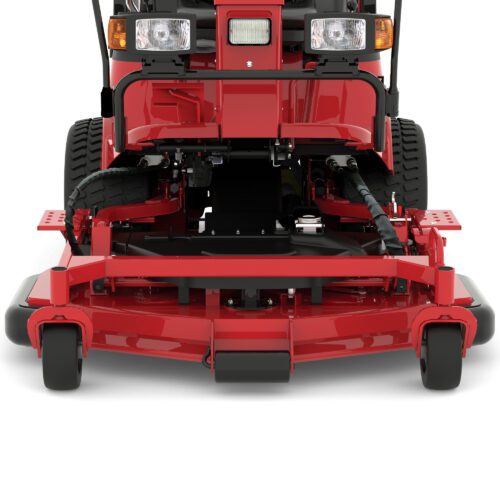

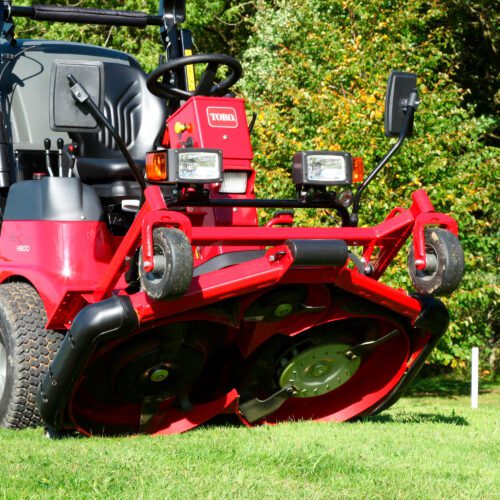

| Deck Construction | Formed and welded deck with front bull-nose bumper
|
| Drivetrain | Diesel
|
| Electrical System | 12-volt battery, 55 amp alternator with P-terminal
|
| Engine Cooling | Liquid Cooled
|
| Fuel / Power Source | Diesel
|

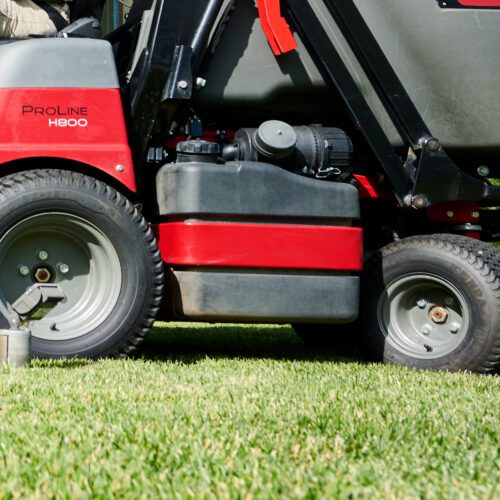

| Fuel Capacity | 10.8 U.S. gal. (40.9 L)
|
| Gauges/Instrumentation | Fuel gauge, hour meter and engine temperature gauge. Parking brake, hopper raised, work light on/off, road lights on/off, air-filter restriction, oil pressure warning, glow plug indicator, battery charge indicators.
|

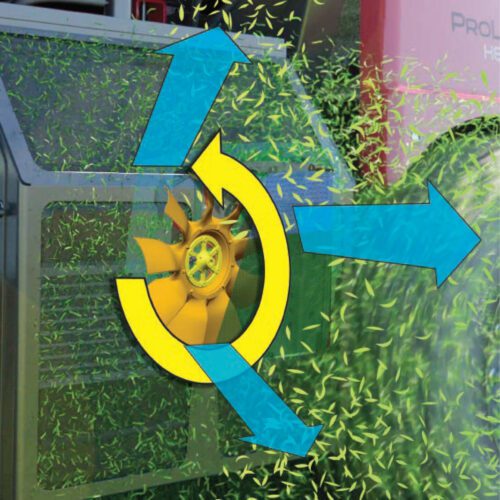

| Grass Distribution | Automatic electric-powered grass distributor for level filling. Air vent system is engineered to retain and pack clippings with minimal dust or debris discharge.
|
| Ground Following | Cutter deck can be used in either fixed or floating configuration - controlled by the lift/lower control lever. Anti-scalp front nose roller and two rear side rollers also feature.
|
| Ground Pressure | 1.41 kg/cm2 (20 psi), depending on turf conditions
|
| Ground Speed - Forward | 0 - 9.3 mph (0 - 15 km/h)
|
| Ground Speed - Reverse | 0 - 6.2 mph (0 - 10 km/h)
|
| Height | ROPS up: 207 cm (81.5") ROPS down: 166 cm (65.4")
|
| Height of Cut Range | Infinitely variable between 1" - 4.3" (25 mm - 110 mm)
|
| Hydraulic Fluid Capacity | 2.5 U.S. gal. (9.5 L)
|
| Hydraulic Fluid Type | ISO46 Hydraulic Oil
|
| IntelliDash™ Capable | No |
| Interlocks | Cutting unit drive disengages when operator leaves seat. Engine starts only when forward / reverse pedal is in neutral, the parking brake is applied and PTO disengaged.
|
| Lighting | Standard
|
| Main Frame/Chassis | Formed and welded tubular steel chassis
|

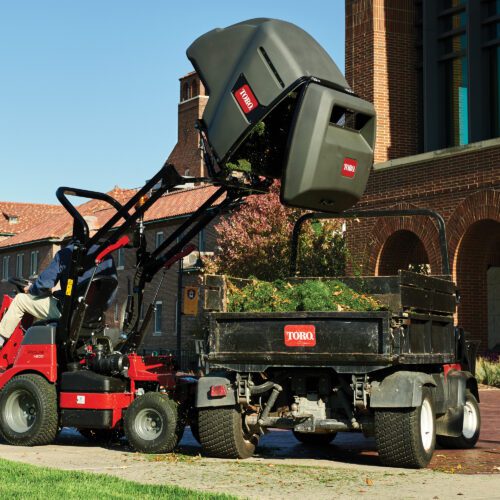

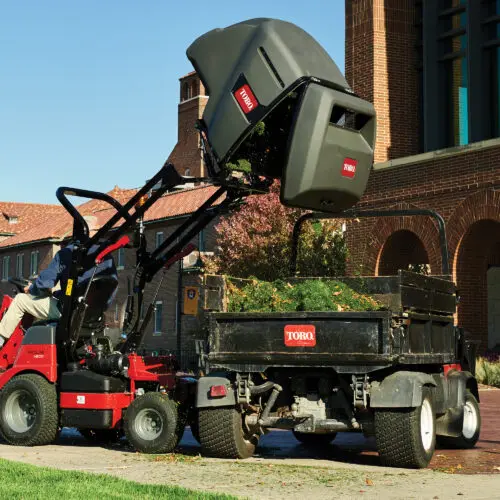

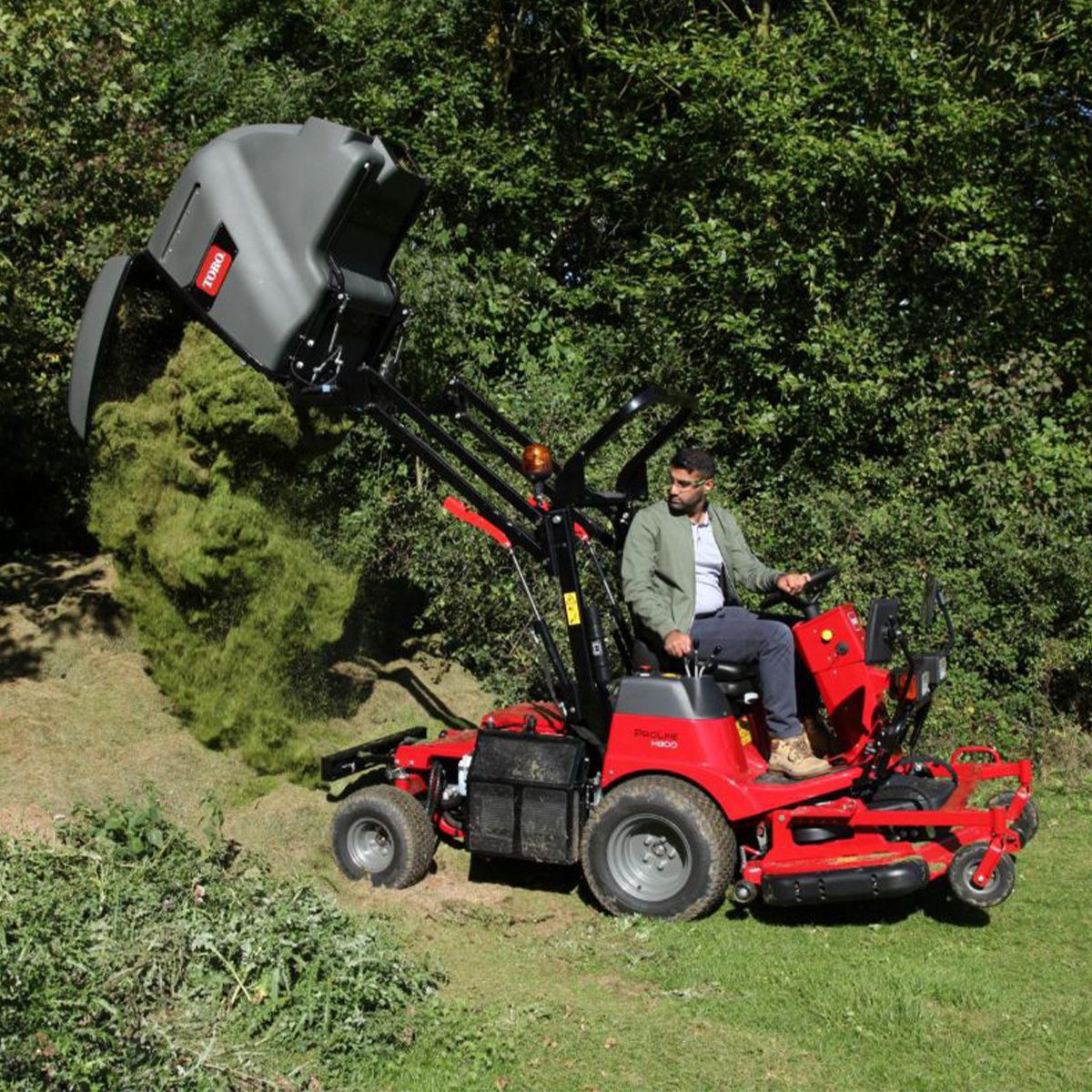

| Max Dump Height | 1950 mm (76.8") with 300 mm overhang
|
| Max Slope Angle | 12 degrees
|
| Mowing Rate (Productivity) | Up to 3 acres/hr (1.21 hectacres/hr)
|
| Mowing Speed | 0 - 9.3 mph (0 - 15 km/h)
|
| Number of Blades | 5 |
| Operator Area | Storage holder for mobile phone / radio
|
| Optional Accessories | Mulching kit; Arm rests; Bimini Sunshade; Slope Sensor; Debris Suppression kit; Dust Deflector kit
|
| Overall Width | 143 cm (56.3")
|
| Parking/Service Brakes | Service brake: Hydrostatic (through transmission). Parking brake: Drum brakes on front wheels, actuated by foot pedal with lock mechanism.
|
| Power Steering | Yes
|
| Power Train (Engine Description) | Yanmar® 3-cylinder, liquid-cooled, diesel. Rated Power 24.7 hp (18.4 kW) @ 3000 rpm, Gross Power 24.7 hp (18.4 kW) @ 3000 rpm. High idle: 3200 rpm; Displacement: 1.266 liter.
|
| Product Length | 291 cm (114.6") (deck down)
|
| PTO Clutch | Belt-driven, Ogura electromagnetic clutch, with magnetic blade brake, powering drive shaft to gearbox on deck. Deck shuts off automatically when grass collector is full.
|
| Recycler Kit | Optional recycler kit
|
| Reel/Cylinder Drive | Hydraulic
|
| Safety/Operator Safety | Two-post folding ROPS frame, certified to meet ISO:21299. Cutting unit drive disengages when operator leaves seat. Engine starts only when forward / reverse pedal is in neutral, the parking brake is applied and PTO disengaged.
|
| Seat | Mechanical suspension Grammer seat, fore/aft and back rest adjustment, retractable seat belt, operator weight adjustment.
|
| Spindle Assembly | 25mm diameter spindles mounted in two greaseable bearings
|
| Starting | Key Start
|
| Steering System Description | Rear axle with hydraulic steering. Adjustable tilt steering wheel with 22/3 turns lock to lock.
|
| Tires - Front | 23" x 10.5" - 12" Turf Tire
|
| Tires - Rear | 18" x 7.5" - 8", Turf Tire
|
| Traction Drive | 4WD
|
| Traction Drive (System) | Engine-mounted hydrostatic transmission powering four hydraulic wheel motors providing CrossTrax® full-time all-wheel drive. Manual Diff-lock engagement. Diff-lock automatically engages when transiting downhill.
|
| Turning Circle (Diameter) | Outside Front Wheel: 3160 mm (124.4") Inside Front Wheel: 741 mm (29.1") Outside Rear Wheel: 4035 mm (159") Inside Rear Wheel: 2206 mm (87")
|
| Turning Circle Cut (Diameter) | Outside: 3519 mm (138.5") Inside: 1227 mm (48.3")
|
| Weight | with Cutting Deck: 980 kg (2,160 lbs.) without Cutting Deck: 810 kg (1,786 lbs.)
|
| Wheelbase | 119 cm (46.9")
|
| Width of Cut | 49.6" (126 cm)
|
