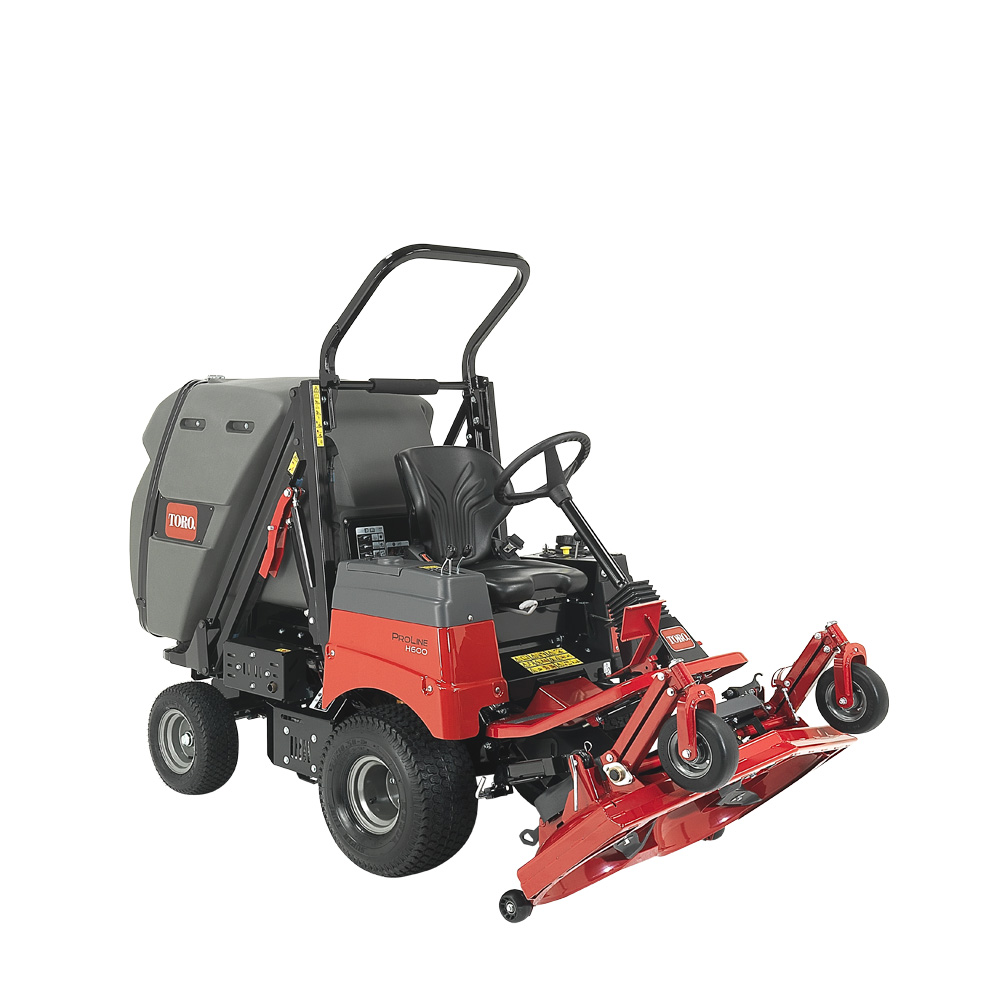

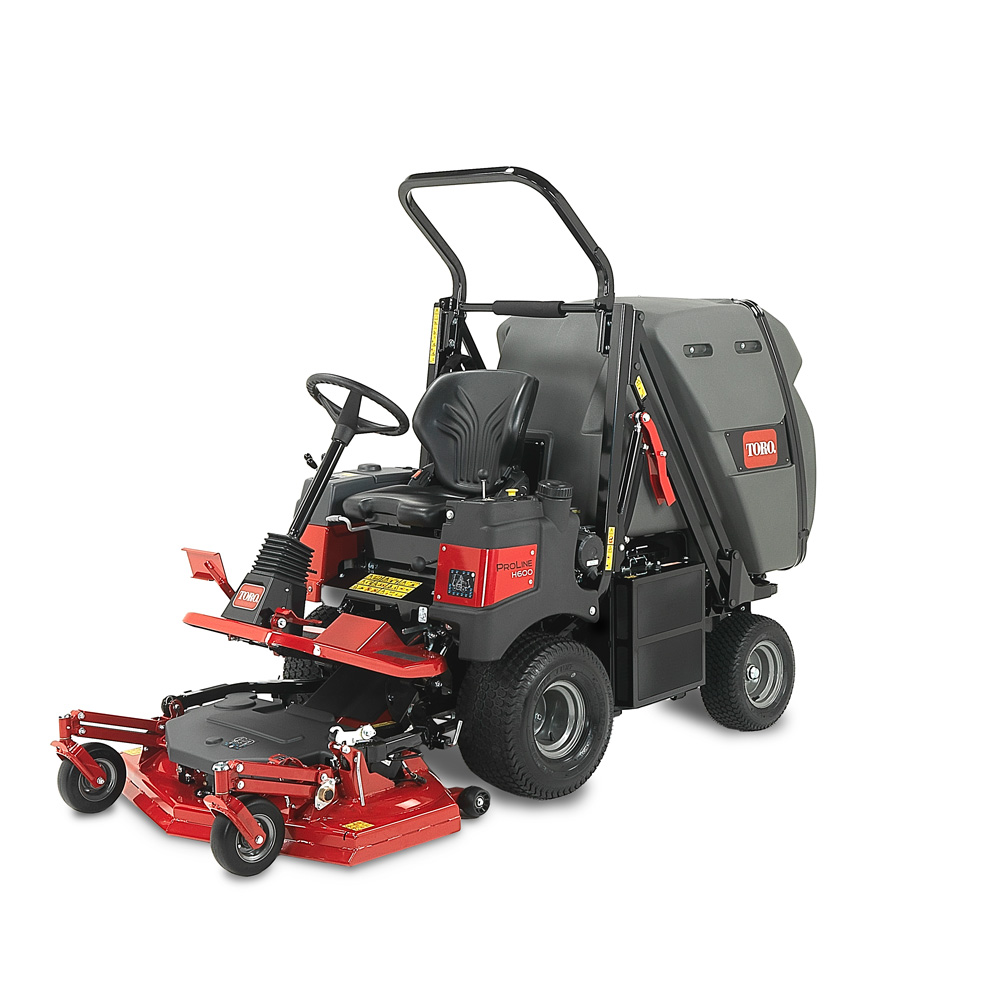

Toro ProLine H600 Direct Collect Ride-on Mower 113cm (44.5") - 700L Capacity

Model: 31041
Toro

Toro ProLine H600 Direct Collect Ride-on Mower 113cm (44.5") - 700L Capacity

Model: 31041
Toro

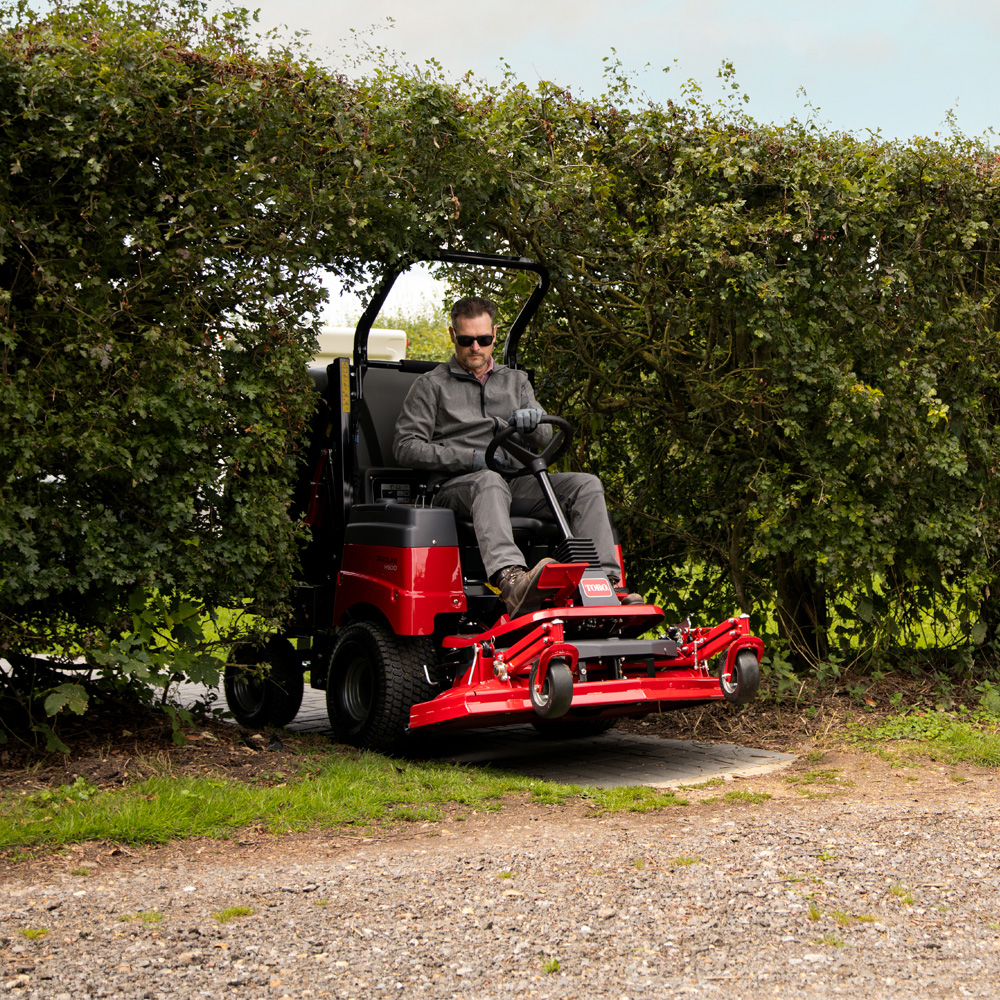

The Toro ProLine H600 rotary mower features a compact width of 1.13 m and turning circle of 64 cm, allowing you to easily get to and around tight spaces. Thanks to its high capacity cutting deck, huge hopper of 700 litres and automatic grass distribution feature, you can get the job done efficiently—mow, collect and dispose up to 1.85 acres (7,500 m2) per hour.

The powerful 18 hp (13.2 kW) Kubota diesel engine is Stage V compliant with a ground speed of up to 8 mph. The innovative sensor technology automatically shuts off the mowing deck when the hopper reaches full capacity. Dumping clippings is easy with the 1.9 m high lift system which can directly dump into truck beds and trailers!

  • 2WD transmission
  • Ennovative sensor technology automatically shuts off the mowing deck when the hopper reaches full capacity.
  • Dumping clippings is easy with the 1.9 m high lift system which can directly dump into truck beds and trailers.
  • With a huge 700 L hopper, you can get the job done efficiently – mow, collect and dispose up to 7,500 m2 per hour.

The ProLine H600 is also commonly known as: PL H600, Pro line H600, PLH600, Toro rotary mower, rotarymower

Fleet Finance & Leasing Options Talk to us today 0800 807 333

Features

A Toro ride-on mower collects grass clippings into a trailer, showcasing its high-lift collection feature

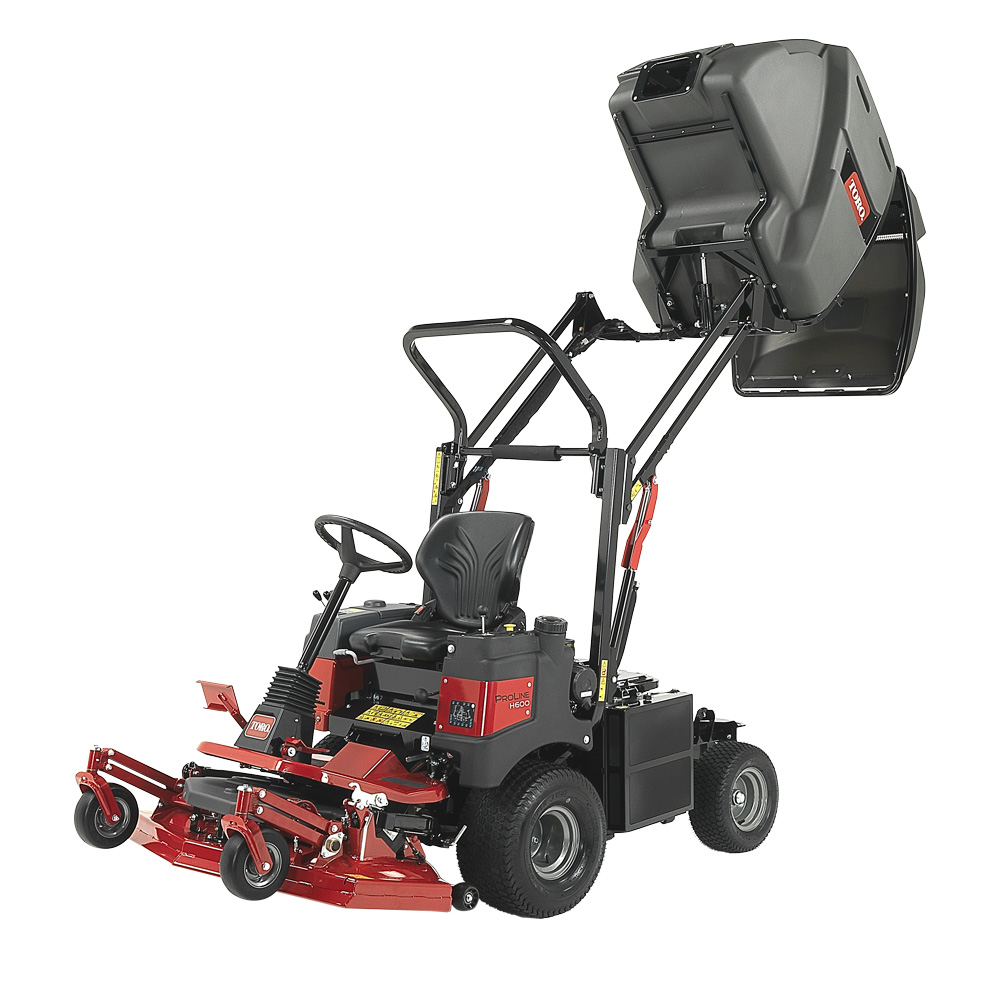

Less Downtime with High-Volume Hopper

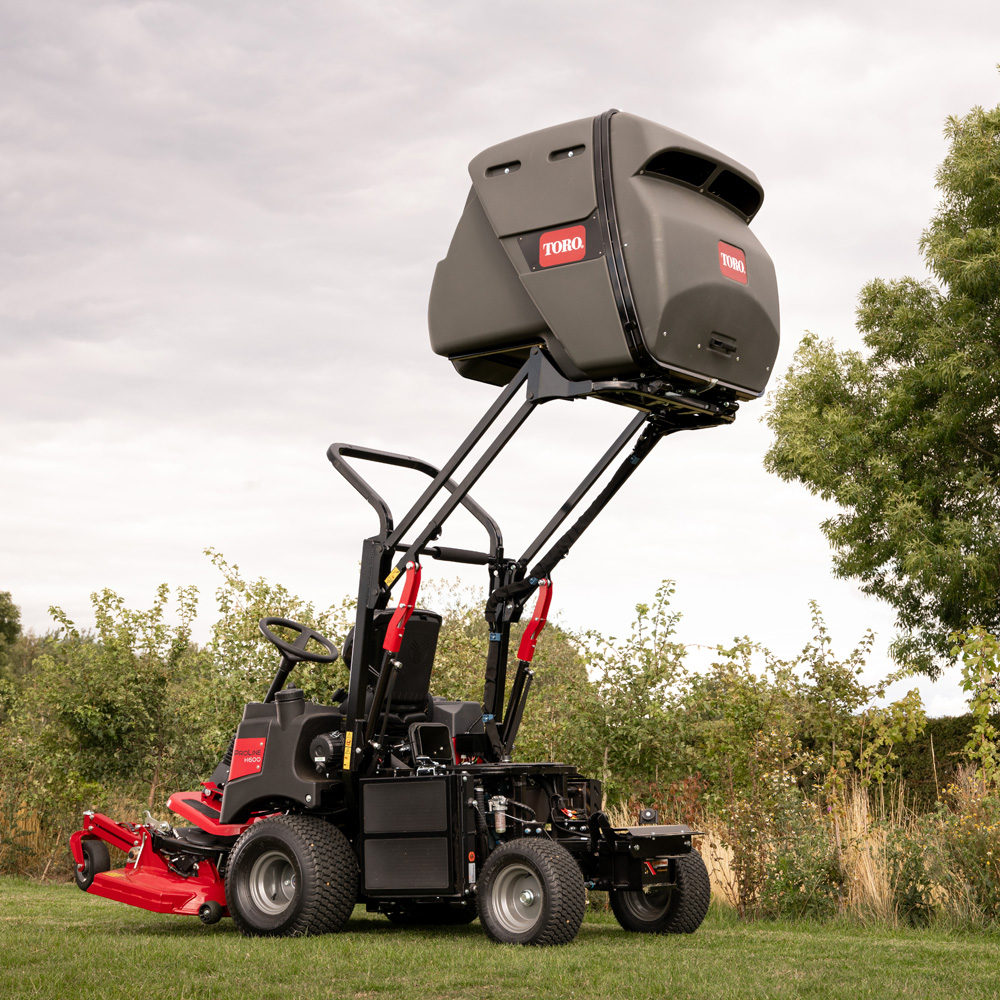

Equipped with a high-volume 700L hopper with 1.9m (74.8”) maximum dump height for easy clean-up of clippings.

A rider operates a Toro mower on a grassy area near a brick building and parked vehicles

Unmatched Productivity

Mow, collect and dispose up to 7,500 m2 (1.85 acres) per hour

Illustration of airflow and grass collection system in a Toro ride-on mower with vibrant colors

SmartCool™ System with Auto Reversing Fan

Enjoy ease of maintenance and operation. The SmartCool system with auto reversing fan minimizes down-time by preventing overheating.

Side view of a Toro ride-on mower with a red and gray design, showcasing its collection system and heavy-duty wheels

Large 22 Litres (5.5 US Gal) Fuel Tank

Large 22 Litres (5.5 US Gal) fuel tank allows for a full day of operation.

Red Toro ride-on mower with dual blades and high-lift collection, positioned on green grass

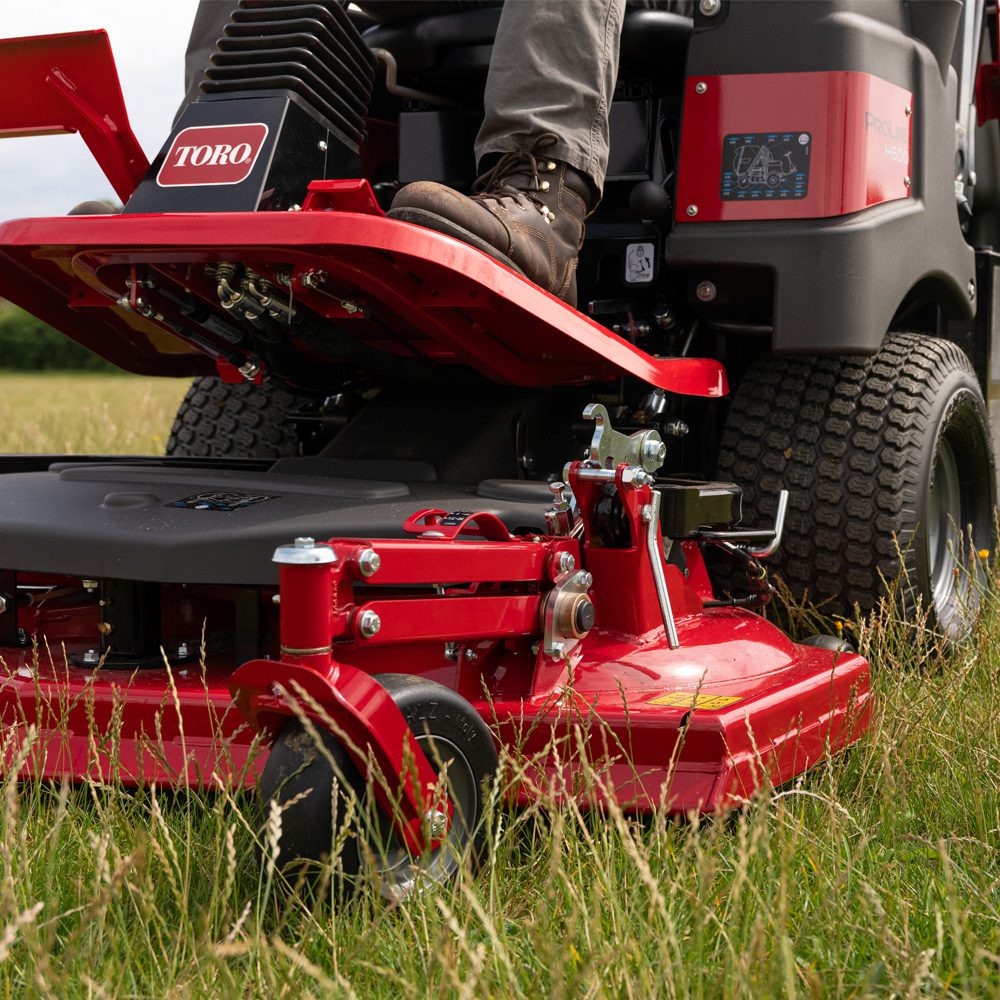

40° Tilting Deck

Tilting deck with 40° deck lift for easy access to blades and daily clean-up.

Close-up of mower control panel with buttons and indicators on a red background

Quick Height of Cut Adjustment

25–90 mm (1–3.5"), adjustable from operator’s sea

Front view of a red Toro ride-on mower showcasing the deck and heavy-duty bumper

High Capacity Cutting Deck

Productive and versatile 1.13m (44.5") cutting/collection deck with optional mulch kit

Underside view of a red mower deck showing blades and airflow design for efficient grass collection

Direct Grass Collection with Smart AirFlow™ System

Direct grass collection with Smart AirFlow system to maximizes collection performance. The adjustable full hopper sensor with automatic deck shut off to prevent overfilling and depending on grass conditions, it optimizes filling capacity.

Specifications

Engine Kubota® D722; 3-cylinder, diesel. Rated power 13.2 kW (18 hp) @ 3,200 rpm. Stage V/Tier IV compliant.
Fuel Capacity 22 l diesel. Estimated consumption: 2.5 l/h on average
Traction Drive Hydrostatic 2WD transaxle. Foot-operated mechanical differential lock.
Tyres Front: 20 x 10.50-8 turf tyres. Rear: 16 x 6.50-8 turf tyres.
Air Cleaner Dry, replaceable primary and safety element.
Instrumentation Hour meter, battery charge indicator, oil pressure warning indicator, glow plug indicator, engine temperature warning indicator, fuel gauge.

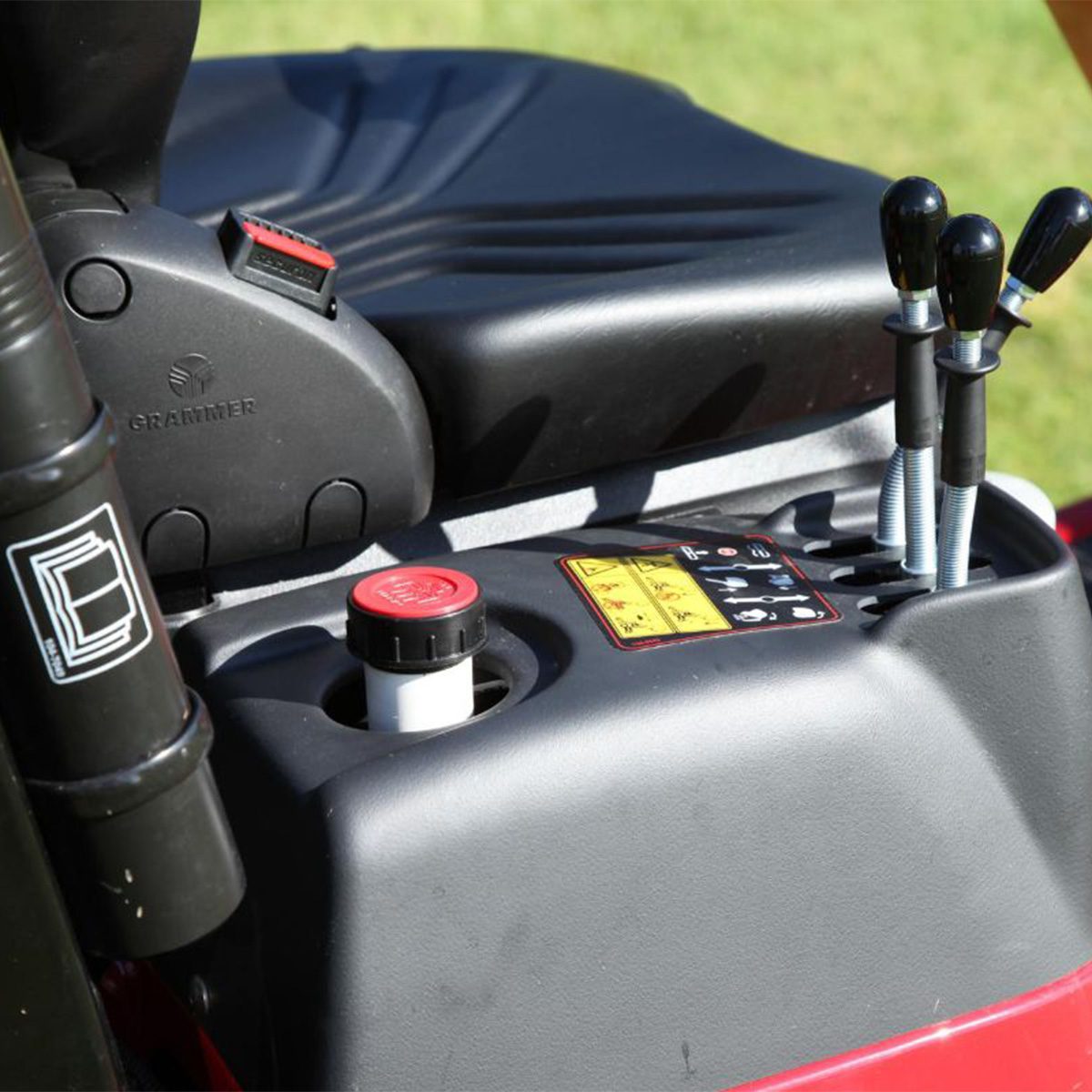

Controls Tilt adjustable steering column, parking brake, engine throttle lever, electronic height-of-cut adjustment, operated from the operator seat, hydraulic controls for deck lift/lower, hopper lift/lower and hopper tilt, ignition key switch, PTO switch, forward/reverse pedal, differential lock pedal.
Ground Speed Transport and mowing: 0–12.87 km/h, continuously variable. Reverse: 0–12.87 km/h, continuously variable.
Turning circle 640 mm (25.2")
Cutting Unit Accessories Mulching Kit
Radiator Smart Cool™. Electric with automatic reversing for cleaning.
Main Frame Welded formed tubular steel frame
Brakes Service brake: Traction pedal provides dynamic braking through hydrostatic transmission. Parking brake: Mechanical, hand-operated lever actuates gearbox mounted disc brake.
Steering Rear axle with hydraulic steering. Adjustable tilt steering column with 3 turns lock to lock.
Electrical L 40 A alternator with P terminal. Battery: 50A/H 12V 400A ENL1
Interlocks Prevents engine from starting unless traction pedal is in neutral and deck is disengaged. If operator leaves seat with deck engaged, engine stops. If operator leaves the seat with the unit out of neutral, engine stops. Engine stops if parking brake is engaged and traction pedal is not in neutral.
Seat Grammer seat with fore/aft and backrest adjustment, retractable seat belt
Hydaulics 6.7 l capacity
PTO Clutch Electromagnetic clutch with integral blade brake. Deck shuts off automatically when grass collector is full. Adjustable sensor to disengage PTO to suit mowing conditions.
Grass Distribution Automatic electric-powered grass distributor for level filling. Air vent system is engineered to retain and pack clippings with minimal dust or debris discharge.
Rollover protection 2-post standard foldable ROPS, meets ISO 21299
Safety EN ISO 5395 (CE), ANSI B71.4-2017
Certification Certified to meet the UKCA requirements. Certified to meet the CE Machinery Directive 2006/42/EC. Certified to meet Electromagnetic Compatibility Directive 2014/30/EU, Physical Agents Directive (Vibration) 2002/44/EC, Outdoor Noise Directive 2000/14/EC and Battery Directive 2000/66/EC. Meets emissions regulations EU Stage V. Reg. Compliance Mark (RCM) AS NZS CISPR 12:2009, Canadian EMC ICES-002, EAC
Warranty Two-year warranty. Refer to the Operator’s Manual for further details.

Cutting Deck

Width of Cut 1.13 m (44.5")
Height of Cut 25–90 mm (1–3.5"), adjustable from operator’s seat
Deck Construction Formed and welded deck with front bull-nose bumper. Tilting deck for easy service access, tilts to 40°
Discharge Direct grass collection
Spindle Assembly 20 mm (3/4") diameter spindles mounted in two greaseable bearings
Cutter Drive PTO driven gearbox with spiral bevel gears, double “A” section belt drive to all spindles
Blades Two counter-rotating belt-driven blades with central, front blade
Blade Tip Speed Main collection blades: 73.7 m/s (14,507 ft/min), central overlap blade: 58.4 m/s (11,496 ft/min)
Dek Suspension Two castor wheels in front, lift arm links in rear
Castor Wheels Two, smooth, semi-pneumatic 8 x 3.00-4
Belt Idler Adjustable, spring-loaded idler
Deck Anti-scalp Rollers Two rear side rollers
Deck Covers Moulded plastic with 1/4 turn fasteners and retention bolt
Cutting Deck Depth 117 mm (4.6")
Mowing Rate Mow up to 7,500 m2 (1.85 acres) per hour

Collection System

Volume 0.70 m3/700 l
Grass Distributor Automatic electric-powered grass distributor for level filling
Full Collector Sensor Adjustable sensor detects when collector is full and disengages deck
Engineered Vent Air vent system is engineered to retain and pack clippings with minimal dust or debris discharge
Controls Separate hopper lift and tilt functions. Rear door opens automatically when tipping
Maximum Dump Height 1.9 m (74.8") with 0.15 m (6") overhang

Dimensions and Weight with Cutting Deck

Height 1.93 m (76")
Overall Length 2.71 m (106.7")
Overall Width 1.19 m (46.9")
Wheelbase 1.10 m (43.3")
Ground Clearance 120 mm (4.7")
Weight 635 kg
