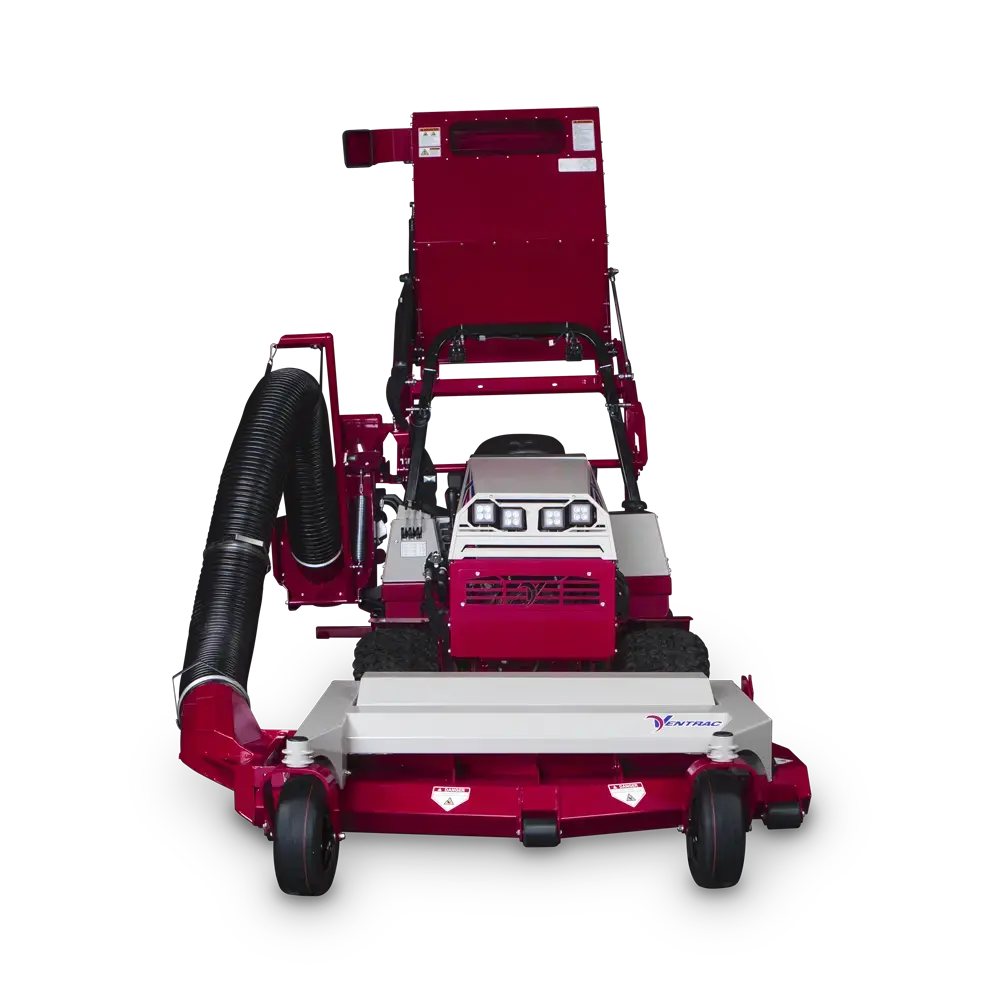

Ventrac Collection Vacuum Tractor Attachment
Model: RV602
Ventrac Collection Vacuum Tractor Attachment
Model: RV602
Specifications
General
| Lift Capacity | 136 kg (300 lbs.) |
| Maximum Capacity | 0.45 m³ (16 cu ft) |
| Recommended Capacity | 0.37 m³ (13 cu ft) |
| Lifting Height | 1.52 m (60") |
| Lifting Time | 5 seconds |
| Lowering Time | 4 seconds |
| Impeller Blades | 5-blade |
| Width with Tractor | 168 cm (66") |
| Length with Tractor (no mower) | 264 cm (104") |
Engine & Drivetrain
| Engine Brand | Briggs & Stratton Vanguard |
| Engine Type | Single cylinder, horizontal shaft |
| Engine Horsepower | 10 hp (7.5 kW) |
| Engine RPM | 3,600 rpm |
| Fuel Type | Petrol |
Dimensions & Weight
| Length | 102 cm (40") |
| Overall Width | 165 cm (65") |
| Height | 135 cm (53") |
| Weight | 238 kg (525 lbs.) |
