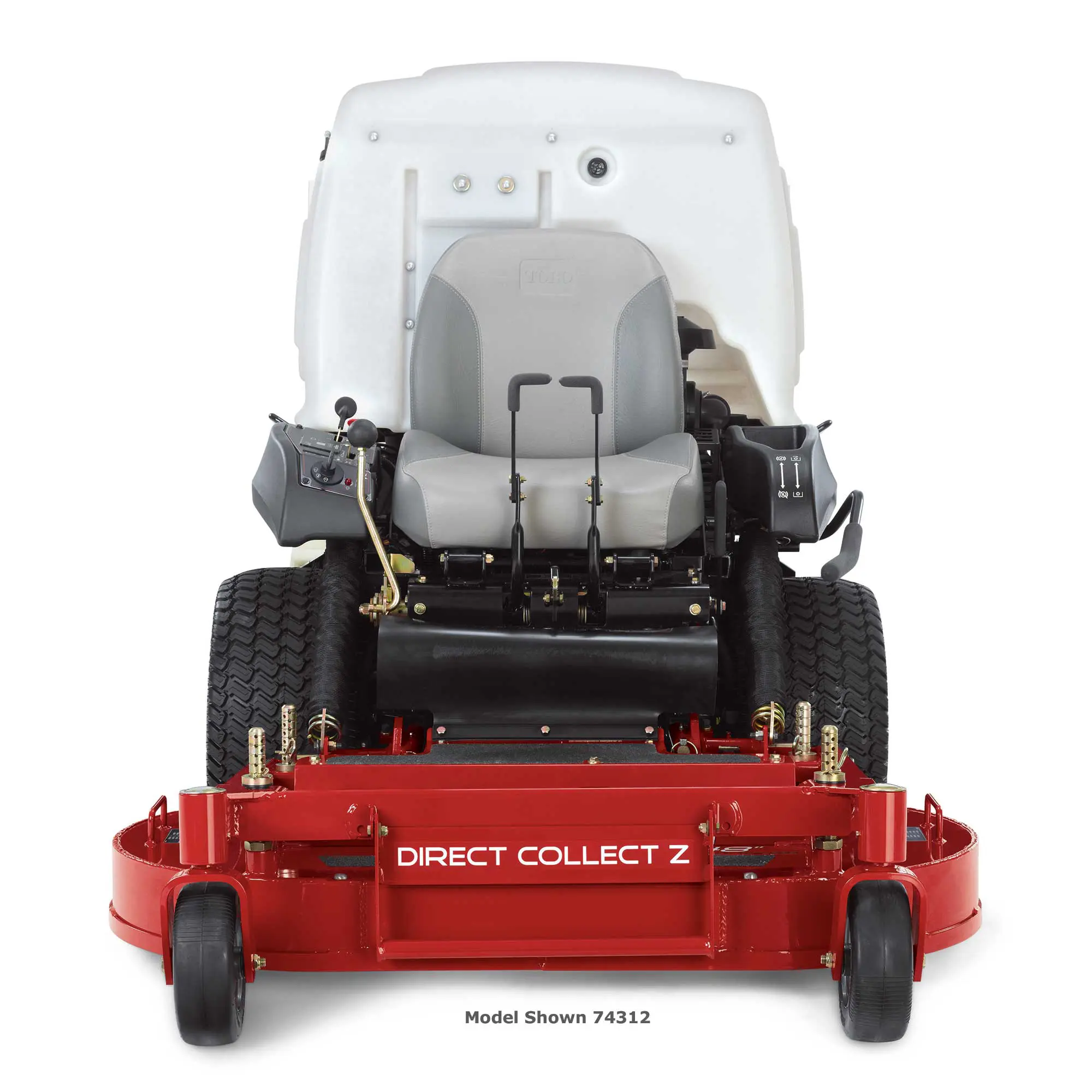

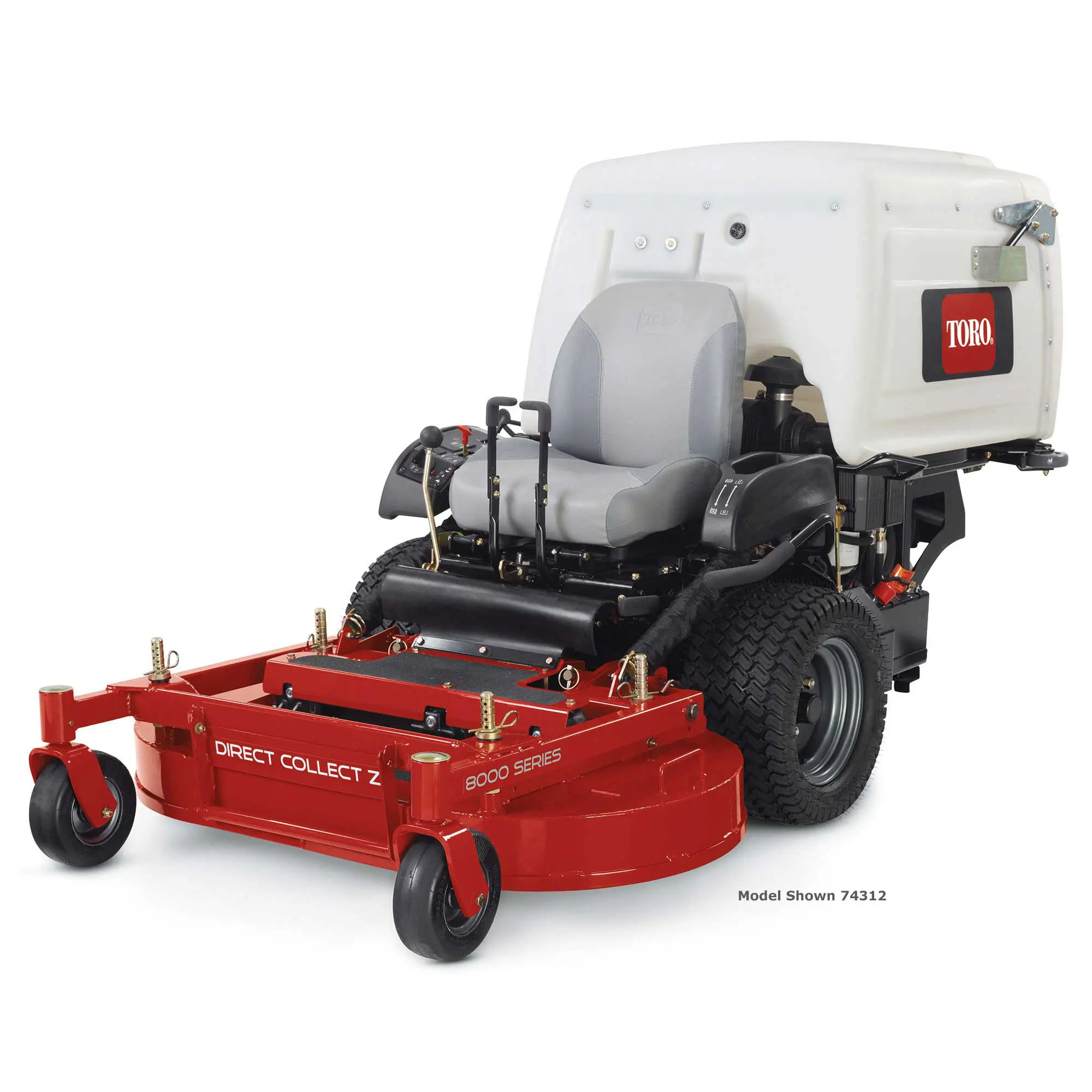

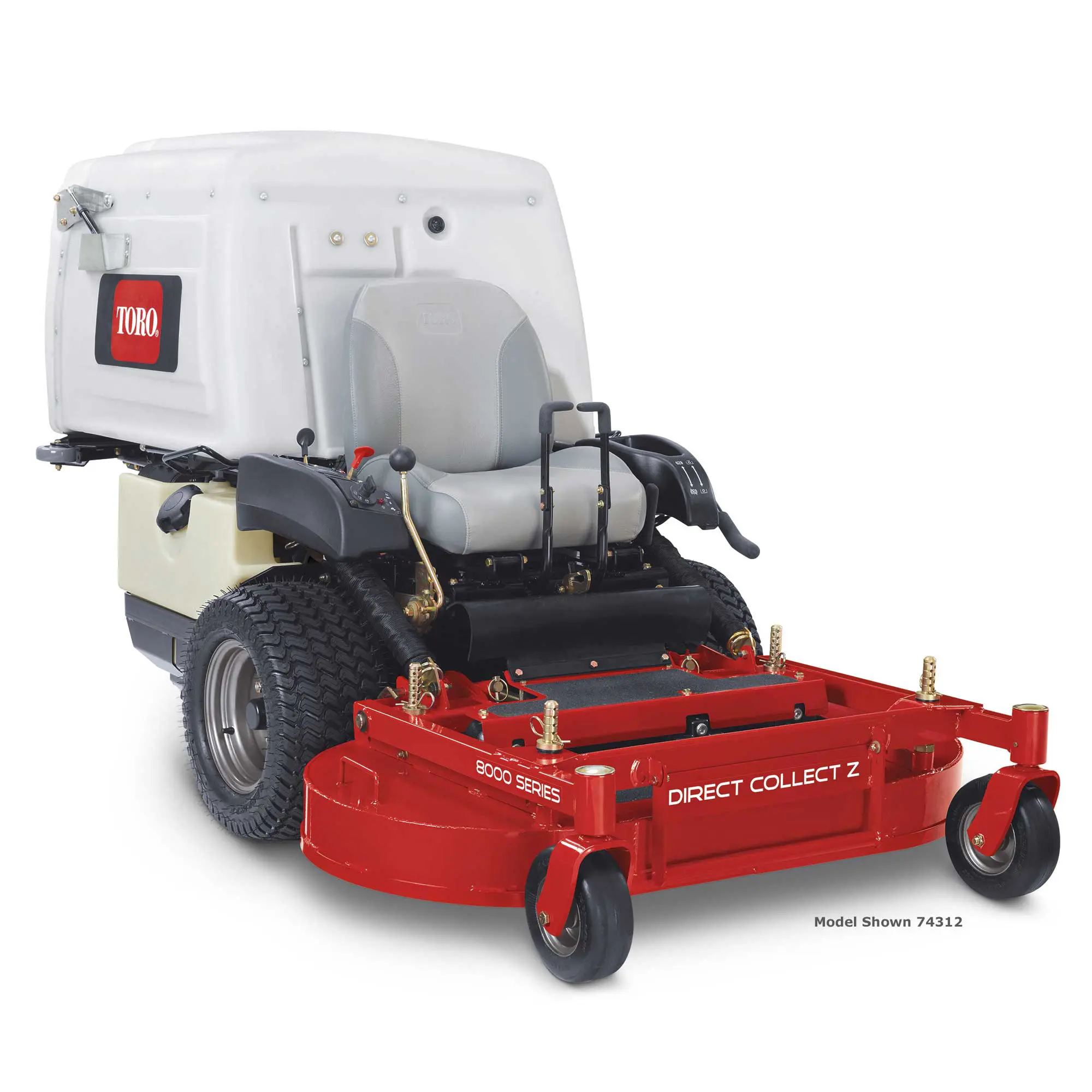

Toro Z Master® 8000 Direct Collect Mower (42")

Model: 74316
Toro

Toro Z Master® 8000 Direct Collect Mower (42")

Model: 74316
Toro

Every landscape professional has customers that are particular about the way their properties look after they’ve been mowed. Often the properties are equally demanding, with short runs, tight turns, trees, flowerbeds, you name it. For high-end properties, a clean, manicured look is everything.

The Z Master® 8000 Series Direct Collect Z gives you that and much more. A powerful blower moves more air, allowing large volumes of material to be thrown into the hopper. The rear-discharge deck lets you trim on either side while keeping flower beds and walkways clipping-free. And the high-capacity collection system helps extend mowing time. With superior ground speeds, the 8000 series is the answer for a perfect cut in less time.

  • 25 HP Kohler CH740 V-Twin 725cc Engine
  • Innovative cut and collection technology
  • Commercial design & heavy duty construction
  • High capacity grass collection system.
$41,544 incl. gst
or $ per week*
*Based on $8,309 deposit, an indicative interest rate of 9.9% p.a over 4 year(s). Calculate for more details.

3 in stock

Enquire

Features

Bag, Mulch or Both

The fill-reduction system lets you switch from 100% bagging to 75% mulching and 25% bagging, so the hopper can be emptied less frequently.

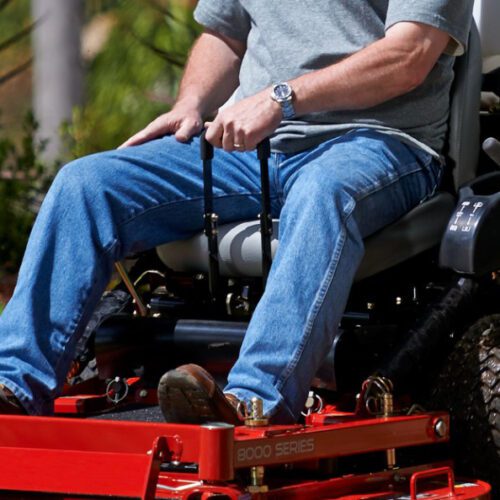

Effortless Controls

No need to muscle these mowers around. The controls let you maneuver in tight spots almost effortlessly.

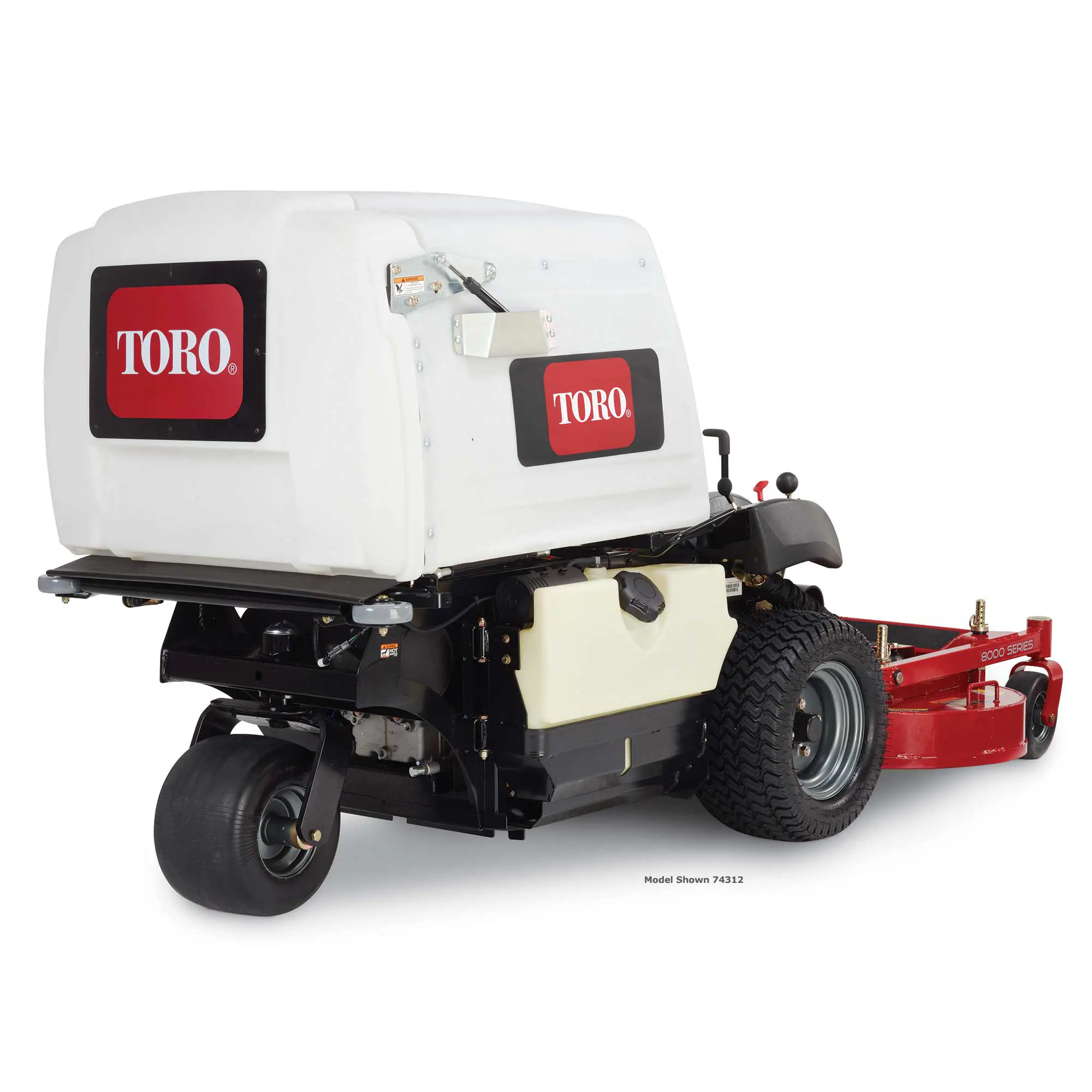

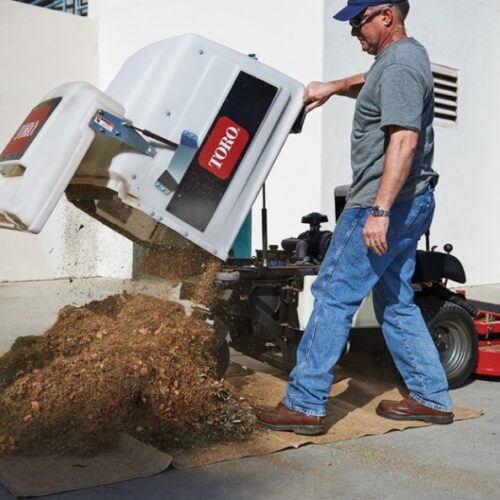

High Capacity

The 9.5-bushel hopper means less time emptying and more time mowing. Exclusive baffle design fills evenly back to front for maximum efficiency.

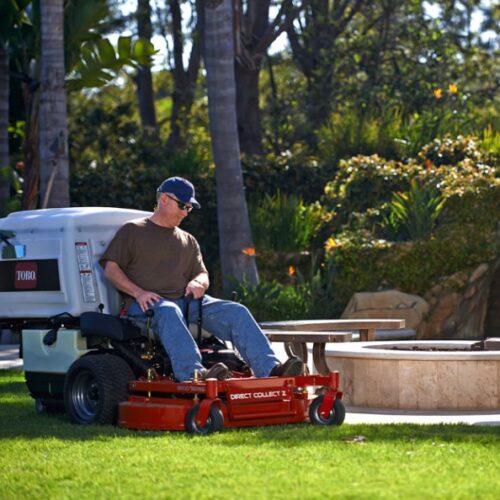

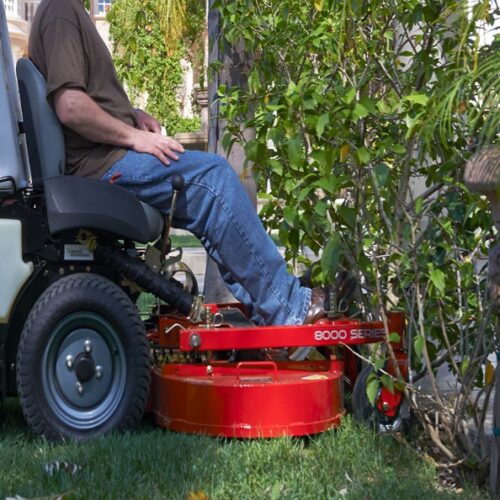

Out Front Deck Design

The out-front deck design allows for more maneuverability and mowing in tighter areas where traditional zero turns can't get to.

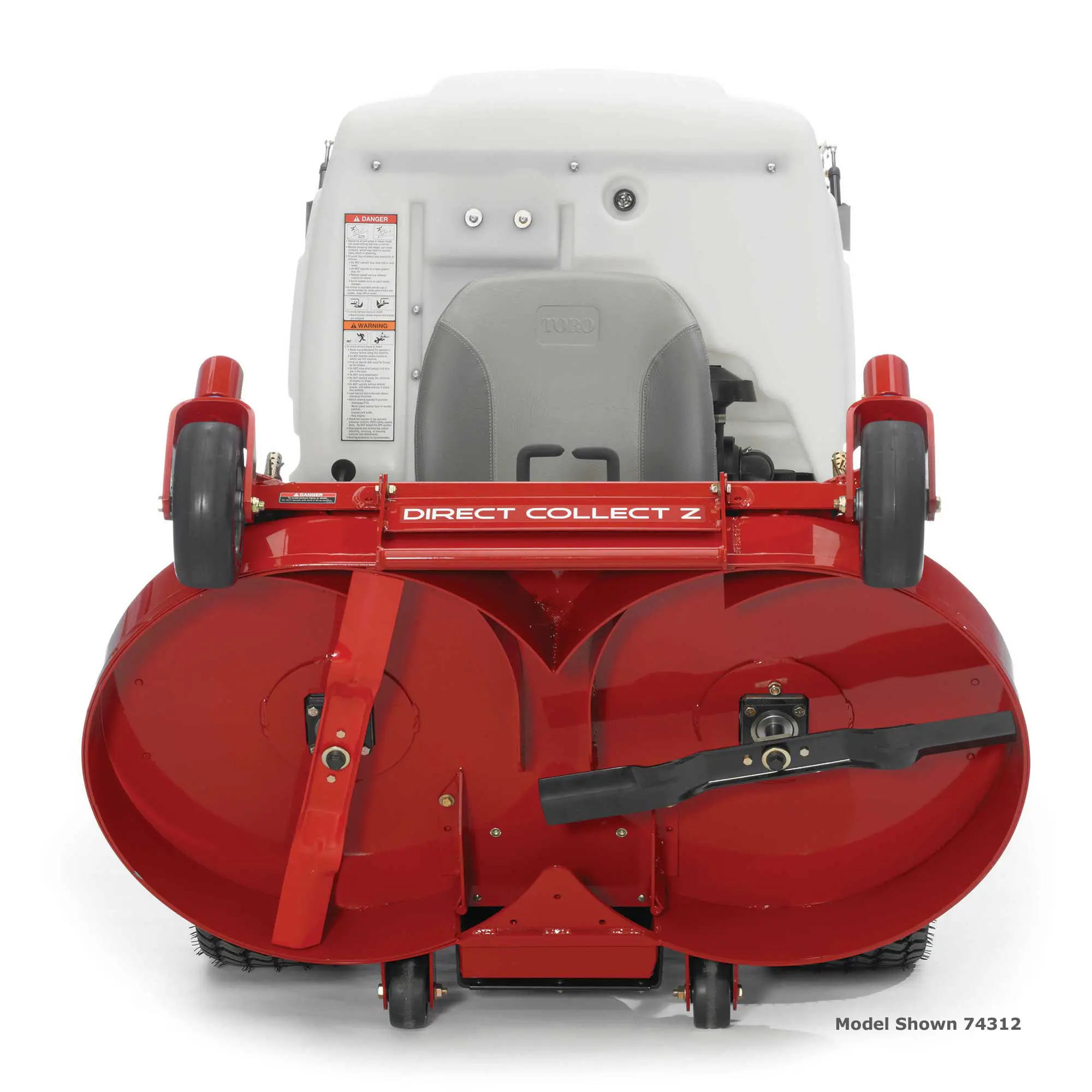

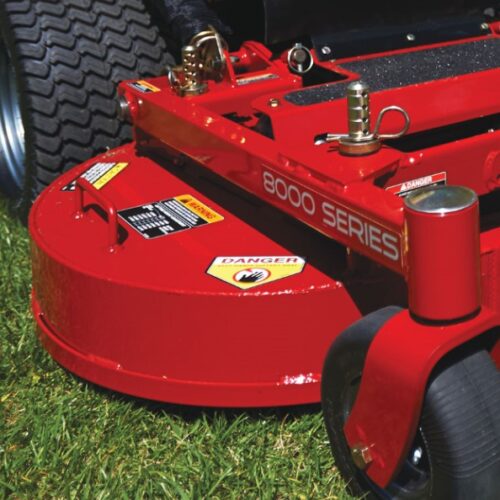

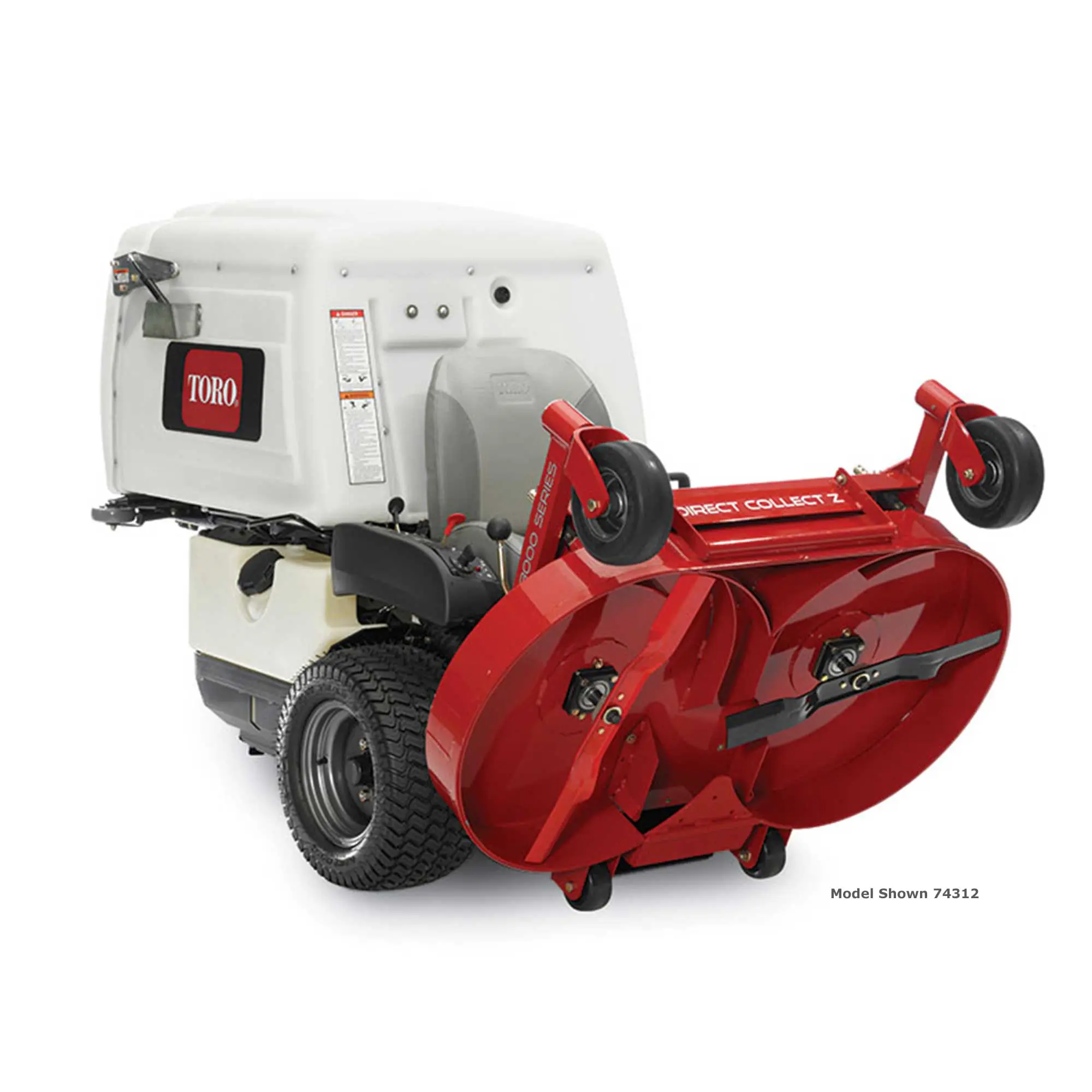

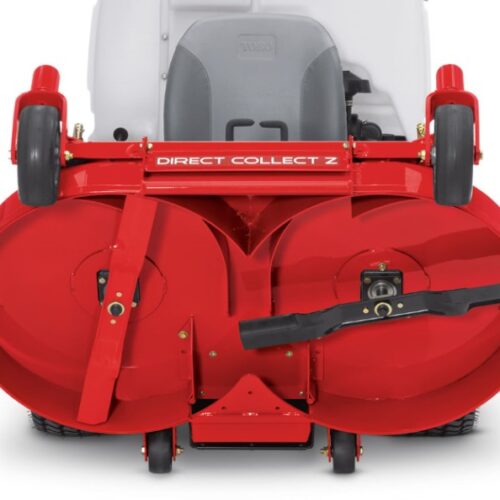

Tough, Deep Decks

Commercial deck is made of welded 7/10 gauge-steel. The deep 4-5/8" design handles taller grass and provides greater vacuum for a clean, refined cut.

Trim On Both Sides

The rear discharge deck allows for trimming on either side keeping flower beds and walkways clipping-free.

Specifications

Adjustable Discharge Baffle Fill Reduction Baffles Standard
Air Filter Heavy-Duty Canister Air Cleaner
Blade Tip Speed 18,500 ft/min / 5,638 m/min
Blades 0.164 in. (0.417 cm) heat-treated steel
Box Dimensions 91 in. x 70.25 in. x 52.25 in. / 231.1 cm x 178.4 cm x 132.7 cm
Carrier Frame 2 in. x 1.5 in. x 11 gauge (5.1 cm x 3.8 cm x 11 gauge)
Caster Tires 8 in. x 3 in. - 4 in. (20.3 cm x 7.6 cm - 10.2 cm) Semi Pneumatic
Clutch Mechanical (lever-operated)
Deck Design 7/10 gauge
Deck Material 7/10 Gauge Steel
Deck Size 42 in / 107 cm
Drive System Tandem Pumps and Wheel Motors
Drive Tires 18 in. x 10.5 in. - 10 in. (45.7 cm x 26.7 cm - 25.4 cm)
Engine 25 hp (18.6kW) Kohler® Command Pro 725 cc*
Engine Brand Kohler
Engine Displacement (cc) 725 cc
Engine Horsepower 25 hp
Forward Ground/Transport Speed Up to 7.0 mph / 11.2 kph
Fuel Capacity 7.5 gal. / 28.4 L / 30 Qt.
Fuel Type Gasoline
Height of Cut 1.0 - 4.0 in. / 2.5 - 10.2 cm
Hour Meter Standard
Product Type Zero Turn Mowers
Product Use Commercial
Seat Rubber Mounted
Spindle Housing Cast Iron Gearbox
Start Type Electric
Steering Controls Hand Control Levers
Weight 1,214 lbs / 550.7 kg
