Toro ProPass™ 200 Broadcast-style Topdresser with Wireless Controller (595L)

Model: 44701 & 44751
Toro

Toro ProPass™ 200 Broadcast-style Topdresser with Wireless Controller (595L)

Model: 44701 & 44751
Toro

The ProPass 200 series broadcast-style topdressers provide the ultimate in application versatility and precision. Intuitive color-coded adjustment settings deliver extremely accurate spread patterns from ultra-light dustings to ultra-heavy aeration hole filling applications from the first pass, without the guesswork. The unique four-wheel, walking-beam suspension means a light footprint that is easy on the most sensitive turf. Select from a range of configurations and controls to match your needs.

Broadcast-style top dressers provide application versatility, from ultralight dustings to ultra-heavy aeration hole filling. The ProPass™ 200 delivers accurate spread patterns on the first pass. Tow behind or Workman mounted versions available.

An optional new wireless controller lets you make real time adjustments from up to 100 yards away. You can change the spinner and conveyor belt speed, make quick changes to settings, and store settings for future use. The new wireless remote control improves durability and battery life. A self-contained diagnostic features (via flashing LED) helps diagnose faults for easier troubleshooting.

  • Quickly change from the twin spinner to the optional cross-conveyer and swivel kit.
  • The spinners are fixed at a downward angle of 4° to provide accurate and consistent penetration of material into the turf canopy.
  • Evenly apply materials to the turf from 9′ (2.74 m) to 30′ (9.1 m) with the adjustable twin spinners.
  • Color-coded operating system eliminates guesswork from setting up your spread pattern.
  • Make adjustments to all spread functions with the wireless controller.
  • Available in a utility vehicle mount style or tow-behind.
  • Walking beam suspension provides even weight distribution and allows all four wheels to be in contact with the ground regardless of terrain.
  • Smooth belt utilizes a tight rubber seal and prevents material from shifting or escaping.
  • Tailgate opens, closes and pivots on a wedge creating an angle to force wet or dry material through the gate in a consistent flow.

Series Models:

  • ProPass 200 (44701) – Bed Mounted or Tow Behind
  • ProPass 200 (44751) – Bed Mounted or Tow Behind with Wireless Controller
Fleet Finance & Leasing Options Talk to us today 0800 807 333
Enquire Call 0800 807 333
Talk to a rep Find a Store

Features

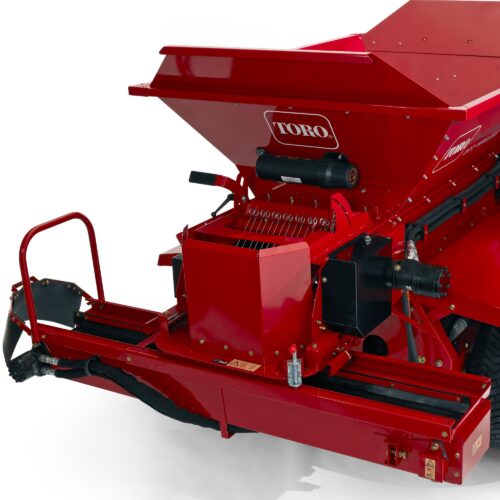

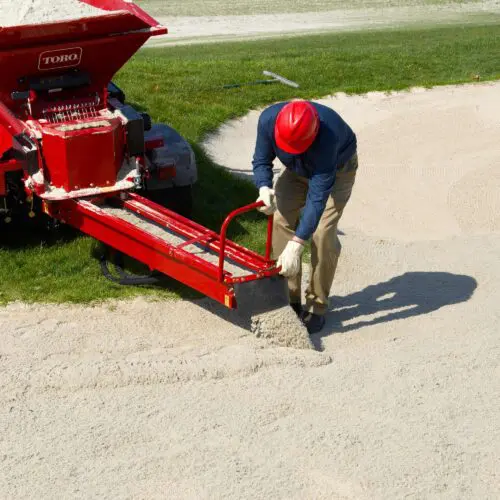

Toro Swivel ProPass Conveyor Assembly (44703)

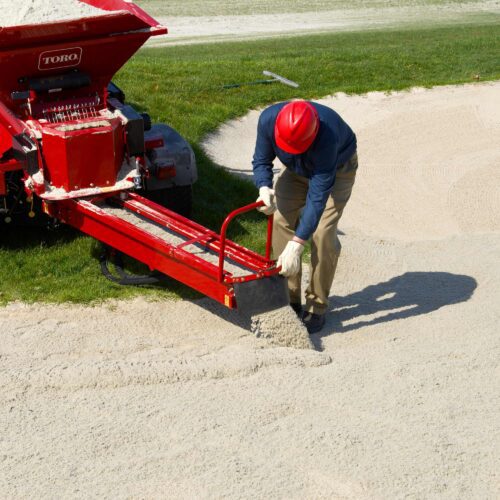

Versatility

Quickly change from the twin spinner to the optional cross-conveyer and swivel kit.

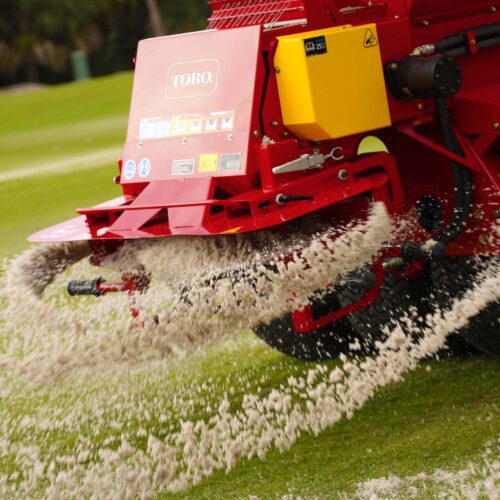

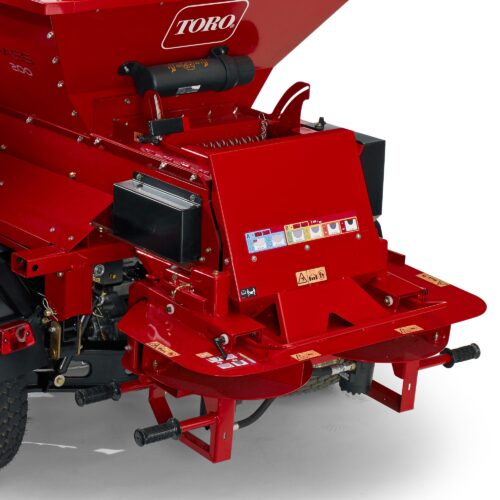

Twin Spinner Angle

The spinners are fixed at a downward angle of 4° to provide accurate and consistent penetration of material into the turf canopy.

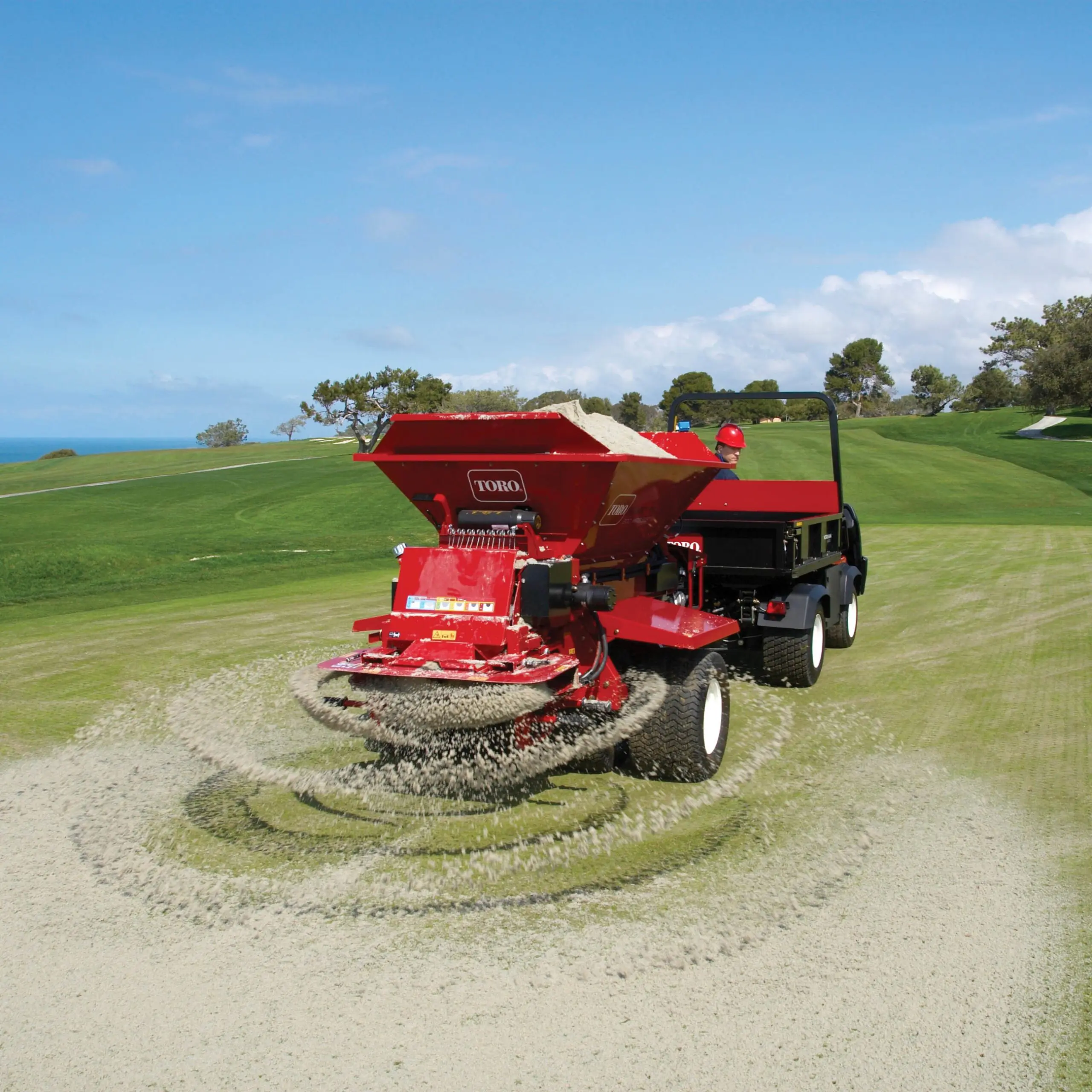

Spread Consistency

Evenly apply materials to the turf from 9 ft (2.74 m) to 30 ft (9.1 m) with the patented sliding adjustment for positioning of the twin spinners. This unique drop zone system adjusts where material lands on the spinner disks, resulting in an even pattern across the entire spread width.

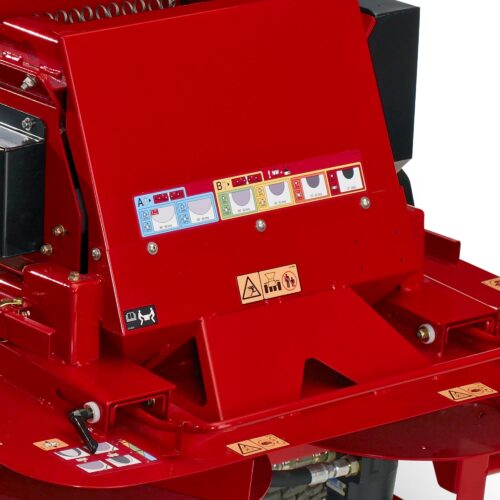

Color-Coded Operating System

Eliminate guesswork from setting up your spread pattern. Choose your spread pattern, identify your color and make your adjustments.

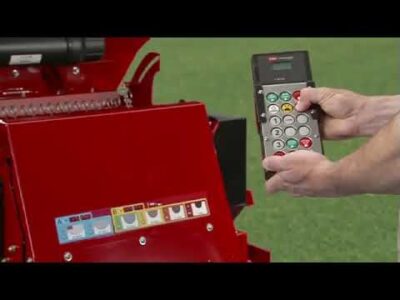

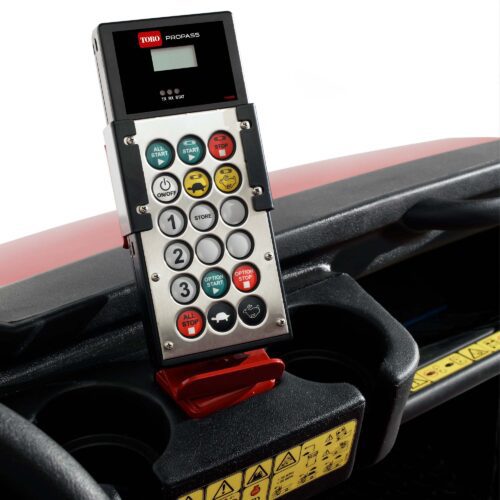

Available Wireless Controller

Allows fast settings and adjustments to all spread functions and you can store settings for future use. Fully operational up to 100 yards (91 metres).

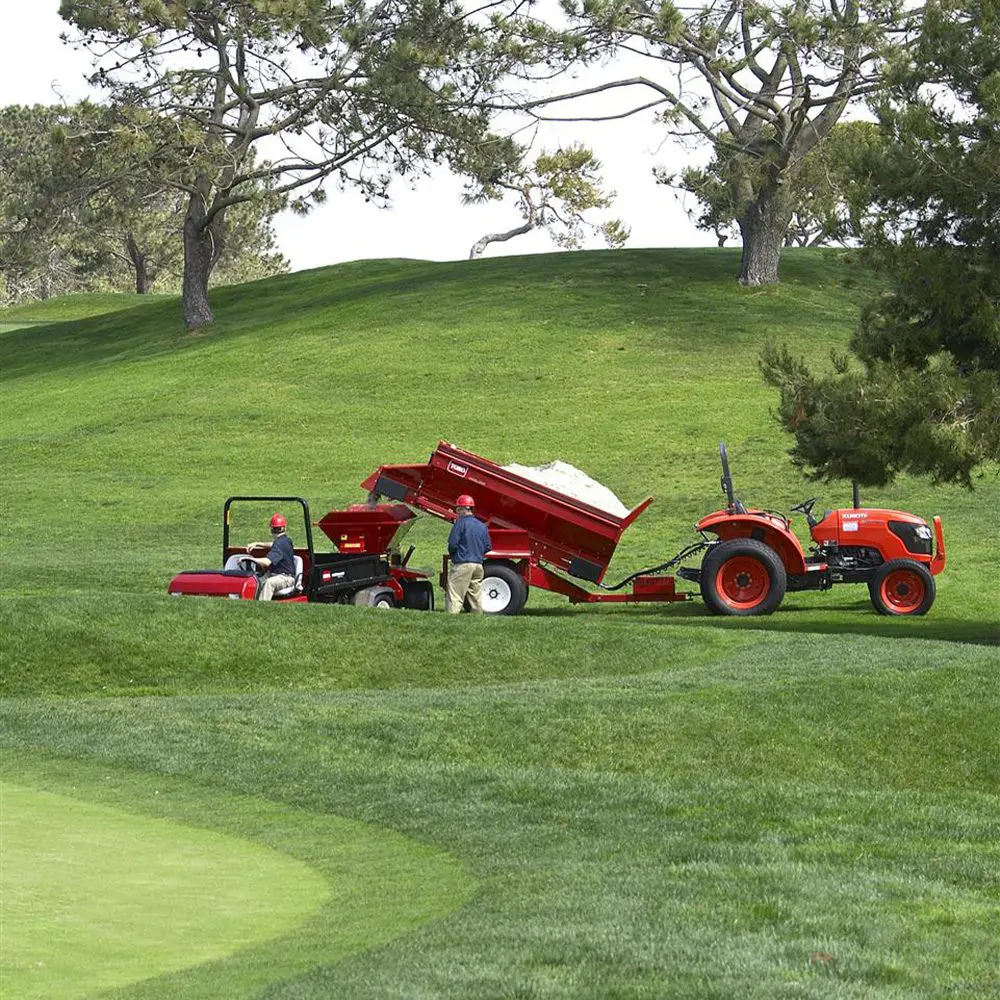

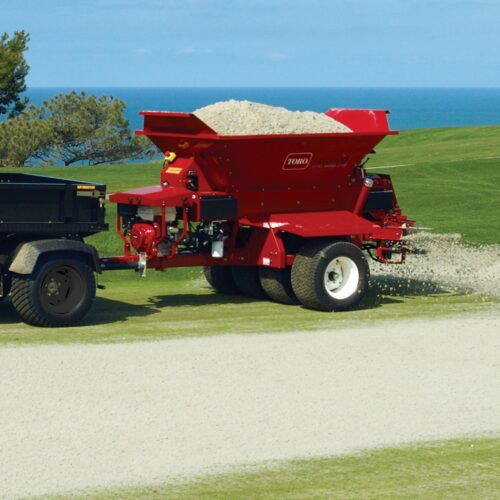

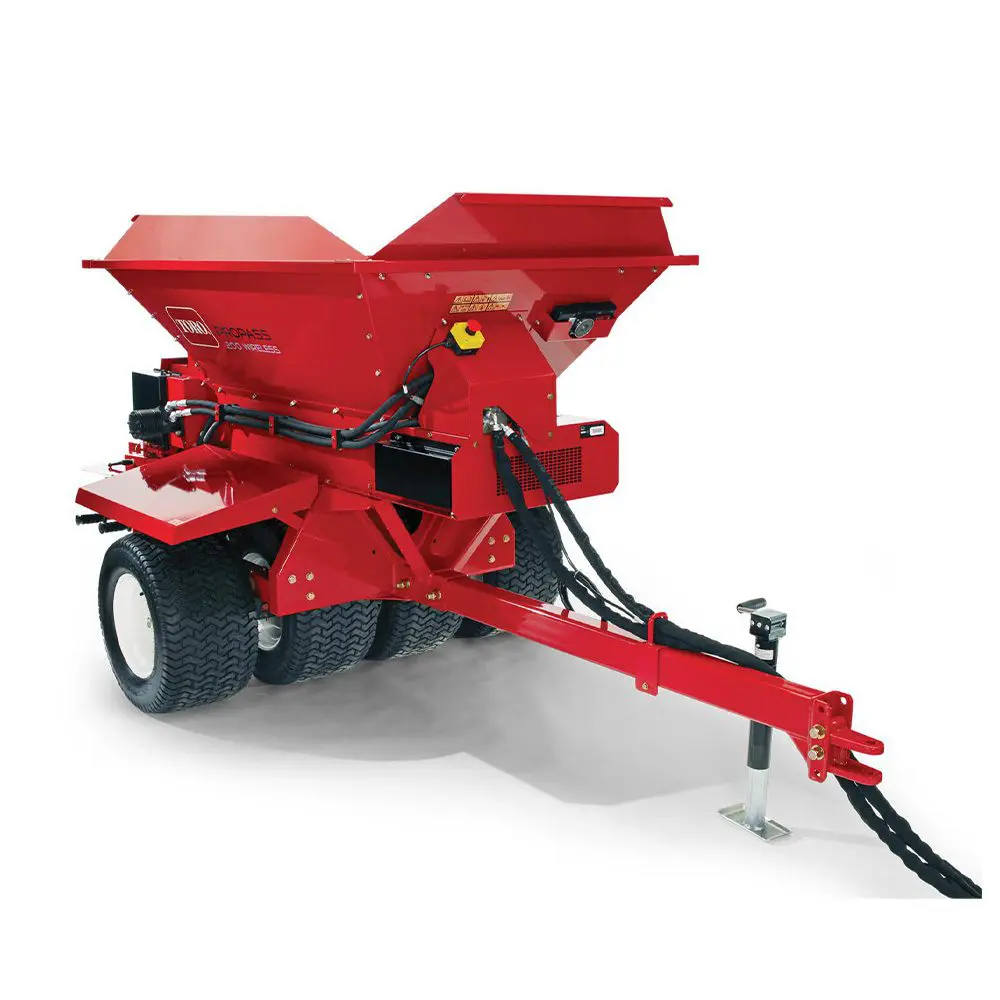

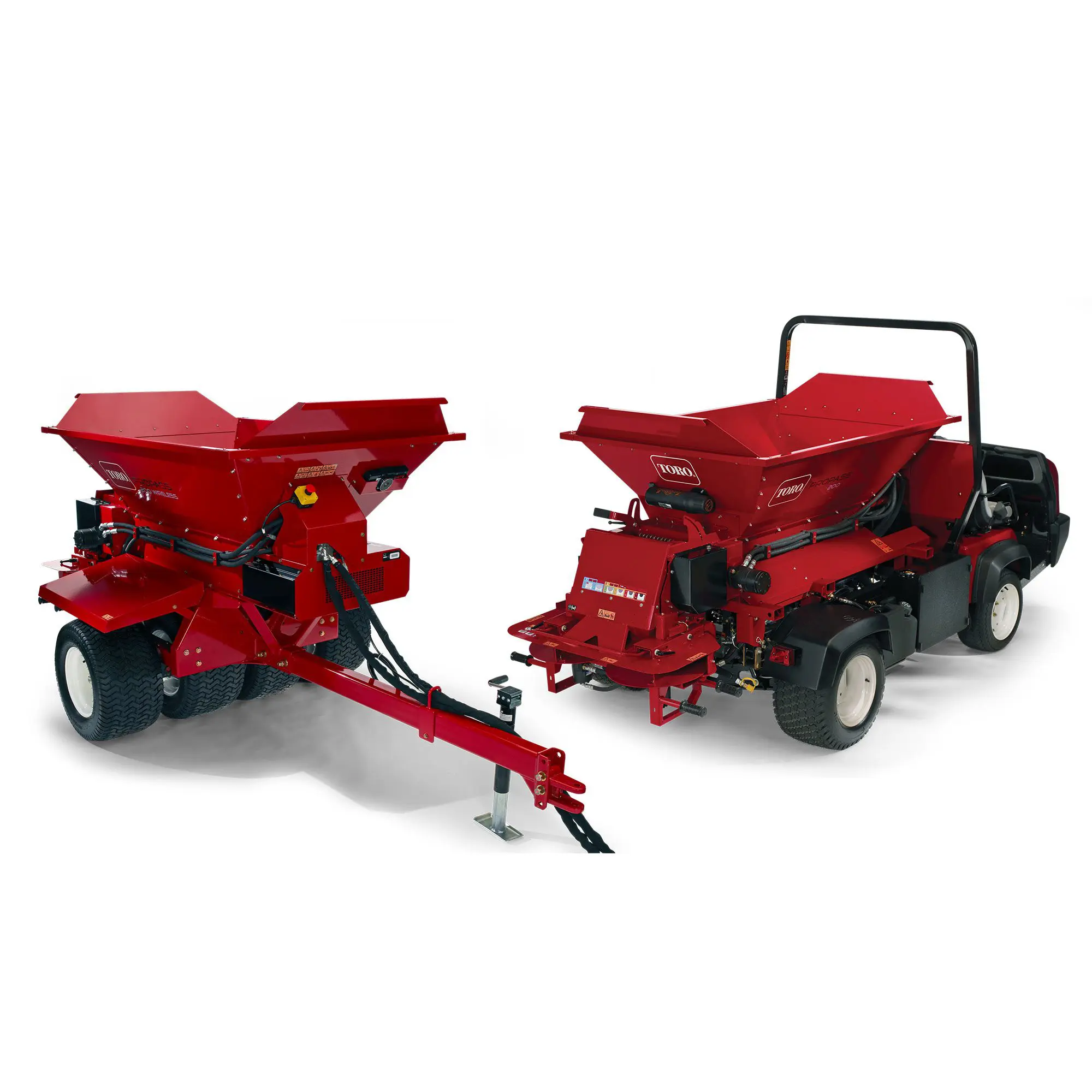

Vehicle Mount or Tow-Behind

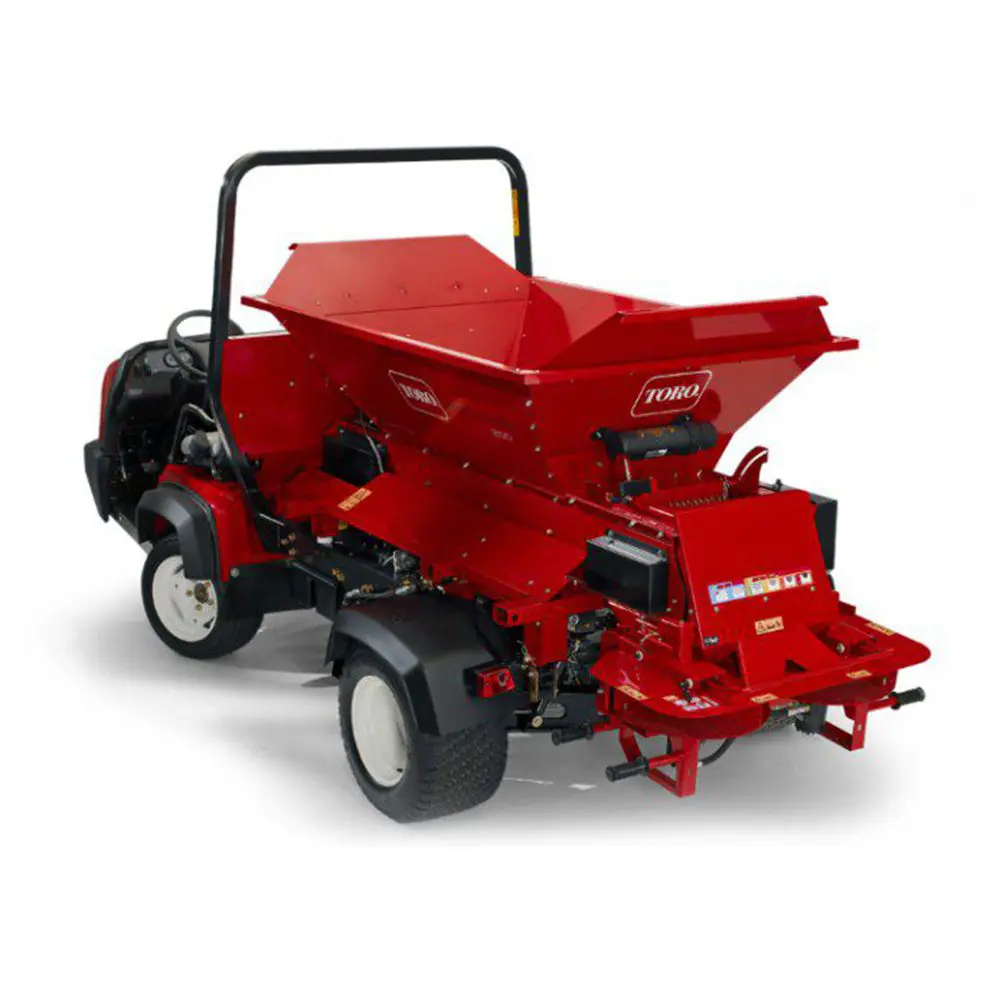

The ProPass™ is available in a utility vehicle mount style such as for mounting on a Workman® vehicle or can be ordered in a tow version.

Walking Beam Suspension

A unique, four wheel walking beam suspension contains two separate axles so that all four wheels are always in contact with the ground regardless of terrain and an even weight distribution provides a light footprint on the turf.

Toro Propass Back

Smooth Belt

Eliminates load shifting of material and uses a tight rubber seal on the sides preventing material from escaping.

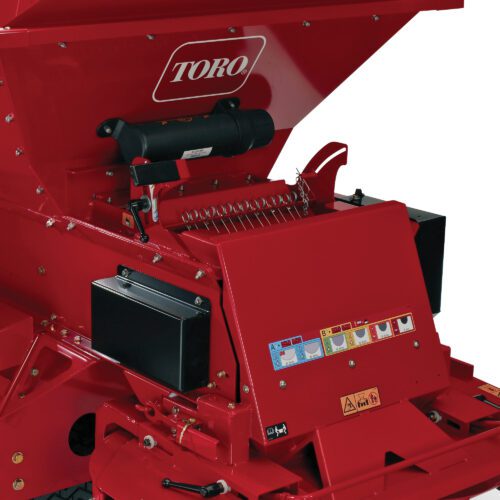

Wedge-Style Tailgate

Tailgate opens, closes and pivots on a wedge creating an angle to force wet or dry material through the gate in a consistent flow.

Specifications

Conveyor Belt One-piece vulcanized, self-tracking (no seams or staples)
Height 56" (1.4 m)
Hopper Capacity 21 cu. ft. / 0.54 cu. m struck (25 cu. ft. / 0.71 cu. m heaped)
Hydraulic Connection Minimum 6 US gal. / m. @ 2,000 psi (23 L/m @ 138 bar), maximum 10 US gal. / m. @ 2,800 psi (38 L/m @ 190 bar)
Length Bed-mounted: 78" (1.98 m) Tow-behind: 134" (3.4 m)
Operating Width (Working Width) Variable, up to 30' (9.1 m)
Optional Accessories Hydraulic Power Pack, Cross Conveyor / Swivel Kit
Payload (Tare) 2,000 lbs. (907 kg)
Recommended Tow Vehicle Requirement Towing capacity: 3,400 lbs. (1542 kg) Tongue weight: 300 lbs. (136 kg)
Tires 24" x 13" - 12", 4-ply
Weight Bed-mounted: 636 lbs. (288.5 kg) in minimum configuration, 841 lbs. (381.5 kg) maximum Tow-behind: 1,026 lbs. (465.4 kg) in minimum configuration, 1,386 lbs. (628.7 kg) maximum (dry with optional hydraulic power pack)
Width 65" (1.65 m)
Wireless Controller Yes
