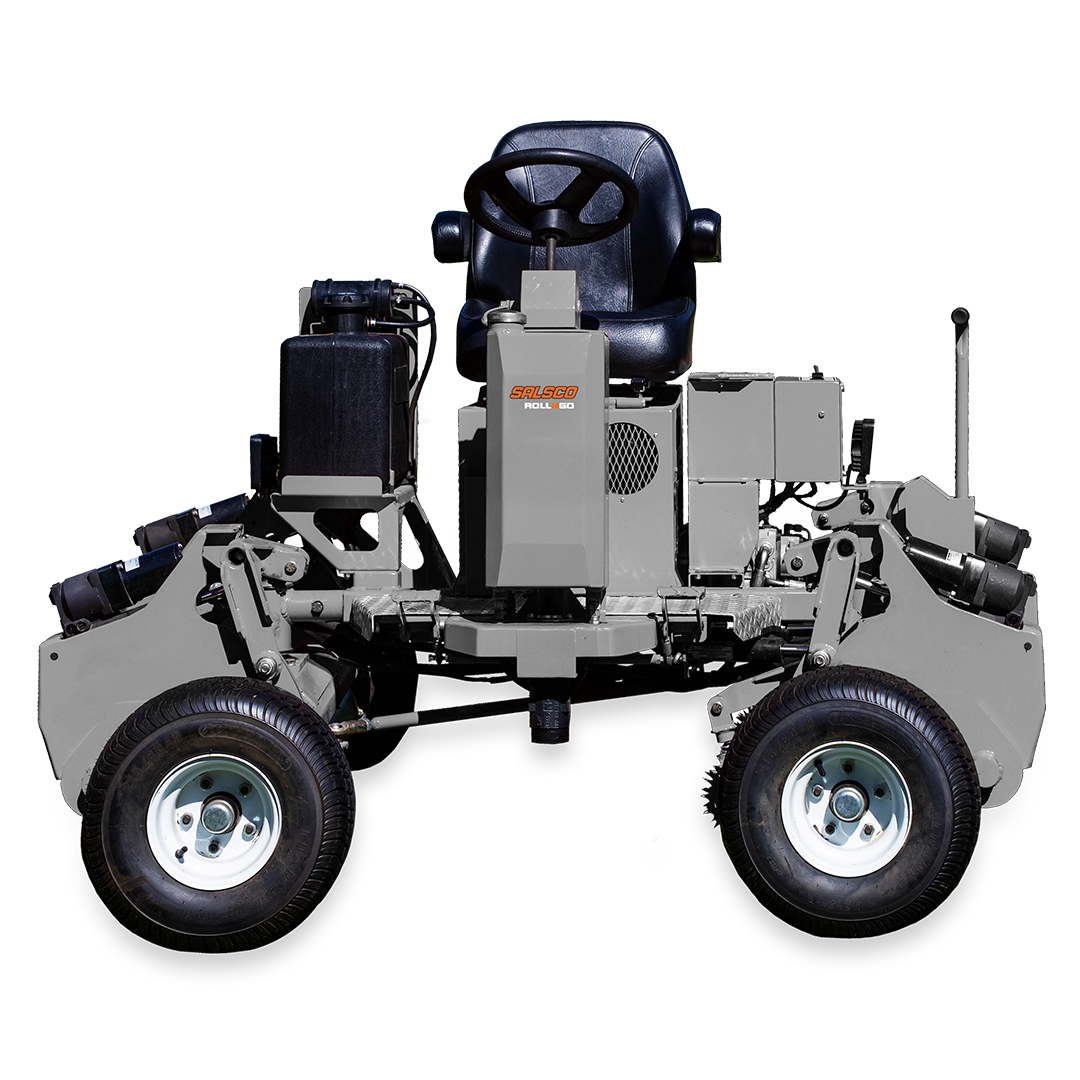

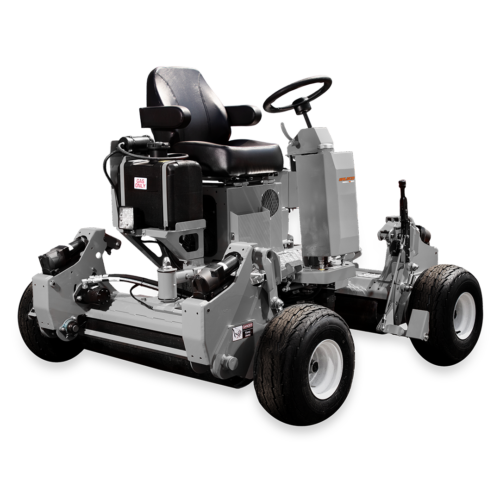

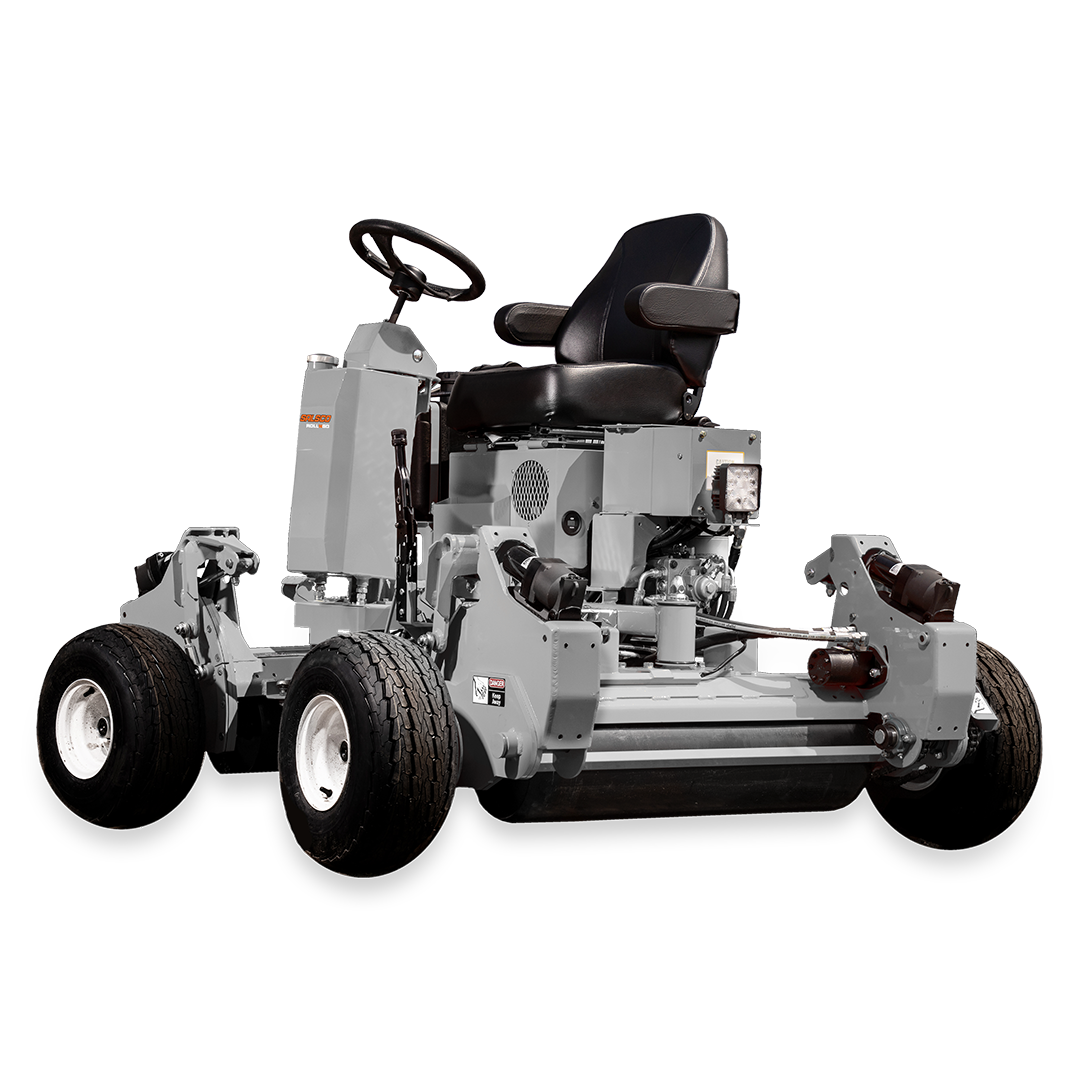

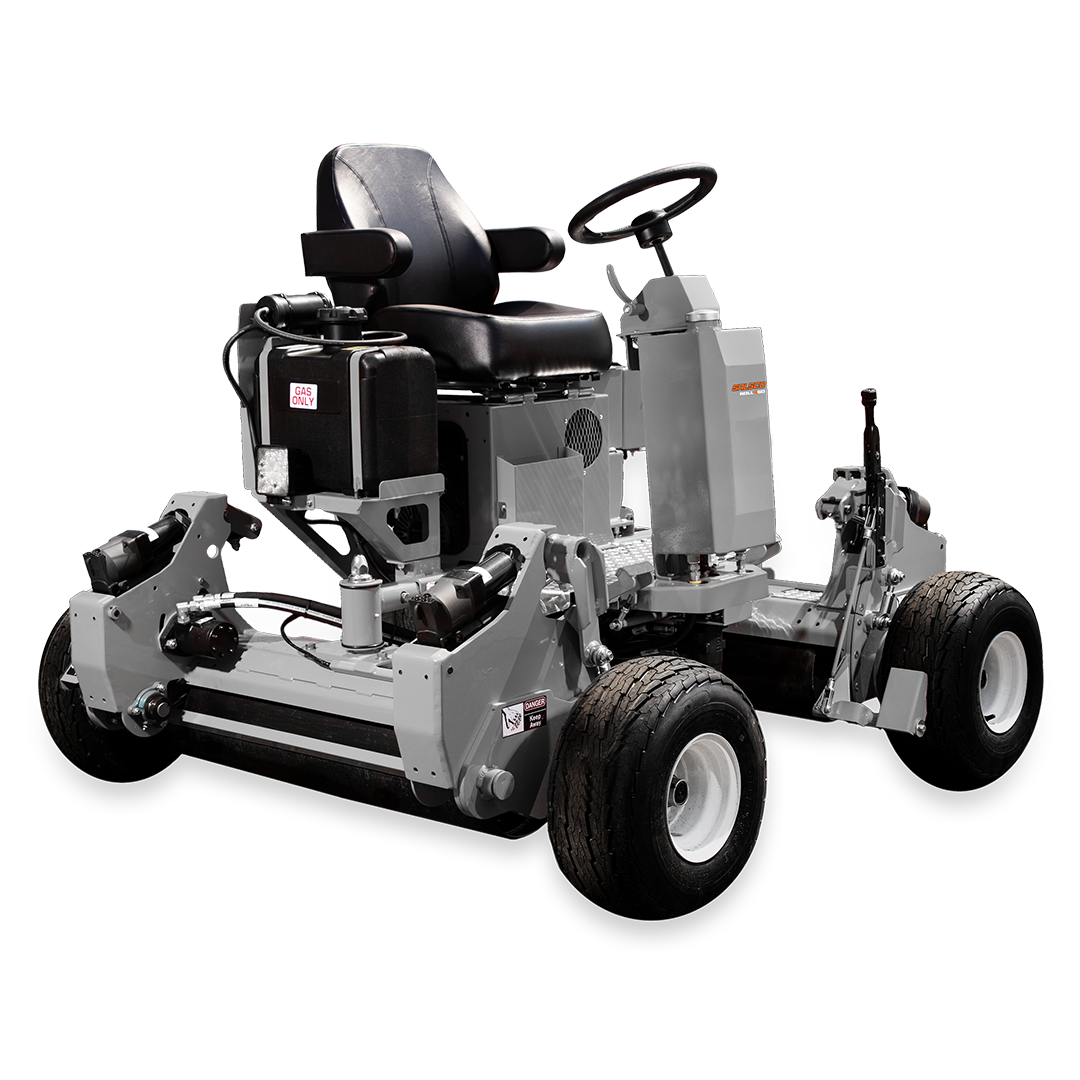

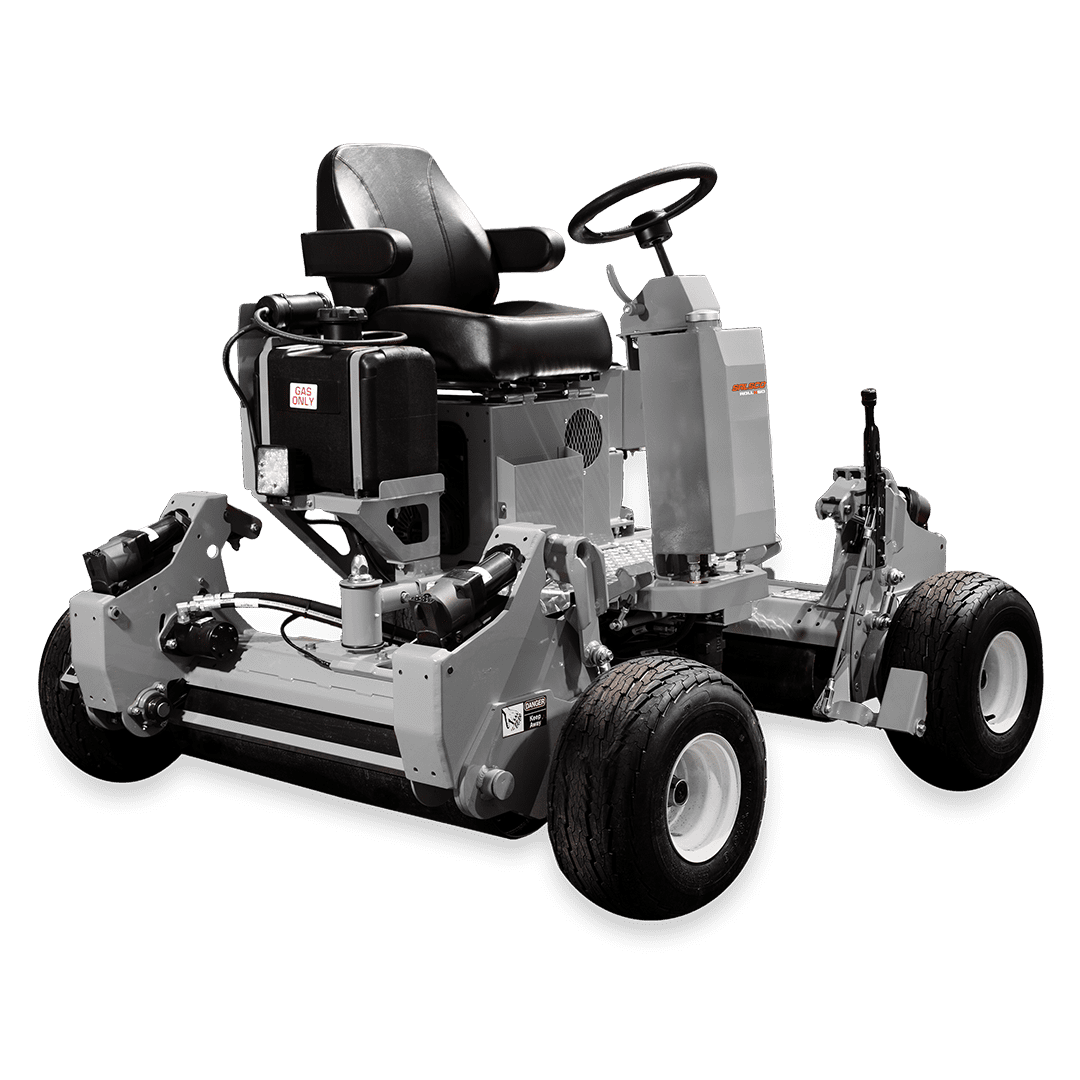

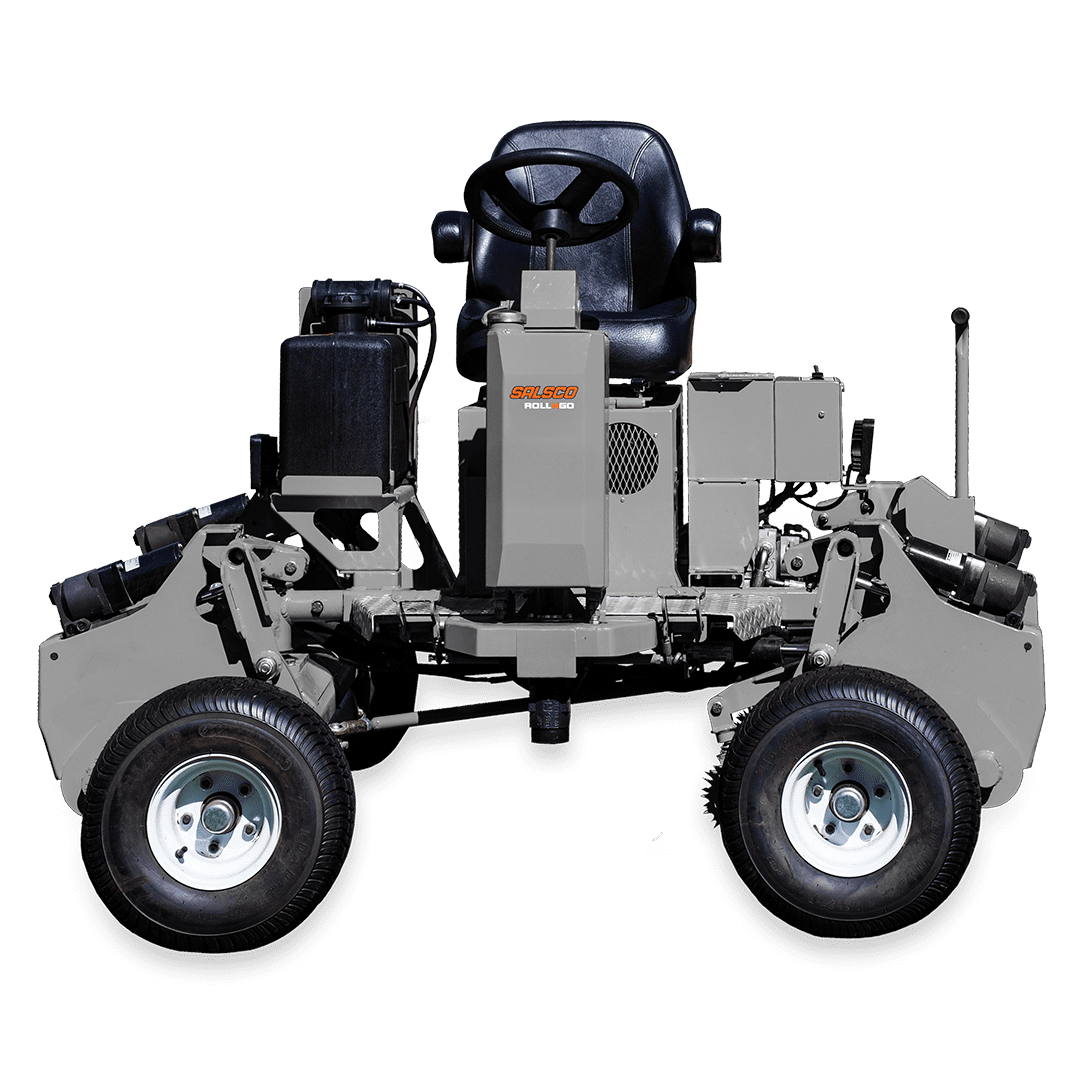

Salsco Roll-N-Go Greens Roller

Model: 0009105-N
Salsco

Salsco Roll-N-Go Greens Roller

Model: 0009105-N
Salsco

The Roll-N-Go EHA redefines greens rolling with its innovative self-contained design, eliminating the need for a trailer or utility vehicle. Operators can seamlessly transition between greens by raising the wheels, rolling, and lowering them without additional equipment. This streamlined process increases productivity by 35%, rolling an average green in just six minutes with minimal effort. Its fast, efficient design makes it a vital tool for superintendents focused on maximizing efficiency.

Key Features and Benefits:

  • Self Contained, No Trailer Needed – Eliminates the need for a trailer or utility vehicle, increasing efficiency.
  • Dual-Drive Oscillating Rolls – Eliminates the need for a trailer or utility vehicle, allowing operators to drive, roll, and move on seamlessly.
  • Electric Over Hydraulic Tire System – Eliminates the need for a trailer or utility vehicle, allowing operators to drive, roll, and move on seamlessly, over traditional rollers.
Fleet Finance & Leasing Options Talk to us today 0800 807 333

Features

13 HP Honda Engine

A fuel-efficient, high-output 4-stroke, air-cooled engine with precision camshaft design and high compression ratio for optimal power. With a digital CDI ignition to ensure reliable performance.

Drive Rolls

Dual-drive oscillating rolls provide strong traction and even pressure distribution across the turf, adapting to contours to reduce turf stress.

Optional Upgrades

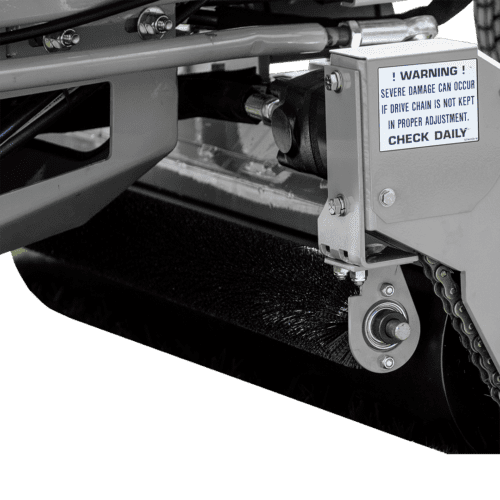

Upgrades that enhance performance. LED light kit. Spike-Air Kit. Tournament Roll Kit. Powered Roll Brush. Arm Rest Seat Upgrade. Pedal Extensions.

Turf Tires

Four heavy-duty 8.5 x 8.5-8, 6-ply turf tires and electrichydraulic actuators enable smooth transport and quick transitions between rolling and travel.

Specifications

Product Specifications

Length 78”in (198cm)
Width 66”in (168cm)
Height 57”in (145cm)

Standard Equipment

Engine 13 HP Honda, Electric Start
Fuel Tank 6 Gallons, CARB Approved Canister Fuel Tank
Controls On/Off switch, choke & fuel. Raise/Lower rocker switch for wheels.
Battery 12 Volt, 300 CCA automotive type
Hour Meter Standard

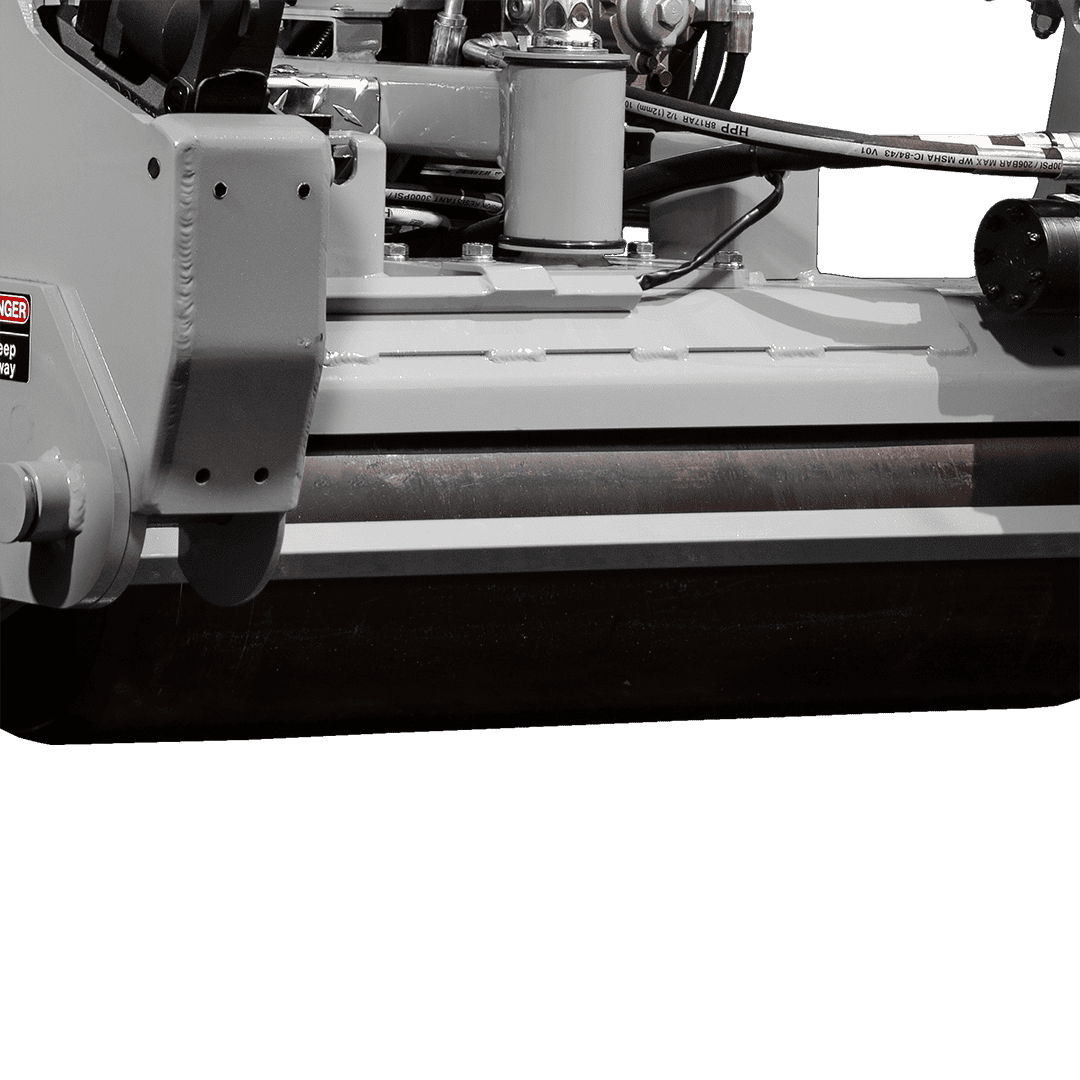

Rolling Swath 36”
Steering Wheel 13-1/4” diameter, automotive type, tilt steering wheel. 13-1 ratio
Drive Rolls Two (2) oscillating steel rolls, both driven for positive traction. 1-1/4” roll mounting bearing. 10-3/4” diameter, 36” long with beveled ends. Rolls are
machined to within two thousandths of an inch concentricity.
Speed Variable, 0–11 MPH
Brakes Parking Brake
Hydraulic Components Hoses: SAE JIC hose ends and fittings. 3,000 P.S.I. working and 12,000 P.S.I. burst. Motors: Two (2) Char-Lynn 7.3 cubic inch displacement Pump: One (1) Hydro-Gear, 0.97 cubic inch displacement.
Traction Drive Hydraulic pump to 2 hydrostats - 1 to each roll. Chain drive from hydraulic motors to rolls. #50 chain & sprockets.
Climbing Traction Up to 40°

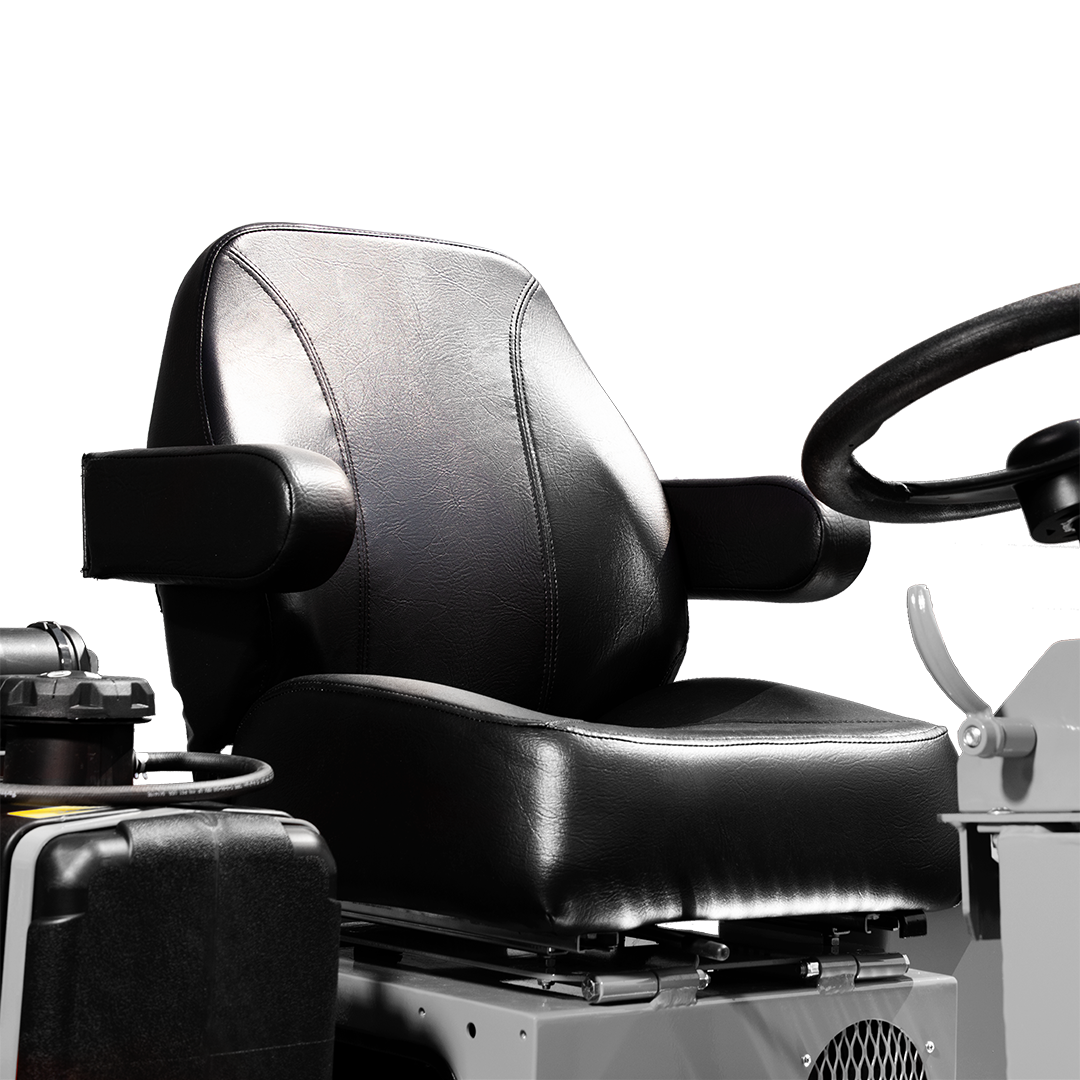

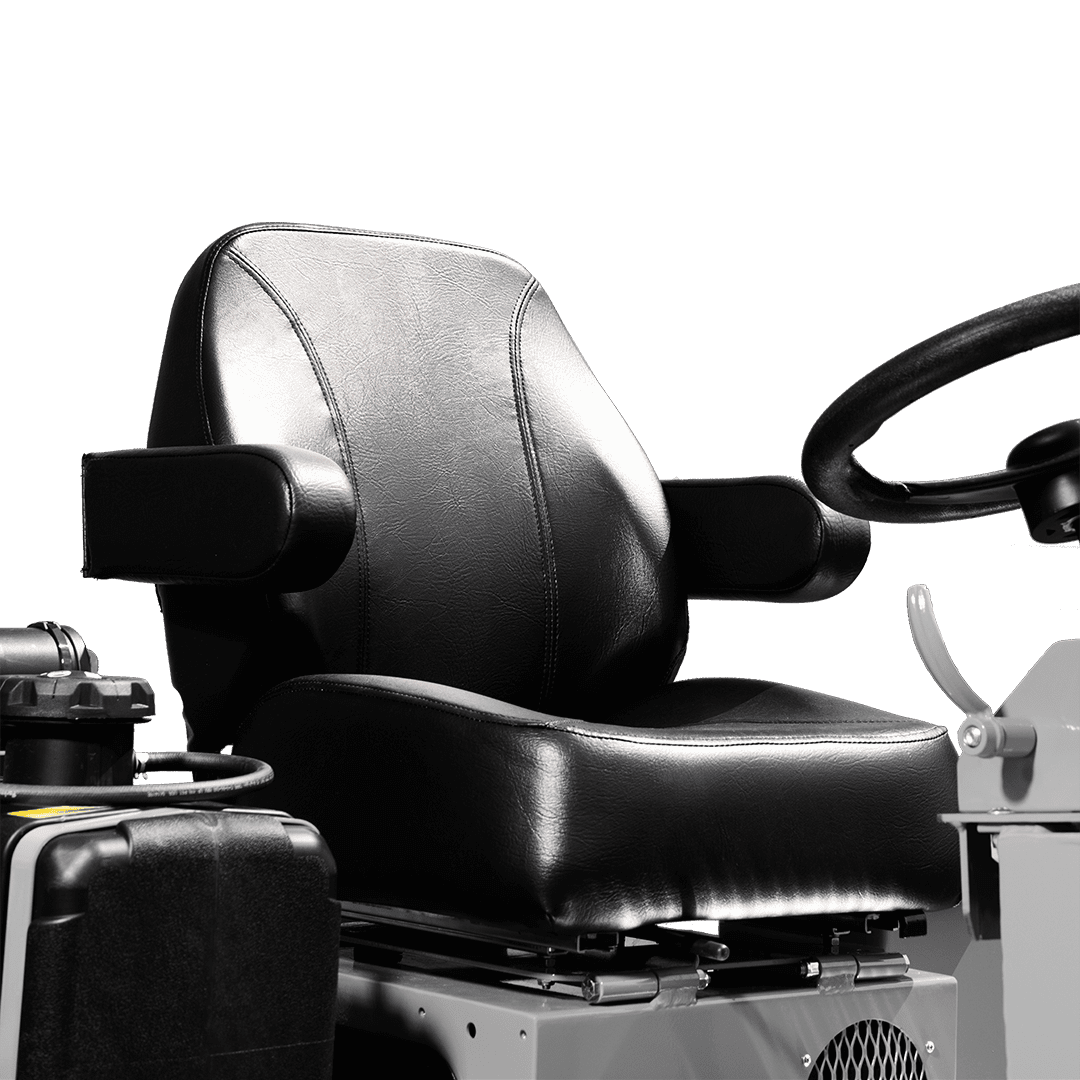

Seat Molded cushion with protective edge trim, neutral safety switch & forward/reverse adjustment. Rubber mounted to reduce vibration.
Tire/Wheel Assemblies Four (4) 18.5 x 8.5-8, 6 ply, turf tires hydraulically operated. Two are drive wheels.

Options

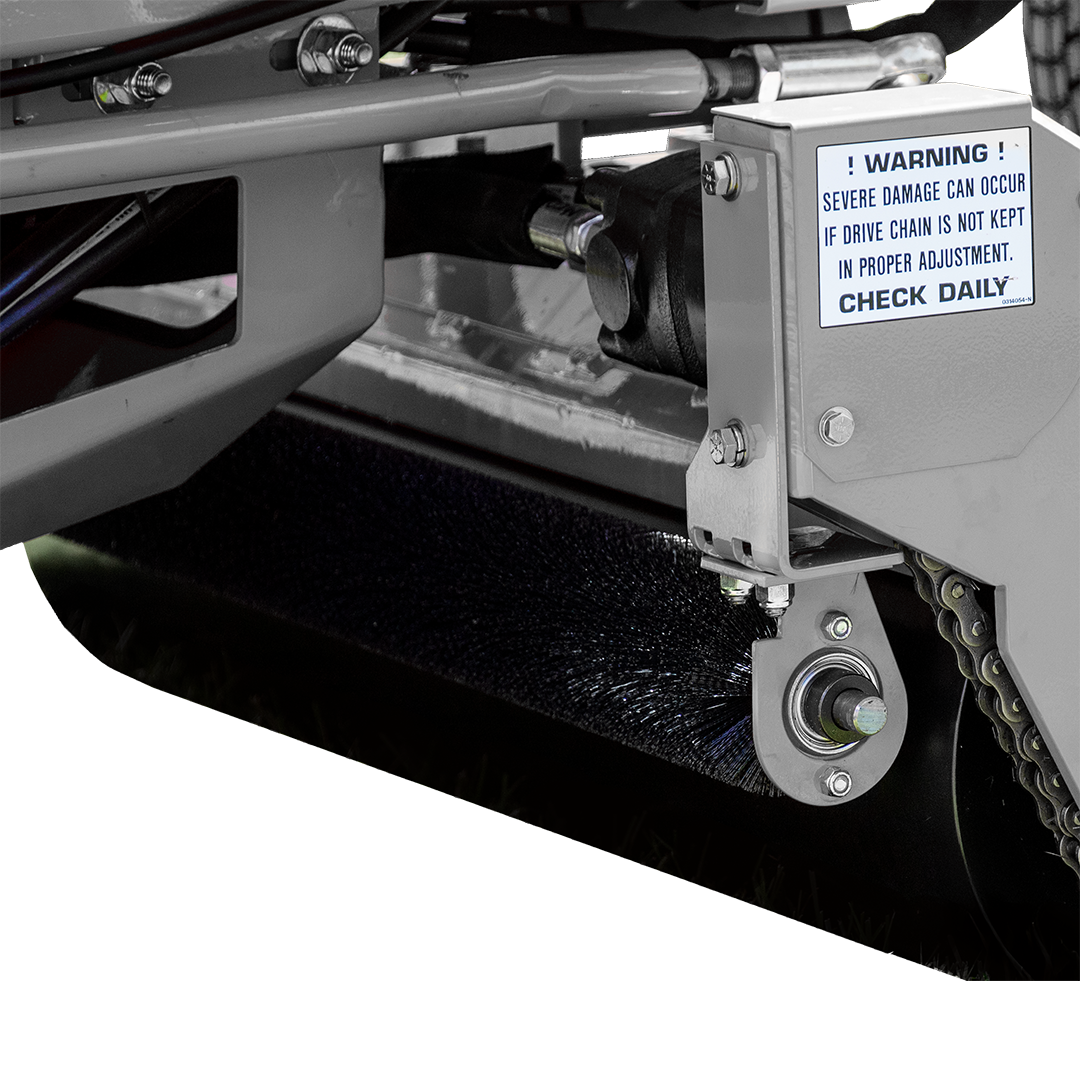

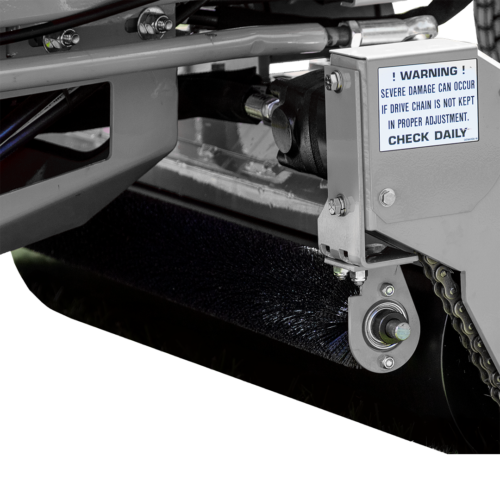

Roller Options Powered Roll Brush, LED Light Kit, Top Dressing Brush Kit: Soft or Hard, Spike-Air Kit, Arm Rest Sea, Pedal Extensions.
