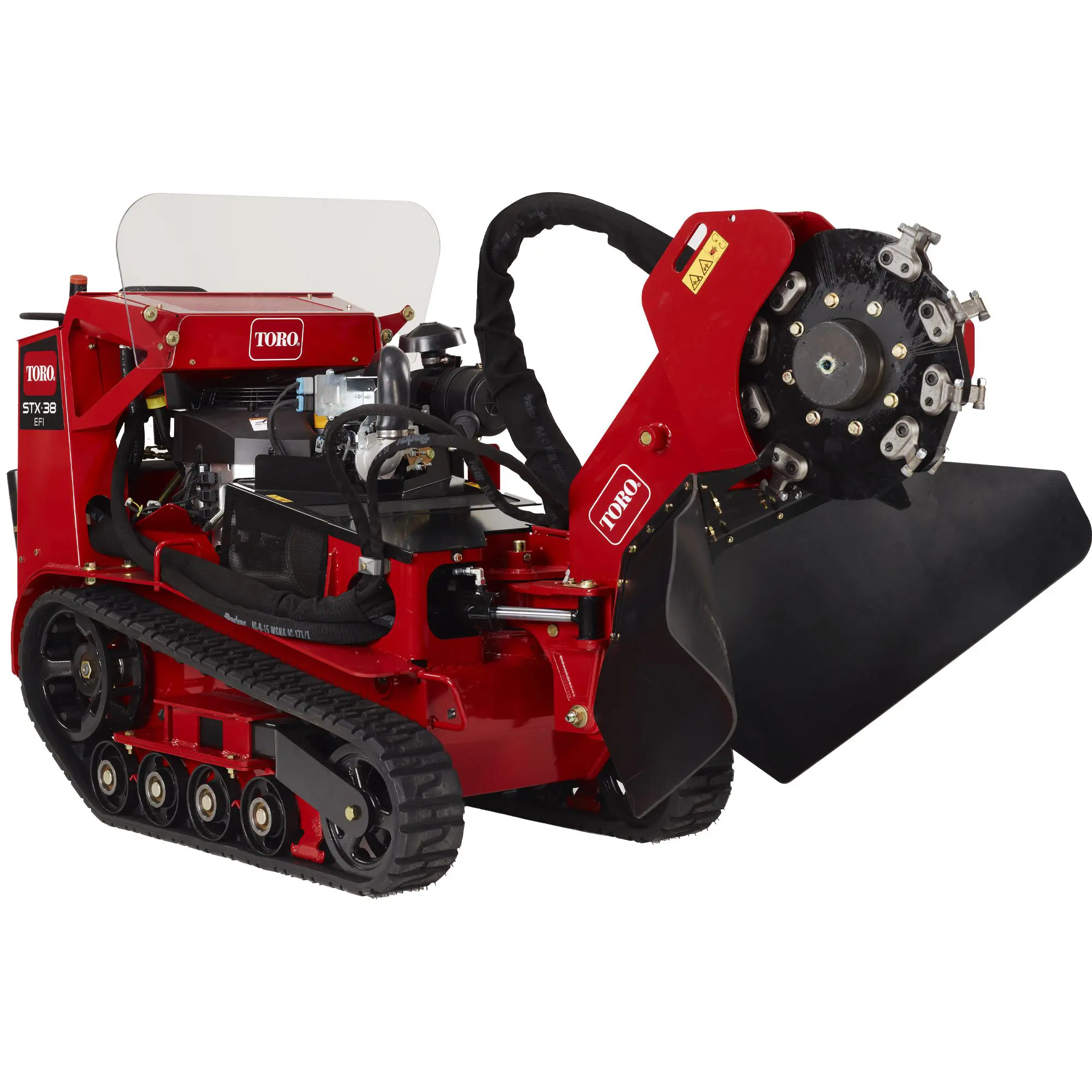

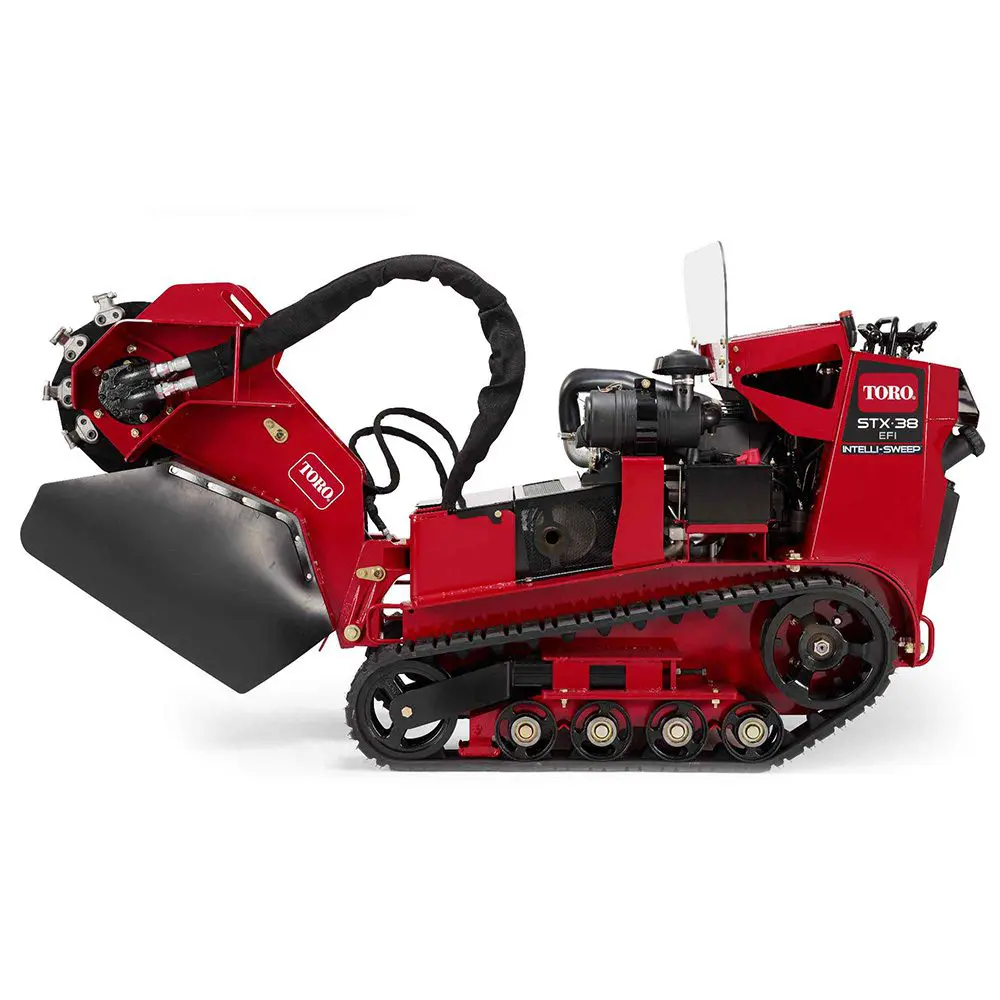

Toro STX-38 Stump Grinder

Model: 23214
Toro

Toro STX-38 Stump Grinder

Model: 23214
Toro

Toro® STX-38 Stump Grinder is built for outstanding durability in the toughest conditions and has the fastest ground speed of its competitors at 7.2km/hour. The STX – 38’s fully hydraulic operation means no chance of expensive belts breaking or slipping and no tension adjustments. The Intelli-Sweep™ feature automatically slows the sweep speed of the cutting head based on the load of the wheel, so heavy cutting loads won’t bog down the engine. With easy-to-use TX-style controls and tracks for maneuverability and stability, the STX-38 is extremely operator-friendly. The STX-38’s electronic fuel injection engine provides less maintenance, easier starting, and improved performance. Best of all, ground speeds of 7.2 km/h allow you to spend more time grinding – and less time transporting the machine – for greater productivity.

  • Intelli-Sweep Technology
  • Hi-drive track system (superior climbing, maneuverability and hillside stability)
  • Electronic fuel injection (EFI) engine (easy start, lower maintenance and improved performance)
  • All-hydraulic sweep control valve
Fleet Finance & Leasing Options Talk to us today 0800 807 333
Enquire Call 0800 807 333
Talk to a rep Find a Store

Features

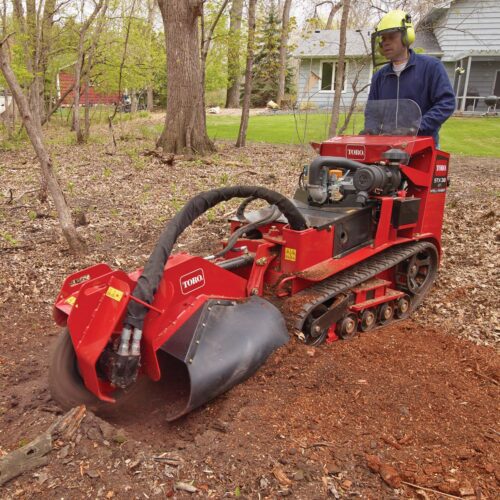

Intelli-sweep®

Intelli-sweep automatically adjusts cutting head sweep speed based on the load on the wheel, so the engine runs efficiently during heavy loads.

Faster and Easier

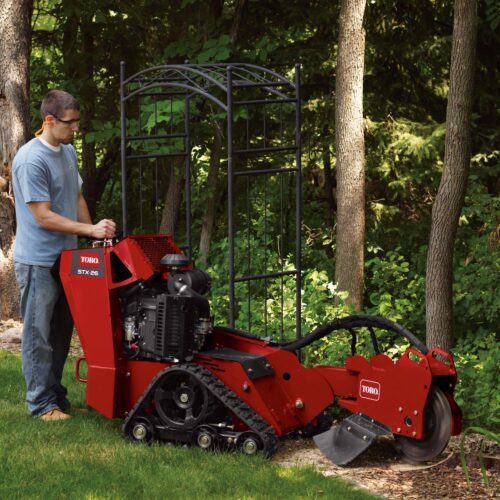

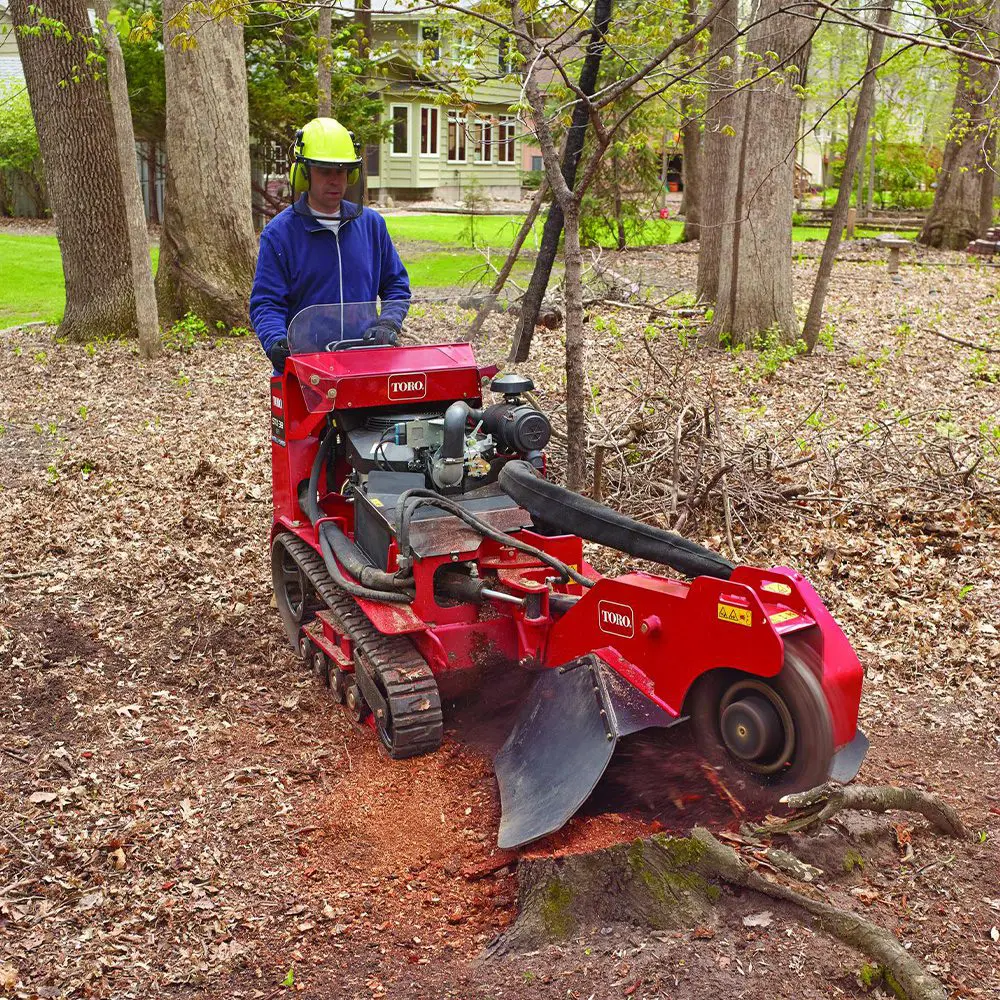

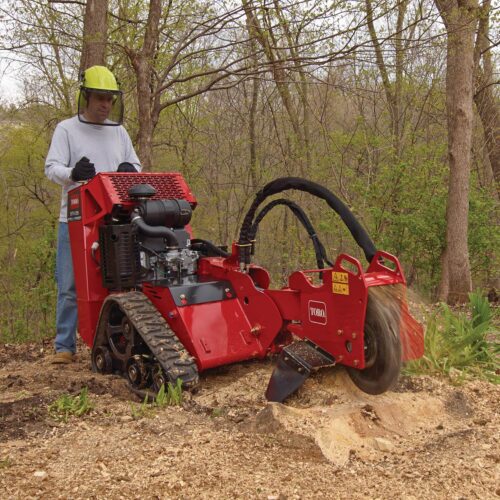

From pine to oak, the Toro STX hydraulic stump grinder turns stumps to chips quickly and efficiently.

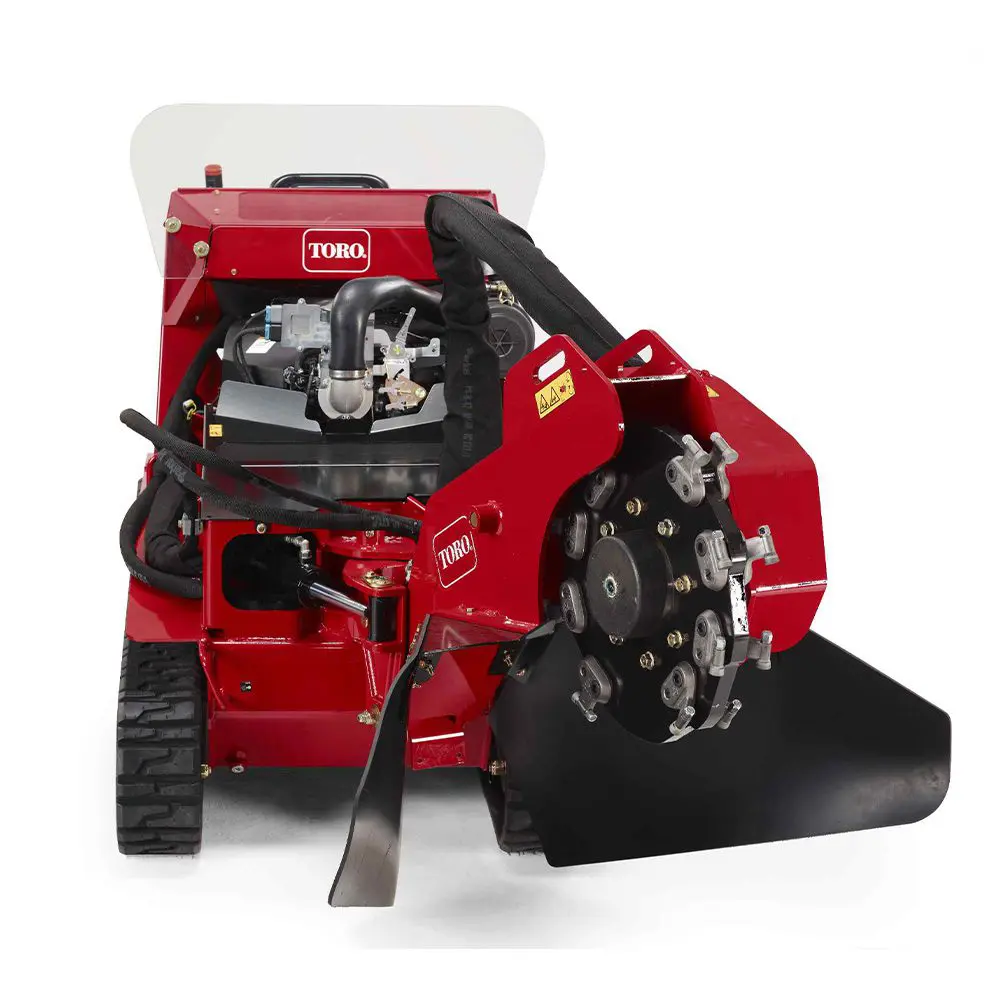

Advanced Cutter Head

Hydraulically driven cutting head with hydraulic flow directly to cutter head for maximum performance. Design minimizes maintenance with no belts or pulleys to replace.

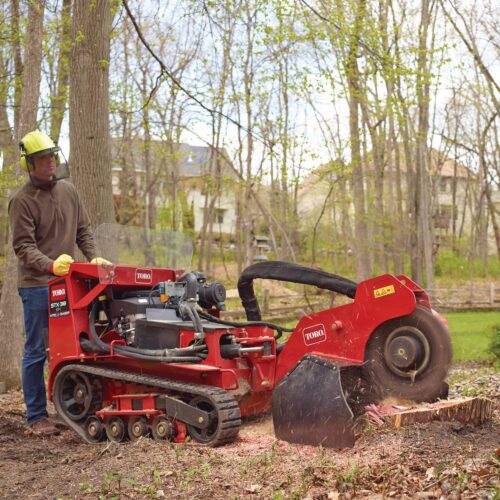

Innovative Track System

Low center of gravity and large footprint increases stability on hillsides. Tracks handle soft, wet ground conditions, climb curbs and allow zero-turn capability.

Specifications

Compliance CE and EPA compliant
Cutter Depth - Above Grade 35 in. / 88.9 cm
Cutter Depth - Below Grade 18 in. / 45. 7 cm
Engine Cooling System Air Cooled
Engine Horsepower 38 hp
Engine Make Kohler
Engine Model Kohler® Command PRO® ECV980 4-cycle
Fuel Type Gasoline
Head Swing 52" (132 cm) arc length x 60˚ sweep arc
Height 51 in. / 129.5 cm
Hydraulic Pressure 3,000 PSI (207 BAR)
Hydraulics Dual hydrostatic traction drive – 16 cc hydropumps with 15 gpm max flow to each side; 20 gpm gear pump flow to the piston motor driving the cutter head
Length 95 in. / 241. 3 cm
Start Method Electric
Transmission Hydrostatic
Travel Speed - Forward Up to 4.5 mph / 7.2 kph
Weight 1,750 lbs / 794 kg
Wheel 22.25" (56.5 cm) diameter to tooth; 1" (2.5 cm) thick; 16 grinder teeth
Width 34 in. / 86.3 cm
