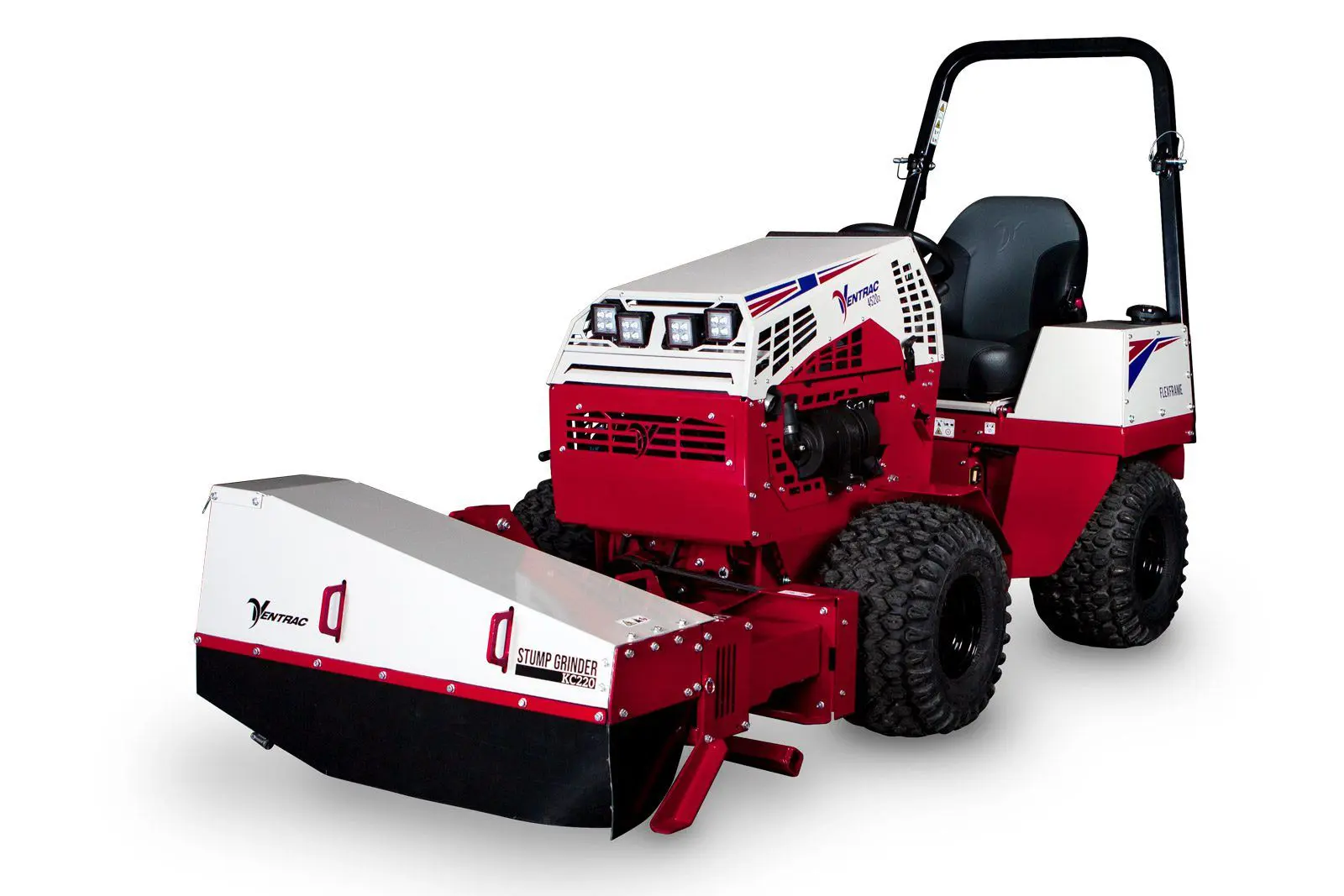

Ventrac 22" Stump Grinder Tractor Attachment
The KC220 Stump Grinder features 18 replaceable heavy-duty carbide cutting teeth on a large 22″ rotor for removing large or small stumps.
Cutting action is controlled with the forward and reverse motion using the tractor’s hydrostatic drive. The Stump Grinder features offset, out-front operation to provide excellent visibility resulting in better performance and efficiency.
An increased rotor speed of 1300 RPM equates to a faster tip speed and more significant amounts of material removed with each pass. In addition, with an increased cutting depth of 8 inches, stumps are removed faster than ever.
The new material blade, operated by the hydrostatic hand controls, helps push material away from the working area to uncover portions of the stump that needs to be removed.
The stump grinder works in a sideways orientation, making this attachment’s operation more intuitive, faster, and with an easier learning curve. In addition, set-up and installation on the tractor are easy, and an operator can quickly become a pro at using this attachment effectively.
Combined with the 4520 Ventrac tractor, the Stump Grinder is an agile, powerful, turf-friendly mobile unit for lawns, golf courses, parks, and municipalities.
LIGHT FOOTPRINT FOR STUMP GRINDING
The Stump Grinder mounted on the 4520 tractor creates an agile, powerful and “turf friendly” mobile unit for lawns, golf courses, parks, and municipalities.

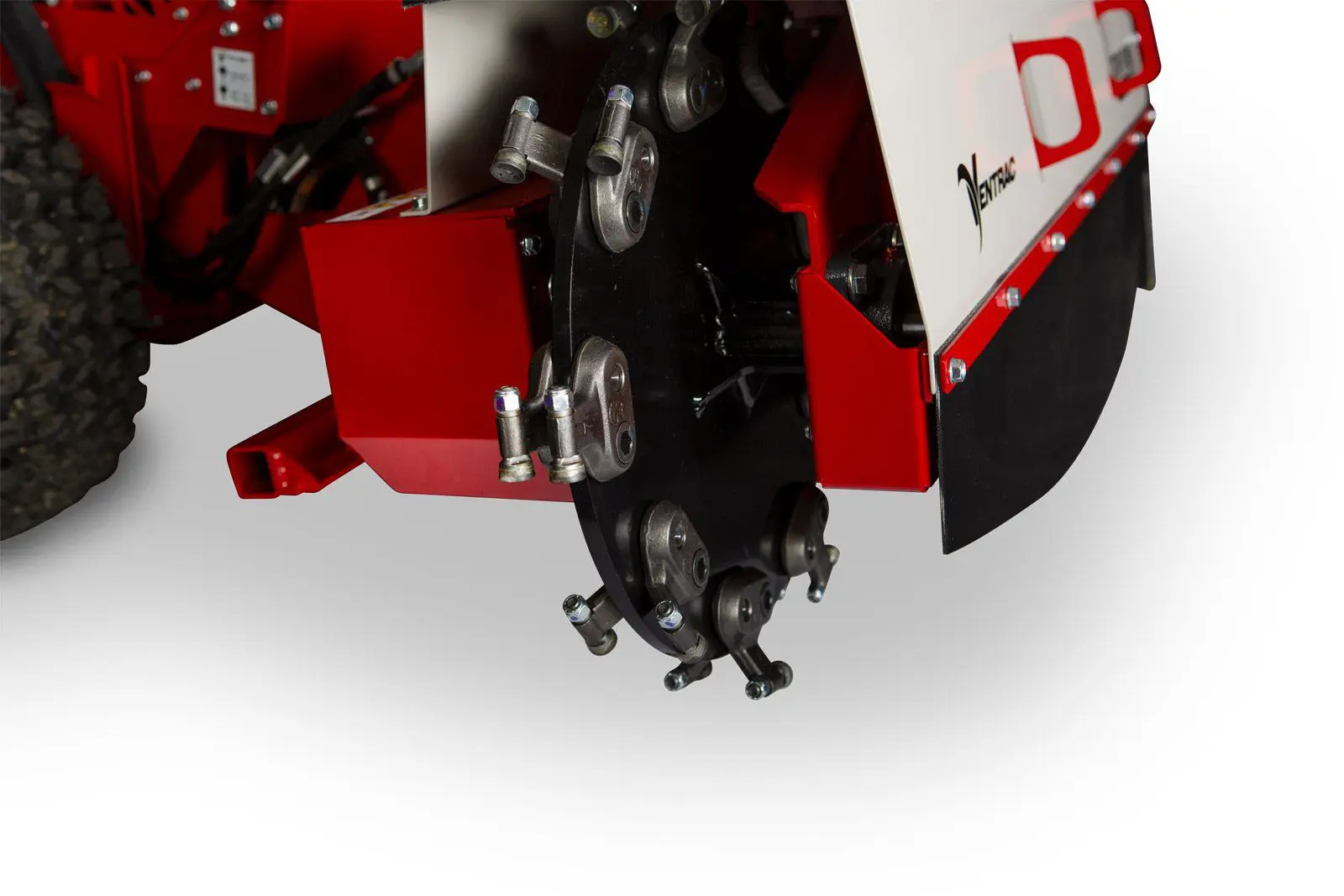

HEAVY-DUTY CARBIDE CUTTERS
The stump grinder has heavy-duty carbide cutters that produce compelling results when removing unwanted stumps and roots.
MATERIAL BLADE
A material blade operated by the SDLA has been designed to help remove material from the working area. It also allows the operator to identify portions of the stump that need to be ground, increasing efficiency by keeping the operator in the seat.
SUPERIOR OPERATOR VISIBILITY
Description
Cutting action is controlled with the forward and reverse motion using the tractor’s hydrostatic drive. The Stump Grinder features offset, out-front operation to provide excellent visibility resulting in better performance and efficiency.
An increased rotor speed of 1300 RPM equates to a faster tip speed and more significant amounts of material removed with each pass. In addition, with an increased cutting depth of 8 inches, stumps are removed faster than ever.
The new material blade, operated by the hydrostatic hand controls, helps push material away from the working area to uncover portions of the stump that needs to be removed.
The stump grinder works in a sideways orientation, making this attachment’s operation more intuitive, faster, and with an easier learning curve. In addition, set-up and installation on the tractor are easy, and an operator can quickly become a pro at using this attachment effectively.
Combined with the 4520 Ventrac tractor, the Stump Grinder is an agile, powerful, turf-friendly mobile unit for lawns, golf courses, parks, and municipalities.
| Sales Model | KC220 |
| Full Description | KC, KC220 Stump Grinder |
| Product Type | Attachment |
| CATEGORY | |
| Front Mount | Ventrac Mount System |
| 4000 Series Mount | |
| DIMENSIONS | |
| Overall Length | 104Â cm |
| Overall Height | 58.4Â cm |
| Overall Width | 130Â cm |
| Weight | 191Â kg |
| GENERAL | |
| Cutting Depth | 20.3 cm below ground |
| Rotor Speed | 1300Â RPM |
| Carbide Tips | 18Â 3 sided replaceable |
| Cutter Wheel Dia. | 55.9Â cm |
Additional information
| Brands | VENTRAC |
|---|
