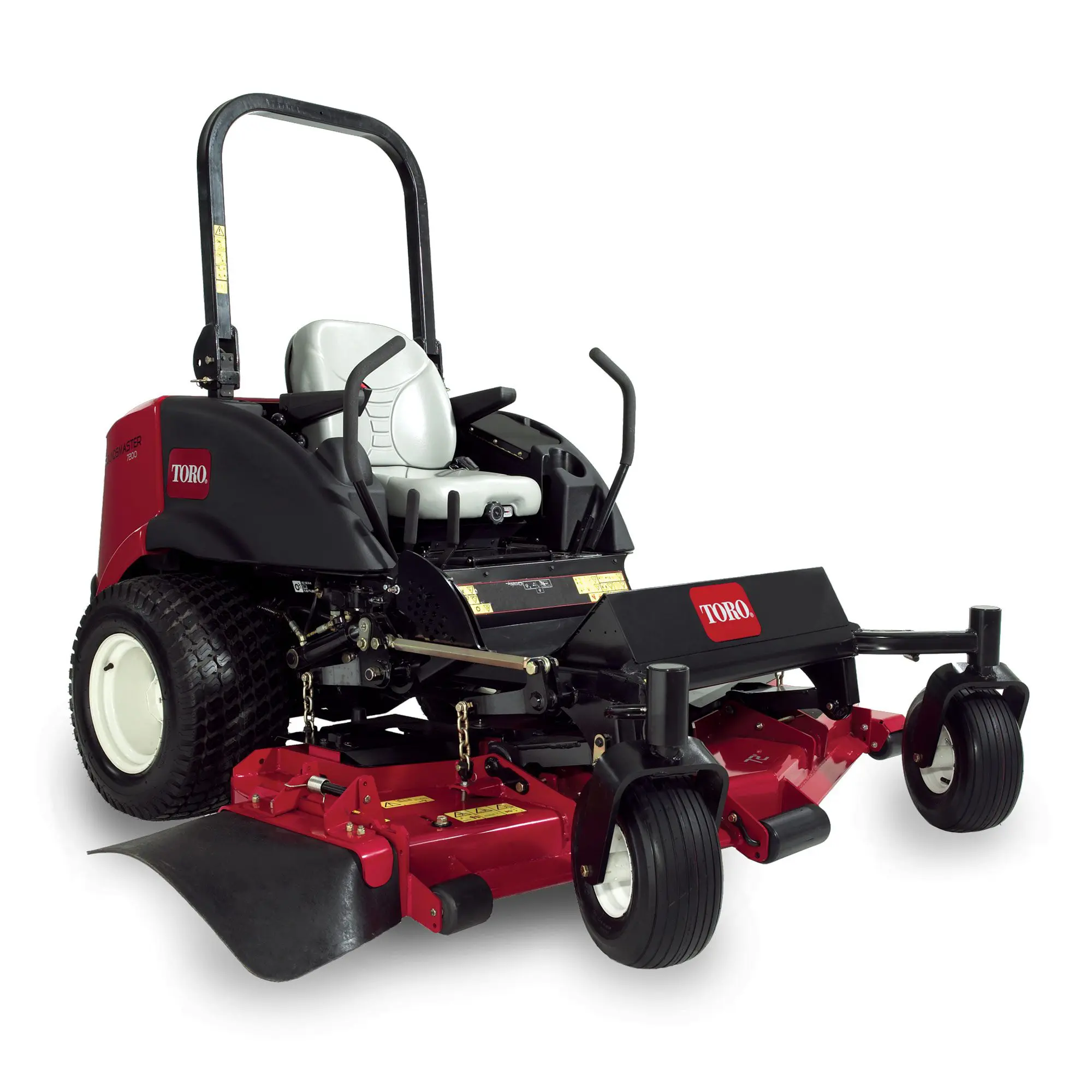

Toro Groundsmaster® 7200 Ride-on Mower

Model: 30495
Toro

Toro Groundsmaster® 7200 Ride-on Mower

Model: 30495
Toro

The Groundsmaster® 7200-D/7210-D are zero turn rotary mowers are rugged enough to be called Groundsmasters. A powerful Kubota® 24.8 hp (18.5 kw), 3-cylinder, liquid cooled diesel engine combined with decks that use the industry’s toughest spindle assembly match power and durability for commercial operators.

Groundsmaster® 7200 Models can be configured with one of the following decks:

Deck Options:

  • 60″ side discharge
  • 62″ rear discharge deck
  • 62″ Guardian Recycler deck
  • 72″ side discharge
  • 72″ rear discharge
  • 72″ Guardian Recycler and Fine Cut Guardian kits
Fleet Finance & Leasing Options Talk to us today 0800 807 333
Enquire Call 0800 807 333
Talk to a rep Find a Store

Features

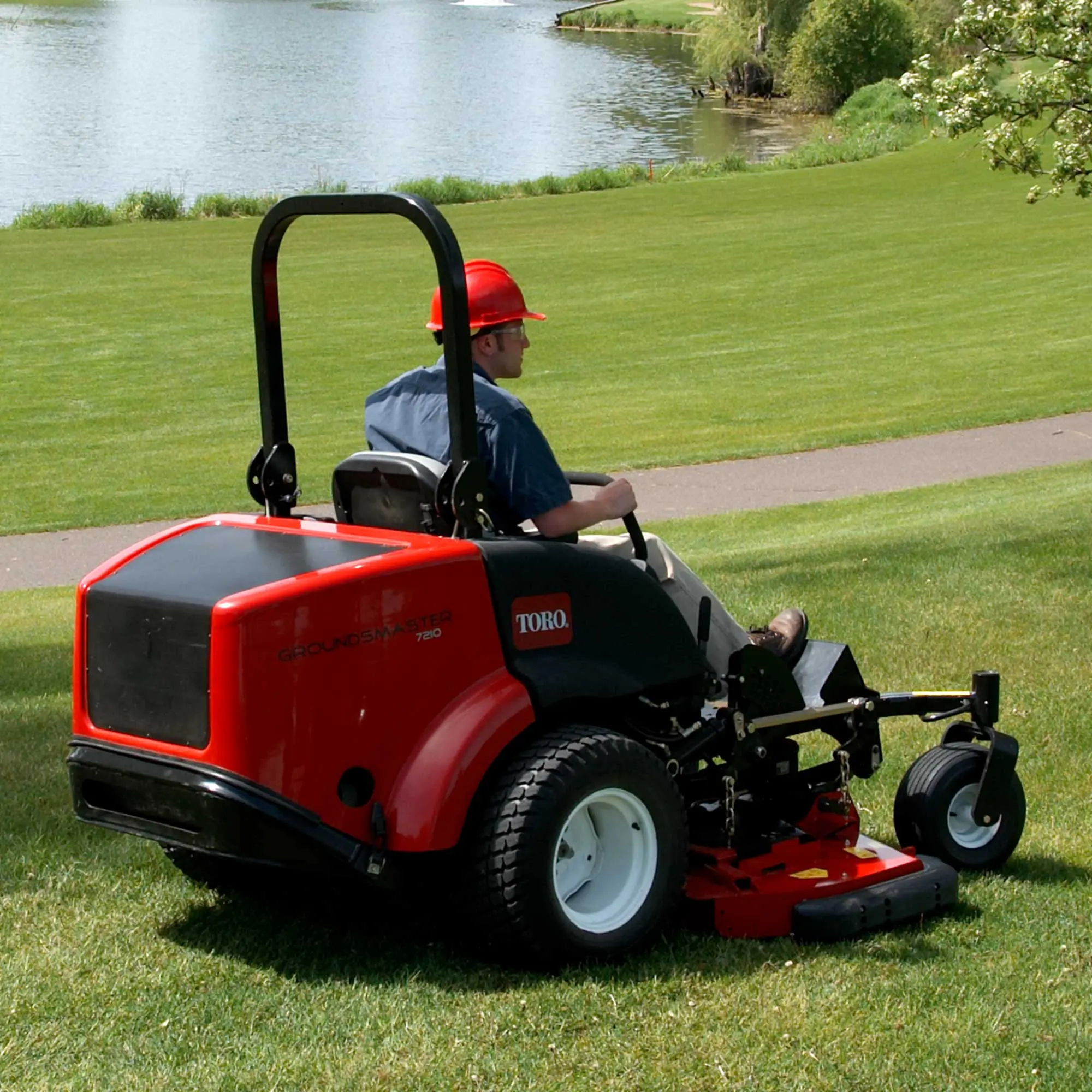

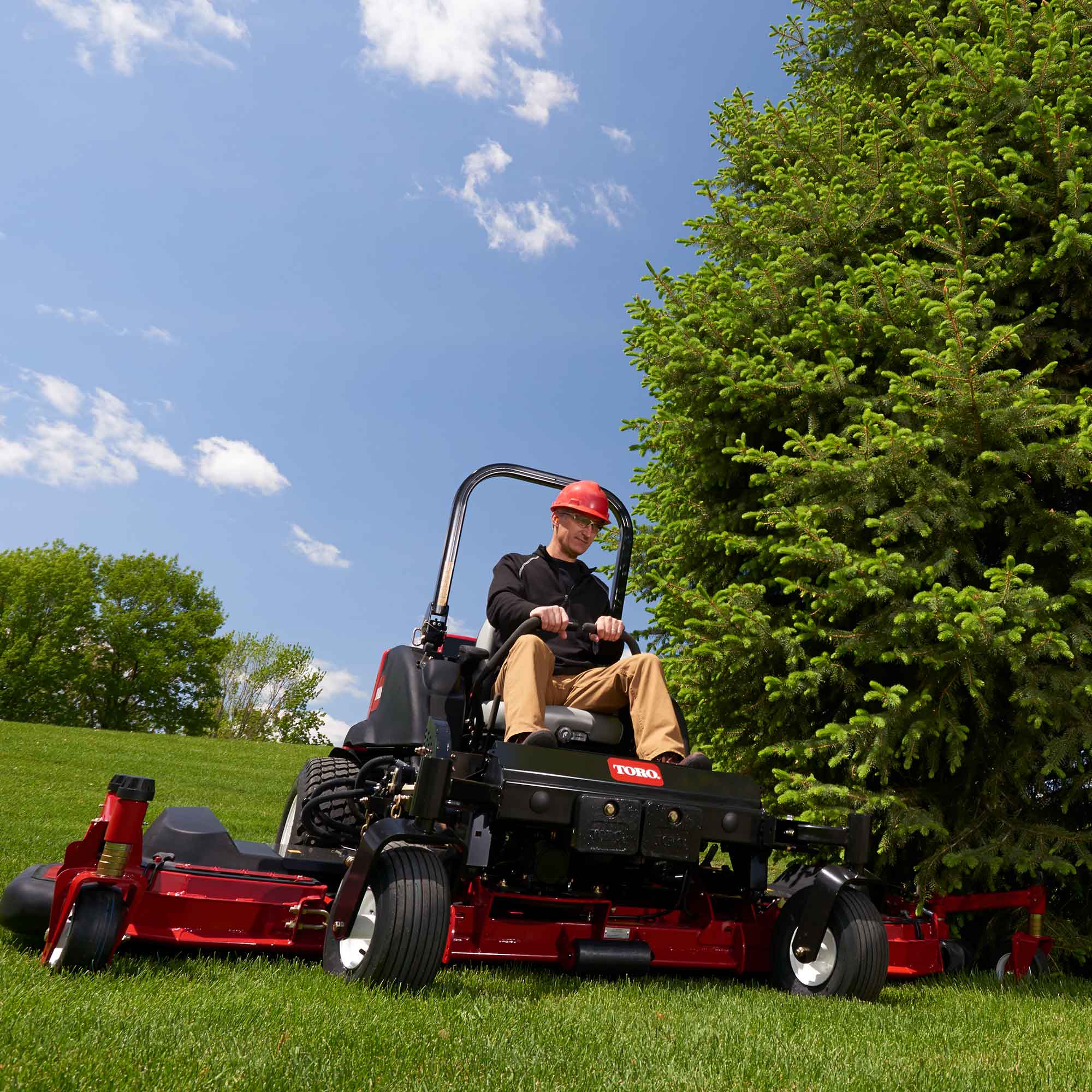

Maneuverability

Tight wheel base, power steering and individual steering brakes allow for expert handling and increased productivity.

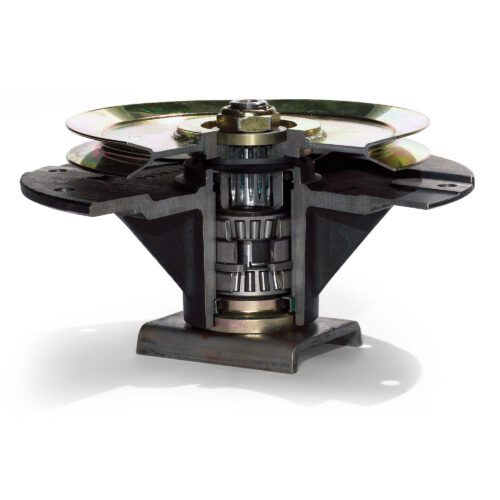

Industry's Toughest Spindle Assembly

The cast iron spindle housings feature a massive 9" (22.9 cm) diameter base and eight-bolt mounting pattern that spread impact loads across a broader area of the robust deck shell. The high-efficiency, tapered roller bearings offer greater durability, which means more stability and strength, resulting in longer deck and spindle life.

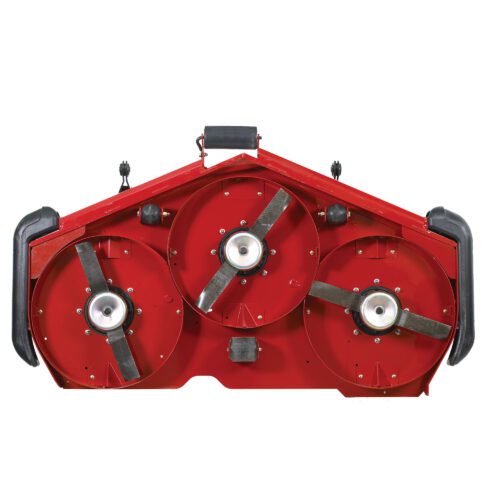

7-Gauge Welded Steel Decks

The deck shells are constructed from high-strength 7-gauge welded steel, for greater durability and long life.

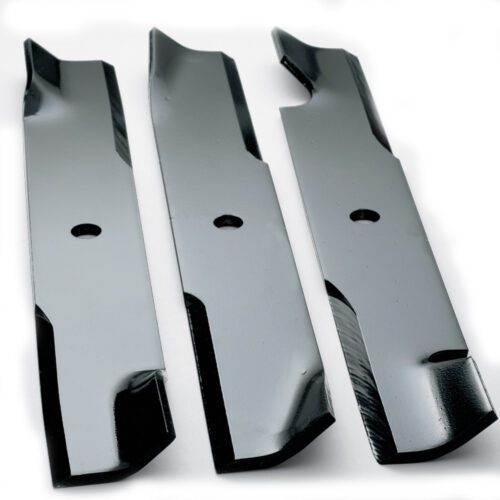

Steel Blades

The high-strength one-quarter inch (6 mm) thick heat-treated alloy steel blades resist flexing and abrasive wear. The result is a crisp cut time after time.

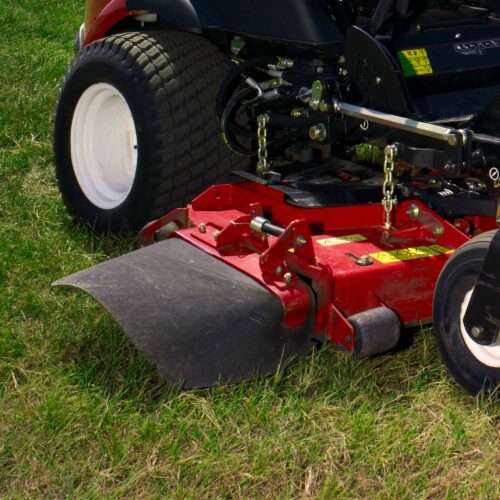

Rubber Discharge Deflector

The discharge deflector on the 72" (183 cm) side discharge deck is constructed of durable 5/16" (8 mm) thick rubber and allows for close trimming without damaging chute or landscape structures. Patent-pending design provides exceptional dispersion.

Operator Comfort

The electric-clutch deck engagement is smoother than the manual systems and the new air ride seat suspension glides over the bumps.

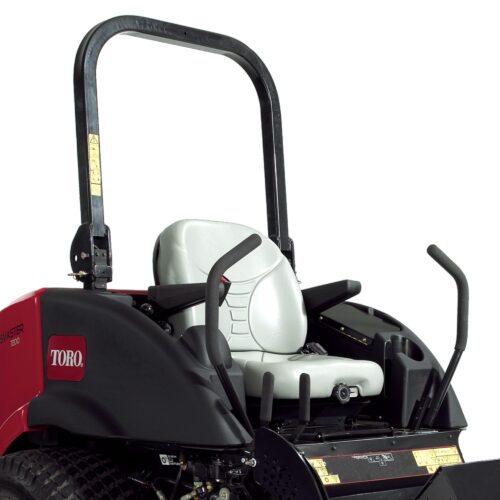

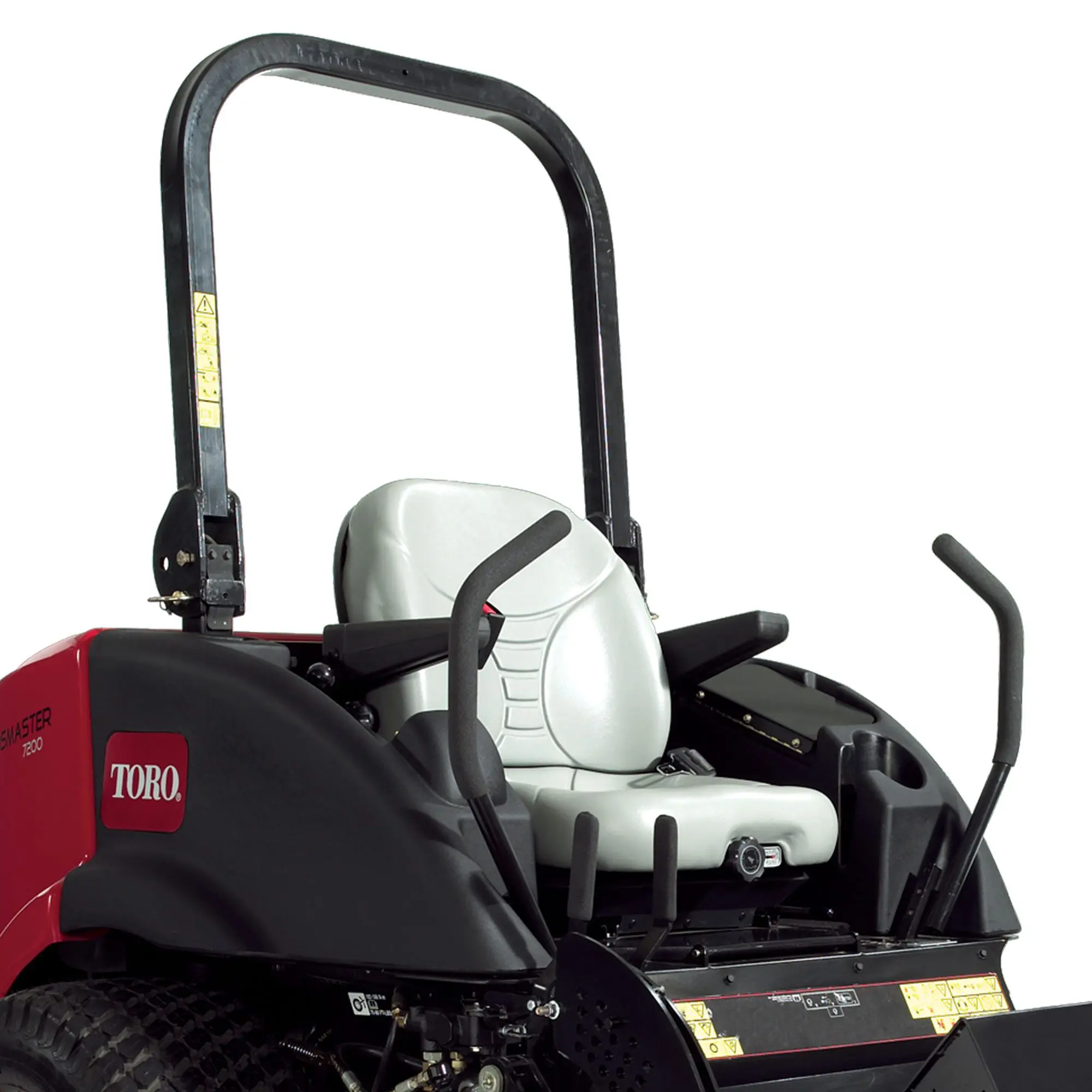

Folding Rollover Protection System (ROPS)

A Rollover Protection System (ROPS), complete with seat belt, comes standard for operator protection in the case of accidental rollovers and tipovers. In situations where sufficient vertical clearance is not available, such as loading on an enclosed trailer, the ROPS can be temporarily unlocked and folded down.

Specifications

Air Filter Remote-mounted 5" Donaldson® air cleaner.
Armrests Standard
Battery 12V
Blade Style/Type Rotary
Cab Unit N/A
Cooling System Description Rear-mount, cross-flow radiator with 6.5 fins per 1" (25 mm), 8 quart (7.6 liter) capacity.
Cup Holder Standard
Drivetrain Diesel
Electrical System 12-volt battery (BCI No. 24) 540CCA, 40 amp internal regulated alternator charging @ 3150 rpm.
Engine Cooling Liquid Cooled
Fuel / Power Source Diesel / Biodiesel
Fuel Capacity 11.5 U.S. gal. (43.5 L)
Fuel Filter Fuel filter/water separator.
Gauges/Instrumentation Hour meter, glow indicator, high temp indicator, oil pressure indicator, alternator indicator.
Ground Clearance Capable of climbing 8" (20.3 cm) curbs.
Ground Speed - Forward 0 - 12.5 mph (0 - 20 km/h)
Ground Speed - Reverse 0 - 8.5 mph (0 - 13.7 km/h)
Hydraulic Fluid Capacity 3.5 U.S. gal. (13.2 L)
IntelliDash™ Capable No
Interlocks Tractor neutral, operator presence (engine shuts down if operator is not in seat and traction sticks are moved to the operation position), parking brake, PTO on, auxiliary hydraulics on, high temp (PTO shuts down but engine still running), over temp (engine shuts down).
Lighting Optional
Main Frame/Chassis Structured steel tube and high strength steel plate welded construction, with tie down loops on each corner.
Max Slope Angle Refer to operator's manual.
Oil Capacity 3.9 U.S. qt. (3.7 L)
Operator Area Built-in cup holder, and personal storage reached from seat. Storage for rain gear, tools, etc.
Optional Accessories Road Light Kit, 12V Power Port Kit, Slope Sensor Kit, SMV Sign, Jack Stand Kit, Semi-Pneumatic Tire Assembly (front caster wheel), Lug Tire, Spark Arrestor Kit
Parking/Service Brakes Service: Twin levers with dynamic braking through hydrostatic transmission. Parking: Hand actuated brake lever with two 10.25" diameter disc brakes mounted on the rear wheel motors.
Power Steering Yes
Power Train (Engine Description) Kubota® 3-cylinder, liquid-cooled diesel. Power: 24.8 hp (18.5 kW) gross, at rated speed of 3000 rpm. Torque peak: 52.7 ft. lbs. (71.5 Nm) @ 2200 rpm. Displacement: 1123cc. EPA Tier IV Final and Stage V compliant.
PTO Clutch Hydraulically actuated wet multi-disc clutch.
Safety/Operator Safety Two-post foldable ROPS standard, optional ROPS certified heat-only cab available.
Seat Two piece, high back cushion seat with drain hole, deluxe low profile suspension, adjustable for operator weight, seat back angle, seat fore/aft position, armrest height, retractable seat belt.
Starting Key Start
Steering System Description Adjustable twin sticks with high performance KYB® hydraulic dampers. Rev/N/Forward, located on sides of operator.
Tires - Front 24" x 12" - 12", 6-ply, Turf Tire
Tires - Rear 15" x 6" - 6", 4-ply
Tool Box Standard
Traction Drive 2WD
Traction Drive (System) Transmission directly mounted to engine via bell housing, two independent closed-loop circuits. One pump/motor controlling left side forward, neutral, and reverse, and one pump/motor controlling right side forward, neutral, and reverse. Pumps are variable displacement piston type with slippers and full stroke capacity of 18 cc/rev. Independent high-torque, low-speed wheel motors with 310 cc displacement.
