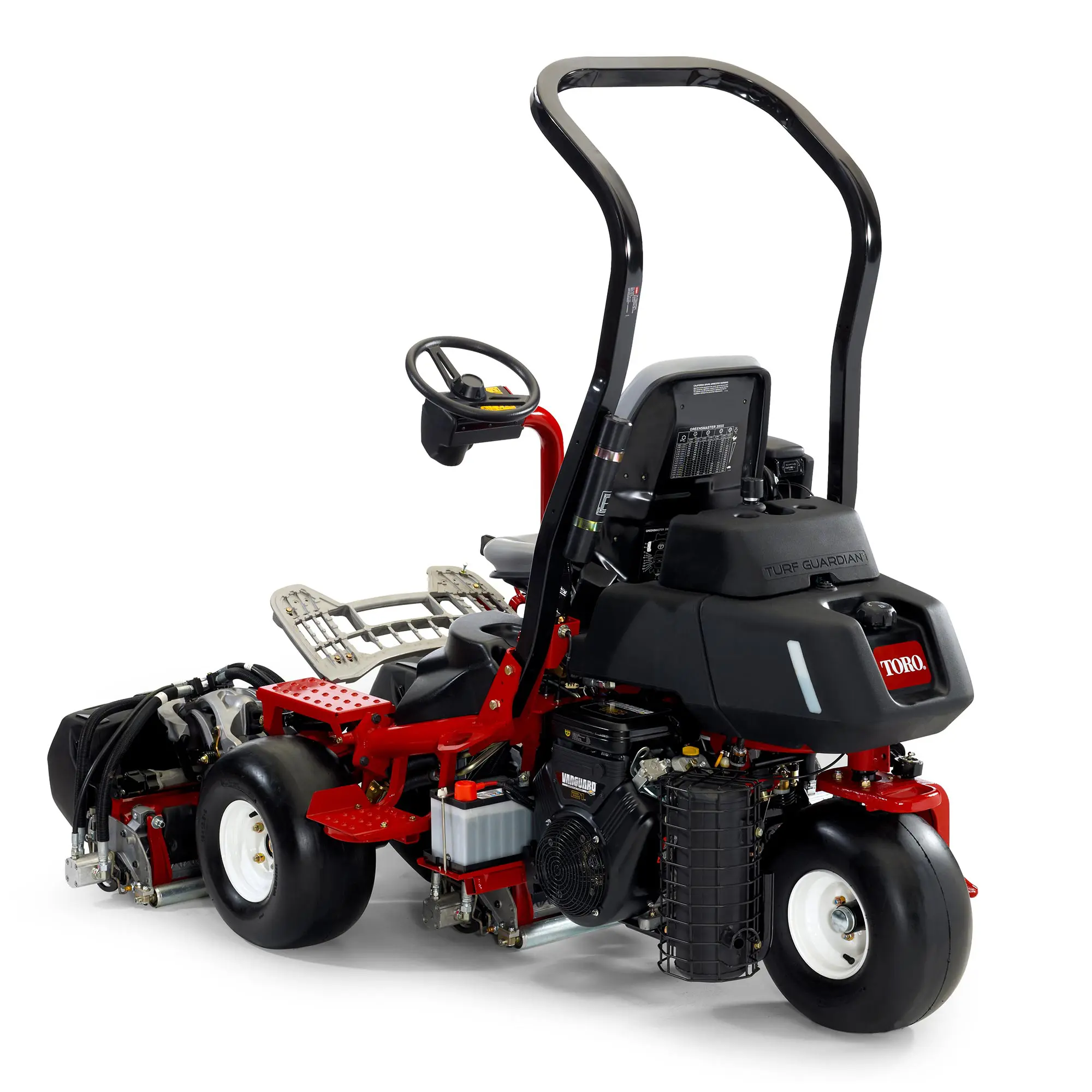

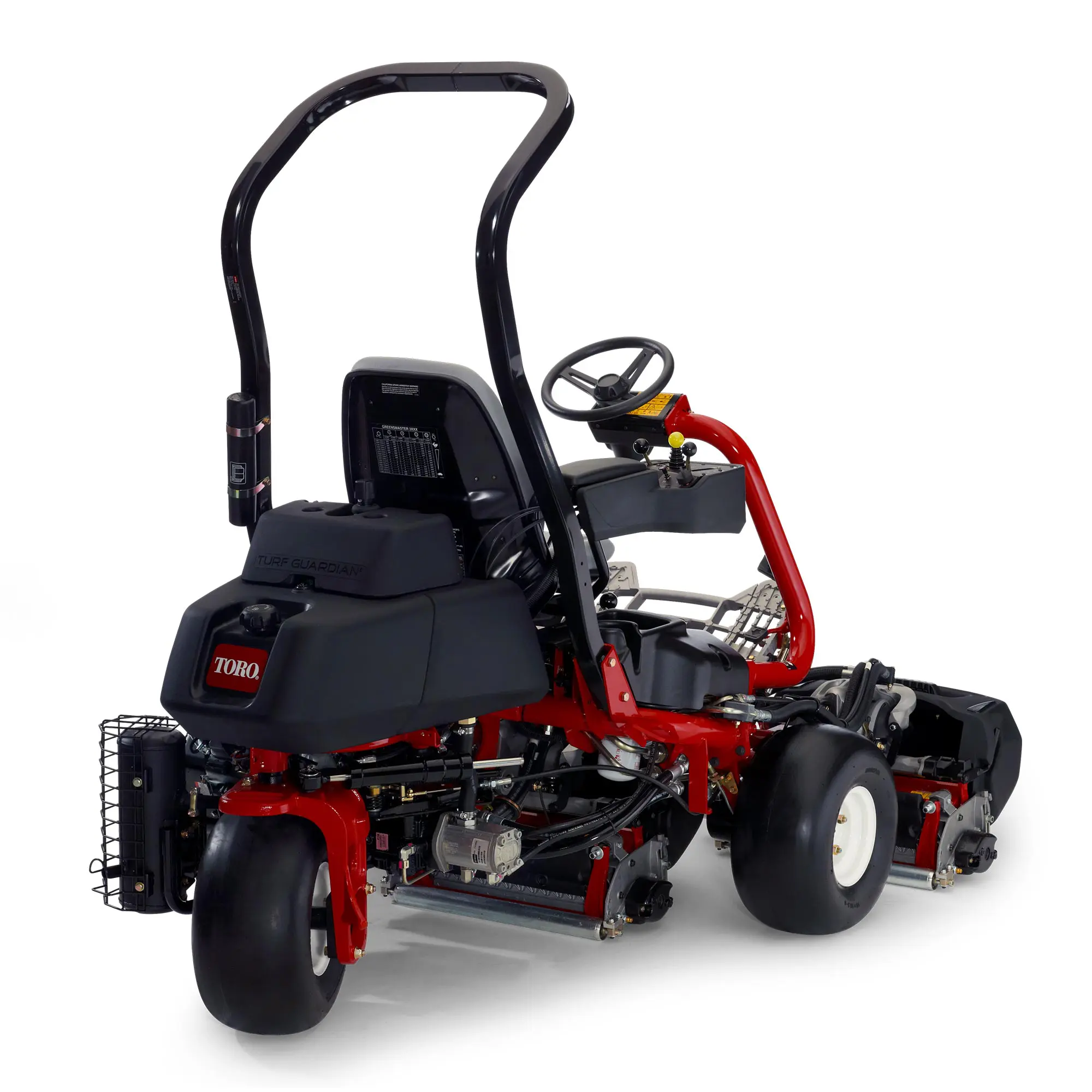

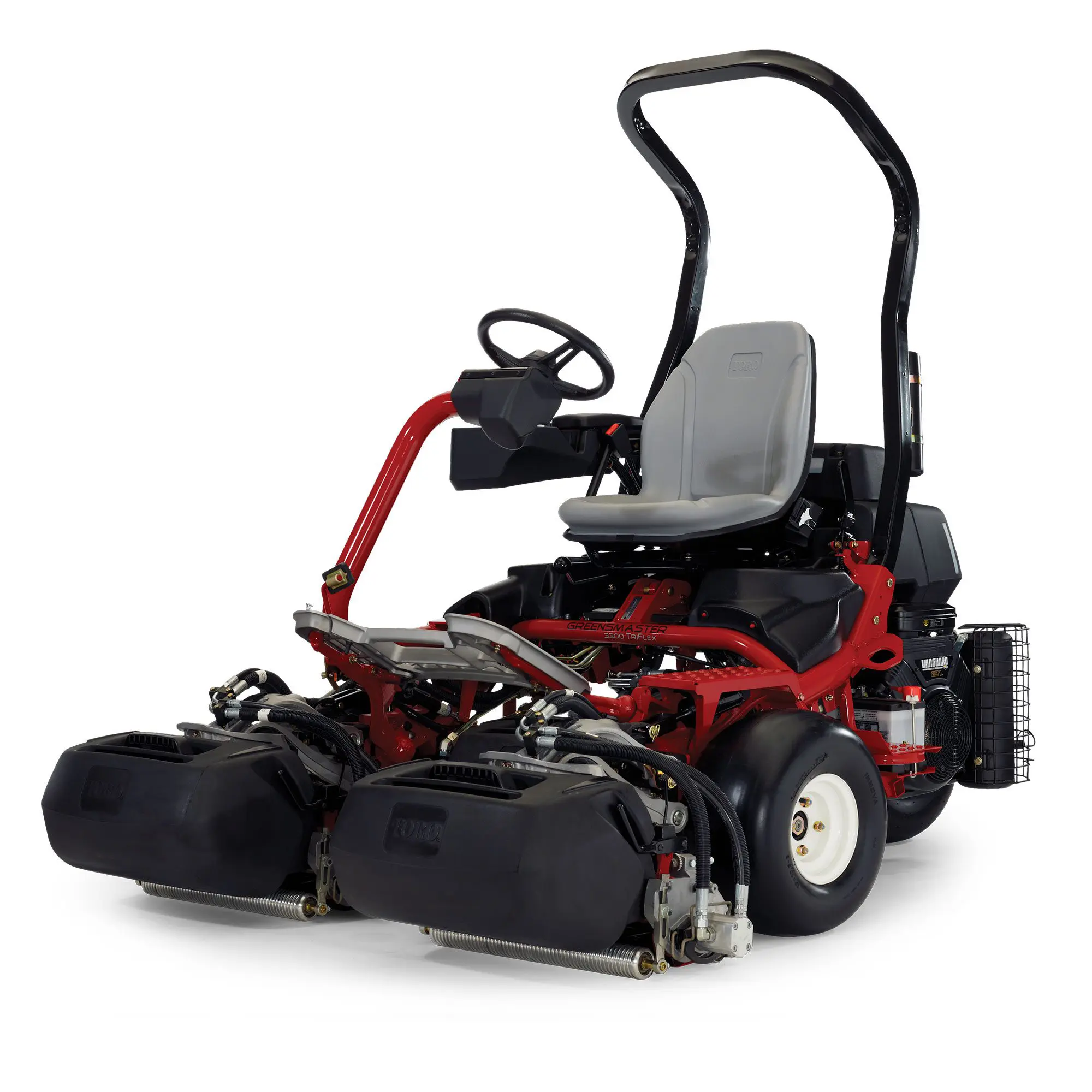

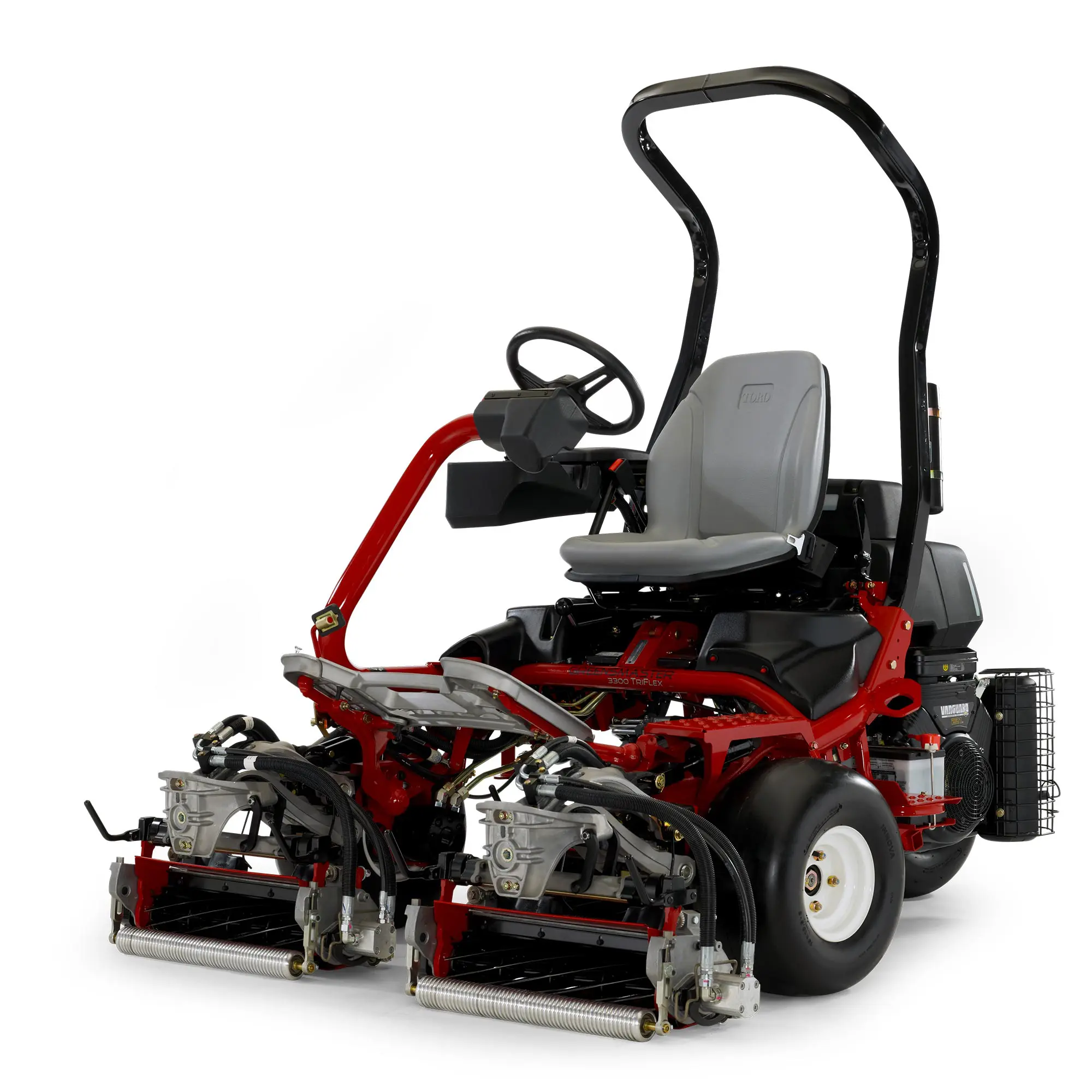

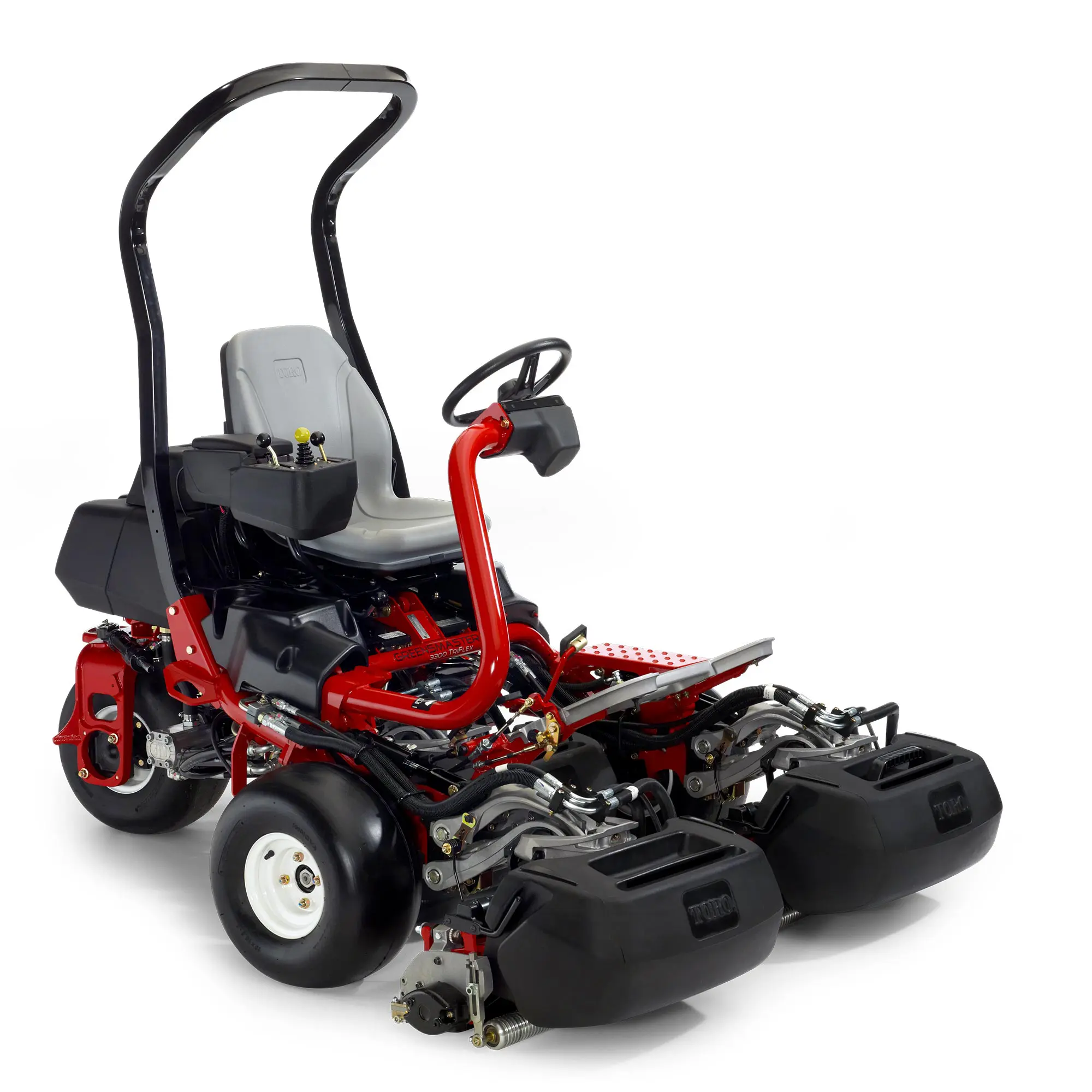

Toro Greensmaster Triflex 3300 Ride On Mower

Model: 04510
Toro

Toro Greensmaster Triflex 3300 Ride On Mower

Model: 04510
Toro
Fleet Finance & Leasing Options Talk to us today 0800 807 333

The Greensmaster® TriFlex™ Mowers were designed to take precision cutting on a greens mower to a completely new level. Adopting the proven Flex suspension, the cutting units float freely over contours and undulations of the green resulting in a superior quality of cut and aftercut appearance. Improved serviceability is another major advantage of the TriFlex™ models. The tool-free, quick-change cutting units make servicing the cutting units fast and easy and a lift-gate footrest provides easy access to the center cutting unit.

Enquire Call 0800 807 333
Talk to a repFind a Store

The Greensmaster® TriFlex™ Mowers were designed to take precision cutting on a greens mower to a completely new level. Adopting the proven Flex suspension, the cutting units float freely over contours and undulations of the green resulting in a superior quality of cut and aftercut appearance. Improved serviceability is another major advantage of the TriFlex™ models. The tool-free, quick-change cutting units make servicing the cutting units fast and easy and a lift-gate footrest provides easy access to the center cutting unit.

A rider operates a red and black mower on a green, showcasing its cutting units and flexible design

Lift-In-Turn Cutting Units

The suspension system is designed to provide a slight lift to the inside of the cutting units during turns to deliver a consistently level cut and to reduce "triplex ring" for improved playability and turf health.

A ride-on mower trims grass on a lush golf green under a cloudy sky

Faster Transport Speeds

Ten miles per hour (16.1 km/h) transport speeds will allow you to stay ahead of golfers and get more greens cut in a shorter time.

Close-up of a mower cutting unit showcasing precision blades and flex suspension design

DPA Cutting Units

The most advanced cutting unit in the industry:Only two adjustmentsSuperior height-of-cut retentionNo daily greasing (stainless steel bearings)Consistent cutting edge regardless of reel wear (patented)Smallest bedknife increment adjustments .007inch (.178mm)

Close-up of Toro mower's cutting unit showcasing precision components and Flex suspension design

Tool-Free, Quick-Change Cutting Units

A single operator can go from cutting Greens at 0.125" (3.2 mm) to cutting a Fairway at ¾" (19 mm) in just minutes. The tool-free, quick-change cutting units make it as easy as 1-2-3.

A hand holds a control lever on a Toro Greensmaster mower, showcasing its design and features

Exclusive Lift-Gate Footrest

Easy access to the center cutting unit facilitates routine maintenance and repairs, simplifies adjustments, and eliminates the need to put the traction unit on a lift for cutting unit service saving you time, money, and frustration.

Close-up of Toro mower engine compartment showcasing red and black components and Turf Guardian label

Leak Detection

The dependable Turf Guardian™ leak detection system provides immediate audio and visual indication of possible hydraulic fluid leaks.

A man operates a red Toro ride-on mower with dual cutting units on a grassy field

Maximize Fuel Economy to Improve Cost of Ownership

With more than enough horsepower and highly efficient components, the TriFlex Hybrid models operate efficiently in energy savings mode. While in this mode, engine RPM's are reduced and the all-electric reel drive maintains a constant reel speed. This results in reduced fuel consumption and noise while maintaining quality of cut, performance, and productivity.

Close-up of a Toro mower's rear wheel and suspension components showcasing its robust design and engineering

Balloon Style Tires

Tires have been redesigned to deliver uniform loading across the entire cross-section (load footprint area) to eliminate side wall loading that can create visible tire tracks.

Close-up of a Toro mower's cutting unit on a golf green, showcasing its precision design and flex suspension

Superior Clippings Capture

Redesigned clipping capture system maintains a consistent gap between the basket and reel to retain nearly all grass clippings for a cleaner and healthier cut. In addition, a discharge shield forces clippings inside of basket and minimizes "blow-by".

Close-up of mower's cutting units showcasing Flex suspension and precision engineering for contour adaptation

Double A-Arm Suspension

The suspension system maintains full floatation range to prevent gouging or scalping when going over undulations.

A man operates a red and black ride-on mower on a grassy slope surrounded by trees

Perfect Triangle Wheel Stand Design

The Triangle Wheel Stand places the rear wheel track within the radius of the front wheel, which prevents accidentally dropping the rear wheel into a nearby sand bunker while making the turn for the next mowing path.

Close-up of mower cutting unit showcasing precision blades and flex suspension design for contour cutting

Proven Flex Suspension (Patented)

Superior contour following capability utilizes an integrated "Flex" linkage system to allow cutting units to pivot around the center of the front roller to master undulations and prevent side-to-side scrubbing of the putting surface.

Close-up of a mower's cutting unit showcasing its sleek design and sharp blades for precision cutting

EdgeSeries™ Reels

Dual Precision Adjustment (DPA) cutting units – featuring Toro’s EdgeSeries™ reels combine to deliver a consistent, high quality cut and superior after cut appearance, while reducing maintenance with improved reel edge retention.

Engine & Drivetrain

Power Train (Engine Description) Briggs & Stratton® Vanguard®, 23 HP (17.2 kW) @ 3600 rpm, 2-cylinder, air-cooled, gasoline engine, governed to 2920 high idle, 1650 rpm low idle. Displacement: 38.3 cu-in. (627 cc)
Cooling System Air Cooled
Fuel Type Gasoline
Fuel Capacity 6 U.S. gal. (22.7 L)
Start Type Key Start
Drivetrain Gas

Battery

Battery 12V

Cutting System

Blade Type (Description) Reels are 13 cm (5") in diameter, 53.3 cm (21") in length. EdgeSeries™ Reels blades are welded to 5 stamped steel spiders, and heat treated. The reel is ground for diameter and concentricity, and relief ground. The reel weldment shaft is a 35 mm (1.375") diameter tube with internally splined threaded insert. Two stainless steel ball bearings (30 mm inside diameter) slip fit onto reel shaft retained by internally splined threaded insert. Low drag seals/slingers for added protection with o-ring sealed motor and counterweight. Reel position maintained by a wave washer with no adjusting nut.
Cutting Width 150 cm (59")
Blade Design Reel
Number of Blades 11, 14, 8
Height of Cut Range Cutting height is adjusted on front roller by two vertical screws and held by two locking cap screws. Bench HOC range is 1.6 - 7.5 mm (0.062" - 0.297"). With high HOC kit, range is 7.5 - 25.4 mm (0.297" - 1.0"). Effective HOC may vary depending on turf conditions and bedknife installed.
Clip Frequency/Backlapping Adjustable automatic clip control up to 2050 RPM at 2850 engine RPM. Backlapping standard.
Cutting Unit Type/Configuration Triplex, balanced cutting units with precision die-cast aluminum cross member with two bolt-on die-cast aluminum side plates. Cutting units feature quick disconnect for removal/installation and are interchangeable to all positions. Double A-Arm Suspension utilizing sealed ball joints allows free cutting unit motion in pitch and yaw. Links system for the roll. The basket is directly mounted to the cutting unit displacing weight evenly over front and rear rollers. (patented)
Cutting Unit Accessories 8, 11, 14-Blade Cutting Unit, Roller Options, Roller Scrapers / Brushes / Combs Options, Bedknife and Bedbar Options, Tools and Maintenance Options.
Rollers Front: Not included with cutting unit, purchased separately. Option between full, narrow-spaced and wide-spaced Wiehle roller. Rear: Steel full, 5.1 cm (2") diameter with sealed bearings and through-shaft.
Grass Distribution Non-adjustable shield with adjustable cut-off bar to improve grass discharge from reel in wet conditions.
Reel Diameter 12.7cm (5 in.)
Reel/Cylinder Drive Hydraulic
Bedknife Replaceable single-edged EdgeMax™ Microcut Bedknife is standard.
Bedknife Adjustment Dual screw, indexed “click” adjustment to the reel; detents corresponding to 0.018 mm (0.0007") bedknife movement for each position.

Traction & Steering

Traction Drive 2WD
Traction Drive (System) 2WD parallel hydrostatic or optional 3WD series-parallel piston pump closed loop system. Foot pedal forward and reverse; infinitely variable.
Tyres - Front 19" x 10.5" - 8", 4-ply, Smooth Tread
Tyres - Rear 19" x 10.5" - 8", 4-ply, Smooth Tread
Forward Ground/Transport Speed 0 - 16.1 km/h (0 - 10 mph)
Mowing Speed 0 - 8 km/h (0 - 5 mph)
Steering System Description No-tool quick adjust steering arm position with power assist allowing a wide range of operator sizes. Steering cylinder has a through shaft design for precise straight line tracking.
Power Steering Yes
Parking/Service Brakes Hand-actuated parking brake lever with two 15.2 cm (6") diameter drum brakes mounted on the front wheel motors.
Controls Ignition: Off/Run/Start. Throttle: Low - High Idle. Choke (AC only): Opens / Closes choke plate. Parking Brake: Off - On. Traction Pedal: Rev/Neutral/Forward Joystick: Raises/lowers reels also tap off feature for clean up pass. Functional Control Lever sets neutral/mow/transport limits for traction pedal. Diagnostic Light: Indicates system faults to assist in resolving issues.

Hydraulics

Hydraulic Fluid Capacity 6.8 U.S. gal. (25.7 L)
Leak Detection Standard Turf Guardian™ Leak Detection System. System sounds an alarm and turns on a warning light with the loss of 3-5 oz. of hydraulic fluid.
Implement Drive Single gear pump, valve block, series reel drive to 3 reel motors.

Electrical & Instruments

Electrical System 12-volt lead acid, group size U1, with 300 minimum CCA at 0° F and 34 minutes reserve capacity at 85° F/25 amps draw. 50 amp alternator. Seat switch. Harness terminals and fuse slot available for optional lights installation.
Gauges/Instrumentation Hour meter, low oil pressure warning light.

Dimensions & Weight

Height 205 cm (80.83")
Overall Width 179 cm (70.62") with reels
Transport Width Outside at Tires: 154.94 cm (61") Outside at Reels: 179 cm (70.62")
Product Length 249 cm (98")
Wheelbase 119 cm (47")
Ground Clearance 11.4 cm (4.5")
Weight 526 kg (1,161 lbs.)

Safety & Compliance

Safety/Operator Safety Sound level of 80 dB(A) at operator’s ear under normal conditions.

Accessories

Optional Accessories Off-Greens Kit (Anti-Bobbing), Tri-Roller Kit, Spiker Kit, 3WD Kit, Leak Detector, Light Kit, Seat Kit (Standard or Premium), Armrest Kit (Standard or Premium), Hydraulic Oil Cooler Kit (Gas or Diesel), 2WD ANSI-compliant Weight Kit (Gas or Diesel), 3WD ANSI-compliant Weight Kit (Gas), Spark Arrestor Kit (Gas or Diesel), Canopy, Utility Bag Kit, Seat Cover, LH Armrest, Wireless Hour Meter

Specification Toro Greensmaster Triflex 3300 Ride On Mower Toro Greensmaster Triflex 3320 | Ride On Mower Toro Greensmaster Triflex 3400 | Ride On Mower Toro Greensmaster® Triflex 3420 | Ride On Mower
Model Toro Greensmaster Triflex 3300 Ride On Mower Viewing Toro Greensmaster Triflex 3320 | Ride On Mower Toro Greensmaster Triflex 3400 | Ride On Mower Toro Greensmaster® Triflex 3420 | Ride On Mower
Featured specs
Power Train (Engine Description) Briggs & Stratton® Vanguard®, 23 HP (17.2 kW) @ 3600 rpm, 2-cylinder, air-cooled, gasoline engine, governed to 2920 high idle, 1650 rpm low idle. Displacement: 38.3 cu-in. (627 cc)





 		Briggs & Stratton® Vanguard® 23hp (17.2kW) @3600 rpm, 2-cylinder, air cooled, gasoline engine governed to 2920 rpm high idle, 1650 rpm low idle. Displacement: 38.3 cu-in. (627 cc)





 		Kubota® D902, Tier 4i, 24.8 HP (18.5 kW) @ 3600 rpm, 3-cylinder, liquid-cooled, diesel engine, governed to 2880 high idle, 1560 rpm low idle. Displacement: 55.0 cu-in. (902 cc)





 		Kubota® D902, Tier 4i, 24.8 HP (18.5 kW) @ 3600 rpm, 3-cylinder, liquid-cooled, diesel engine, governed to 2880 high idle, 1560 rpm low idle. Displacement: 55.0 cu-in. (902 cc)
Fuel Type Gasoline





 		Hybrid - Gas





 		Diesel Hybrid - Diesel
Cutting Width 150 cm (59") 150 cm (59") 150 cm (59") 150 cm (59")
Number of Blades 11, 14, 8





 		11, 14, 8





 		11, 14, 8





 		11, 14, 8
Reel/Cylinder Drive Hydraulic





 		Electric





 		Hydraulic





 		Electric
Weight 526 kg (1,161 lbs.)





 		570 kg (1,257 lbs.)





 		586 kg (1,286 lbs.)





 		638 kg (1,406 lbs.)
Engine & Drivetrain
Cooling System Air Cooled





 		Air Cooled





 		Radiator cooled with 12-volt electric fan





 		Radiator is cooled by 12-volt electric fan.
Fuel Capacity 6 U.S. gal. (22.7 L)





 		6 U.S. gal. (22.7 L)





 		6 U.S. gal. (22.7 L)





 		6 U.S. gal. (22.7 L)
Start Type Key Start





 		Key Start





 		Key Start





 		Key Start
Drivetrain Gas Hybrid Diesel Hybrid
Battery
Battery 12V 12V 12V 12V
Cutting System
Blade Type (Description) Reels are 13 cm (5") in diameter, 53.3 cm (21") in length. EdgeSeries™ Reels blades are welded to 5 stamped steel spiders, and heat treated. The reel is ground for diameter and concentricity, and relief ground. The reel weldment shaft is a 35 mm (1.375") diameter tube with internally splined threaded insert. Two stainless steel ball bearings (30 mm inside diameter) slip fit onto reel shaft retained by internally splined threaded insert. Low drag seals/slingers for added protection with o-ring sealed motor and counterweight. Reel position maintained by a wave washer with no adjusting nut.





 		Reels are 13 cm (5") in diameter, 53.3 cm (21") in length. EdgeSeries™ Reels blades are welded to 5 stamped steel spiders, and heat treated. The reel is ground for diameter and concentricity, and relief ground. The reel weldment shaft is a 35 mm (1.375") diameter tube with internally splined threaded insert. Two stainless steel ball bearings (30 mm inside diameter) slip fit onto reel shaft retained by internally splined threaded insert. Low drag seals/slingers for added protection with o-ring sealed motor and counterweight. Reel position maintained by a wave washer with no adjusting nut.





 		Reels are 13 cm (5") in diameter, 53.3 cm (21") in length. EdgeSeries™ Reels blades are welded to 5 stamped steel spiders, and heat treated. The reel is ground for diameter and concentricity, and relief ground. The reel weldment shaft is a 35 mm (1.375") diameter tube with internally splined threaded insert. Two stainless steel ball bearings (30 mm inside diameter) slip fit onto reel shaft retained by internally splined threaded insert. Low drag seals/slingers for added protection with o-ring sealed motor and counterweight. Reel position maintained by a wave washer with no adjusting nut.





 		Reels are 13 cm (5") in diameter, 53.3 cm (21") in length. EdgeSeries™ Reels blades are welded to 5 stamped steel spiders, and heat treated. The reel is ground for diameter and concentricity, and relief ground. The reel weldment shaft is a 35 mm (1.375") diameter tube with internally splined threaded insert. Two stainless steel ball bearings (30 mm inside diameter) slip fit onto reel shaft retained by internally splined threaded insert. Low drag seals/slingers for added protection with o-ring sealed motor and counterweight. Reel position maintained by a wave washer with no adjusting nut.
Blade Design Reel Reel Reel Reel
Height of Cut Range Cutting height is adjusted on front roller by two vertical screws and held by two locking cap screws. Bench HOC range is 1.6 - 7.5 mm (0.062" - 0.297"). With high HOC kit, range is 7.5 - 25.4 mm (0.297" - 1.0"). Effective HOC may vary depending on turf conditions and bedknife installed.





 		Cutting height is adjusted on front roller by two vertical screws and held by two locking cap screws. Bench HOC range is 1.6 - 7.5 mm (0.062" - 0.297"). With high HOC kit, range is 7.5 - 25.4 mm (0.297" - 1.0"). Effective HOC may vary depending on turf conditions and bedknife installed.





 		Cutting height is adjusted on front roller by two vertical screws and held by two locking cap screws. Bench HOC range is 1.6 - 7.5 mm (0.062" - 0.297"). With high HOC kit, range is 7.5 - 25.4 mm (0.297" - 1.0"). Effective HOC may vary depending on turf conditions and bedknife installed.





 		Cutting height is adjusted on front roller by two vertical screws and held by two locking cap screws. Bench HOC range is 1.6 - 7.5 mm (0.062" - 0.297"). With high HOC kit, range is 7.5 - 25.4 mm (0.297" - 1.0"). Effective HOC may vary depending on turf conditions and bedknife installed.
Clip Frequency/Backlapping Adjustable automatic clip control up to 2050 RPM at 2850 engine RPM. Backlapping standard.





 		Adjustable automatic clip control up to 2050 RPM at 2850 engine RPM. Backlapping standard.





 		Approximately 2050 RPM at 2850 engine RPM. Adjustable. Backlapping standard.





 		Adjustable automatic clip control up to 2050 RPM at 2850 engine RPM. Backlapping standard.
Cutting Unit Type/Configuration Triplex, balanced cutting units with precision die-cast aluminum cross member with two bolt-on die-cast aluminum side plates. Cutting units feature quick disconnect for removal/installation and are interchangeable to all positions. Double A-Arm Suspension utilizing sealed ball joints allows free cutting unit motion in pitch and yaw. Links system for the roll. The basket is directly mounted to the cutting unit displacing weight evenly over front and rear rollers. (patented)





 		Triplex, balanced cutting units with precision die-cast aluminum cross member with two bolt-on die-cast aluminum side plates. Cutting units feature quick disconnect for removal/installation and are interchangeable to all positions. Double A-Arm Suspension utilizing sealed ball joints allows free cutting unit motion in pitch and yaw. Links system for the roll. The basket is directly mounted to the cutting unit displacing weight evenly over front and rear rollers. (patented)





 		Triplex, balanced cutting units with precision die-cast aluminum cross member with two bolt-on die-cast aluminum side plates. Cutting units feature quick disconnect for removal/installation and are interchangeable to all positions. Double A-Arm Suspension utilizing sealed ball joints allows free cutting unit motion in pitch and yaw. Links system for the roll. The basket is directly mounted to the cutting unit displacing weight evenly over front and rear rollers. (patented)





 		Triplex, balanced cutting units with precision die-cast aluminum cross member with two bolt-on die-cast aluminum side plates. Cutting units feature quick disconnect for removal/installation and are interchangeable to all positions. Double A-Arm Suspension utilizing sealed ball joints allows free cutting unit motion in pitch and yaw. Links system for the roll. The basket is directly mounted to the cutting unit displacing weight evenly over front and rear rollers. (patented)
Cutting Unit Accessories 8, 11, 14-Blade Cutting Unit, Roller Options, Roller Scrapers / Brushes / Combs Options, Bedknife and Bedbar Options, Tools and Maintenance Options.





 		8, 11, 14-Blade Cutting Unit, Roller Options, Roller Scrapers / Brushes / Combs Options, Bedknife and Bedbar Options, Tools and Maintenance Options.





 		8, 11, 14-Blade Cutting Unit, Roller Options, Roller Scrapers / Brushes / Combs Options, Bedknife and Bedbar Options, Tools and Maintenance Options.





 		8, 11, 14-Blade Cutting Unit, Roller Options, Roller Scrapers / Brushes / Combs Options, Bedknife and Bedbar Options, Tools and Maintenance Options.
Rollers Front: Not included with cutting unit, purchased separately. Option between full, narrow-spaced and wide-spaced Wiehle roller. Rear: Steel full, 5.1 cm (2") diameter with sealed bearings and through-shaft.





 		Front: Not included with cutting unit, purchased separately. Option between full, narrow-spaced and wide-spaced Wiehle roller. Rear: Steel full, 5.1 cm (2") diameter with sealed bearings and through-shaft.





 		Front: Not included with cutting unit, purchased separately. Option between full, narrow-spaced and wide-spaced Wiehle roller. Rear: Steel full, 5.1 cm (2") diameter with sealed bearings and through-shaft.





 		Front: Not included with cutting unit, purchased separately. Option between full, narrow-spaced and wide-spaced Wiehle roller. Rear: Steel full, 5.1 cm (2") diameter with sealed bearings and through-shaft.
Grass Distribution Non-adjustable shield with adjustable cut-off bar to improve grass discharge from reel in wet conditions.





 		Non-adjustable shield with adjustable cut-off bar to improve grass discharge from reel in wet conditions.





 		Non-adjustable shield with adjustable cut-off bar to improve grass discharge from reel in wet conditions.





 		Non-adjustable shield with adjustable cut-off bar to improve grass discharge from reel in wet conditions.
Reel Diameter 12.7cm (5 in.)





 		12.7cm (5 in.)





 		12.7cm (5 in.)





 		12.7cm (5 in.)
Bedknife Replaceable single-edged EdgeMax™ Microcut Bedknife is standard.





 		Replaceable single-edged EdgeMax™ Microcut Bedknife is standard.





 		Replaceable single-edged EdgeMax™ Microcut Bedknife is standard.





 		Replaceable single-edged EdgeMax™ Microcut Bedknife is standard.
Bedknife Adjustment Dual screw, indexed “click” adjustment to the reel; detents corresponding to 0.018 mm (0.0007") bedknife movement for each position.





 		Dual screw, indexed “click” adjustment to the reel; detents corresponding to 0.018 mm (0.0007") bedknife movement for each position.





 		Dual screw, indexed “click” adjustment to the reel; detents corresponding to 0.018 mm (0.0007") bedknife movement for each position.





 		Dual screw, indexed “click” adjustment to the reel; detents corresponding to 0.018 mm (0.0007") bedknife movement for each position.
Traction & Steering
Traction Drive 2WD 2WD 2WD 2WD
Traction Drive (System) 2WD parallel hydrostatic or optional 3WD series-parallel piston pump closed loop system. Foot pedal forward and reverse; infinitely variable.





 		2WD parallel hydrostatic or optional 3WD series-parallel piston pump closed loop system. Foot pedal forward and reverse; infinitely variable.





 		2WD parallel hydrostatic or optional 3WD series-parallel piston pump closed loop system. Foot pedal forward and reverse; infinitely variable.





 		2WD parallel hydrostatic or optional 3WD series-parallel piston pump closed loop system. Foot pedal forward and reverse; infinitely variable.
Tyres - Front 19" x 10.5" - 8", 4-ply, Smooth Tread





 		19" x 10.5" - 8", 4-ply, Smooth Tread





 		19" x 10.5" - 8", 4-ply, Smooth Tread





 		19" x 10.5" - 8", 4-ply, Smooth Tread
Tyres - Rear 19" x 10.5" - 8", 4-ply, Smooth Tread





 		19" x 10.5" - 8", 4-ply, Smooth Tread





 		19" x 10.5" - 8", 4-ply, Smooth Tread





 		19" x 10.5" - 8", 4-ply, Smooth Tread
Forward Ground/Transport Speed 0 - 16.1 km/h (0 - 10 mph)





 		0 - 16.1 km/h (0 - 10 mph)





 		0 - 16.1 km/h (0 - 10 mph)





 		0 - 16.1 km/h (0 - 10 mph)
Mowing Speed 0 - 8 km/h (0 - 5 mph)





 		0 - 8 km/h (0 - 5 mph)





 		0 - 8 km/h (0 - 5 mph)





 		0 - 8 km/h (0 - 5 mph)
Steering System Description No-tool quick adjust steering arm position with power assist allowing a wide range of operator sizes. Steering cylinder has a through shaft design for precise straight line tracking.





 		No-tool quick adjust steering arm position with power assist allowing a wide range of operator sizes. Steering cylinder has a through shaft design for precise straight line tracking.





 		No-tool quick adjust steering arm position with power assist allowing a wide range of operator sizes. Steering cylinder has a through shaft design for precise straight line tracking.





 		No-tool quick adjust steering arm position with power assist allowing a wide range of operator sizes. Steering cylinder has a through shaft design for precise straight line tracking.
Power Steering Yes





 		Yes





 		Yes





 		Yes
Parking/Service Brakes Hand-actuated parking brake lever with two 15.2 cm (6") diameter drum brakes mounted on the front wheel motors.





 		Hand-actuated parking brake lever with two 15.2 cm (6") diameter drum brakes mounted on the front wheel motors.





 		Hand-actuated parking brake lever with two 15.2 cm (6") diameter drum brakes mounted on the front wheel motors.





 		Hand-actuated parking brake lever with two 15.2 cm (6") diameter drum brakes mounted on the front wheel motors.
Controls Ignition: Off/Run/Start. Throttle: Low - High Idle. Choke (AC only): Opens / Closes choke plate. Parking Brake: Off - On. Traction Pedal: Rev/Neutral/Forward Joystick: Raises/lowers reels also tap off feature for clean up pass. Functional Control Lever sets neutral/mow/transport limits for traction pedal. Diagnostic Light: Indicates system faults to assist in resolving issues.





 		Ignition: Off/Run/Start. Throttle: Low - High Idle. Choke: Open / closes choke plate. Parking Brake: Off - On. Traction Pedal: Rev/Neutral/Forward Joystick: Raises/lowers reels also tap off feature for clean up pass. Functional Control Lever sets neutral/mow/transport limits for traction pedal. InfoCenter™ Diagnostics standard.





 		Ignition: Off/Run/Start. Throttle: Low - High Idle. Choke (AC only): Open /Closes choke plate. Parking Brake: Off - On. Traction Pedal: Rev/Neutral/Forward Joystick: Raises/lowers reels also tap off feature for clean up pass. Functional Control Lever sets neutral/mow/transport limits for traction pedal. Diagnostic Light: Indicates system faults to assist in resolving issues.





 		Ignition: Off/Run/Start. Throttle: Low - High Idle. Choke (AC only): Open / closes choke plate. Parking Brake: Off - On. Traction Pedal: Rev/Neutral/Forward Joystick: Raises/lowers reels also tap off feature for clean up pass. Functional Control Lever sets neutral/mow/transport limits for traction pedal. InfoCenter™ Diagnostics standard.
Hydraulics
Hydraulic Fluid Capacity 6.8 U.S. gal. (25.7 L)





 		5.5 U.S. gal. (20.8 L)





 		6.8 U.S. gal. (20.8 L)





 		5.5 U.S. gal. (20.8 L)
Leak Detection Standard Turf Guardian™ Leak Detection System. System sounds an alarm and turns on a warning light with the loss of 3-5 oz. of hydraulic fluid.





 		Equipped with Turf Guardian™ Leak Detection System. System sounds an alarm and turns on a warning light with the loss of 3-5 oz. of hydraulic fluid.





 		Optional Turf Guardian™ Leak Detection System. System sounds an alarm and turns on a warning light with the loss of 3-5 oz. of hydraulic fluid.





 		Optional Turf Guardian™ Leak Detection System. System sounds an alarm and turns on a warning light with the loss of 3-5 oz. of hydraulic fluid.
Implement Drive Single gear pump, valve block, series reel drive to 3 reel motors.





 		48V-5400 watt air-cooled brushless permanent magnet generator in parallel with 48V 9Ah battery set powers three 48V-1100 watt brushless permanent magnet reel motors with separable controller. 4-12V 9Ah sealed, maintenance-free, VRLA batteries. 48-volt system is isolated from 12-volt including the frame/chassis.





 		Single gear pump, valve block, series reel drive to 3 reel motors.





 		48V-5400 watt air-cooled brushless permanent magnet generator in parallel with 48V 9Ah battery set powers three 48V - 1100 watt brushless permanent magnet reel motors with separable controller. 4-12V 9Ah sealed, maintenance-free, VRLA batteries. 48-volt system is isolated from 12-volt including the frame/chassis.
Electrical & Instruments
Electrical System 12-volt lead acid, group size U1, with 300 minimum CCA at 0° F and 34 minutes reserve capacity at 85° F/25 amps draw. 50 amp alternator. Seat switch. Harness terminals and fuse slot available for optional lights installation.





 		12-volt lead acid, group size U1, with 300 minimum CCA at 0° F and 34 minutes reserve capacity at 85° F / 25 amps draw. 50 amp alternator. Seat switch. Harness terminals and fuse slot available for optional lights installation.





 		Maintenance-free 12-volt battery with 585 minimum CCA at 0° F (-17.7° C) and 95 minutes minimum reserve capacity at 85° F (29.4° C). 60 amp alternator, circuit fused at 60 amps. Seat switch. High temperature engine shut down. Harness terminals, fuse slot, and console switch location available for optional lights installation.





 		Maintenance-free 12-volt battery with 585 minimum CCA at 0° F (-17.7° C) and 95 minutes minimum reserve capacity at 85° F (29.4° C). 60 amp alternator, circuit fused at 60 amps. Seat switch. High temperature engine shut down. Harness terminals, fuse slot, and console switch location available for optional lights installation.
Gauges/Instrumentation Hour meter, low oil pressure warning light.





 		Infocenter™. Onboard LCD shows gages, alert/faults, service reminders, electrical system diagnostics, low oil pressure, alternator, engine hours, engine rpm, voltage, functional control status, parking brake status, reel speed setting, backlap control. Clip control setting.





 		InfoCenter™: Onboard LCD shows gauges, alerts/faults, service reminders, electrical system diagnostics, low oil pressure, alternator, engine hours, engine rpm, voltage, functional control status, parking brake applied, reel speed setting, backlap control. Clip control setting.





 		InfoCenter™: Onboard LCD shows gauges, alerts/faults, service reminders, electrical system diagnostics, low oil pressure, alternator, engine hours, engine rpm, voltage, functional control status, parking brake applied, reel speed setting, backlap control. Clip control setting.
Lighting — Optional — —
Dimensions & Weight
Height 205 cm (80.83")





 		205 cm (80.83")





 		205 cm (80.83")





 		205 cm (80.83")
Overall Width 179 cm (70.62") with reels





 		180 cm (70.84") with reels





 		179 cm (70.62") with reels





 		180 cm (70.84") with reels
Transport Width Outside at Tires: 154.94 cm (61") Outside at Reels: 179 cm (70.62")





 		Outside at Tires: 154.94 cm (61") Outside at Reels: 180 cm (70.84")





 		Outside at Tires: 154.94 cm (61") Outside at Reels: 179 cm (70.62")





 		Outside at Tires: 154.94 cm (61") Outside at Reels: 180 cm (70.84")
Product Length 249 cm (98")





 		249 cm (98")





 		249 cm (98")





 		249 cm (98")
Wheelbase 119 cm (47")





 		119 cm (47")





 		123 cm (48.6")





 		123 cm (48.6")
Ground Clearance 11.4 cm (4.5")





 		11.4 cm (4.5")





 		11.4 cm (4.5")





 		11.4 cm (4.5")
Overall Cutting Width — — 150 cm (59") —
Safety & Compliance
Safety/Operator Safety Sound level of 80 dB(A) at operator’s ear under normal conditions.





 		Sound level of 80 dB(A) at operator’s ear under normal conditions.





 		Sound level of 84 dB(A) at operator’s ear under normal conditions.





 		Sound level of 84 dB(A) at operator’s ear under normal conditions.
Accessories
Optional Accessories Off-Greens Kit (Anti-Bobbing), Tri-Roller Kit, Spiker Kit, 3WD Kit, Leak Detector, Light Kit, Seat Kit (Standard or Premium), Armrest Kit (Standard or Premium), Hydraulic Oil Cooler Kit (Gas or Diesel), 2WD ANSI-compliant Weight Kit (Gas or Diesel), 3WD ANSI-compliant Weight Kit (Gas), Spark Arrestor Kit (Gas or Diesel), Canopy, Utility Bag Kit, Seat Cover, LH Armrest, Wireless Hour Meter





 		Off-Greens Kit (Anti-Bobbing), Tri-Roller Kit, Spiker Kit, 3WD Kit, Leak Detector, Light Kit, Seat Kit (Standard or Premium), Armrest Kit (Standard or Premium), Hydraulic Oil Cooler Kit (Gas or Diesel), 2WD ANSI-compliant Weight Kit (Gas or Diesel), 3WD ANSI-compliant Weight Kit (Gas), Spark Arrestor Kit (Gas or Diesel), Canopy, Utility Bag Kit, Seat Cover, LH Armrest, Wireless Hour Meter





 		Off-Greens Kit (Anti-Bobbing), Tri-Roller Kit, Spiker Kit, 3WD Kit, Leak Detector, Light Kit, Seat Kit (Standard or Premium), Armrest Kit (Standard or Premium), Hydraulic Oil Cooler Kit (Gas or Diesel), 2WD ANSI-compliant Weight Kit (Gas or Diesel), 3WD ANSI-compliant Weight Kit (Gas), Spark Arrestor Kit (Gas or Diesel), Canopy, Utility Bag Kit, Seat Cover, LH Armrest, Wireless Hour Meter





 		Off-Greens Kit (Anti-Bobbing), Tri-Roller Kit, Spiker Kit, 3WD Kit, Leak Detector, Light Kit, Seat Kit (Standard or Premium), Armrest Kit (Standard or Premium), Hydraulic Oil Cooler Kit (Gas or Diesel), 2WD ANSI-compliant Weight Kit (Gas or Diesel), 3WD ANSI-compliant Weight Kit (Gas), Spark Arrestor Kit (Gas or Diesel), Canopy, Utility Bag Kit, Seat Cover, LH Armrest, Wireless Hour Meter
Comfort & Operator Station
Armrests — Optional





 		— —
Cup Holder — Standard





 		— —

Related products
