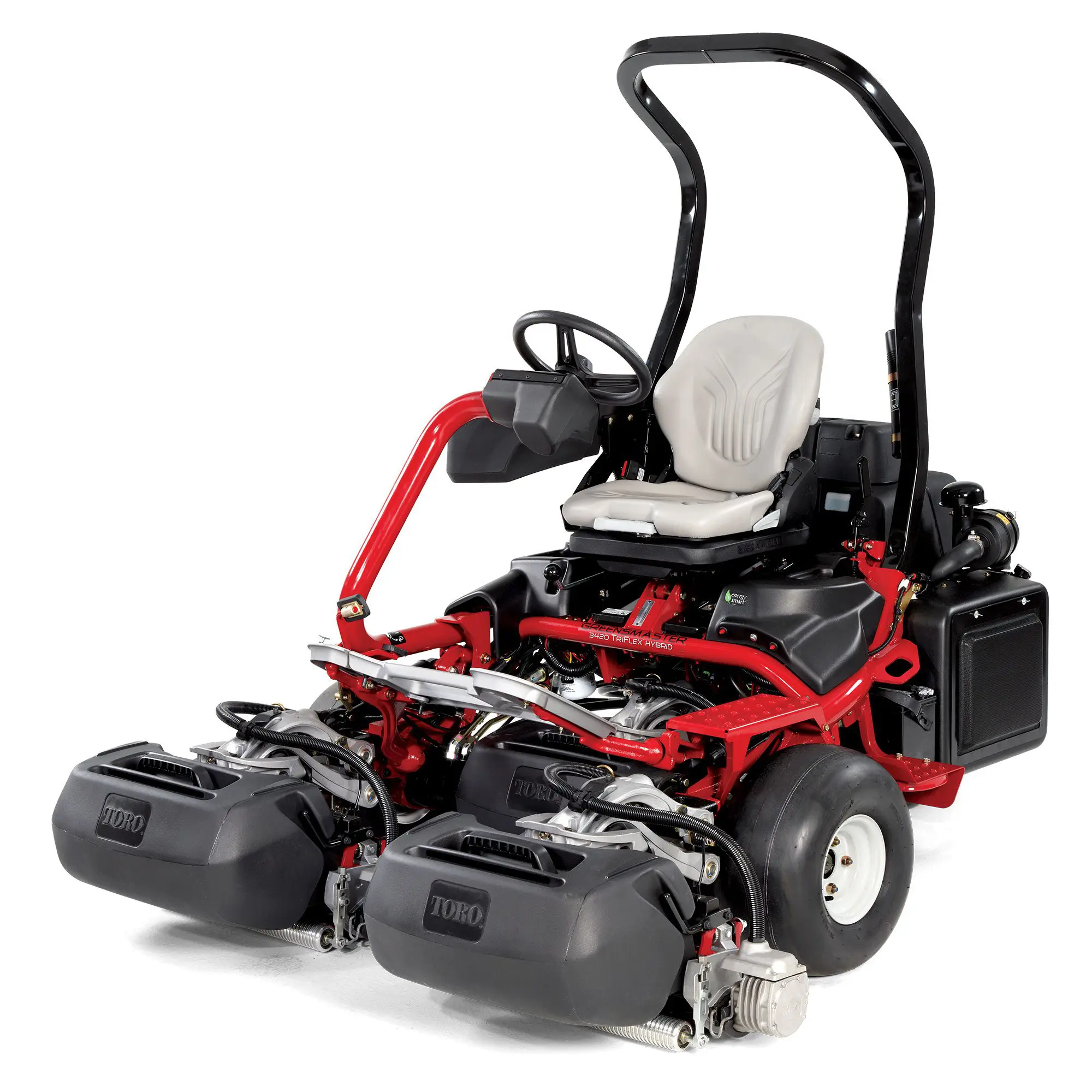

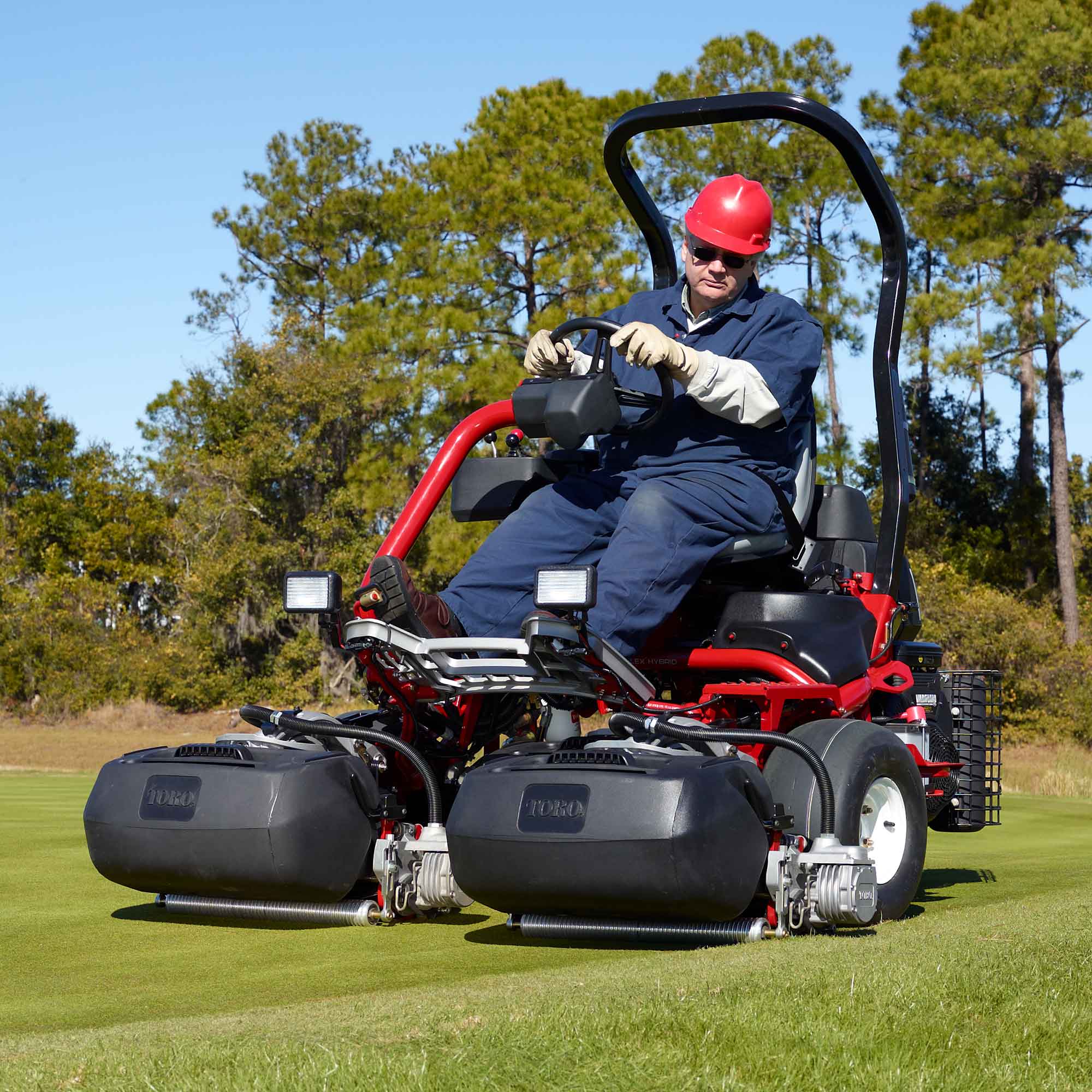

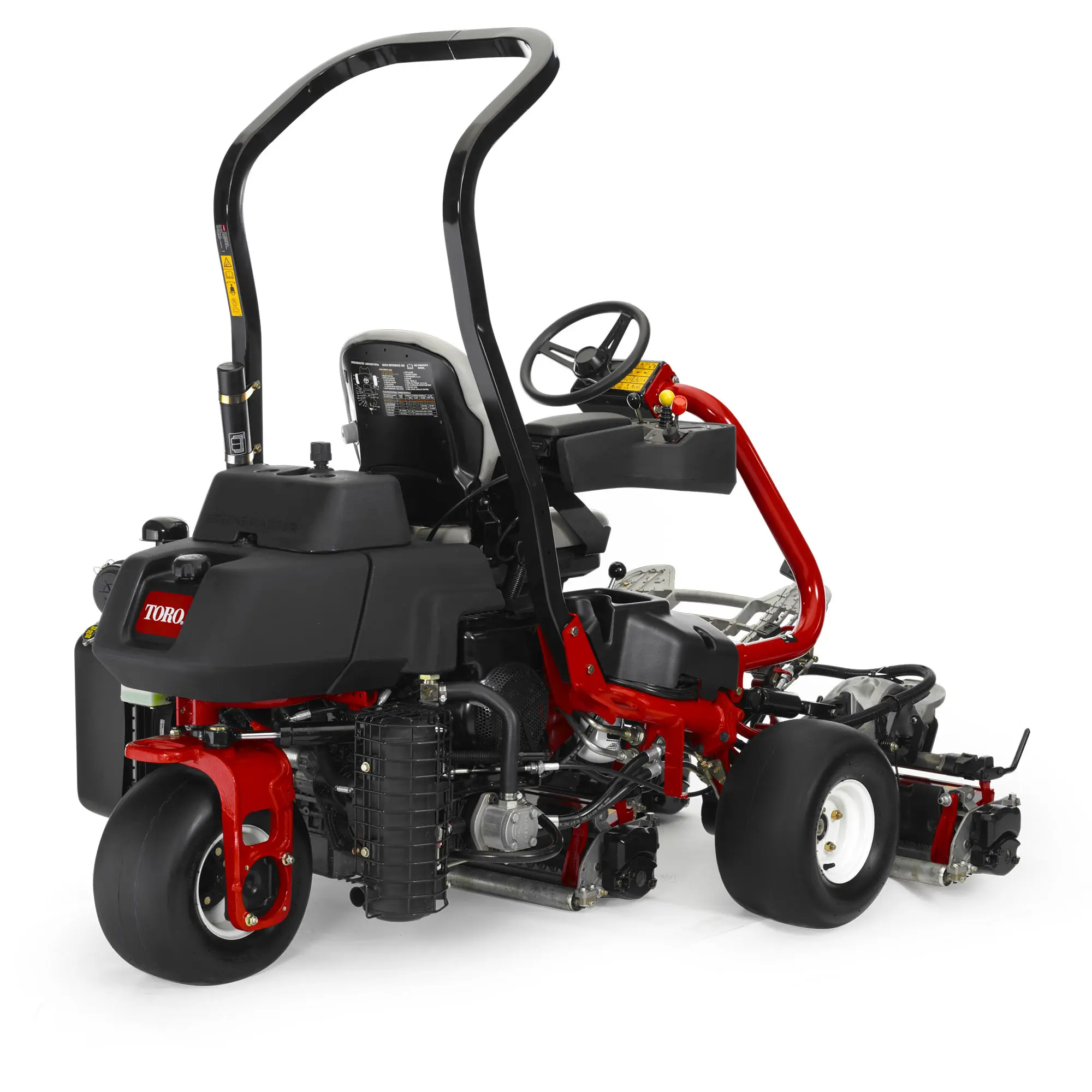

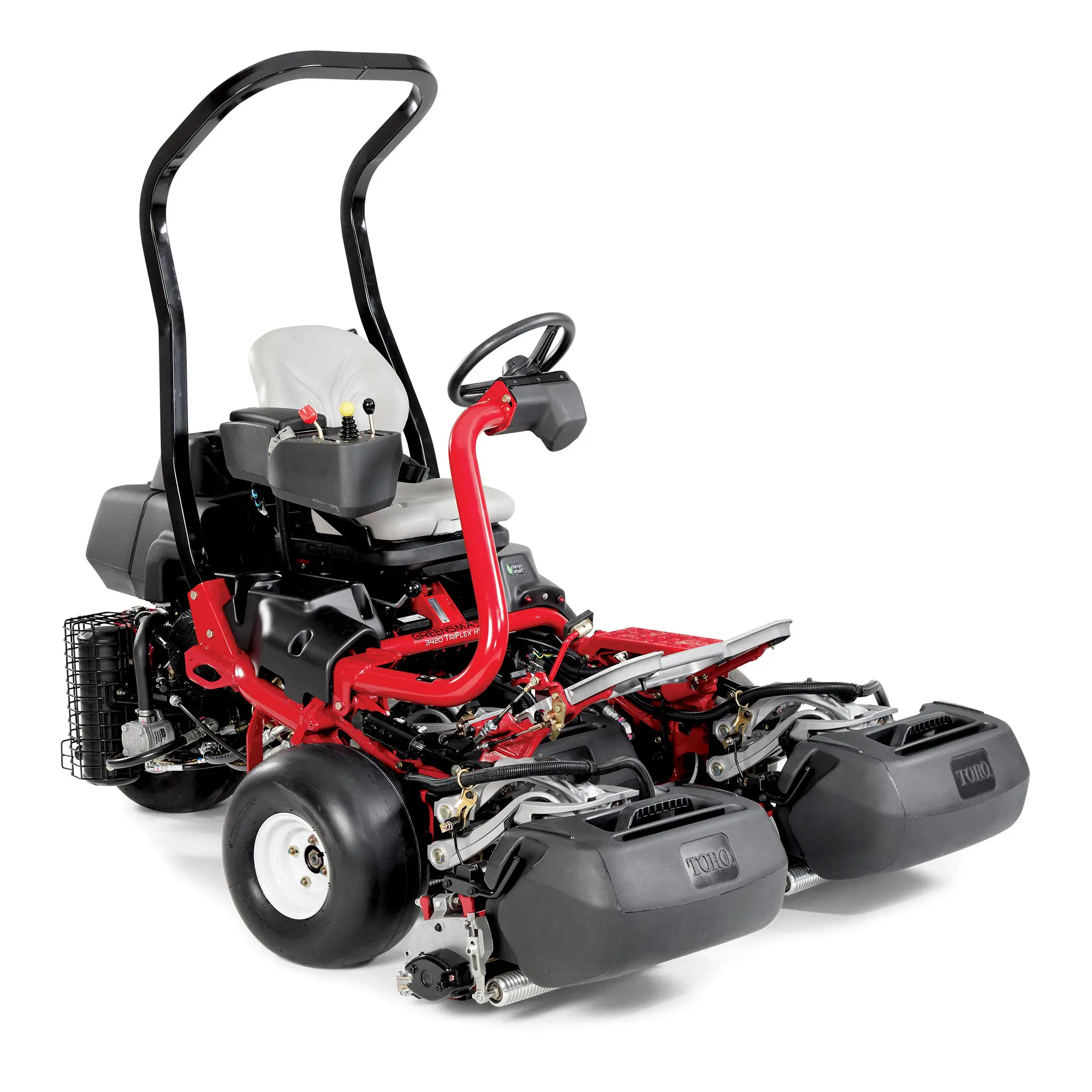

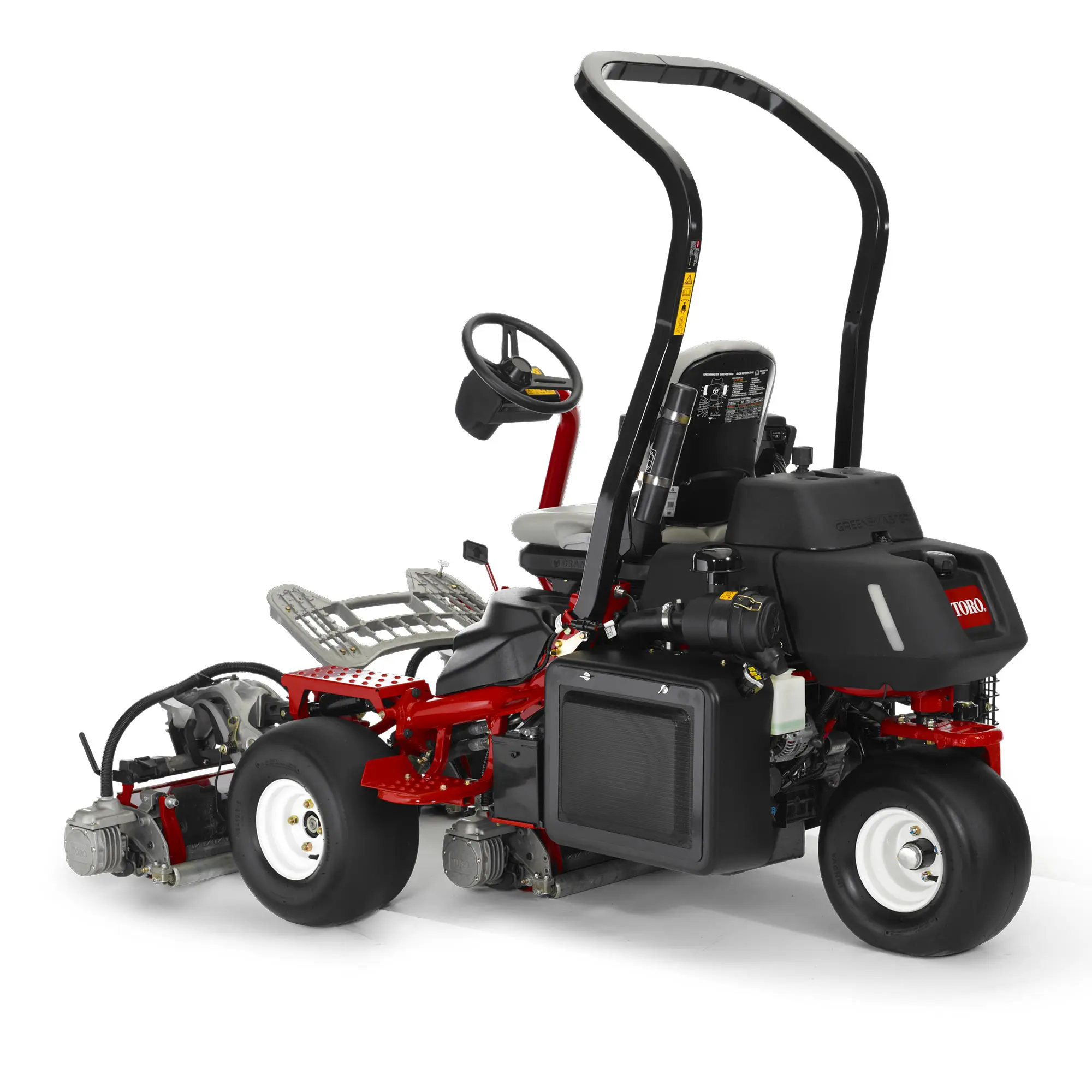

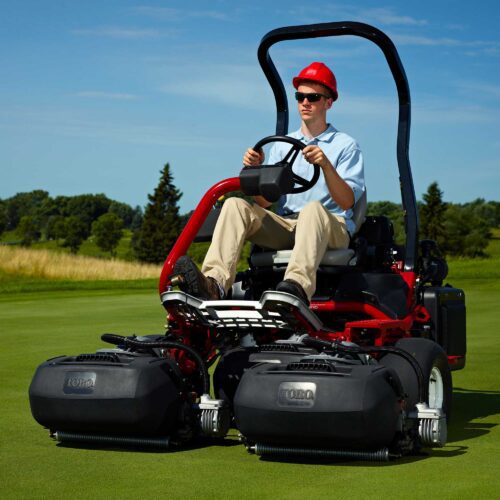

| Battery | 12V |
| Bedknife | Replaceable single-edged EdgeMax™ Microcut Bedknife is standard.
|
| Bedknife Adjustment | Dual screw, indexed “click” adjustment to the reel; detents corresponding to 0.0007" (0.018 mm) bedknife movement for each position.
|
| Blade Style/Type | Reel |

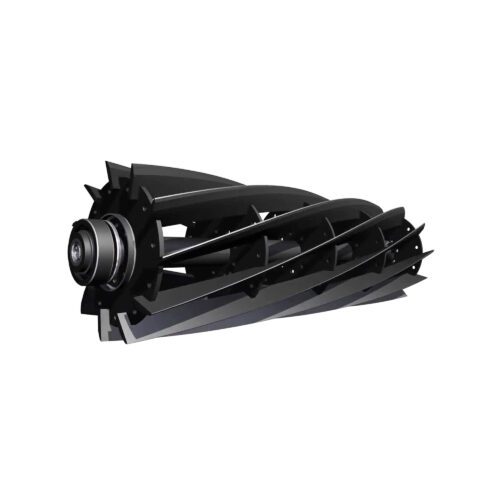

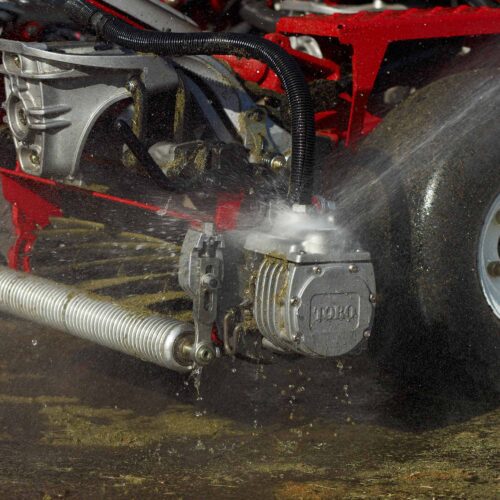

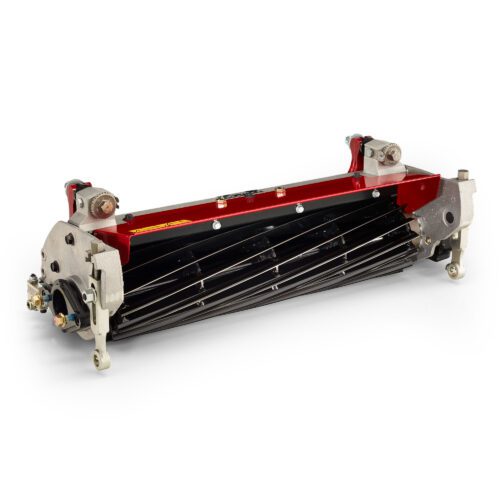

| Blade Type (Description) | Reels are 5" (13 cm) in diameter, 21" (53.3 cm) in length. EdgeSeries™ Reels blades are welded to 5 stamped steel spiders, and heat treated. The reel is ground for diameter and concentricity, and relief ground. The reel weldment shaft is a 1.375" (35 mm) diameter tube with internally splined threaded insert. Two stainless steel ball bearings (30 mm inside diameter) slip fit onto reel shaft retained by internally splined threaded insert. Low drag seals/slingers for added protection with o-ring sealed motor and counterweight. Reel position maintained by a wave washer with no adjusting nut.
|
| Clip Frequency/Backlapping | Adjustable automatic clip control up to 2050 RPM at 2850 engine RPM. Backlapping standard.
|

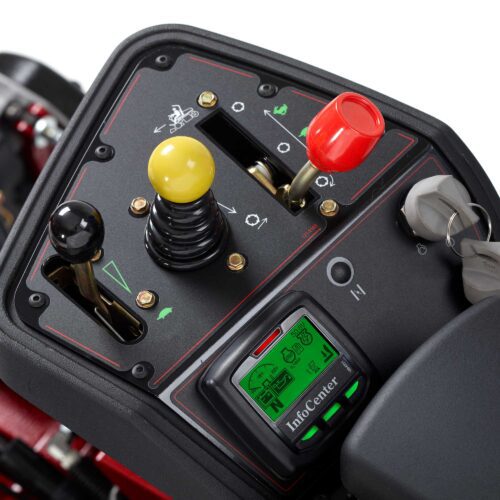

| Controls | Ignition: Off/Run/Start. Throttle: Low - High Idle. Choke (AC only): Open / closes choke plate. Parking Brake: Off - On. Traction Pedal: Rev/Neutral/Forward Joystick: Raises/lowers reels also tap off feature for clean up pass. Functional Control Lever sets neutral/mow/transport limits for traction pedal. InfoCenter™ Diagnostics standard.
|
| Cooling System Description | Radiator is cooled by 12-volt electric fan.
|
| Cutting Unit Accessories | 8, 11, 14-Blade Cutting Unit, Roller Options, Roller Scrapers / Brushes / Combs Options, Bedknife and Bedbar Options, Tools and Maintenance Options.
|

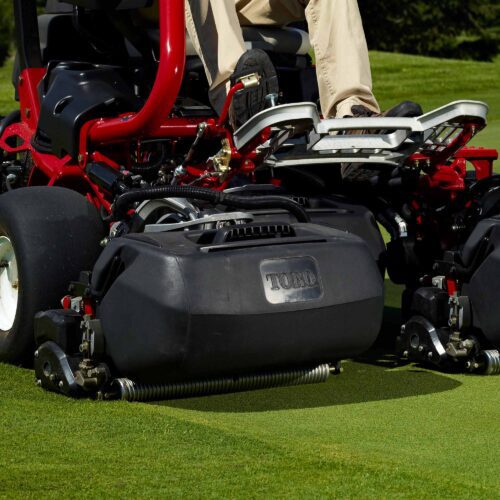

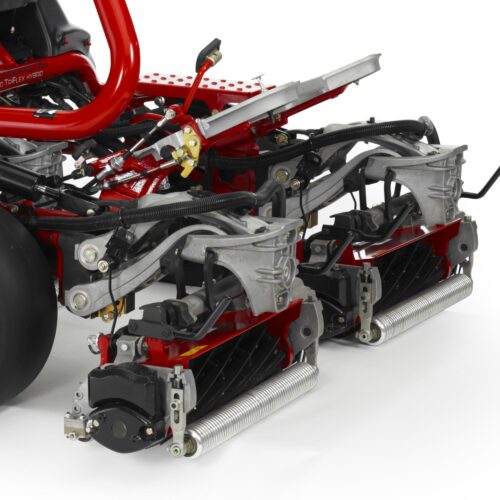

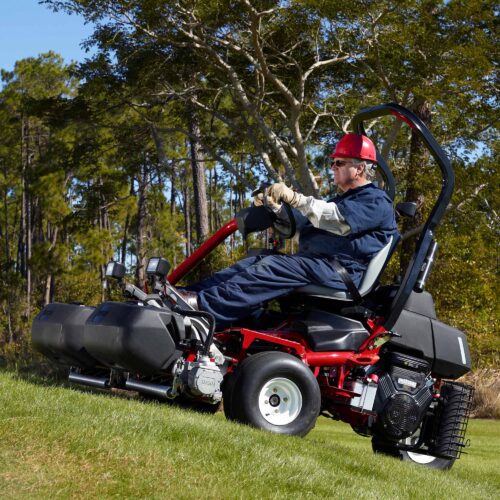

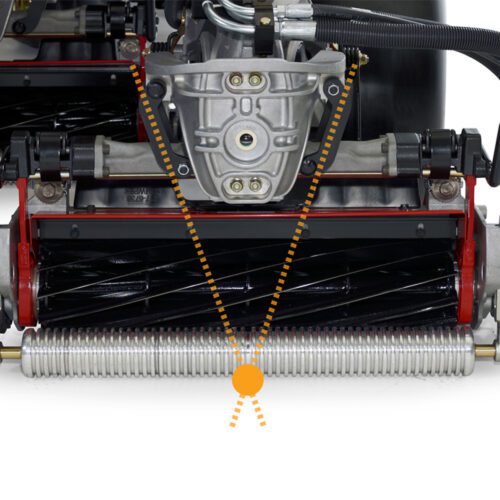

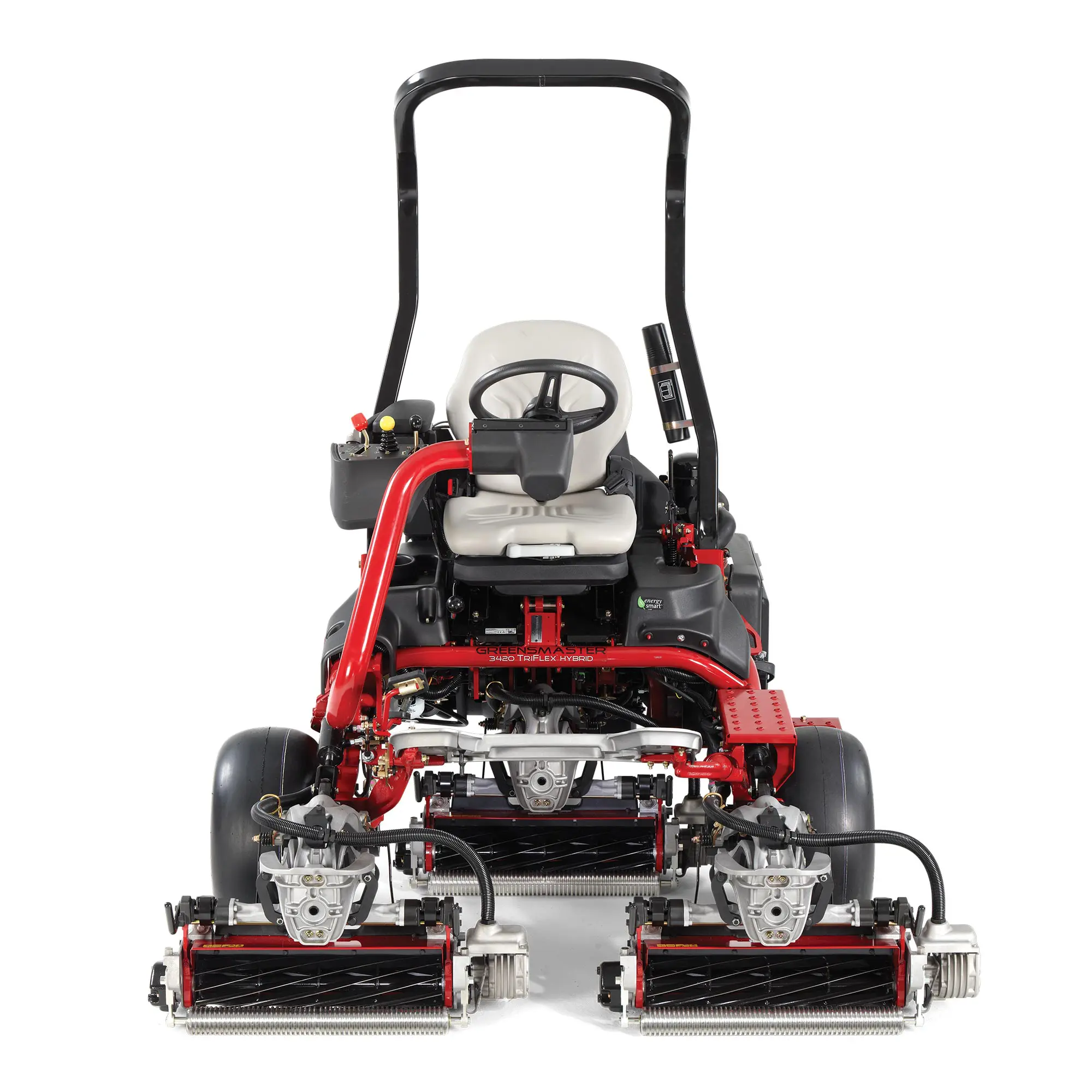

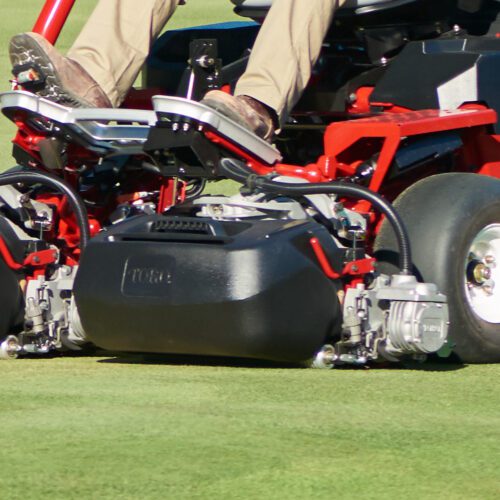

| Cutting Unit Type/Configuration | Triplex, balanced cutting units with precision die-cast aluminum cross member with two bolt-on die-cast aluminum side plates. Cutting units feature quick disconnect for removal/installation and are interchangeable to all positions. Double A-Arm Suspension utilizing sealed ball joints allows free cutting unit motion in pitch and yaw. Links system for the roll. The basket is directly mounted to the cutting unit displacing weight evenly over front and rear rollers. (patented)
|
| Drivetrain | Hybrid |
| Electrical System | Maintenance-free 12-volt battery with 585 minimum CCA at 0° F (-17.7° C) and 95 minutes minimum reserve capacity at 85° F (29.4° C). 60 amp alternator, circuit fused at 60 amps. Seat switch. High temperature engine shut down. Harness terminals, fuse slot, and console switch location available for optional lights installation.
|
| Engine Cooling | Liquid Cooled
|
| Fuel / Power Source | Hybrid - Diesel
|
| Fuel Capacity | 6 U.S. gal. (22.7 L)
|
| Gauges/Instrumentation | InfoCenter™: Onboard LCD shows gauges, alerts/faults, service reminders, electrical system diagnostics, low oil pressure, alternator, engine hours, engine rpm, voltage, functional control status, parking brake applied, reel speed setting, backlap control. Clip control setting.
|
| Grass Distribution | Non-adjustable shield with adjustable cut-off bar to improve grass discharge from reel in wet conditions.
|
| Ground Clearance | 4.5" (11.4 cm)
|
| Ground Speed - Forward | 0 - 10 mph (0 - 16.1 km/h)
|
| Height | 80.83" (205 cm)
|
| Height of Cut Range | Cutting height is adjusted on front roller by two vertical screws and held by two locking cap screws. Bench HOC range is 0.062" - 0.297" (1.6 - 7.5 mm). With high HOC kit, range is 0.297" - 1.0" (7.5 - 25.4 mm). Effective HOC may vary depending on turf conditions and bedknife installed.
|
| Hydraulic Fluid Capacity | 5.5 U.S. gal. (20.8 L)
|

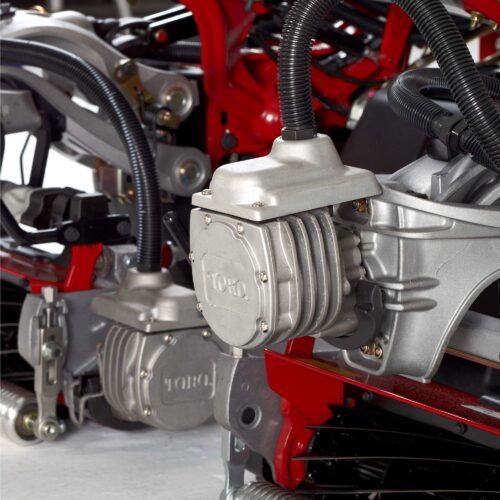

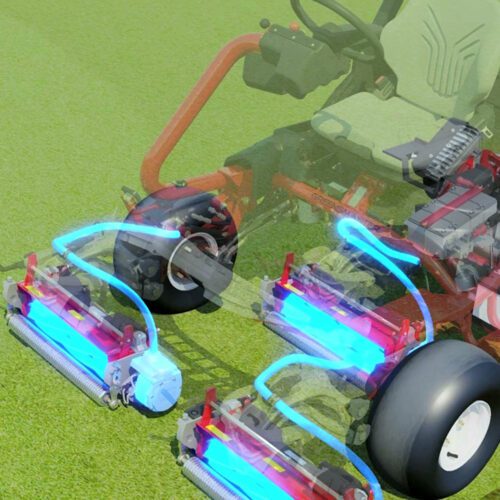

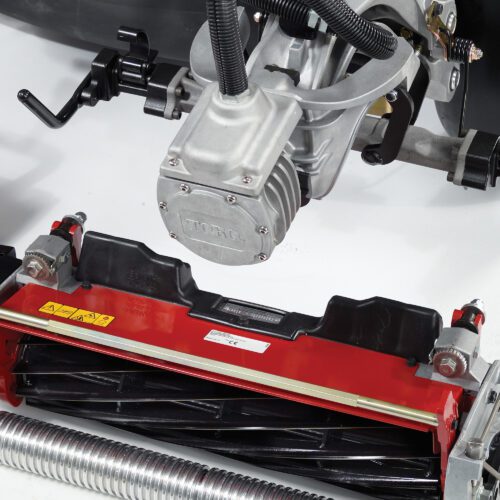

| Implement Drive | 48V-5400 watt air-cooled brushless permanent magnet generator in parallel with 48V 9Ah battery set powers three 48V - 1100 watt brushless permanent magnet reel motors with separable controller. 4-12V 9Ah sealed, maintenance-free, VRLA batteries. 48-volt system is isolated from 12-volt including the frame/chassis.
|

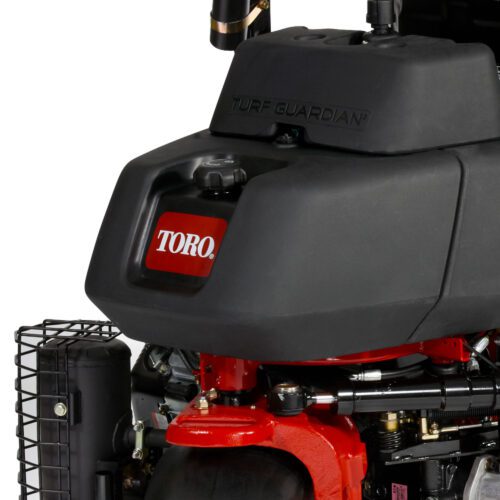

| Leak Detection | Optional Turf Guardian™ Leak Detection System. System sounds an alarm and turns on a warning light with the loss of 3-5 oz. of hydraulic fluid.
|
| Mowing Speed | 0 - 5 mph (0 - 8 km/h)
|
| Number of Blades | 11, 14, 8
|
| Optional Accessories | Off-Greens Kit (Anti-Bobbing), Tri-Roller Kit, Spiker Kit, 3WD Kit, Leak Detector, Light Kit, Seat Kit (Standard or Premium), Armrest Kit (Standard or Premium), Hydraulic Oil Cooler Kit (Gas or Diesel), 2WD ANSI-compliant Weight Kit (Gas or Diesel), 3WD ANSI-compliant Weight Kit (Gas), Spark Arrestor Kit (Gas or Diesel), Canopy, Utility Bag Kit, Seat Cover, LH Armrest, Wireless Hour Meter
|
| Overall Width | 70.84" (180 cm) with reels
|
| Parking/Service Brakes | Hand-actuated parking brake lever with two 6" (15.2 cm) diameter drum brakes mounted on the front wheel motors.
|
| Power Steering | Yes
|
| Power Train (Engine Description) | Kubota® D902, Tier 4i, 24.8 HP (18.5 kW) @ 3600 rpm, 3-cylinder, liquid-cooled, diesel engine, governed to 2880 high idle, 1560 rpm low idle. Displacement: 55.0 cu-in. (902 cc)
|
| Product Length | 98" (249 cm)
|
| Reel Diameter | 5 in. (12.7cm)
|
| Reel/Cylinder Drive | Electric
|
| Rollers | Front: Not included with cutting unit, purchased separately. Option between full, narrow-spaced and wide-spaced Wiehle roller. Rear: Steel full, 2" (5.1 cm) diameter with sealed bearings and through-shaft.
|
| Safety/Operator Safety | Sound level of 84 dB(A) at operator’s ear under normal conditions.
|

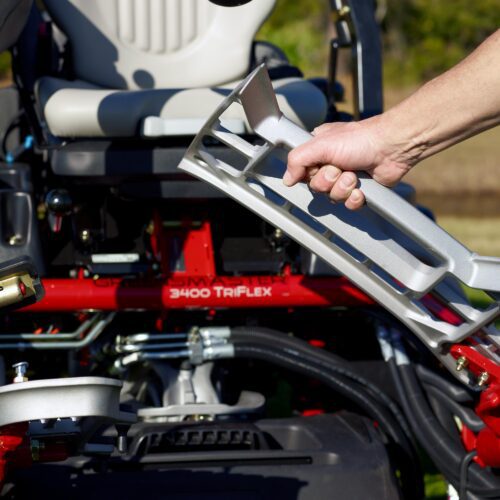

| Steering System Description | No-tool quick adjust steering arm position with power assist allowing a wide range of operator sizes. Steering cylinder has a through shaft design for precise straight line tracking.
|

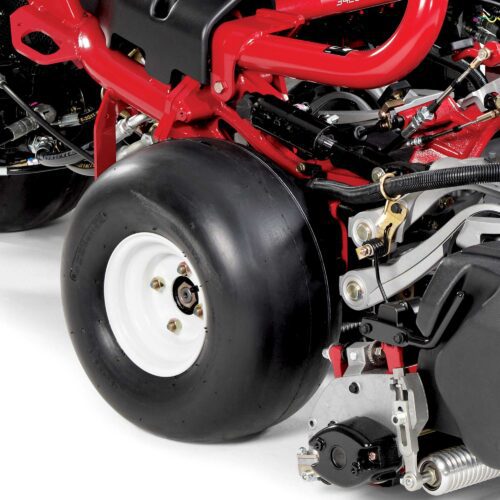

| Tires - Front | 19" x 10.5" - 8", 4-ply, Smooth Tread
|
| Tires - Rear | 19" x 10.5" - 8", 4-ply, Smooth Tread
|
| Traction Drive | 2WD |
| Traction Drive (System) | 2WD parallel hydrostatic or optional 3WD series-parallel piston pump closed loop system. Foot pedal forward and reverse; infinitely variable.
|
| Transport Width | Outside at Tires: 61" (154.94 cm) Outside at Reels: 70.84" (180 cm)
|
| Weight | 1,406 lbs. (638 kg)
|
| Wheelbase | 48.6" (123 cm)
|
| Width of Cut | 59" (150 cm)
|
