| Air Filter | Remote-mounted 5" Donaldson® air cleaner
|
| Armrests | Standard
|
| Battery | 12V |

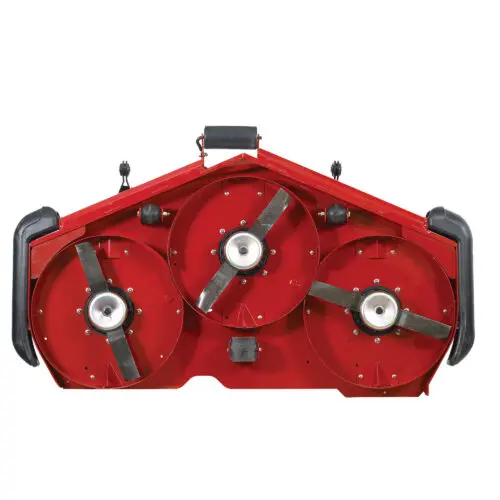

| Blade Style/Type | Rotary |

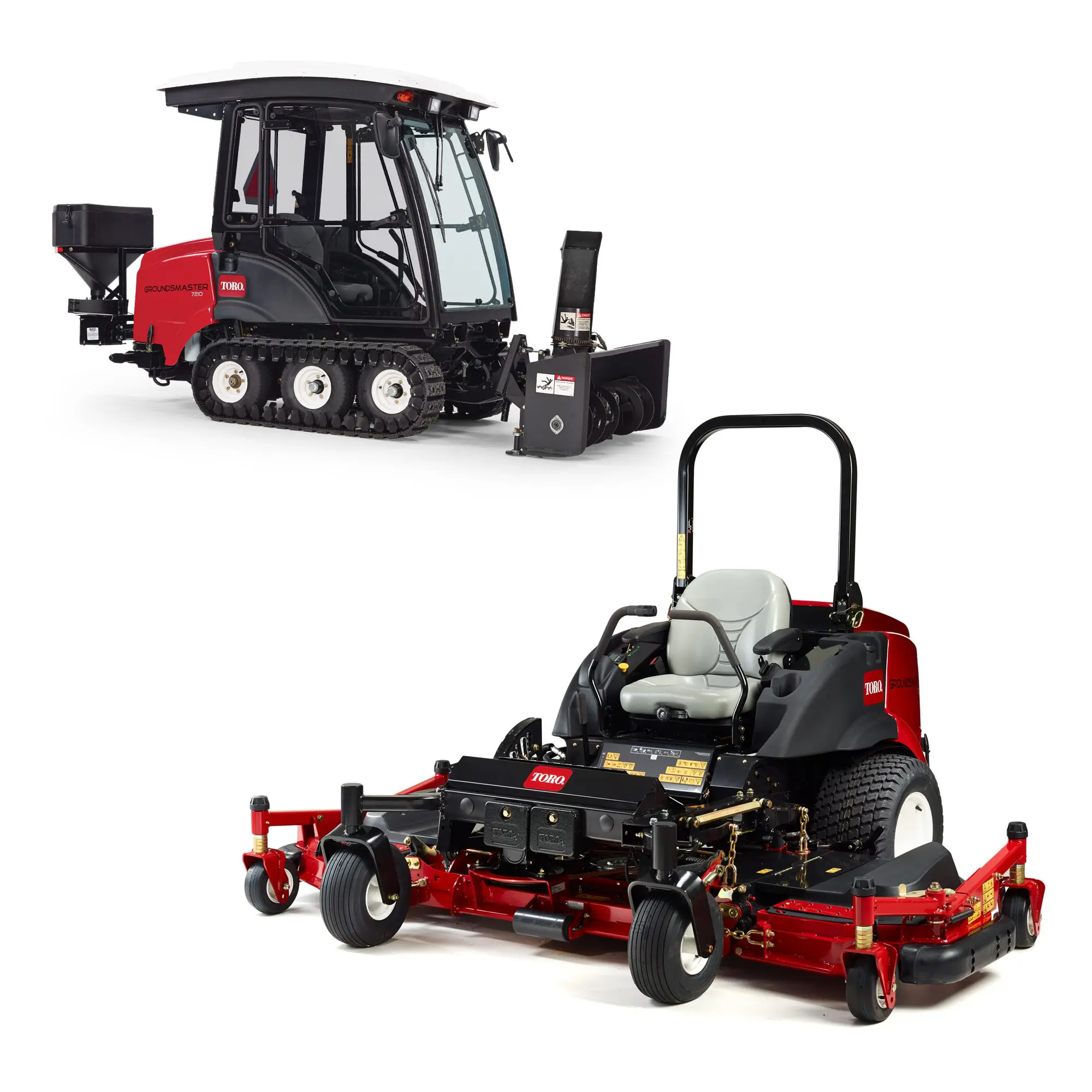

| Cab Unit | Polar Trac Kit
|
| Cooling System Description | Rear-mount, cross-flow radiator with 6.5 fins per 1” (25 mm), 8 U.S. qt. (7.6 L) capacity
|
| Cup Holder | Standard
|
| Drivetrain | Diesel
|
| Electrical System | 12-volt battery (BCI No. 24) 540CCA, 55 amp internal regulated alternator charging @ 3150 rpm
|
| Engine Cooling | Liquid Cooled
|
| Fuel / Power Source | Diesel / Biodiesel
|
| Fuel Capacity | 11.5 U.S. gal. (43.5 L)
|
| Fuel Economy | 1.1 gallon/hr (4.8 liter/hr)
|
| Fuel Filter | Fuel filter/water separator
|
| Gauges/Instrumentation | InfoCenter™: LCD display shows gauges, alerts/faults, service reminders, electrical system diagnostics. Indicates, coolant temp, intake temperature, low oil pressure, alternator, engine hours, engine rpm, hydraulic oil temperature, voltage.
|
| Ground Clearance | Capable of climbing 8" (20.3 cm) curbs
|
| Ground Speed - Forward | 0 - 12.5 mph (0 - 20 km/h)
|
| Ground Speed - Reverse | 0 - 8.5 mph (0 - 13.7 km/h)
|
| Hydraulic Fluid Capacity | 3.5 U.S. gal. (13.2 L)
|
| IntelliDash™ Capable | No
|
| Interlocks | Tractor neutral, operator presence, parking brake, PTO on, auxiliary hydraulics on, high temp (PTO shuts down but engine still running), over temp (engine shuts down)
|
| Lighting | Optional |
| Main Frame/Chassis | Structured steel tube and high strength steel plate welded construction, with tie down loops on each corner
|
| Max Slope Angle | Refer to operator's manual
|
| Oil Capacity | 5.5 U.S. qt. (5.2 L)
|
| Oil Cooler Description | External spin-on oil filter and high flow fixed fan
|
| Optional Accessories | Road Light Kit, 12V Power Port Kit, Slope Sensor Kit, SMV Sign, Jack Stand Kit, Semi-Pneumatic Tire Assembly (front caster wheel), Lug Tire
|
| Parking/Service Brakes | Service: Twin levers with dynamic braking through hydrostatic transmission. Parking: Hand actuated brake lever with two 10.25" diameter disc brakes mounted on the rear wheel motors.
|
| Power Steering | Yes
|
| Power Train (Engine Description) | Yanmar® 3-cylinder common-rail, liquid-cooled, diesel with EGR and diesel particulate filter (DPF), 36.8 hp (27.4 Kw) rated @ 3000 rpm, 80 ft-lbs. @ 1950 rpm, displacement 1642 cc., EPA Tier IV Final compliant
|
| PTO Clutch | Hydraulically actuated wet multi-disc clutch
|

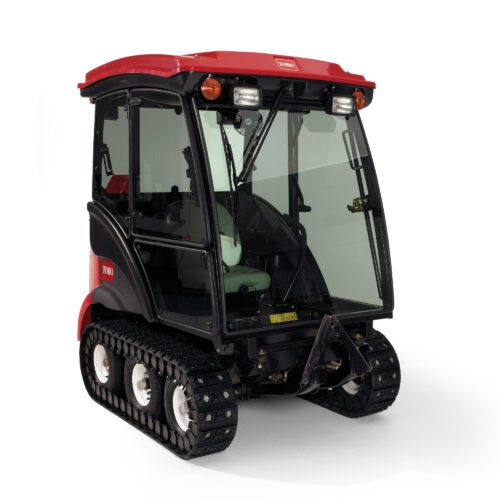

| Safety/Operator Safety | Two-post foldable ROPS standard, optional ROPS certified heat-only cab available
|
| Seat | Two piece, high back cushion seat with drain hole, deluxe low profile suspension, adjustable for operator weight, seat back angle, seat fore/aft position, armrest height, retractable seat belt
|
| Starting | Key Start
|
| Steering System Description | Adjustable twin sticks with high performance KYB® hydraulic dampers. Rev/N/Forward, located on sides of operator.
|
| Tires - Front | 24" x 12" - 12", 6-ply, Turf Tire
|
| Tires - Rear | 15" x 6" - 6", 4-ply
|
| Tool Box | Standard
|
| Traction Drive | 2WD |
| Traction Drive (System) | Two independent closed-loop circuits. One pump/motor controlling left side forward, neutral, and reverse, and one pump/motor controlling right side forward, neutral, and reverse. Pumps are variable displacement piston type with slippers and full stroke capacity of 18 cc/rev.
|
