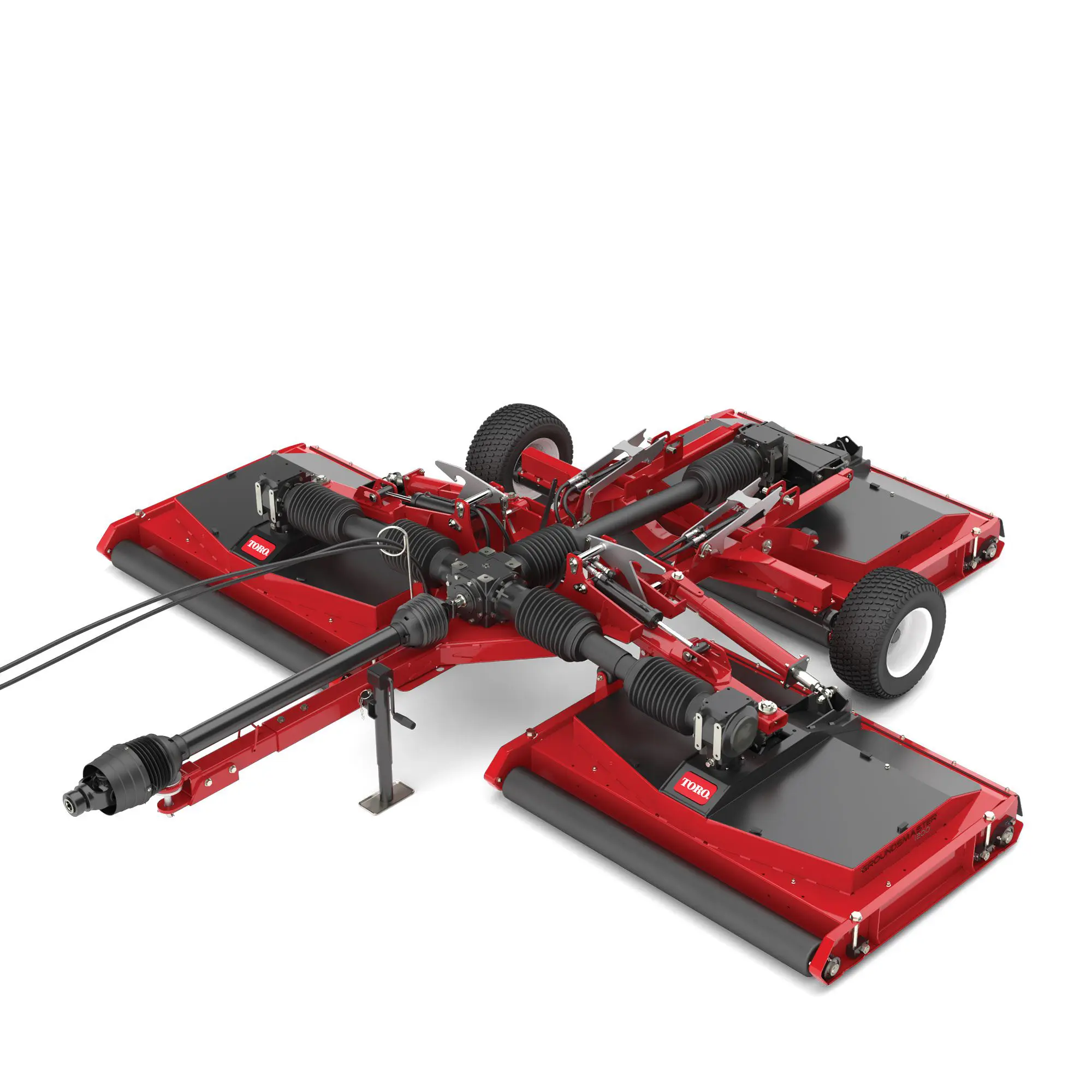

Toro Groundsmaster® 1200 Pull Behind Mower

Model: 31905
Toro

Toro Groundsmaster® 1200 Pull Behind Mower

Model: 31905
Toro

The Only Pull-Behind Worthy of Being a Groundsmaster.

The Groundsmaster 1200 delivers an unparalleled combination of productivity, durability and superior cut. It features a 3.7 metres width of cut and can mow up to 8.73 acres/h at 6 mph per hour. Remaining true to Groundsmaster’s unmatched reputation of durability, the 1200 was designed for years of reliable mowing. Its spindles are the same as Toro’s large rotaries and capable of withstanding the roughest conditions. The bi-directional impact resistant system provides additional protection to the wing decks. Don’t let its productivity and robust design fool you; the Groundsmaster 1200’s independently articulating decks hug undulations for an exceptional finish. Combine this with the dual roller design, the Groundsmaster 1200 delivers a high-quality cut and rich turf striping in most conditions.

  • Ability to mow up to 8.73 acres per hour (3.53 hectares/h) at 9.7 km/h per hour.
  • Same spindles as the large rotary mowers.
  • Robust design.
  • Designed to create a high-quality cut, superior finish and rich turf striping.
Fleet Finance & Leasing Options Talk to us today 0800 807 333
Enquire Call 0800 807 333
Talk to a rep Find a Store

Features

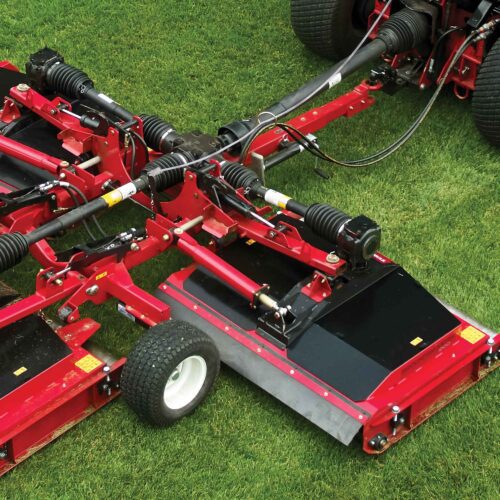

Cutting Deck Protection

The Toro bi-directional impact absorption system was designed for an impact of 5 mph. The spring-loaded cylinder allows the deck to rotate upon impact, which absorbs the force and protects the mowing decks and main frame components from damage, enhancing productivity.

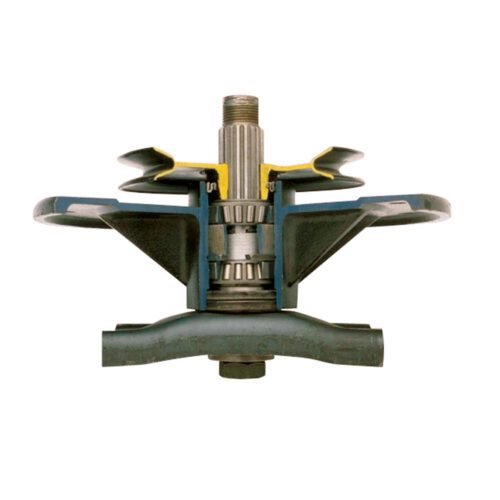

Durable Spindles

Ductile cast iron spindle housing is large in diameter [229 mm at the base] to dissipate impact loads. Dual tapered roller bearings last up to six times longer than ball bearings.

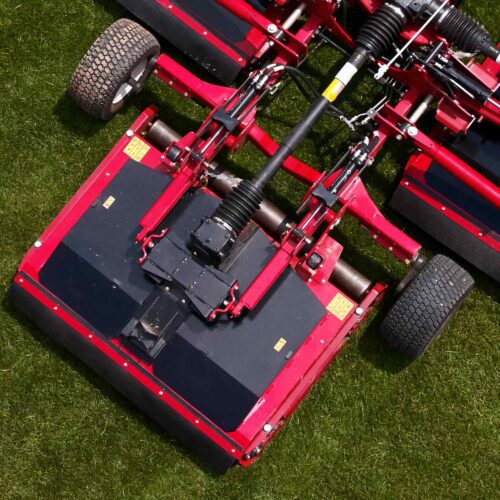

Robust Gearboxes

The deck gearboxes include an overrunning clutch that isolates the force from accidental blade impacts to keep the mower and tractor safe.

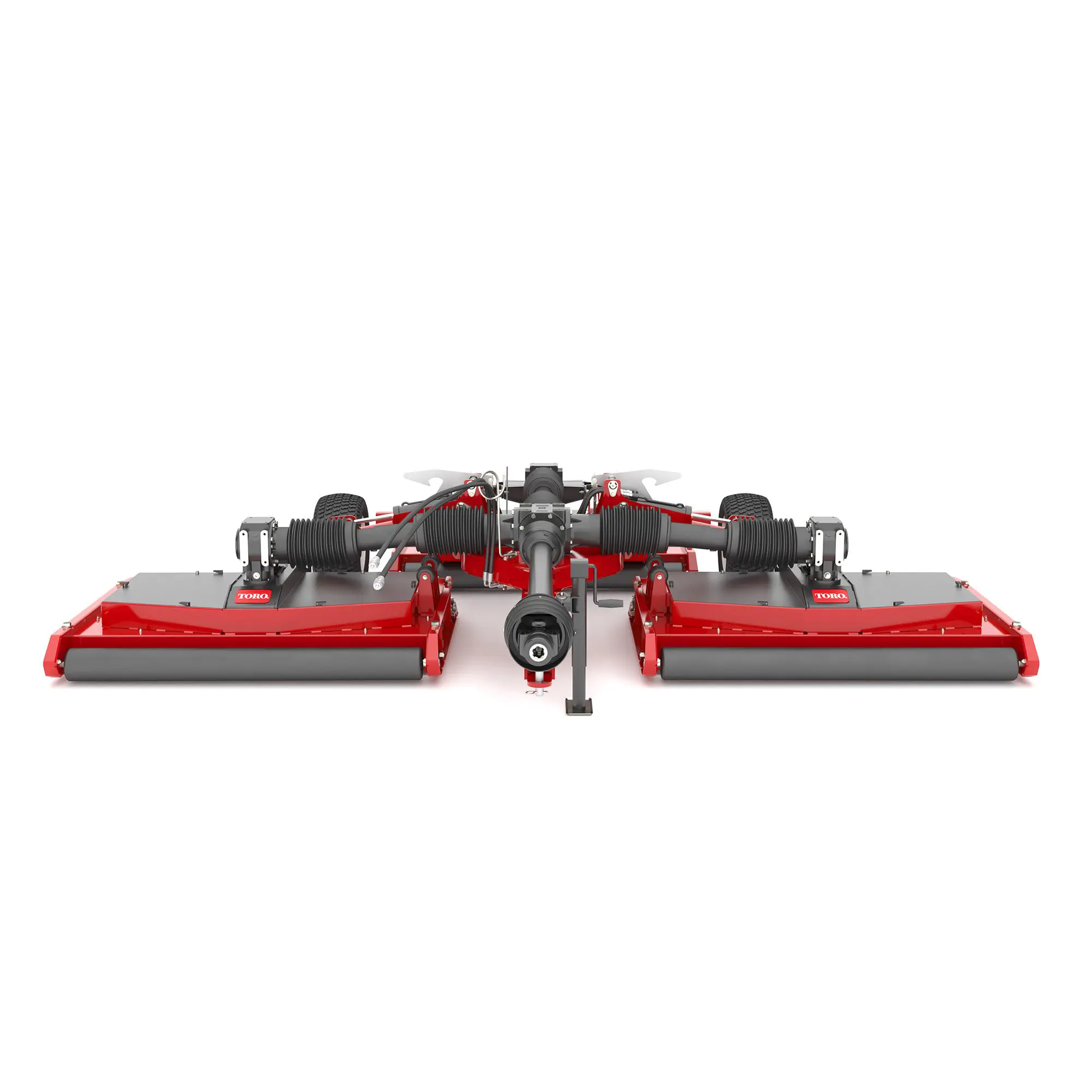

Dual Rollers

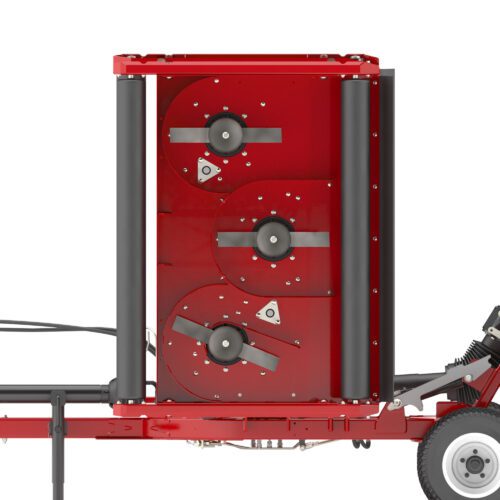

The two full width rollers on the front and rear of each deck help deliver an exceptional quality of cut. The front rollers help reduce scalping in undulated terrain while the rear rollers delivers the exceptional turf striping. Each roller includes heavy duty bearings featuring easy access grease points.

Maximum Productivity

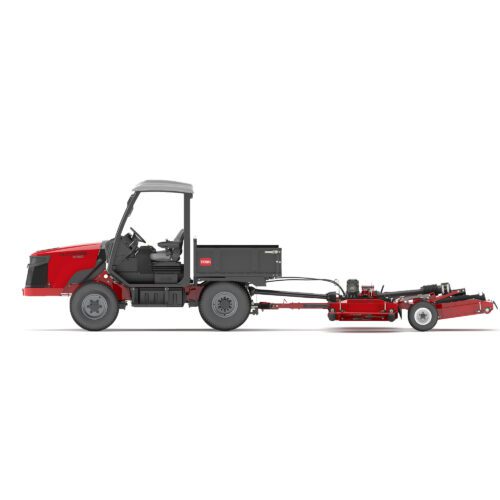

The Groundsmaster 1200 features a deck lift system allowing for the decks to be lifted from the turf while the PTO is engaged to quickly turn around without scuffing or transport over cart paths. This system helps keep the operator running at peak productivity.

Simple Height of Cut Adjustment

The Groundsmaster 1200 is not only a highly productive mower, it's also very versatile. Each deck features four mowing height adjustment points making it simple and quick to deliver the exact mowing height for superior conditions.

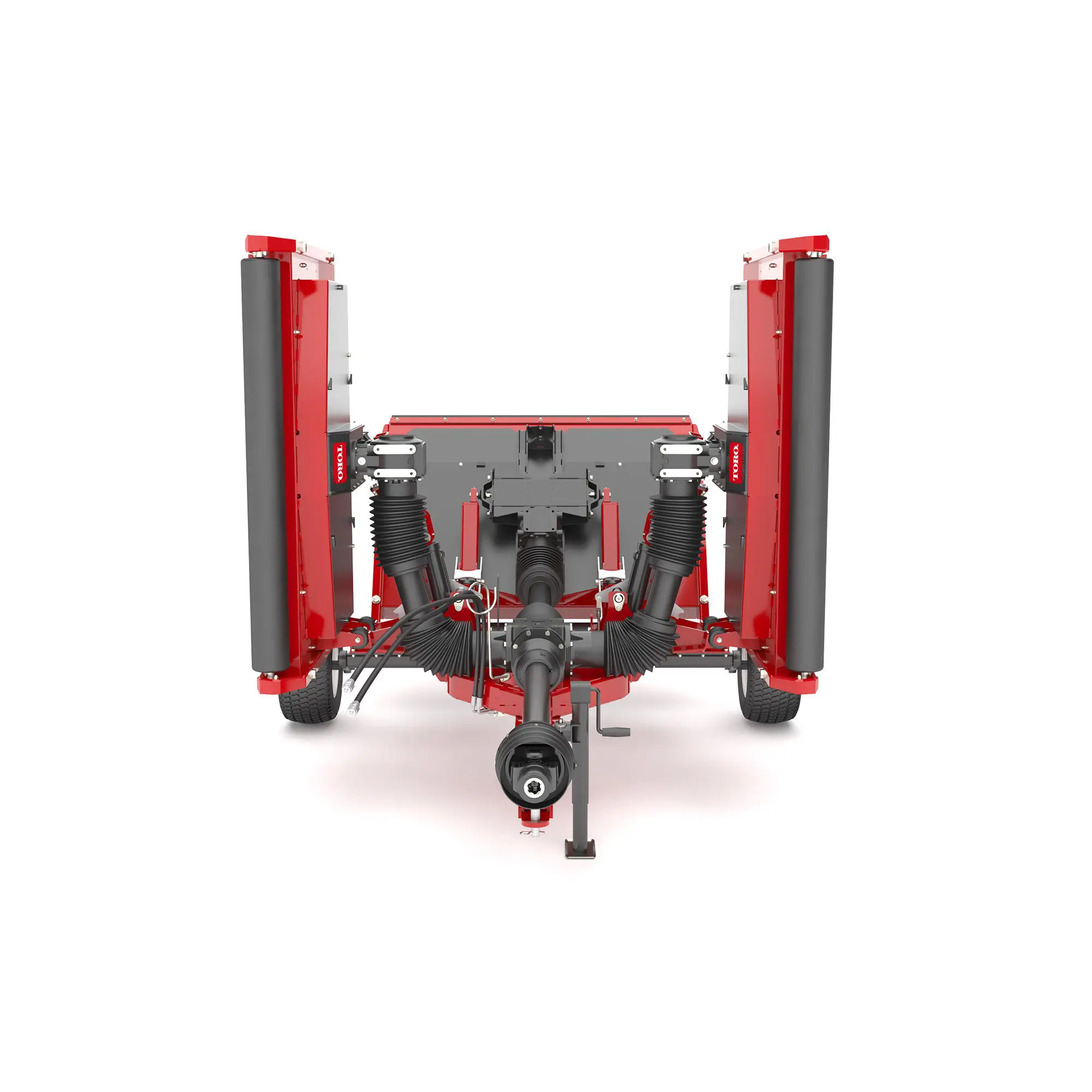

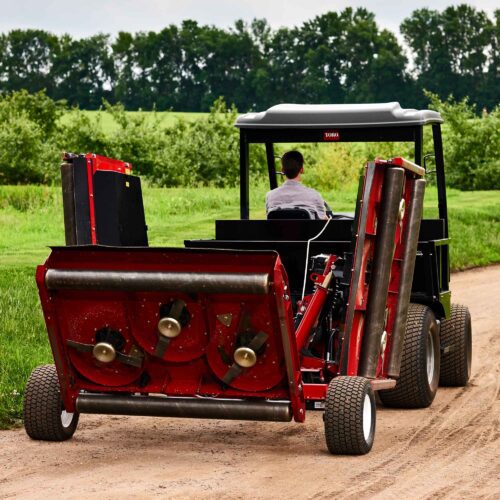

Quick Transport

The Groundsmaster 1200 wing decks fold up near vertical for a narrow 218.4 cm (86") transport width making it easy to get from site to site. Additionally, the transport wheels feature a torsion axle delivering a remarkably smooth ride making transport quick and comfortable.

Specifications

Blade Style/Type Rotary
Blade Type (Description) Standard Blades: 48.3 cm (19") long, 6.4 cm (2.5") wide, 6.4 mm (0.25") thick
Cab Unit N/A
Clip Frequency/Backlapping 4572 ± 91.4 m/min at 540 PTO RPM
Cutting Unit Type/Configuration Overall: 365 cm, Individual deck: 137 cm, Overlap: 9" (23 cm)
Deck Construction 10-gauge high strength steel constructed deck with 7-gauge bolt-in reinforcements. 7-gauge welded steel side skids with 12.7 cm (5") diameter steel rollers.
Deck Wing Protection Bi-directional, impact absorption device on each wing deck
Drivetrain PTO
Ground Following 9 anti-scalp cups, one on each blade, two anti-scalp/striping rollers on each deck. On each deck: two 12.7 cm (5") diameter roller.
Height Transport height: 192.4 cm (75.75")
Height of Cut Range 1.3 cm - 10.2 cm infinitely variable
Length Transport length: 369.6 cm (145.5") (hitch fully extended)
Mowing Rate (Productivity) Up to 8.7 acres/hr @ 6 mph

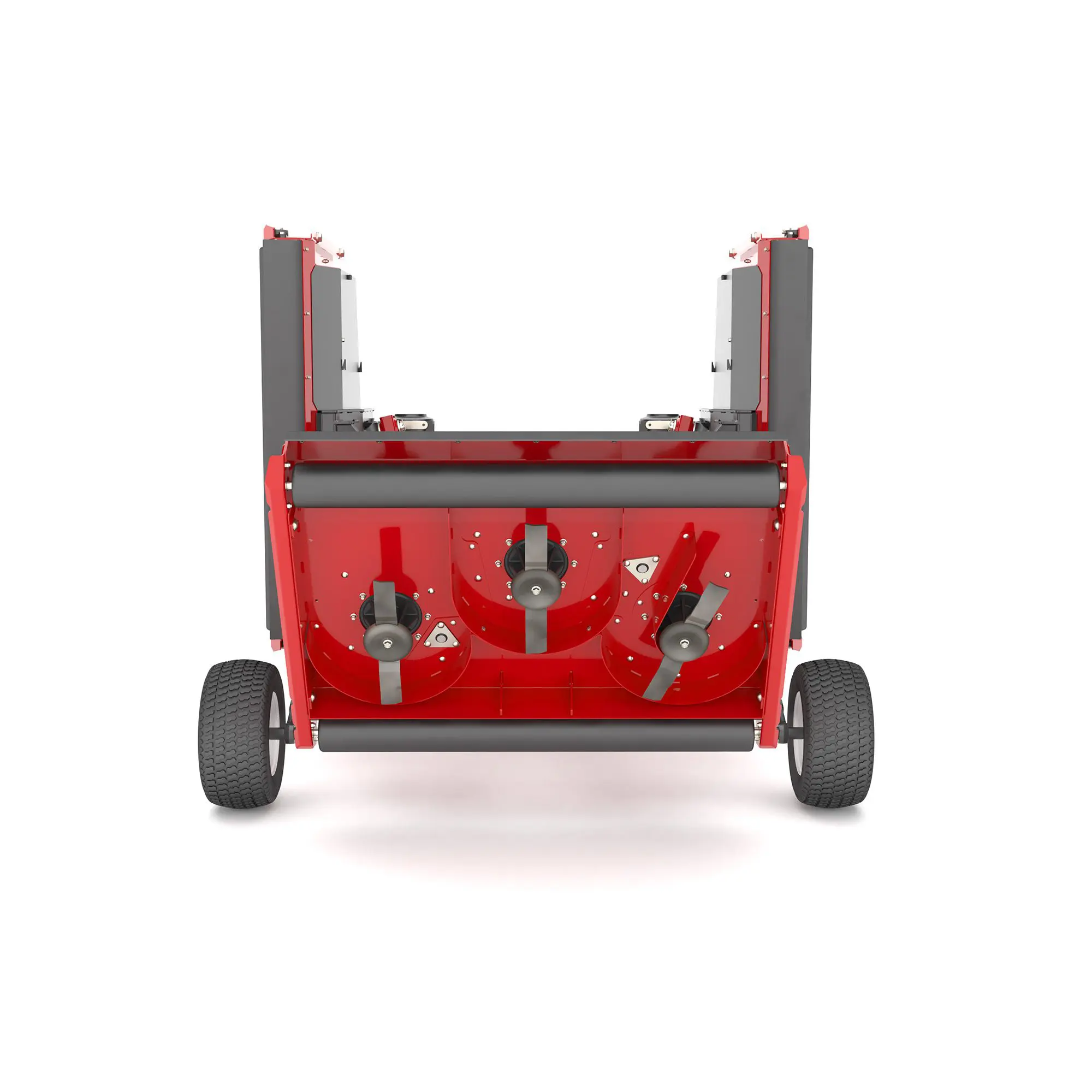

Number of Blades 9
Optional Accessories Roller scraper kit, standard blade kit, high-lift blade kit, safety chain kit, Atomic blade kit, tow chain kit, fender kit, SMV Kit, tail light kit, blade cover kit, clevis hitch, pintle eye hitch
Overall Width 380.5 cm with decks down
Power Train (Engine Description) Minimum 26.1 kW (35 HP) at the PTO, 540 RPM
Spindle Assembly 3.17 cm (1.25") diameter spindle shafts, 22.9 cm (9") diameter conical ductile iron housing and two greaseable tapered roller bearings. Driven counter-clockwise when viewed from the top.
Traction Drive No Drive
Transport Width 218.4 cm at 1.27 cm HOC
Tyres - Front 20 x 10.00-10, 6-ply, Tubeless Multi-Trac
Weight 1,354 kg
Width of Cut 144" (365 cm)
