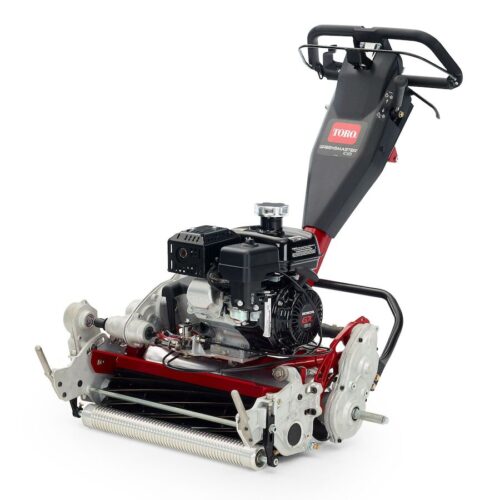

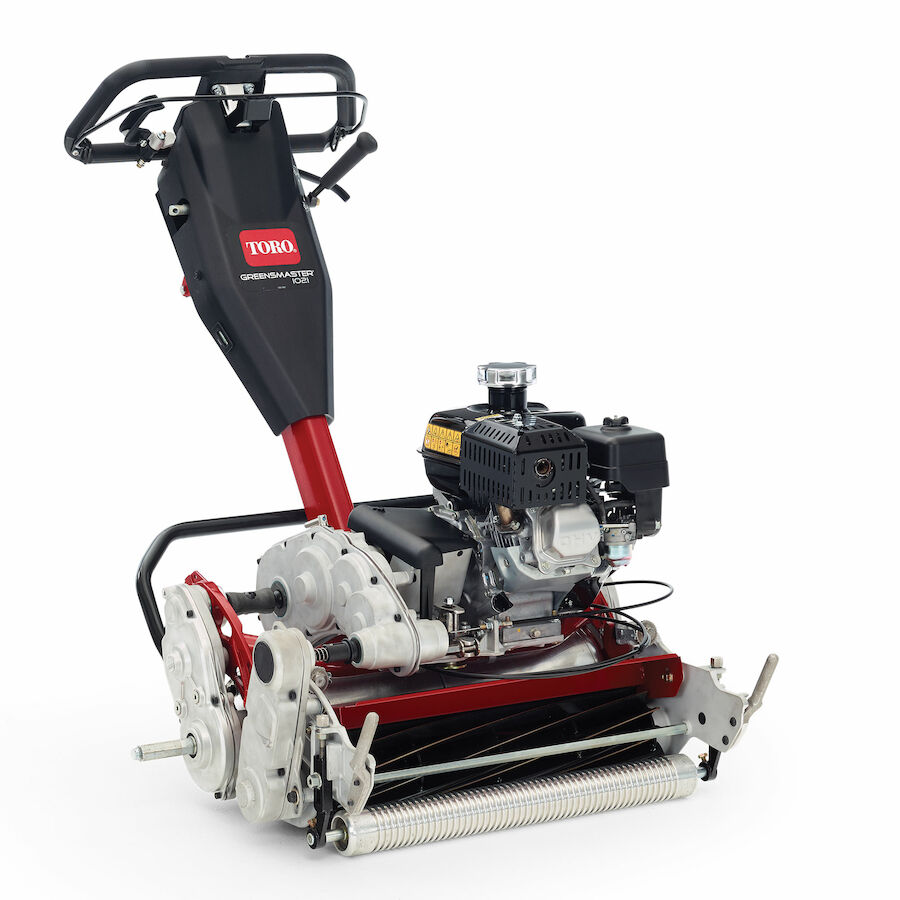

Toro Greensmaster® 1018 Walk Behind Greens Mower

Model: 04820
Toro

Toro Greensmaster® 1018 Walk Behind Greens Mower

Model: 04820
Toro

The Toro Greensmaster 1018 is the 45.7 cm (18″) walk-behind in the fixed-head 1000 Series. The narrower swath tracks undulations more closely and is the one to spec when greens are tight or you want a finer stripe.

Same Honda GX120 (3.5 hp / 2.6 kW), telescoping loop handle and modular gear-drive layout as the rest of the series. The 1018 ships with a 14-blade EdgeSeries DPA reel for a smooth, consistent cut and ball roll at very low heights of cut.

Onboard backlapping is not offered on the 1018; that option is on the 1021 and 1026. Dual-position traction drum and swing-axle greens-to-tees conversion are standard.

Fleet Finance & Leasing Options Talk to us today 0800 807 333
Enquire Call 0800 807 333
Talk to a rep Find a Store

Compare the Greensmaster 1018/1021/1026 Series

7 of 32 specs differ
Specification Greensmaster® 1018 Viewing Greensmaster® 1021 Greensmaster® 1026
Featured specs
Cutting Width 46 cm (18") 53 cm (21") 66 cm (26")
Number of Blades 14 8, 11 or 14 8 or 11
Height of Cut Range For greens (drum position one): 1.5 mm - 8.0 mm (0.062" - 0.312"). For tees (drum position two): 6.0 mm - 16.0 mm (0.25" - 0.625"). High height of cut kit (drum position two): 30 mm (1.18"). For greens (drum position one): 1.5 mm - 8.0 mm (0.062" - 0.312"). For tees (drum position two): 6.0 mm - 16.0 mm (0.25" - 0.625"). High height of cut kit (drum position two): 30 mm (1.18"). For greens (drum position one): 1.5 mm - 8.0 mm (0.062" - 0.312"). For tees (drum position two): 6.0 mm - 16.0 mm (0.25" - 0.625"). High height of cut kit (drum position two): 30 mm (1.18").
Weight 98 kg (217 lbs) with 14-blade cutting unit, aluminium Wiehle roller. 100 kg (224 lbs) with 11-blade cutting unit, aluminium Wiehle roller. 108.8 kg (240 lbs) with 11-blade cutting unit, aluminium Wiehle roller.
Engine & Drivetrain
Power Train (Engine Description) Honda® GX120 - 3.5 hp (2.6 kW) @3600 rpm, gasoline with integral lighting coil. Honda® GX120 - 3.5 hp (2.6 kW) @3600 rpm, gasoline with integral lighting coil. Honda® GX120 - 3.5 hp (2.6 kW) @3600 rpm, gasoline with integral lighting coil.
Cooling System Air cooled Air cooled Air cooled
Fuel Type Gasoline Gasoline Gasoline
Fuel Capacity 2.1 U.S. qt. (2 L) 2.1 U.S. qt. (2 L) 2.1 U.S. qt. (2 L)
Start Type Recoil Recoil Recoil
Drivetrain Gas Gas Gas
Cutting System
Blade Type (Description) EdgeSeries™ DPA radial reels. EdgeSeries™ DPA radial reels. EdgeSeries™ DPA radial reels.
Reel Diameter 12.7 cm (5") 12.7 cm (5") 12.7 cm (5")
Reel/Cylinder Drive Mechanical/Belt Mechanical/Belt Mechanical/Belt
Clip Frequency/Backlapping Quick-change dual-speed gear drive, combined with positive drive belt - four possible reel speed/clip settings. Quick-change dual-speed gear drive, combined with positive drive belt - four possible reel speed/clip settings. Backlapping optional. Quick-change dual-speed gear drive, combined with positive drive belt - four possible reel speed/clip settings. Backlapping optional.
Cutting Unit Type/Configuration Single detachable cutting unit allows easy removal for service / maintenance or cutting unit exchange for different uses. Single detachable cutting unit allows easy removal for service / maintenance or cutting unit exchange for different uses. Single detachable cutting unit allows easy removal for service / maintenance or cutting unit exchange for different uses.
Traction Drum Dual position traction drum with positions for contour following or forward weight bias at higher heights of cut. Dual position traction drum with positions for contour following or forward weight bias at higher heights of cut. Dual position traction drum with positions for contour following or forward weight bias at higher heights of cut.
Cutting Unit Accessories Roller Options, Scraper/Brush Options, Groomer Options, Bedknife Options, Tools and Maintenance Options. 8, 11, 14-Blade DPA Cutting Unit, Roller Options, Groomer Options, Scraper/Brush Options, Bedknife Options, Tools and Maintenance Options. 8, 11-Blade DPA Cutting Unit, Roller Options, Groomer Options, Scraper/Brush Options, Bedknife Options, Tools and Maintenance Options.
Bedknife Adjustment Dual point adjustment (DPA) of bedknife to reel. — —
Traction & Steering
Traction Drive Gear Gear Gear
Traction Drive (System) Full gear drive transmission with integral traction differential and traction drive disconnect to ease movement during service / maintenance operations. Interchangeable drum drive gear cases. Full gear drive transmission with integral traction differential and traction drive disconnect to ease movement during service / maintenance operations. Interchangeable drum drive gear cases. Full gear drive transmission with integral traction differential and traction drive disconnect to ease movement during service / maintenance operations. Interchangeable drum drive gear cases.
Clutch Externally-mounted two sided dry disc clutch actuated by dual motion bail. Externally-mounted two sided dry disc clutch actuated by dual motion bail. Externally-mounted two sided dry disc clutch actuated by dual motion bail.
Controls Engine mounted: recoil starter, choke, fuel shutoff. Handle mounted: on/off switch, throttle lever, dual motion traction / safety bail, reel engage lever, service/park brake lever, hour meter, light switch (optional). Engine mounted: recoil starter, choke, fuel shutoff. Handle mounted: on/off switch, throttle lever, dual motion traction / safety bail, reel engage lever, service/park brake lever, hour meter, light switch (optional). Engine mounted: recoil starter, choke, fuel shutoff. Handle mounted: on/off switch, throttle lever, dual motion traction / safety bail, reel engage lever, service/park brake lever, hour meter, light switch (optional).
Parking/Service Brakes Service / parking, band type. Service / parking, band type. Service / parking, band type.
Mowing Speed 3.2 to 5.6 km/h (2.0 to 3.5 mph) 3.2 to 5.6 km/h (2.0 to 3.5 mph) 3.2 to 5.6 km/h (2.0 to 3.5 mph)
Forward Ground/Transport Speed 0 - 8.5 km/h (0 - 5.3 mph) 0 - 8.5 km/h (0 - 5.3 mph) 0 - 8.5 km/h (0 - 5.3 mph)
Tyres - Rear Optional - two quick-detachable pneumatic tyres (3" x 3.25" - 6") Optional - two quick-detachable pneumatic tyres (3" x 3.25" - 6") Optional - two quick-detachable pneumatic tyres (3" x 3.25" - 6")
Comfort & Operator Station
Handle Type Loop handle with telescoping adjustment with 12.7 cm (5") total travel, rubber isolated to minimise operator influence during mowing. Loop handle with telescoping adjustment with 12.7 cm (5") total travel, rubber isolated to minimise operator influence during mowing. Loop handle with telescoping adjustment with 12.7 cm (5") total travel, rubber isolated to minimise operator influence during mowing.
Electrical & Instruments
Lighting Optional Optional Optional
Frame & Chassis
Main Frame/Chassis Fully modular design allows quick disassembly for service / maintenance of all major components. Fully modular design allows quick disassembly for service / maintenance of all major components. Fully modular design allows quick disassembly for service / maintenance of all major components.
Safety & Compliance
Certification Designed in accordance to applicable ANSI and CE specifications. Designed in accordance to applicable ANSI and CE specifications. Designed in accordance to applicable ANSI and CE specifications.
Warranty
Warranty Two-year limited warranty Two-year limited warranty Two-year limited warranty
Accessories
Optional Accessories LED Light Kit, Cutting Unit Light Kit Mount, Push Broom Kit, Backlap Access Kit, Wireless Hour Meter Kit, High Height of Cut Bracket, Wheel Kit LED Light Kit, Cutting Unit Light Kit Mount, Push Broom Kit, Backlap Access Kit, Backlap Kit, Wireless Hour Meter Kit, High Height of Cut Bracket, Wheel Kit LED Light Kit, Cutting Unit Light Kit Mount, Push Broom Kit, Backlap Access Kit, Backlap Kit, Wireless Hour Meter Kit, High Height of Cut Bracket, Wheel Kit

Features

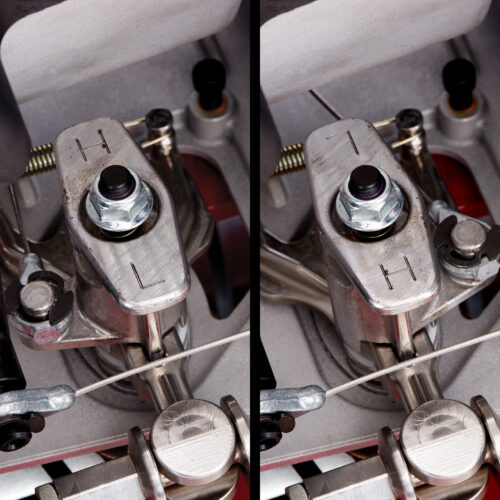

Greensmaster® 1026 - Hi-Lo Clip Rate Knob

Hi-Lo Clip Rate Knob

Clip frequency can easily be changed in the field to mow the perimeter, collars etc. The quick-change feature also can be locked out for added control.

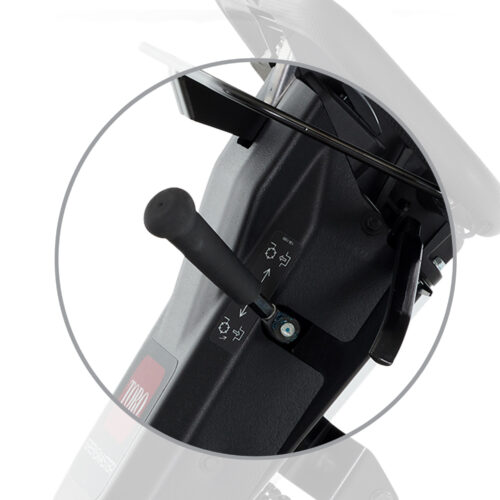

Greensmaster® e1026 - Reel Engagement Lever

Reel Engagement Lever

Convenient, easy to reach location to engage reel from the operator position.

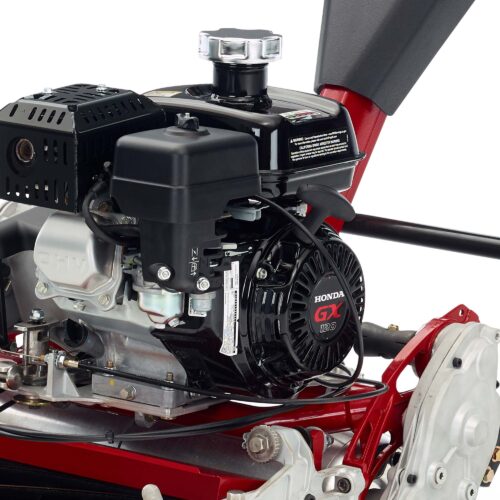

Greensmaster® 1026 - Proven Honda® GX 120 Engine

Proven Honda® GX 120 Engine

3.5 HP (at 3600 RPM) Honda engine with ample power for cutting and accessorizing.

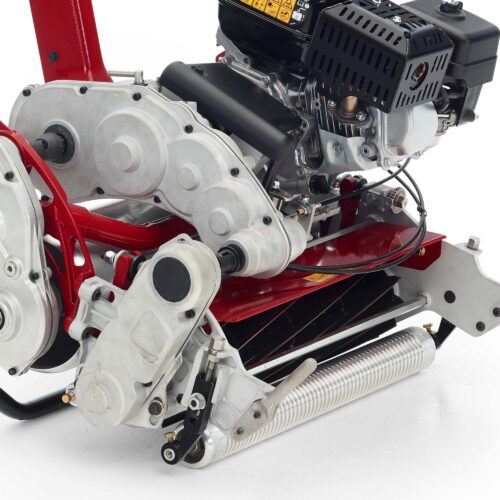

Greensmaster® 1026 - Durable Gear Drive Transmission

Durable Gear Drive Transmission

Provides long life and best-in-class transmission durability. Lubricated for life, no grease points.

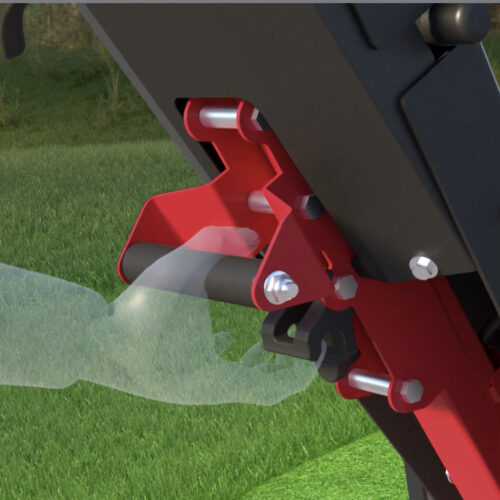

Greensmaster® 1026 - Telescoping Handle

Telescoping Handle

Engineered to accommodate operators of different heights, for mowing in a natural upright position. Leads to less fatigue and a superior cut. Adjustable to 5 distinct handle positions.

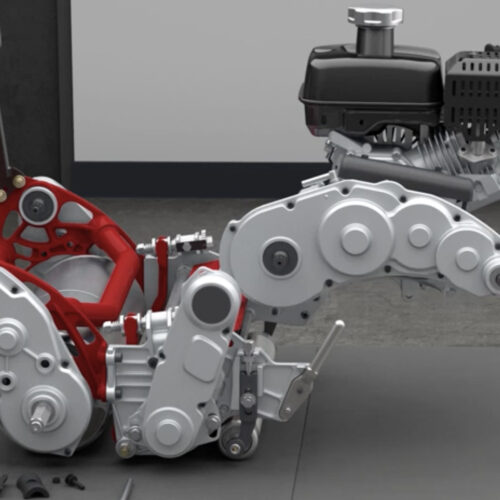

Greensmaster® 1026 - Modular Sub-Assembly Design

Modular Sub-Assembly Design

Make repairs simple and quick. The engine , transmission, drum or cutting unit sub-assemblies can be easily removed for timely and cost effective replacement or repair.

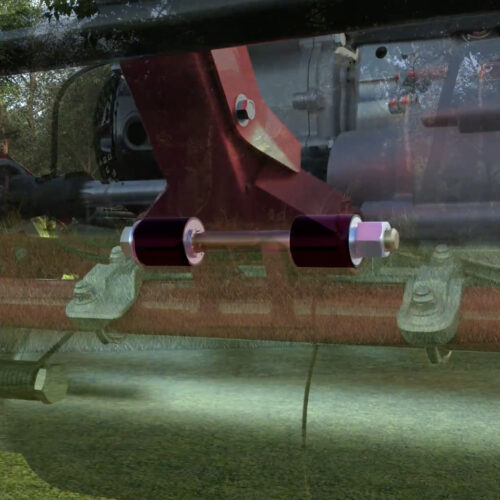

Greensmaster® 1026 - Handle Isolation Mounts

Handle Isolation Mounts

Two rubber grommets eliminate minor oscillations in Height-of-Cut caused by walking strides. Delivers a consistent cutting height on each and every green for optimal playability.

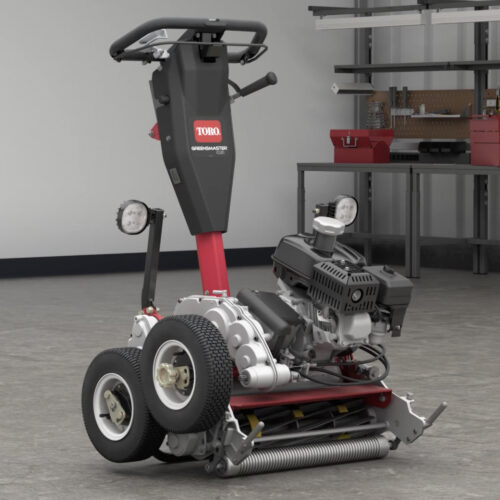

Greensmaster® 1026 - Onboard Back-Lapping Option

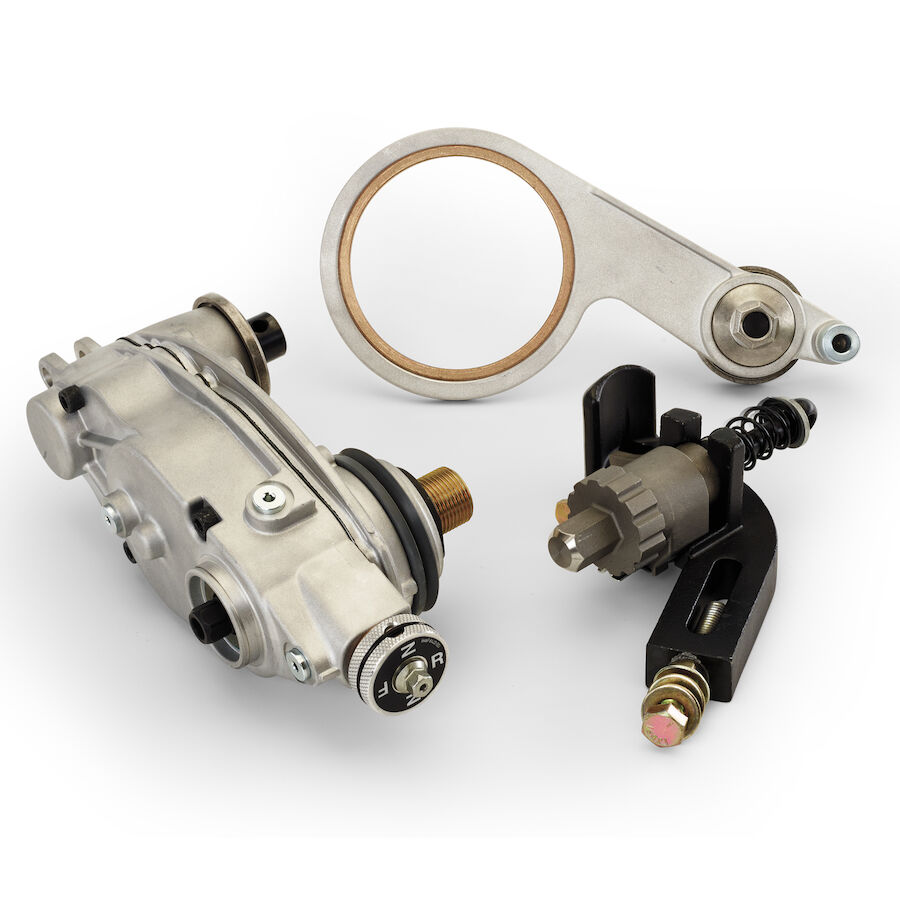

Onboard Back-Lapping Option

The entire Greensmaster 1000 Series fleet can be back-lapped simultaneously without additional motors or bench tools. (Available on the GR 1021 and 1026 only).

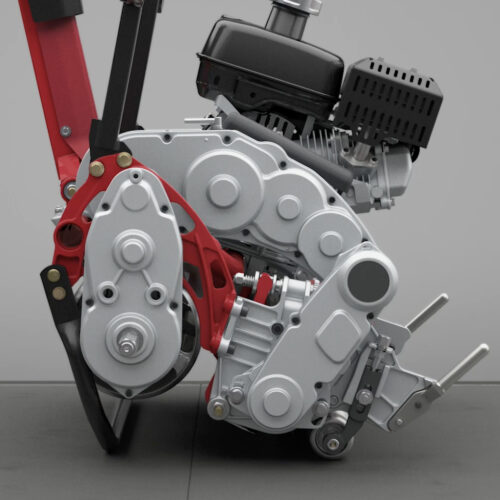

Greensmaster® 1026 - Simple Conversion from Greens to Tees

Simple Conversion from Greens to Tees

The innovative swing axle design can quickly convert the machine from a Greens to a Tee mower by keeping the bedknife cutting edge in an optimal position for the respective cutting height and the handle location in the correct ergonomic position.

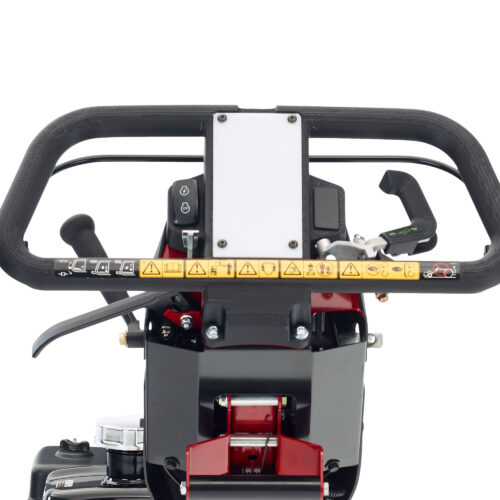

Greensmaster® 1026 - Easy-Reach Adjustable Throttle

Easy-Reach Adjustable Throttle

All operator controls are within easy reach to perfect the mowing process, improve cut consistency, and enhance control – in normal and tight turn-around situations.

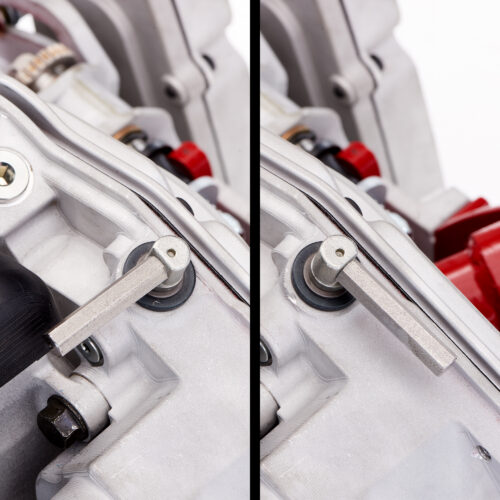

Greensmaster® 1026 - Traction Release Lever

Traction Release Lever

Disengage the traction with a simple lever twist. Getting around the shop has never been easier!

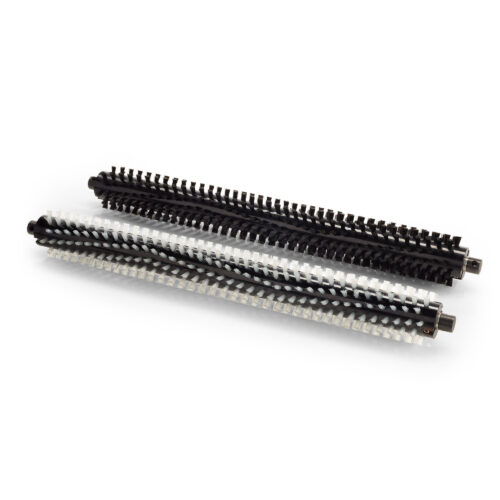

Greensmaster® 1026 - Standard or Interlaced Grooming

Standard or Interlaced Grooming

Numerous quick-change options and accessories are available to help customize the cut and aftercut appearance.

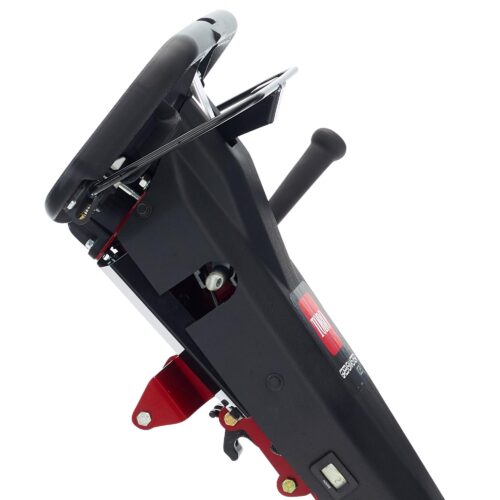

Greensmaster® 1026 - Dual Function Bail

Dual Function Bail

A single bail combines safety and ease-of-operation. Convenient operation allows the mower to slow down or come to a full stop during turn-arounds without disengaging traction to line up for next mowing pass. Also ideal when using turn-around mats to preserve collar health.

Full Description

The Toro Greensmaster 1018 is the 45.7 cm (18″) walk-behind in the fixed-head 1000 Series. The narrower swath tracks undulations more closely and is the one to spec when greens are tight or you want a finer stripe.

Same Honda GX120 (3.5 hp / 2.6 kW), telescoping loop handle and modular gear-drive layout as the rest of the series. The 1018 ships with a 14-blade EdgeSeries DPA reel for a smooth, consistent cut and ball roll at very low heights of cut.

Onboard backlapping is not offered on the 1018; that option is on the 1021 and 1026. Dual-position traction drum and swing-axle greens-to-tees conversion are standard.

Specifications

Engine & Drivetrain

Power Train (Engine Description) Honda® GX120 - 3.5 hp (2.6 kW) @3600 rpm, gasoline with integral lighting coil.
Cooling System Air cooled
Fuel Type Gasoline
Fuel Capacity 2.1 U.S. qt. (2 L)
Start Type Recoil
Drivetrain Gas

Cutting System

Cutting Width 46 cm (18")
Number of Blades 14
Blade Type (Description) EdgeSeries™ DPA radial reels.
Reel Diameter 12.7 cm (5")
Reel/Cylinder Drive Mechanical/Belt
Height of Cut Range For greens (drum position one): 1.5 mm - 8.0 mm (0.062" - 0.312"). For tees (drum position two): 6.0 mm - 16.0 mm (0.25" - 0.625"). High height of cut kit (drum position two): 30 mm (1.18").
Clip Frequency/Backlapping Quick-change dual-speed gear drive, combined with positive drive belt - four possible reel speed/clip settings.
Cutting Unit Type/Configuration Single detachable cutting unit allows easy removal for service / maintenance or cutting unit exchange for different uses.
Traction Drum Dual position traction drum with positions for contour following or forward weight bias at higher heights of cut.
Cutting Unit Accessories Roller Options, Scraper/Brush Options, Groomer Options, Bedknife Options, Tools and Maintenance Options.
Bedknife Adjustment Dual point adjustment (DPA) of bedknife to reel.

Traction & Steering

Traction Drive Gear
Traction Drive (System) Full gear drive transmission with integral traction differential and traction drive disconnect to ease movement during service / maintenance operations. Interchangeable drum drive gear cases.
Clutch Externally-mounted two sided dry disc clutch actuated by dual motion bail.
Controls Engine mounted: recoil starter, choke, fuel shutoff. Handle mounted: on/off switch, throttle lever, dual motion traction / safety bail, reel engage lever, service/park brake lever, hour meter, light switch (optional).
Parking/Service Brakes Service / parking, band type.
Mowing Speed 3.2 to 5.6 km/h (2.0 to 3.5 mph)
Forward Ground/Transport Speed 0 - 8.5 km/h (0 - 5.3 mph)

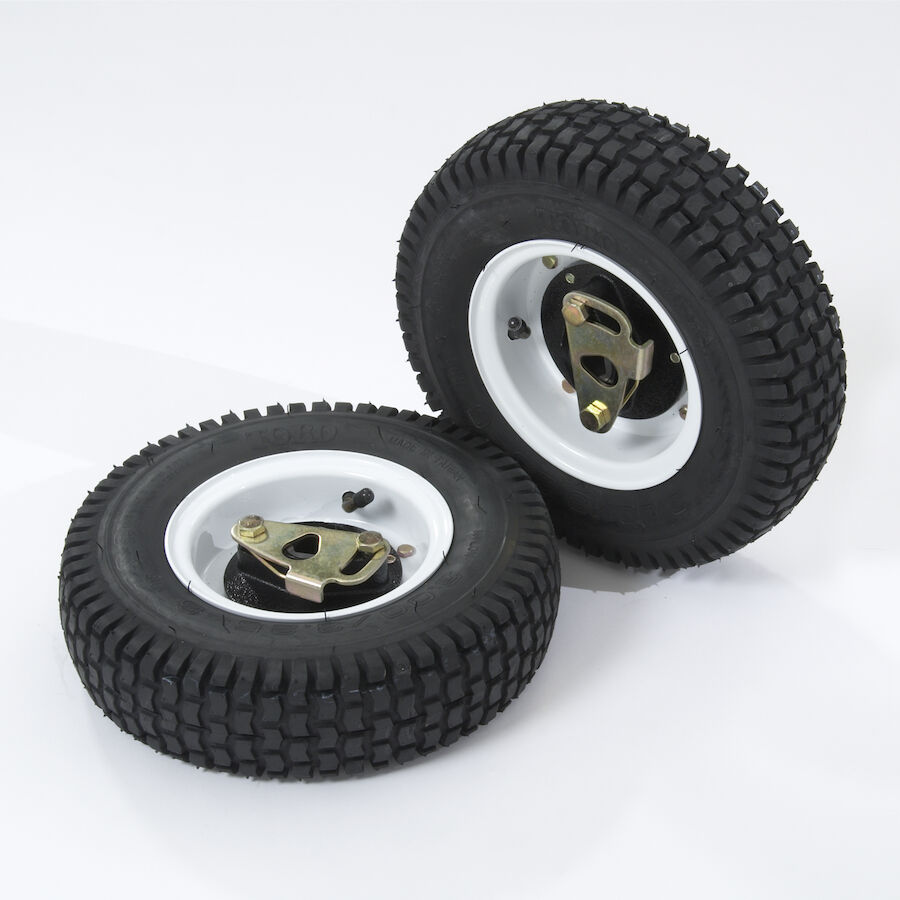

Tyres - Rear Optional - two quick-detachable pneumatic tyres (3" x 3.25" - 6")

Comfort & Operator Station

Handle Type Loop handle with telescoping adjustment with 12.7 cm (5") total travel, rubber isolated to minimise operator influence during mowing.

Electrical & Instruments

Lighting Optional

Frame & Chassis

Main Frame/Chassis Fully modular design allows quick disassembly for service / maintenance of all major components.

Dimensions & Weight

Weight 98 kg (217 lbs) with 14-blade cutting unit, aluminium Wiehle roller.

Safety & Compliance

Certification Designed in accordance to applicable ANSI and CE specifications.

Warranty

Warranty Two-year limited warranty

Accessories

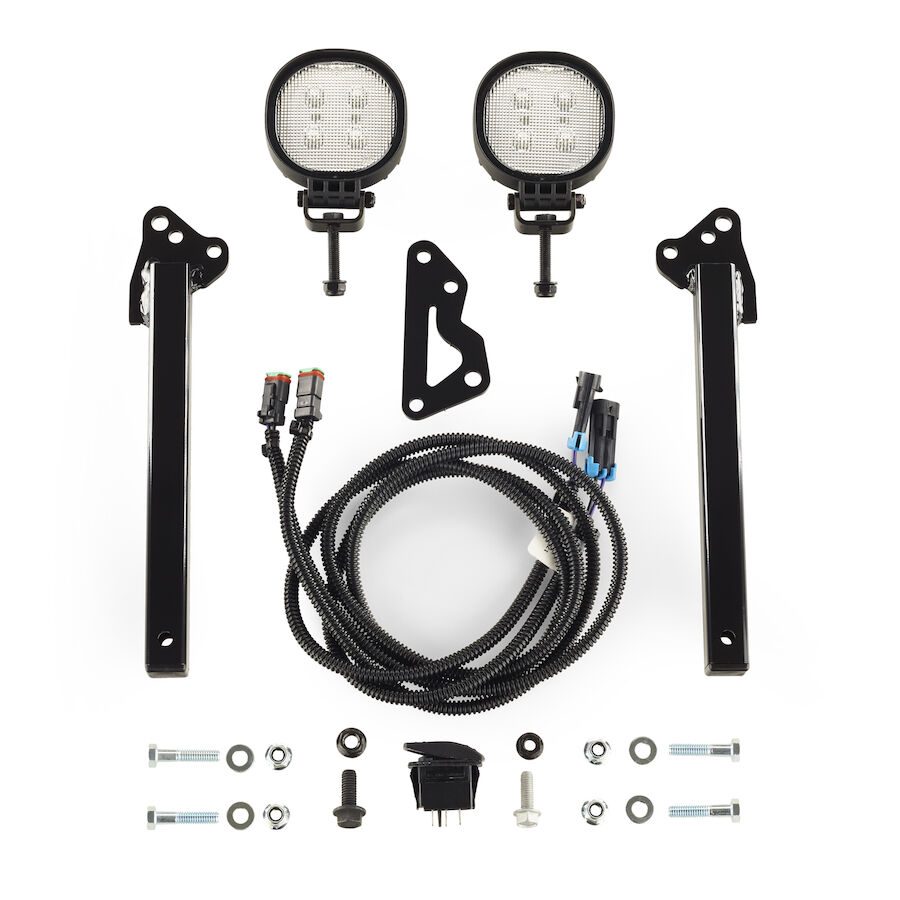

Optional Accessories LED Light Kit, Cutting Unit Light Kit Mount, Push Broom Kit, Backlap Access Kit, Wireless Hour Meter Kit, High Height of Cut Bracket, Wheel Kit

Brochures, Parts & Manuals

Parts Search

You will need your Serial # to search for Parts, Manuals, Accessories, Specifications and Product Details on Toro.com .

ToroParts for Model: 04820 Need Help? Contact Us

Frequently Asked Questions

What’s the difference between the Greensmaster 1018, 1021 and 1026?

All three are fixed-head walk-behind greens mowers in Toro’s 1000 Series, with the same Honda GX120 (3.5 hp / 2.6 kW), telescoping loop handle and modular gear-drive layout. The difference is cutting width, reel options and backlapping.

  • Greensmaster 1018 (04820): 45.7 cm (18″) cut, 14-blade reel. Narrower swath for undulations and tight greens. Onboard backlapping is not available.
  • Greensmaster 1021 (04830): 53.3 cm (21″) cut, 8, 11 or 14-blade reels. Onboard backlapping is optional.
  • Greensmaster 1026 (04840): 66 cm (26″) cut, 8 or 11-blade reels. Wider swath for productivity. Onboard backlapping is optional.

Not sure which to spec? Call 0800 807 333.

How can mulching improve my lawn’s soil and reduce water usage?

Mulched grass clippings improve soil structure by adding organic matter, which enhances the soil’s water absorption by up to 12%. This means less water is needed to keep your lawn healthy, making mulching a great choice in areas with water restrictions. Toro mowers with Vortex Technology increase airflow to the deck, ensuring clippings decompose quickly and effectively.

How does mulching help control weeds?

Mulching with Toro’s Recycler® Technology creates a natural barrier that helps prevent weed seeds from reaching the soil, reducing the chances of weed growth. Regular mulching also promotes thicker, healthier grass, which can outcompete weeds, further minimizing their spread​.

NOTE: If your lawn already has large sections of weeds, mulching could inadvertently spread weed seeds. In such cases, it’s better to bag the clippings to avoid spreading those weeds to other areas. Once the weeds are under control, you can return to mulching to promote a healthier lawn​.

What are the benefits of using a mulching mower, and how does it improve lawn health?

Mulching mowers, like those from Toro, help recycle grass clippings back into your lawn, providing nutrients and reducing the need for fertilizer. Studies show that mulched clippings can reduce nitrogen fertilizer usage by up to 50% since the nitrogen from the clippings is slowly released back into the soil. Toro’s Recycler® Technology finely chops the grass, creating “Lawn Vitamins” that naturally enrich your lawn’s soil​.
