Toro TransPro 80 Greens Mower Trailer

Model: 04238
Toro

Toro TransPro 80 Greens Mower Trailer

Model: 04238
Toro

TORO TransPro trailers are the safe and easy way to transport walk greens mowers to and from the mowing area. The unique trailer design protects your mower investment and keeps adjustments intact. The TransPro 80 transports a single Greensmaster with a Flat Ramp or Rail Ramp Kit. The TransPro 200 can transport two Greens Mowers (excluding the Greensmaster 1600 and 1026) to reduce time and increase productivity.

  • Safe Transport of Greens Mowers
  • Protects Adjustments
  • Easy to Load
  • Safely transport 1 walk greens mower
  • Rail ramp simplifies operation and reduces loading time by up to 50% – no need to mount mower transport wheels
  • Large trailer tires to cushion ride and help protect mower during transport
  • Rubber mat protects greens mower front rollers during transport, helping keep mower adjustments intact
  • Open design allows servicing and washdown while mower is on the trailer
  • Quick-lock device secures mower to the trailer for safe transport

REQUIRES either 04245 Flat Ramp Kit or 04247 Rail Ramp Kit (TransPro® 80).

Flat Ramp Kit (04245):Traditional flat loading ramps that allow walk mowers to be pushed or driven onto the TransPro® 80 trailer. Requires fitting transport wheels to the mower before loading.

Rail Ramp Kit (04247): Rail-style loading system designed for use with transport (donut) wheels, allowing faster, guided loading without needing to fit standard transport wheels. Improves efficiency and ease of use.

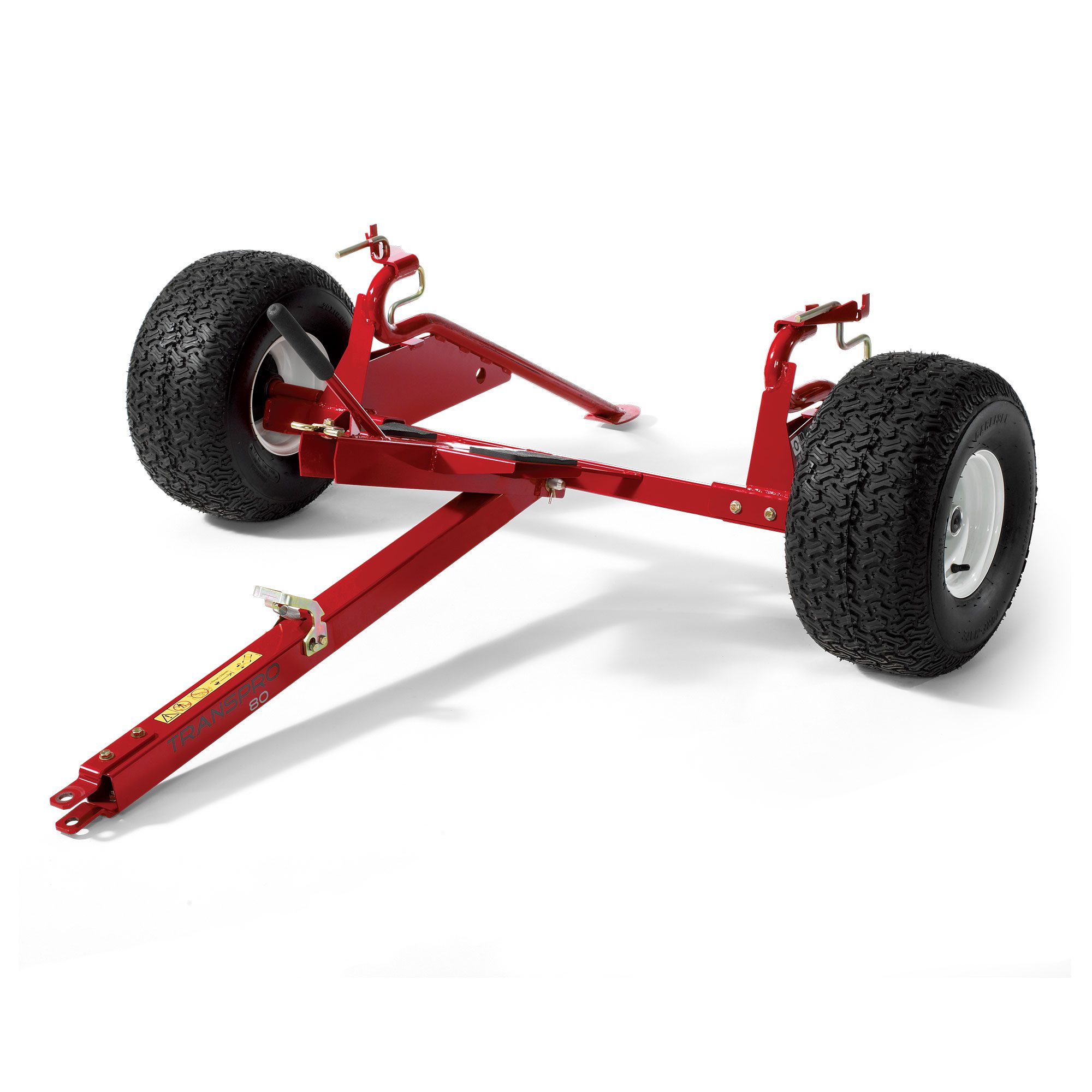

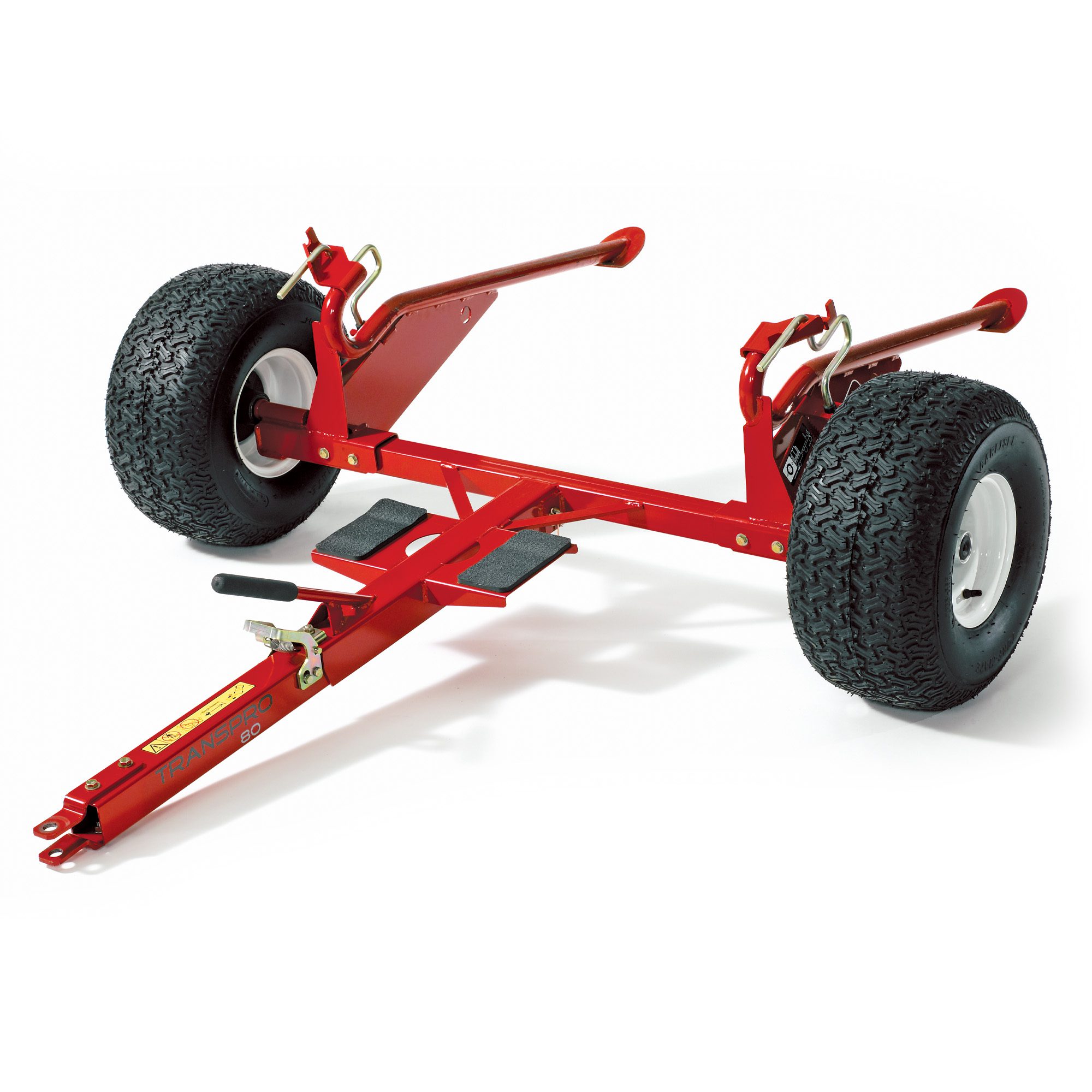

The rail version is shown in this picture

$3,340 incl. gst

2 in stock

Enquire
Talk to a rep Find a Store

Features

TransPro 80 Wheels - Greensmaster Trailer

Open Trailer Design

Allows for easy washdown of mowers without unloading.

TransPro 80 Wheels - Trailer

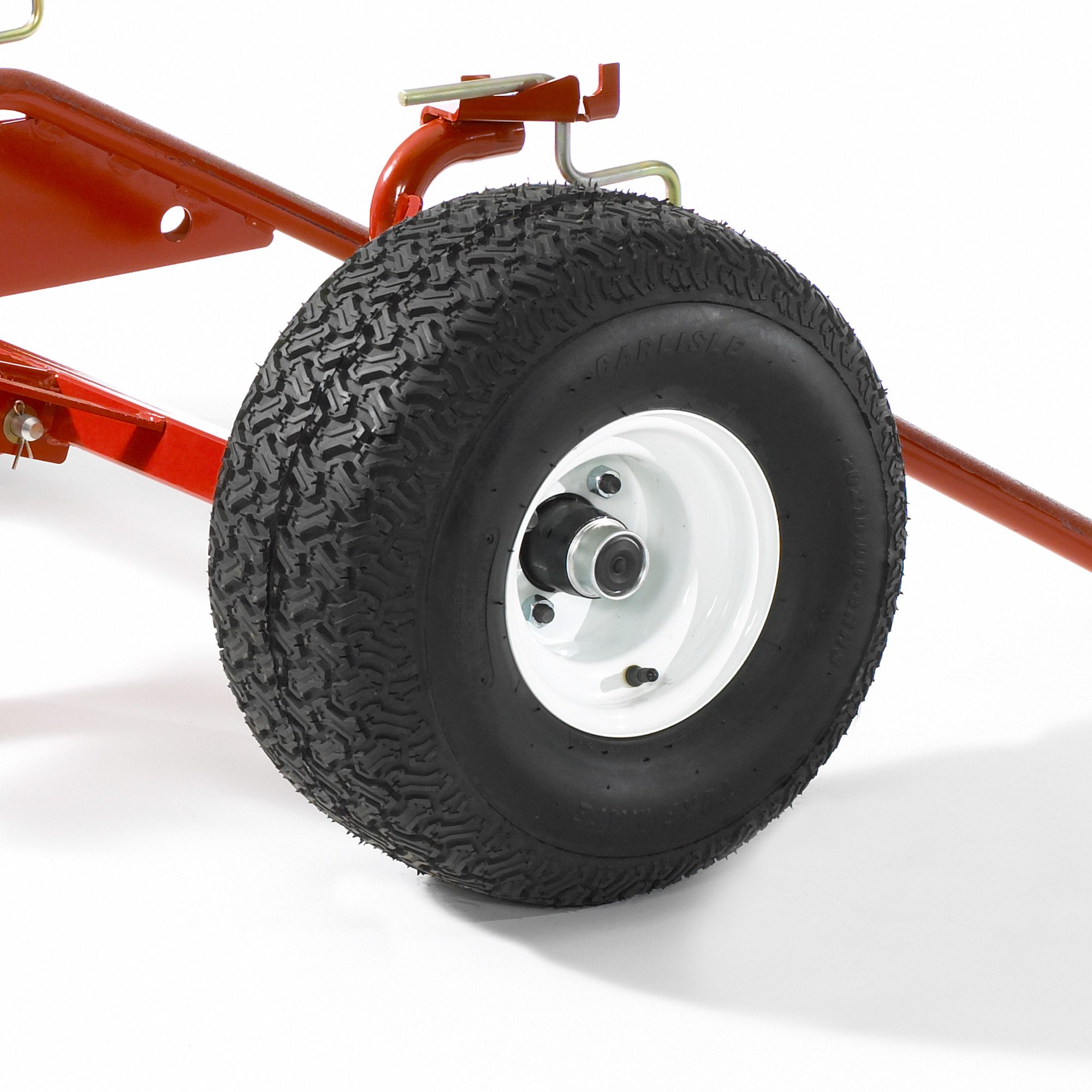

Low Pressure Tires

Large low pressure tires provide flotation to protect your mower.

TransPro 80 Wheels - Trailer

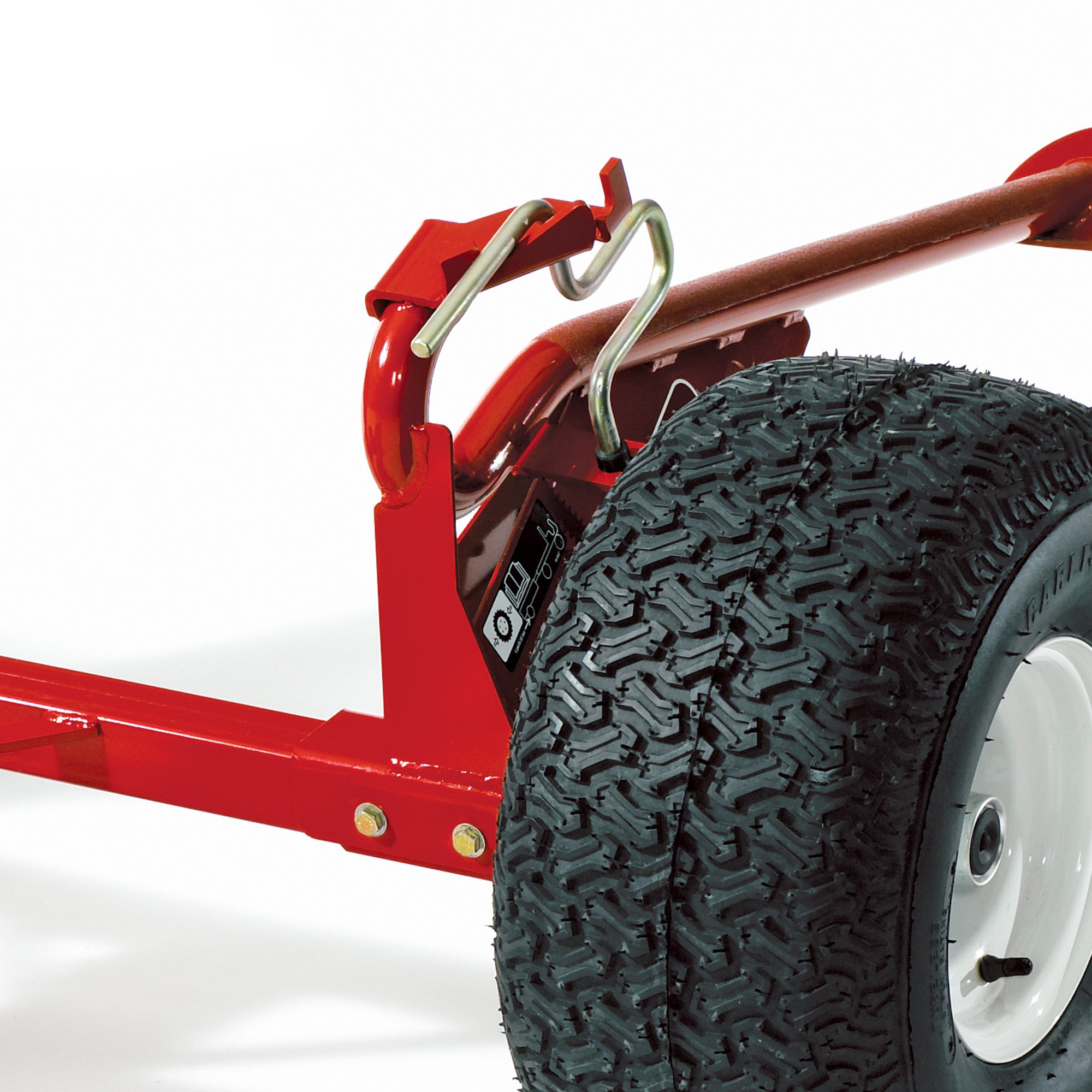

Quick-Lock Device

The device secures mower to the trailerfor safe transport.

Specifications

Accessories Flat Ramp Kit, Rail Ramp Kit, Hitch Kit, Extended Axle for Rail Ramp Using 04648 Groomer, Extended Axle Shaft, Bogey Wheel
Axles Heavy-duty stub. Maintenance-free sealed bearings.
Compatibility Easily adjustable to fit all Toro® walk greensmowers.
Finish Rust/corrosion-resistant paint
Height 19" (48.3 cm)
Hitch Pin release is incorporated into lift handle.
Length 81" (205.7 cm)
Load Capacity 400 lbs. (181.6 kg) including weight of trailer
Rail Textured loading rails for use in conjunction with smaller bogey (donut) wheels in place of transport tires.
Ramp Textured split ramp design with detented wheel retainers
Suspension Large low pressure tires (20 x 10 - 8)
Towing Designed to tow behind a utility vehicle; tongue height 7"-13" (18-33 cm); maximum tongue load 55 lbs. (25 kg).
Transport Speed Maximum of 15 mph (24 km/h)
Width 62" (157.5 cm)
