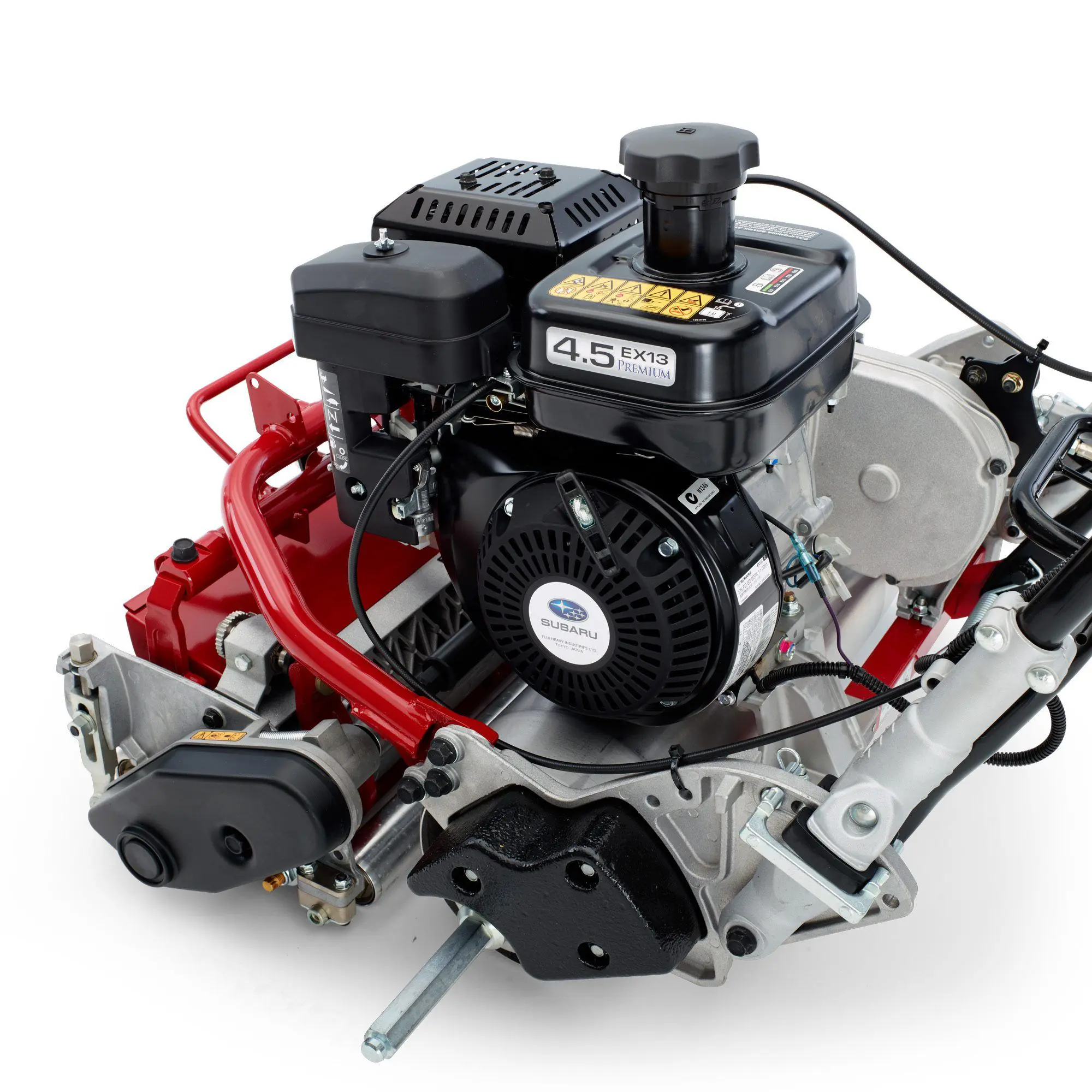

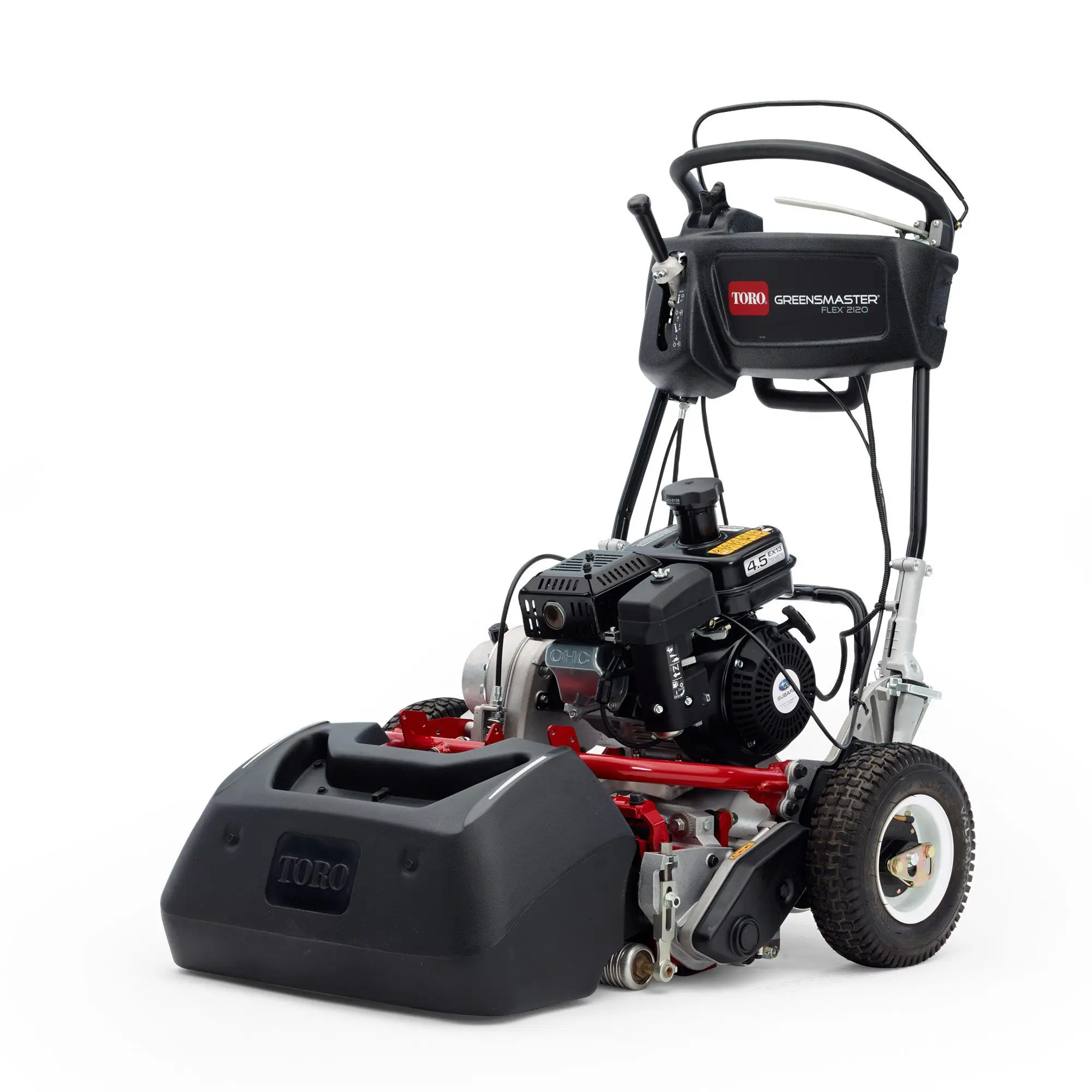

ENGINE | Subaru® Heavy-Duty Industrial, 4.3 HP (3.2 kW) @ 4000 rpm, OHC, 4-cycle, CARB, EPA, EU, China certified petrol engine with integral lighting coil. |
ENGINE DISPLACEMENT | 7.7 cu in. (126 cc). Cast iron cylinder sleeve. Electronic ignition. Maximum noise suppression muffler. |
FUEL CAPACITY | .79 gallons (3.0 litres) regular grade unleaded petrol. |
TRANSMISSION | Engine powered multi-disk clutch to the first stage of a multi-ribbed poly-V belt drive. The traction drums are belt driven through a spur gear planetary differential with integral band style service/parking brake. |
MAINTENANCE | No grease zerks, sealed bearing design reduces daily maintenance. |
GROUND SPEED | Mowing speed: 1.6-3.7 mph (2.5-5.9 km/h). Transport speed (maximum): 5.7 mph (9.2 km/h). |
TRACTION DRUM | Dual cast aluminium 7.5” (19 cm) diameter with taper on outer 2” (5 cm). |

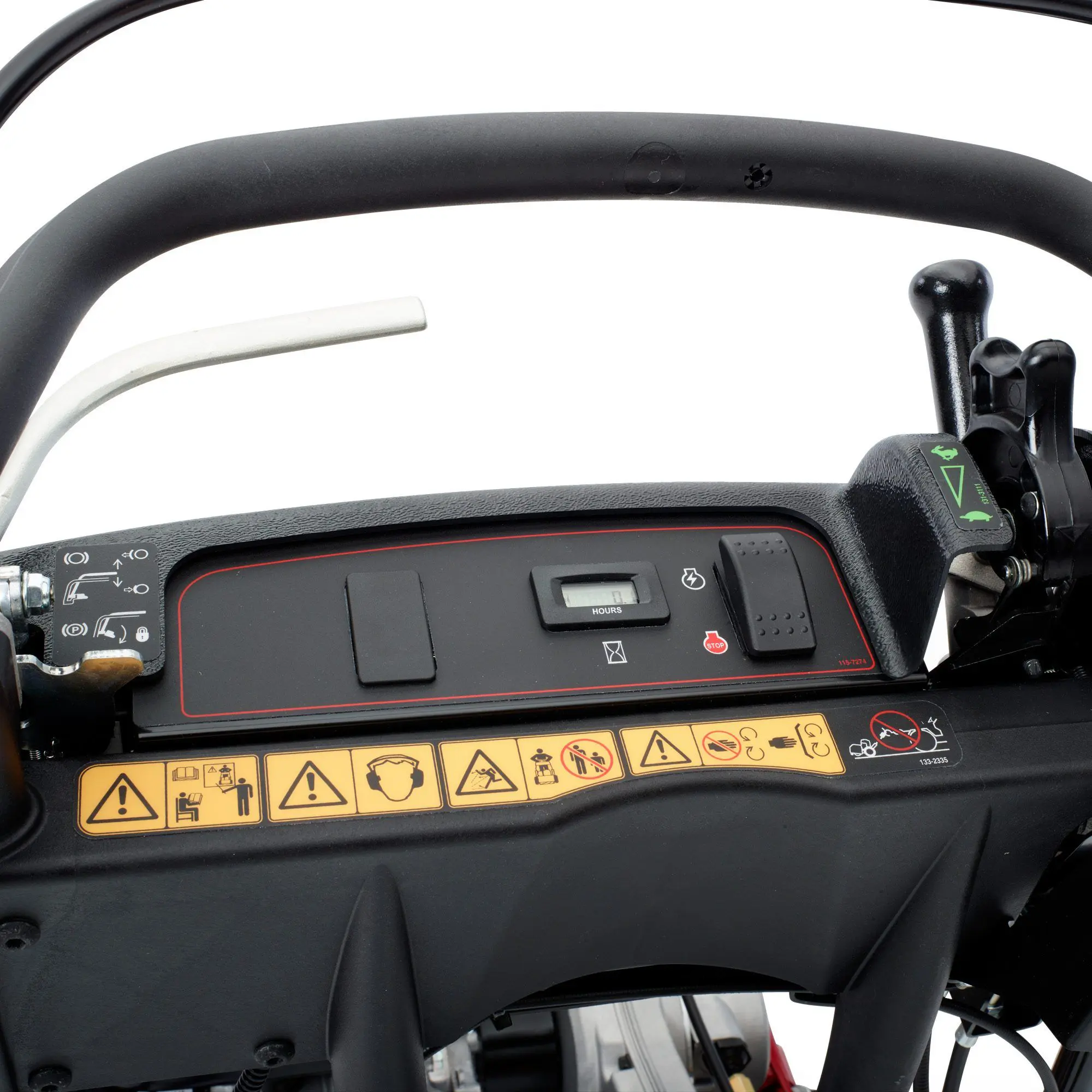

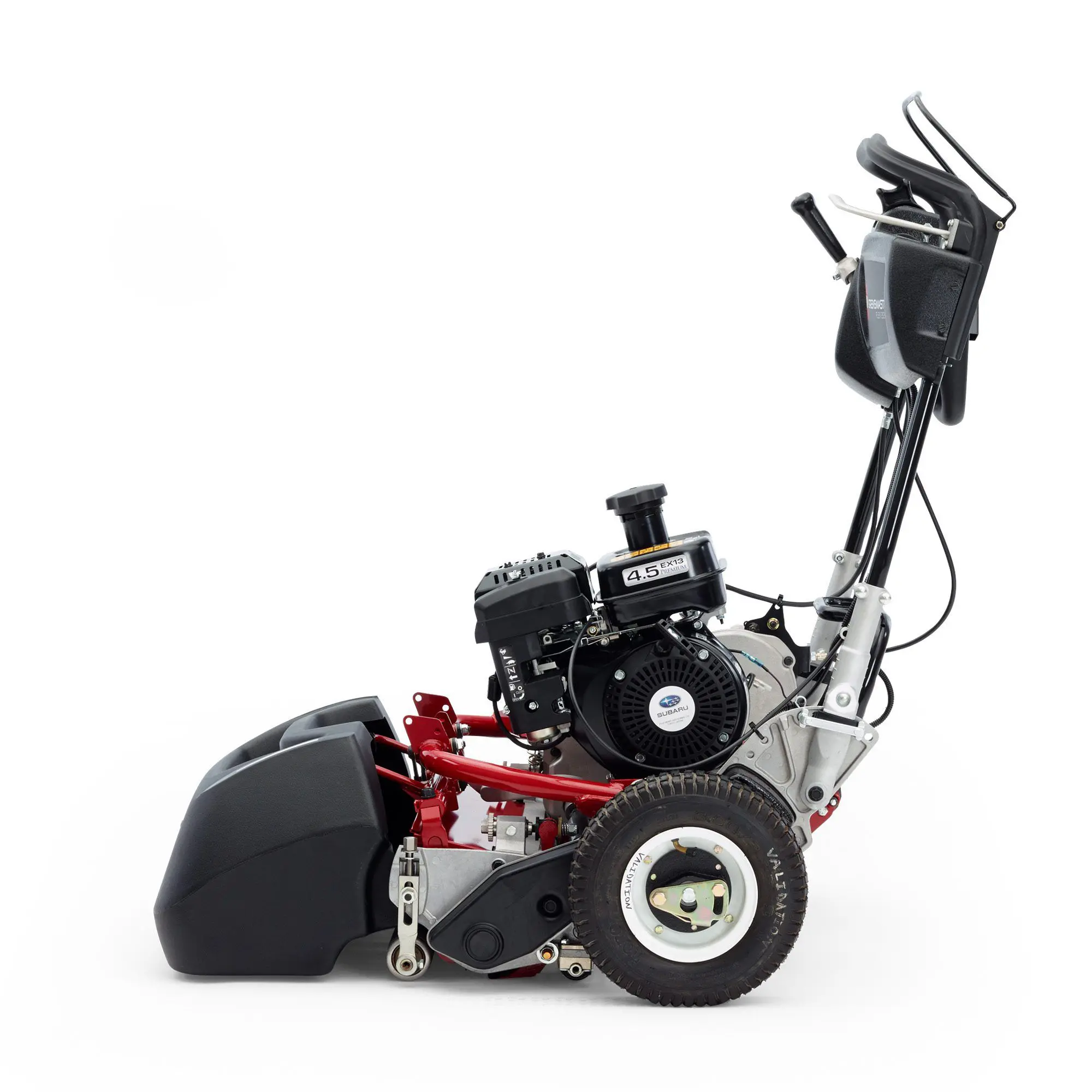

CONTROLS | Engine Controls: Recoil starter, choke, fuel shut-off. Handle Controls: on/off (‘ignition’) switch, hour meter, throttle, dual function traction/reel control lever, operator presence control, service/park brake lever, on/off light switch (optional blank slot in console). |
HANDLE | Loop style, molded contour upper, 1” (2.5 cm) diameter lower tube. Two angular adjustments and lift assist kickstand with 2.0 inches of telescoping adjustment. |
TRANSPORT TYRES/KICKSTAND | Quick detachable 3.00/3.25 x 6 pneumatic. Lift assist kickstand standard equipment. Loop style with service position lock, 1” (2.5 cm) diameter tube |

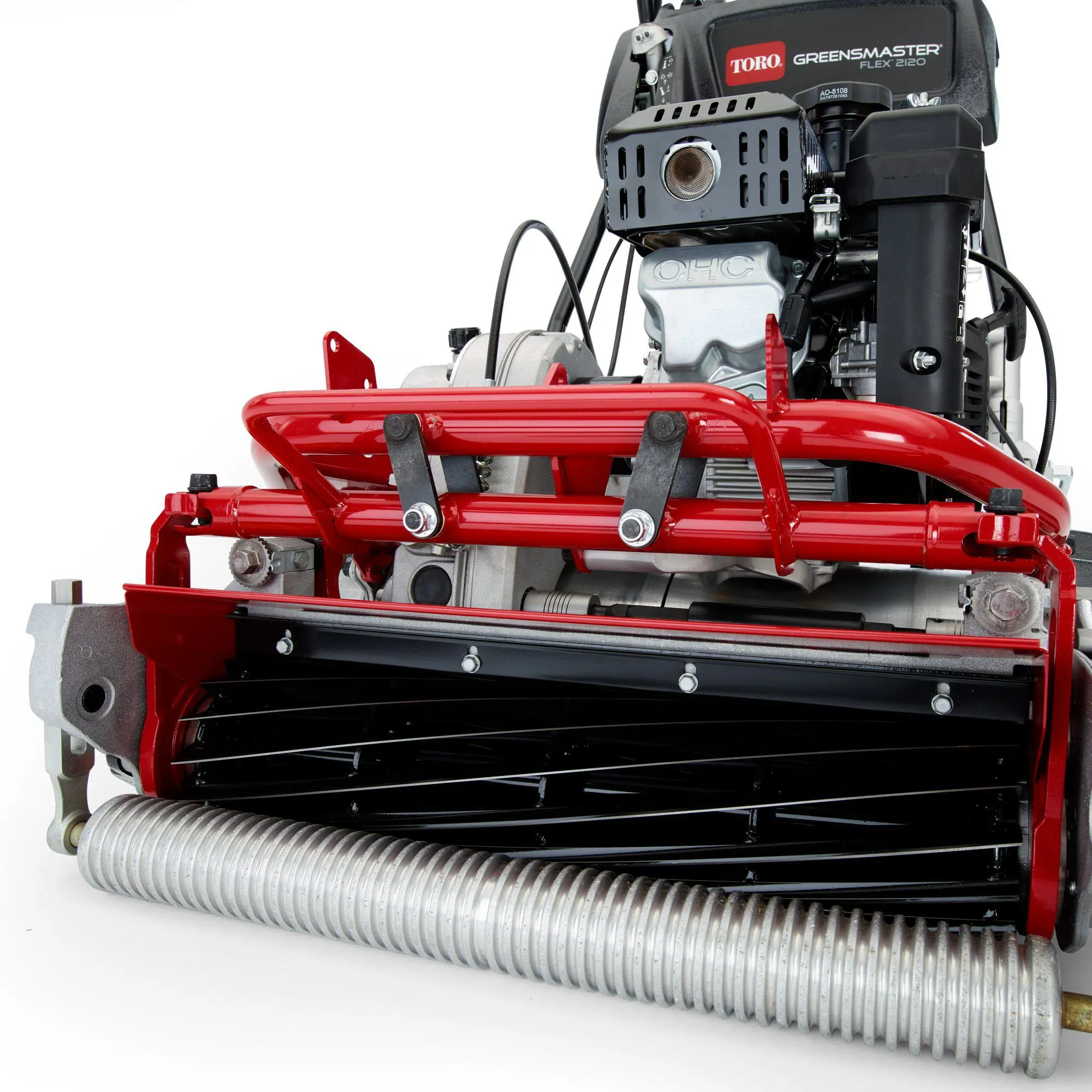

REEL CONSTRUCTION | 8-Blade Reel: 5” (12.7 cm) diameter, 8 high carbon steel blades welded to 5 steel spiders (no 8-blade, 18” available).
11-Blade Reel: 5” (12.7 cm) diameter, 11 high carbon steel blades welded to 5 steel spiders.
14-Blade Reel: 5” (12.7 cm) diameter, 14 high carbon steel blades welded to 5 steel spiders. |

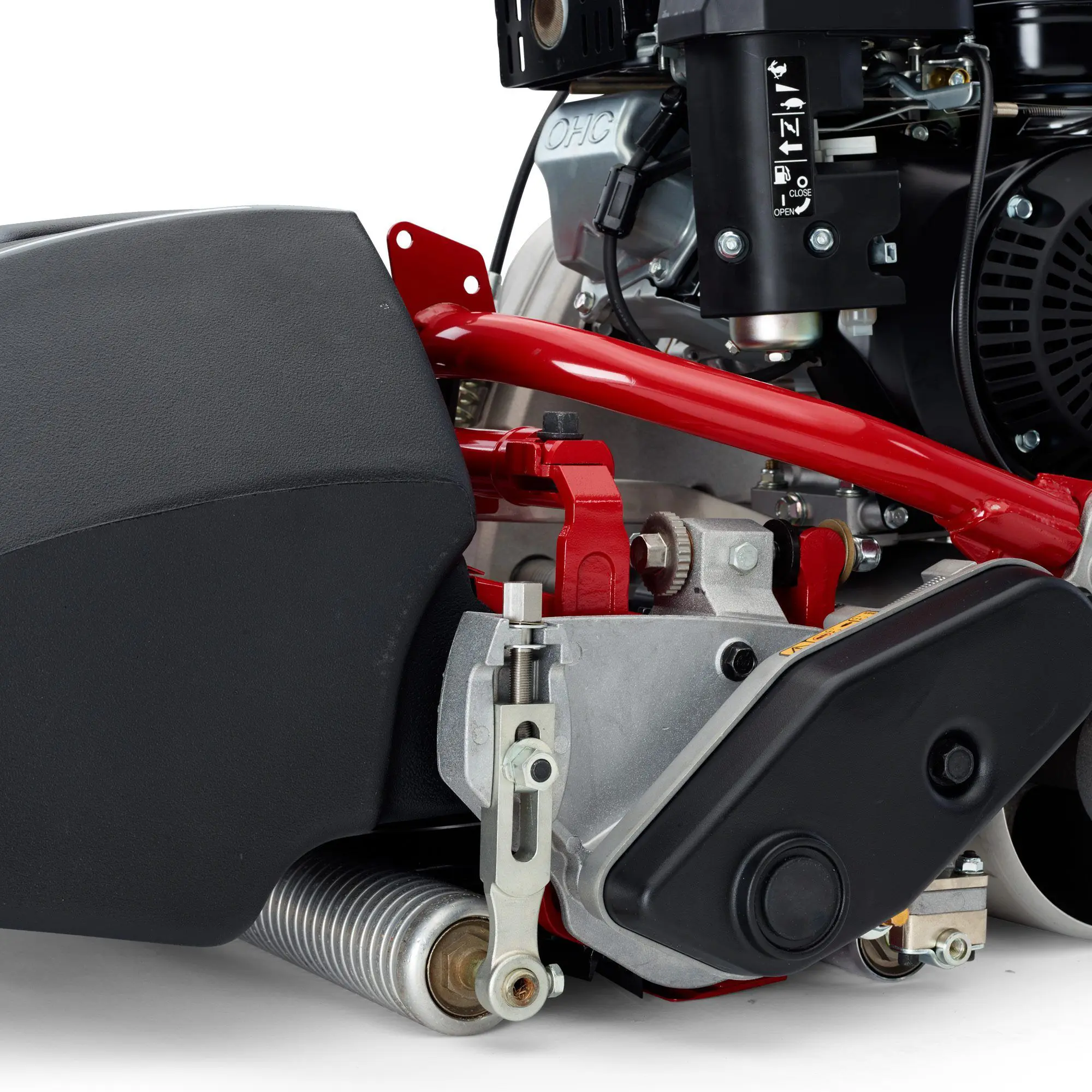

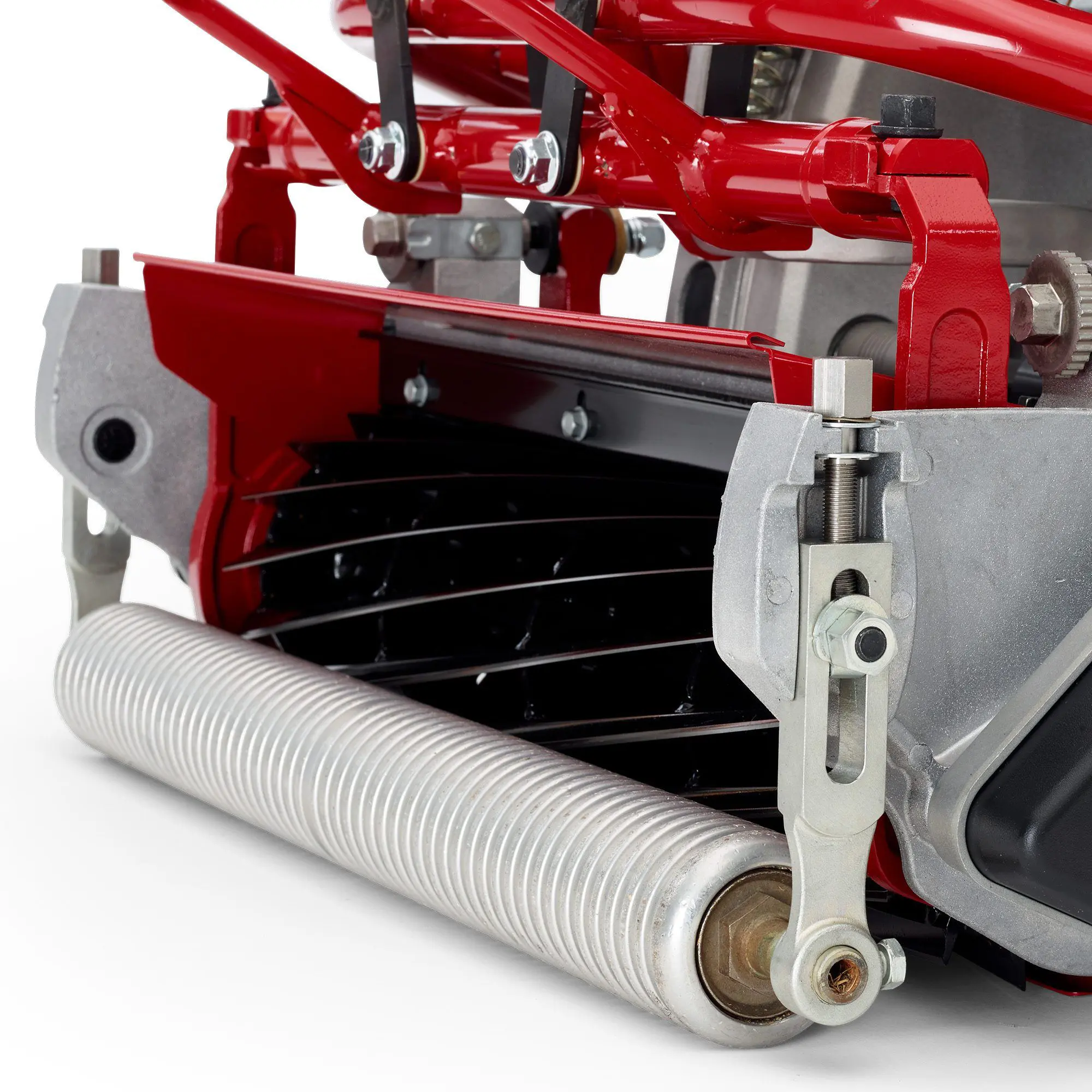

SUSPENSION | Semi-floating cutting unit separable from drive unit, pivoting around reel centerline (pitch axis) and pivoting around bedknife centerline side to side (roll axis) |
WIDTH OF CUT | 21" (53.3 cm) |
HEIGHT OF CUT | Cutting height is adjusted on front roller by two vertical screws and held by two locking cap screws. Bench height of cut range is .062"-.297" (1.6-7.5 mm) with high height of cut kit, range is .297"-1.0" (7.5-25.4 mm). Effective height of cut may vary depending on turf conditions and bedknife installed. |
CLIP FREQUENCIES | Reel drive consists of three pulleys of different diameter. 6-clip adjustments per reel, based on pulley configuration. |
REEL DRIVE | Transmission reel clutch shaft to a drive shaft with a pair of beam style couplers. |
CUTTING UNIT CONSTRUCTION | Machined cast aluminium frame. |
CUTTING UNIT ADJUSTMENT/ SERVICE | Cutting unit detachable from traction unit. Dual screw “click” adjustments to reel. Front roller height of cut adjustment. Sealed stainless steel reel bearings. |
BEDKNIFE | EdgeMaxTM Microcut Bedknife is standard on 11 & 14-blade cutting unit. EdgeMax bedknife is heat treated solid tool steel. |
GRASS BASKET | Molded polyethylene with integrated graphics highlighting overlap guidelines, vented for high-efficiency collection.
|
ROLLERS | Front Roller: Optional – must be ordered. Rear Roller: Aluminium full roller 2” (5.1 cm) diameter with sealed bearings |
WORKING WEIGHT | 260 lbs. (118 kg) w/basket, w/o transport tyres and groomer |
CERTIFICATION / WARRANTY | Designed in accordance to ANSI B71.4-2012 and European Community (CE) specifications. Two-year limited warranty. Refer to the Operator’s Manual for further details |
