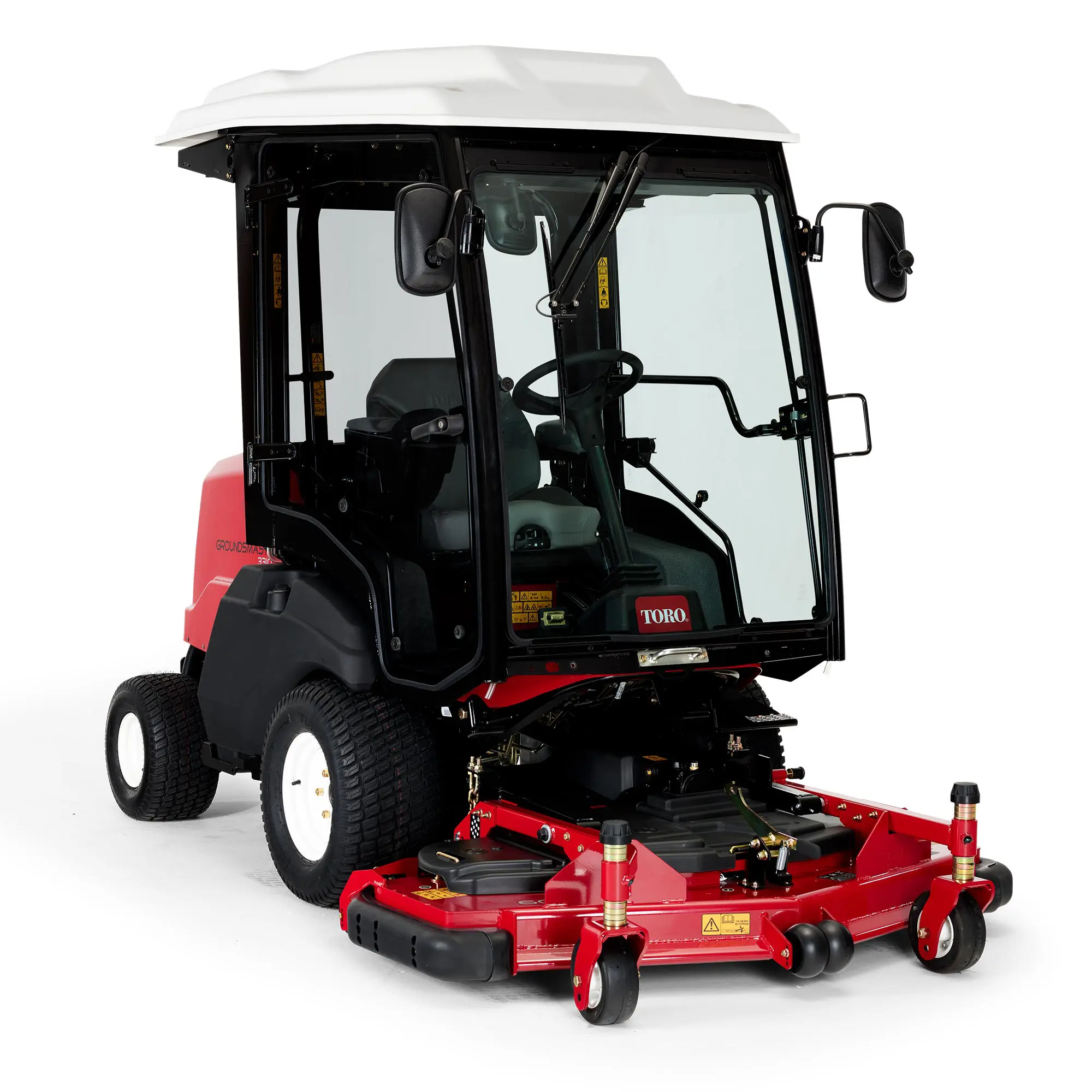

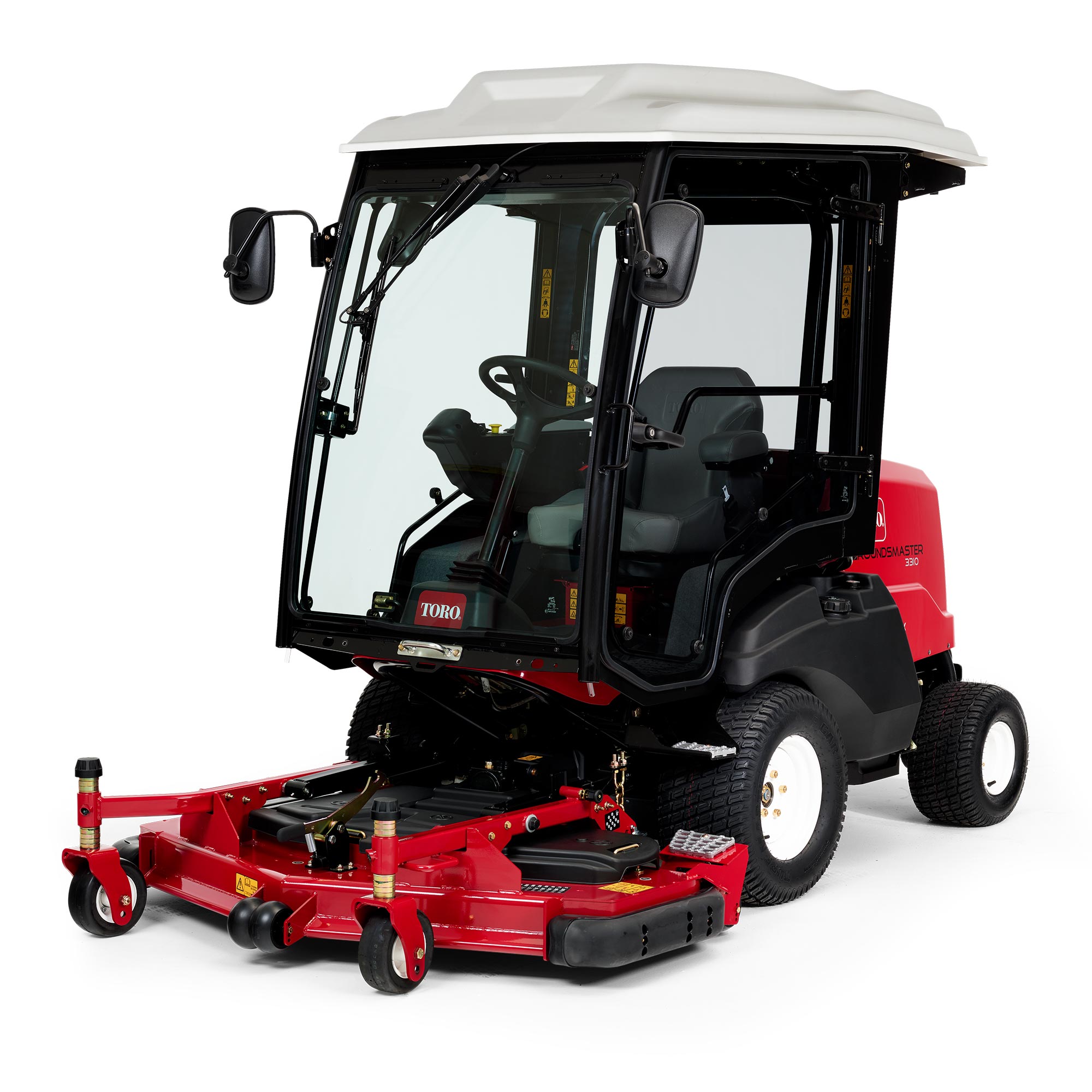

Toro Groundsmaster® 3310 Ride-on Mower

Model: 31909
Toro

Toro Groundsmaster® 3310 Ride-on Mower

Model: 31909
Toro

The Groundsmaster® 3310 delivers unparalleled productivity. Featuring a powerful 36.8 hp (27.5kW) diesel engine, CrossTrax® all-wheel drive and legendary Groundsmaster decks, the Groundsmaster 3310 makes quick work in even the toughest terrain while delivering an exceptional quality of cut. From the fully adjustable suspension seat and steering column to the fingertip engine controls and all-season cab, this new mower is designed for all-day comfort. Routine maintenance is also easy with the Groundsmaster 3310 with the innovative tilt-up deck design making blade maintenance and deck cleaning simple. Productivity, comfort, reliability. That’s the Groundsmaster 3310.

  • Ultimate operator comfort
  • Superior traction
  • Durable construction
  • Safety first
  • Unmatched versatility
  • Easy maintenance
  • Powerful performance
  • Smart technology
  • Precision cutting
Fleet Finance & Leasing Options Talk to us today 0800 807 333

Features

Superior Operator Comfort

Adjustable seating, tilt steering, easy access controls provide optimal operator comfort. Standard, mechanical suspension, and air ride seat options available.

CrossTrax®

CrossTrax® powers through challenging terrain by optimizing traction with full-time, bi-directional 4-wheel drive.

7-Gauge Welded Steel Decks

The deck shells are constructed from high-strength 7-gauge welded steel, for greater durability and long life.

Folding Rollover Protection System (ROPS)

A Rollover Protection System (ROPS), complete with seat belt, comes standard for operator protection in the case of accidental rollovers and tipovers. In situations where sufficient vertical clearance is not available, such as loading on an enclosed trailer, the ROPS can be temporarily unlocked and folded down.

Easily Move Between Jobsites

With ground speeds up to 12.5 or 15 mph (20 km/h or 24 km/h) and either 7.8" (19.8 cm) or 8.3" (21.1 cm) of ground clearance, you can easily climb curbs and get to job sites other mowers simply can’t access.

Simple Maintenance

Innovative tilt-up design makes maintenance and cleaning simple. Rotary decks tilt almost 90º while keeping the driveline intact.

Tackle Any Terrain

Bullnose bumper, rugged spindles, and 7-gauge high strength steel decks are built for all mowing applications.

Powerful Yanmar® Engines

Choice of efficient 24.7hp (18.4 kW) or powerful 37.4hp (27.9 kW) Tier 4/Stage V emission compliant Yanmar diesel engines.

Optional Cab

Move snow or clear debris... all from the comfort of the optional heated cab.

InfoCenter™ Control Panel

Real-time information such as service reminders, alerts, and diagnostic information are delivered to the operator’s fingertips for ultimate control.

Industry's Toughest Spindle Assembly

The cast iron spindle housings feature a massive 9" (22.9 cm) diameter base and eight-bolt mounting pattern that spread impact loads across a broader area of the robust deck shell. The high-efficiency, tapered roller bearings offer greater durability, which means more stability and strength, resulting in longer deck and spindle life.

Steel Blades

The high-strength one-quarter inch (6 mm) thick heat-treated alloy steel blades resist flexing and abrasive wear. The result is a crisp cut time after time.

Specifications

Air Filter Remote-mounted Donaldson® air cleaner
Armrests Standard
Battery 12V
Blade Style/Type Rotary
Cab Unit Heat & Air-Conditioned Safety Cab
Controls Foot-operated pedal for forward and reverse. Manually adjustable forward speed limiter. Control arm includes hand-operated throttle, PTO switch, deck/implement lift lower switch, ignition switch
Cooling System Description Rear-mount, cross flow radiator with 8.5 fins per 1" (25 mm), 8 quart (7.6 liter) capacity
Cup Holder Standard
Cutting Unit Type/Configuration 72" (183 cm) Rear Discharge Deck
Drivetrain Diesel
Electrical System 12-volt maintenance-free battery with 540 cold cranking amps at 0 degrees F (-18 degrees C). 80 minute reserve capacity at 80 degrees F (27 degrees C). 55 amp alternator. Easy access to fuse panel.
Engine Cooling Liquid Cooled
Fuel / Power Source Diesel
Fuel Capacity 12 U.S. gal. (45.4 L)
Fuel Filter Fuel filter/water separator
Gauges/Instrumentation InfoCenter™: LCD display shows gauges, alerts/faults, service reminders, electrical system diagnostics. Indicates coolant temps, oil pressure, alternator voltage, engine hours, engine RPM.
Ground Clearance 8.3" (21 cm)
Ground Speed - Forward 0 - 15 mph (0 - 24 km/h)
Ground Speed - Reverse 0 - 6 mph (0 - 9.7 km/h)
Height 89" (226 cm)
Hydraulic Cylinders Twin 2.5" (6.4 cm) bore, 1.25" (3.2 cm) rod hydraulic cylinders operate lift arms. Hydraulic counterbalance for optimum traction and stability.
IntelliDash™ Capable No
Interlocks Seat, PTO, lift/lower, traction and parking brake interlock switches
Lighting Optional
Main Frame/Chassis All welded tubular and formed steel
Max Slope Angle Refer to operator's manual
Mowing Rate (Productivity) Up to 7.3 acres/hr (2.9 hectacres/hr) with 60" deck Up to 8.7 acres/hr (3.5 hectacres/hr) with 72" deck
Oil Capacity 5.2 L (5.5 US qt)
Operator Area Operator step, beverage holder, controls on right armrest
Optional Accessories LED work light kit, LED road light kit, LED beacon kit, recycler kits, slope sensor kit, heat only cab, accessory control kit, storage box kit, USB charging kit, auxiliary hydraulic kit, hydraulic hose kit, SMV kit, storage bag kit, power harness kit
Overall Width 53.1" (134.8 cm)
Power Steering Yes
Power Train (Engine Description) Yanmar® 3-cylinder, liquid-cooled diesel. Power: 36.8 hp (27.5kW) @ 3000 rpm, Torque peak: 80.7 ft-lbs. (109.4 Nm) @ 1950 rpm. Displacement 1642cc. EPA Tier IV Final / Stage V compliant.
Product Length 107" (271.7 cm)
PTO Clutch Engine mounted 350 ft. lb. (475 Nm) rated electro-magnetic PTO clutch drives 2" (5 cm) telescoping shaft. Rotary deck connection allows for tip-up service position without disconnection of PTO.
Seat Adjustable air-ride suspension seat with retractable seat belt
Starting Key Start
Steering System Description Hydraulic power steering. Tilt steering wheel released and locked by a foot-actuated lever.
Tires - Front 24" x 12" - 12", 4-ply
Tires - Rear 18” x 9.5” - 8”, Turf Tire
Tool Box Optional
Traction Drive 4WD
Traction Drive (System) CrossTrax® 4WD. Series/Parallel hydraulic traction system w/ full time, bi-directional 4-wheel drive. Parallel Series hydraulic flow between front and rear wheels.
Weight 2,486 lbs. (1128 kg)
Wheelbase 51.5" (130.8 cm)
Width of Cut 72" (183 cm)
