Toro TransPro 200 Greens Mower Trailer

Model: 04239
Toro

Toro TransPro 200 Greens Mower Trailer

Model: 04239
Toro

TORO TransPro trailers are the safe and easy way to transport walk greens mowers to and from the mowing area. The unique trailer design protects your mower investment and keeps adjustments intact. The TransPro 200 can transport two Greens Mowers (excluding the Greensmaster 1600 and 1026) to reduce time and increase productivity.

  • Safe Transport of Greens Mowers
  • Protects Adjustments
  • Easy to Load

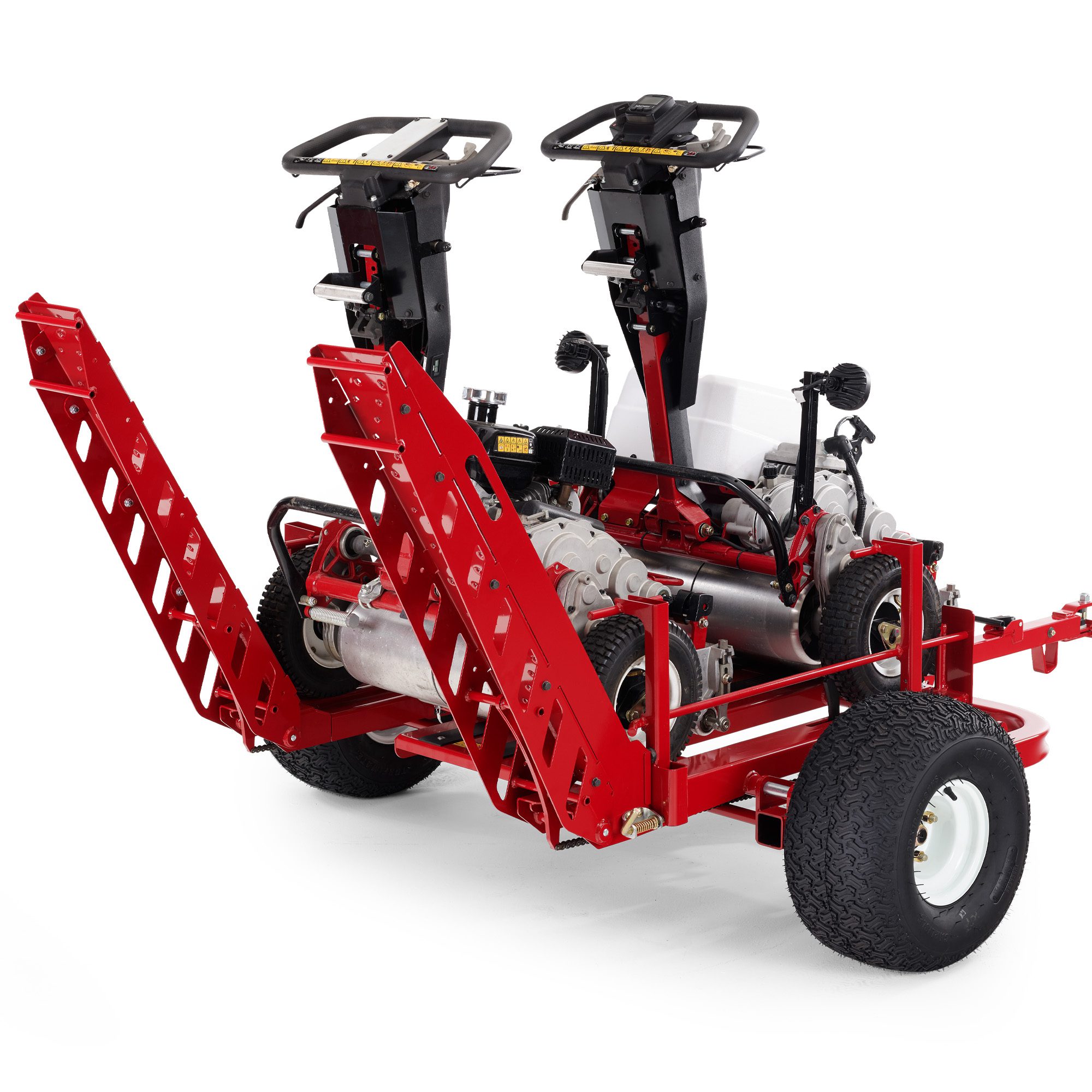

  • Safely transport 1 or 2 walk greens mowers
  • Rail ramp module simplifies operation and reduces loading time by up to 50% – no need to mount mower transport wheels
  • Adjustable roller pockets allow for configuration of fixed units, flex units, with or without groomers
  • Combination of roller pocket, rubber mats and wheel/donut retainer securely retain mower(s) in place helping keep mower adjustments intact. Once the ramp or rails are raised – units are locked in place
  • Open trailer design allows for easy washdown of the mower without unloading
  • Single configuration for either 18″ (45.7cm) or 21″ (53.3cm) wide units
  • Hitch pin release is incorporated into convenient lift handle for trailer hitch. 2.5″ (6.35cm) adjustable hitch height for level trailering and loading

REQUIRES either 04219 TransPro® 200 Wheel Loading Kit (ramp version) or 04229 TransPro® 200 Rail Loading Kit (rail version).

Wheel Loading Kit (04219): Traditional flat ramp loading system that allows walk mowers to be pushed or driven onto the TransPro® 200 trailer. Requires fitting transport wheels to the mower before loading.

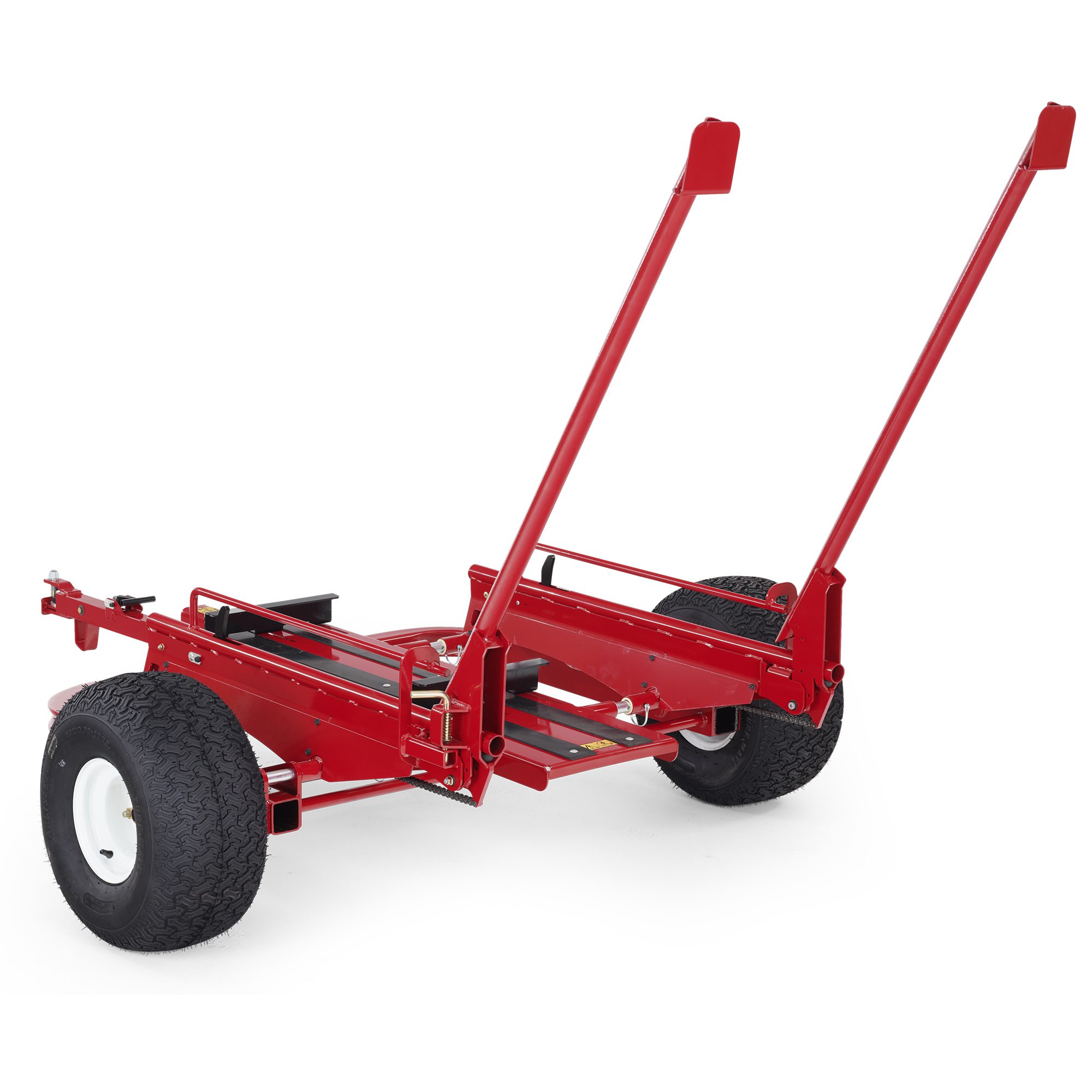

Rail Loading Kit (04229): Rail-style loading system designed for use with transport (donut) wheels, allowing faster, guided loading without needing to fit standard transport wheels. Improves efficiency and ease of use.

$6,302 incl. gst
or $ per week*
*Based on $1,260 deposit, an indicative interest rate of 9.9% p.a over 4 year(s). Calculate for more details.
Enquire

Features

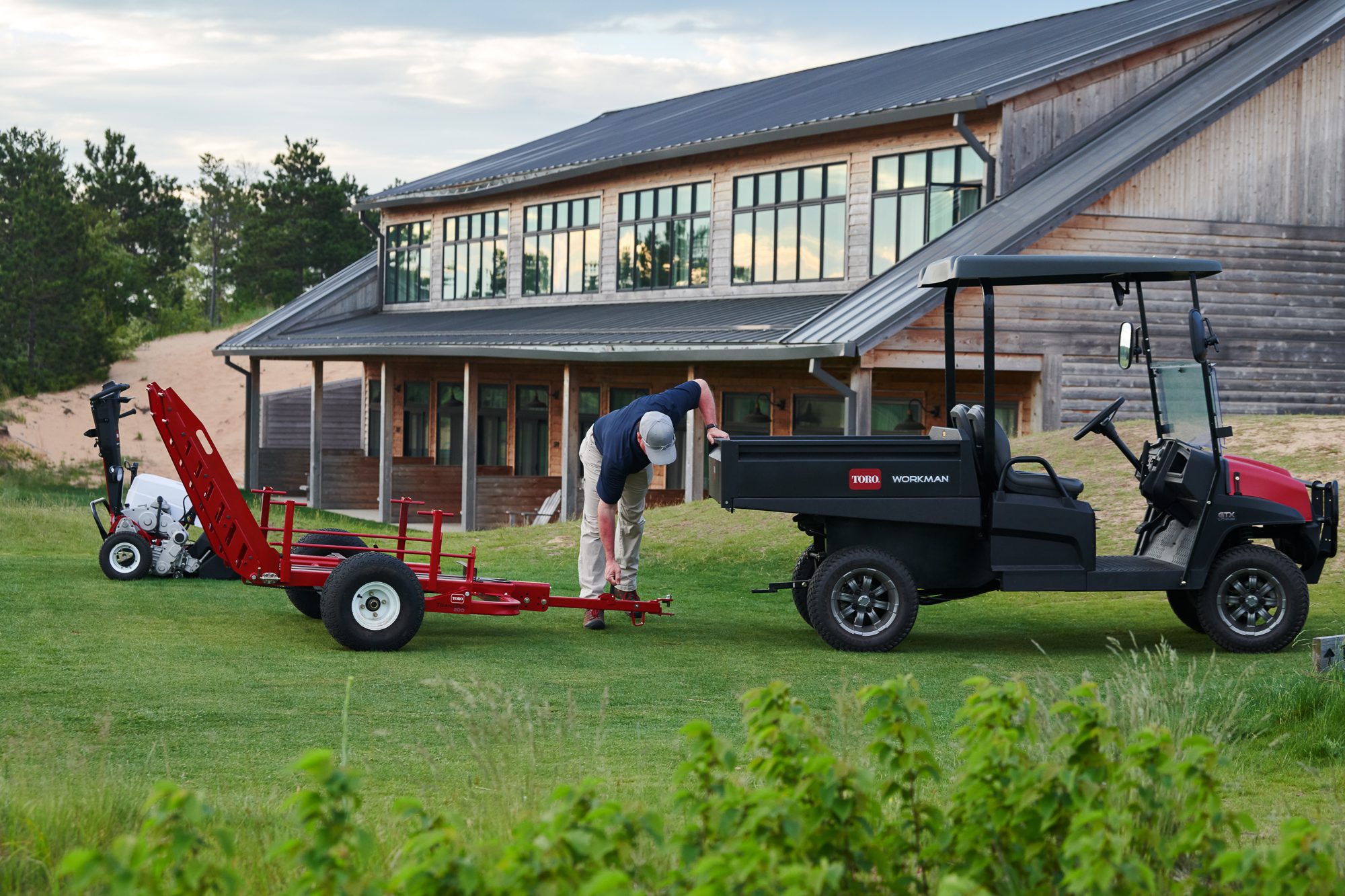

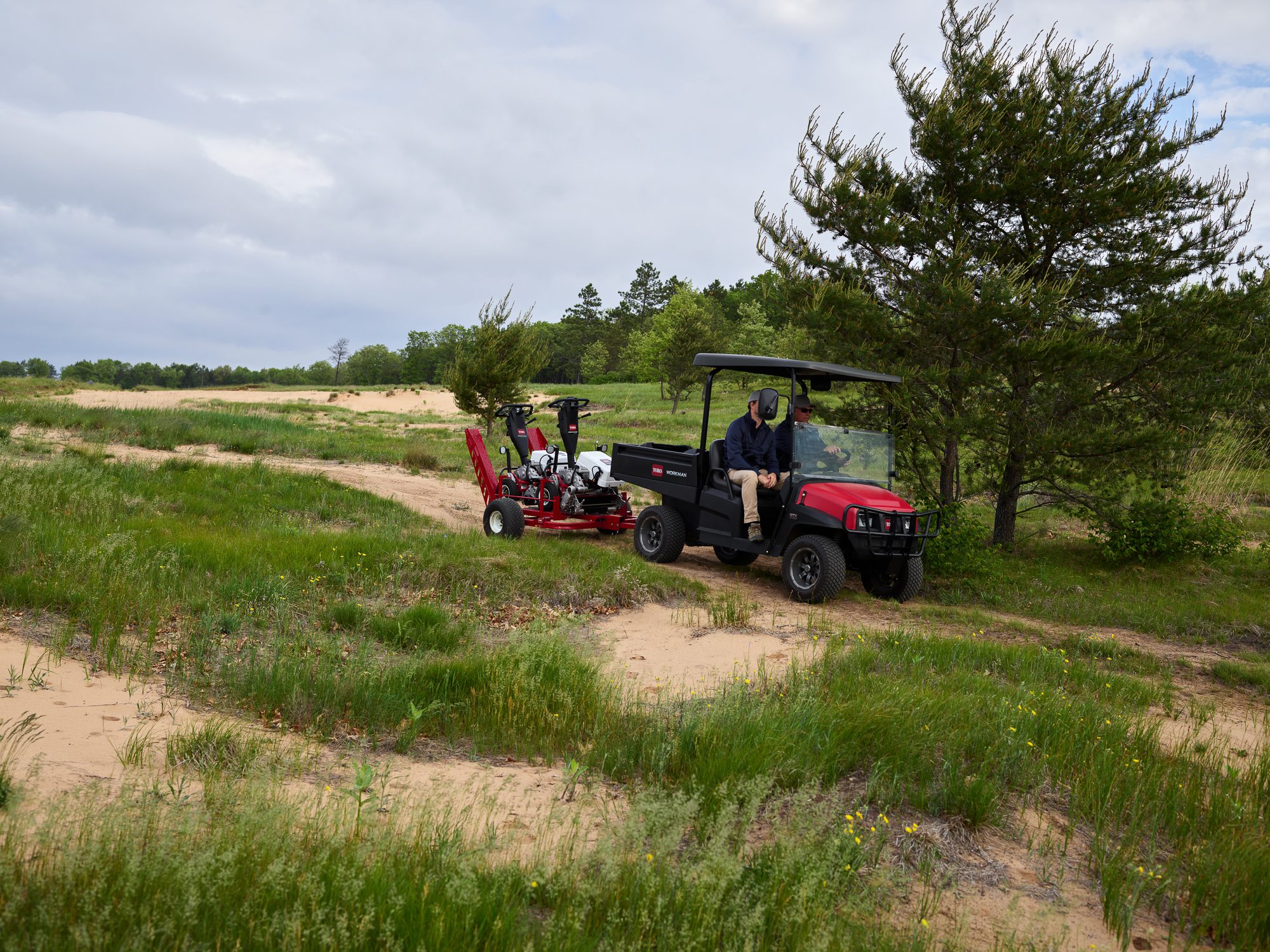

TransPro 200 Series Greens Mower Trailers - in action with greens mower

Single Configuration

Trailer fits both 18" (45.7cm) or 21" (53.3cm) wide mowers.

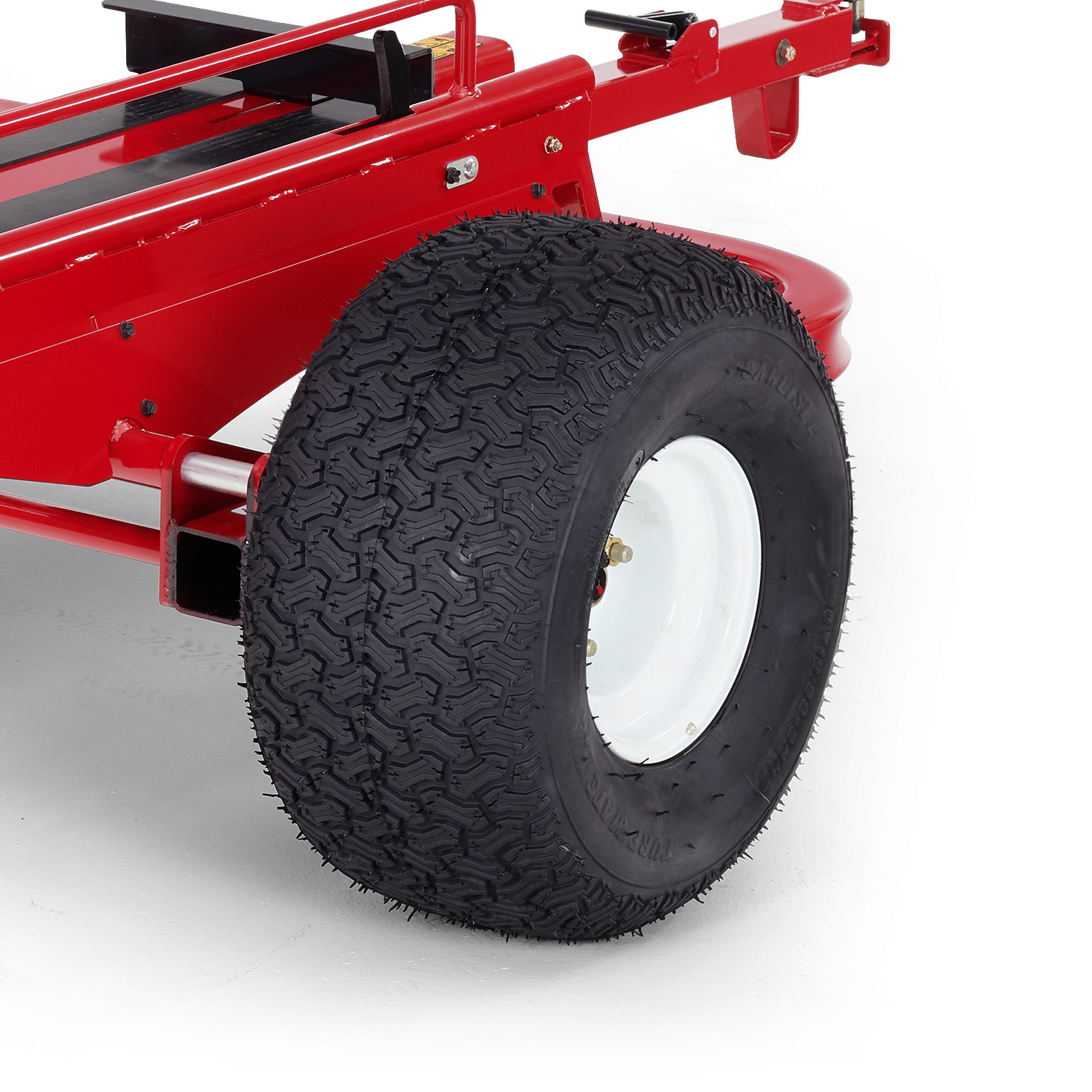

TransPro 200 Series Greens Mower Trailers - Close Up Wheel

Low Pressure Tires

Large low pressure tires provide flotation to protect your mower.

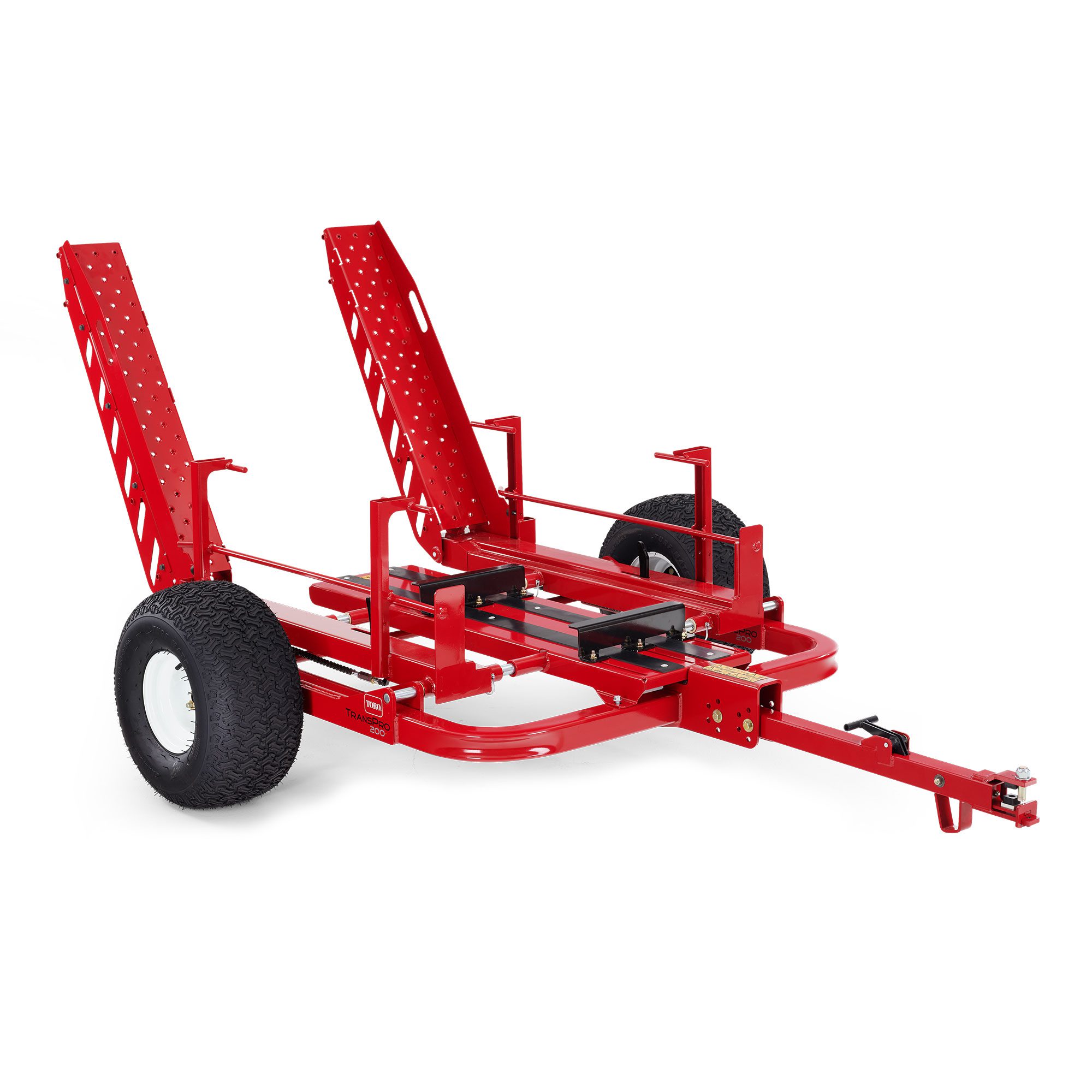

04219 – TransPro® 200 Wheel Loading Kit (Ramp Version)

Open Trailer Design

Allows for easy washdown of mowers without unloading.

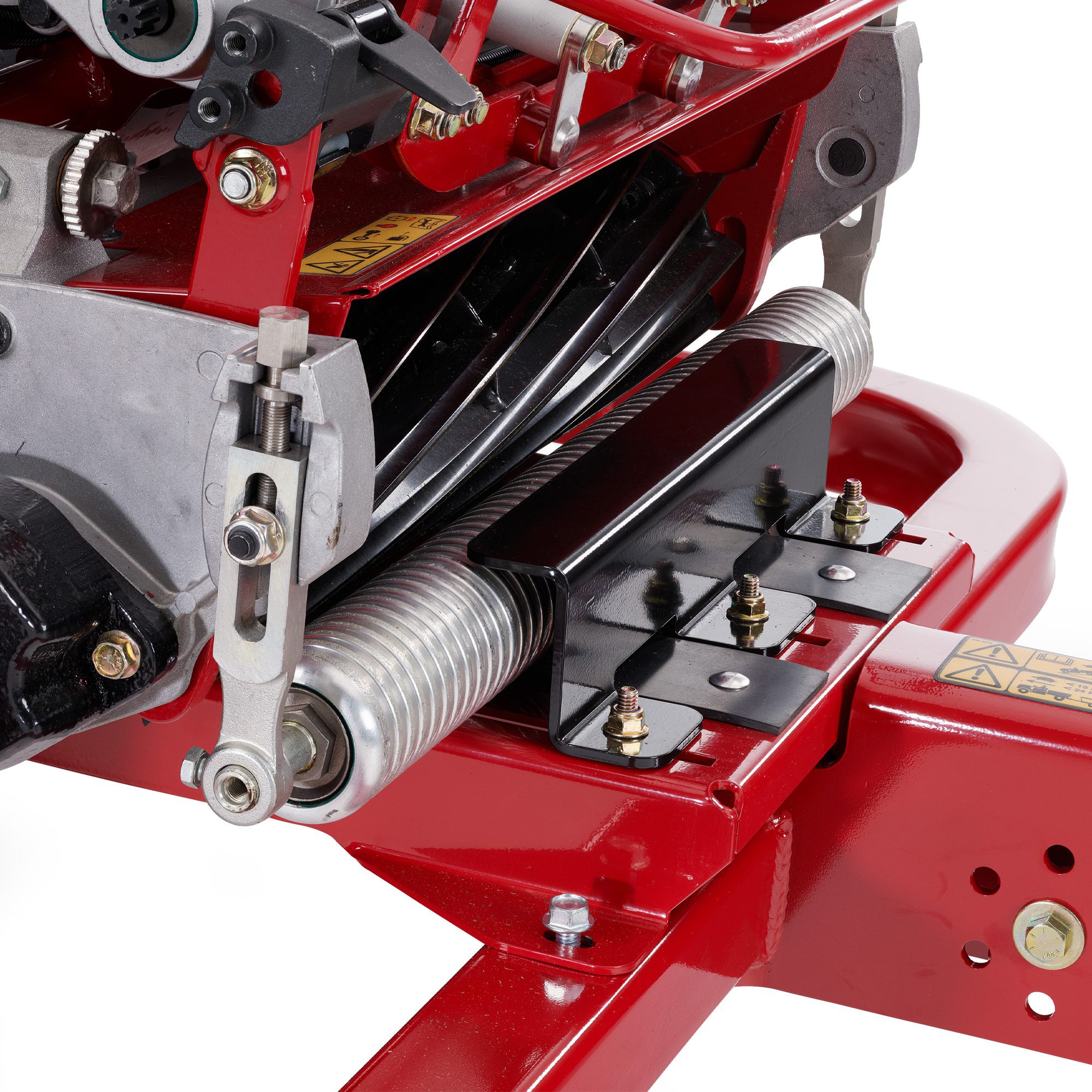

TransPro 200 Series Greens Mower Trailers - Close Up

Adjustable Roller Pockets

Allows for accommodation of fixed or flex units, with or without groomers.

Specifications

Accessories Wheel Loading Kit, Rail Loading Kit, Axle Kit (Greensmaster Flex 18/21), Axle Kit (Greensmaster Flex 18XX/21XX), Axle Kit (Greensmaster 800/1000 Series)
Axles Heavy-duty stub. Maintenance-free sealed bearings.
Compatibility Easily adjustable to fit all 18" and 21" Toro walk greensmowers (not recommended for Greensmaster® 1600 or 1026).
Height 61" (154.9 cm)
Hitch 2.5" (6.4 cm) adjustable hitch height for level towing and loading. Pin release is incorporated into lift handle.
Length 108" (274 cm)
Load Capacity 1,150 lbs. (522 kg) including weight of trailer.
Rail Textured loading rails for use in conjunction with smaller bogey (donut) wheels in place of transport tires.
Ramp Textured split ramp design with spring-loaded ramp retainers for storage during transport operation.
Retention Method Adjustable front roller pockets and wheel/donut retainer positively secure mower for transport.
Suspension Large low pressure floatation tires (20 x 10 - 8)
Towing Designed to tow behind a utility vehicle with tongue height 7" - 13" (18 - 33 cm); maximum tongue load 55 lbs. (25 kg)
Transport Speed Maximum of 15 mph (24 km/h)
Width 68" (172.7 cm)
