Toro Greensmaster® eFlex 1021 Electric Walk Behind Greens Mower

Model: 04865
Toro

Toro Greensmaster® eFlex 1021 Electric Walk Behind Greens Mower

Model: 04865
Toro

The Toro Greensmaster eFlex 1021 is the 53.3 cm (21″) Flex-suspension electric walk-behind. The cutting unit pivots around the front roller so it follows undulations without scrubbing the surface. That is the difference from the fixed-head e1021.

Same 51.4 V lithium-ion pack (1.35 kWh) as the rest of the Electric Series, good for about 3,250 m² (35,000 sq ft) on a charge. LCD for battery, hours and diagnostics. 11 or 14-blade EdgeSeries Flex reels, tool-free cutting unit change, telescoping handle. Standard backlapping.

Tapered traction drum for after-cut appearance. Off-board 650 W charger, about four hours empty to full.

Fleet Finance & Leasing Options Talk to us today 0800 807 333

Compare the Greensmaster Electric Series

13 of 35 specs differ
Specification Greensmaster® e1021 Greensmaster® eFlex 1021 Viewing Greensmaster® e1026
Featured specs
Engine & Drivetrain
Power Train (Engine Description) Lithium-ion battery pack, nominal 51.4 V 26.3 Ah (1.35 kWh), with integrated battery management system using CAN communication with the machine controller and charger. Single battery affixed to the unit and charged onboard. Brushless permanent magnet DC motor with integral motor controller and helical gear reduction. Lithium-ion battery pack, nominal 51.4 V 26.3 Ah (1.35 kWh), with integrated battery management system using CAN communication with the machine controller and charger. Single battery affixed to the unit and charged onboard. Brushless permanent magnet DC motor with integral motor controller and helical gear reduction. Lithium-ion battery pack, nominal 51.4 V 26.3 Ah (1.35 kWh), with integrated battery management system using CAN communication with the machine controller and charger. Single battery affixed to the unit and charged onboard.
Fuel Type Electric Electric Electric
Drivetrain Electric Electric Electric
Start Type Key start Key start Key start
Battery
Voltage 51.4 V 51.4 V 51.4 V
Battery Capacity 26.3 Ah (1.35 kWh) 26.3 Ah (1.35 kWh) 26.3 Ah (1.35 kWh)
Battery Charge Time 4 hours (empty to full) 4 hours (empty to full) 4 hours (empty to full)
Charger Off-board 650W smart charger with CAN communication to manage battery health. AC input 100-240VAC, 50/60 Hz, max 7.5 A. Max charge time, empty to full: 4 hours. Off-board 650W smart charger with CAN communication to manage battery health. AC input 100-240VAC, 50/60 Hz, max 7.5 A. Max charge time, empty to full: 4 hours. Off-board 650W smart charger with CAN communication to manage battery health. AC input 100-240VAC, 50/60 Hz, max 7.5 A. Max charge time, empty to full: 4 hours.
Cutting System
Blade Type (Description) EdgeSeries™ DPA radial reels. EdgeSeries™ DPA radial reels. EdgeSeries™ DPA radial reels.
Reel Diameter 12.7 cm (5") 12.7 cm (5") 12.7 cm (5")
Reel/Cylinder Drive Mechanical/Belt Mechanical/Belt Mechanical/Belt
Height of Cut Range For greens (drum position one): 1.5 mm - 8 mm (0.062" - 0.312"). For tees (drum position two): 6 mm - 16 mm (0.25" - 0.625"). High height of cut kit (drum position two): 30 mm (1.18"). For greens (spacer position one): 1.5 mm - 6 mm (0.062" - 0.250"). For tees (spacer position two): 3 mm - 9 mm (0.125" - 0.375"). High height of cut kit: 9 mm - 25 mm (0.375" - 1.00"). For greens (drum position one): 1.5 mm - 8 mm (0.062" - 0.312"). For tees (drum position two): 6 mm - 16 mm (0.25" - 0.625"). High height of cut kit (drum position two): 30 mm (1.18").
Clip Frequency/Backlapping Quick-change dual-speed gear drive, combined with positive drive belt - four possible reel speed/clip settings. Standard backlapping. Quick-change dual-speed gear drive, combined with positive drive belt - four possible reel speed/clip settings. Standard backlapping. Quick-change dual-speed gear drive, combined with positive drive belt - four possible reel speed/clip settings. Standard backlapping.
Traction Drum Dual position traction drum with positions for contour following or forward weight bias at higher heights of cut. Tapered traction drum for improved after-cut appearance. Dual position traction drum with positions for contour following or forward weight bias at higher heights of cut.
Cutting Unit Accessories 8, 11, 14-Blade DPA Cutting Unit, Roller Options, Groomer Options, Scraper/Brush Options, Bedknife Options, Tools and Maintenance Options. 11, 14-Blade Flex ES Cutting Unit, Front and Rear Roller Options, Bedknife Options, Groomer Options, Scraper Options, Tools and Maintenance Options. 8 or 11-Blade DPA Cutting Unit, Roller Options, Groomer Options, Scraper/Brush Options, Bedknife Options, Tools and Maintenance Options.
Cutting Unit Type/Configuration Detachable cutting unit allows easy removal for service / maintenance or cutting unit exchange for different applications. Semi-floating cutting unit separable from drive unit, pivoting around reel centreline (pitch axis) and pivoting around bedknife centreline side to side (roll axis). Detachable cutting unit allows easy removal for service / maintenance or cutting unit exchange for different applications.
Rollers Front roller: optional, must be ordered. Front roller: optional, must be ordered. Rear roller: aluminium full roller 5.1 cm (2") diameter with sealed bearings. Front roller: optional, must be ordered.
Traction & Steering
Traction Drive Gear Gear Gear
Traction Drive (System) Permanent magnet DC motor directly coupled to a fully gear-driven transmission with integral traction differential and traction disconnect to ease movement during service/maintenance operations. Interchangeable drum drive gear cases. Permanent magnet DC motor directly coupled to a fully gear-driven transmission with traction differential and traction disconnect to ease movement during service/maintenance operations. Interchangeable drum drive gear cases. Permanent magnet DC motor directly coupled to a fully gear-driven transmission with integral traction differential and traction disconnect to ease movement during service/maintenance operations. Interchangeable drum drive gear cases.
Controls Start/On/Off (ignition) switch, LCD Information Center (hours, battery life, faults, diagnostics, backlap control), throttle, dual function traction/safety bail, reel engage lever, service/parking brake lever, optional light switch. Start/On/Off (ignition) switch, LCD Information Center (hours, battery life, faults, diagnostics, backlap control), throttle, dual function traction/safety bail, reel engage lever, service/parking brake lever, optional light switch. Start/On/Off (ignition) switch, LCD Information Center (hours, battery life, faults, diagnostics, backlap control), throttle, dual function traction/safety bail, reel engage lever, service/parking brake lever, optional light switch.
Parking/Service Brakes Service/parking, band type. Service/parking, band type. Service/parking, band type.
Mowing Speed 3.2 to 5.6 km/h (2.0 to 3.5 mph) 3.2 to 5.6 km/h (2.0 to 3.5 mph) 3.2 to 5.6 km/h (2.0 to 3.5 mph)
Forward Ground/Transport Speed 0 - 8.5 km/h (0 - 5.3 mph) 0 - 8.5 km/h (0 - 5.3 mph) 0 - 8.5 km/h (0 - 5.3 mph)
Tyres - Rear Optional - two quick-detachable pneumatic tyres (3" x 3.25" - 6") Optional - two quick-detachable pneumatic tyres (3" x 3.25" - 6") Optional - two quick-detachable pneumatic tyres (3" x 3.25" - 6")
Comfort & Operator Station
Handle Type Loop handle with telescoping adjustment of 12.7 cm (5") total travel, rubber isolated to minimise operator influence during mowing. Loop handle with telescoping adjustment of 12.7 cm (5") total travel, rubber isolated to minimise operator influence during mowing. Loop handle with telescoping adjustment of 12.7 cm (5") total travel, rubber isolated to minimise operator influence during mowing.
Frame & Chassis
Main Frame/Chassis Fully modular design allows quick disassembly for service/maintenance of all major components. Fully modular design allows quick disassembly for service/maintenance of all major components. Fully modular design allows quick disassembly for service/maintenance of all major components.
Warranty
Warranty Two-year limited warranty Two-year limited warranty Two-year limited warranty
Battery Warranty Four-year lithium-ion battery Four-year lithium-ion battery Four-year lithium-ion battery
Accessories
Optional Accessories LED Light Kit, Cutting Unit Light Kit Mount, Push Broom Kit, Wheel Kit, Backlap Access Kit, Wireless Hour Meter, High Height of Cut Kit, Charger, Replacement Battery LED Light Kit, Cutting Unit Light Kit Mount, Push Broom Kit, Wheel Kit, Backlap Access Kit, Wireless Hour Meter, High Height of Cut Kit, Charger, Replacement Battery LED Light Kit, Cutting Unit Light Kit Mount, Push Broom Kit, Wheel Kit, Backlap Access Kit, Wireless Hour Meter, High Height of Cut Kit, Charger, Replacement Battery
Grass Collection & Discharge
Collection System Volume Molded polyethylene with integrated graphics highlighting overlap guidelines, vented for high-efficiency collection.

Features

Close-up of a Toro mower in action on a golf green, showcasing its precision cutting features

Built-in Clip Adjustments

Each eFlex walker includes six - easy to configure - clip rate options to accommodate specific cutting heights and playability requirements for every event or desired playing condition. Three color-coded pulleys can quickly be rearranged, with a single wrench, to match your reels and clip rates to achieve the desired result.

Two operators using Toro walk-behind mowers on a well-maintained golf green

Proven Flex Suspension (Patented)

Superior contour following capability utilises an integrated "Flex" linkage system to allow cutting units to pivot around the center of the front roller to master undulations and prevent side-to-side scrubbing of the playing surface.

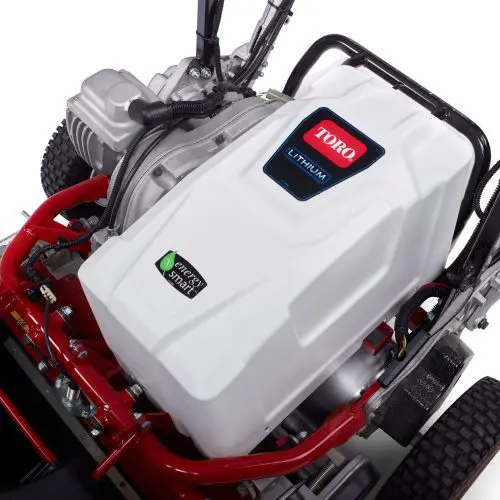

Close-up of Toro electric mower's lithium battery compartment and engine, showcasing its efficient design

Advanced Lithium-Ion Battery Management

Lithium-ion battery power provides enough charge to mow up to 45,000 square feet on a single charge! One battery is designed to last five years and to deliver ample power to cut greens and acommodate key accessories such as groomers and light kits. No CO2 emissions, no toxic waste to dispose of, no liquid levels to monitor, no terminals to clean, no battery pack change outs during the work day and the worry-free list goes on.

Electric walk-behind mower with a sleek design, featuring a sturdy frame and ergonomic handle

Dual Precision Adjustment (DPA) Cutting Units

Precision machined cutting units maintain levelness and hold adjustments. Dual Precision Adjustment (DPA) cutting units – featuring Toro’s all new EdgeSeries™ reels combine to deliver a consistent, high quality cut and superior after cut appearance, while reducing maintenance with improved reel edge retention. DPA allows quick bedknife to reel adjustment. Harder reel and bedknife steel retain a sharp edge up to 3 times longer to minimise the need and frequency of adjustments, backlapping and grinding leading to healthier turf that stays green.

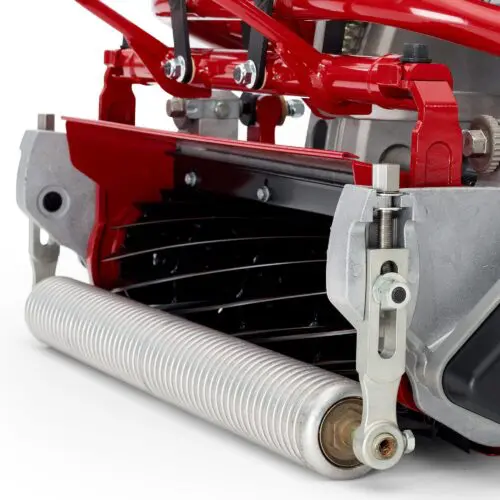

Close-up of the mower's cutting unit showcasing the red frame and silver roller for precision mowing

E-Z Turn™ Productivity

The patented EZ-Turn™ feature, if turned on, will automatically slow the unit down when turning at the end of a mowering path and automatically speed the mower up again after a controlled turn on the return pass. Improved control in turns reduces damage to turf, particularly in tight turns near a hazard, and produces better alignment on the return pass without sacrificing productivity.

A golfer mows a green at sunset, showcasing the mower's precision and performance on undulating terrain

Adjustable Telescoping Handle

The telescoping handle can be adjusted up or down for enhanced operator comfort and to accommodate tall or short operators.

A man operates a Toro greens mower on a lush golf course, with a utility vehicle nearby

Quiet Operation

Noiseless operation means that you can mow whenever you want without bothering nearby residents or other bystanders. Quiet operation enables operators to detect when reel malfunctions or potential reel damage occurs which could adversely affect the quality of cut and/or turf health.

Full Description

The Toro Greensmaster eFlex 1021 is the 53.3 cm (21″) Flex-suspension electric walk-behind. The cutting unit pivots around the front roller so it follows undulations without scrubbing the surface. That is the difference from the fixed-head e1021.

Same 51.4 V lithium-ion pack (1.35 kWh) as the rest of the Electric Series, good for about 3,250 m² (35,000 sq ft) on a charge. LCD for battery, hours and diagnostics. 11 or 14-blade EdgeSeries Flex reels, tool-free cutting unit change, telescoping handle. Standard backlapping.

Tapered traction drum for after-cut appearance. Off-board 650 W charger, about four hours empty to full.

Specifications

Engine & Drivetrain

Power Train (Engine Description) Lithium-ion battery pack, nominal 51.4 V 26.3 Ah (1.35 kWh), with integrated battery management system using CAN communication with the machine controller and charger. Single battery affixed to the unit and charged onboard. Brushless permanent magnet DC motor with integral motor controller and helical gear reduction.
Fuel Type Electric
Drivetrain Electric
Start Type Key start

Battery

Voltage 51.4 V
Battery Capacity 26.3 Ah (1.35 kWh)
Battery Charge Time 4 hours (empty to full)
Battery Run Time Up to 3,250 m² (35,000 sq ft) on a single charge
Charger Off-board 650W smart charger with CAN communication to manage battery health. AC input 100-240VAC, 50/60 Hz, max 7.5 A. Max charge time, empty to full: 4 hours.

Cutting System

Cutting Width 53.3 cm (21")
Cutting Unit Suspension Flex
Number of Blades 11 or 14
Blade Type (Description) EdgeSeries™ DPA radial reels.
Reel Diameter 12.7 cm (5")
Reel/Cylinder Drive Mechanical/Belt
Height of Cut Range For greens (spacer position one): 1.5 mm - 6 mm (0.062" - 0.250"). For tees (spacer position two): 3 mm - 9 mm (0.125" - 0.375"). High height of cut kit: 9 mm - 25 mm (0.375" - 1.00").
Clip Frequency/Backlapping Quick-change dual-speed gear drive, combined with positive drive belt - four possible reel speed/clip settings. Standard backlapping.
Traction Drum Tapered traction drum for improved after-cut appearance.
Cutting Unit Accessories 11, 14-Blade Flex ES Cutting Unit, Front and Rear Roller Options, Bedknife Options, Groomer Options, Scraper Options, Tools and Maintenance Options.
Cutting Unit Type/Configuration Semi-floating cutting unit separable from drive unit, pivoting around reel centreline (pitch axis) and pivoting around bedknife centreline side to side (roll axis).
Rollers Front roller: optional, must be ordered. Rear roller: aluminium full roller 5.1 cm (2") diameter with sealed bearings.

Grass Collection & Discharge

Collection System Volume Molded polyethylene with integrated graphics highlighting overlap guidelines, vented for high-efficiency collection.

Traction & Steering

Traction Drive Gear
Traction Drive (System) Permanent magnet DC motor directly coupled to a fully gear-driven transmission with traction differential and traction disconnect to ease movement during service/maintenance operations. Interchangeable drum drive gear cases.
Controls Start/On/Off (ignition) switch, LCD Information Center (hours, battery life, faults, diagnostics, backlap control), throttle, dual function traction/safety bail, reel engage lever, service/parking brake lever, optional light switch.
Parking/Service Brakes Service/parking, band type.
Mowing Speed 3.2 to 5.6 km/h (2.0 to 3.5 mph)
Forward Ground/Transport Speed 0 - 8.5 km/h (0 - 5.3 mph)
Tyres - Rear Optional - two quick-detachable pneumatic tyres (3" x 3.25" - 6")

Comfort & Operator Station

Handle Type Loop handle with telescoping adjustment of 12.7 cm (5") total travel, rubber isolated to minimise operator influence during mowing.

Frame & Chassis

Main Frame/Chassis Fully modular design allows quick disassembly for service/maintenance of all major components.

Dimensions & Weight

Weight 132.5 kg (292 lbs) with 11-blade cutting unit and aluminium Wiehle roller.

Warranty

Warranty Two-year limited warranty
Battery Warranty Four-year lithium-ion battery

Accessories

Optional Accessories LED Light Kit, Cutting Unit Light Kit Mount, Push Broom Kit, Wheel Kit, Backlap Access Kit, Wireless Hour Meter, High Height of Cut Kit, Charger, Replacement Battery

Brochures, Parts & Manuals

2023-24 Toro Performance Parts Quick Reference Guide (Full Brochure)

Parts Search

You will need your Serial # to search for Parts, Manuals, Accessories, Specifications and Product Details on Toro.com .

ToroParts for Model: 04865 Need Help? Contact Us

Frequently Asked Questions

What’s the difference between the Greensmaster e1021, e1026 and eFlex 1021?

All three are lithium-ion walk-behind greens mowers in Toro’s Electric Series, with the same 51.4 V pack (1.35 kWh), telescoping handle and LCD. The difference is cutting width and whether the cutting unit is fixed or Flex.

  • Greensmaster e1021 (04835): 53.3 cm (21″) fixed-head. About 3,250 m? (35,000 sq ft) per charge. 8, 11 or 14-blade DPA reels.
  • Greensmaster eFlex 1021 (04865): 53.3 cm (21″) Flex suspension, so the cutting unit follows undulations. About 3,250 m? per charge. 11 or 14-blade Flex reels, tool-free cutting unit change.
  • Greensmaster e1026 (04845): 66 cm (26″) fixed-head. About 4,087 m? (44,000 sq ft) per charge. 8 or 11-blade DPA reels.
