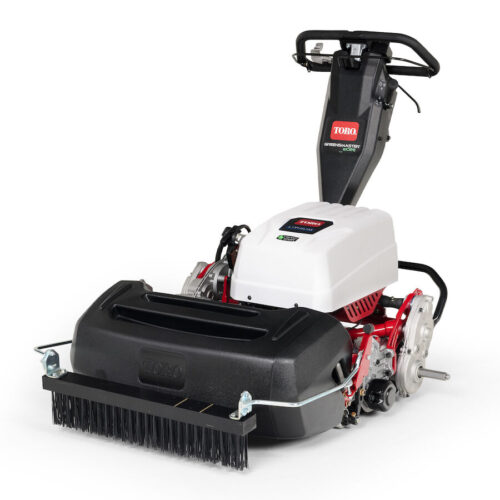

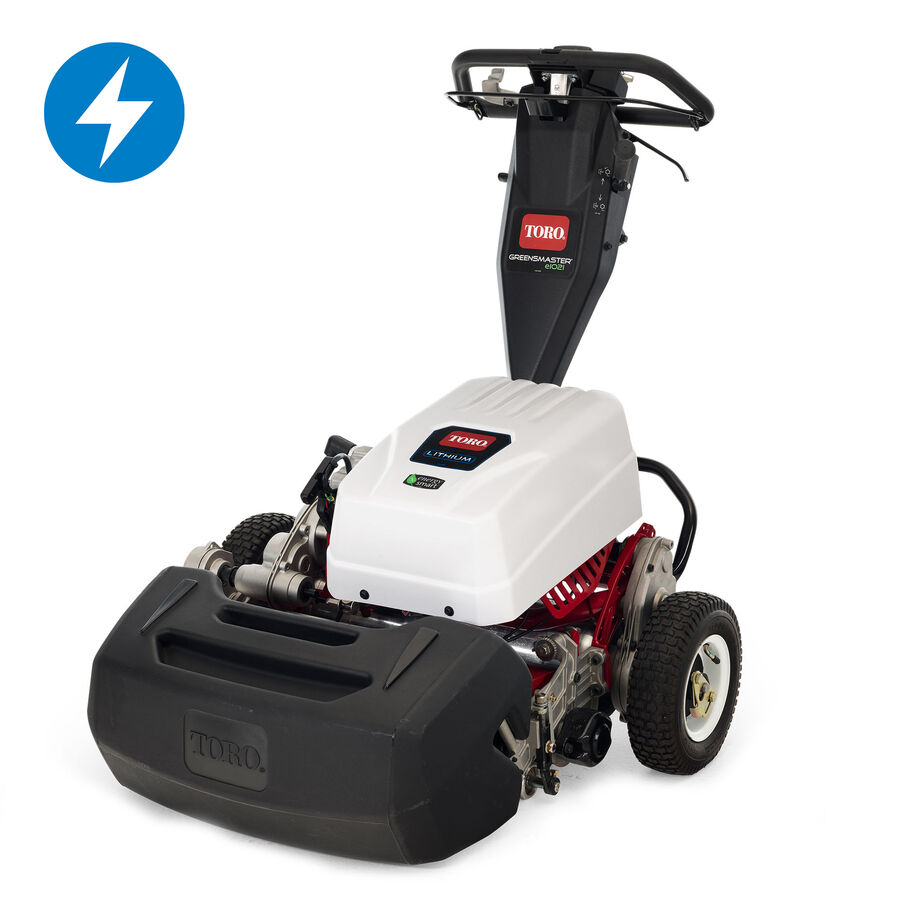

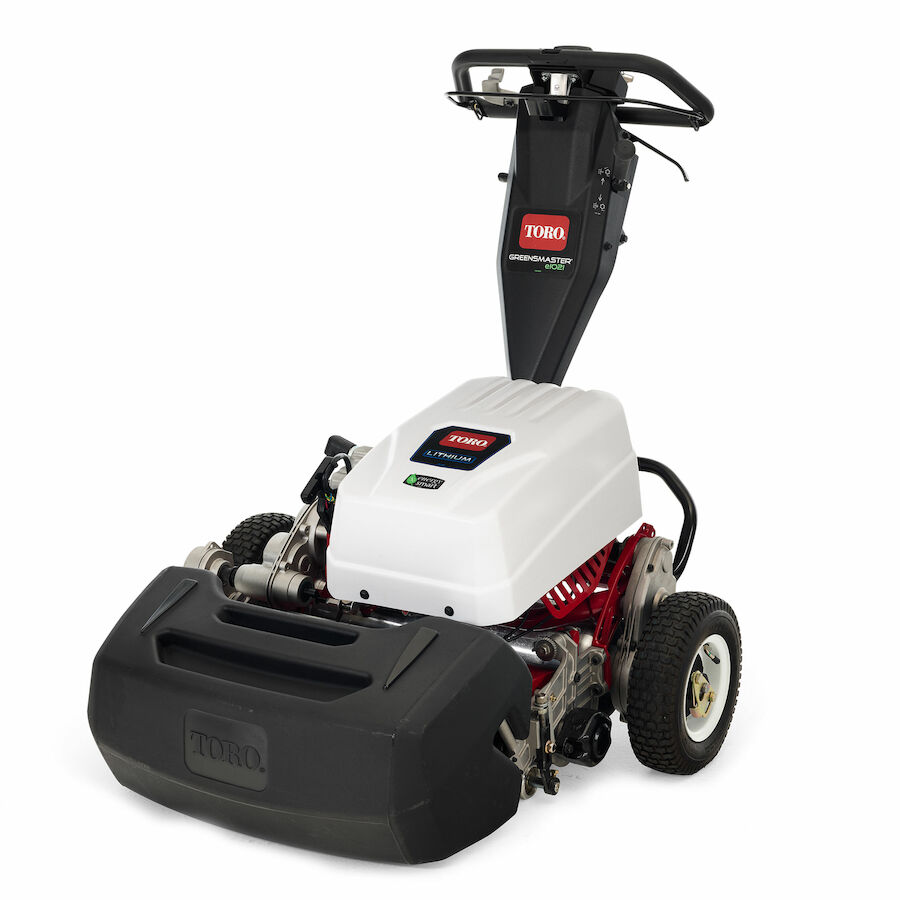

Toro Greensmaster® e1021 Electric Walk Behind Greens Mower

Model: 04835
Toro

Toro Greensmaster® e1021 Electric Walk Behind Greens Mower

Model: 04835
Toro
Fleet Finance & Leasing Options Talk to us today 0800 807 333

The Toro Greensmaster e1021 is the 53.3 cm (21″) fixed-head electric walk-behind in the Electric Series. A 51.4 V lithium-ion pack (1.35 kWh) covers about 3,250 m² (35,000 sq ft) on a charge. The LCD shows battery state, hours and diagnostics while you mow.

Same telescoping loop handle and modular gear-drive layout as the petrol 1021, but with a brushless motor and an off-board 650 W charger (about four hours empty to full). Fit an 8, 11 or 14-blade EdgeSeries DPA reel. Standard backlapping. Dual-position traction drum for contour following or extra forward weight at higher heights of cut.

No exhaust at the machine, so you can mow early without a petrol note across the first tee.

Enquire Call 0800 807 333
Talk to a repFind a Store

The Toro Greensmaster e1021 is the 53.3 cm (21″) fixed-head electric walk-behind in the Electric Series. A 51.4 V lithium-ion pack (1.35 kWh) covers about 3,250 m² (35,000 sq ft) on a charge. The LCD shows battery state, hours and diagnostics while you mow.

Same telescoping loop handle and modular gear-drive layout as the petrol 1021, but with a brushless motor and an off-board 650 W charger (about four hours empty to full). Fit an 8, 11 or 14-blade EdgeSeries DPA reel. Standard backlapping. Dual-position traction drum for contour following or extra forward weight at higher heights of cut.

No exhaust at the machine, so you can mow early without a petrol note across the first tee.

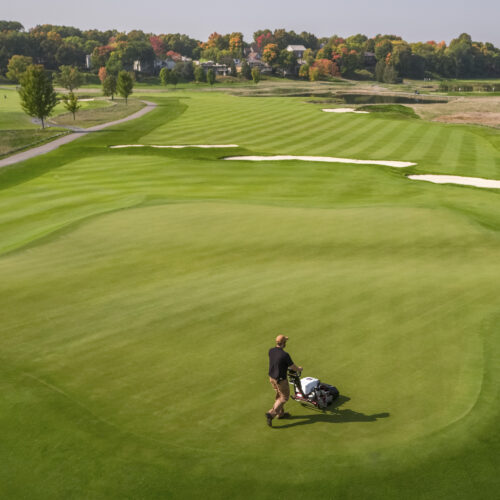

Greensmaster® e1026 - Proven Lithium-Ion Technology

Proven Lithium-Ion Technology

Battery capacity with ample power and run time to mow up to 35,000 sq ft (3,250 sq m)*. Balanced battery management and on-board electronics monitor the mower to automatically optimize battery life.

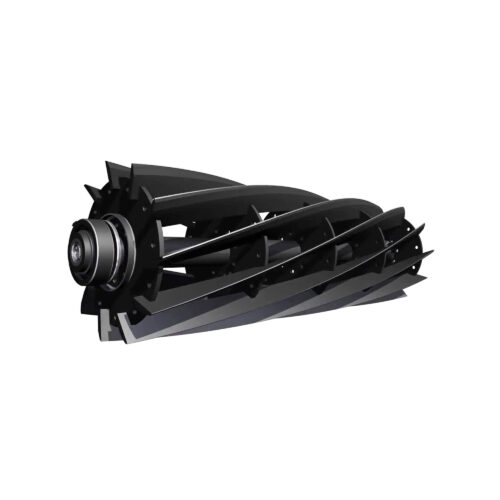

Greensmaster® e1026 - EdgeSeries™ Reels

EdgeSeries™ Reels

Dual Precision Adjustment (DPA) cutting units – featuring Toro’s EdgeSeries™ reels combine to deliver a consistent, high quality cut and superior after cut appearance, while reducing maintenance with improved reel edge retention. Watch the Video

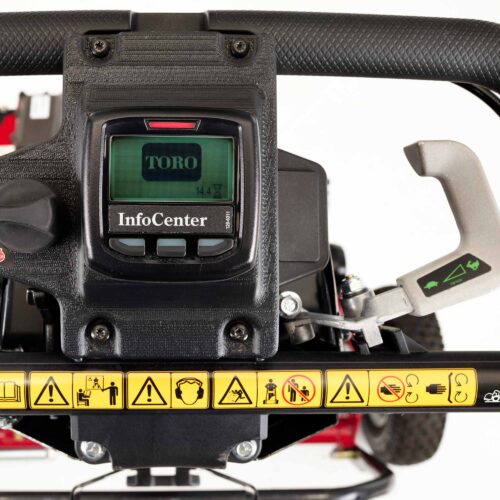

Greensmaster® e1026 - Easy-Reach Adjustable Throttle

Easy-Reach Adjustable Throttle

All operator controls are within easy reach to perfect the mowing process, improve cut consistency, and enhance control – in normal and tight turn-around situations.

Greensmaster® e1026 - Telescoping Handle

Telescoping Handle

Engineered to accommodate operators of different heights, for mowing in a natural upright position. Leads to less fatigue and a superior cut. Adjustable to 5 distinct handle positions.

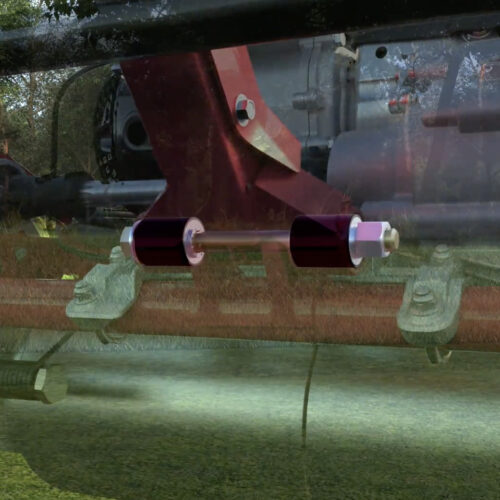

Greensmaster® e1026 - Handle Isolation Mounts

Handle Isolation Mounts

Two rubber grommets eliminate minor oscillations in Height-of-Cut caused by walking strides. Delivers a consistent cutting height on each and every green for optimal playability.

Greensmaster® e1026 - Reel Engagement Lever

Reel Engagement Lever

Convenient, easy to reach location to engage reel from the operator position.

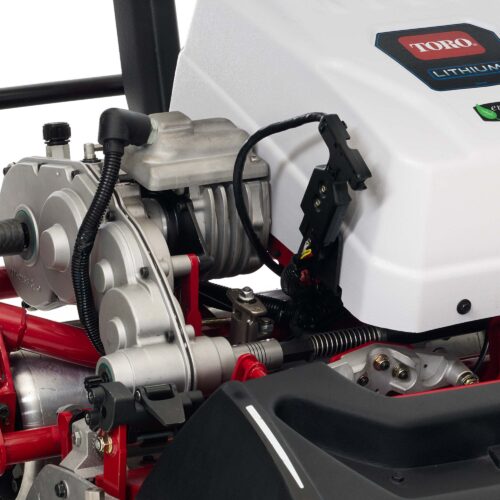

Greensmaster® e1026 - Durable Gear Drive Transmission

Durable Gear Drive Transmission

Provides long life and best-in-class transmission durability. Lubricated for life.

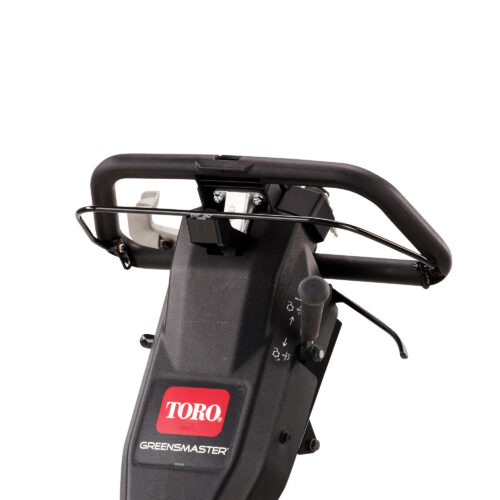

Greensmaster® e1026 - Dual Function Bail

Dual Function Bail

A single bail combines safety and ease-of-operation. Convenient operation allows the mower to slow down or come to a full stop during turn-arounds without disengaging traction to line up for next mowing pass. Also ideal when using turn-around mats to preserve collar health.

Greensmaster® e1026 - Hi-Lo Clip Rate Knob

Hi-Lo Clip Rate Knob

Clip frequency can easily be changed in the field to mow the perimeter, collars etc. The quick-change feature also can be locked out for added control.

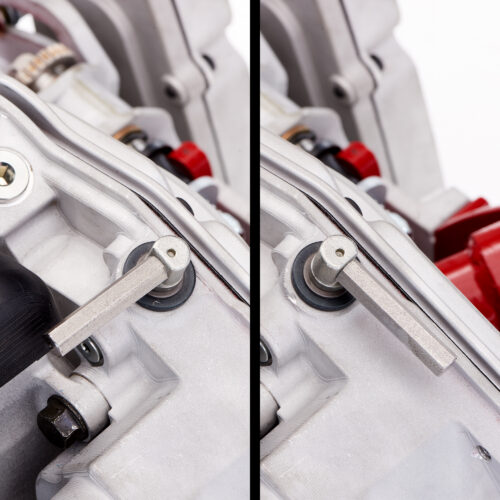

Greensmaster® e1026 - Traction Release Lever

Traction Release Lever

Disengage the traction with a simple lever twist. Getting around the shop has never been easier!

Engine & Drivetrain

Power Train (Engine Description) Lithium-ion battery pack, nominal 51.4 V 26.3 Ah (1.35 kWh), with integrated battery management system using CAN communication with the machine controller and charger. Single battery affixed to the unit and charged onboard. Brushless permanent magnet DC motor with integral motor controller and helical gear reduction.
Fuel Type Electric
Drivetrain Electric
Start Type Key start

Battery

Voltage 51.4 V
Battery Capacity 26.3 Ah (1.35 kWh)
Battery Charge Time 4 hours (empty to full)
Battery Run Time Up to 3,250 m² (35,000 sq ft) on a single charge
Charger Off-board 650W smart charger with CAN communication to manage battery health. AC input 100-240VAC, 50/60 Hz, max 7.5 A. Max charge time, empty to full: 4 hours.

Cutting System

Cutting Width 53.3 cm (21")
Cutting Unit Suspension Fixed
Number of Blades 8, 11 or 14
Blade Type (Description) EdgeSeries™ DPA radial reels.
Reel Diameter 12.7 cm (5")
Reel/Cylinder Drive Mechanical/Belt
Height of Cut Range For greens (drum position one): 1.5 mm - 8 mm (0.062" - 0.312"). For tees (drum position two): 6 mm - 16 mm (0.25" - 0.625"). High height of cut kit (drum position two): 30 mm (1.18").
Clip Frequency/Backlapping Quick-change dual-speed gear drive, combined with positive drive belt - four possible reel speed/clip settings. Standard backlapping.
Traction Drum Dual position traction drum with positions for contour following or forward weight bias at higher heights of cut.
Cutting Unit Accessories 8, 11, 14-Blade DPA Cutting Unit, Roller Options, Groomer Options, Scraper/Brush Options, Bedknife Options, Tools and Maintenance Options.
Cutting Unit Type/Configuration Detachable cutting unit allows easy removal for service / maintenance or cutting unit exchange for different applications.
Rollers Front roller: optional, must be ordered.

Traction & Steering

Traction Drive Gear
Traction Drive (System) Permanent magnet DC motor directly coupled to a fully gear-driven transmission with integral traction differential and traction disconnect to ease movement during service/maintenance operations. Interchangeable drum drive gear cases.
Controls Start/On/Off (ignition) switch, LCD Information Center (hours, battery life, faults, diagnostics, backlap control), throttle, dual function traction/safety bail, reel engage lever, service/parking brake lever, optional light switch.
Parking/Service Brakes Service/parking, band type.
Mowing Speed 3.2 to 5.6 km/h (2.0 to 3.5 mph)
Forward Ground/Transport Speed 0 - 8.5 km/h (0 - 5.3 mph)
Tyres - Rear Optional - two quick-detachable pneumatic tyres (3" x 3.25" - 6")

Comfort & Operator Station

Handle Type Loop handle with telescoping adjustment of 12.7 cm (5") total travel, rubber isolated to minimise operator influence during mowing.

Frame & Chassis

Main Frame/Chassis Fully modular design allows quick disassembly for service/maintenance of all major components.

Dimensions & Weight

Weight 109 kg (240 lbs) with 11-blade cutting unit and aluminium Wiehle roller.

Warranty

Warranty Two-year limited warranty
Battery Warranty Four-year lithium-ion battery

Accessories

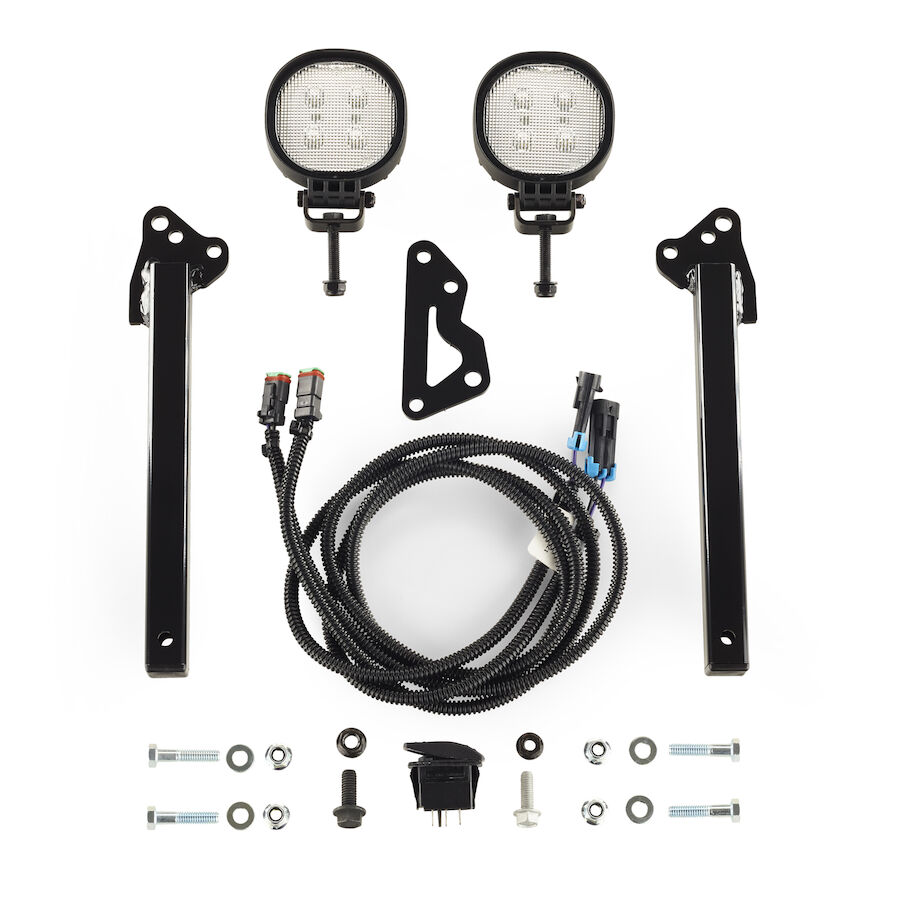

Optional Accessories LED Light Kit, Cutting Unit Light Kit Mount, Push Broom Kit, Wheel Kit, Backlap Access Kit, Wireless Hour Meter, High Height of Cut Kit, Charger, Replacement Battery

Specification Toro Greensmaster® e1021 | Electric Walk Behind Greens Mower Toro Greensmaster® e1026 | Electric Walk Behind Greens Mower Toro Greensmaster® eFlex 1021 | Electric Walk Behind Greens Mower
Model Toro Greensmaster® e1021 | Electric Walk Behind Greens Mower Viewing Toro Greensmaster® e1026 | Electric Walk Behind Greens Mower Toro Greensmaster® eFlex 1021 | Electric Walk Behind Greens Mower
Featured specs
Battery Run Time Up to 3,250 m² (35,000 sq ft) on a single charge Up to 4,087 m² (44,000 sq ft) on a single charge Up to 3,250 m² (35,000 sq ft) on a single charge
Cutting Width 53.3 cm (21") 66 cm (26") 53.3 cm (21")
Cutting Unit Suspension Fixed Fixed Flex
Number of Blades 8, 11 or 14 8 or 11 11 or 14
Weight 109 kg (240 lbs) with 11-blade cutting unit and aluminium Wiehle roller. 116.1 kg (256 lbs) with 11-blade cutting unit and aluminium Wiehle roller. 132.5 kg (292 lbs) with 11-blade cutting unit and aluminium Wiehle roller.
Engine & Drivetrain
Power Train (Engine Description) Lithium-ion battery pack, nominal 51.4 V 26.3 Ah (1.35 kWh), with integrated battery management system using CAN communication with the machine controller and charger. Single battery affixed to the unit and charged onboard. Brushless permanent magnet DC motor with integral motor controller and helical gear reduction. Lithium-ion battery pack, nominal 51.4 V 26.3 Ah (1.35 kWh), with integrated battery management system using CAN communication with the machine controller and charger. Single battery affixed to the unit and charged onboard. Lithium-ion battery pack, nominal 51.4 V 26.3 Ah (1.35 kWh), with integrated battery management system using CAN communication with the machine controller and charger. Single battery affixed to the unit and charged onboard. Brushless permanent magnet DC motor with integral motor controller and helical gear reduction.
Fuel Type Electric Electric Electric
Drivetrain Electric Electric Electric
Start Type Key start Key start Key start
Battery
Voltage 51.4 V 51.4 V 51.4 V
Battery Capacity 26.3 Ah (1.35 kWh) 26.3 Ah (1.35 kWh) 26.3 Ah (1.35 kWh)
Battery Charge Time 4 hours (empty to full) 4 hours (empty to full) 4 hours (empty to full)
Charger Off-board 650W smart charger with CAN communication to manage battery health. AC input 100-240VAC, 50/60 Hz, max 7.5 A. Max charge time, empty to full: 4 hours. Off-board 650W smart charger with CAN communication to manage battery health. AC input 100-240VAC, 50/60 Hz, max 7.5 A. Max charge time, empty to full: 4 hours. Off-board 650W smart charger with CAN communication to manage battery health. AC input 100-240VAC, 50/60 Hz, max 7.5 A. Max charge time, empty to full: 4 hours.
Cutting System
Blade Type (Description) EdgeSeries™ DPA radial reels. EdgeSeries™ DPA radial reels. EdgeSeries™ DPA radial reels.
Reel Diameter 12.7 cm (5") 12.7 cm (5") 12.7 cm (5")
Reel/Cylinder Drive Mechanical/Belt Mechanical/Belt Mechanical/Belt
Height of Cut Range For greens (drum position one): 1.5 mm - 8 mm (0.062" - 0.312"). For tees (drum position two): 6 mm - 16 mm (0.25" - 0.625"). High height of cut kit (drum position two): 30 mm (1.18"). For greens (drum position one): 1.5 mm - 8 mm (0.062" - 0.312"). For tees (drum position two): 6 mm - 16 mm (0.25" - 0.625"). High height of cut kit (drum position two): 30 mm (1.18"). For greens (spacer position one): 1.5 mm - 6 mm (0.062" - 0.250"). For tees (spacer position two): 3 mm - 9 mm (0.125" - 0.375"). High height of cut kit: 9 mm - 25 mm (0.375" - 1.00").
Clip Frequency/Backlapping Quick-change dual-speed gear drive, combined with positive drive belt - four possible reel speed/clip settings. Standard backlapping. Quick-change dual-speed gear drive, combined with positive drive belt - four possible reel speed/clip settings. Standard backlapping. Quick-change dual-speed gear drive, combined with positive drive belt - four possible reel speed/clip settings. Standard backlapping.
Traction Drum Dual position traction drum with positions for contour following or forward weight bias at higher heights of cut. Dual position traction drum with positions for contour following or forward weight bias at higher heights of cut. Tapered traction drum for improved after-cut appearance.
Cutting Unit Accessories 8, 11, 14-Blade DPA Cutting Unit, Roller Options, Groomer Options, Scraper/Brush Options, Bedknife Options, Tools and Maintenance Options. 8 or 11-Blade DPA Cutting Unit, Roller Options, Groomer Options, Scraper/Brush Options, Bedknife Options, Tools and Maintenance Options. 11, 14-Blade Flex ES Cutting Unit, Front and Rear Roller Options, Bedknife Options, Groomer Options, Scraper Options, Tools and Maintenance Options.
Cutting Unit Type/Configuration Detachable cutting unit allows easy removal for service / maintenance or cutting unit exchange for different applications. Detachable cutting unit allows easy removal for service / maintenance or cutting unit exchange for different applications. Semi-floating cutting unit separable from drive unit, pivoting around reel centreline (pitch axis) and pivoting around bedknife centreline side to side (roll axis).
Rollers Front roller: optional, must be ordered. Front roller: optional, must be ordered. Front roller: optional, must be ordered. Rear roller: aluminium full roller 5.1 cm (2") diameter with sealed bearings.
Traction & Steering
Traction Drive Gear Gear Gear
Traction Drive (System) Permanent magnet DC motor directly coupled to a fully gear-driven transmission with integral traction differential and traction disconnect to ease movement during service/maintenance operations. Interchangeable drum drive gear cases. Permanent magnet DC motor directly coupled to a fully gear-driven transmission with integral traction differential and traction disconnect to ease movement during service/maintenance operations. Interchangeable drum drive gear cases. Permanent magnet DC motor directly coupled to a fully gear-driven transmission with traction differential and traction disconnect to ease movement during service/maintenance operations. Interchangeable drum drive gear cases.
Controls Start/On/Off (ignition) switch, LCD Information Center (hours, battery life, faults, diagnostics, backlap control), throttle, dual function traction/safety bail, reel engage lever, service/parking brake lever, optional light switch. Start/On/Off (ignition) switch, LCD Information Center (hours, battery life, faults, diagnostics, backlap control), throttle, dual function traction/safety bail, reel engage lever, service/parking brake lever, optional light switch. Start/On/Off (ignition) switch, LCD Information Center (hours, battery life, faults, diagnostics, backlap control), throttle, dual function traction/safety bail, reel engage lever, service/parking brake lever, optional light switch.
Parking/Service Brakes Service/parking, band type. Service/parking, band type. Service/parking, band type.
Mowing Speed 3.2 to 5.6 km/h (2.0 to 3.5 mph) 3.2 to 5.6 km/h (2.0 to 3.5 mph) 3.2 to 5.6 km/h (2.0 to 3.5 mph)
Forward Ground/Transport Speed 0 - 8.5 km/h (0 - 5.3 mph) 0 - 8.5 km/h (0 - 5.3 mph) 0 - 8.5 km/h (0 - 5.3 mph)
Tyres - Rear Optional - two quick-detachable pneumatic tyres (3" x 3.25" - 6") Optional - two quick-detachable pneumatic tyres (3" x 3.25" - 6") Optional - two quick-detachable pneumatic tyres (3" x 3.25" - 6")
Comfort & Operator Station
Handle Type Loop handle with telescoping adjustment of 12.7 cm (5") total travel, rubber isolated to minimise operator influence during mowing. Loop handle with telescoping adjustment of 12.7 cm (5") total travel, rubber isolated to minimise operator influence during mowing. Loop handle with telescoping adjustment of 12.7 cm (5") total travel, rubber isolated to minimise operator influence during mowing.
Frame & Chassis
Main Frame/Chassis Fully modular design allows quick disassembly for service/maintenance of all major components. Fully modular design allows quick disassembly for service/maintenance of all major components. Fully modular design allows quick disassembly for service/maintenance of all major components.
Warranty
Warranty Two-year limited warranty Two-year limited warranty Two-year limited warranty
Battery Warranty Four-year lithium-ion battery Four-year lithium-ion battery Four-year lithium-ion battery
Accessories
Optional Accessories LED Light Kit, Cutting Unit Light Kit Mount, Push Broom Kit, Wheel Kit, Backlap Access Kit, Wireless Hour Meter, High Height of Cut Kit, Charger, Replacement Battery LED Light Kit, Cutting Unit Light Kit Mount, Push Broom Kit, Wheel Kit, Backlap Access Kit, Wireless Hour Meter, High Height of Cut Kit, Charger, Replacement Battery LED Light Kit, Cutting Unit Light Kit Mount, Push Broom Kit, Wheel Kit, Backlap Access Kit, Wireless Hour Meter, High Height of Cut Kit, Charger, Replacement Battery
Grass Collection & Discharge
Collection System Volume — — Molded polyethylene with integrated graphics highlighting overlap guidelines, vented for high-efficiency collection.

Frequently Asked Questions

All three are lithium-ion walk-behind greens mowers in Toro’s Electric Series, with the same 51.4 V pack (1.35 kWh), telescoping handle and LCD. The difference is cutting width and whether the cutting unit is fixed or Flex.

  • Greensmaster e1021 (04835): 53.3 cm (21″) fixed-head. About 3,250 m? (35,000 sq ft) per charge. 8, 11 or 14-blade DPA reels.
  • Greensmaster eFlex 1021 (04865): 53.3 cm (21″) Flex suspension, so the cutting unit follows undulations. About 3,250 m? per charge. 11 or 14-blade Flex reels, tool-free cutting unit change.
  • Greensmaster e1026 (04845): 66 cm (26″) fixed-head. About 4,087 m? (44,000 sq ft) per charge. 8 or 11-blade DPA reels.

Not sure which to spec? Call 0800 807 333.

Mulched grass clippings improve soil structure by adding organic matter, which enhances the soil’s water absorption by up to 12%. This means less water is needed to keep your lawn healthy, making mulching a great choice in areas with water restrictions. Toro mowers with Vortex Technology increase airflow to the deck, ensuring clippings decompose quickly and effectively.

Mulching with Toro’s Recycler® Technology creates a natural barrier that helps prevent weed seeds from reaching the soil, reducing the chances of weed growth. Regular mulching also promotes thicker, healthier grass, which can outcompete weeds, further minimizing their spread​.

NOTE: If your lawn already has large sections of weeds, mulching could inadvertently spread weed seeds. In such cases, it’s better to bag the clippings to avoid spreading those weeds to other areas. Once the weeds are under control, you can return to mulching to promote a healthier lawn​.

Mulching mowers, like those from Toro, help recycle grass clippings back into your lawn, providing nutrients and reducing the need for fertilizer. Studies show that mulched clippings can reduce nitrogen fertilizer usage by up to 50% since the nitrogen from the clippings is slowly released back into the soil. Toro’s Recycler® Technology finely chops the grass, creating “Lawn Vitamins” that naturally enrich your lawn’s soil​.
