Toro TransPro 648 ProCore Trailer

Model: 09964
Toro

Toro TransPro 648 ProCore Trailer

Model: 09964
Toro

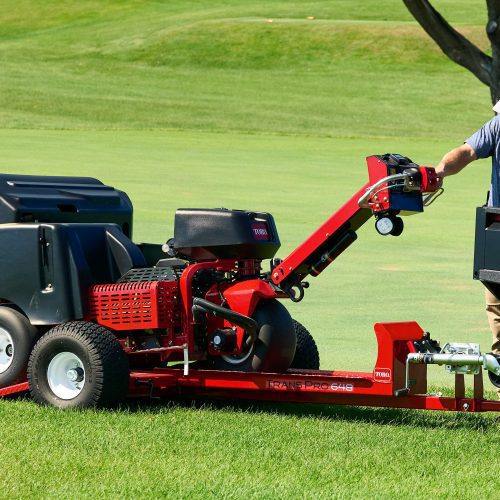

The Toro TransPro 648 allows for the secure and efficient transport of the Toro ProCore 648s and 648 models around your property. Unique design elements allow for quick loading and unloading and easy securing and release of the aerator. The front latch secures both ProCore models to the trailer with no need for additional securing straps. Raised rigid edges keep the front wheel aligned and the rear wheels in intended position. Large flotation tires minimize ground pressure and absorb small bumps for a smooth ride.

  • Raised rigid trailer edges align aerator front wheel while loading/unloading and keeps aerator in intended position during transport.
  • High-strength ramp automatically raises and lowers while loading and unloading aerator.
  • Simple over-center latch design allows quick and easy securing and release of the aerator – no need for tie down straps.
  • Easily secure ramp in raised position for empty transport or storage.
  • Trailer tongue length and hitch height are adjustable to adapt to multiple tow vehicles yet minimize footprint for storage.
  • The roller tongue jack allows for easy connection to tow vehicles and repositioning while the trailer is in storage.
  • Large flotation tires minimize ground pressure and absorb small bumps for a smooth ride.
Fleet Finance & Leasing Options Talk to us today 0800 807 333

Features

Toro TransPro 648 | Trailer

Secure Loading & Transport

Raised rigid trailer edges align aerator front wheel while loading/unloading and keeps aerator in intended position during transport.

Toro TransPro 648 | Trailer

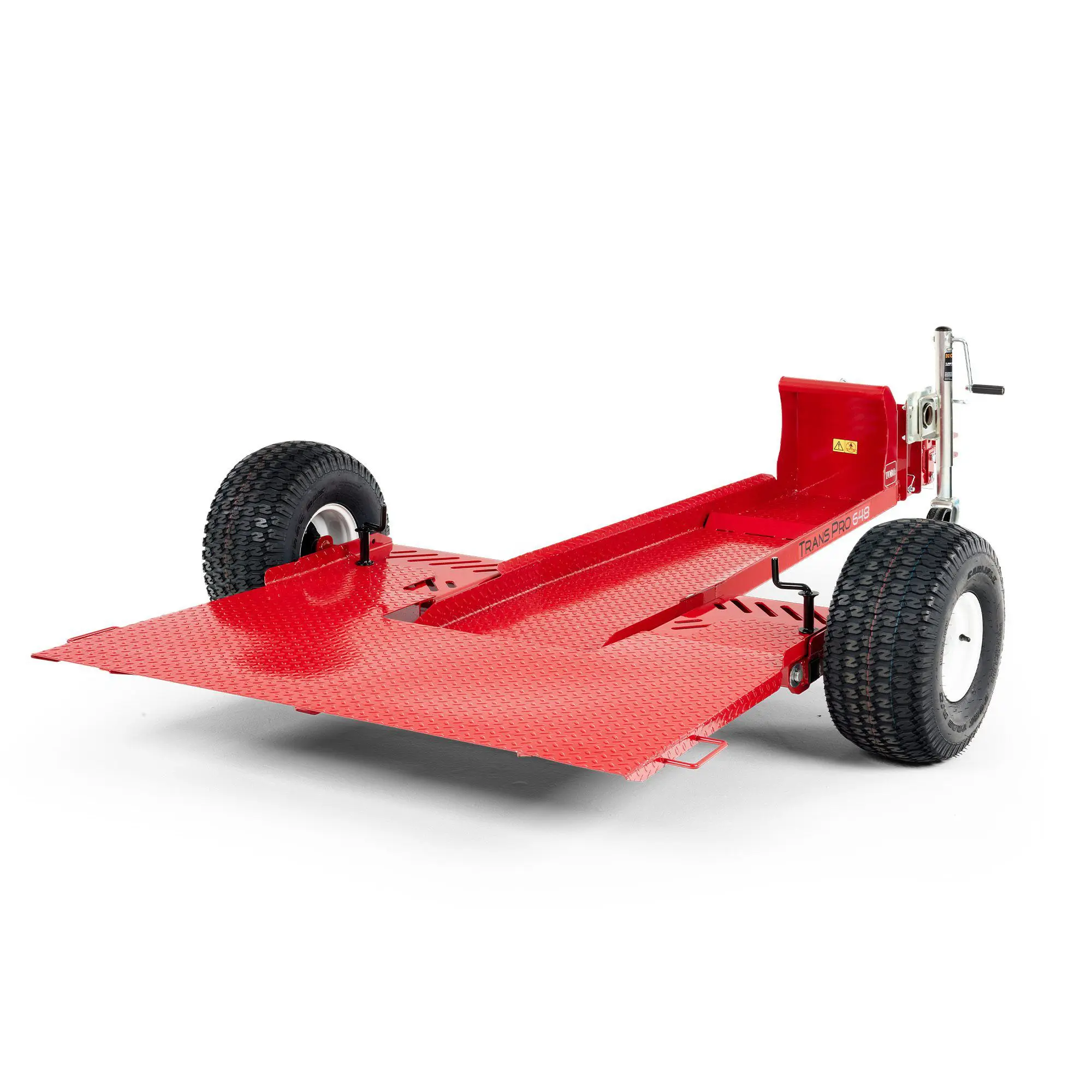

Automatic Ramp

High-strength ramp automatically raises and lowers while loading and unloading aerator.

Toro TransPro 648 | Trailer

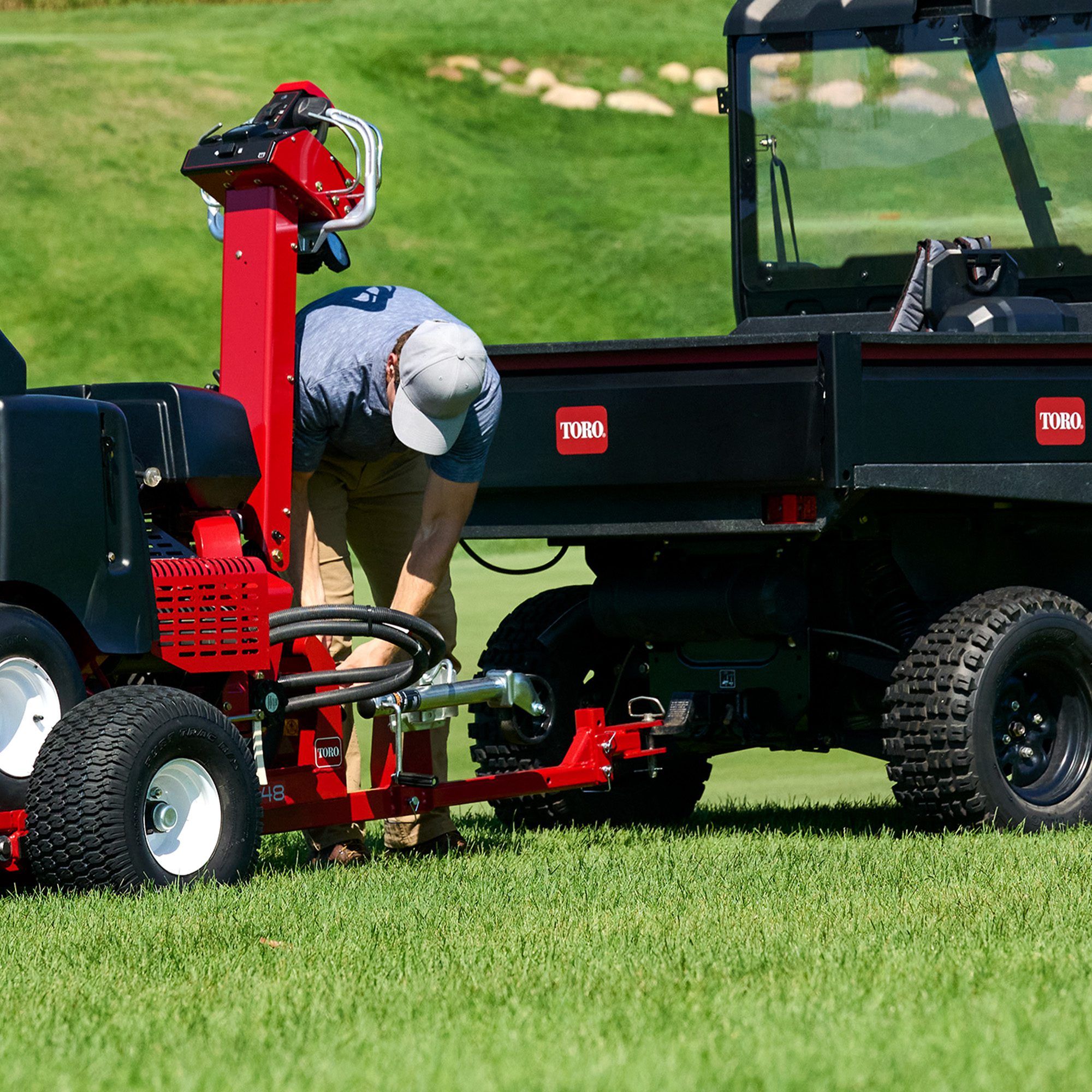

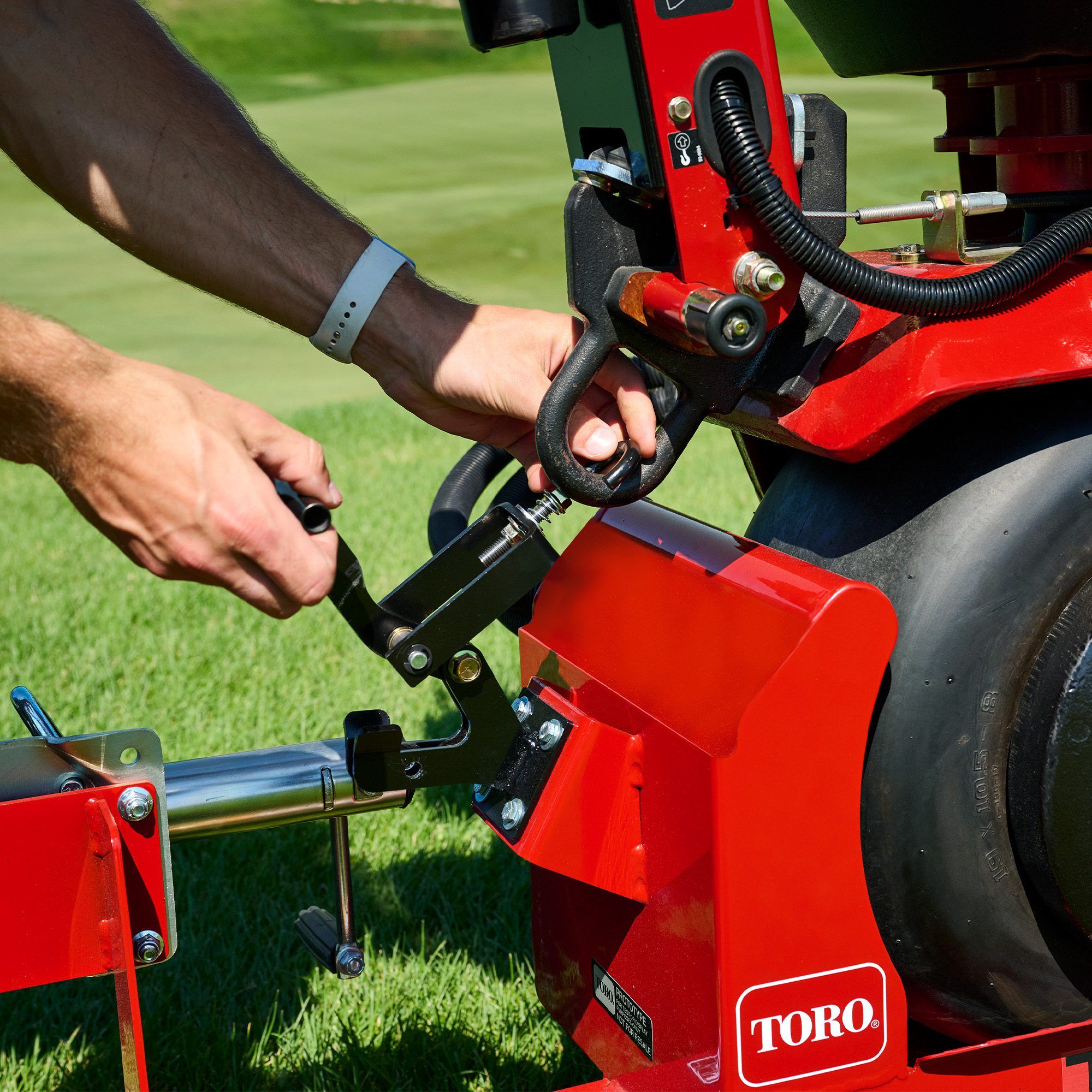

Easily Secure To Trailer

Simple over-center latch design allows quick and easy securing and release of the aerator – no need for tie down straps.

Toro TransPro 648 | Trailer

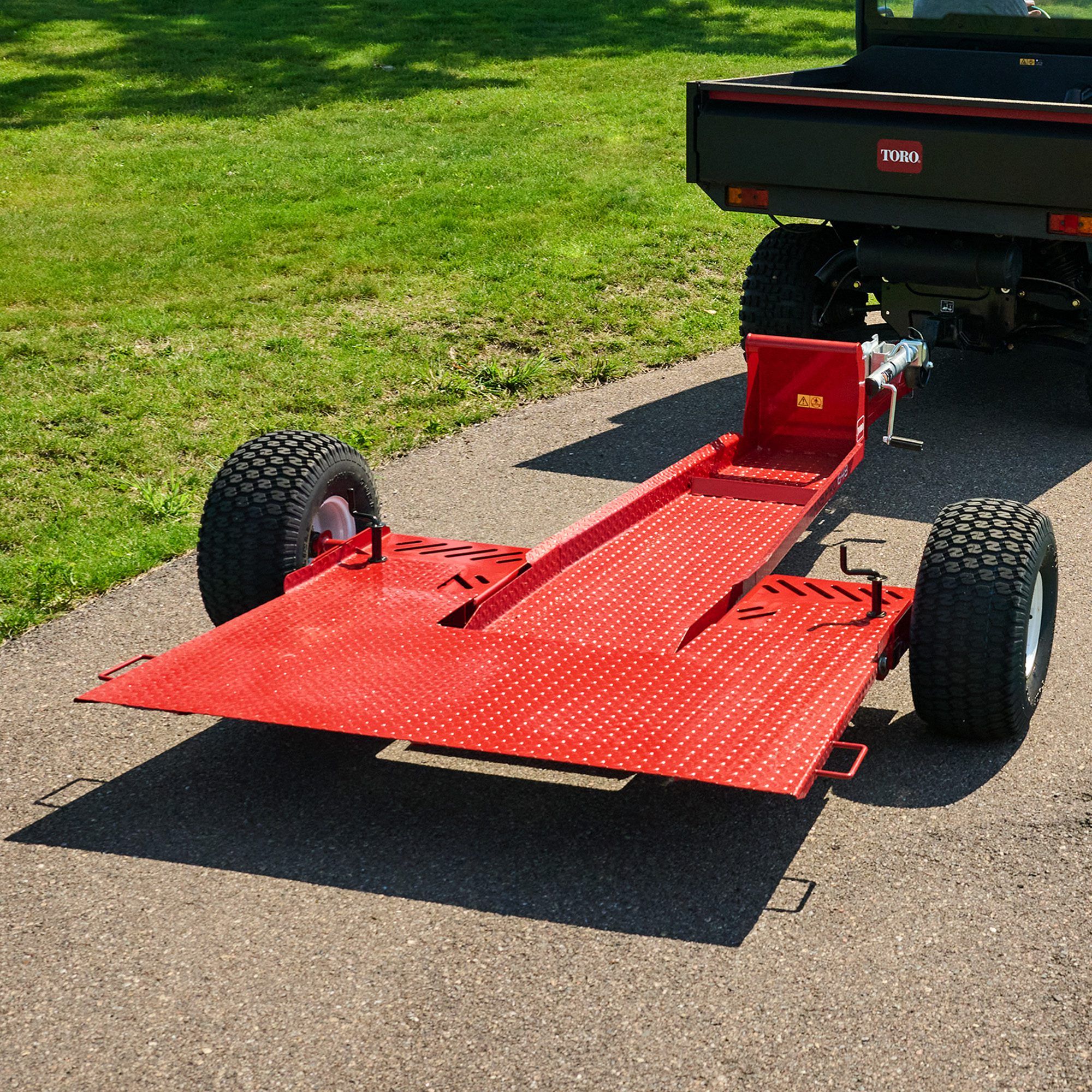

Versatile Design

Easily secure ramp in raised position for empty transport or storage. Designed to accomodate both ProCore models.

Toro TransPro 648 | Trailer

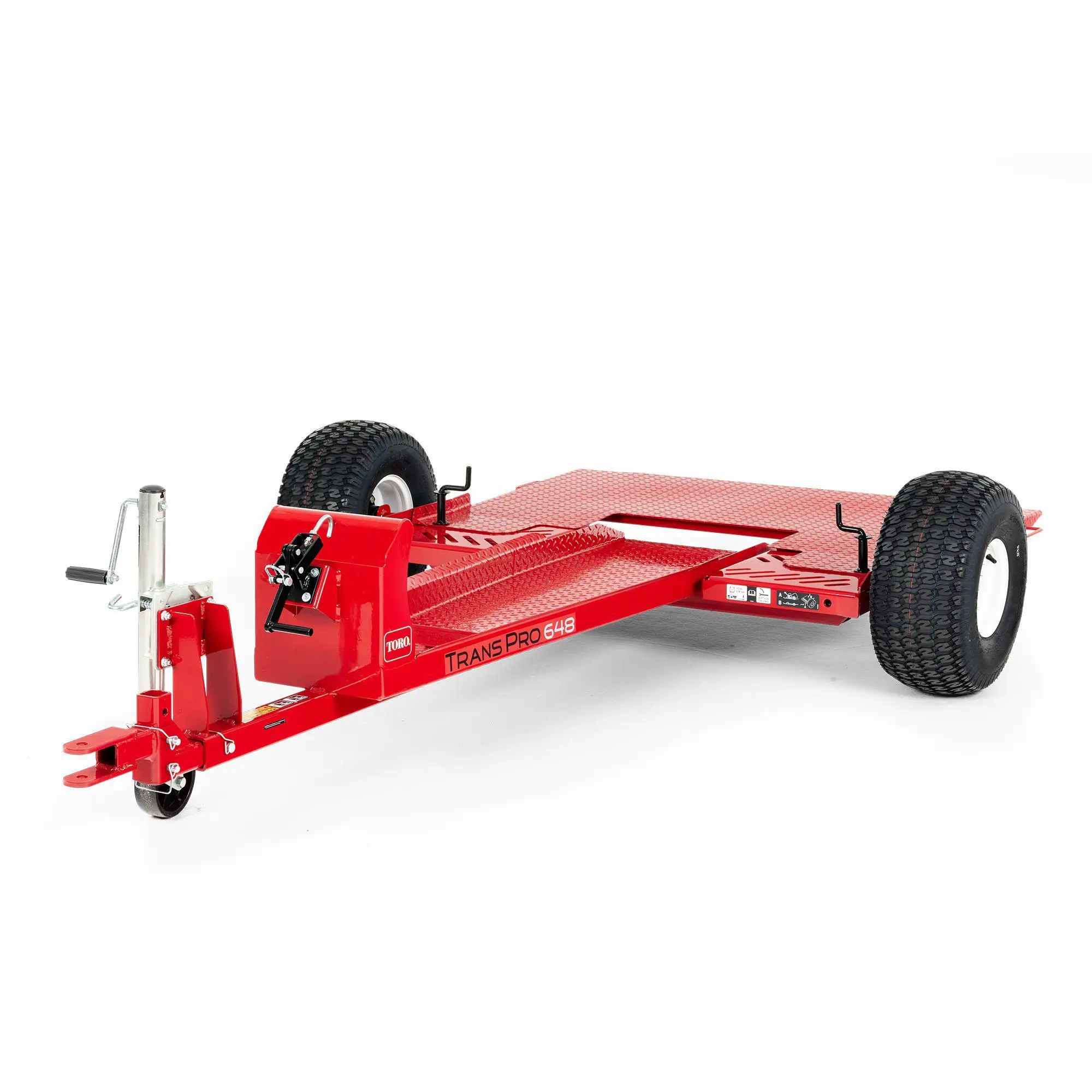

Adjustable Trailer Tongue

Trailer tongue length and hitch height are adjustable to adapt to multiple tow vehicles yet minimize footprint for storage.

Toro TransPro 648 | Trailer Roller Tongue Jack

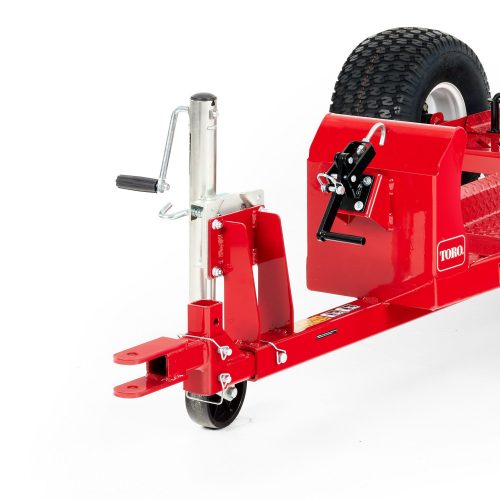

Roller Tongue Jack

The roller tongue jack allows for easy connection to tow vehicles and repositioning while the trailer is in storage.

Toro TransPro 648 | Trailer

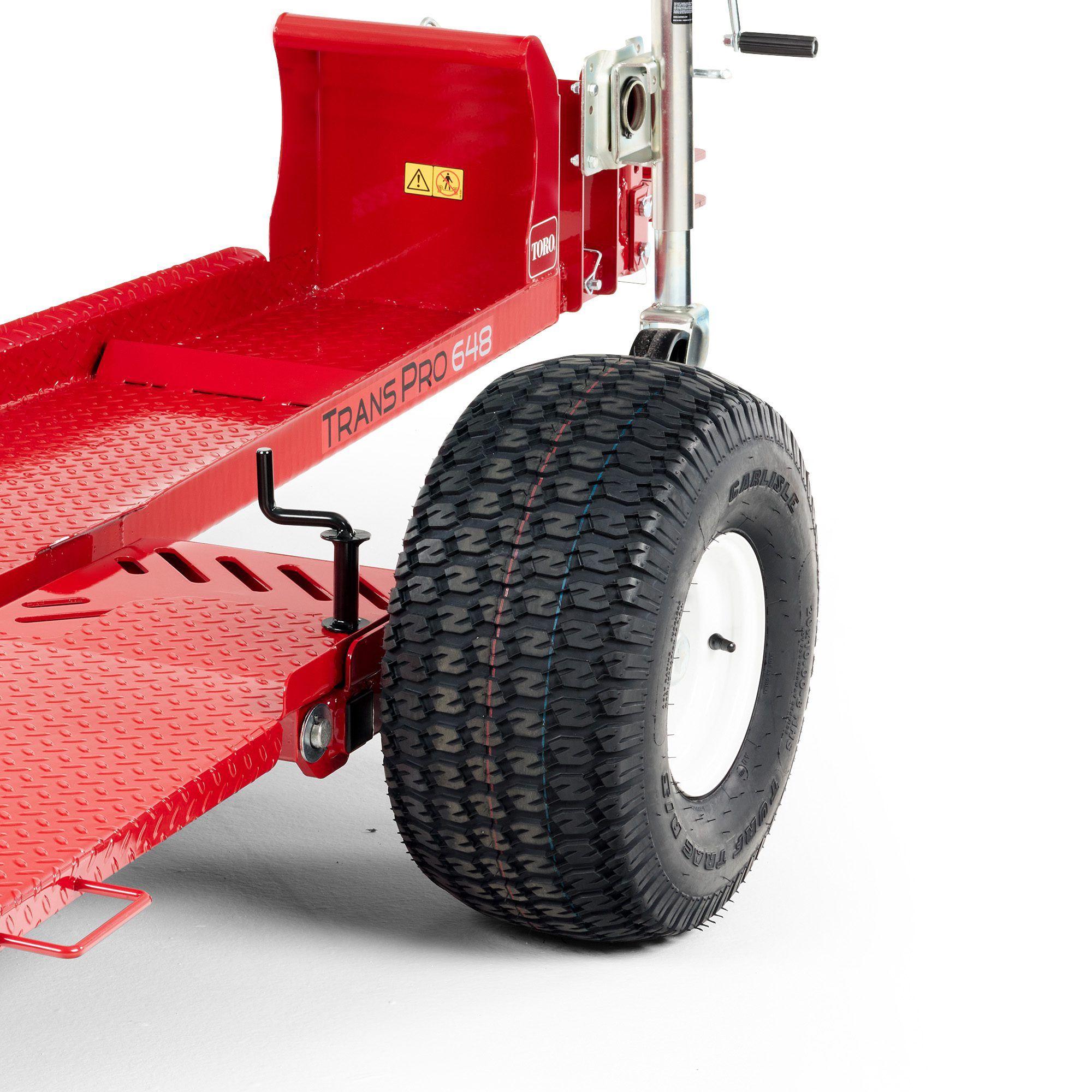

Smooth Ride

Large flotation tires minimize ground pressure and absorb small bumps for a smooth ride.

Specifications

Axles Heavy-duty stub axel. Greaseable.
Height 21" (53.3 cm)
Hitch Pin type hitch is standard; tongue is 2.5" (6.4 cm) square and adjustable in height and length.
Length Extended: 150" (380.6 cm)
Retracted: 123.6" (313.9 cm)
Load Capacity 1,850 lbs. (839 kg)
Ramp Textured ramp design. Automatically raises during loading.
Retention Method Over-Center style quick latch
Suspension Large low pressure tires (20 x 10-8)
Towing Maximum tongue load: 400 lbs. (181.4 kg)
Transport Speed Maximum of 15 mph (24 km/h)
Weight 382 lbs (173 kg)
Width 73.8" (187.5 cm)

Brochures, Parts & Manuals

Parts Search

You will need your Serial # to search for Parts, Manuals, Accessories, Specifications and Product Details on Toro.com .

ToroParts for Model: 09964 Need Help? Contact Us
