| Battery | One 12V starter battery
|

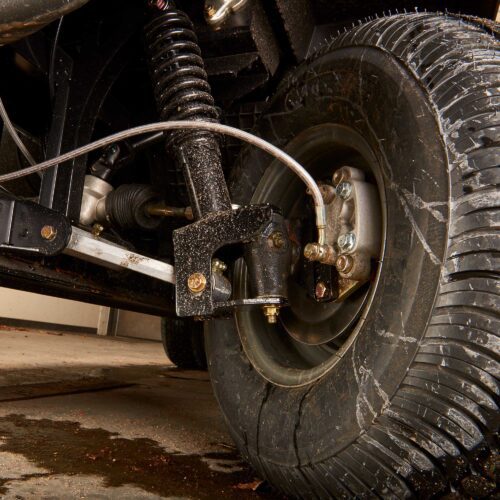

| Brakes - Front | Hydraulic Disc
|
| Brakes - Rear | Hydraulic disc
|
| Cooling System | Air Cooled
|
| Crated Model | No
|
| Displacement | 429cc (26.2 ci)
|
| Drivetrain | Gas
|
| Frame | Power coated, welded steel channel and tube.
|
| Fuel / Power Source | Gasoline |
| Fuel Capacity | 5 gallons (18.9 liters)
|

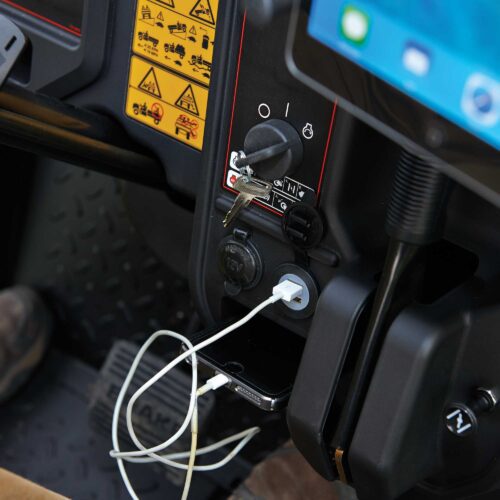

| Gauges/Instrumentation | Hour meter, fuel gauge, USB power port, headlight switch, on/off ignition key switch, gear selector and parking brake lever. Two cup holders, radio holder and three in-dash storage compartments.
|
| Ground Clearance | Front: 9" (22.8 cm) Rear: 6" (15.2 cm)
|

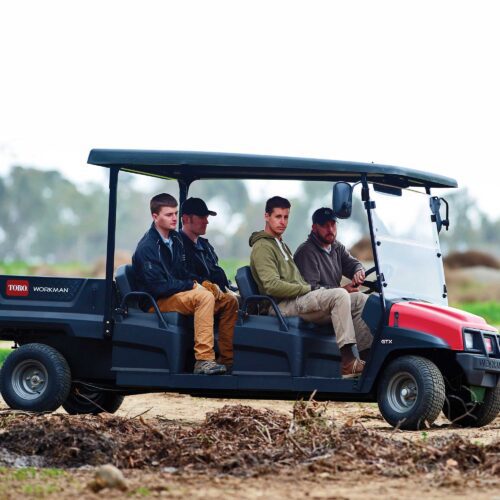

| Height | 2-Seat with Bed: 50.2" (127 cm) 4-Seat with Bed: 50.2" (127 cm) 2-Seat with 6' Flat Bed: 50.2" (127 cm)
|
| Horn | Standard |
| Inside Turning Radius | 60.25" (153 cm)
|
| Lights | Standard LED Headlights
|

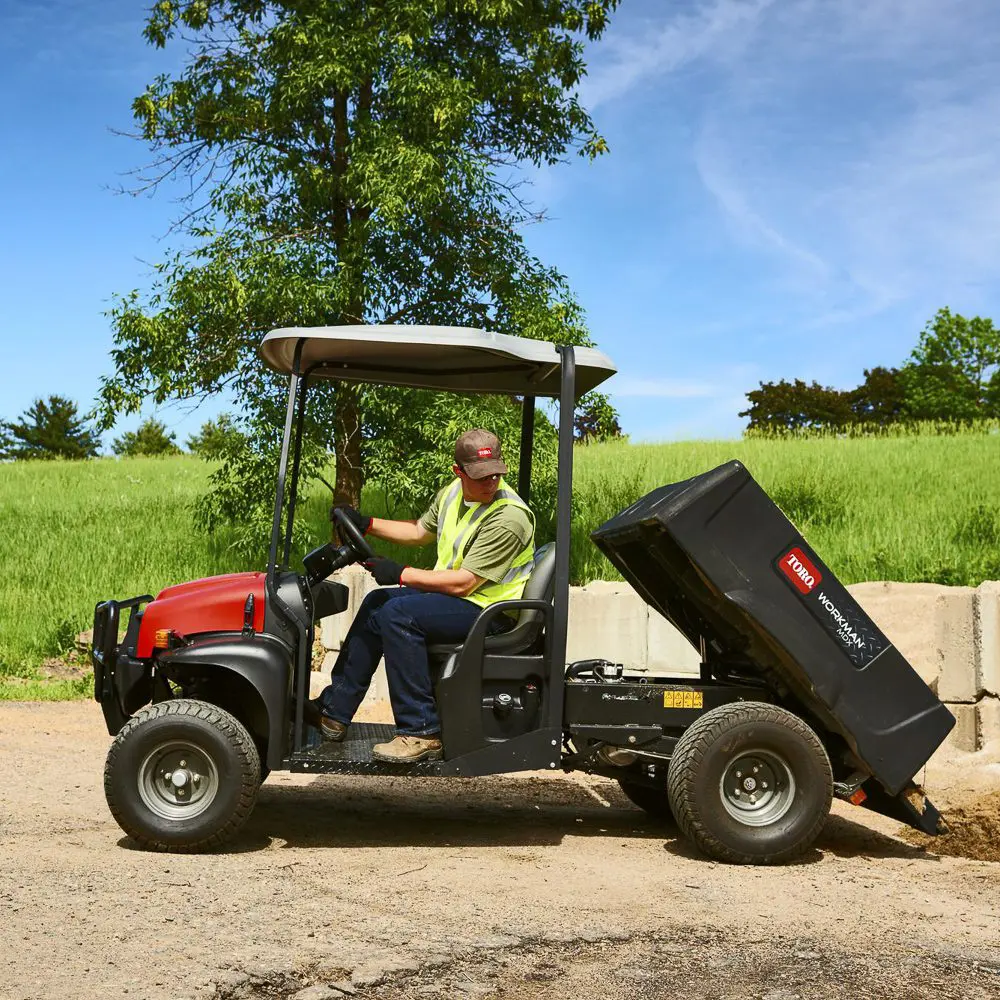

| Optional Accessories | Canopy, solid folding windshield, 4-seat configuration, flat bed, 6-foot flat bed, bed sides, storage box, trash can mount, bed racking, electric bed lift, brush guard, 12V outlet, brake/tail/signal lights, ROPS certified hard cab, back up alarm kit, parking brake alarm kit, all-terrain tire kit, 2-post ROPS kit, beverage cart, range cage, glass windshield and medical-bed. |
| Power Steering | No |
| Power Train (Engine Description) | 429 cc, air-cooled, single cylinder Kohler® EFI gasoline engine.
|
| Product Length | 2-Seat with Bed: 119" (302 cm) 4-Seat with Bed: 144" (366 cm) 2-Seat with 6' Flat Bed: 156" (396 cm)
|
| Rear Draw Bar | Standard
|
| Roll-Over Protection (ROPS) | Optional
|
| Starting | Pedal or Key Start
|
| Steering System Description | Rack and pinion system with ergonomically positioned non-adjustable column. Steering wheel has 2.75 turns lock-to-lock with a 13.75" (34.93 cm) diameter wheel.
|
| Suspension - Front | Modified MacPherson Strut. Adjustable coil over shocks at all four wheels.
|

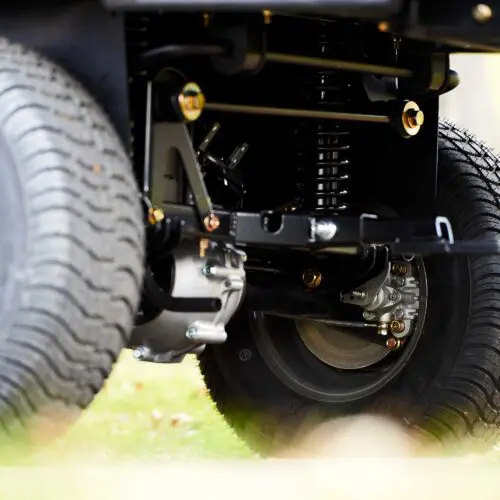

| Suspension - Rear | Articulating Swing Arm. Adjustable coil over shocks at all four wheels.
|
| Suspension Travel - Front | 3.5" (8.9 cm)
|
| Suspension Travel - Rear | 4" (10.2 cm)
|
| Tires - Front | 20" x 8" - 10", 4-ply. Or alternate 4-ply/6-ply
|
| Tires - Rear | 20" x 8" - 10", 4-ply. Or alternate 4-ply/6-ply
|
| Total Vehicle Capacity | 1,200 lbs. (544 kg)
|
| Towing Capacity | 1,500 lbs. (680 kg)
|
| Traction Drive (System) | 2WD
|
| Transaxle | 11.47:1 Forward, 14.35:1 Reverse.
|
| Vehicle Configuration | Standard
|
| Vehicle Type | Light Duty
|
| Weight | 2-Seat with Bed: 875 lbs. (397 kg) 4-Seat with Bed: 1,150 lbs. (522 kg) 2-Seat with 6' Flat Bed: 1,264 lbs. (573 kg)
|
| Wheelbase | 2-Seat with Bed: 77.8" (197 cm) 4-Seat with Bed: 114" (290 cm) 2-Seat with 6' Flat Bed: 114" (290 cm)
|
