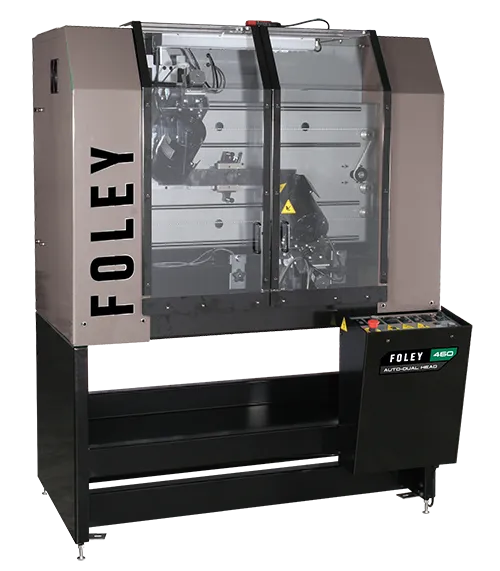

Foley 460 Automated Rotary Blade Grinder

Name: Parkland Products
Price range: $$

Model: FOLEY460

Foley 460 Automated Rotary Blade Grinder

Model: FOLEY460

The most innovative product to enter the turfcare industry in years! Fully enclosed to keep dust and noise in, and dual grinding heads that result in time savings of up to 70%. Reproduce the OEM grind surface with minimal effort. And the automated infeed and built-in blade balancing system allow for a faster, safer and more consistent blad sharpening process.

While the OEM’s recommend grinding every eight to ten hours of use for maximum engineered performance, the 460 will reduce your labor, will reduce your effort, and provide the best grind possible for your cutting unit investment. More stress on hydraulics, added strain on your engine, and increased fuel consumption is typical when blades are not sharpened regularly.

5” (127 mm) diameter cupped grinding wheels (2)
Patent pending dual head and relief radius system
Structurally engineered steel frame
Safety guarding standard
Automatic grind control system

This product has been discontinued. We suggest taking a look at the comparable Foley 661 Accu-Pro AT | Bedknife Grinder

Enquire Call 0800 807 333

Talk to a rep Find a Store

Features

Close-up of a dual grinding head on a rotary blade grinder, showcasing its innovative design and components

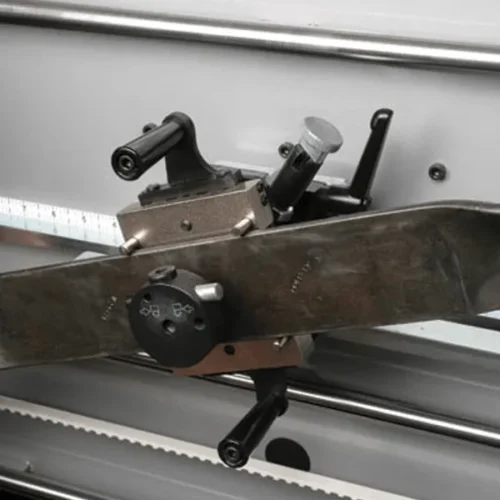

Built-in Blade Balancing System

This unique design ensures not only a perfectly-sharpened blade, but also one that's properly balanced - all without any secondary operations.

Close-up of a rotary blade grinder's adjustment mechanism with metal components and measurement scale

Reliable Centering

Quickly and securely aligns and positions the blade for precise sharpening

Close-up of a rotary blade grinder showing grinding heads and adjustment components in a sleek design

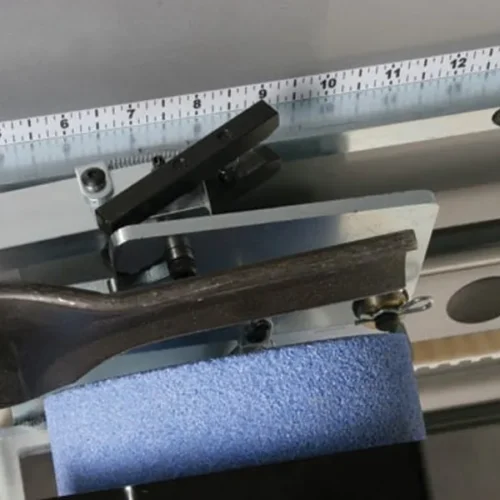

Blend Radius Relief Slide Bar

The measuring decal associated with the relief slide bar makes the set-up process extremely fast. This is one of the many features that makes the repeatability of set-up easy, and reduces the amount of time to change from different blade types to mere seconds.

Close-up of a rotary blade grinder's motor and dual grinding heads, showcasing its innovative design

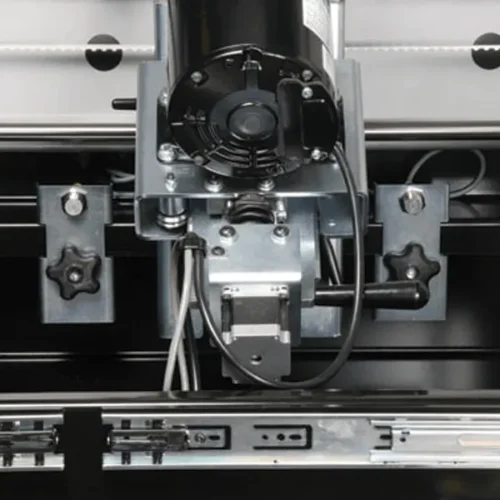

Proximity Switches

Fast and consistent set-up for identical blades is achieved with durable traverse-proximity switches. The result is a perfect, consistent grind every time.

Close-up of a black grinder with a blue grinding wheel, showcasing its dual head design for efficient turfcare

OEM End of Grind Blend Radius

The cutting edges of OEM blades feature a blend-out radius to minimize material stresses. That radius can now be replicated with our patent-pending blend radius grinding feature, producing more consistent and safer results.

Close-up of a motor and grinding blade inside a green, fully enclosed grinder for turfcare

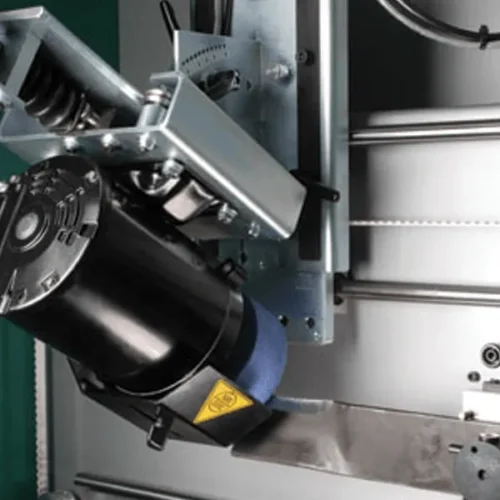

Adjustable Height / Angle

Ensures clearance with a variety of "airfoil-lift" blade designs. Pivot feature allows for angle adjustments to match OEM grind angle specification.

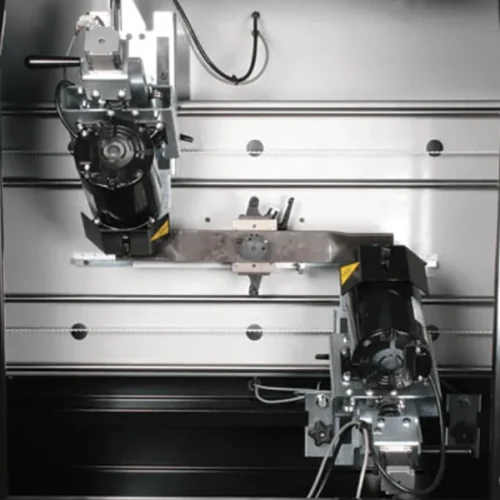

Dual Grinding Heads

By grinding both cutting edges simultaneously, operators can realize time savings of up to 70%.

Specifications

Height	74” (188 cm)
Width	56” (142 cm) doors closed, 69” (175 cm) doors open
Depth	40” (102 cm) machine only
Grinding Motors	1/2 HP TENV, 3450 RPM 50/60 HZ (2)
Traverse Motor	1/20 HP DC variable speed gearmotor

Maximum Rotary Blade Length	34” (86 cm)
Power	115 vac, 50/60 HZ, single phase, 15 AMP
Weight	890 pounds (404 kg)
Standard Features	5” (127 mm) diameter cupped grinding wheels (2) Patent pending dual head and relief radius system Structurally engineered steel frame Safety guarding standard Automatic grind control system
