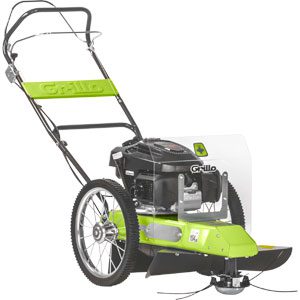

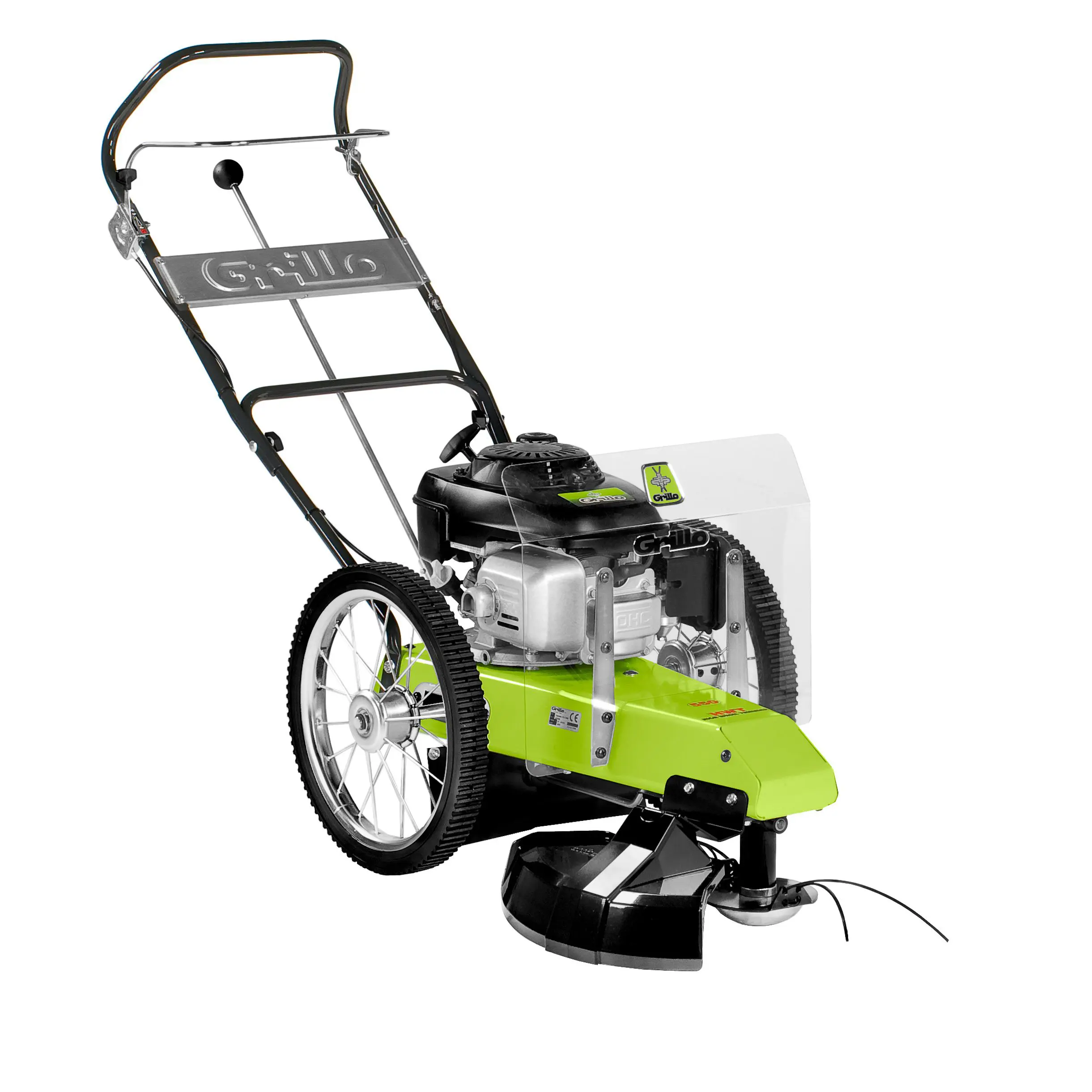

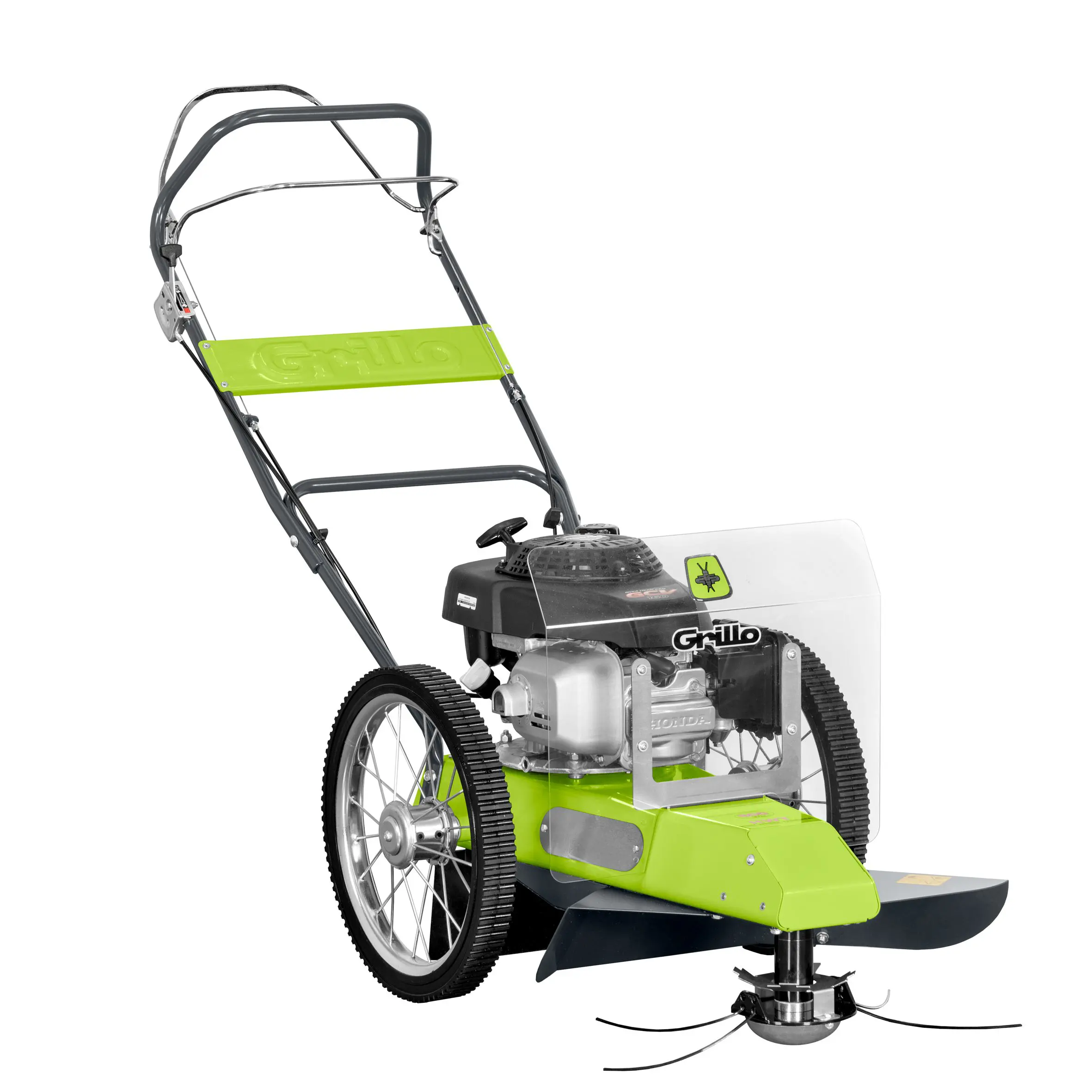

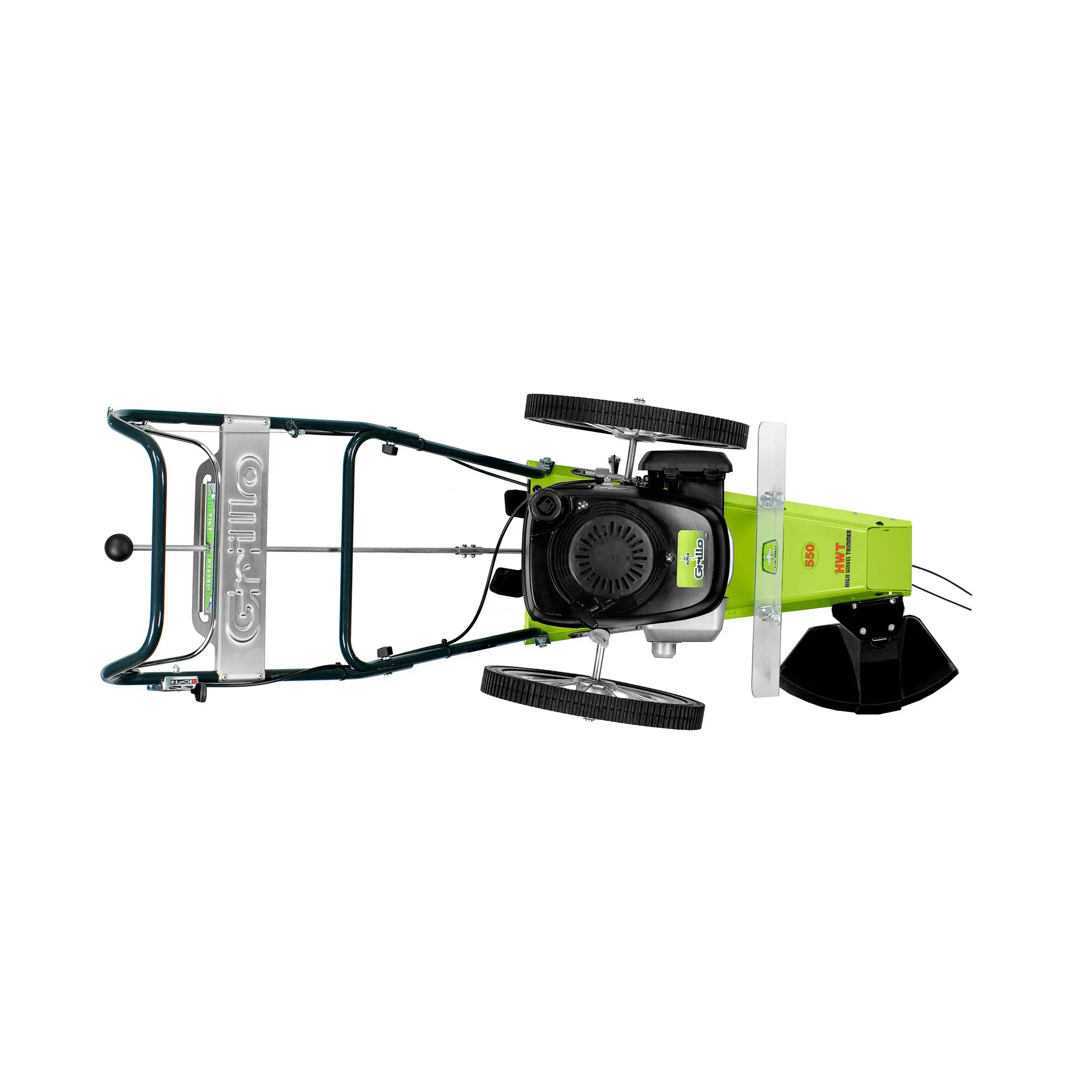

Grillo HWT 600 Self-Propelled Trimmer Mower
Model: 8MG1N
Grillo HWT 600 Self-Propelled Trimmer Mower
Model: 8MG1N

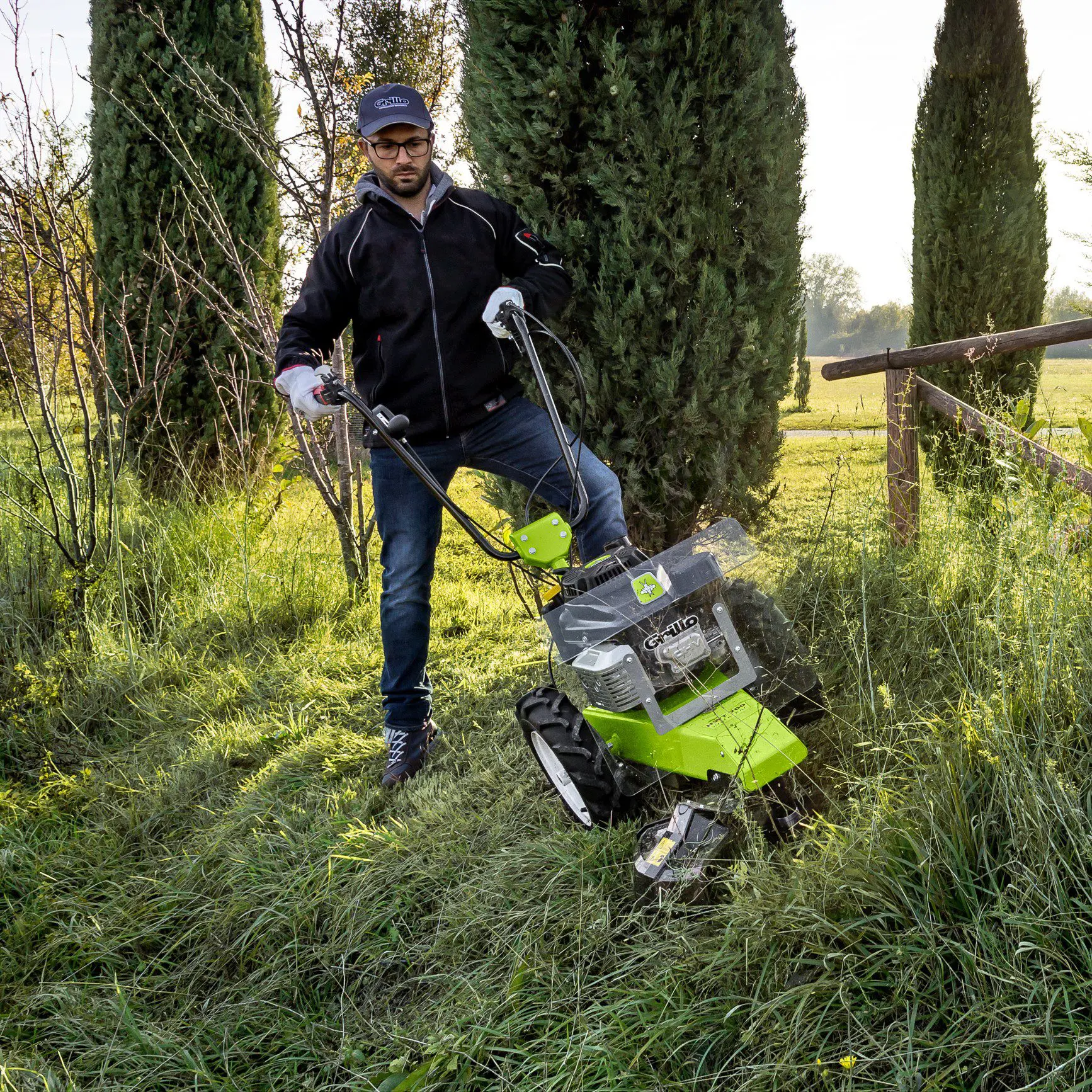

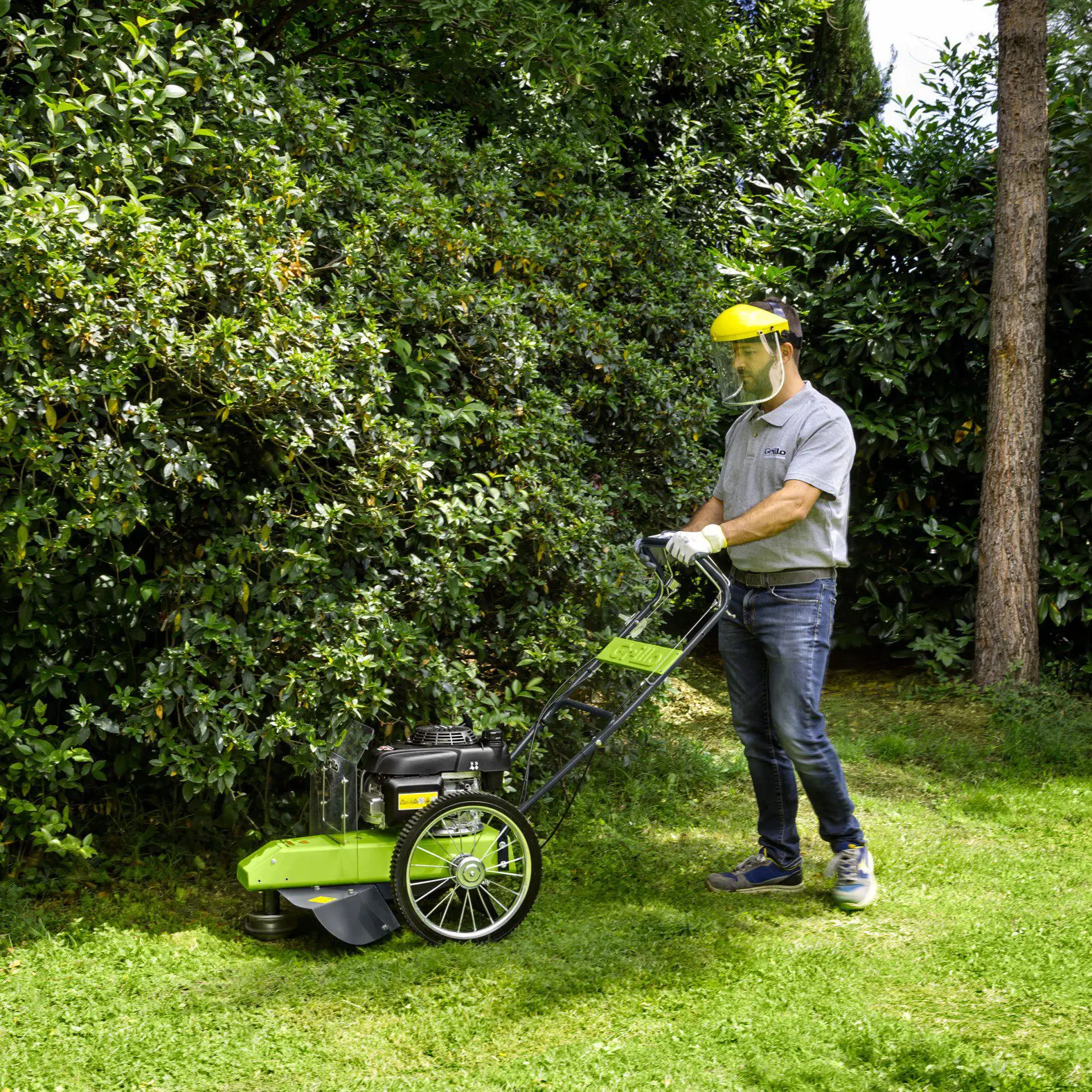

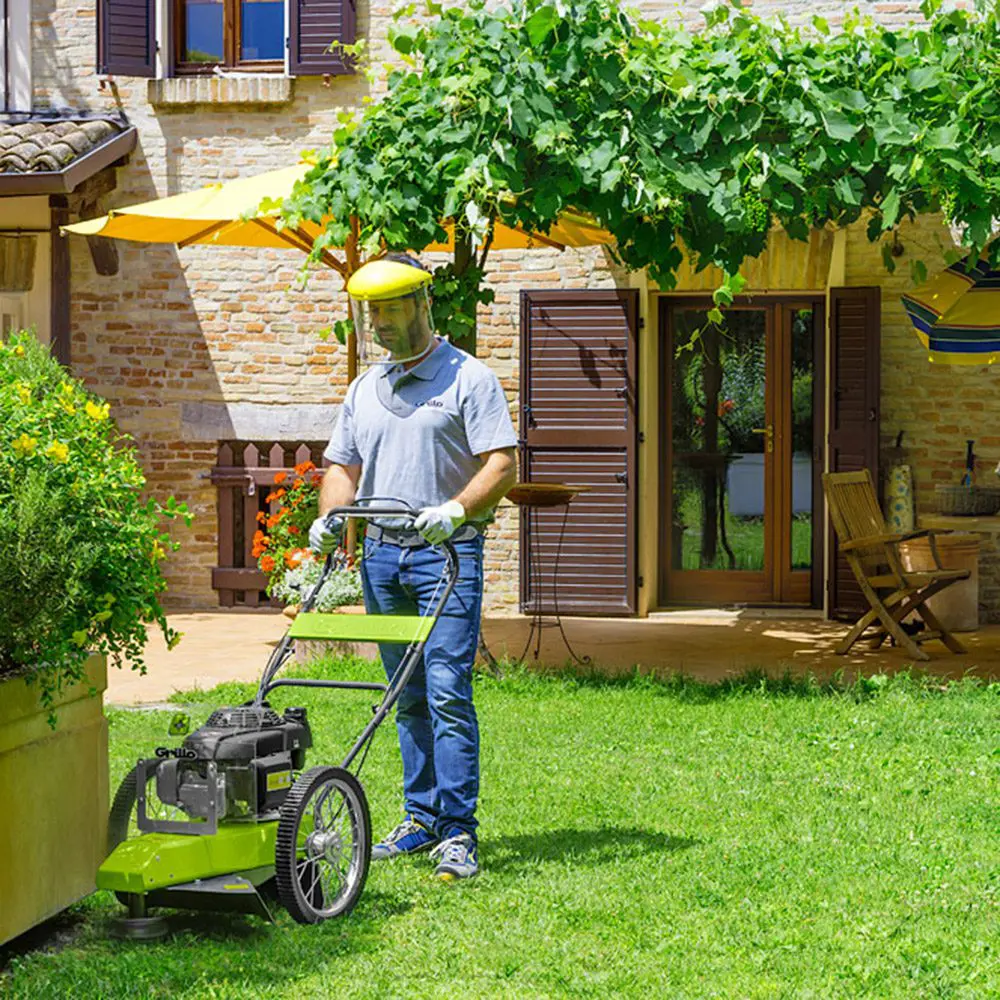

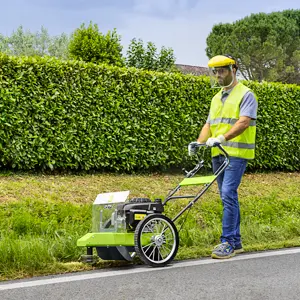

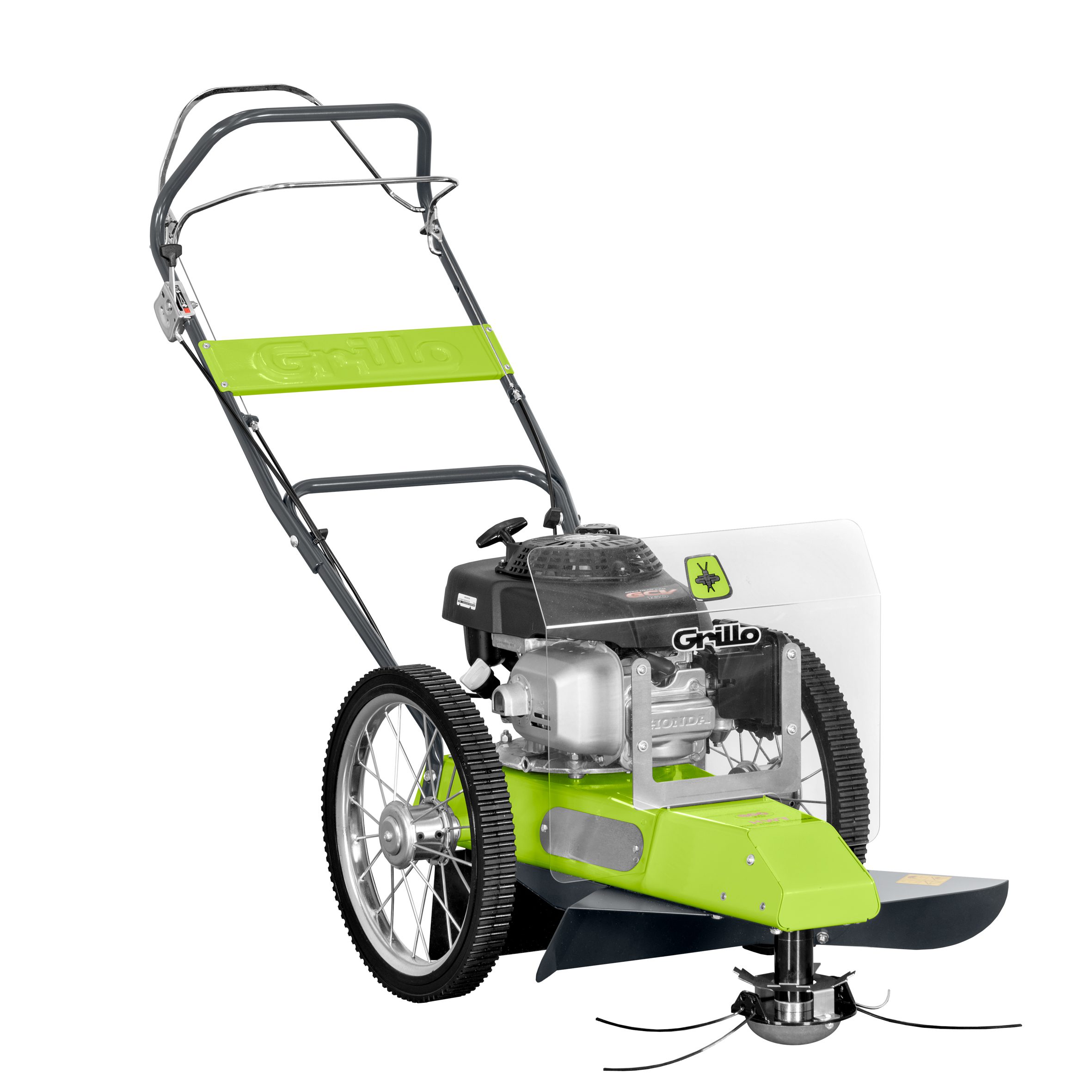

The HWT 600 WD is a self-propelled large wheel brush-cutter, suitable for cutting in rough areas and gardens. The manoeuvrability and traction of this machine allow you to work in comfort and accuracy even on slopes. The machine is ideal for not only cleaning rural driveways or orchards, but also for mowing around edgings close to flowerbeds, vegetable plots or for cleaning roundabouts and kerbsides. It can also be used as a lawnmower for small gardens and in flat areas with excellent results.
- Cut down grass and weeds as high as your knees.
- Mow right under fences, around tanks, trim pond edges, and fit through narrow gates, access hard to reach places.
- Are effective in both wet or dry conditions
- Are stable, balanced, and light to manoeuver.
- More productive and efficient than hand held brush cutters
Easy self-propelled system

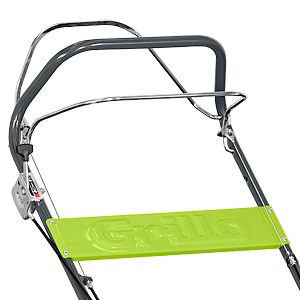

It’s equipped with a comfortable handlebar and front mounted lever to engage the cutter head and a rear lever to engage the drive system.
Effortless Slope Handling

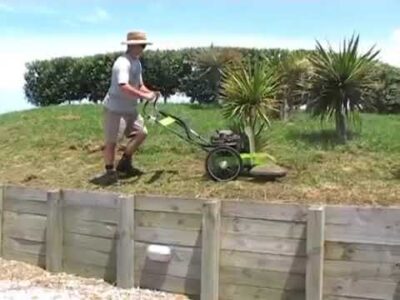

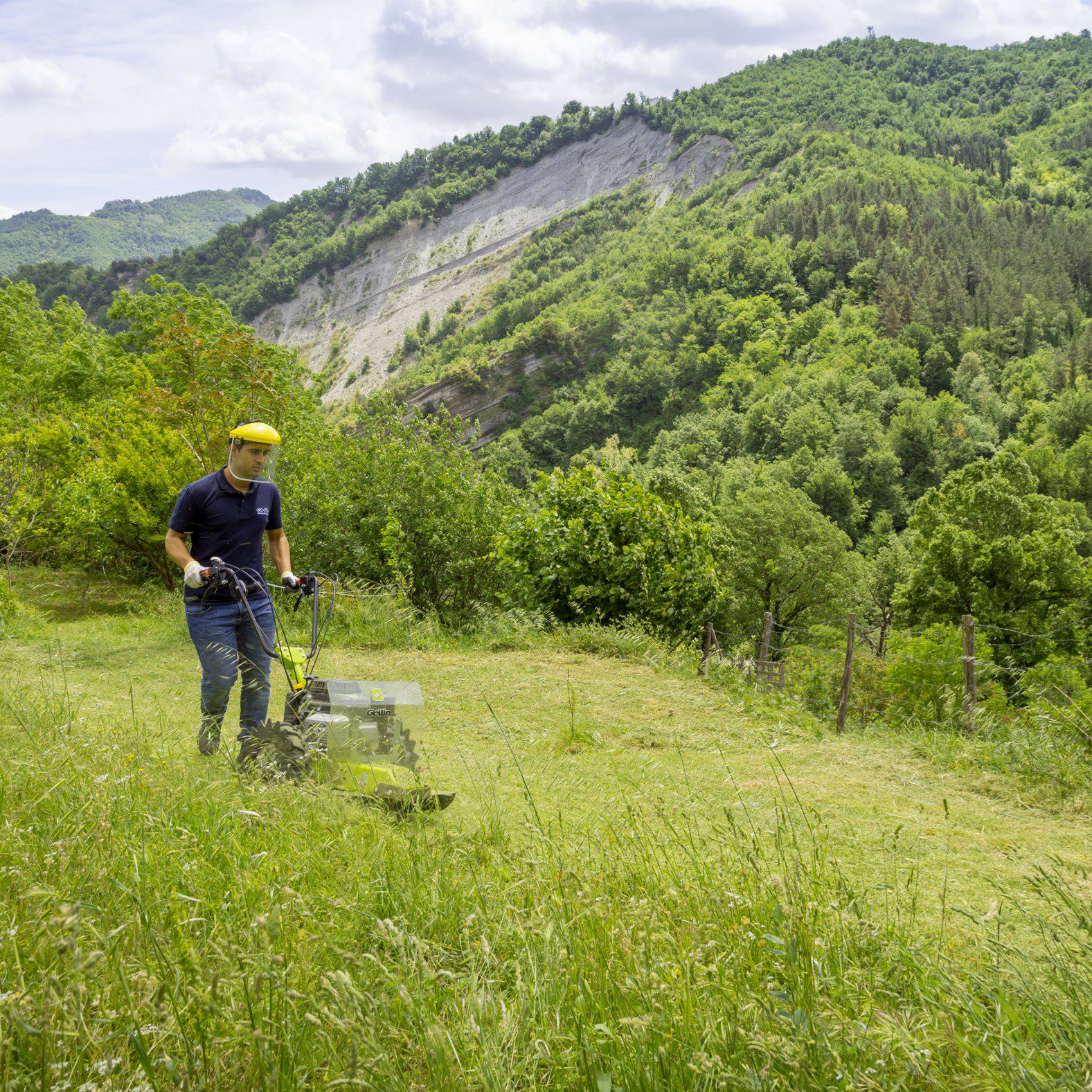

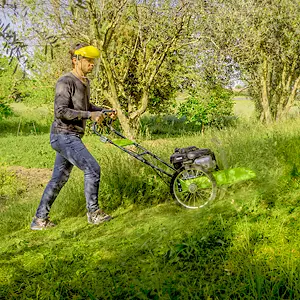

The large driving wheels reduce fatigue and ensure smooth operation, even on slopes up to 25°. Adjust the cord attachment plate to easily achieve lower cutting heights for perfect results.
Strong traction
The brush-cutter is equipped with traction and allows convenient operation in all working conditions. The forward speed is 2.5 km/h.
Powerful Honda Engine
The HWT 600 WD is fitted with a Honda GCV 170, 4-stroke petrol engine with oil bath gear transmission and high strength drive belt.
Precision Cutting Protection
The HWT600 is designed with a steel grass guard to keep clippings off roads or driveways. A clear plastic front screen ensures engine safety without blocking your view, while a rubber bulkhead shields the operator from stray debris.
Durable Double Coating
Grillo machines are painted with a double electrostatic powder process for exceptional hardness and shine. Every machine is meticulously assembled and thoroughly tested by skilled personnel for top-tier quality and performance.
Specifications
| Engine |
Honda GCV170 OHC
Start recoil starter
Supply fuel
Displacement 166 cc, 1 Cylinder
Power 4.8 HP (3.6 kW)
Air cooled
Dry air filter with interchangeable filter cartridges |
| Fuel tank capacity |
0.9 L
|
| Transmission |
Oil bath, mechanical with single-speed |
| Cutting configuration |

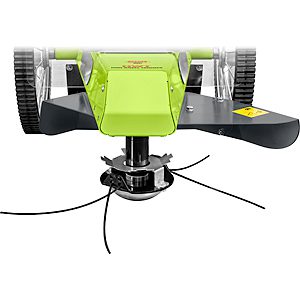

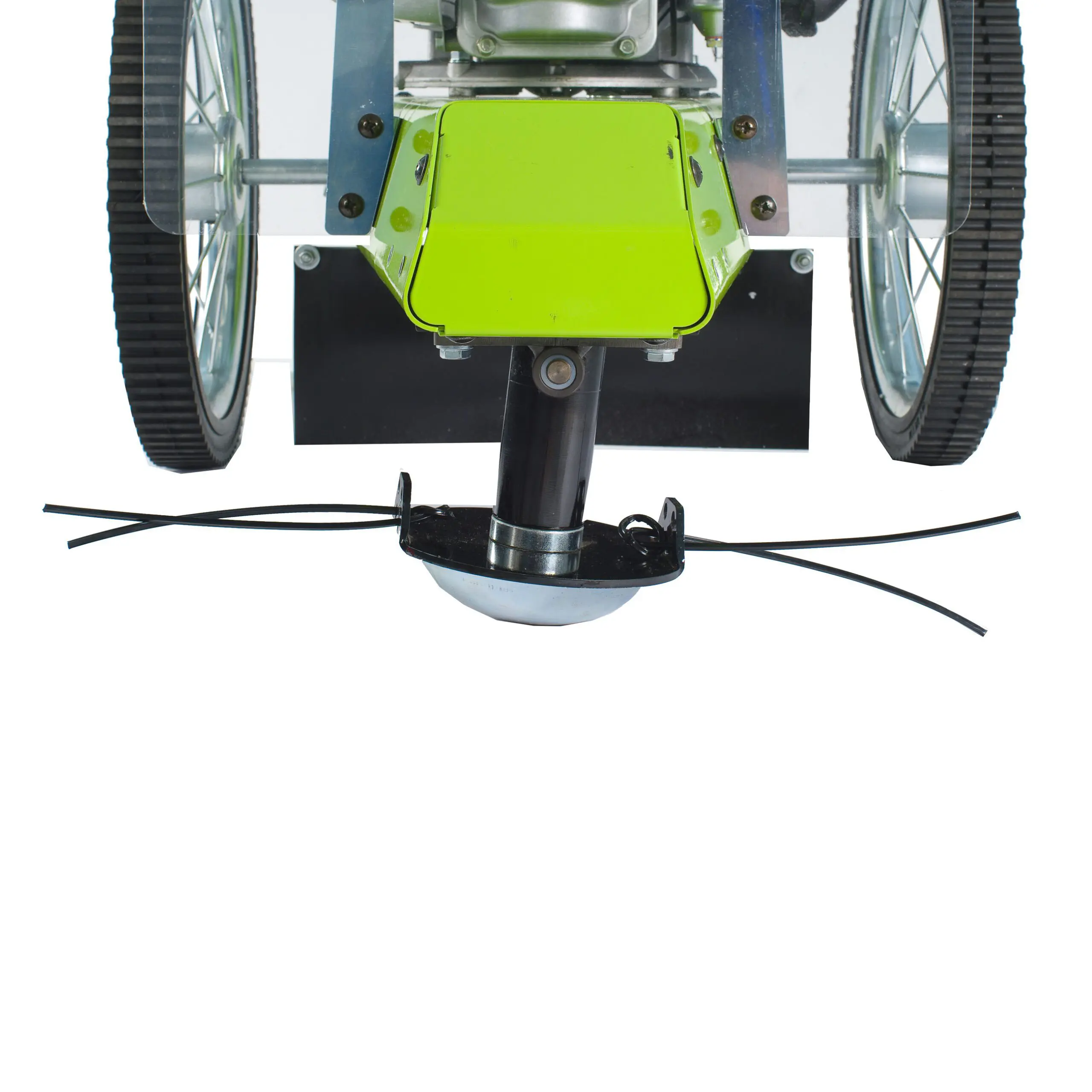

2 double cables, nylon, square section, 3 mm thickness
|
| Cutting width |
60 cm
|
| Cutting height |
Adjustable at 1.5 – 3 – 5 - 6 cm
|
| Wheels |
16", (Ø 41 cm) driven
|
| Speed |
2.5 km/h
|
| Standard features |
Transparent engine protection, flexible rubber band between the wheels, side plastic protection, anti-wrapping disc.
|
| External sizes of the wheels |
55 cm
|
| Weight |
47 kg |
