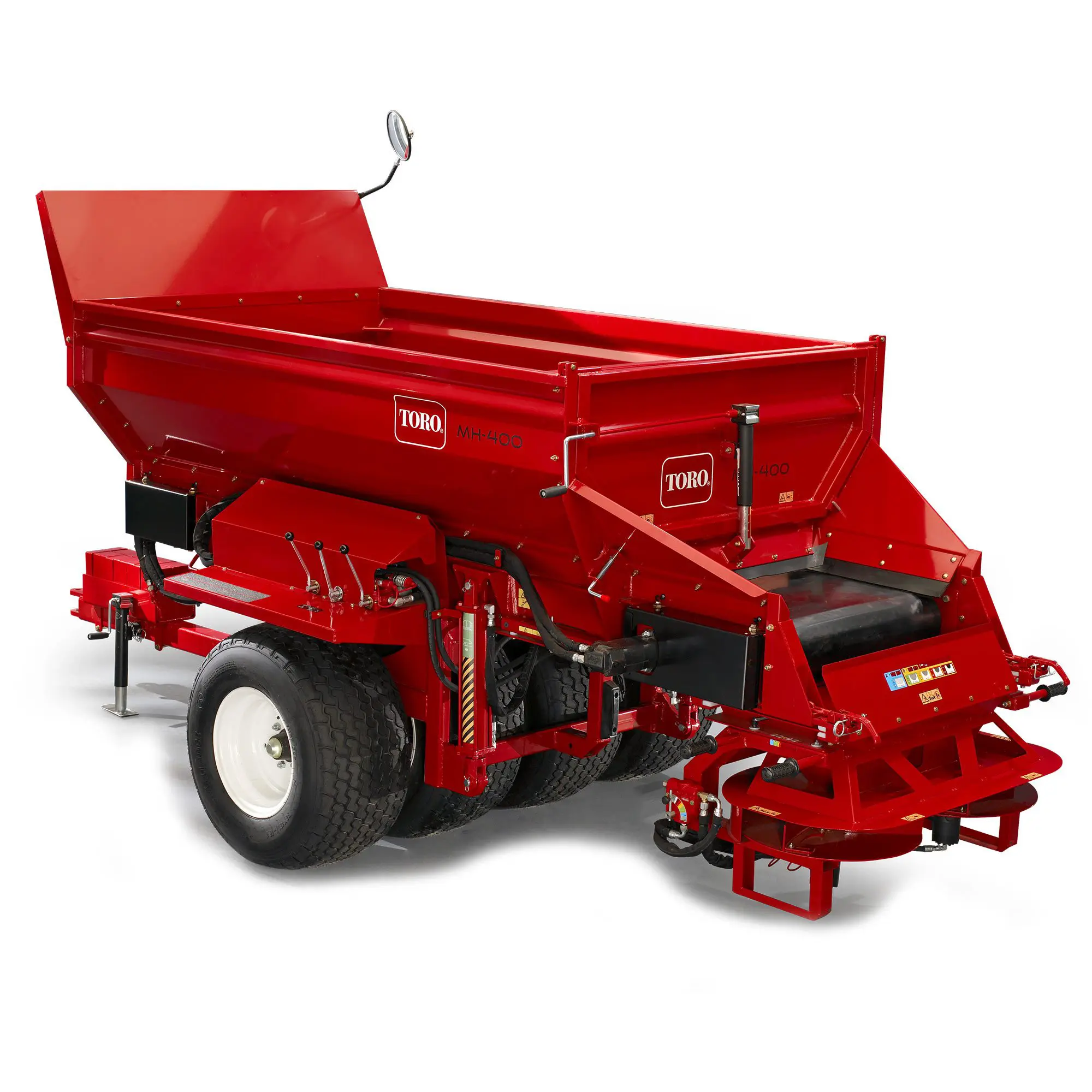

Toro MH-400 Series Broadcast Style Top Dresser

Fleet Finance & Leasing Options
Talk to us today 0800 807 333

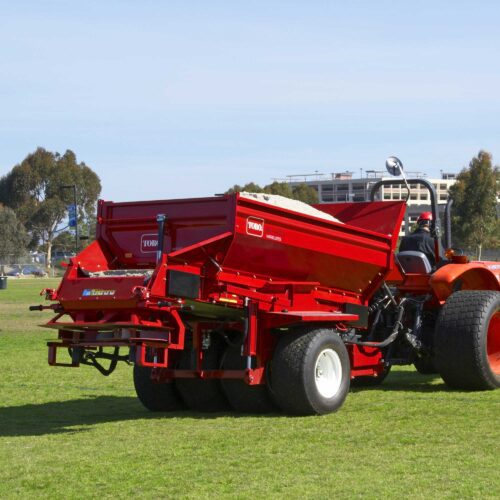

The large capacity MH-400 delivers versatility and performance to tackle a wide range of jobs at any facility. The cross conveyor is ideal for completing renovations, cart path rebuilding, applying mulch, back filling of drainage ditches, and much more. Install the twin spinner accessory, and the MH-400 becomes a large area topdresser to transport and accurately spread materials ranging from crumb rubber to fertiliser, to sand/peat topdressing mix. The rear hitch receiver allows implements, such as a wood chipper, to be towed in tandem. An integral component of any maintenance program, the efficient MH-400 reduces labour, saves time and cuts operating costs.

Series Models:

  • MH-400 – tow-behind
  • MH-400 – tow-behind with a wireless controller

Install the twin spinner accessory, and the MH-400 becomes a large area topdresser to transport and accurately spread materials ranging from crumb rubber to fertiliser, to sand/peat topdressing mix. The rear hitch receiver allows implements, such as a wood chipper, to be towed in tandem. An integral component of any maintenance program, the efficient MH-400 reduces labour, saves time and cuts operating costs.

The Material Handler MH-400 is also commonly known as: MH 400, Toro MH400, materialhandler, Toro topdresser

Call 0800 807 333
Talk to a rep Model: 44954

Product Features

Easily Adjustable Tailgate

The infinitely adjustable tailgate opens and closes with ease, even with sand underneath.

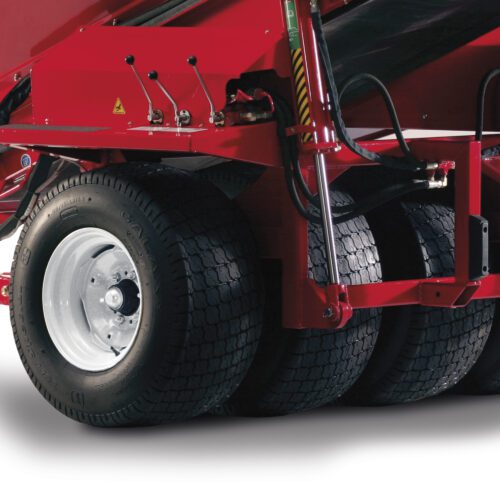

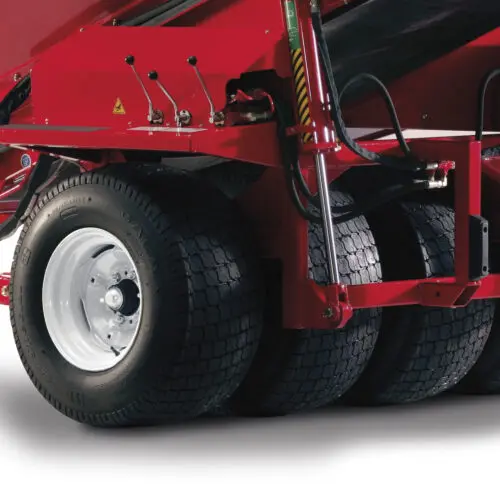

Walking Beam Suspension

A unique, four wheel walking beam suspension contains two separate axles so that all four wheels are always in contact with the ground regardless of terrain and an even weight distribution provides a light footprint on the turf.

Spread Consistency

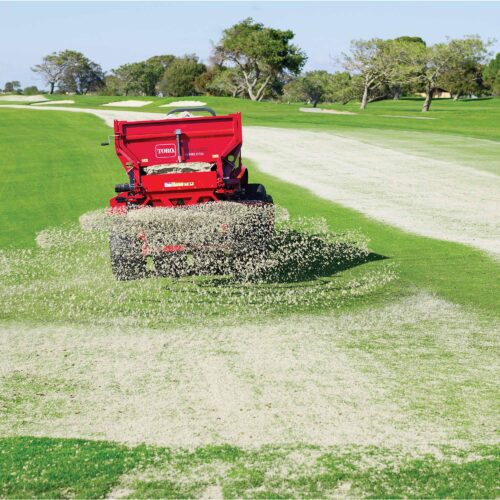

Evenly apply materials to the turf from 9 ft (2.74 m) to 40 ft (12.2 m) with the patented sliding adjustment for positioning of the twin spinners. This unique drop zone system adjusts where material lands on the spinner disks, resulting in an even pattern across the entire spread width.

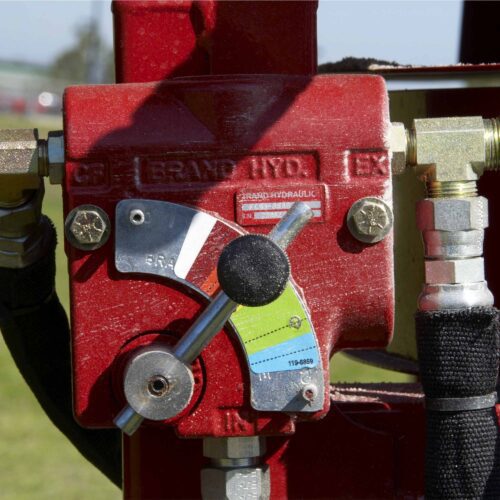

Color-Coded Operating System

Eliminate guesswork from setting up your spread pattern. Choose your spread pattern, identify your color and make your adjustments.

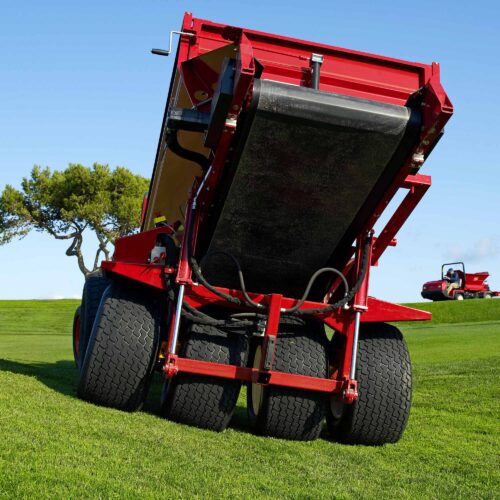

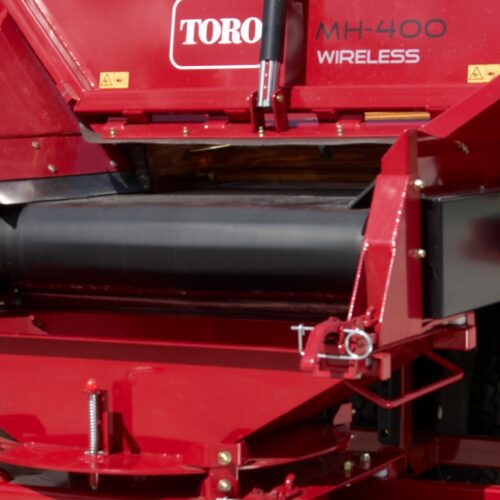

Smooth Belt

Eliminates load shifting of material and uses a tight rubber seal on the sides preventing material from escaping.

Brakes

2-wheel electrically powered, drum style brakes provide enhanced control in various terrain. Also available in 4-wheel brake configuration.

Specifications

Conveyor Belt One-piece vulcanized, self-tracking, 30" (76.2 cm) wide
GVWR 14,800 lbs. (6713 kg)
Height86" (2.2 m)
Hopper Capacity 4 cu. yards (3.06 cu. m)
Hydraulic Connection Recommended flow (min., no options installed): 6 US gal. /min. (23 L /min.) Recommended flow (min., options installed): 10 US gal. /min. (38 L /min.) Recommended input pressure (min.): 2,000 psi (138 bar)
Length 190" (4.8 m)
Operating Width (Working Width) Variable, up to 40' (12.2 m) using twin spinner accessory
Optional Accessories Twin Spinner Assembly, Cross-Conveyor Swivel Kit That Extends up to 63.3" (159.5 cm) From Centerline of Topdresser, Hopper Vibrator, 2 to 4 Wheel Brakes
Payload (Tare) 11,800 lbs. (5352.3 kg)
Show all Specifications

Product Reviews

Brochures, Parts & Manuals

View and download documentation for this item.

Toro MH-400 Material Handler Top Dresser Sell Sheet

Toro MH-400 Material Handler Top Dresser Sell Sheet

Download | View
