Salsco HP11 Greens Roller

Salsco

Salsco HP11 Greens Roller

Salsco

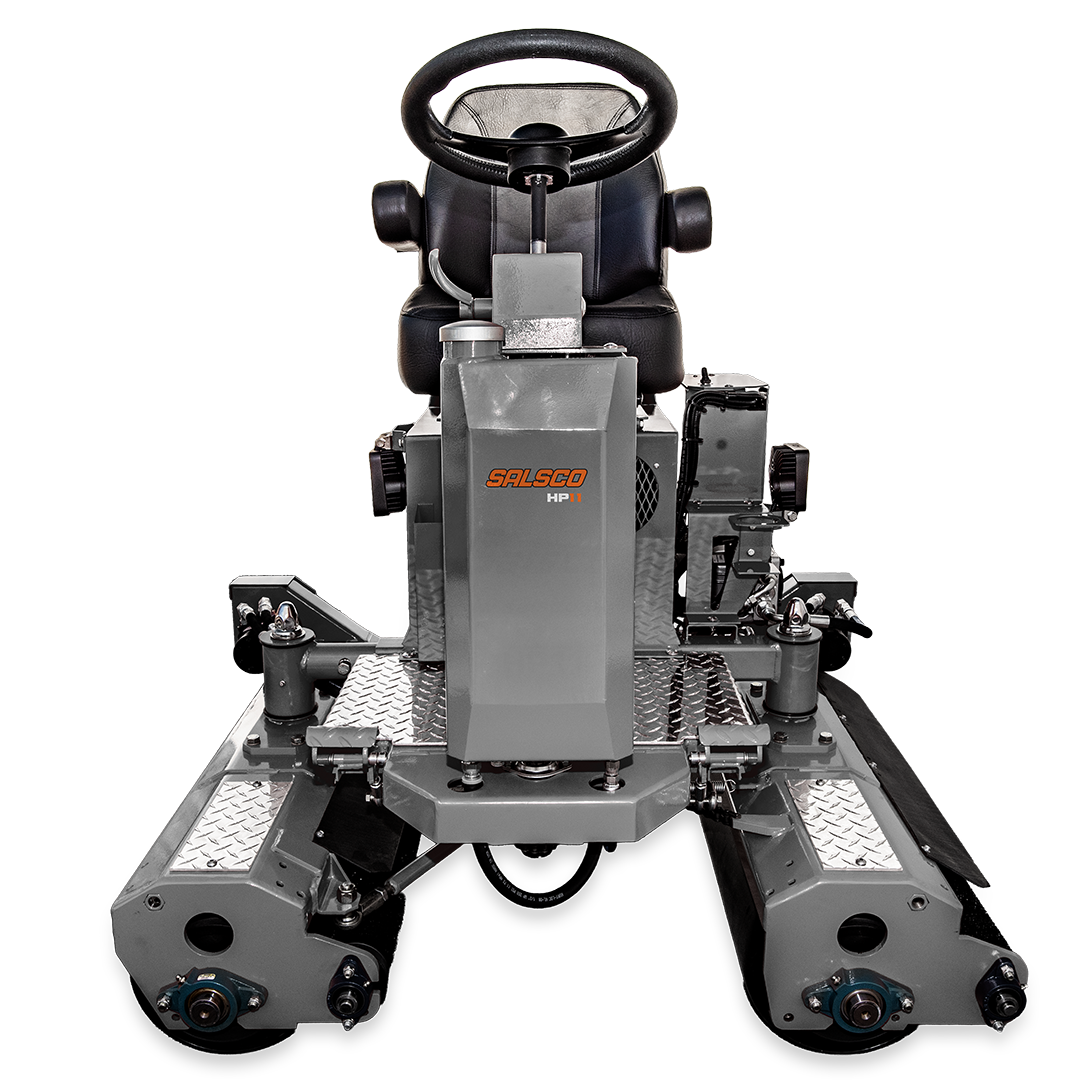

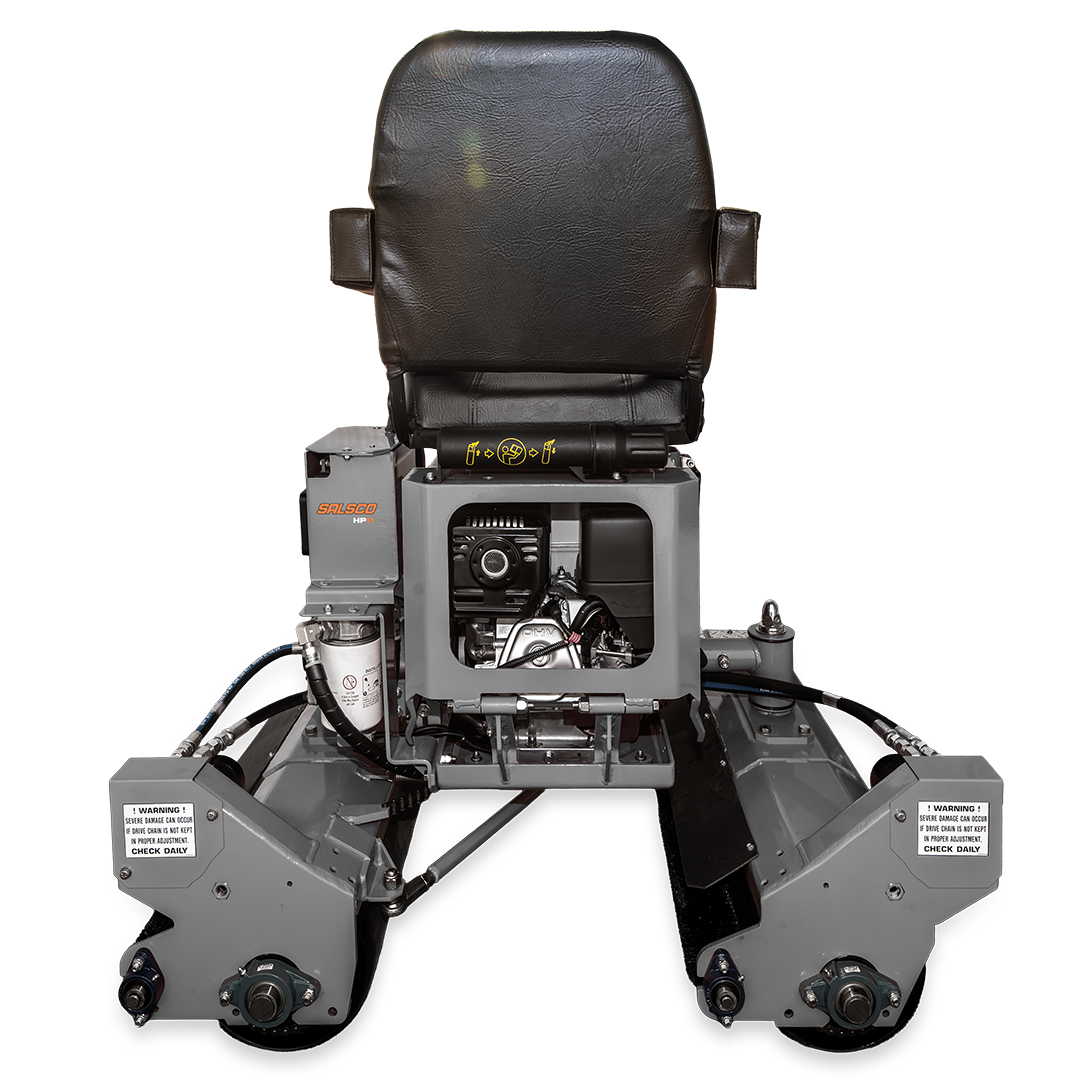

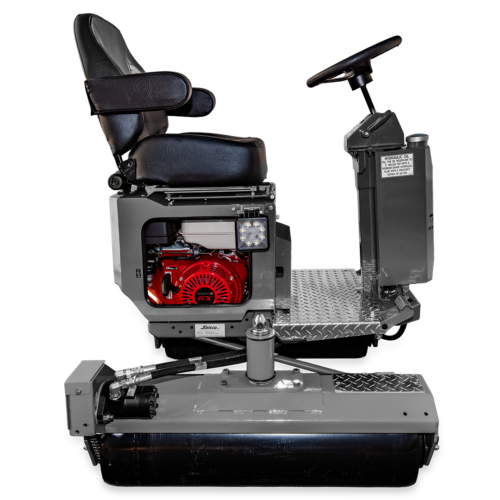

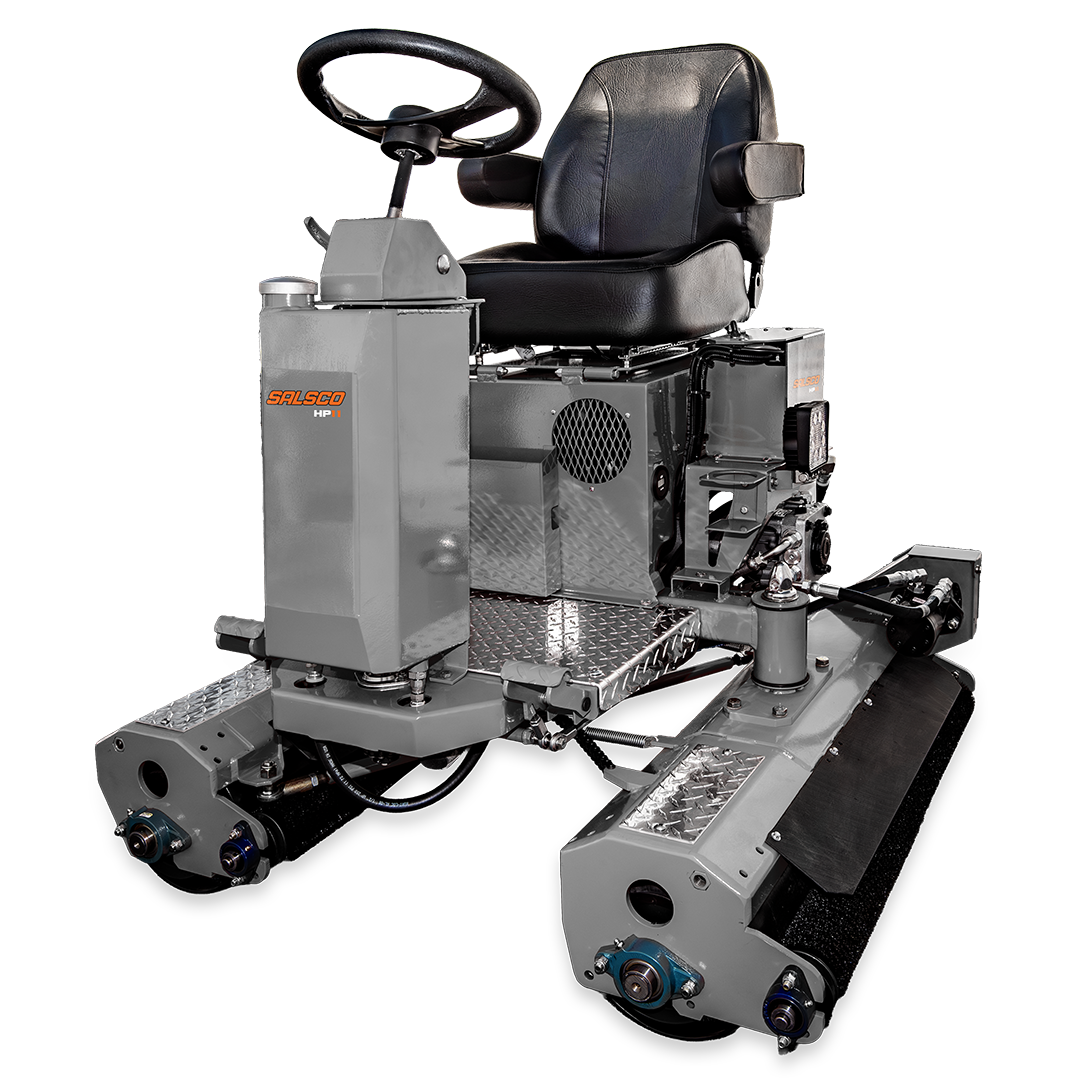

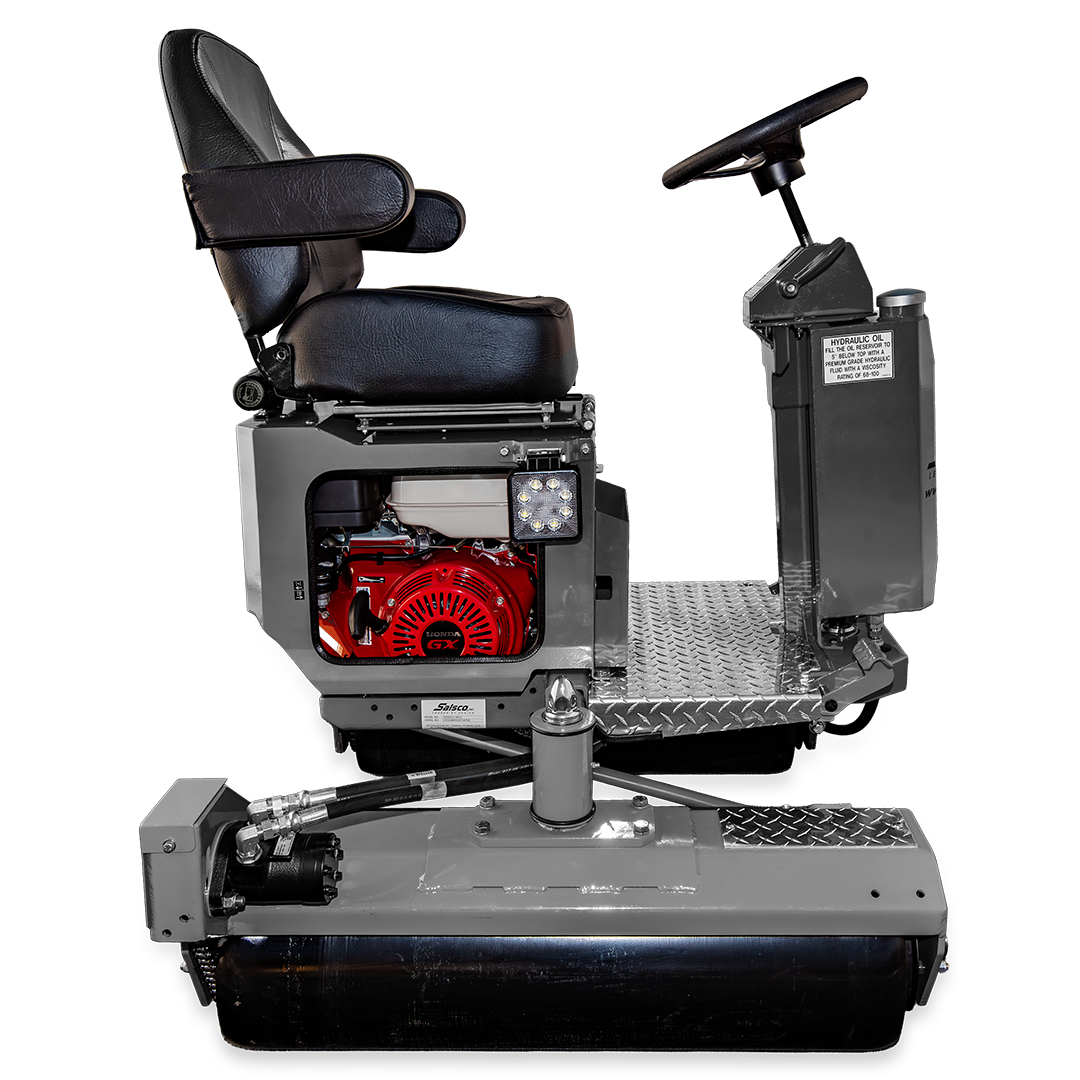

The HP11 Roller is built for fast, smooth, reliable turf conditioning with dual drive oscillating roll and articulating steering. It delivers firmer fairways, faster green, smoother ball rolls. With a high-performance hydraulic pump, the HP11 reaches 11.9 MPH, maintaining consistent pressure. Designed for durability, the HP11 has larger bearings, machined rolls, and a heavy-duty trailer for long-lasting performance. Optional upgrades including the Inner Spike- Air Kit and Top Dressing Brush Kit allow customization.

Key Features and Benefits:

  • Unmatched Speed and Handling – Roller features a high performance speed up to 11.9 MPH and a double steering ratio for smooth handling.
  • Ultimate Convenience and Efficiency – HP11 features articulating steering for smooth maneuverability, dual drive oscillating rolls for even traction.
  • Precision Rolling for a Perfect Finish – Includes a 36” rolling swath with customizable pressure.
Fleet Finance & Leasing Options Talk to us today 0800 807 333
Enquire Call 0800 807 333
Talk to a rep Find a Store

Features

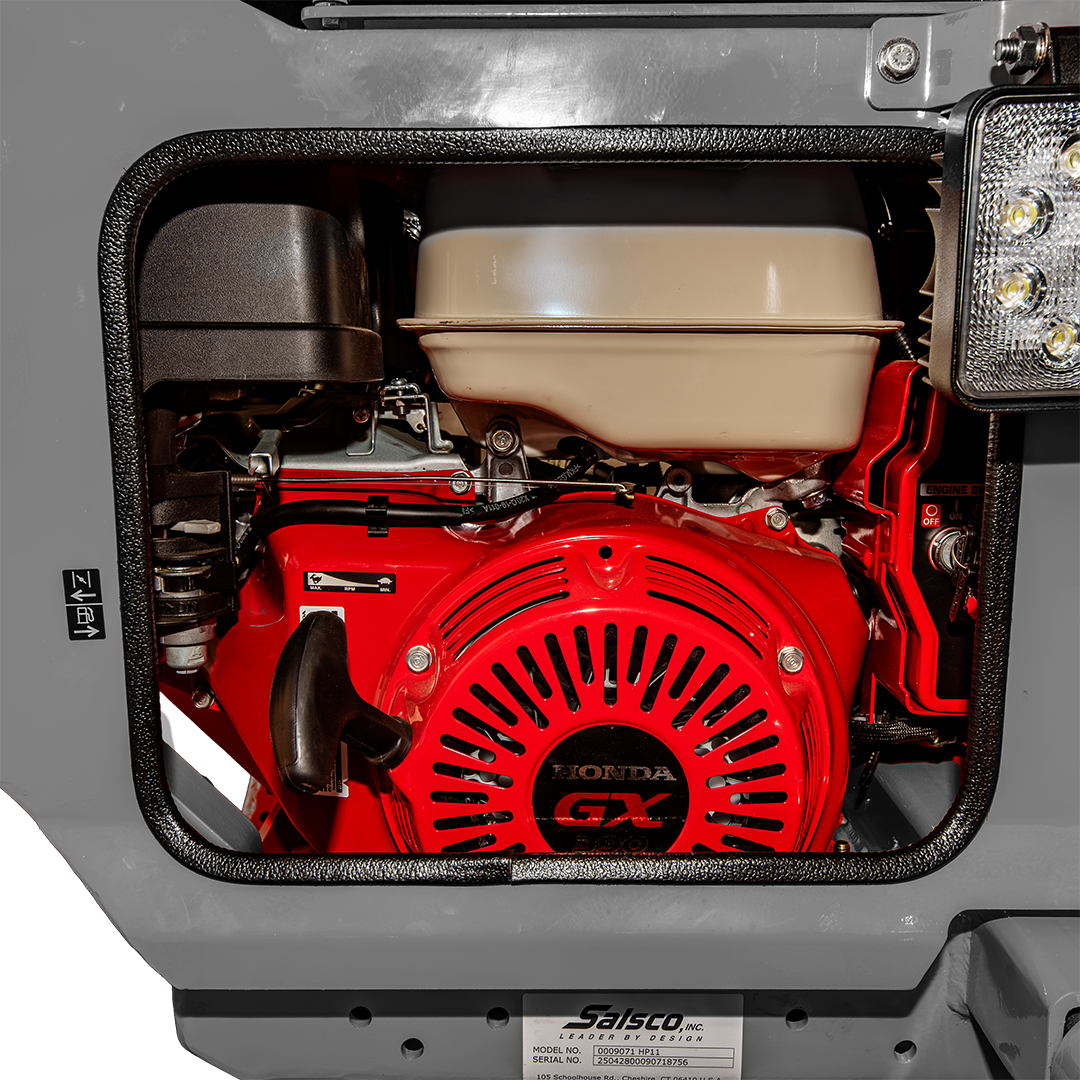

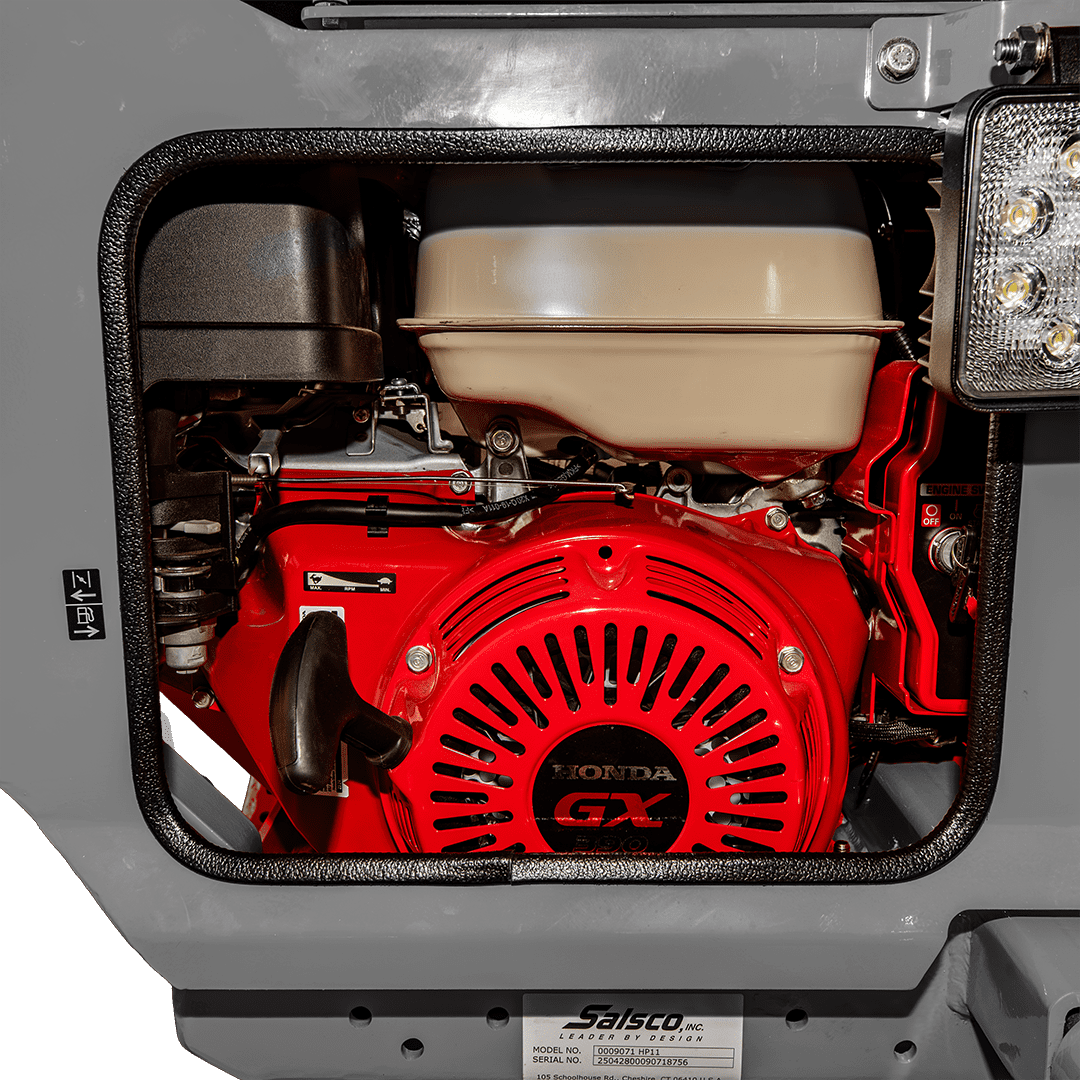

13HP Honda Engine

A fuel-efficient, high-output 4 stroke, air-cooled engine with precision camshaft design and high compression ratio for optimal power. With a digital CDI Ignition to ensure reliable performance.

Drive Rolls

For maximum durability, a rugged tubular steel frame with continuous welds and reinforced gussets ensures long-lasting strength and reliable performance.

Optional Upgrades

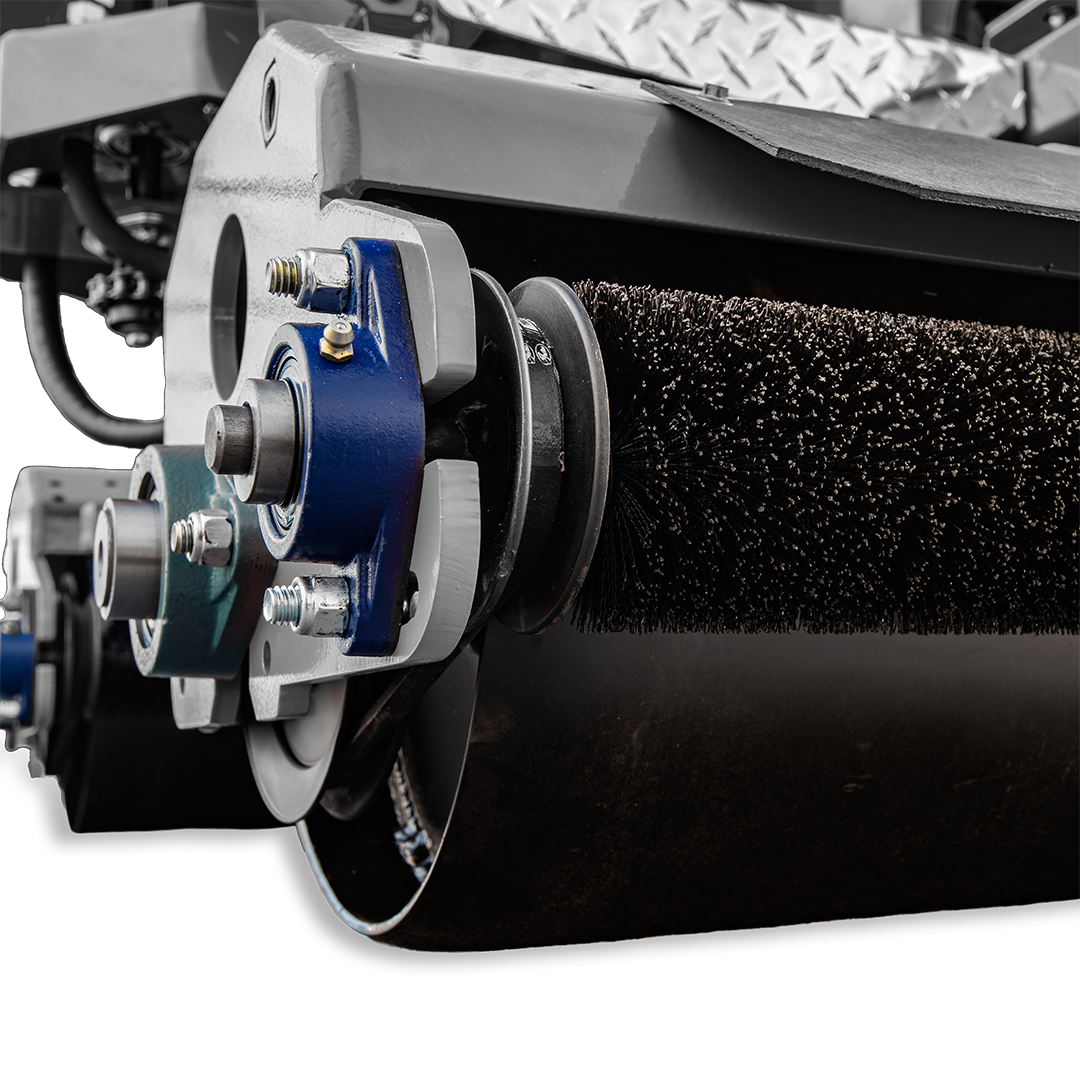

Upgrades that enhance performance. LED light kit. Spike-Air Kit. Tournament Roll Kit. Powered Roll Brush. Arm Rest Seat Upgrade. Pedal Extensions.

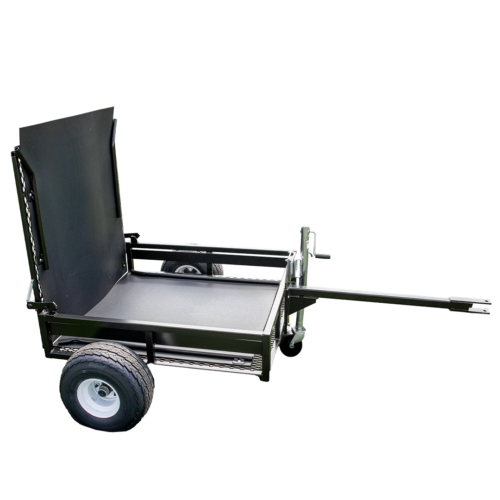

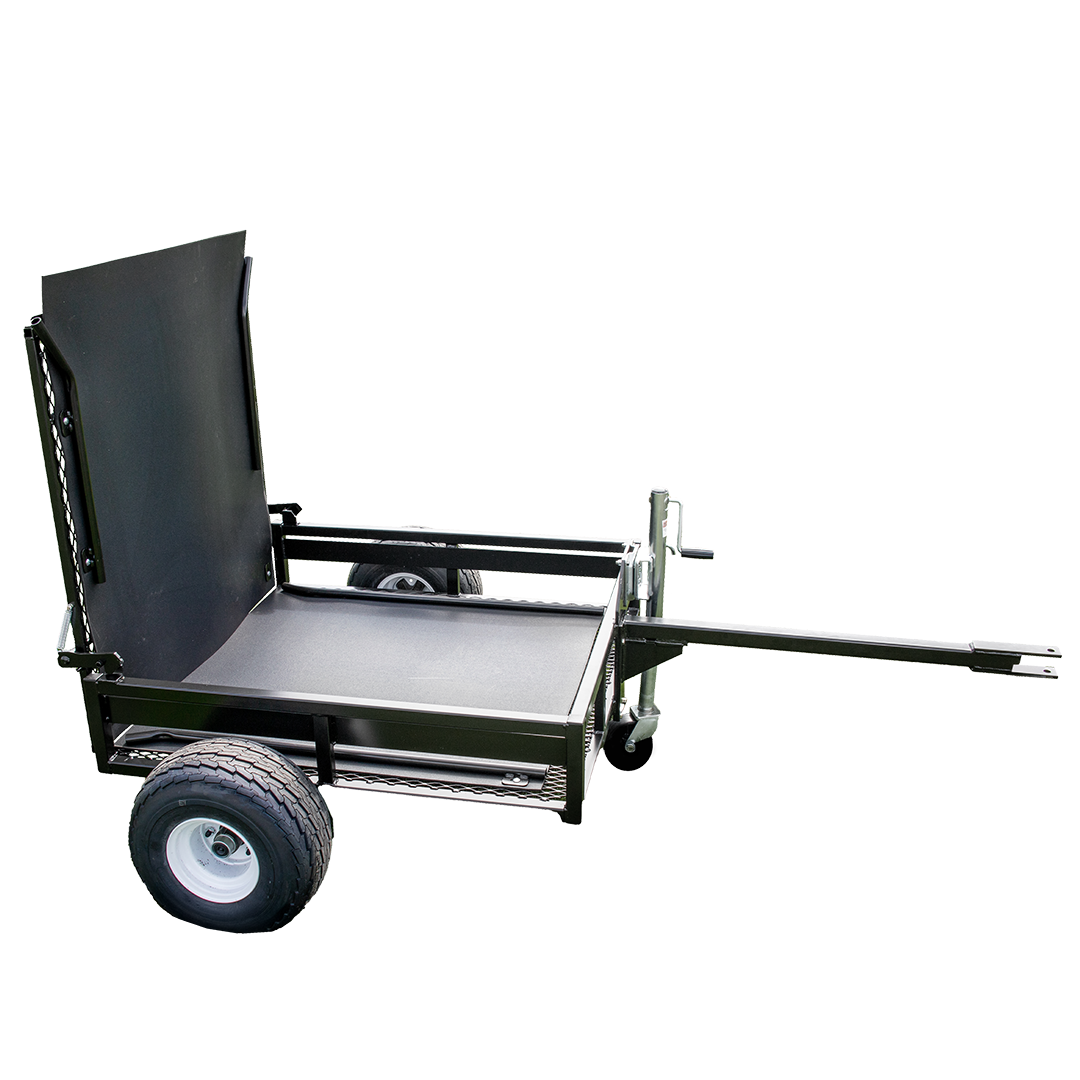

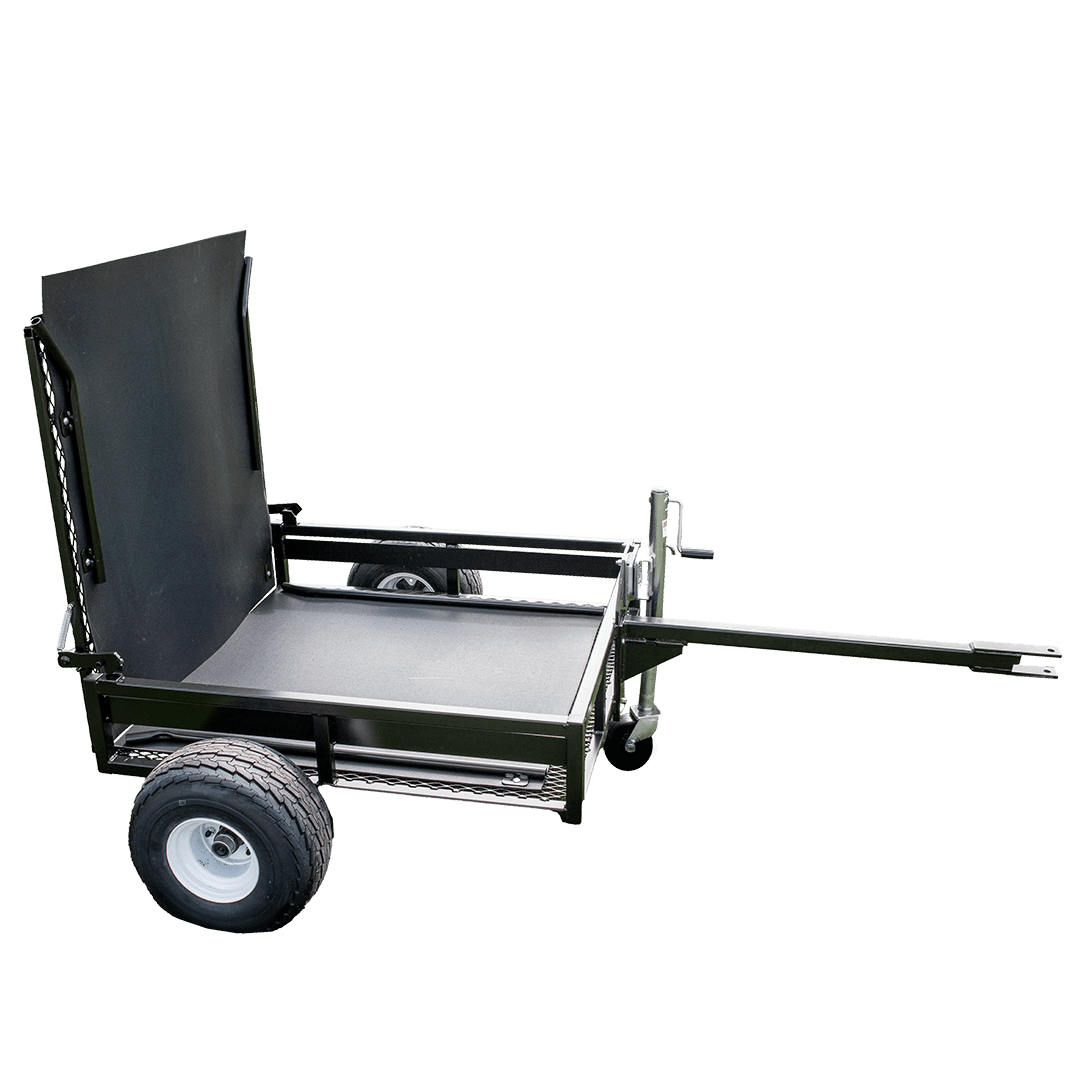

Transport Trailer

The HP11 Trailer features an extra-long tailgate, rubber traction mat, and loading guides for safe transport, along with a swivel jack stand with a caster wheel for easy maneuvering.

Specifications

Product Specifications

Length 39”in (99cm)
Width 39”in (99cm)
Height 45”in (114cm)

Standard Equipment

Engine 13 HP Honda, Electric Start
Fuel Tank 1.6 Gallons
Controls On/Off Switch, Choke and Fuel
Battery 12 Volt, 245 CCA automotive type
Hour Meter Standard
Rolling Swath 36”

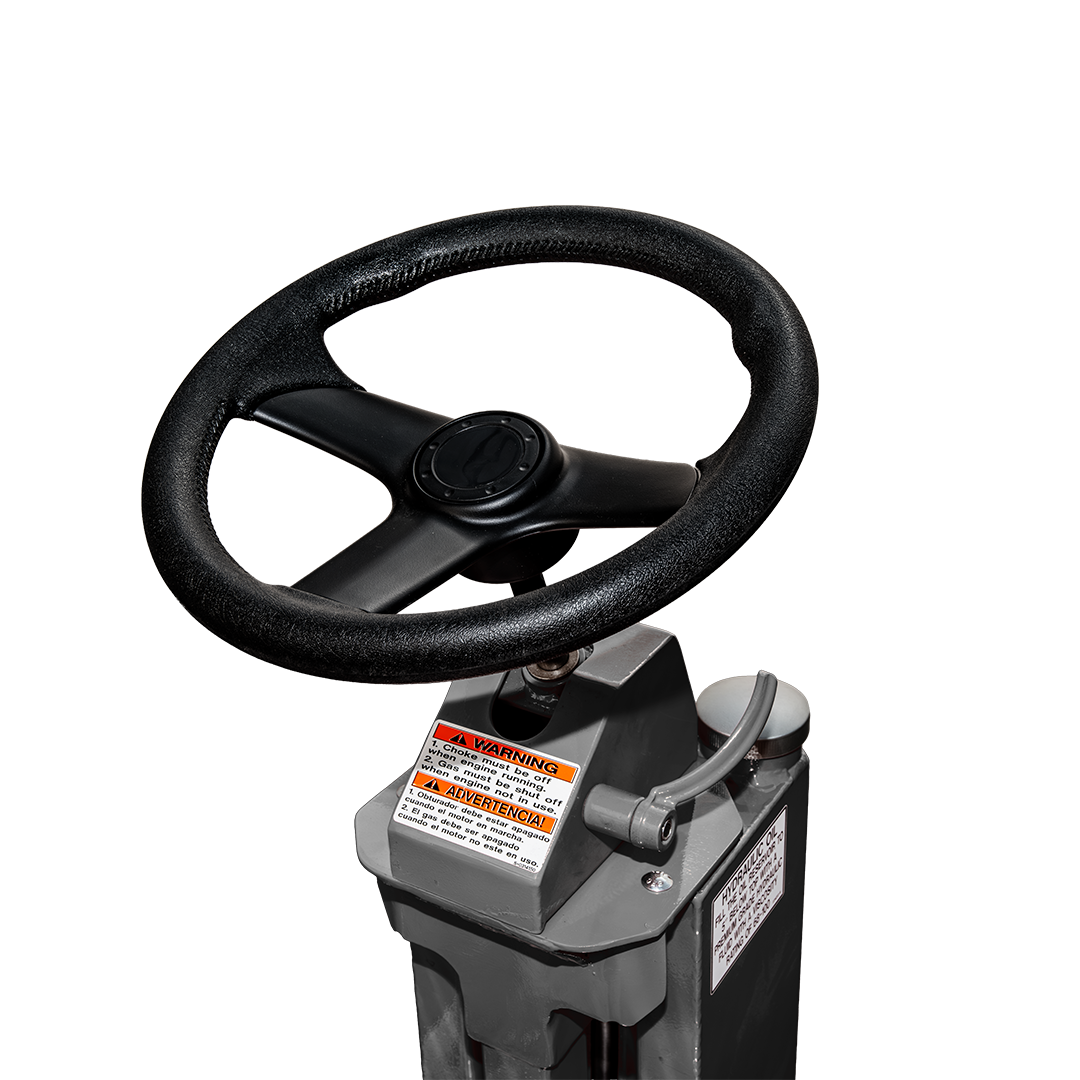

Steering Wheel 13-1/4” diameter, automotive type, tilt steering wheel. 13-1 ratio
Drive Rolls 2 - Oscillating steel rolls, both driven for positive traction. 1-1/4” roll mounting bearing. 10-3/4” diameter, 36” long with beveled ends & scrapers. Rolls are machined to within two thousandths of an inch concentricity.
Speed Variable, 0–11.9 MPH
Brakes Hydrostatic
Hydraulic Components Hoses: SAE JIC hose ends & fittings. 3,000 P.S.I. working & 12,000 P.S.I. burst. Motors: Two (2) hydraulic motors, Disp. 7.3 cubic inch displacement. Pump: One (1) hydraulic pump, 62 cubic inch displacement, with return to neutral assembly. 25 micron filter. 5 gallon hydraulic oil capacity.
Traction Drive Hydraulic pump to 2 hydrostats - 1 to each roll. Chain drive from hydraulic motors to rolls. #50 chain & sprockets.
Climbing Traction Up to 40°
Seat Molded cushion with protective edge trim, neutral safety switch & forward/reverse adjustment. Rubber mounted to reduce vibration.
Main Frame 2-1/2” x 2-1/2” x 1/4” steel square tube. Fully gusseted with continuous welds.

Trailer Information

Length 48”in (122cm)
Width 42”in (107cm)
Hitch Height 16”in (41cm)
Weight 197lbs (89kg)

Options

Roller Options Powered Roll Brush, LED Light Kit, Top Dressing Brush Kit: Soft or Hard, Spike-Air Kit, Tournament Roll Kit, Arm Rest Sea, Pedal Extensions
