Salsco Tranz-Former Sports Field Turf Roller

Salsco

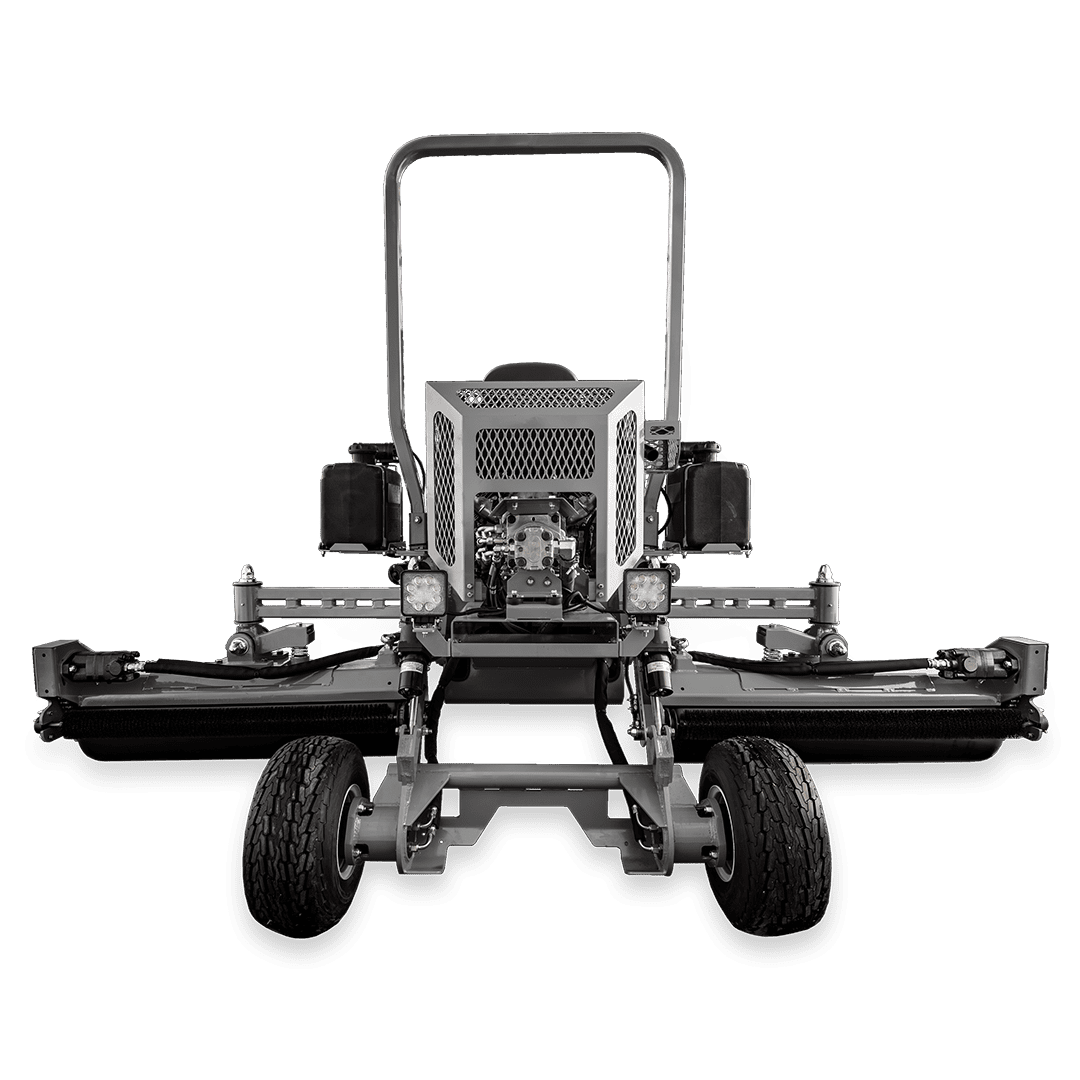

Salsco Tranz-Former Sports Field Turf Roller

Salsco

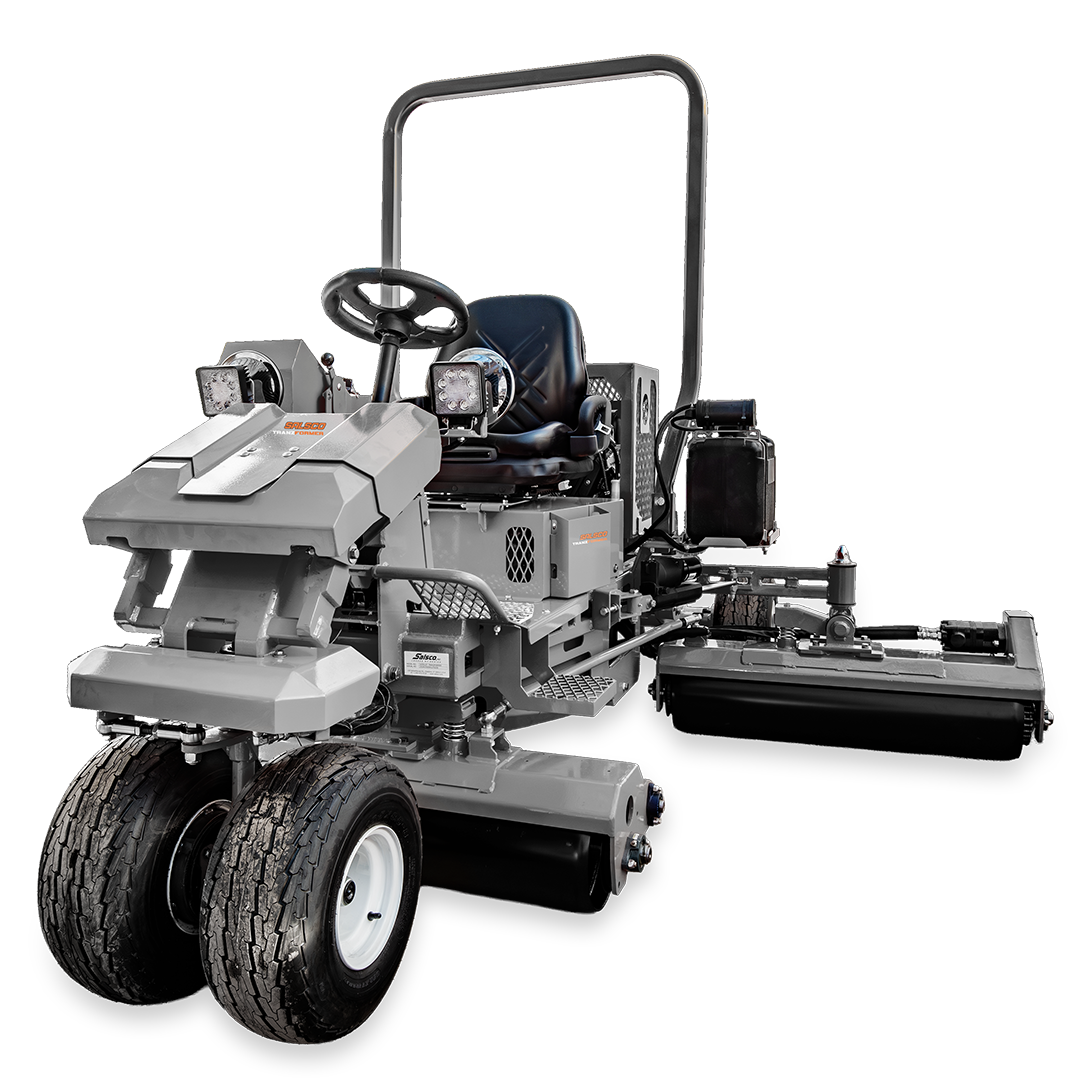

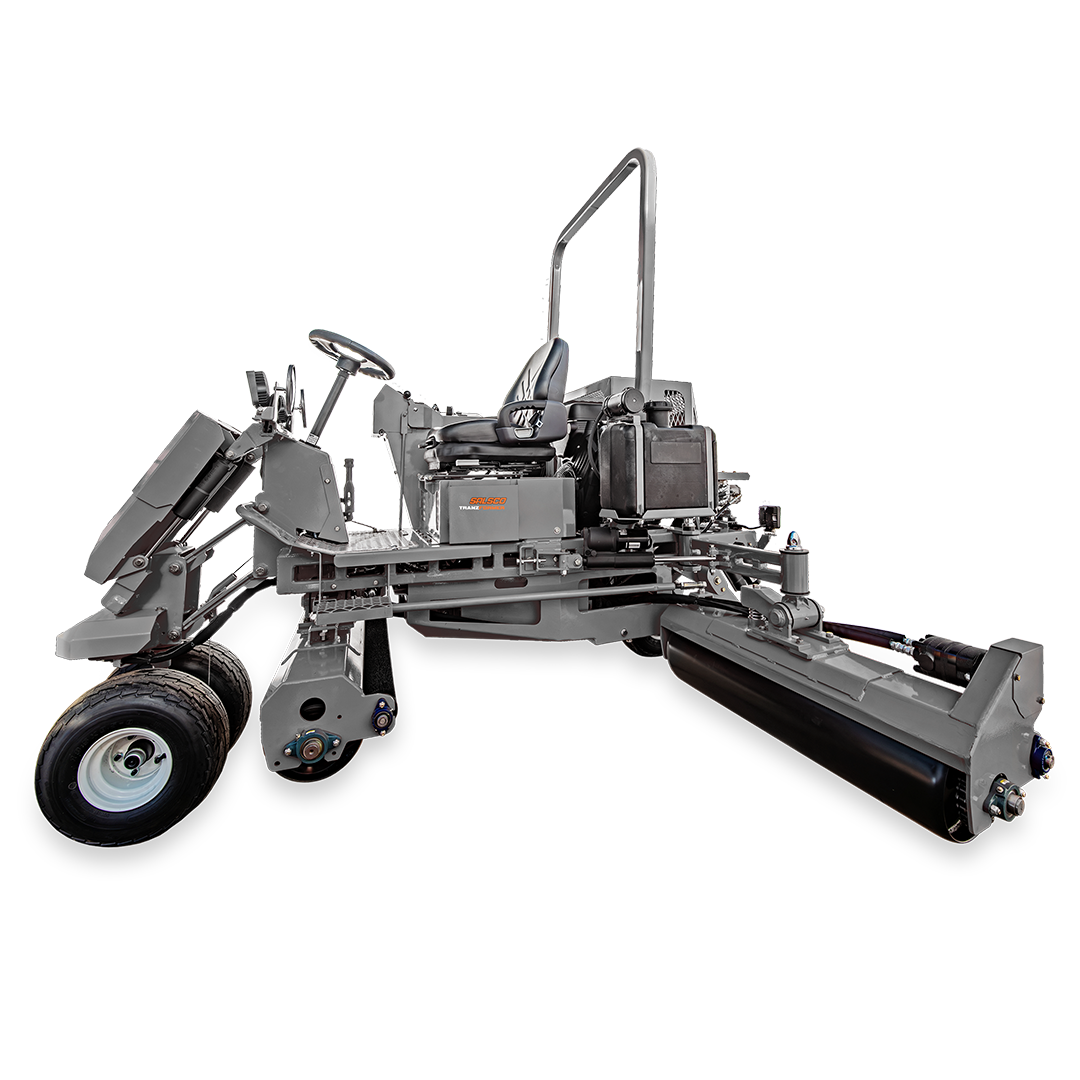

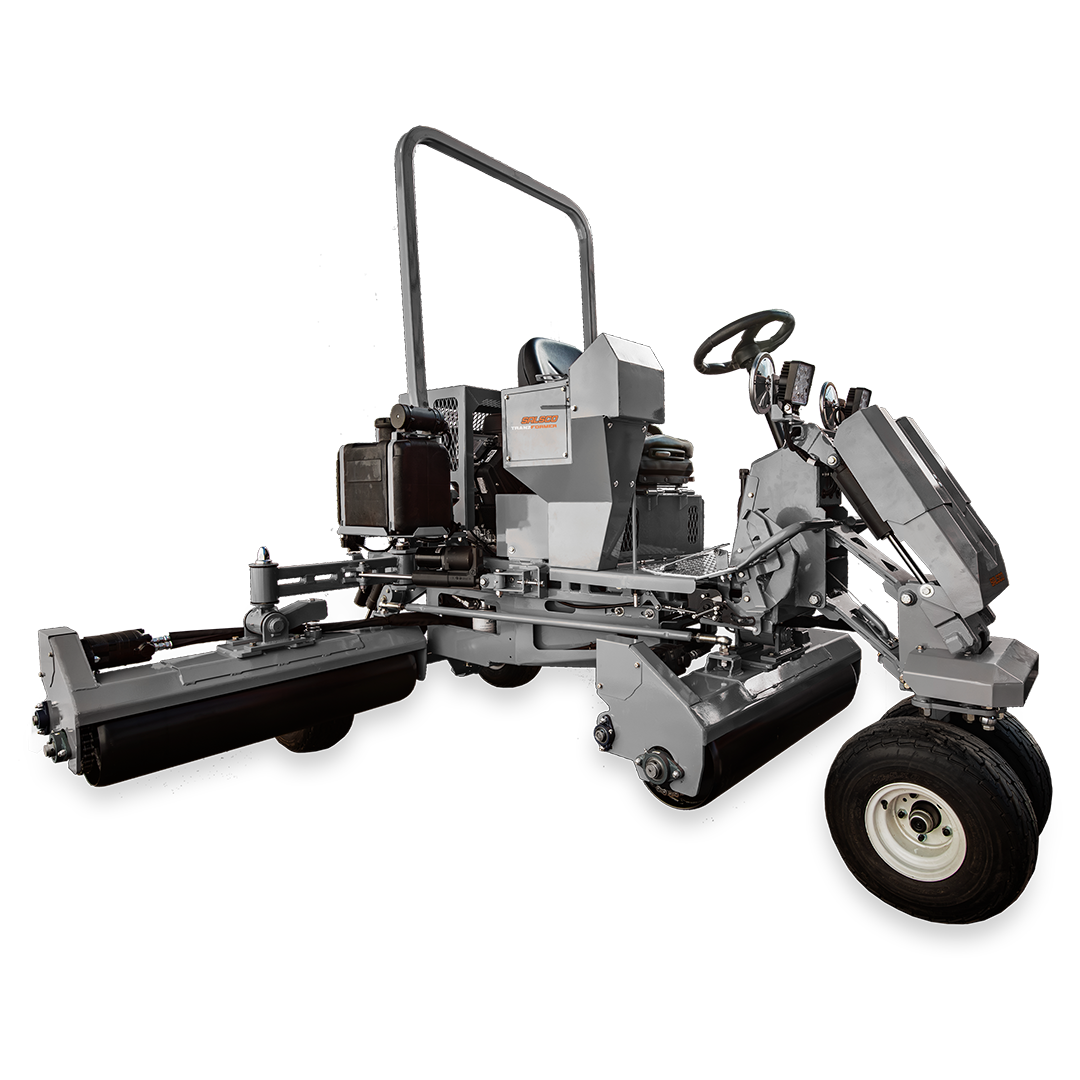

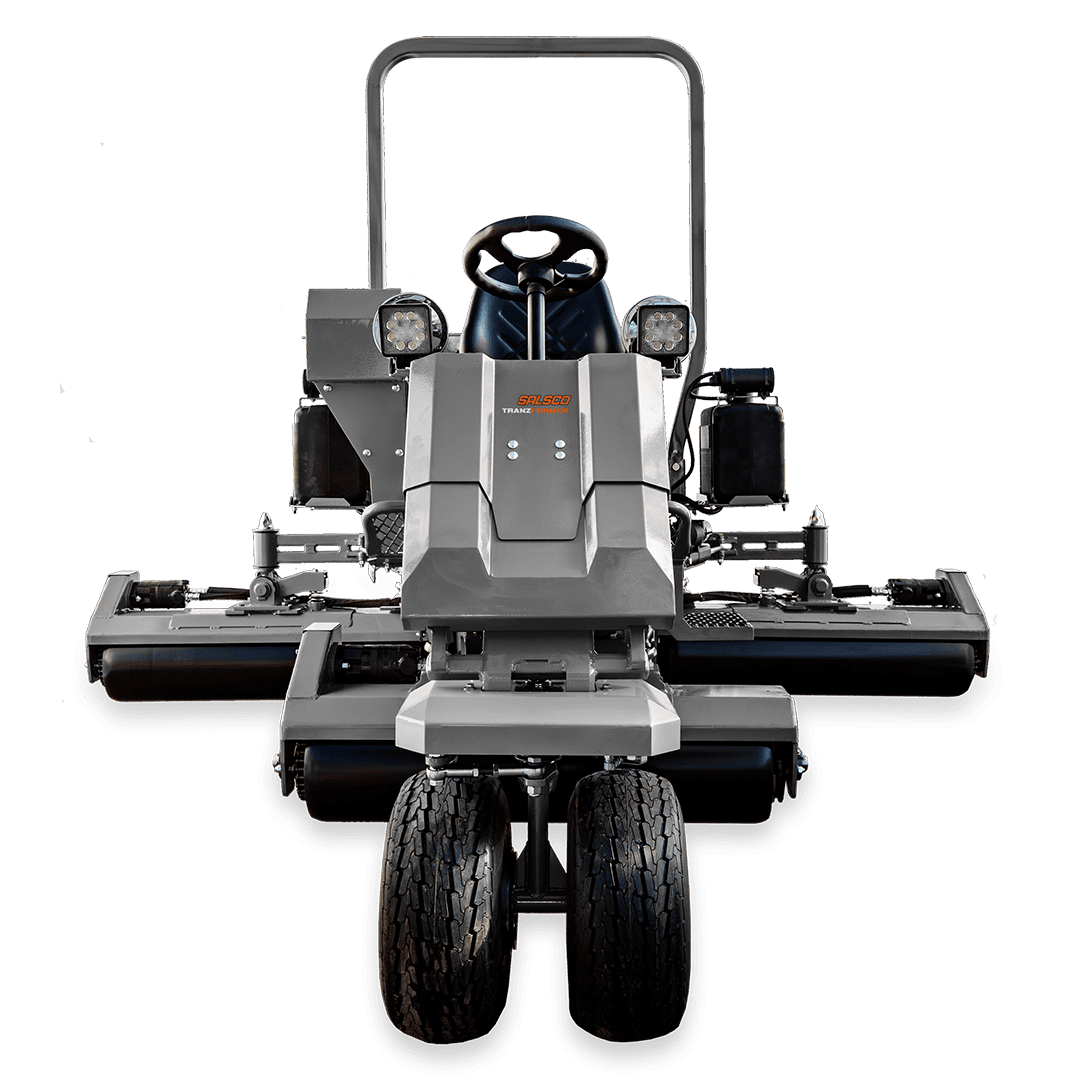

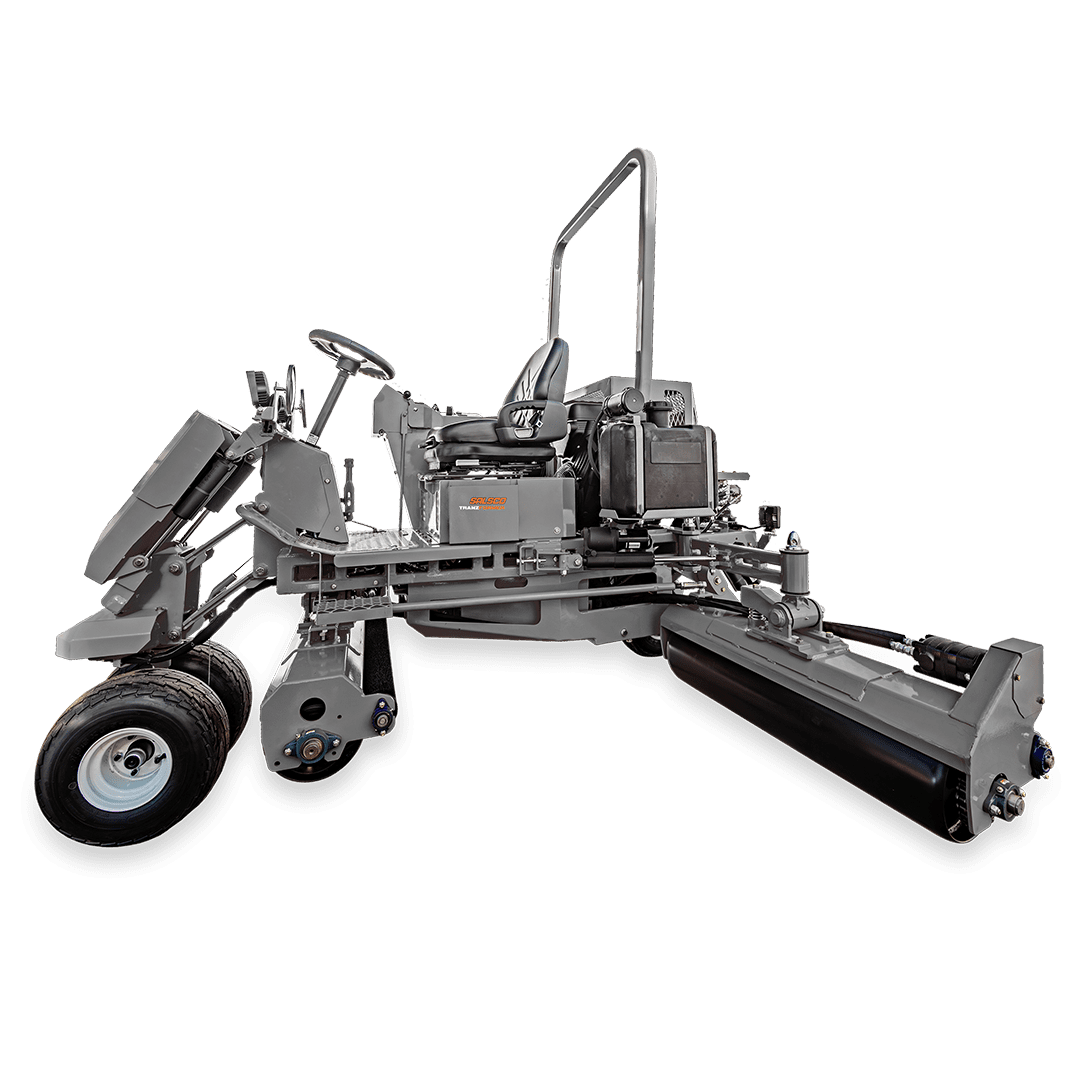

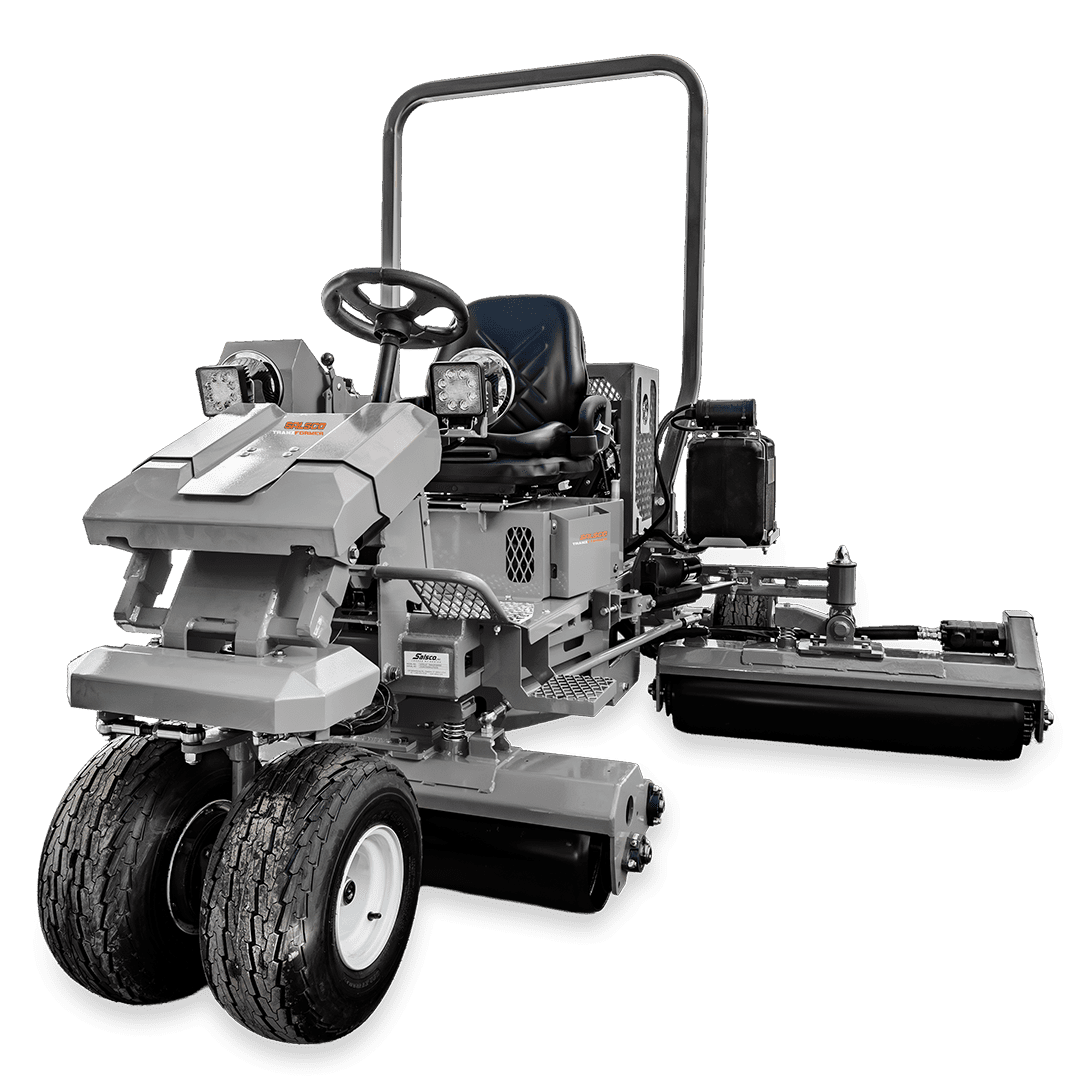

The Tranz-Former is a turf roller designed for sports fields, athletic grounds, and large turf areas. It smooths surfaces without changing contours, reduces divots, and enhances field consistency. On sports fields, it minimizes uneven areas and reduces injury risk, helping maintain optimal playing conditions. Features include a 10-foot rolling width, three articulating water-fillable rolls, a 37HP EFI engine, and a hydraulic system to ensure efficient and consistent turf performance.

Key Features and Benefits:

  • Self Contained, No Trailer Needed – Increases efficiency by 35% over traditional rollers with seamless drive, roll, and transport functionality.
  • Three Drive Oscillating Rolls – Maintains traction and even pressure across contours for a smooth, stress-free roll.
  • Electric Over Hydraulic Tire System – Effortlessly raises or lowers wheels for fast mode changes, with powered wheels for added traction and control.
Fleet Finance & Leasing Options Talk to us today 0800 807 333

Features

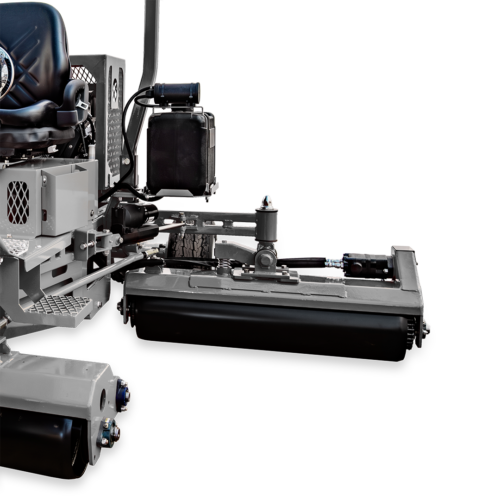

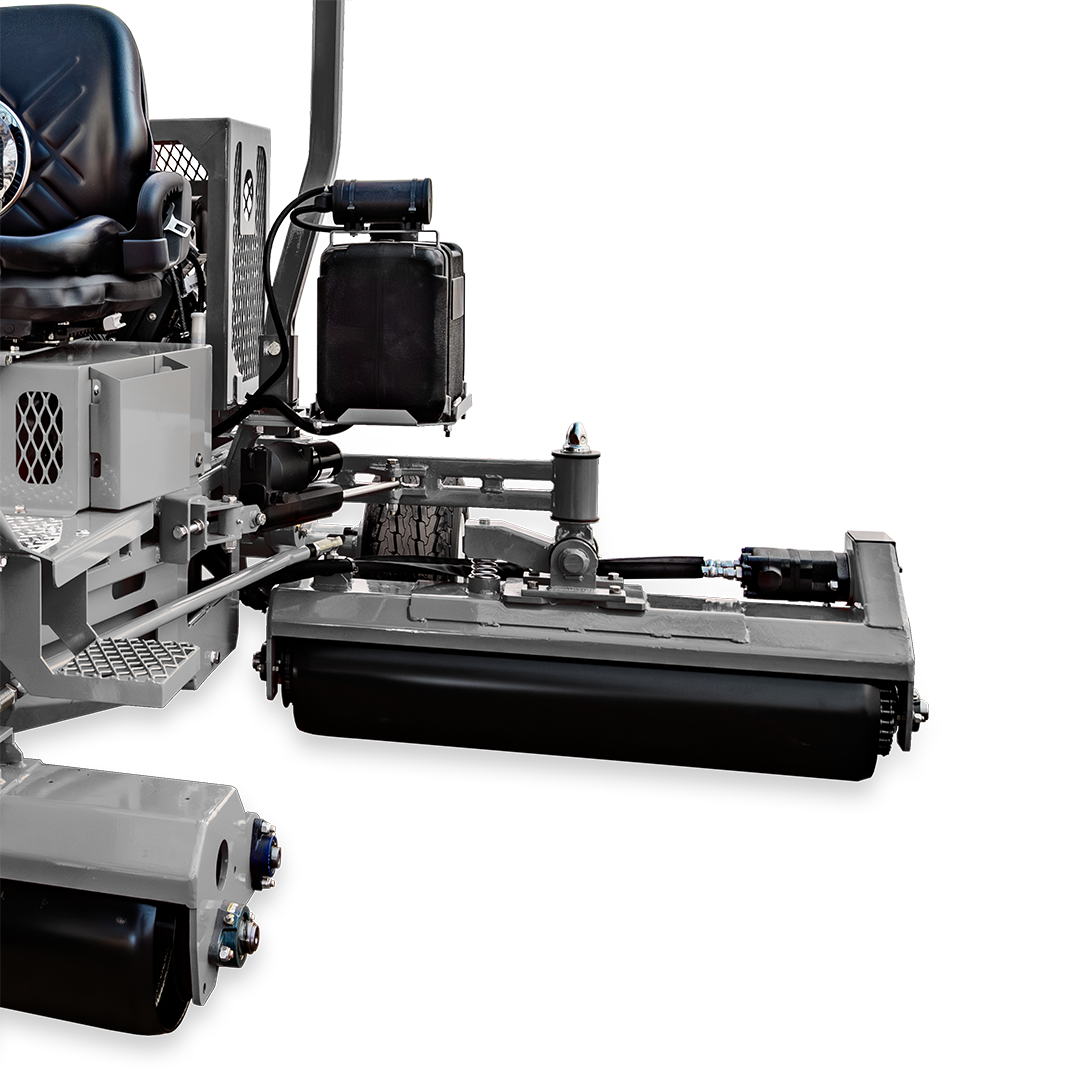

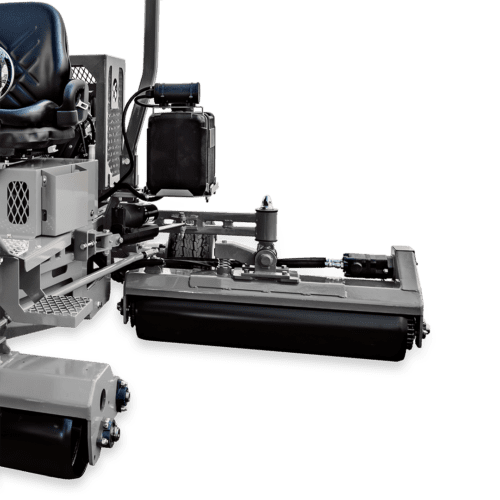

10’ Rolling Swath

10’ rolling swath covers large areas quickly and efficiently. Three articulating driven rolls maintain consistent ground contact for a smooth, creasefree finish.

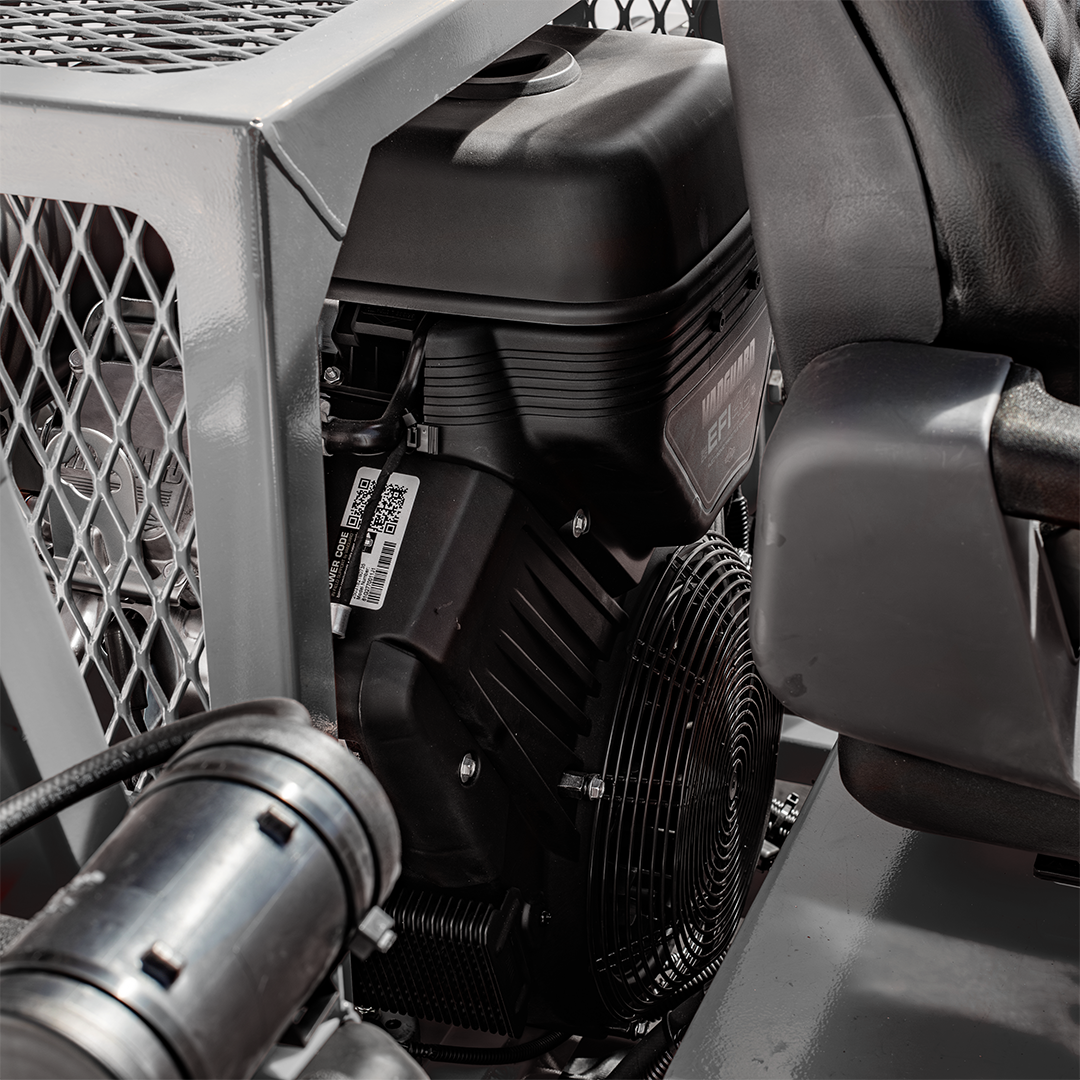

37HP B&S Engine

The Briggs & Stratton 37 HP EFI Electric Start engine delivers powerful, reliable performance with improved fuel efficiency and easy electric starting in all conditions.

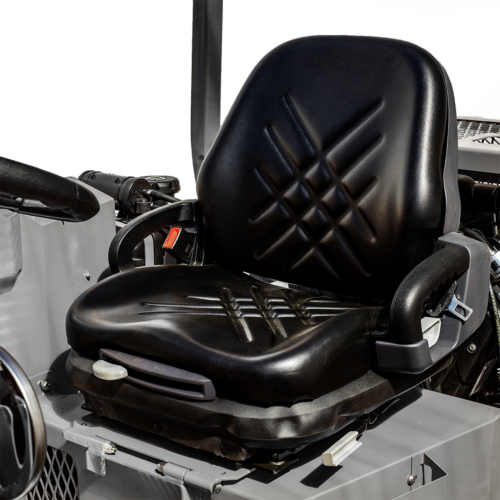

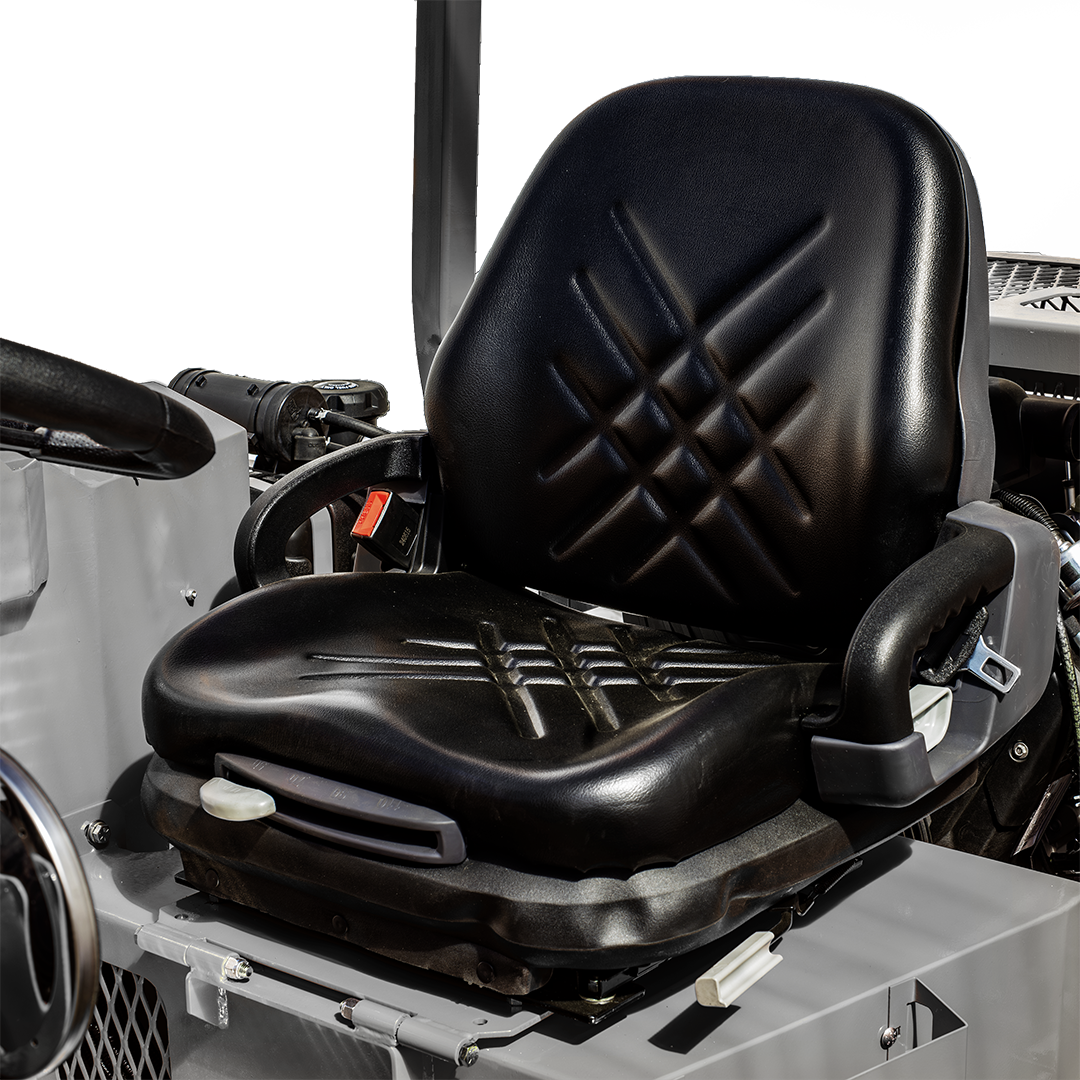

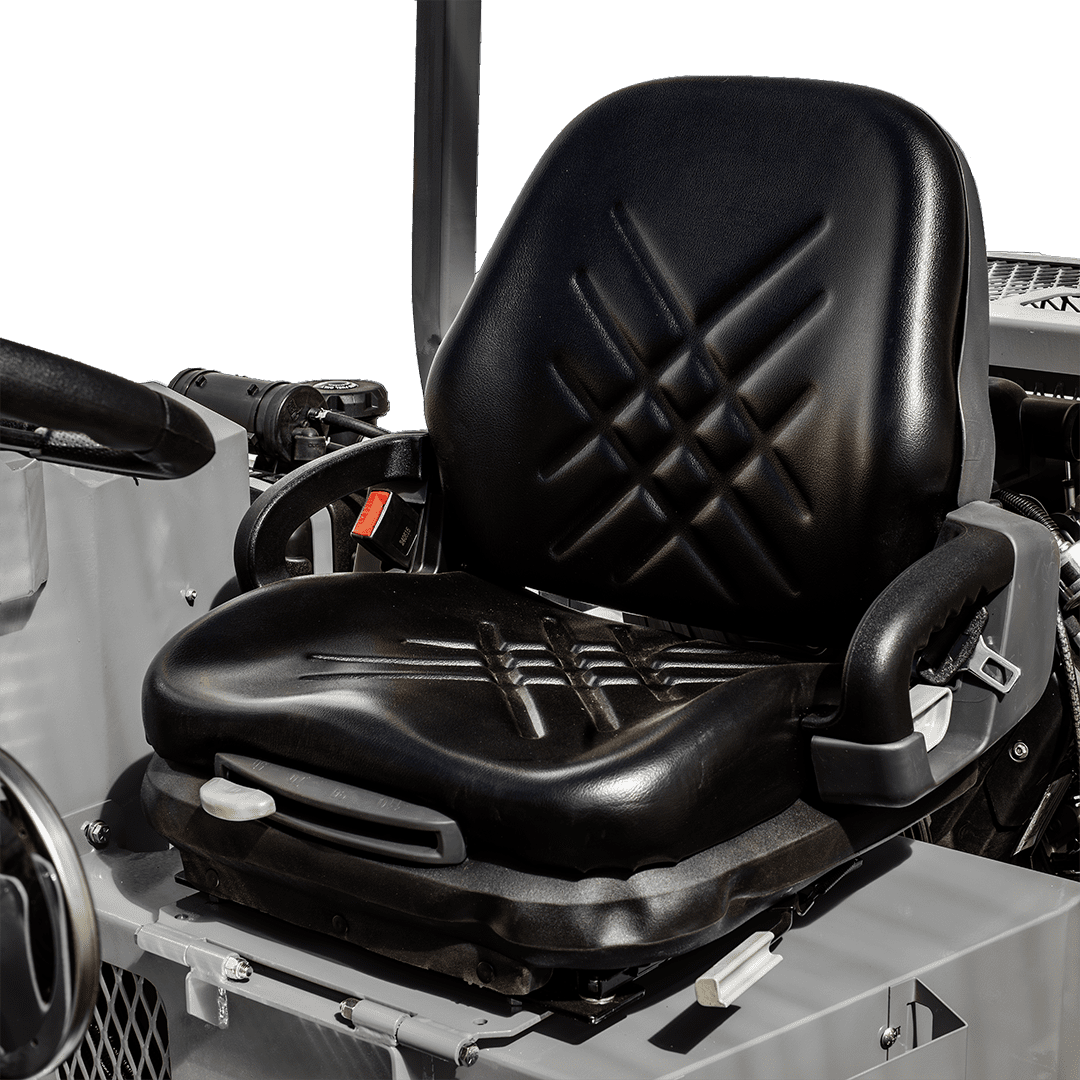

Arm Rest Seat

The armrest seat enhances operator comfort with ergonomic support and airride adjustability, reducing fatigue for smoother, more controlled operation over any terrain.

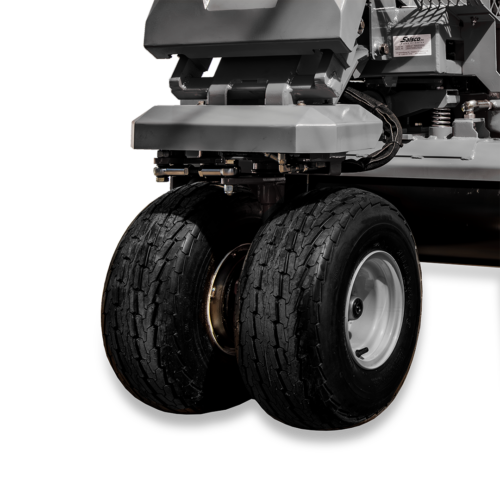

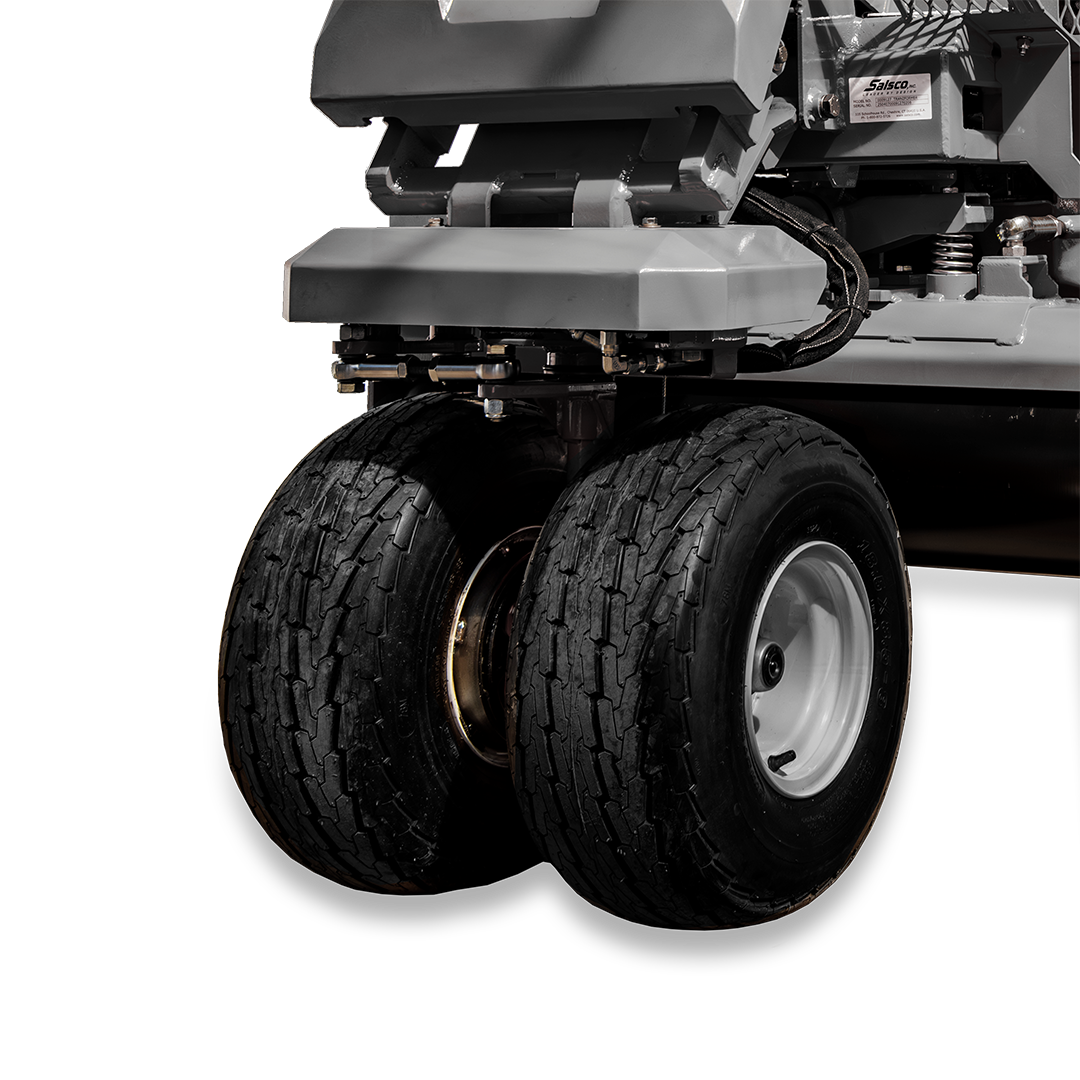

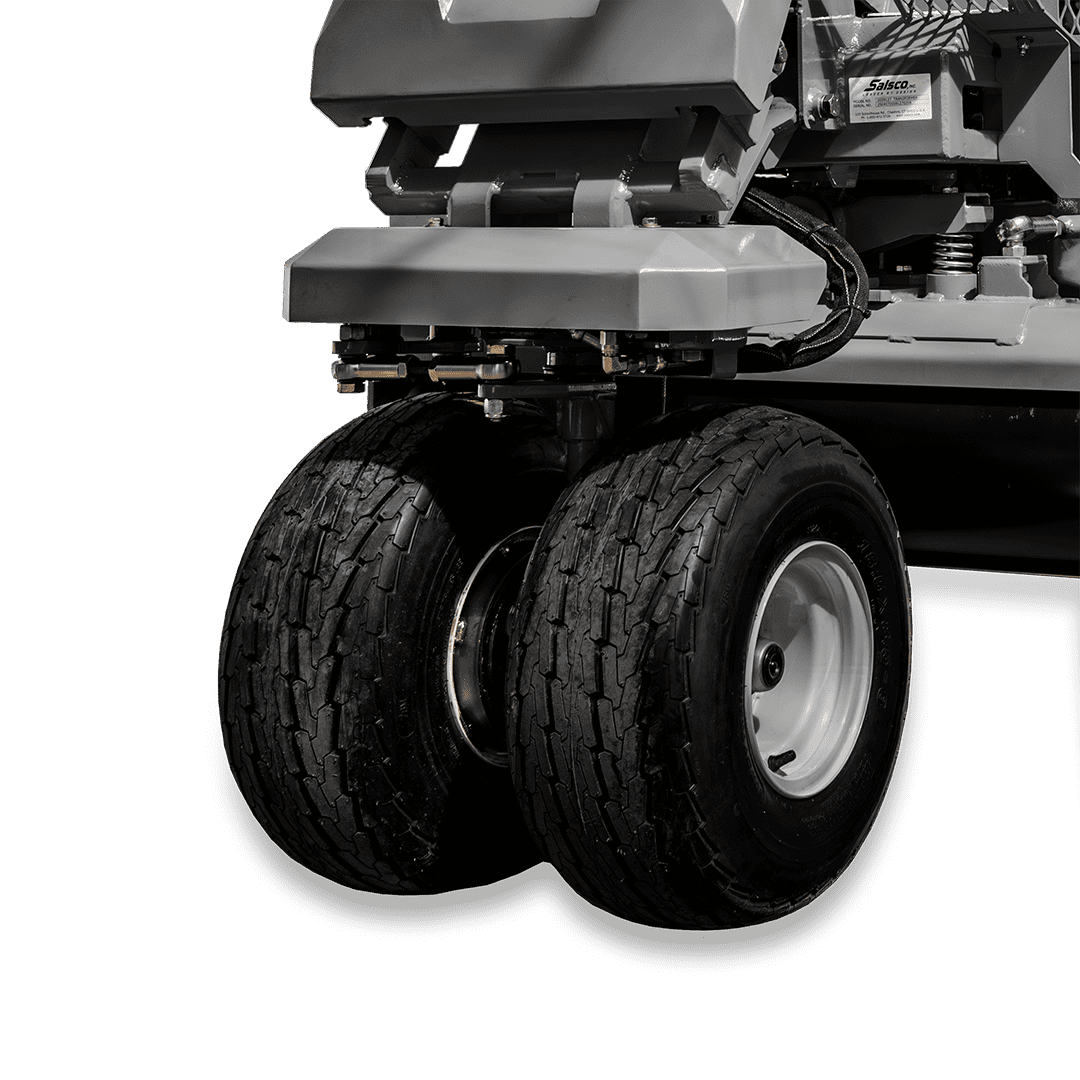

Turf Tires

Four 8.5 x 8.5-8, 6-ply turf tires and electric-hydraulic actuators enable smooth transport and quick mode transitions.

Specifications

Product Specifications

Length 120”in (1305cm)

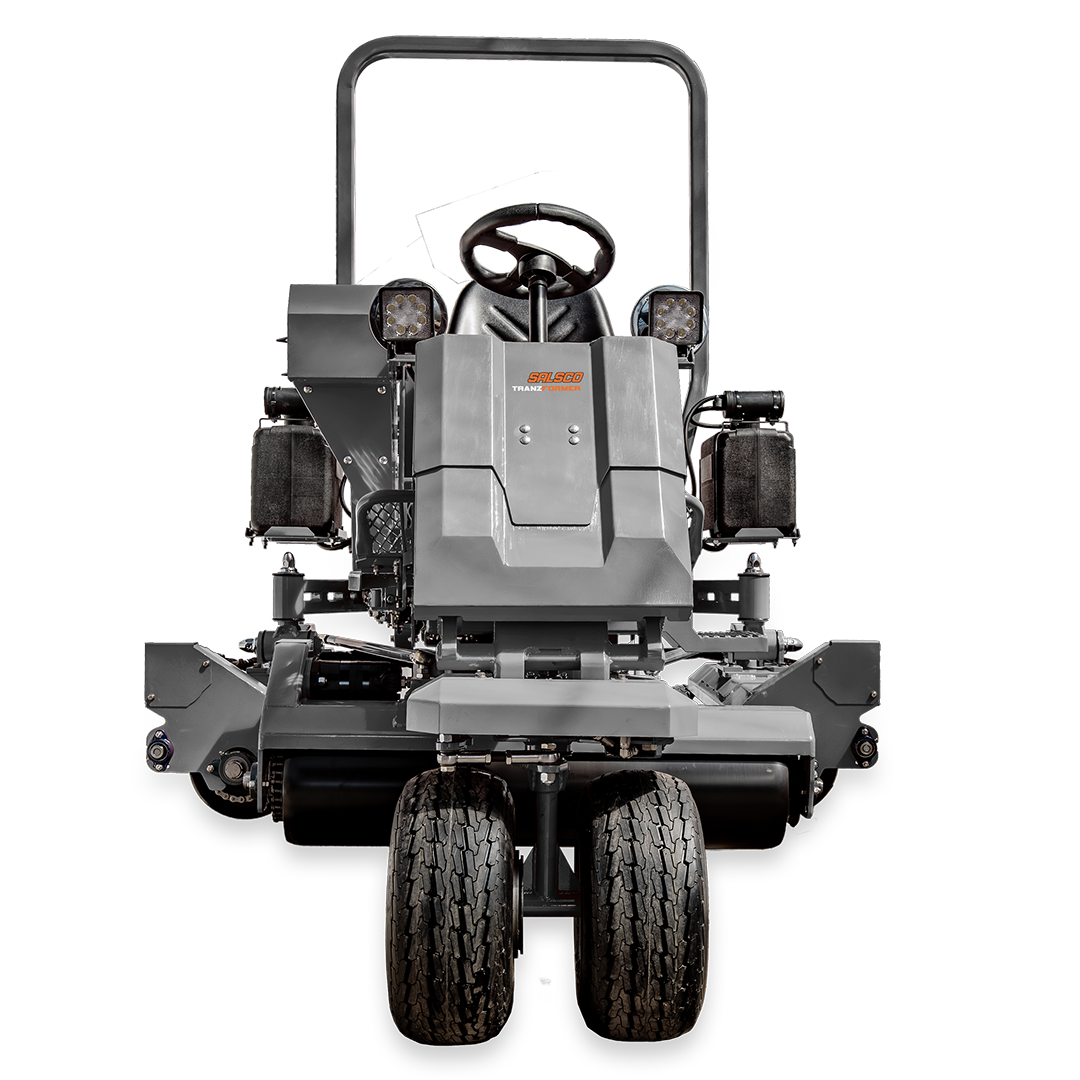

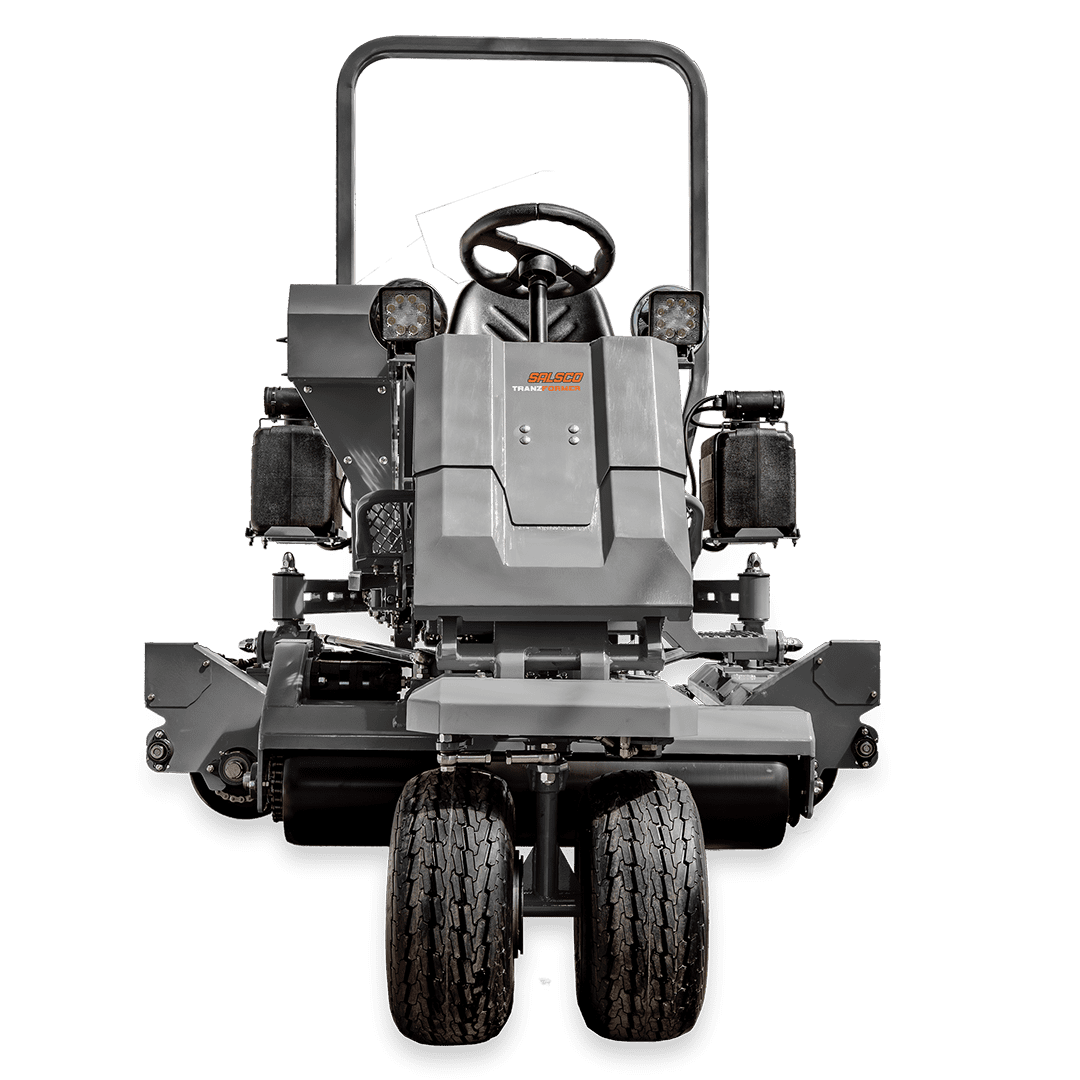

Width 120”in (1305cm) - 63”in (160cm) in Transport Mode
Height 95”in (241cm)

Standard Equipment

Engine 37HP Briggs & Stratton, EFI Electric Start Engine
Fuel Tank (2) 6 Gallon, CARB Approved Fuel Canisters
Controls Forward/Reverse, Transport and Rolling
Battery 12 Volt, 850CCA Automotive Type
Hour Meter Standard
Rolling Swath 120”
Steering Wheel 14” Tilt Adjustable Steering Wheel
Drive Rolls Three (3), 10-3/4” diameter x 40” long, beveled. Can be filled with water for extra weight. Machined to within two thousandths of an inch concentricity.
Speed 0-10 MPH
Brakes Hydraulic and Mechanical
Hydraulic Components Hoses: SAE JIC hose ends & fittings. 3,000 P.S.I. operating & 12,000 P.S.I.
burst. Motors: Five (5) Eaton Motors. Pump: One (1) three section tandem Hydro-Gear pump.
Hydraulic Tank 15 Gallon Steel Hydraulic Tank
Electric Hydraulic Cylinders Six (6) Double Action. Two (2) 4” Stroke, Two (2) 6” Stroke and Two (2) 8” Stroke
Traction Drive All 3 Rolls are Driven
Climbing Traction Up to 40°
Turning Radius Approximately 35”
Cross Contamination Prevention Kit Standard
Seat Air-Ride Forward/Reverse Slide Adjustable Arm Rest Seat
Tire/Wheel Assemblies Four (4) 18.5 x 8.5-8, 6 Ply, turf tires hydraulically operated. Two are drive wheels.

Optional Equipment

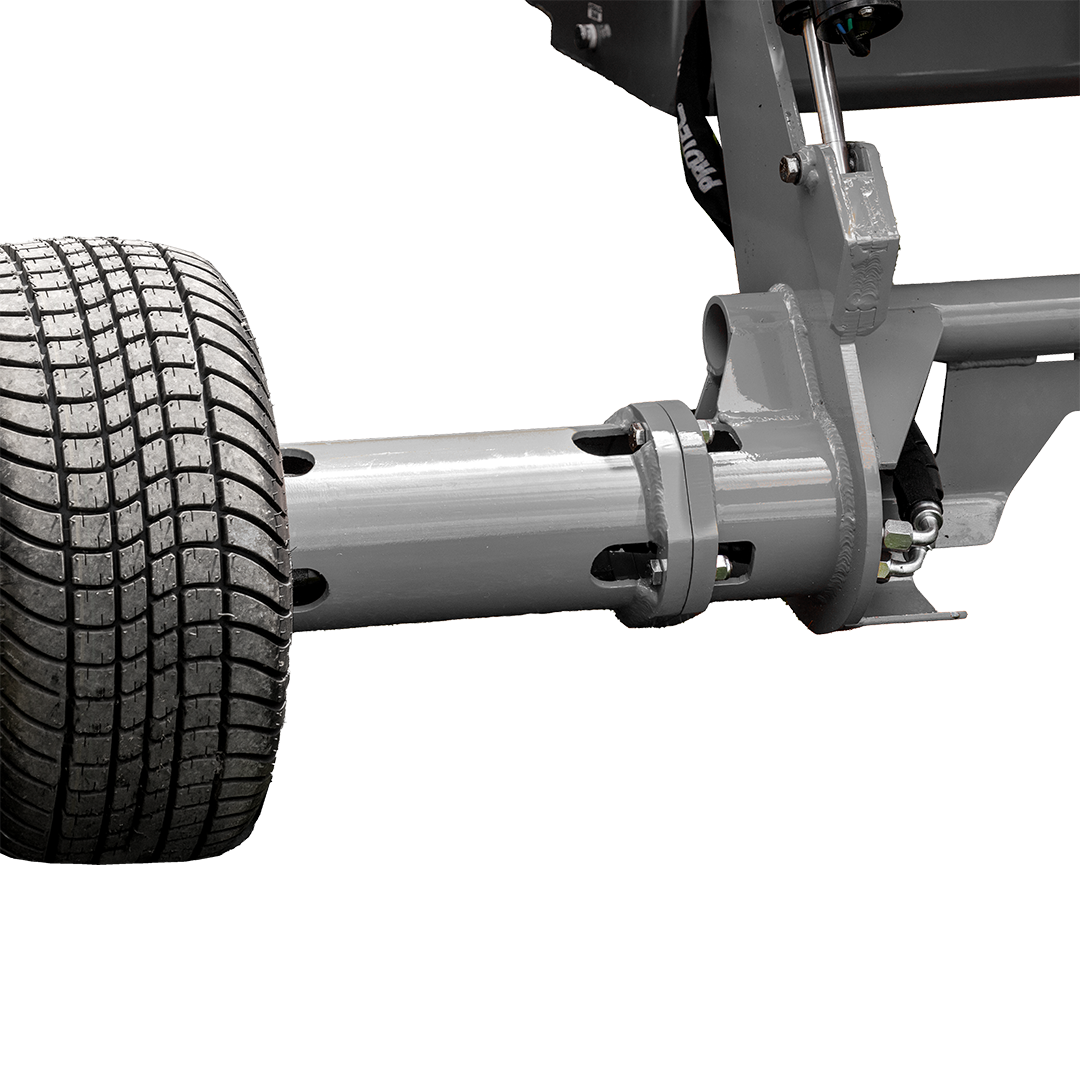

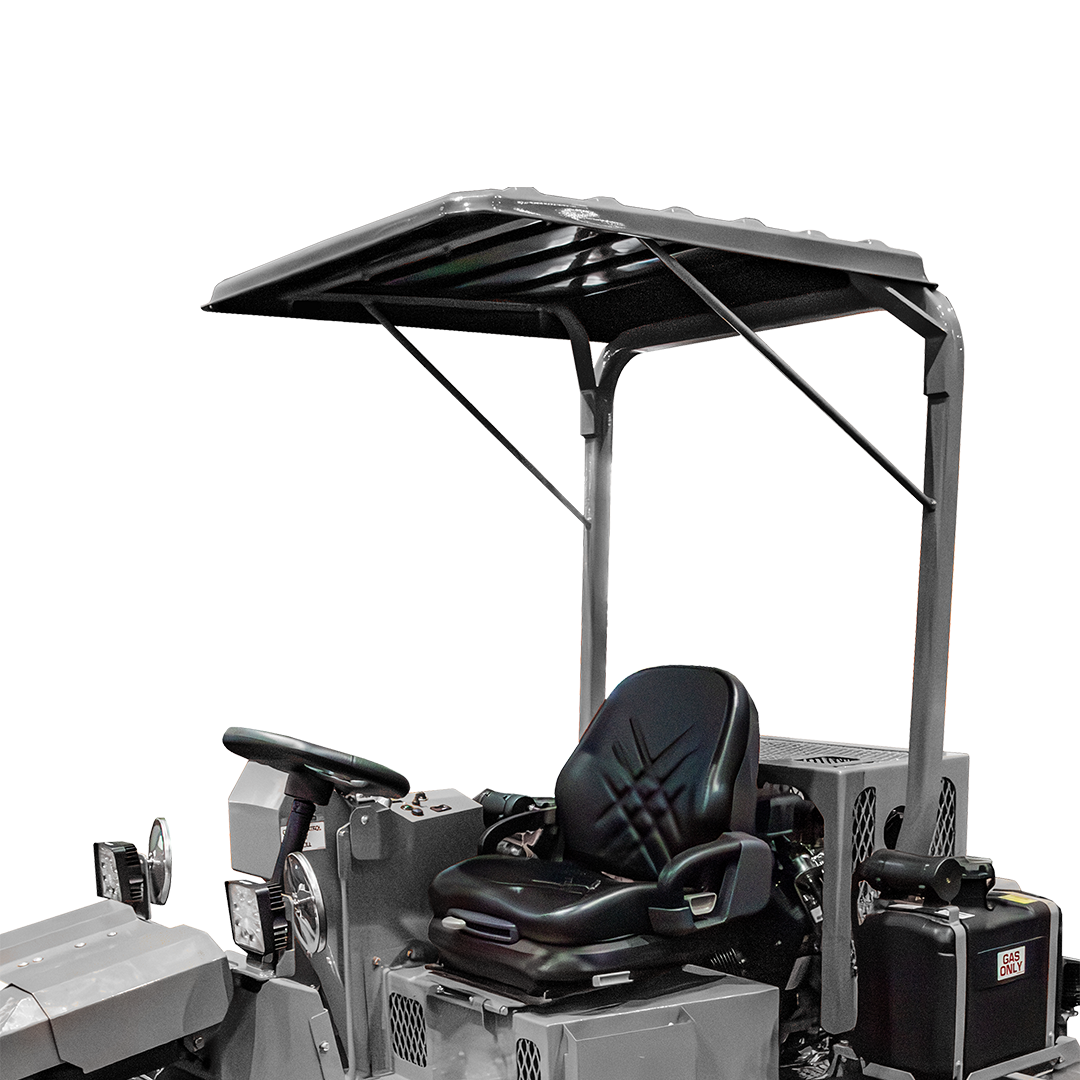

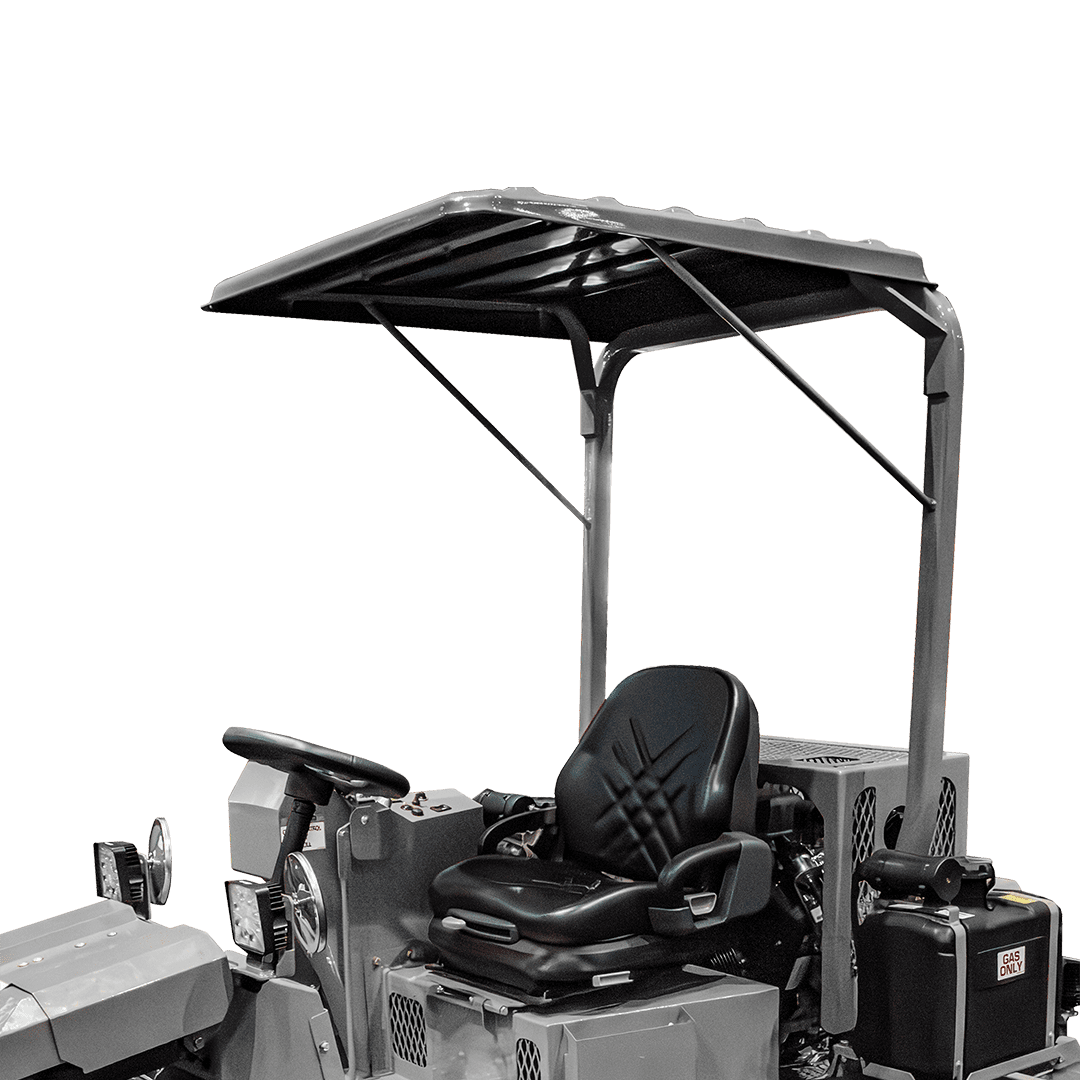

Roller Options Rear Wheel Extension Kit, Cool Top with Fan, Cool Top without Fan, Pedal Extensions.
