Salsco STR-180 Tow Behind Turf Roller

Name: Parkland Products
Price range: $$

Model:

Salsco STR-180 Tow Behind Turf Roller

Model:

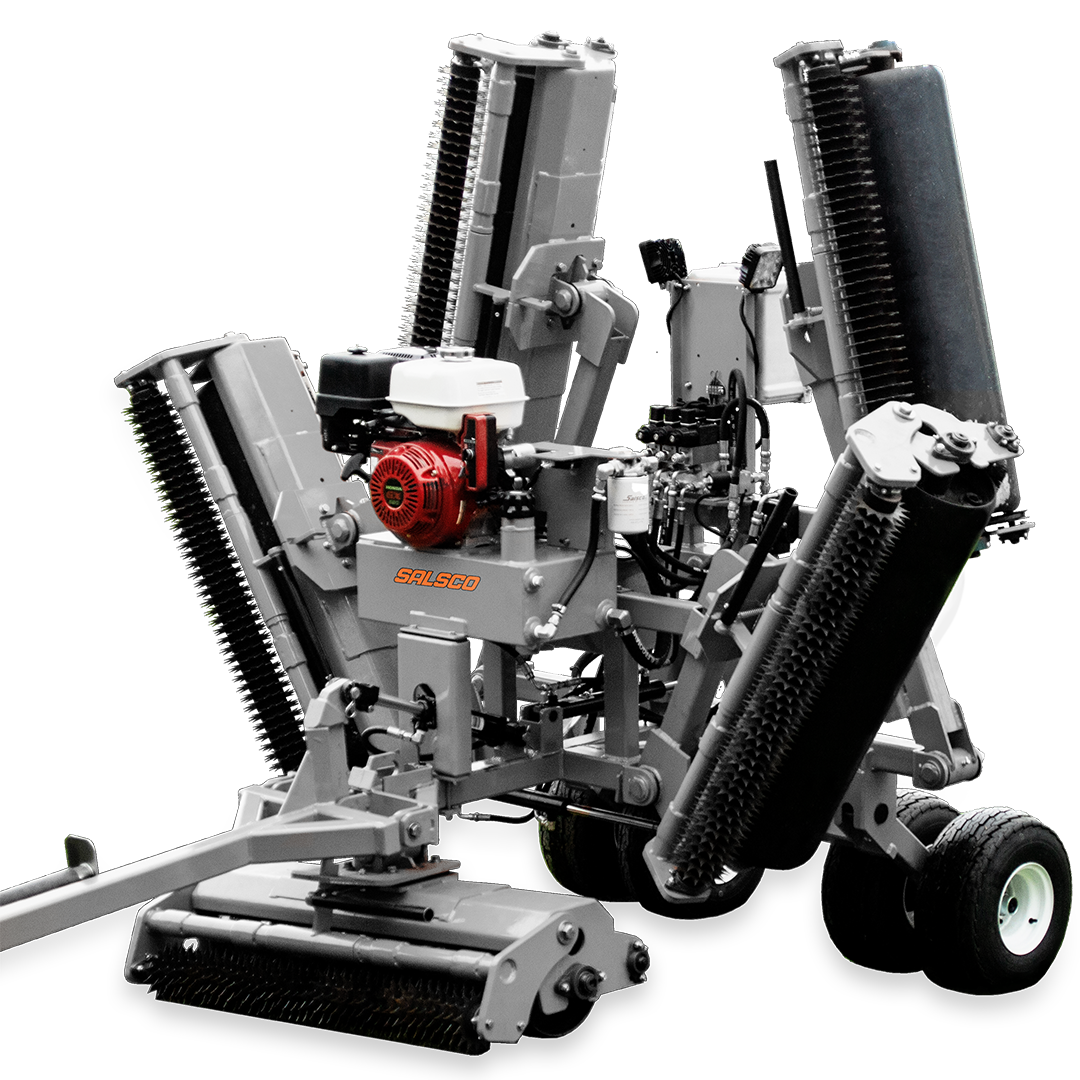

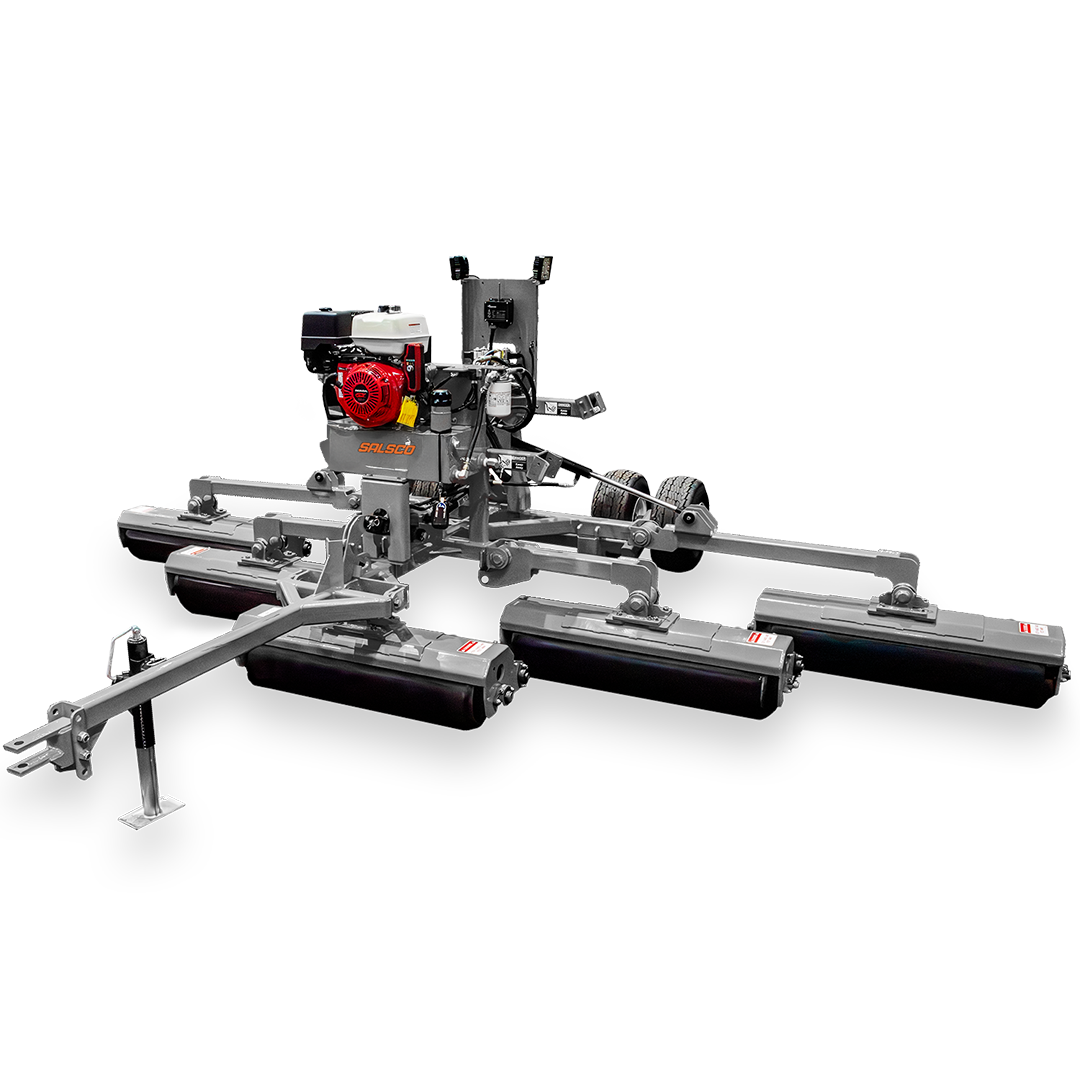

The STR-180 Tow Behind Turf Roller by Salsco features a 15-foot rolling swath, perfect for maintaining smooth and consistent sports fields and large turf areas. Its five beveled steel rolls pivot and float independently, ensuring optimal ground contact on uneven surfaces while enhancing field uniformity and play quality.

Standard features include a hydraulic hitch, wireless radio control, and adjustable height hitch. Optional upgrades enhance functionality, making the STR-180 a versatile and efficient choice for professional sports field maintenance.

Key Features and Benefits:

Wide, Precise Coverage – 15’ swath with five independently floating rolls for consistent turf contact on uneven ground.
Heavy Duty and Turf Friendly – Each roll holds up to 100 lbs. of water for added ground pressure, while beveled edges reduce turf damage.
Convenient Remote Operation and Upgrade Options – Remote control operation with optional upgrades like a Power Pack, Spike-Air Kit, contamination guards, and LED lights.

Fleet Finance & Leasing Options Talk to us today 0800 807 333

Enquire Call 0800 807 333

Talk to a rep Find a Store

Videos

Product Overview
Salsco STR-180 Tow Behind Turf Roller | Professional-Grade Rolling for Sports Fields & Stadiums
The Salsco STR-180 is a heavy-duty, tow-behind turf roller engineered for large-scale sports fields, stadiums, and athletic grounds. With a 15-foot rolling swath and five...

Features

180” Rolling Swath

15’ rolling swath allows it to cover large areas quickly and efficiently. Its five rolls pivot and float to maintain consistent ground contact, ensuring a smooth, creasefree finish across all surfaces.

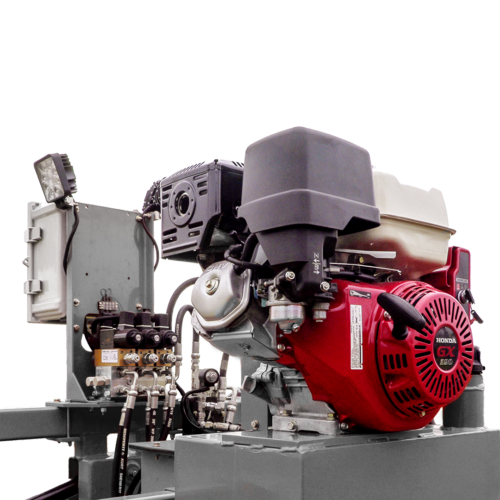

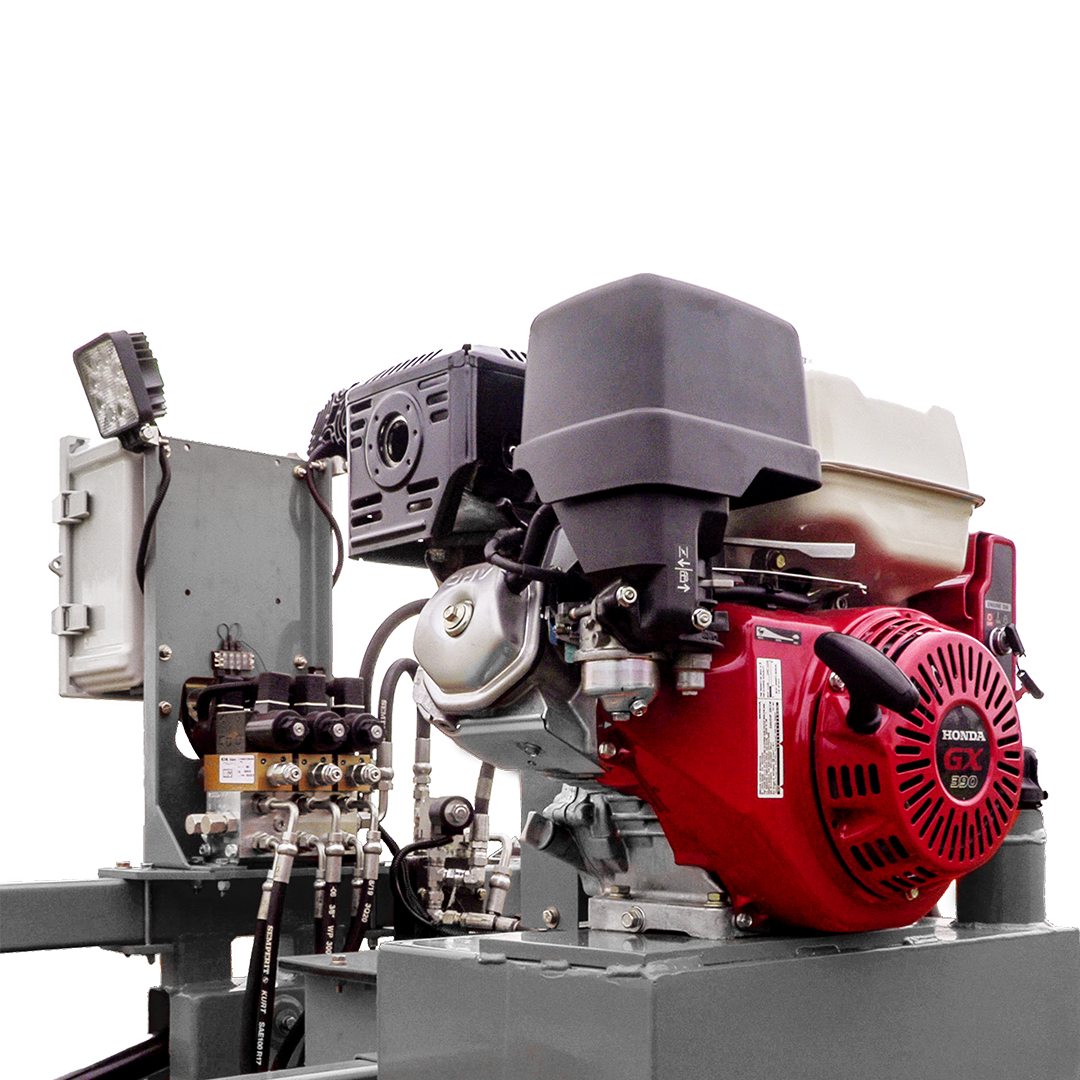

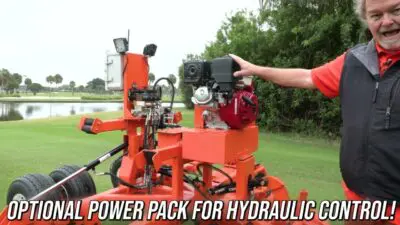

Power Pack

An optional Power Pack provides the STR-180 with independent hydraulic power, ensuring consistent performance and smooth operation for efficient maintenance of large turf areas.

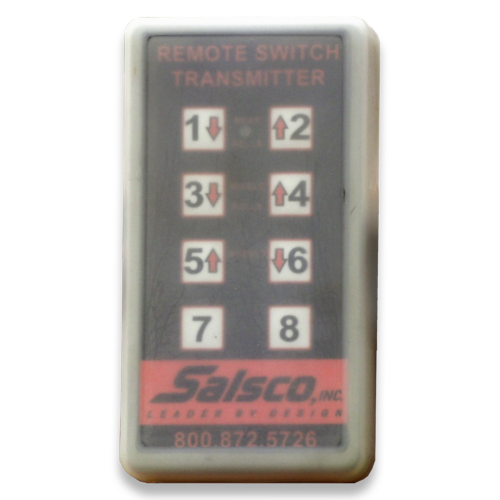

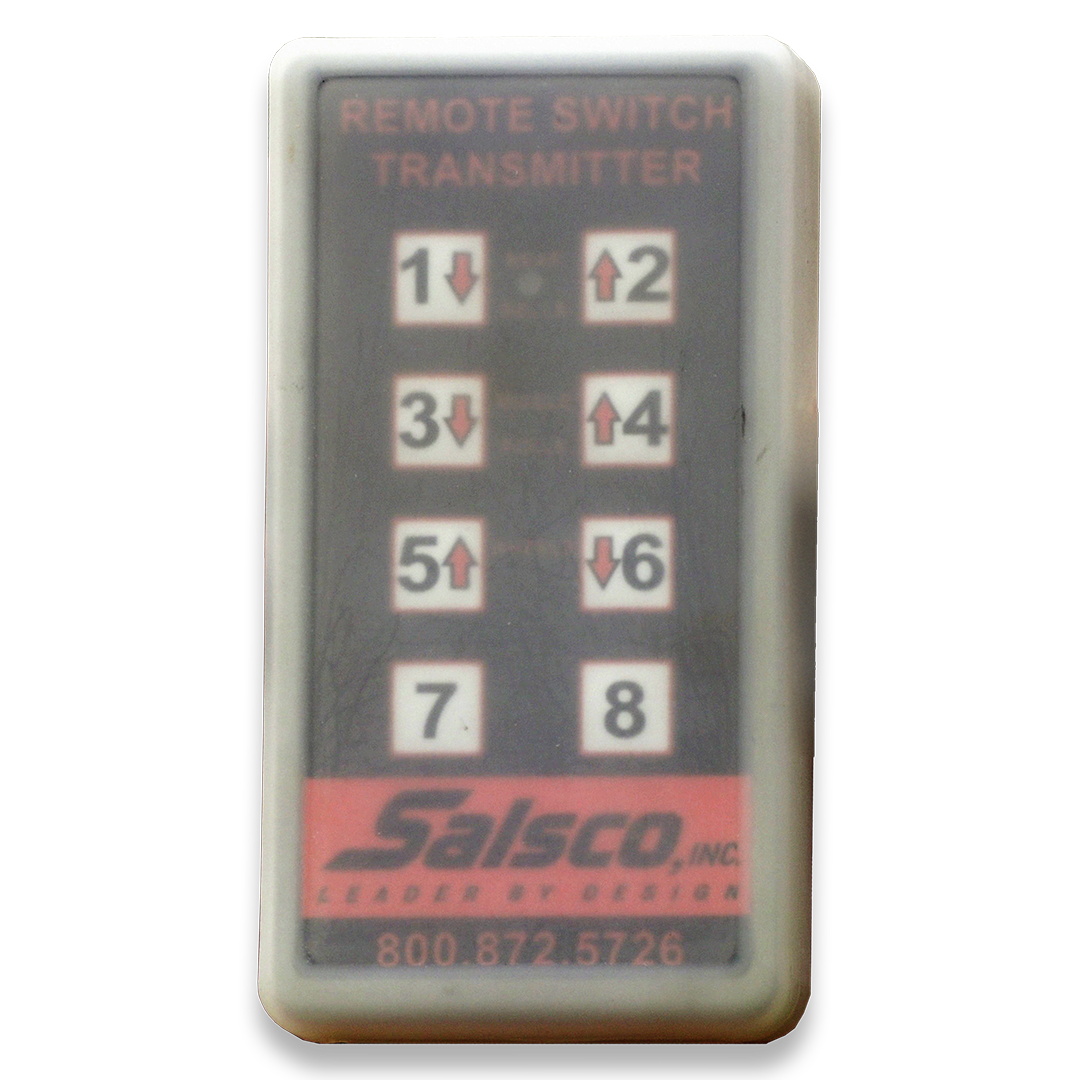

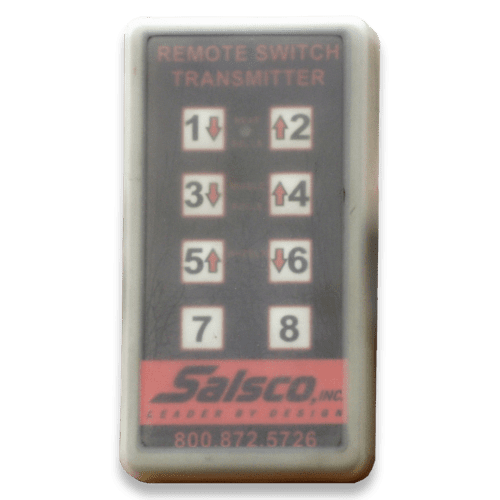

Wireless Remote

Wireless handheld remote, allowing operators to control the unit easily from a distance. This feature enhances safety and convenience by enabling precise adjustments without needing to be on the tow vehicle.

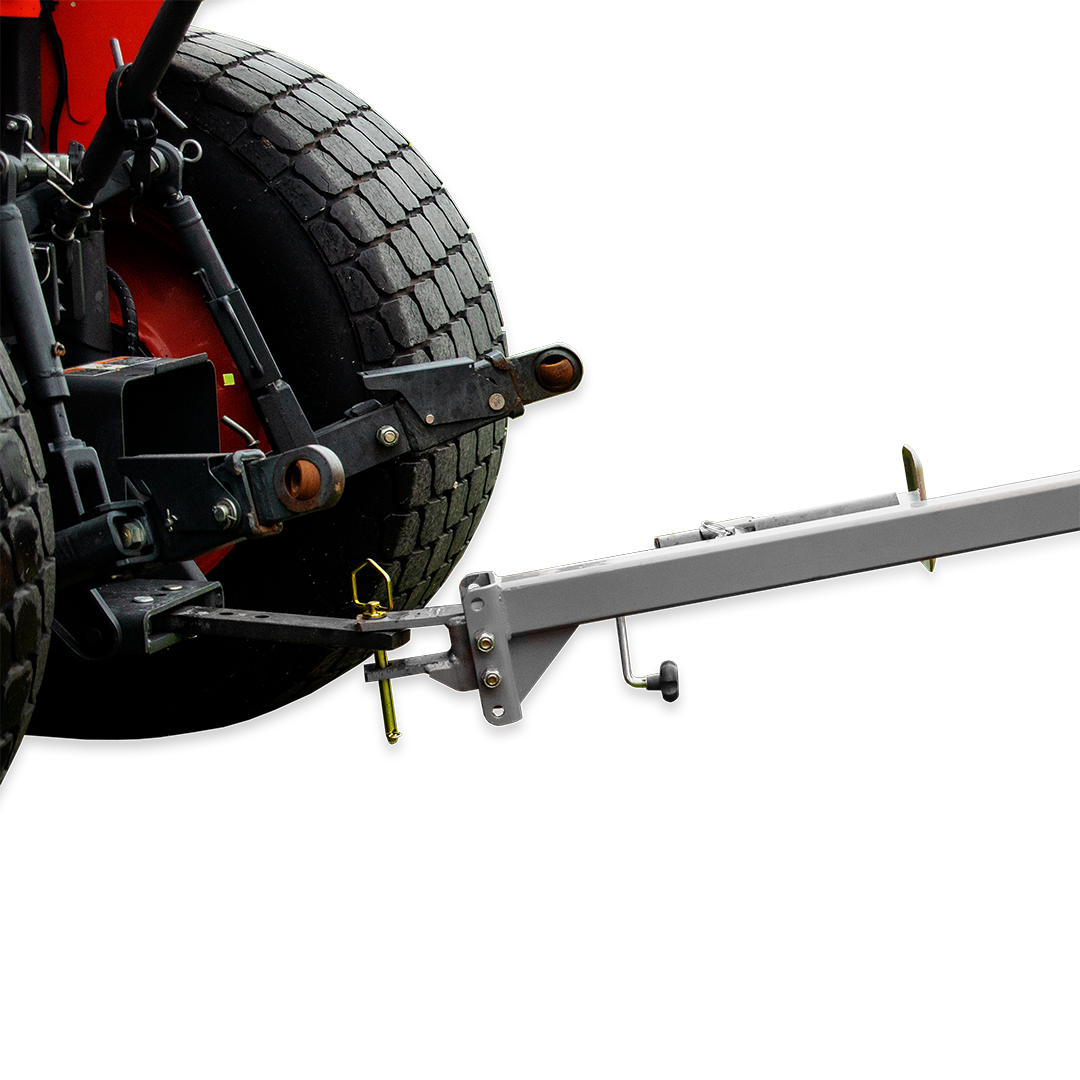

2” Pin Coupler

The adjustable 3-position hitch features a 2” pin steel farm-type coupler, built for heavy-duty towing with a 10,000 lb. capacity. Designed for durability and secure attachment, it ensures compatibility and control for utility trailers.

Specifications

Product Specifications
Transport Length	113”in (287cm)
Transport Width	96”in (244cm)
Transport Height	92”in (234cm)
Rolling Length	113”in (287cm)
Rolling Width	180”in (457cm)

Standard Equipment
Tractor Control	Hoses: Two (2) Quick disconnect hoses to connect to the tractor hydraulic implement. Flow Control Valve: Operator adjustable to maintain a steady flow of oil to the cylinders. Cylinders: Two (2) outer housing lift cylinders, 1.5” bore x 16” stroke; One (1) middle housing lift cylinder, 1.5” bore x 12” stroke; One (1) drop axle cylinder 1.5” bore x 12” stroke. Handheld Transmitter: Operator presses a button which will send a signal to the control valve to raise/lower rolls.
Rolls	Five (5) pivoting and floating steel rolls, 10-3/4” diameter x 40” long. Can be filled with up to 100 lbs. of water. Machined to within two thousandths of an inch concentricity. Extra-long beveled edges. Polyester powder coated black paint.
Bearings	Taper lock 2-bolt flange bearings, greaseable.
Frame	3” x 3” x 1/4” wall tubular steel, 1/4” gussets, continuous weld.
Roll Housings	45” long, 7 gauge steel wraps with 3/8” thick end plates.
Axles	Two (2) steel, spindle type axles.
Tires and Wheels	Four (4) tire & wheel assemblies. 18.5 x 8.5-8, load range C, 6 ply.
Tongue	2” x 3” x 1/4” tubular steel.
Hitch	3-position, 4-bolt channel hitch specially designed, hydraulically operated, which allows the STR-180 to float independently of the tow vehicle.
Coupler	2” pin, steel farm type coupler, 10,000 lb. capacity.
Tongue Jack	2,000 lb. side-wind jack.
Guards and Decals	All moving parts guarded. Full set of safety decals.

Optional Equipment

Roller Options

Self-Contained Power Pack: Includes 13HP Honda Engine, Hydraulic Pump, Hydraulic Filter, Hoses and Hydraulic Tank with Mounting Brackets. Powered

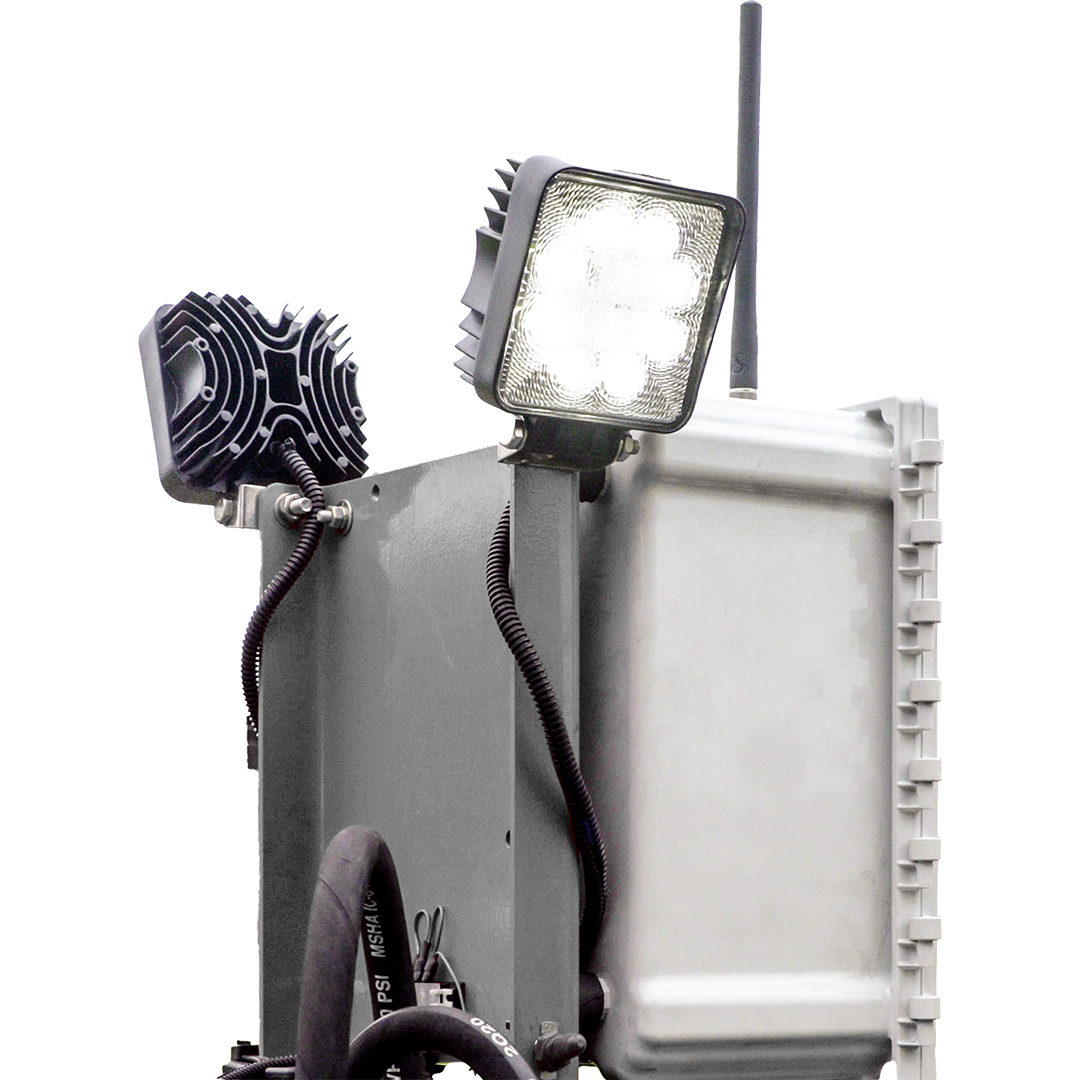

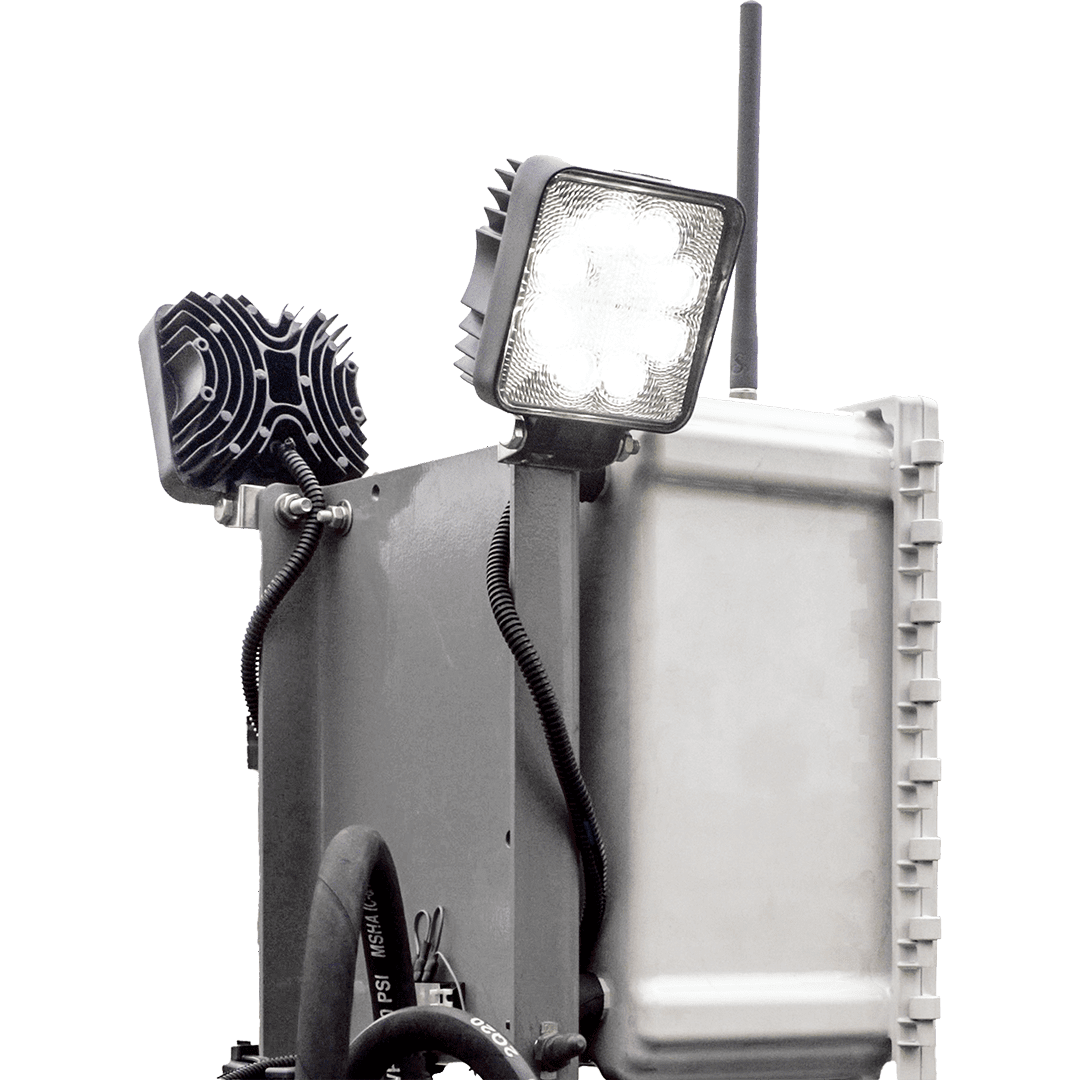

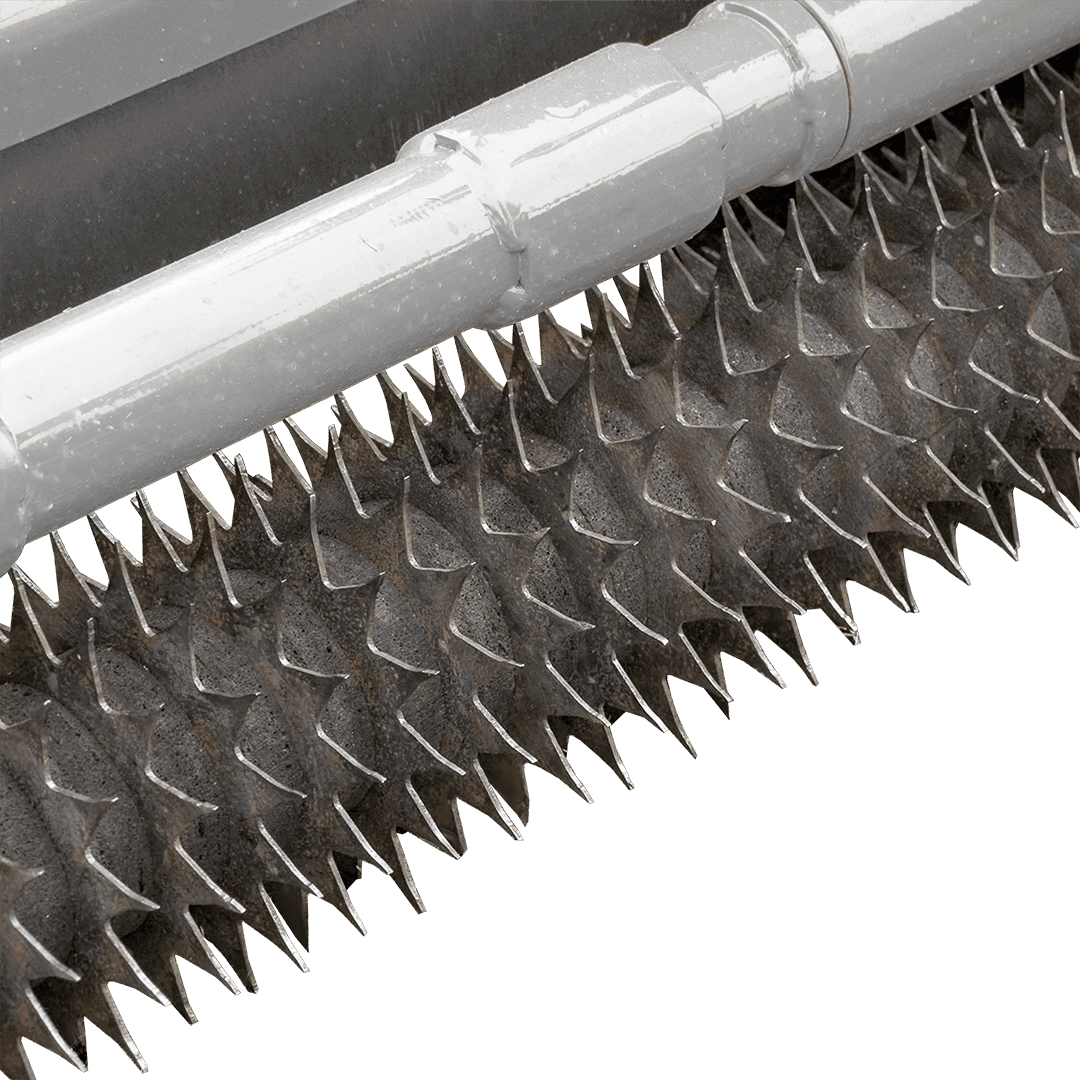

Roll Brush: Includes: Rotary Brushes, Guards and Greaseable Bearings. Spike-Air Kit: Each roll includes: Heavy Duty Spiker Frame, Rubber Enclosed Shaft, 39 Heat Treated Spiker Discs on 1” Centers and Rubber Washer Between Blades. LED Light Kit. Two Lights Mounted on Either Side with On/Off Switch.
