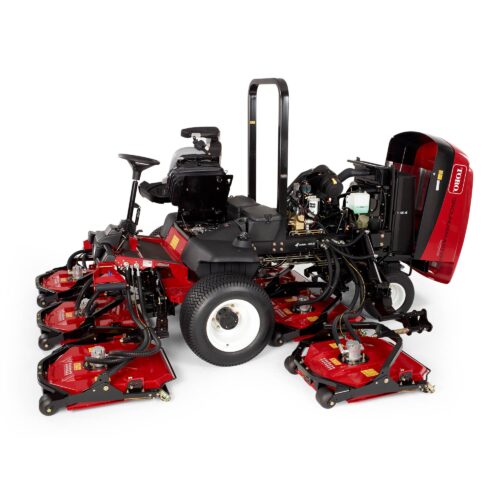

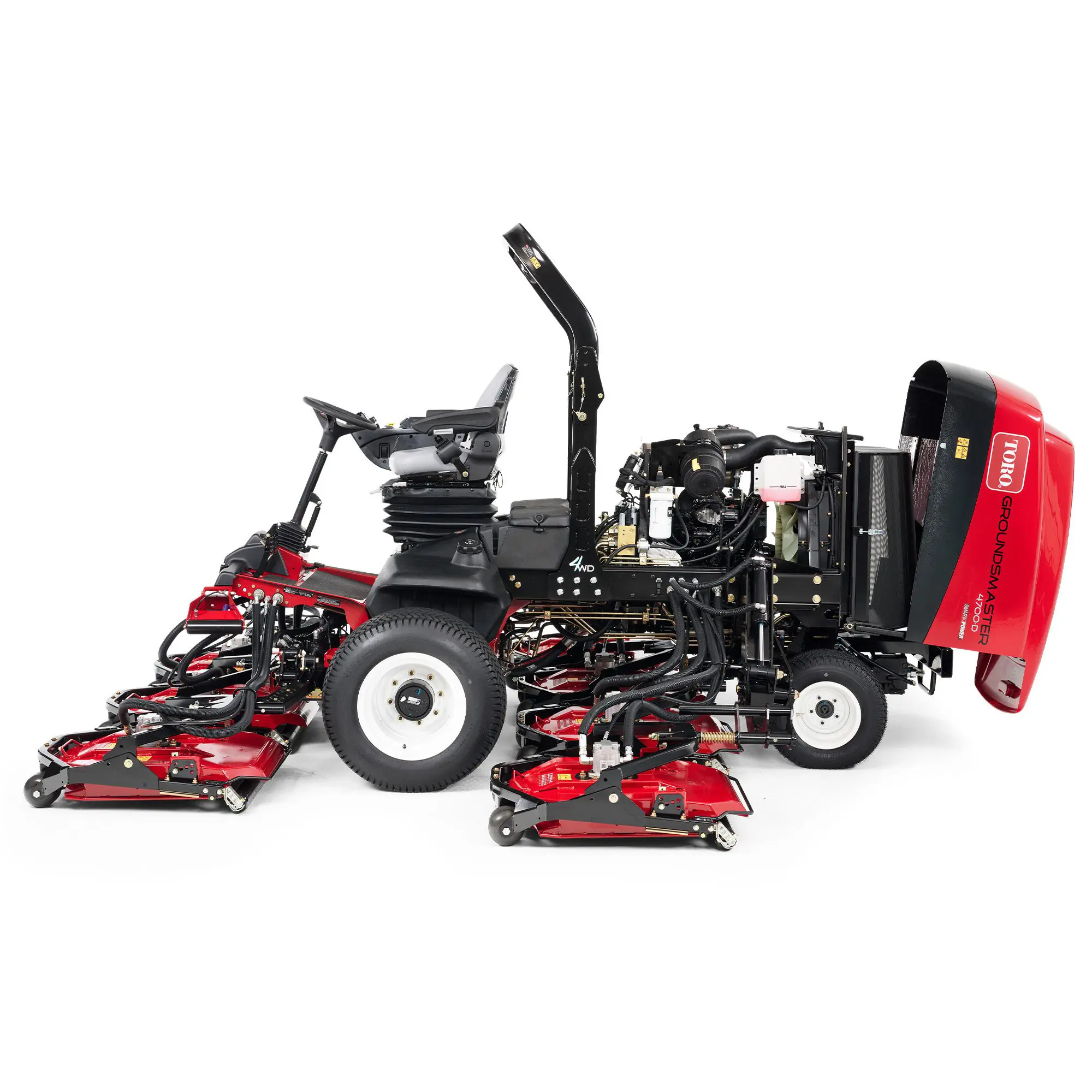

| Air Filter |
Dry, replaceable primary and safety elements.
|
Dry, replaceable primary and optional safety element.
|
Dry, replaceable primary and safety elements.
|
| Armrests |
Standard
|
Standard
|
Standard
|
| Battery |
12V
|
12V
|
12V
|
| Blade Style/Type |
Rotary
|
Rotary |
Rotary |
| Blade Type (Description) |
27" (68.6 cm) long, 2.5" (6.4 cm) wide, 0.25" (0.64 cm) thick combination blades.
|
22” (55.9 cm) long, 2.5” (6.4 cm) wide, 0.25” (0.64 cm) thick combination blades.
|
27" (68.6 cm) long, 2.5" (6.4 cm) wide, 0.25" (0.64 cm) thick combination blades.
|
| Cab Unit |
N/A
|
N/A
|
N/A
|
| Controls |
Ignition switch, low and auto mow/transport range selection switch, PTO switch, light switch. Foot-operated traction pedal, individual foot-operated steering brake control of left and right wheels with parking brake lock. One 2-position lift switch.
|
Single foot-operated traction pedal. Hand-operated key ignition switch, cutting unit raise/lower switch, cutting unit engage switch, parking brake switch, cruise control switch, and headlight switch all positioned on right hand pivoting control console.
|
Ignition switch, low and auto mow/transport range selection switch, PTO switch, light switch. Foot-operated traction pedal, individual foot-operated steering brake control of left and right wheels with parking brake lock. One 2-position lift switch.
|
| Cooling System Description |
8.25 gallon (31.3 liter) capacity with 10 micron remote spin-on filter, 9 row single pass cooler with tilt out for cleaning. Variable speed hydraulic fan drive with automatic (based on coolant and oil temps) and auto/manual reversing capabilities. Rear-mount, single pass, 7-row radiator with 6.3 fins per inch, 13 quart (12.3 liters) capacity.
|
Rear-mount, cross-flow 7-row radiator with 6.3 fins per inch, 5.5 quart (5.2 liter) capacity.
|
8.25 U.S. gal. (31.2 L) capacity with 10 micron remote spin-on filter, 9 row single pass cooler with tilt out for cleaning. Variable speed hydraulic fan drive with automatic (based on coolant and oil temps) and auto/manual reversing capabilities. Rear-mount, single pass, 7-row radiator with 6.3 fins per inch, 13 U.S. qt. (12.3 L) capacity.
|
| Cruise Control |
Standard off/on plus engage switch. Increase/decrease speed through InfoCenter, once engaged.
|
— |
Standard off/on plus engage switch. Increase/decrease speed through InfoCenter, once engaged.
|
| Cup Holder |
Standard
|
Standard
|
Standard
|
| Cutting Unit Accessories |
Atomic Mulching Blades, High Sail/Angle Sail Blades, Rear Roller Scraper Kit, Mulching Kit, Deck Lock Kit, 27” Rotary Replacement Cutting Unit
|
Leaf Mulching Kit, Combination Blade, Angle Sail Blade, Atomic Mulching Blade, Rear Roller Scraper Kit, Sectional Rear Roller, 22” Rotary Replacement Cutting Unit
|
Atomic Mulching Blades, High Sail/Angle Sail Blades, Rear Roller Scraper Kit, Mulching Kit, Deck Lock Kit, 27” Rotary Replacement Cutting Unit
|
| Cutting Unit Lift/Lower |
Three 2-position switches for deck raise/lower.
|
Joystick control for deck raise and lower.
|
One 2-position switch for deck raise/lower.
|

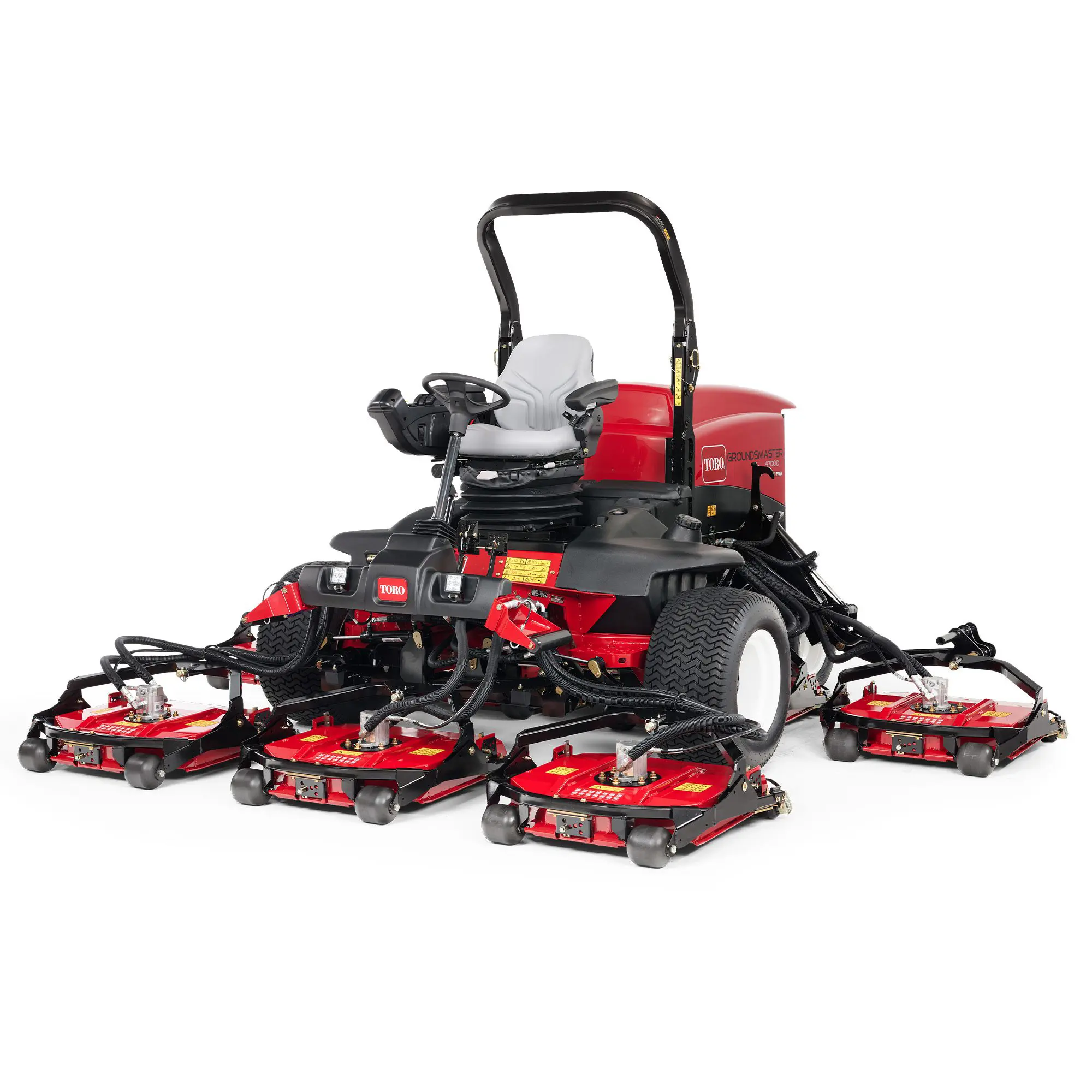

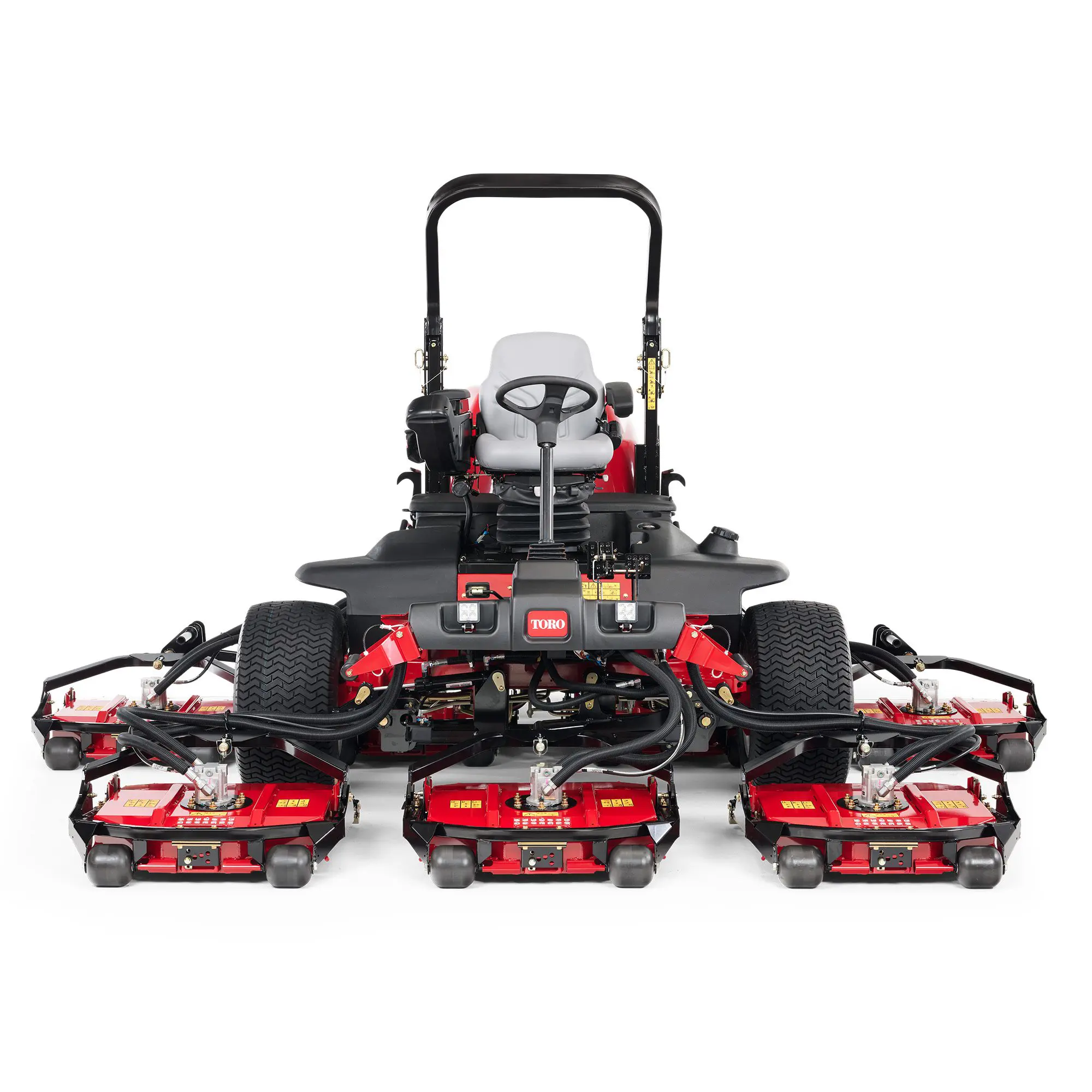

| Cutting Unit Type/Configuration |
Seven Contour™ Plus 27" (68.6 cm), rear-discharge rotary cutting units with standard full-length striping rear rollers. Operate-on-the-fly mowing configurations of 5, 6, or 7 decks utilizing the independently-operable outboard cutting units, resulting in cutting widths of 109" (276.8 cm), 129.5" (328.9 cm), or 150" (381 cm), overlap 6.5" (16.5 cm), overhang 30.9" (78.4 cm)
|
Five Contour™ Plus 22” (55.9 cm), rear-discharge rotary cutting units with rear roller on each deck. 90” (229 cm), overlap 5” (12.7 cm), overhang 1” (2.5 cm)
|
Five Contour™ Plus 27" (68.6 cm), rear-discharge rotary cutting units with standard full-length striping rear rollers. 109" (277 cm) cutting width, overlap 6.5" (16.5 cm), overhang 10.4" (26.4 cm)
|
| Deck Construction |
10-gauge steel constructed chambers with 12-gauge welded reinforcements. 1.5" (3.8 cm) square x 0.25" (0.6 cm) wall tube with 7-gauge side supports. Spindle support 3/16" (0.48 cm) high-strength steel and 10-gauge exterior channels.
|
Cutting chamber is 10-gauge steel constructed chambers with 12-gauge welded reinforcements. Spindle support is 3/16” (0.48 cm) high-strength steel and 10-gauge exterior channels. Cutting unit frame is welded 1.5” (3.8 cm) square x 0.25” (0.6 cm) wall tube with 7-gauge side supports. Spindle support 3/16” (0.48 cm) high-strength steel and 10-gauge exterior channels.
|
10-gauge steel constructed chambers with 12-gauge welded reinforcements. 1.5" (3.8 cm) square x 0.25" (0.6 cm) wall tube with 7-gauge side supports. Spindle support 3/16" (0.48 cm) high-strength steel and 10-gauge exterior channels.
|
| Deck Wing Protection |
Impact absorption device on each wing deck.
|
— |
— |
| Drivetrain |
Diesel
|
Diesel
|
Diesel |
| Electrical System |
12-volt, 650 CCA battery, 40 amp alternator. Overload protection with automotive type fuses.
|
12-volt battery with 540 CCA, 55 amp alternator. Overload protection with automotive-type fuses.
|
12-volt, 650 CCA battery, 40 amp alternator. Overload protection with automotive type fuses.
|
| Engine Cooling |
Liquid Cooled
|
Liquid Cooled
|
Liquid Cooled
|
| Fuel / Power Source |
Diesel / Biodiesel
|
Diesel / Biodiesel
|
Diesel / Biodiesel
|
| Fuel Capacity |
22 U.S. gal. (83.3 L)
|
13.5 U.S. gal. (51.1 L)
|
22 U.S. gal. (83.3 L)
|

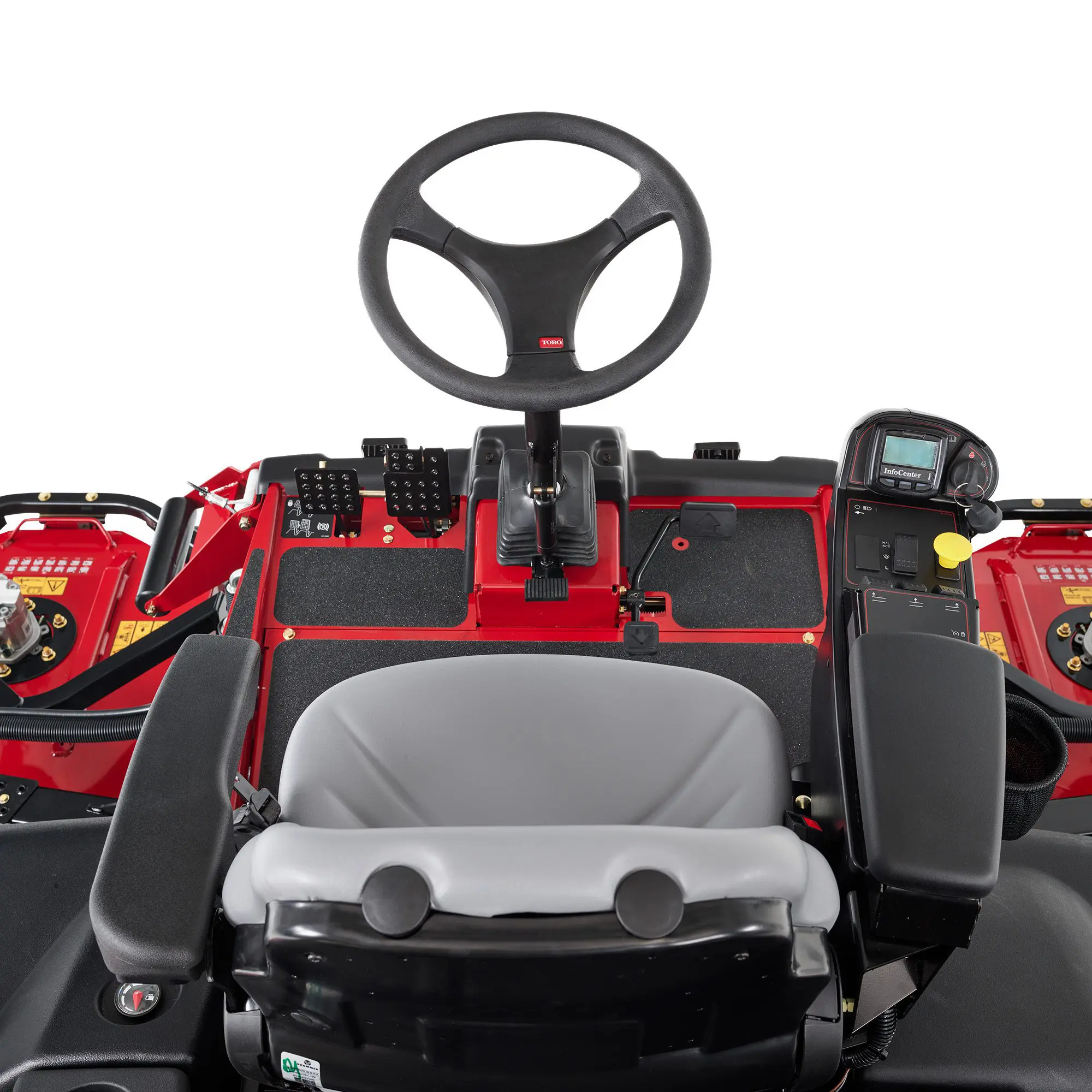

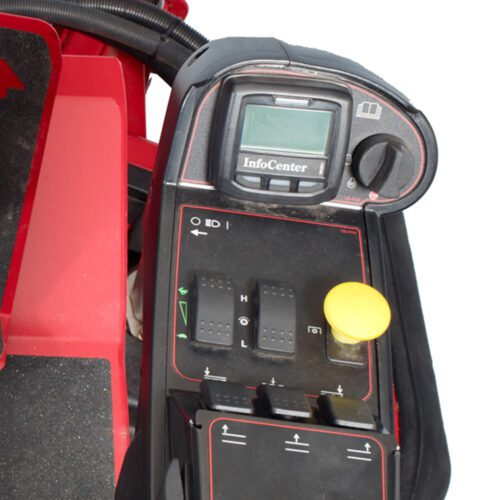

| Gauges/Instrumentation |
InfoCenter™: Onboard LCD display shows gauges, alerts/faults, service reminders, electrical system diagnostics. Indicates fuel level, coolant temperature, intake temperature, low oil pressure, alternator, engine hours, engine rpm, hydraulic oil temperature, voltage and fuel usage.
|
InfoCenter™: Onboard LCD display shows gauges, alerts/faults, service reminders, electrical system diagnostics. Indicates fuel level, coolant temp, low oil pressure, alternator, engine hours, engine rpm, voltage, counterbalance settings, glow indicator, lift/lower indicator.
|
InfoCenter™: Onboard LCD display shows gauges, alerts/faults, service reminders, electrical system diagnostics. Indicates fuel level, coolant temperature, intake temperature, low oil pressure, alternator, engine hours, engine rpm, hydraulic oil temperature, voltage and fuel usage.
|
| Ground Clearance |
6" (15.3 cm)
|
5" (12.7 cm)
|
6" (15.3 cm)
|
| Ground Following |
6" (15.3 cm) anti-scalp cups on each blade.
|
6” (15.3 cm) anti-scalp cups on each blade.
|
6" (15.3 cm) anti-scalp cups on each blade.
|
| Ground Speed - Forward |
0 - 13 mph (0 - 21 km/h)
|
0 - 10 mph (0 - 16.1 km/h)
|
0 - 13 mph (0 - 21 km/h)
|
| Ground Speed - Reverse |
0 - 8 mph (0 - 12.8 km/h)
|
0 - 4 mph (0 - 6.4 km/h)
|
0 - 8 mph (0 - 12.8 km/h)
|
| Height |
with 2-post ROPS: 88.8" (216 cm) upright, 65.2" (165 cm) folded
|
86" (215 cm) with 2-post ROPS
|
with 2-post ROPS: 88.8" (216 cm) upright, 65.2" (165 cm) folded
|
| Height of Cut Range |
0.75" - 4" (1.9 cm - 10.2 cm) in 0.25" (0.6 cm) increments. 3-position 0.030" (0.08 cm) incremental calibration.
|
0.75” - 4” (1.9 cm - 10.2 cm) in 0.25” (0.6 cm) increments.
|
0.75" - 4" (1.9 cm - 10.2 cm) in 0.25" (0.6 cm) increments. 3-position 0.030" (0.08 cm) incremental calibration.
|
| Hydraulic Cylinders |
10 micron remote spin-on filter, single pass cooler, 6.3 fins per inch. Variable speed hydraulic fan drive with automatic (based on coolant and oil temps) and auto/manual reversing capabilities.
|
Two remote spin-on filters: main system, and traction charge.
|
10 micron remote spin-on filter, single pass cooler, 6.3 fins per inch. Variable speed hydraulic fan drive with automatic (based on coolant and oil temps) and auto/manual reversing capabilities.
|
| Hydraulic Fluid Capacity |
8.25 U.S. gal. (31.2 L)
|
14 U.S. gal. (53 L)
|
8.25 U.S. gal. (31.2 L)
|
| Hydraulic Fluid Type |
Toro PX™ Extended Life Hydraulic Fluid
|
Toro PX™ Extended Life Hydraulic Fluid
|
Toro PX™ Extended Life Hydraulic Fluid
|
| Interlocks |
Prevents engine from starting unless traction pedal is in neutral and deck is disengaged. If operator leaves seat with deck engaged, engine stops. Machine automatically switches to low range if decks are lowered. Engine stops if parking brake engaged and traction pedal not in neutral. Prevents switching mow to transport unless stopped to protect turf.
|
Prevents engine from starting unless traction pedal is in neutral and deck is disengaged. If operator leaves seat with deck engaged, decks stop. If operator leaves the seat with the unit out of neutral, engine stops. Mowing only permitted in low range. Engine stops if parking brake engaged and traction pedal not in neutral.
|
Prevents engine from starting unless traction pedal is in neutral and deck is disengaged. If operator leaves seat with deck engaged, engine stops. Machine automatically switches to low range if decks are lowered. Engine stops if parking brake engaged and traction pedal not in neutral. Prevents switching mow to transport unless stopped to protect turf.
|
| Lighting |
Standard |
Standard |
Standard |
| Main Frame/Chassis |
All welded formed-steel frame with integral tie-down anchors.
|
All welded formed-steel frame with integral tie-down anchors.
|
All welded formed-steel frame with integral tie-down anchors.
|
| Max Slope Angle |
Refer to operator's manual.
|
Refer to operator's manual.
|
Refer to operator's manual.
|
| Mowing Rate (Productivity) |
Up to 10.6 acres/hr (4.3 hectacres/hr)
|
Up to 6.4 acres/hr (2.6 hectacres/hr)
|
Up to 8.8 acres/hr (3.6 hectacres/hr)
|
| Mowing Speed |
0 - 6.5 mph (0 - 10.4 km/h)
|
0 - 7 mph (0 - 11.3 km/h)
|
0 - 6.5 mph (0 - 10.4 km/h)
|
| Number of Blades |
7
|
5
|
5
|
| Oil Capacity |
6 U.S. qt. (5.7 L)
|
5.5 U.S. qt. (5.2 L)
|
6 U.S. qt. (5.7 L)
|
| Optional Accessories |
Heat-only Cab, White Sunshade, Red Sunshade, Operator Fan Kit, 4WD Flow Divider Kit, Two-post ROPS Extension System, Windscreen, 90-amp Alternator Kit, Road Light Kit, Rotating Beacon
|
Air-ride Seat Suspension, Two-post ROPS Extension System, White Sunshade, Red Sunshade, Operator Fan Kit, Diagnostic Display Box, Golf Ball Operator Guard
|
Heat-only Cab, White Sunshade, Red Sunshade, Operator Fan Kit, 4WD Flow Divider Kit, Two-post ROPS Extension System, Windscreen, 90-amp Alternator Kit, Road Light Kit, Rotating Beacon
|

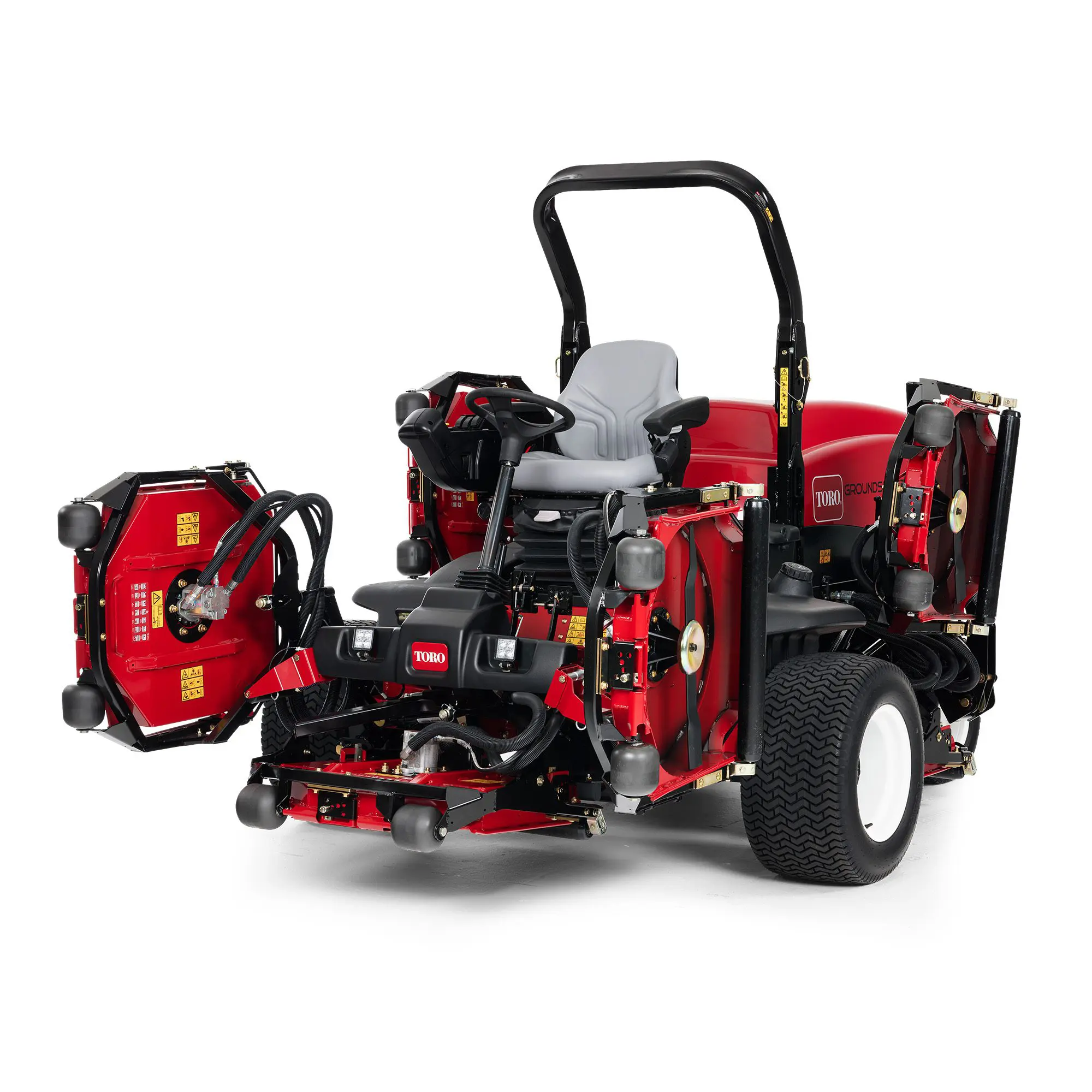

| Overall Width |
153.8" (391 cm) lowered, 88.3" (224 cm) raised
|
96.3" (245 cm) (outside of decks)
|
112.8" (286 cm) lowered, 88.3" (224 cm) raised
|
| Parking/Service Brakes |
Dynamic through hydrostatic transmission, plus mechanically-actuated, internal wet disc brakes on input to each planetary drive. Individual foot-operated steering brake control of left and right front wheel. Lock pedals together and latch to engage parking brake.
|
8” mechanical drum-type front wheel brakes. Brakes may be actuated for service braking via left foot pedal. Integrated foot pedal lock provides parking brake. Dynamic braking through hydrostatic traction drive system.
|
Dynamic through hydrostatic transmission, plus mechanically-actuated, internal wet disc brakes on input to each planetary drive. Individual foot-operated steering brake control of left and right front wheel. Lock pedals together and latch to engage parking brake.
|
| Power Steering |
Yes |
Yes |
Yes |
| Power Train (Engine Description) |
Yanmar® 4-cylinder liquid-cooled, turbo-charged diesel. Power: 55 hp (41.1 kW) gross power at rated speed of 2700 rpm. Torque peak: 125 ft-lbs (169 Nm) @ 2000 rpm. Displacement: 127 cu. in. (2.1 liters). EPA Tier IV Final and Stage V Compliant.
|
Yanmar® 3-cylinder, liquid-cooled, turbo-charged diesel, 43.4 hp (32.4 kW), 88.5 ft.-lbs. of torque, 91.4 cu. in. (1.5 liter) displacement. EPA Tier IV Final and Stage V compliant.
|
Yanmar® 4-cylinder liquid-cooled, turbo-charged diesel. Power: 55 hp (41.1 kW) gross power at rated speed of 2700 rpm. Torque peak: 125 ft-lbs (169 Nm) @ 2000 rpm. Displacement: 127 cu. in. (2.1 liters). EPA Tier IV Final and Stage V Compliant.
|
| Product Length |
145.8" (370 cm)
|
126" (320 cm)
|
145.8" (370 cm)
|
| Rollers |
Per deck: Two 5" (12.7 cm) diameter front rollers, one 3" (7.6 cm) diameter rear roller.
|
Per deck: Two 5” (12.7 cm) diameter front rollers with sealed stainless steel bearings, one 3” (7.6 cm) diameter rear roller with greaseable stainless steel bearings.
|
Per deck: Two 5" (12.7 cm) diameter front rollers, one 3" (7.6 cm) diameter rear roller.
|
| Safety/Operator Safety |
2-post foldable ROPS and seat belt standard.
|
2-post ROPS and seat belt standard.
|
2-post foldable ROPS and seat belt standard.
|

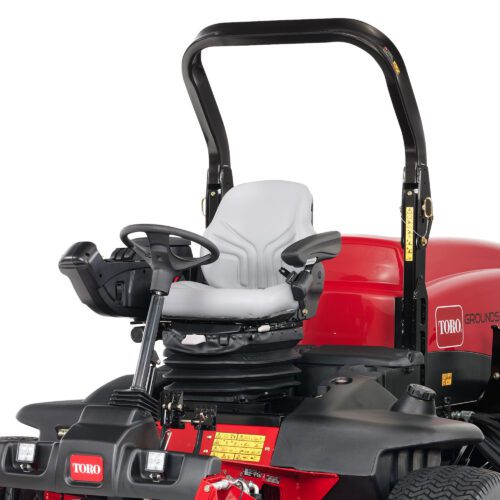

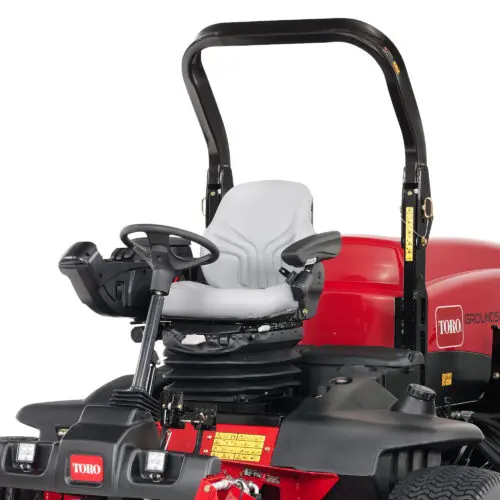

| Seat |
Premium seat with adjustments for operator weight via air ride suspension, seat fore/aft position, seat back angle, arm rest height and retractable seat belt.
|
Mechanical suspension seat standard with pivoting LH armrest, pivoting RH control arm and retractable seat belt.
|
Premium seat with adjustments for operator weight via air ride suspension, seat fore/aft position, seat back angle, arm rest height and retractable seat belt.
|

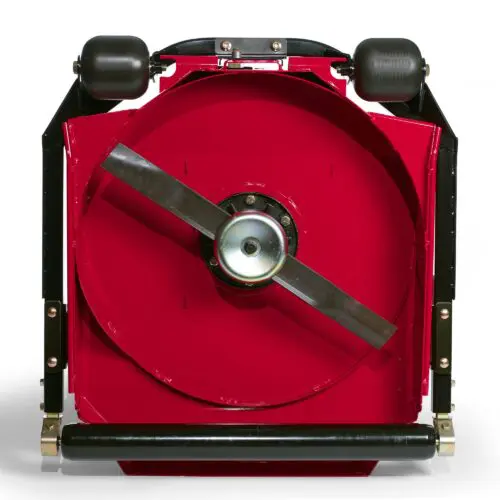

| Spindle Assembly |
Ductile cast iron spindle housing. Dual greaseable tapered roller bearings. 1.25" (3.2 cm) diameter solid cold finished steel spindle shaft. Splined connection between spindle shaft and deck motor. Welded blade retainer plus anti-scalp cups.
|
Ductile cast iron spindle housing. Dual greaseable tapered roller bearings. 1.25” (3.2 cm) diameter solid cold finished steel spindle shaft. Splined connection between spindle shaft and pulley. Welded blade retainer plus anti-scalp cups.
|
Ductile cast iron spindle housing. Dual greaseable tapered roller bearings. 1.25" (3.2 cm) diameter solid cold finished steel spindle shaft. Splined connection between spindle shaft and deck motor. Welded blade retainer plus anti-scalp cups.
|
| Starting |
Key Start
|
Key Start
|
Key Start
|
| Steering System Description |
Power steering with dedicated power source, tilt steering.
|
Rear wheel, power steering with an independent hydraulic pump circuit.
|
Power steering with dedicated power source, tilt steering.
|
| Tires - Front |
29” x 14” - 15”, 6-ply
|
26.5" x 14" - 12", 6-ply
|
29” x 14” - 15”, 6-ply
|
| Tires - Rear |
20" x 10" - 10", 4-ply, Turf Tread
|
20" x 12" - 10", 6-ply
|
20" x 10" - 10", 4-ply, Turf Tread
|
| Tool Box |
Standard
|
Standard |
Standard
|
| Traction Drive |
4WD
|
4WD
|
4WD |
| Traction Drive (System) |
Parallel hydrostatic, closed loop system with full-time 4WD forward/reverse in low (mow) and high (transport) range with optional full-time, momentary traction flow divider (forward only) (Model 31527). Variable displacement piston pump with electronic servo control powers dual speed piston motor drive into double reduction planetary in front, and mechanical axle in rear. Smart Power® feature controls traction speed to maintain optimal cutting blade speed.
|
Front drive wheels powered by a hydrostatic pump with individual wheel motors. Parallel / Series Hydrostatic, closed loop 4 wheel drive, forward direction only. Variable displacement piston pump with direct displacement control, Standard all-wheel drive with CrossTrax® All-Wheel Drive system, which transfers power from the front wheels to the opposite rear wheels via independent rear wheel motors.
|
Parallel hydrostatic, closed loop system with full-time 4WD forward/reverse in low (mow) and high (transport) range with optional full-time, momentary traction flow divider (forward only) (Model 31527). Variable displacement piston pump with electronic servo control powers dual speed piston motor drive into double reduction planetary in front, and mechanical axle in rear. Smart Power® feature controls traction speed to maintain optimal cutting blade speed.
|
| Transport Width |
Track Width (front): 88.3" (224 cm) Track Width (rear): 55.5" (141 cm)
|
88.3" (224 cm) (outside of front tires), front track width the same. Rear track width: 54" (137 cm)
|
Track Width (front): 88.3" (224 cm) Track Width (rear): 55.5" (141 cm)
|
| Weight |
5,045 lbs. (2288 kg) with full fluids.
|
Traction Unit Weight: 3,205 lbs (1454 kg) - with full fluids and 5 cutting units. Cutting Unit Weight: 140 lbs (64 kg) – single cutting unit assembly only.
|
4,495 lbs. (2038 kg) with full fluids.
|
| Wheelbase |
67.5" (172 cm)
|
60" (152.4 cm)
|
67.5" (172 cm)
|

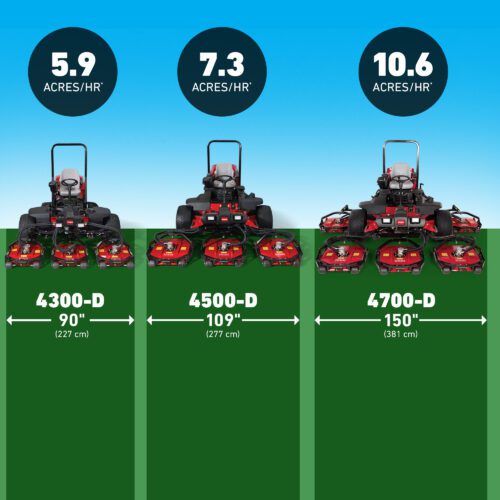

| Width of Cut |
381 cm (150") |
229 cm (90") |
277 cm (109") |
| Implement Drive |
— |
Hydraulic, direct coupled to spindle.
|
— |
| IntelliDash™ Capable |
— |
No |
— |
| Oil Cooler Description |
— |
Double row, single-pass oil cooler that tilts out for cleaning.
|
— |
