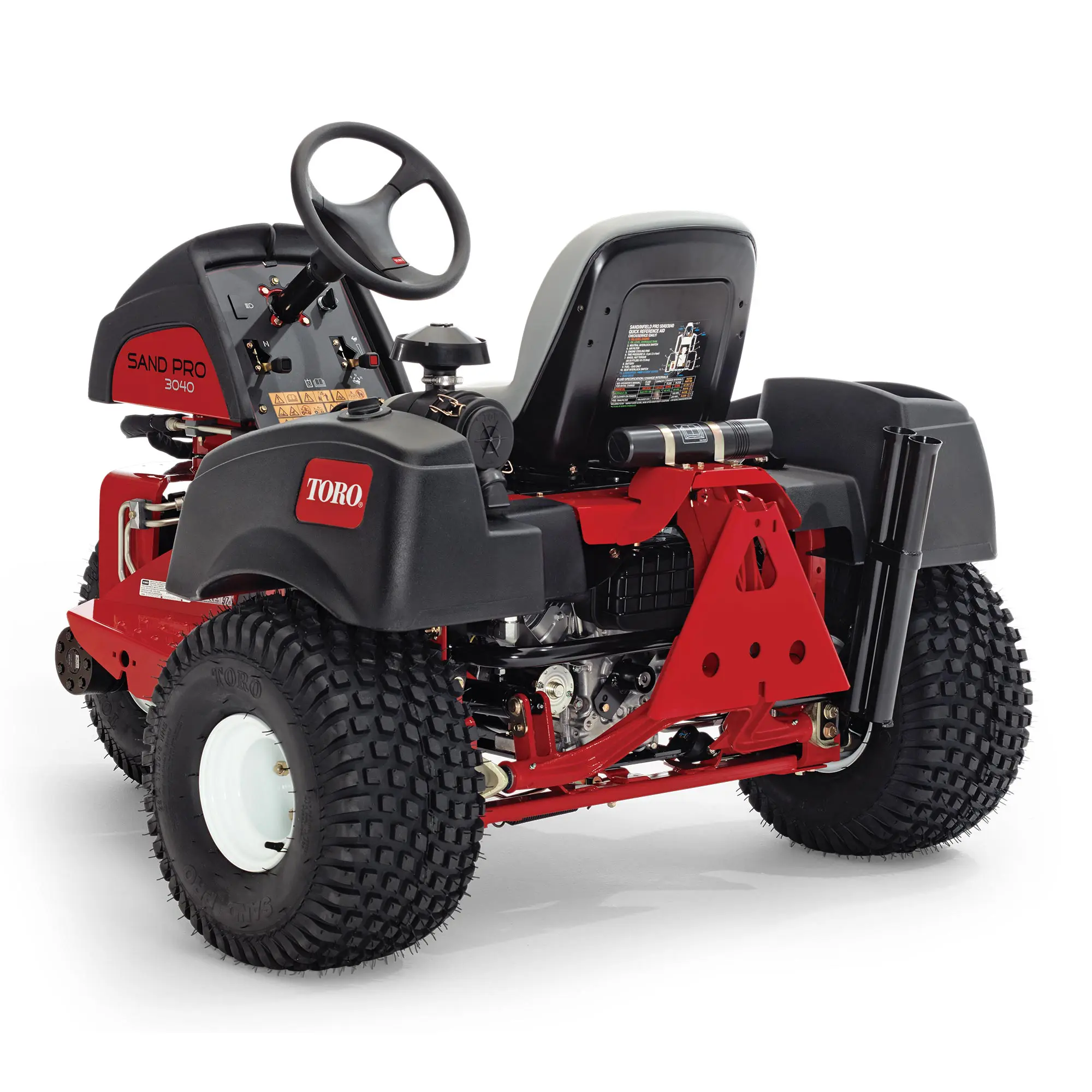

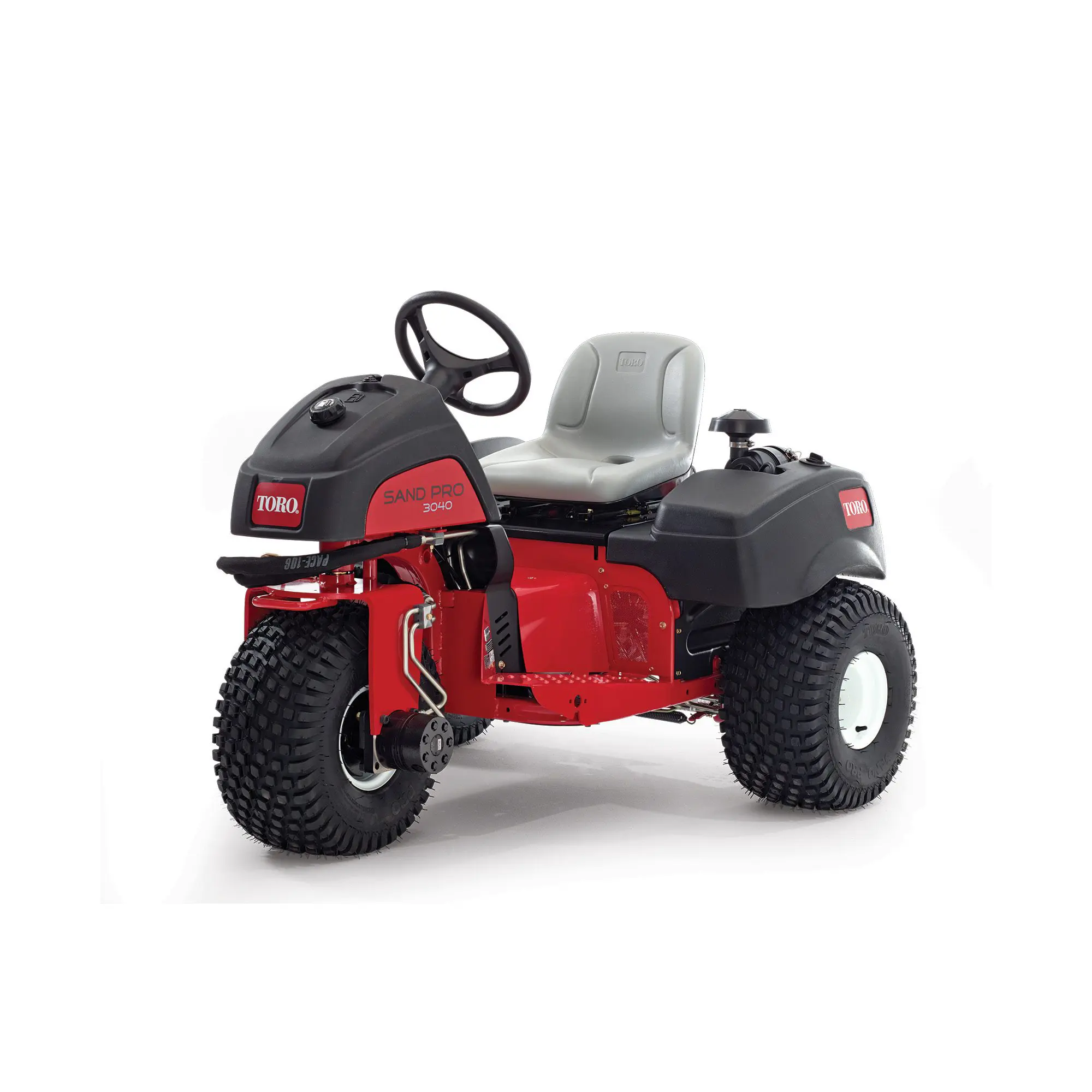

The Toro Sand Pro 3040 is a versatile 3WD bunker rake with the tool-free Quick Attach System and over 25 attachments, powered by a fuel-efficient Vanguard petrol engine.

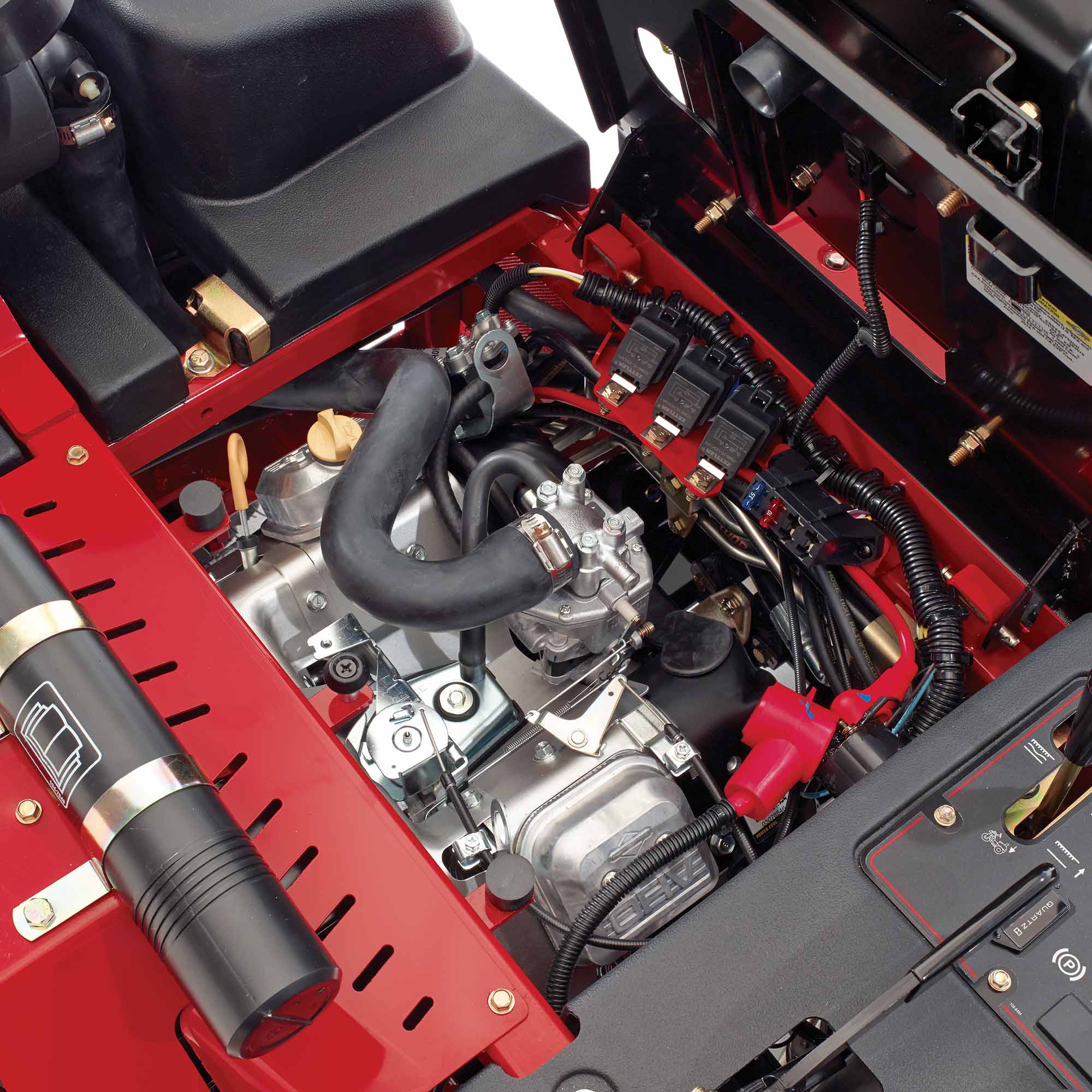

The new unit was designed with the mechanic in mind, to reduce, simplify, and increase access to all scheduled maintenance. The majority of scheduled maintenance projects can be accessed by lifting the operator seat. For increased access, the side and center quarter panels can be taken off by removing just a few bolts.
The 3WD Series/Parallel™ traction drive improves traction in wet or heavy working conditions to get the job completed quickly. In traditional 3WD units all traction effort is lost as soon as one wheel slips. Series/Parallel™ ensures that you always have tractive effort with at least one wheel to keep your unit from getting stuck and losing precious time.
Quick connect hydraulics make it simple to connect or disconnect any of the powered attachments in under a minute. This eliminates the need for dedicated equipment.
For operator ease of use, and to improve the effectiveness of the steerable front attachments, hydraulic power steering is now available on the 5040 and a rugged gear drive system on the 3040. Both designs are now environmentally sealed to ensure long life and reduced maintenance.

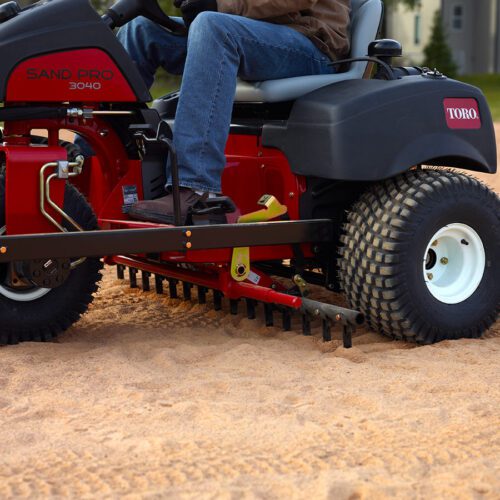

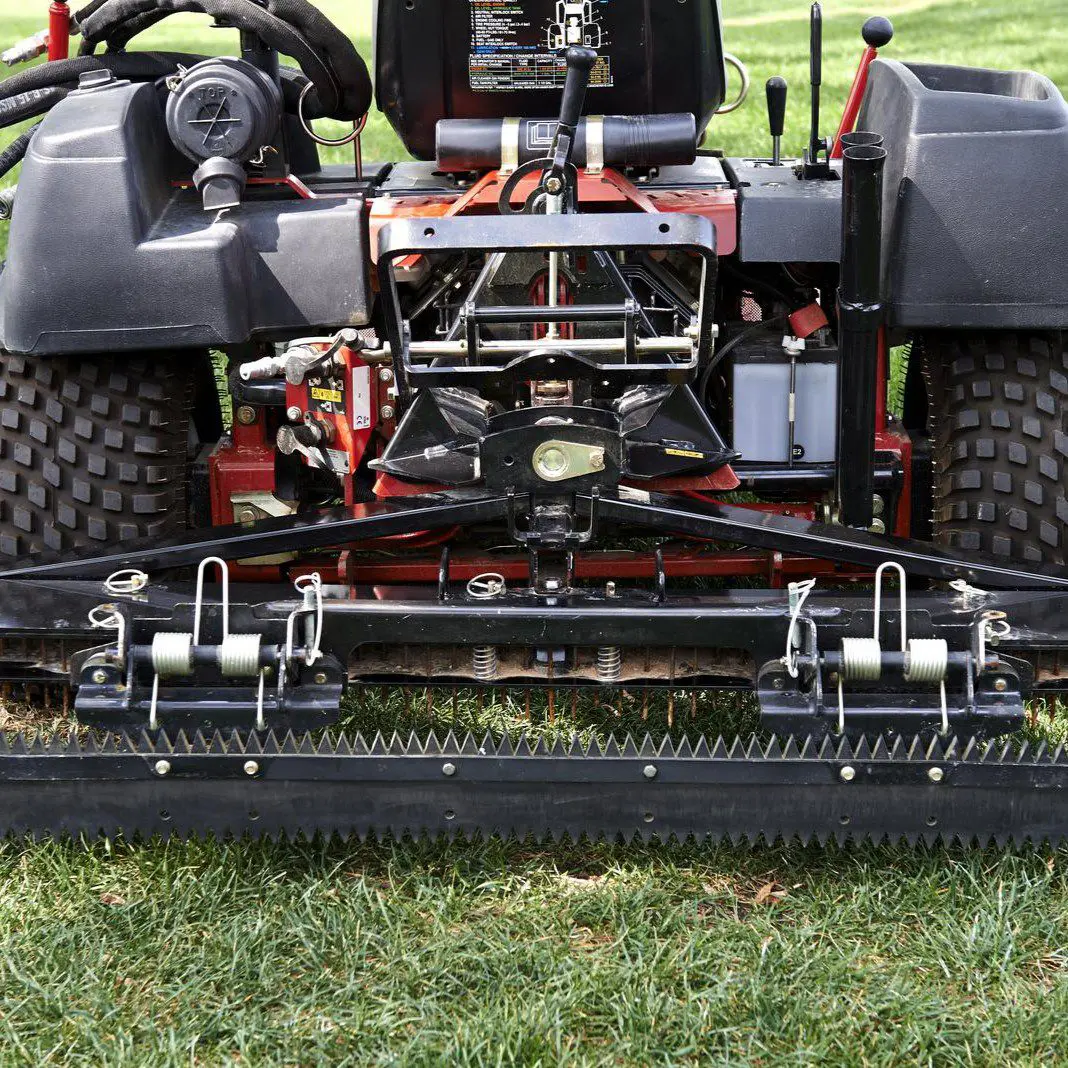

With the mid-mount system, a flex mounted toolbar can be adjusted to flex backwards when it comes in contact with anything from rocks or other rigid objects to prevent gouging or wash boarding. Multiple locking depth settings to ensure consistent depth of scarification from day to day or between operators. A mid-mount leveling system is also available to make quick work of the difficult projects like around dugouts or player positions.

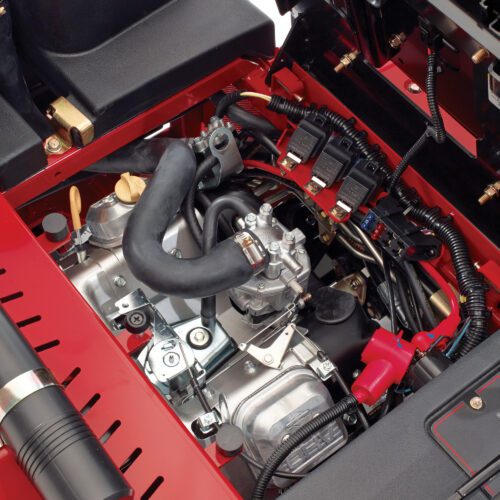

The trusted Vanguard® engine is fuel efficient, runs cooler and features a fully pressurized oil lubrication system for longer life.

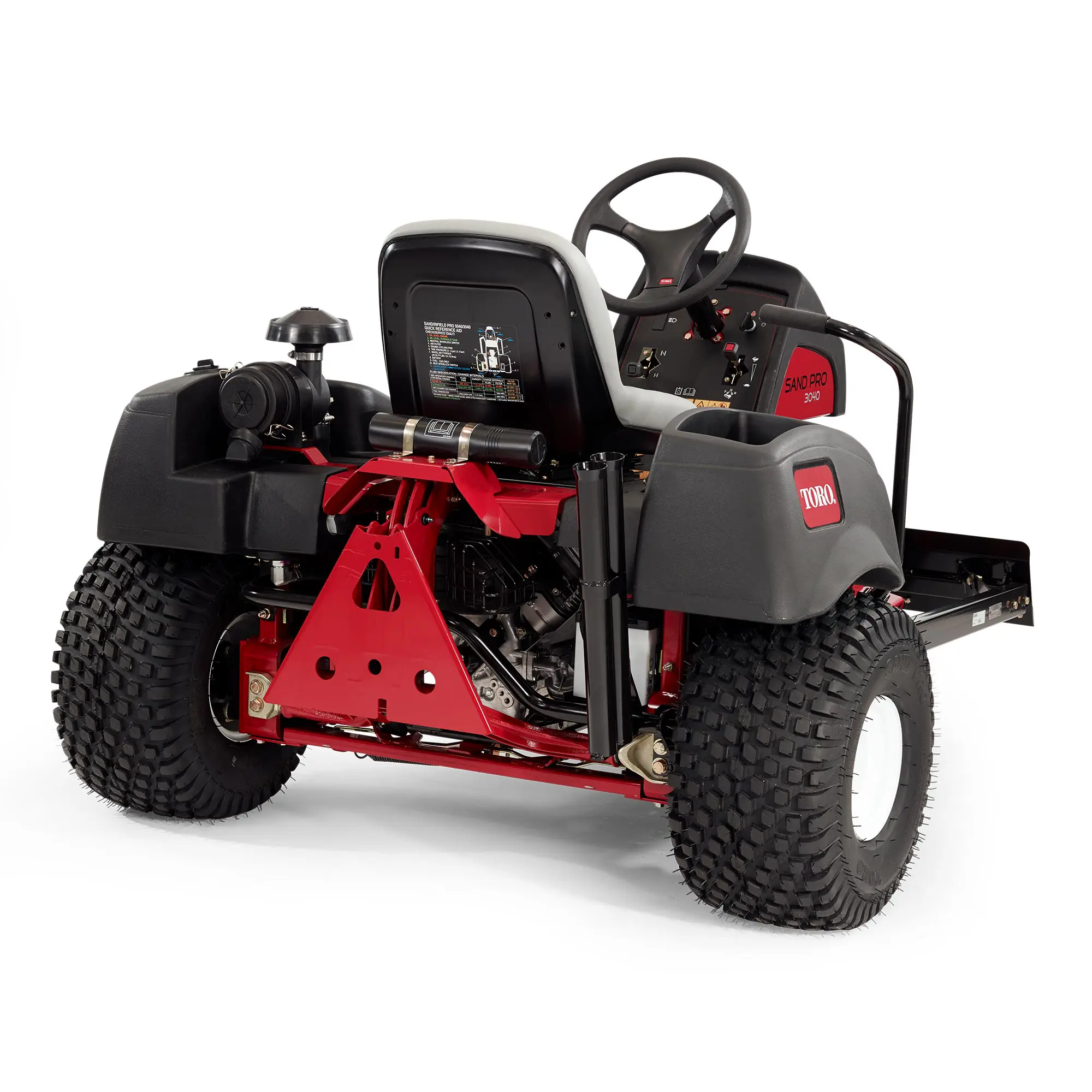

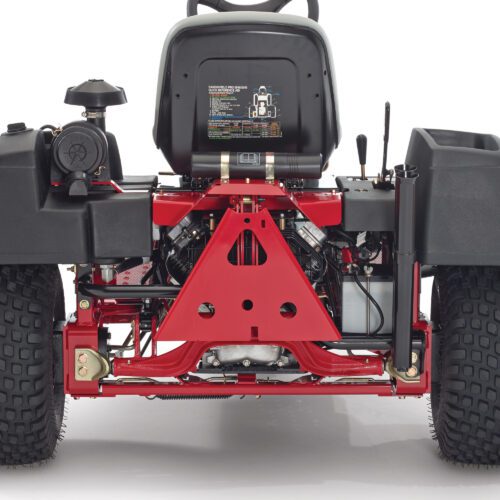

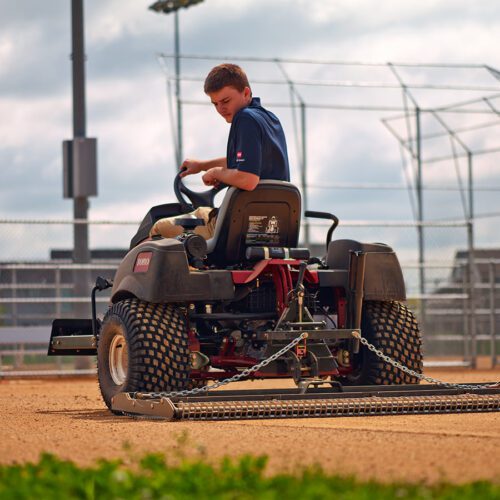

With the Quick Attach System™ (QAS), anyone can switch from one attachment to another in less than a minute, with no tools required! Match the machine to the environment to get your fields back into playing condition The QAS allows you to do more with less, and get the job done faster. Rear QAS is standard on the Sand Pro® 3040 and 5040, front QAS™ is optional on the Sand Pro® 5040.
Easy to use and adapt to the next task. Having the right tool for the job increases the effectiveness of your crew and the efficiency of your operation. Attachments are designed to minimize operator influence to achieve the same result, regardless of whether a new or veteran employee performed the task.

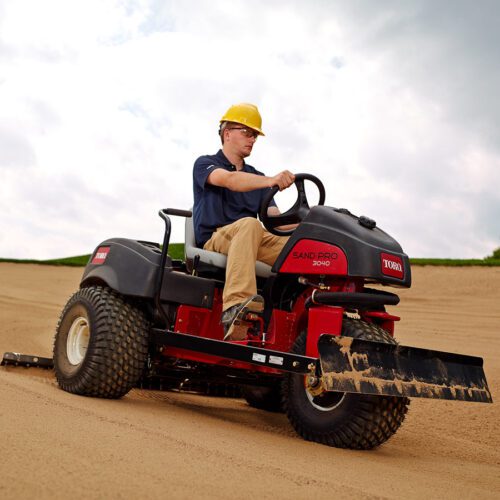

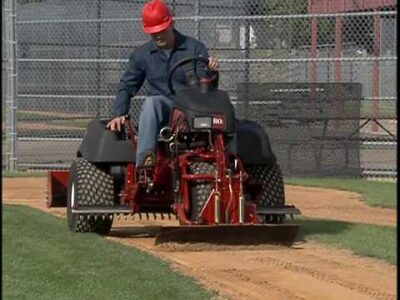

Fingertip operation (no overhead bar), paired handle/foot pedal and torsion bar to improve down pressure provide level/consistent contouring in difficult areas. Quick-up latch locks blade in transport position between uses to improve operator ease of use.

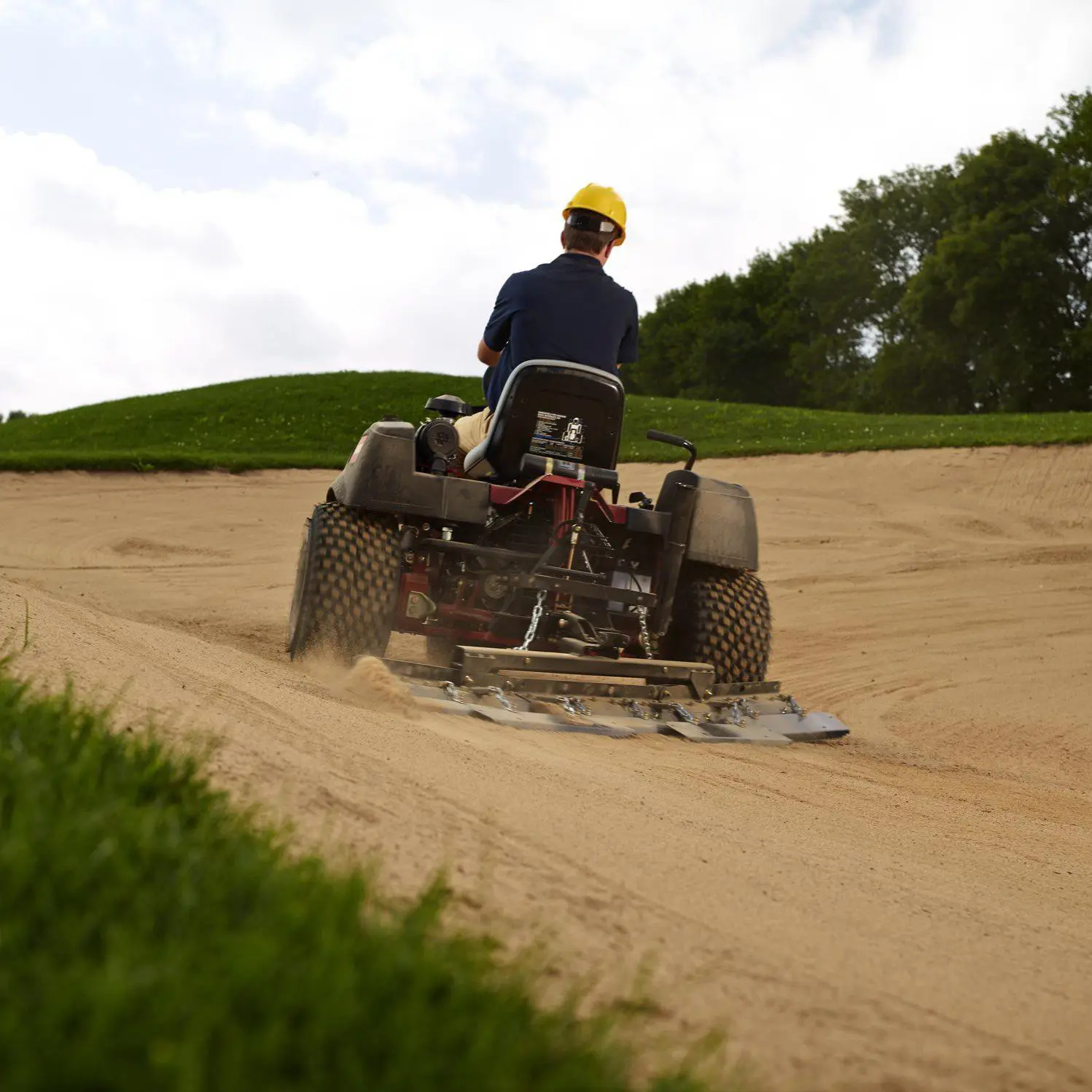

It’s time to demand more from your bunker rake. With the exclusive Quick Attach System (QAS) offering tool-free attachment change-outs and over 25 attachments, the Sand Pro 3040 is a versatile utility vehicle with as many uses outside the bunker as in it. Powered by a reliable Vanguard petrol engine and 3WD Series/Parallel traction, the Toro Sand Pro keeps bunkers in tournament condition every day.
The 3WD Series/Parallel traction drive improves traction in wet or heavy working conditions to get the job done quickly. In traditional 3WD units all traction effort is lost as soon as one wheel slips; Series/Parallel keeps tractive effort at at least one wheel so the machine stays moving and doesn’t get stuck.

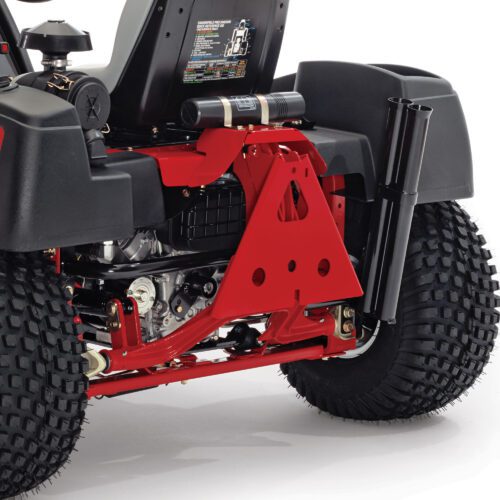

Switch from one attachment to another in under a minute with no tools required. Rear QAS is standard on the Sand Pro 3040, so you can match the machine to the job and get more done with less.

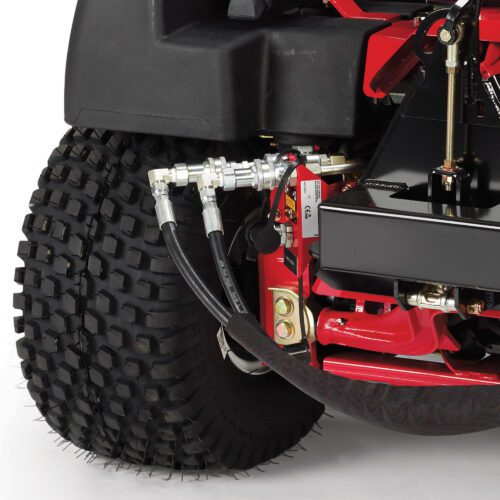

Quick connect hydraulics make it simple to connect or disconnect any of the powered attachments in under a minute, with no need for dedicated equipment.

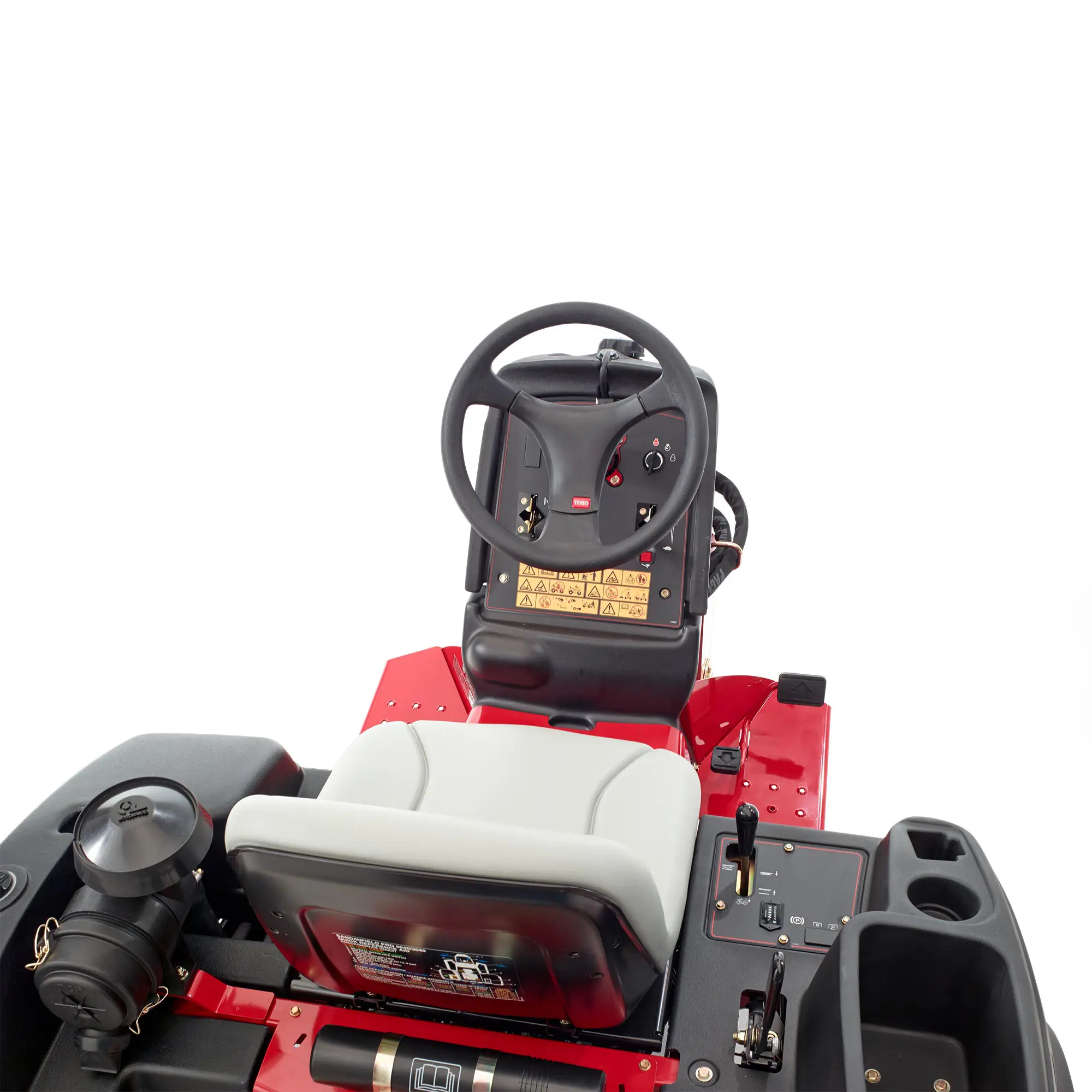

Designed with the mechanic in mind. Most scheduled maintenance can be reached by lifting the operator seat, and the side and centre quarter panels come off with just a few bolts for even better access.
A rugged gear-drive steering system, environmentally sealed for long life and reduced maintenance, keeps steerable front attachments working accurately.
The trusted Vanguard engine is fuel efficient, runs cooler and features a fully pressurised oil lubrication system for longer life.

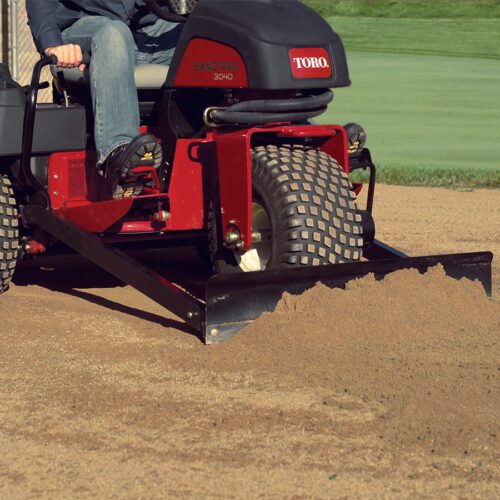

Fingertip operation (no overhead bar), a paired handle/foot pedal and a torsion bar for improved down pressure give level, consistent contouring in difficult areas. A quick-up latch locks the blade in the transport position between uses.
| Power Train (Engine Description) | Vanguard®, V-twin cylinder, 4-cycle, OHV, air-cooled petrol engine with cast iron sleeves. 16 hp (11.9 kW) at 3,600 rpm. Displacement 480 cc (29.3 cu in). Electronic ignition. Full pressure lubrication, oil filter. Base-mounted engine and pump with 4 isolation mounts. |
| Engine Displacement | 480 cc (29.3 cu in) |
| Fuel Type | Petrol |
| Fuel Capacity | 18.9 L (5 gal) |
| Oil Capacity | 1.8 L (1.75 qt) with filter |
| Air Filter | Remote-mounted 3-phase Donaldson® air cleaner |
| Cooling System | Air cooled |
| Start Type | Key start |
| Battery | 12V |
| Traction Drive (System) | 3WD |
| Traction Drive | Direct-driven hydrostatic variable-displacement piston pump to 3 hydraulic motors for 3WD. Large, front-mounted hydraulic cooler and fan. Foot pedal control, forward/reverse. Patented Series/Parallel hydraulic traction system keeps three wheels working together and virtually eliminates spin-outs. |
| Forward Ground/Transport Speed | 0 - 16 km/h (0 - 10 mph) |
| Reverse Ground/Transport Speed | 0 - 6.9 km/h (0 - 4.3 mph) |
| Steering System Description | Manual front-wheel steering. 38 cm (15") diameter steering wheel. |
| Power Steering | No |
| Parking/Service Brakes | Hand-actuated brake lever |
| Tyres - Front | 22" x 11" - 8", 2-ply, knobby tread |
| Tyres - Rear | 22" x 11" - 8", 2-ply, knobby tread |
| Controls | Hand-operated choke, throttle and hydraulic control for raising/lowering with float. Foot pedal controls traction forward/reverse speed. Rear hydraulic lift and lower controls. |
| Hydraulic Oil | Toro PX Hydraulic Oil; 26.4 L (7 gal) system capacity. Polyethylene reservoir to reduce corrosion. 10 (nominal) micron replaceable cartridge. |
| Rear Attachment Hydraulic Lift | Standard |
| Gauges/Instrumentation | Hour meter |
| Interlocks | Neutral interlock switch, seat switch |
| Frame | Tricycle vehicle with welded rectangular tubular steel frame construction. Rear engine placement. |
| Length | 171.5 cm (67.5") |
| Overall Width | 147 cm (58") |
| Height | 114.9 cm (45.25") |
| Wheelbase | 108 cm (42.75") |
| Ground Clearance | 15.2 cm (6") |
| Weight | 421.8 kg (930 lbs.), net weight less fluids |
| Maximum Noise Level | 83 dB(A) at operator ear, under normal operating conditions |
| Warranty | 2-year limited. See dealer for warranty details. |
| Optional Accessories | QAS A-Frame Assembly, 400-Hour Filter Maintenance Kit, Rear Remote Hydraulics, Variable Orifice Kit, Light Kit, Speed Control Kit, Hitch/Tow Bar, Front Weight Kit, Smooth Tyre, Turf Tyre |
