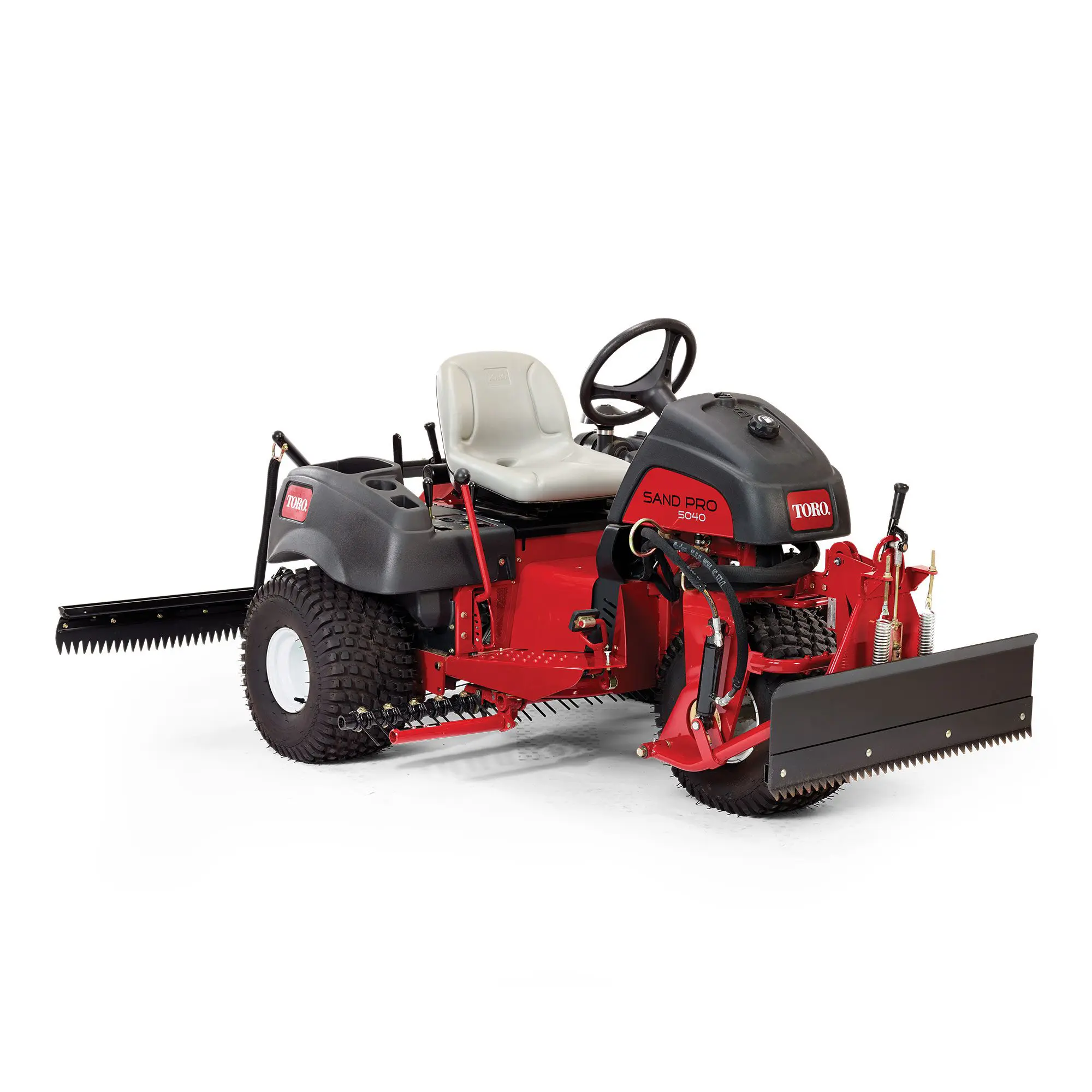

Toro Sand Pro® 5040 Ride-On Sand Rake

Model: 08705
Toro

Toro Sand Pro® 5040 Ride-On Sand Rake

Model: 08705
Toro

The Sand Pro 5040 mechanical rake is unlike anything else in the marketplace; a zero-turn mechanical groomer delivering unmatched maneuverability and productivity. This unique machine is a daily bunker rake that will reduce labor costs for both mechanical and hand raking of bunkers and infields. A brand new “flex” raking system with the patent-pending “lift in turn” feature enables an operator to turn tightly in bunkers without leaving unraked teardrops or tire marks.

Engineered for both mechanic and operator, this unit simplifies maintenance with easy access points and a durable design. The 3WD Series/Parallel™ traction drive enhances performance in challenging conditions, while quick-connect hydraulics boost efficiency. Operator comfort and control are prioritized through hydraulic power steering or rugged gear drive, depending on the model. Powered by a reliable Vanguard® engine, this versatile machine is equipped with user-friendly attachments to maximize productivity and minimize training requirements.

  • Zero turn
  • Hydraulic power steering
  • 18hp (13.4 kW) Vanguard® V-twin engine
  • Accessible maintenance
  • Over 25 attachments to complete a range of tasks
  • Quick Attach System (QAS) to change attachments in seconds
  • Ideal for golf bunkers, baseball pitches and other sports grounds / artificial surfaces with a sand-infill.
Fleet Finance & Leasing Options Talk to us today 0800 807 333
Enquire Call 0800 807 333
Talk to a rep Find a Store

Features

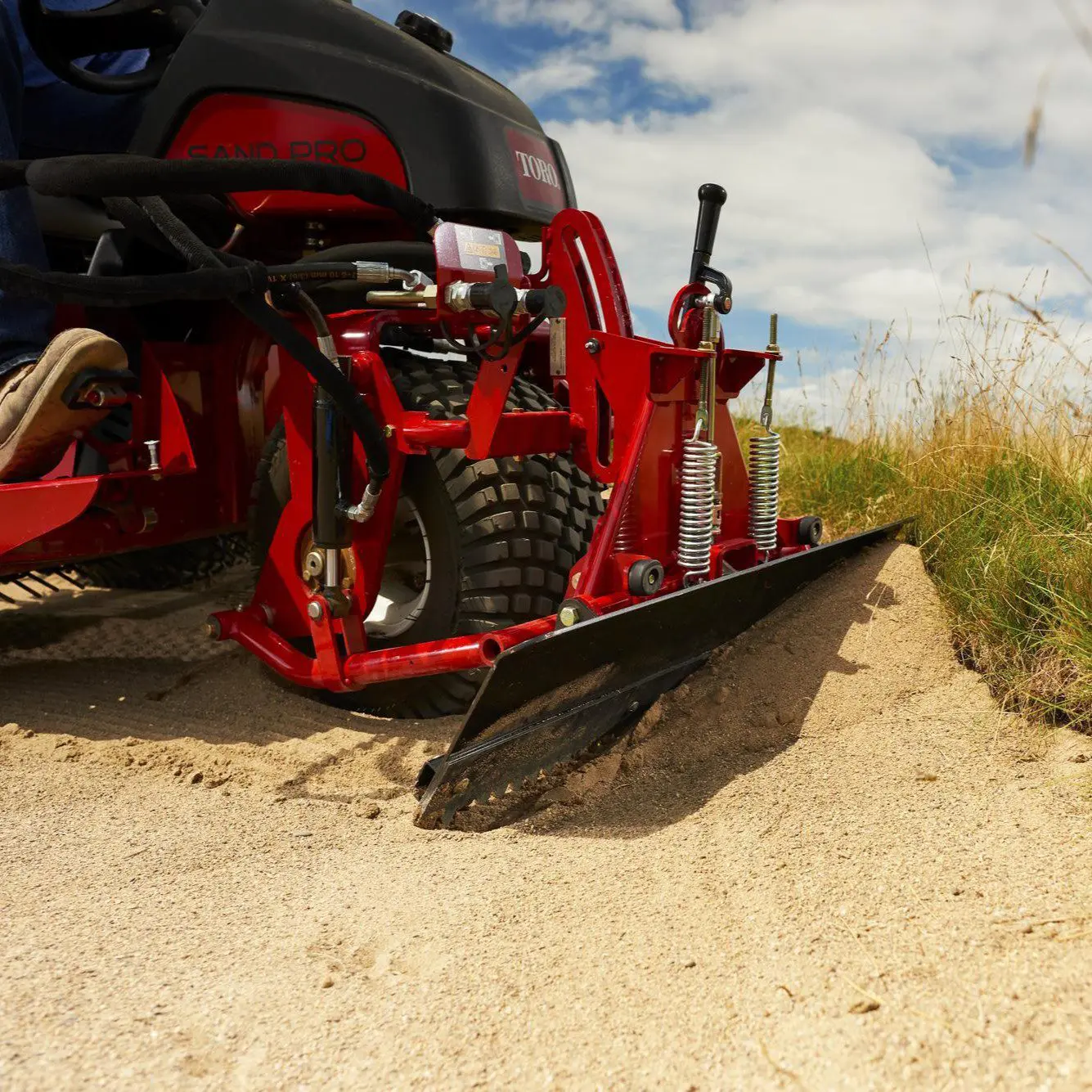

A red Toro sand rake with a black grooming blade, maneuvering on a sandy surface

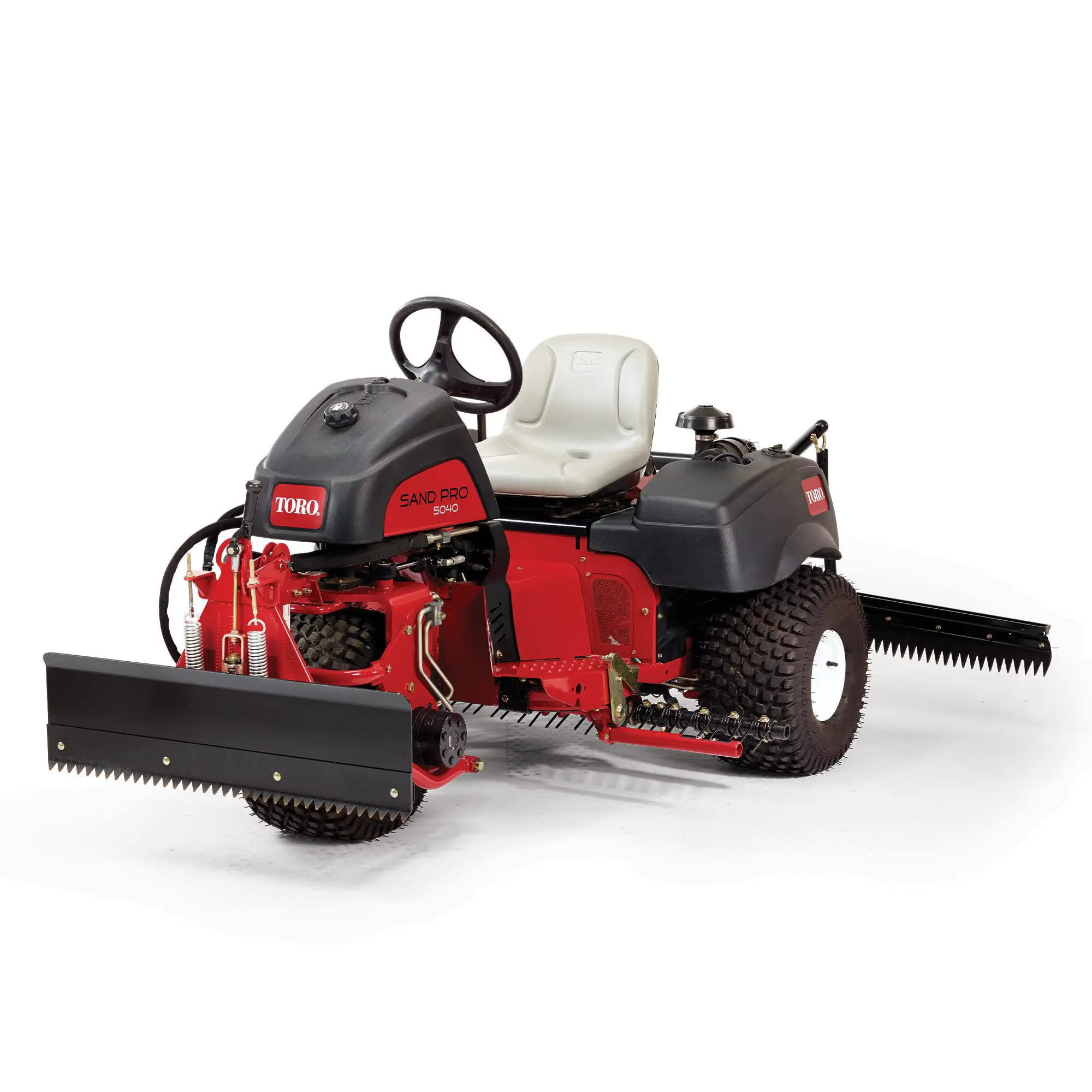

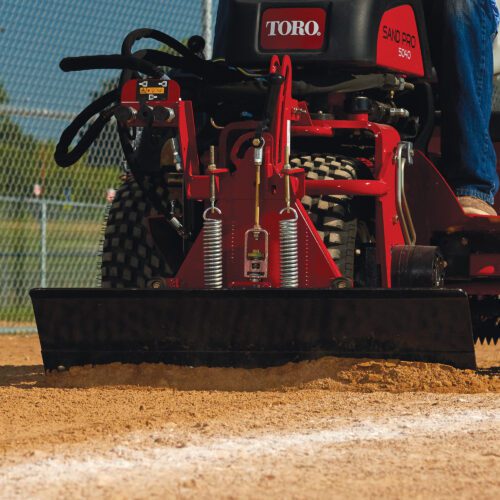

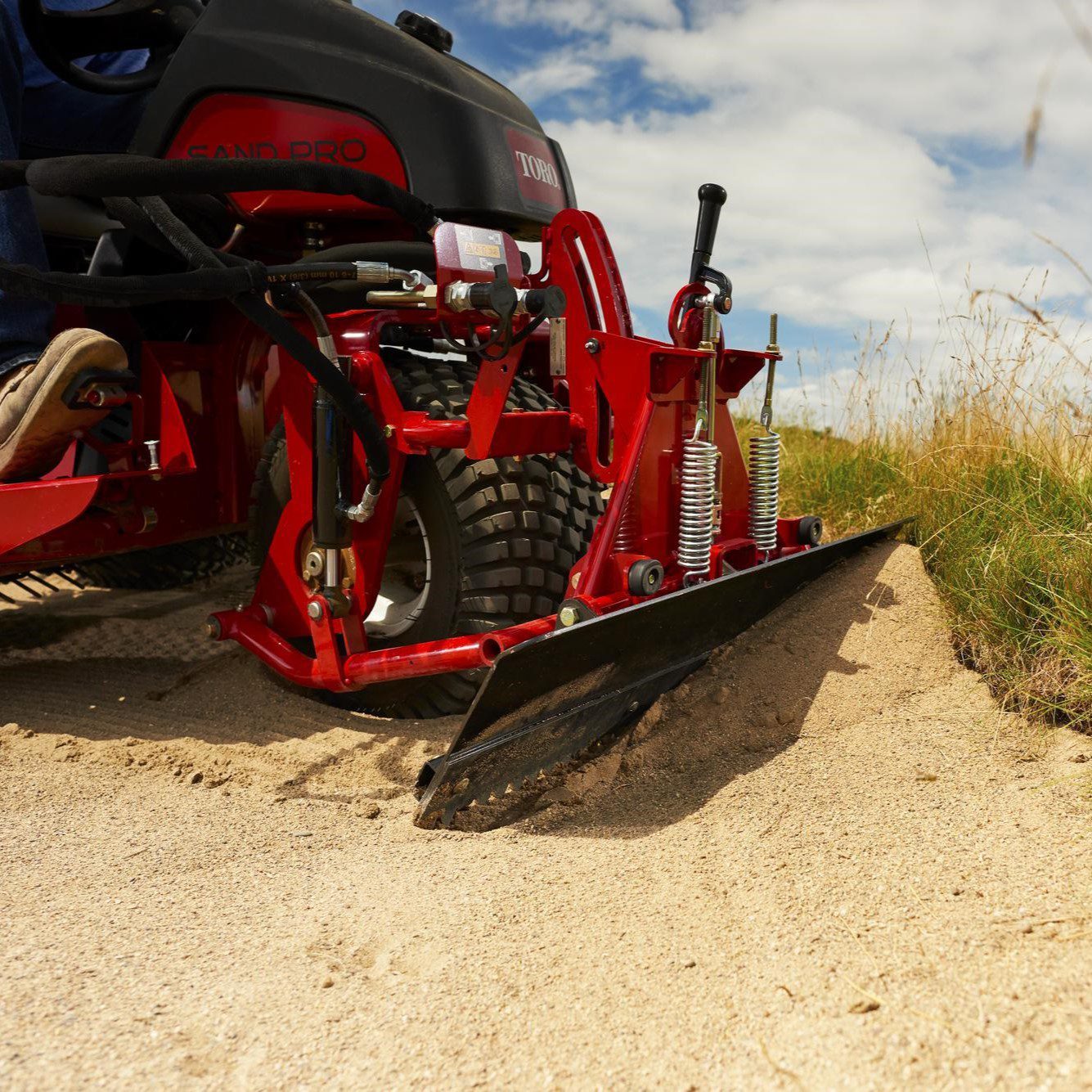

Steerable Front Attachments

Steerable front attachments on the Sand Pro® 5040 give operators the precision never before offered in this industry. The newly designed Flex Blade is adjustable to different environments (wet/dry), scarify, level and smooth in the same pass. Improve the operators ability to direct the attachment into and out of tight areas, like around dugouts or base path contours. Hydraulic float position and steerable blade reduces operator influence and the potential for damage. Combined, these features improve the consistency between fields, operators, and weather conditions.

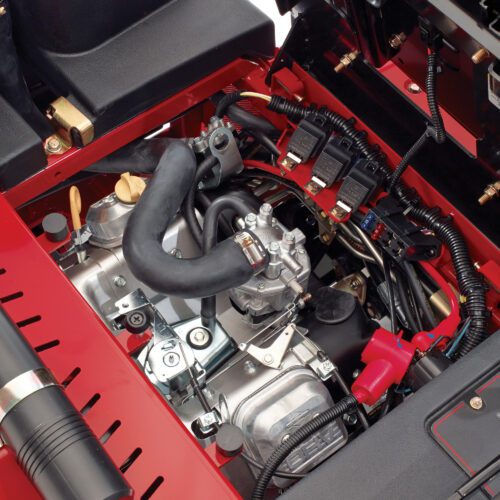

Close-up of the engine compartment showing components and wiring of the Toro Sand Pro 5040 mechanical rake

Maintenance Friendly Layout

The new unit was designed with the mechanic in mind, to reduce, simplify, and increase access to all scheduled maintenance. The majority of scheduled maintenance projects can be accessed by lifting the operator seat. For increased access, the side and center quarter panels can be taken off by removing just a few bolts.

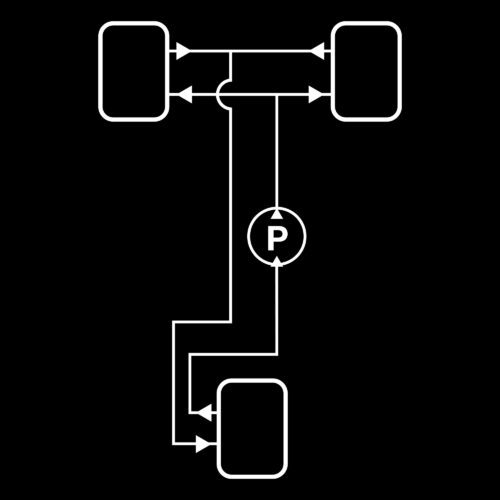

Diagram illustrating the hydraulic system of a zero-turn mechanical rake for enhanced maneuverability

3WD Series/Parallel™ Traction Drive

The 3WD Series/Parallel™ traction drive improves traction in wet or heavy working conditions to get the job completed quickly. In traditional 3WD units all traction effort is lost as soon as one wheel slips. Series/Parallel™ ensures that you always have tractive effort with at least one wheel to keep your unit from getting stuck and losing precious time.

Close-up of Toro Sand Pro 5040's rear wheel and hydraulic components, showcasing its robust design and functionality

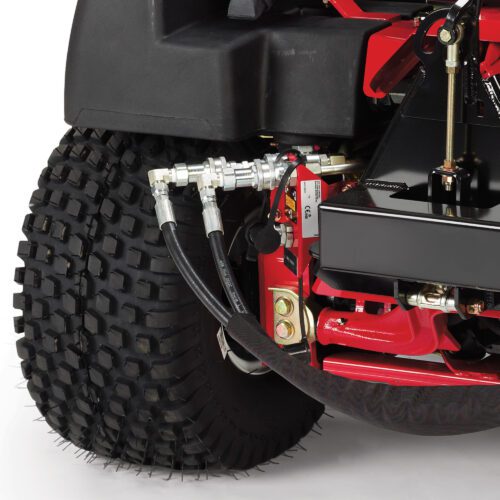

Quick Connect Hydraulics

Quick connect hydraulics make it simple to connect or disconnect any of the powered attachments in under a minute. This eliminates the need for dedicated equipment.

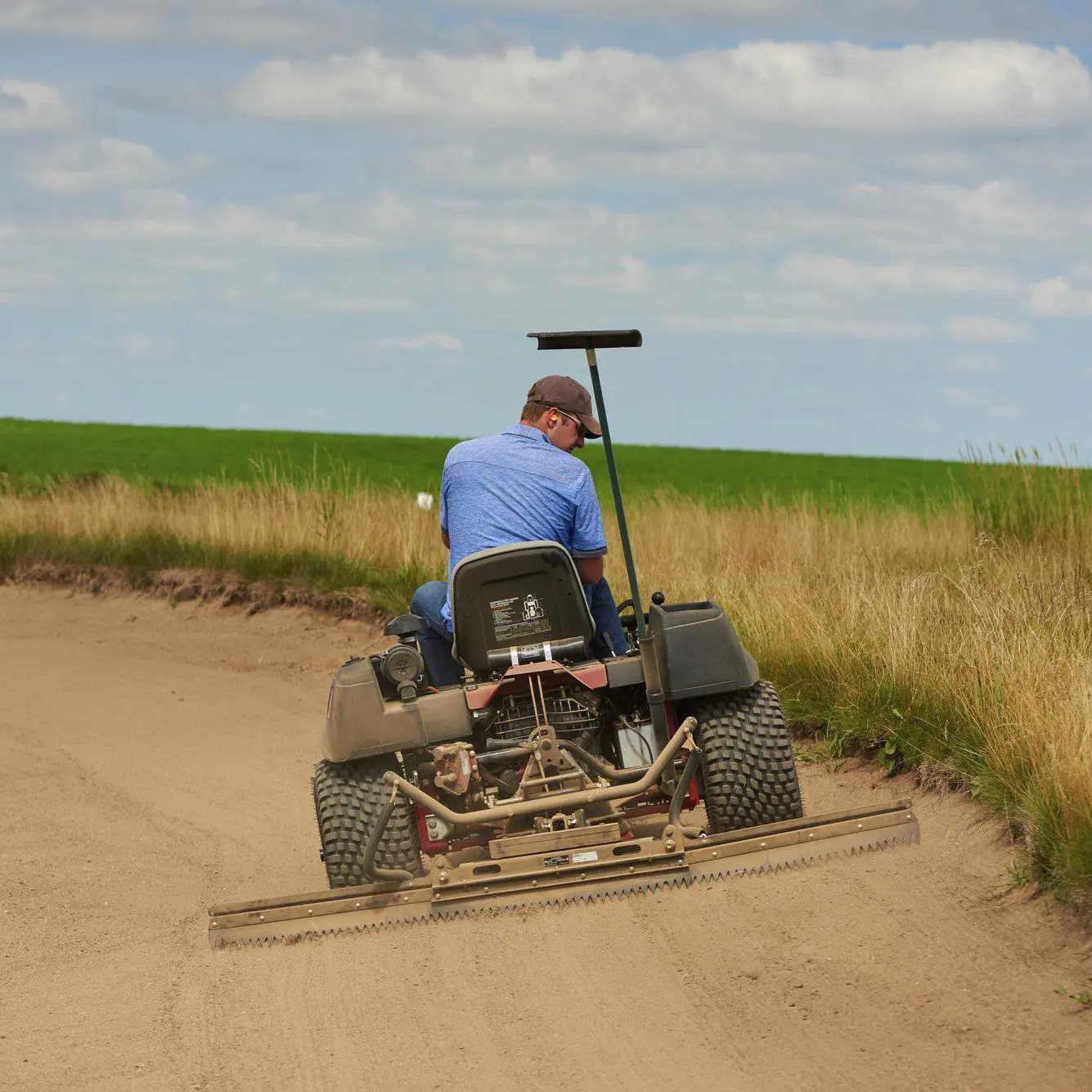

A man operates a Toro mechanical rake on sandy terrain, showcasing its maneuverability and design

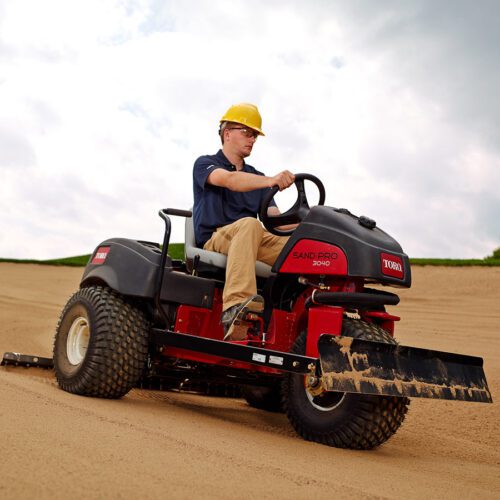

Maneuverable Steering

For operator ease of use, and to improve the effectiveness of the steerable front attachments, hydraulic power steering is now available on the 5040 and a rugged gear drive system on the 3040. Both designs are now environmentally sealed to ensure long life and reduced maintenance.

A rider operates a red Toro sand rake on sandy terrain, showcasing its grooming capabilities

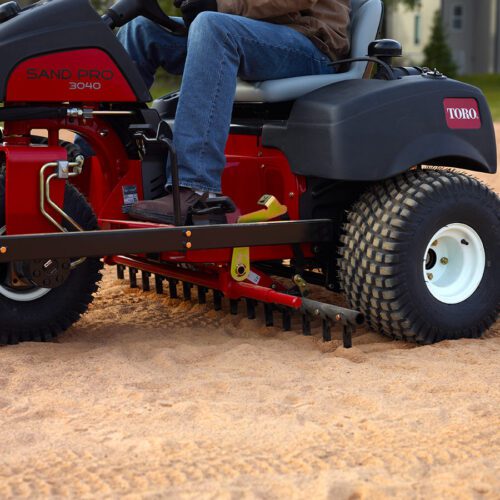

Mid-Mount System

With the mid-mount system, a flex mounted toolbar can be adjusted to flex backwards when it comes in contact with anything from rocks or other rigid objects to prevent gouging or wash boarding. Multiple locking depth settings to ensure consistent depth of scarification from day to day or between operators. A mid-mount leveling system is also available to make quick work of the difficult projects like around dugouts or player positions.

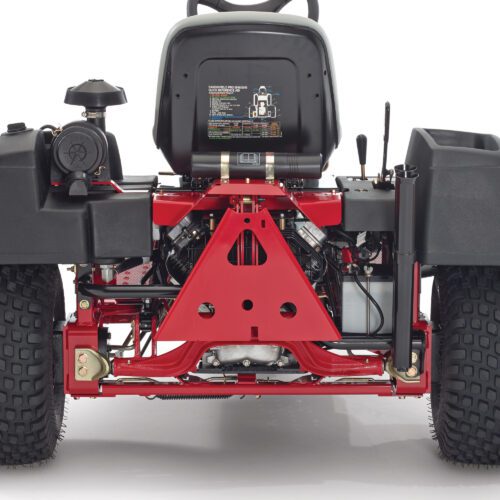

Rear view of a Toro sand rake showcasing its mechanical components and zero-turn design

Power Packed Engines

The trusted Vanguard® engine is fuel efficient, runs cooler and features a fully pressurized oil lubrication system for longer life.

Close-up of the red chassis and engine components of a ride-on sand rake with large tires

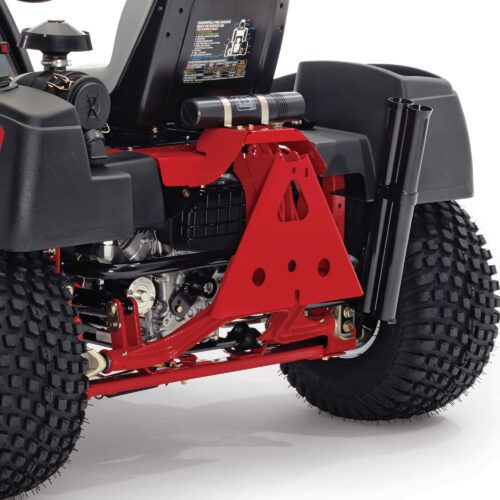

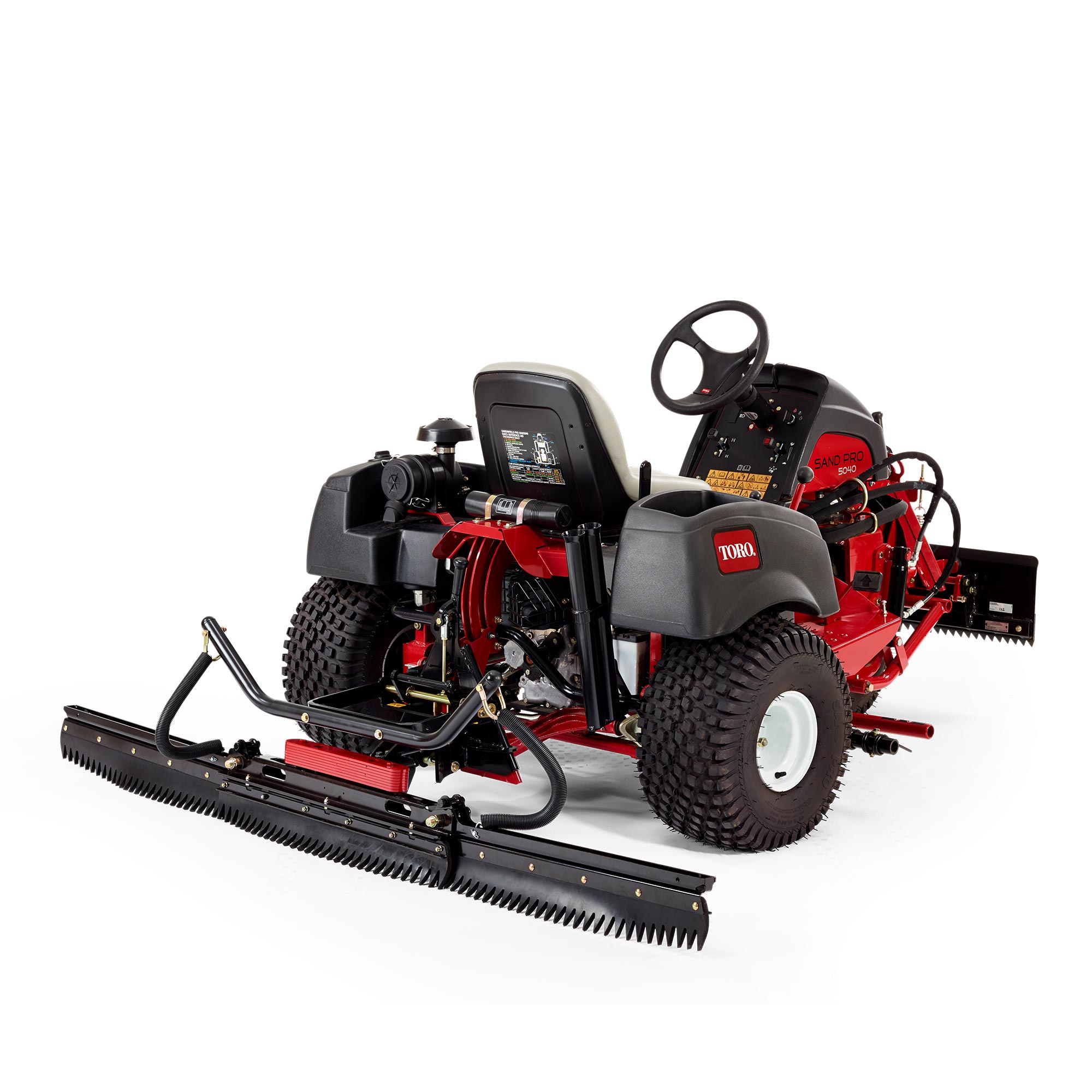

Quick Attach System™ (QAS)

With the Quick Attach System™ (QAS), anyone can switch from one attachment to another in less than a minute, with no tools required! Match the machine to the environment to get your fields back into playing condition The QAS allows you to do more with less, and get the job done faster. Rear QAS is standard on the Sand Pro® 3040 and 5040, front QAS™ is optional on the Sand Pro® 5040.

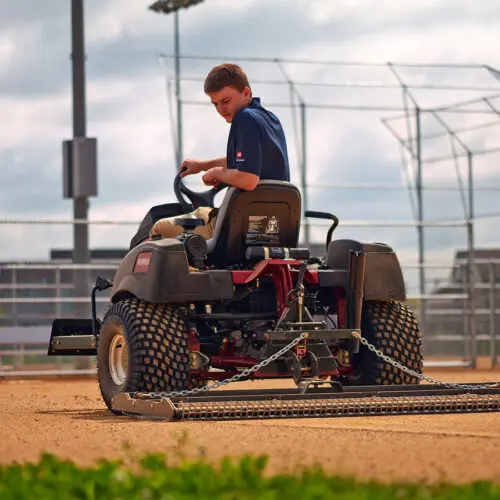

A man operates a Toro mechanical rake on a sandy field, showcasing its maneuverability and design

Ease of Use

Easy to use and adapt to the next task. Having the right tool for the job increases the effectiveness of your crew and the efficiency of your operation. Attachments are designed to minimize operator influence to achieve the same result, regardless of whether a new or veteran employee performed the task.

Specifications

Air Filter Remote mounted 3-phase Donaldson® air cleaner
Battery 12V
Controls Hand operated choke, throttle, and hydraulic control for raising/lowering with float. Foot pedal controls traction forward/reverse speed. Front and rear hydraulic lift and lower controls.
Cooling System Air Cooled
Displacement 570cc (34.8 cu. in.)
Frame Tricycle vehicle with welded rectangular tubular steel frame construction. Rear engine placement.
Fuel / Power Source Gasoline
Fuel Capacity 5.0 gallon (18.9 liter)
Gauges/Instrumentation Hour Meter
Ground Clearance 6.0" (15.2 cm)
Ground Speed - Forward 0 - 10 mph (0 - 16 km/h)
Ground Speed - Reverse 0 - 5.0 mph (0 - 8.0 km/h)
Height 45.25" (114.9 cm)
Hydraulic Oil Toro PX Hydraulic Oil; 7.0 gallon (26.4 liter) system capacity. Polyethylene reservoir to reduce corrosion. 10 (nominal) micron replaceable cartridge.
Interlock Neutral interlock switch, seat switch.
Oil Capacity with Filter 1.75 quart (1.8 liter)

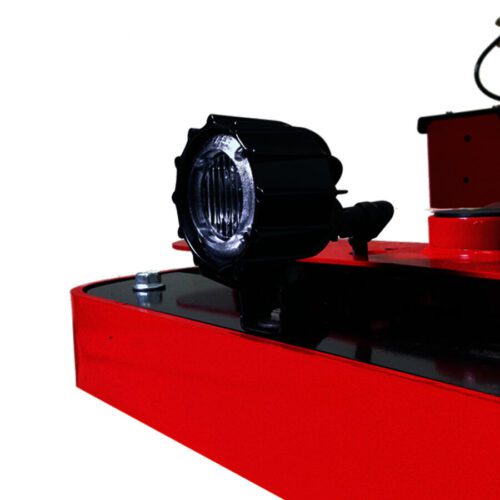

Optional Accessories QAS A-Frame Assembly, 400-Hour Filter Maintenance Kit, Rear Remote Hydraulics, Selectable Front and Rear Hydraulic Kit, Variable Orifice Kit, Light Kit, Speed Control Kit, Hitch/Tow Bar, Front Weight Kit, Smooth Tire, Turf Tire
Overall Width 58" (147 cm)
Parking/Service Brakes Hand actuated brake lever.
Power Steering Yes
Power Train (Engine Description) Vanguard®, V-twin cylinder, 4-cycle, OHV, air-cooled, gas engine with cast iron sleeves. 18 hp (13.4 kW) at 3600 rpm. Displacement: 34.8 cu. in. (570 cc). Electronic ignition. Full pressure lubrication, oil filter. Base mounted engine and pump with 4 isolation mounts.
Product Length 67.5" (171.5 cm)
Rear Attachment Hydraulic Lift Standard
Sound Level 83 dB(A) at operator ear, under normal operating conditions
Starting Key Start
Steering System Description Hydraulic power steering. 15" (38 cm) diameter steering wheel.
Tires - Front 22" x 11" - 8", 2-ply, Knobby Tread
Tires - Rear 22" x 11" - 8", 2-ply, Knobby Tread
Traction Drive Direct driven hydrostatic variable displacement piston pump to 3 hydraulic motors for 3WD. Large, front mounted hydraulic cooler and fan. Foot pedal control, forward/reverse. Patented Series/Parallel hydraulic traction system keeps three wheels working together, virtually eliminates spin-outs.
Traction Drive (System) 3WD
Vehicle Configuration Standard
Weight 930 lbs. (421.8 kg), net weight less fluids
Wheelbase 42.75" (108 cm)
