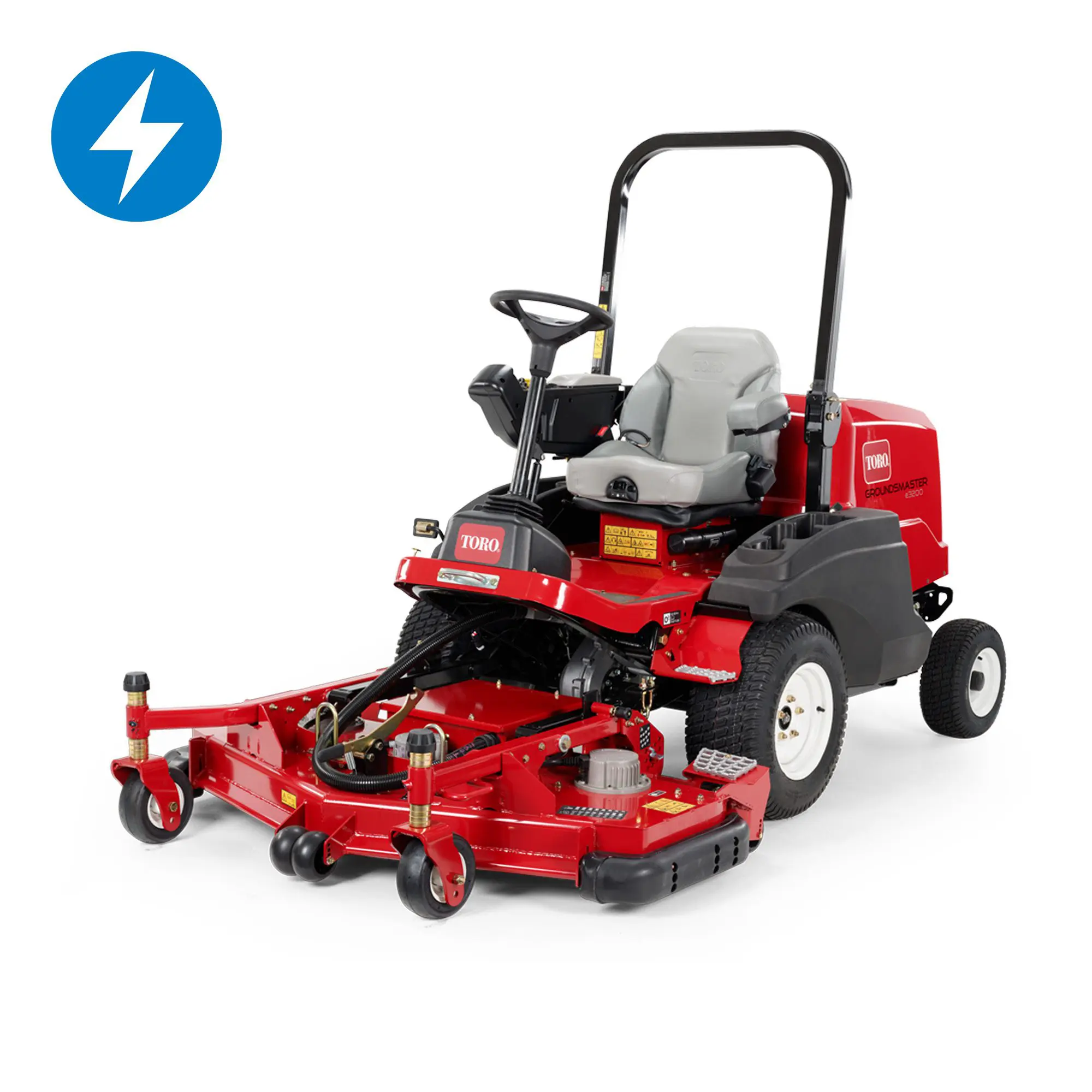

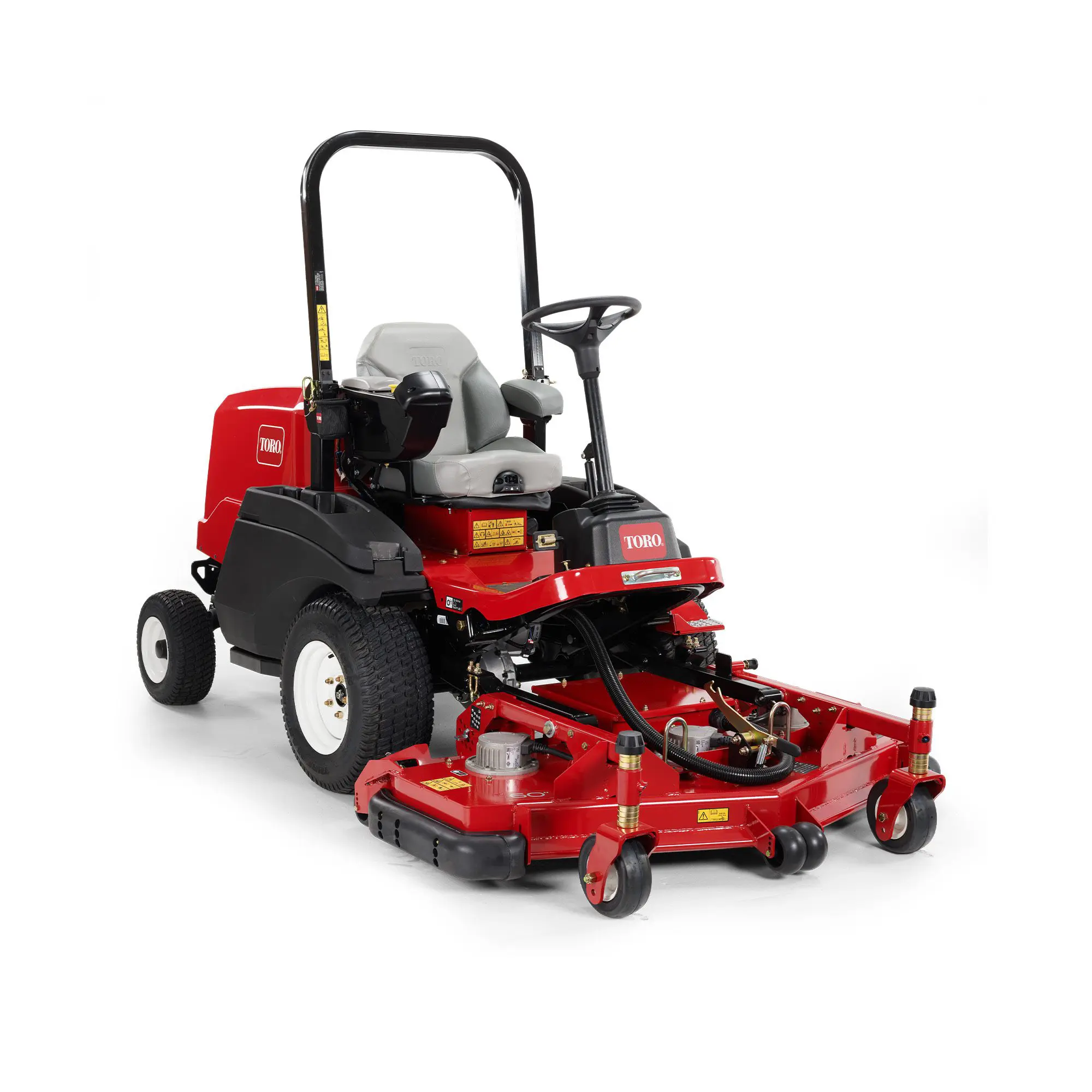

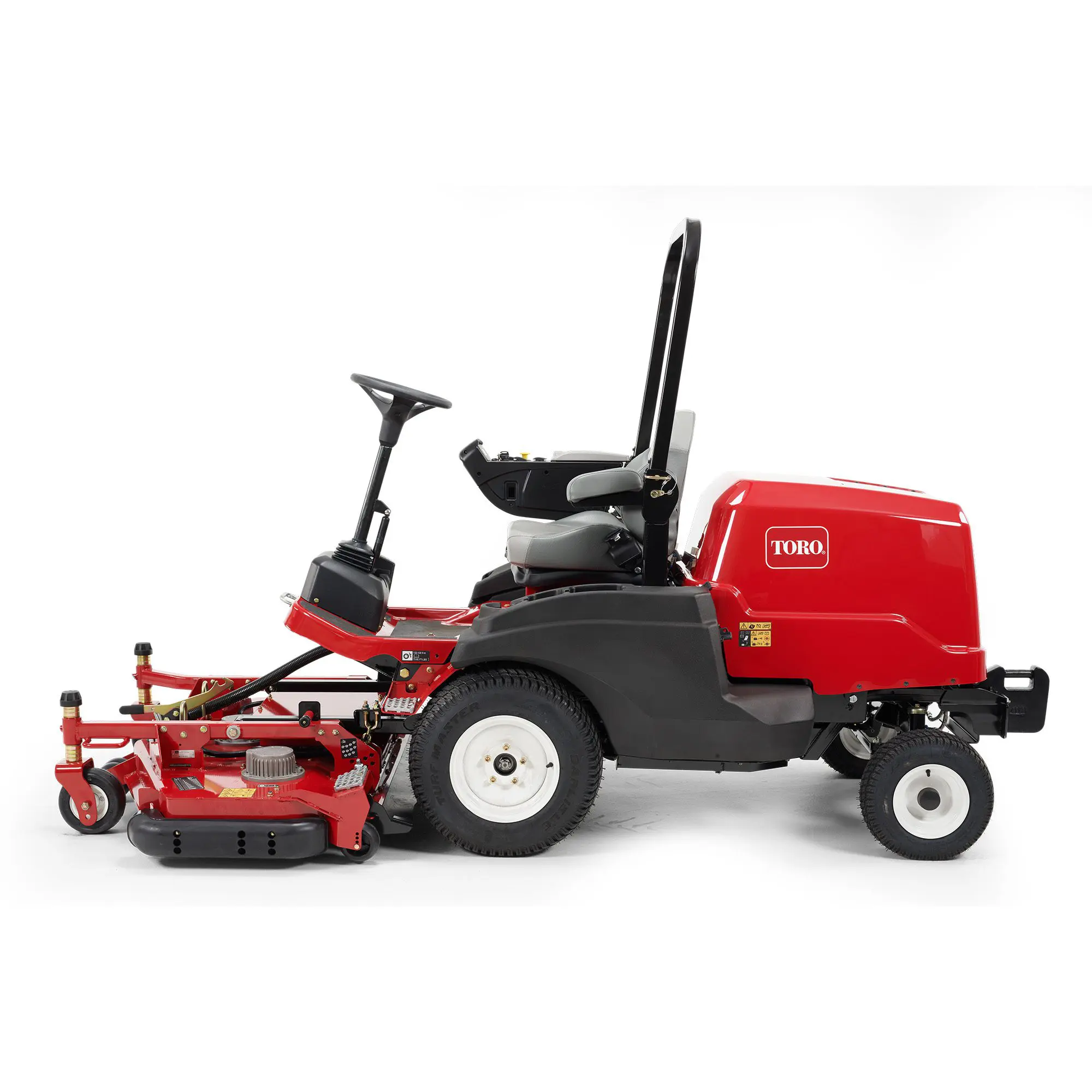

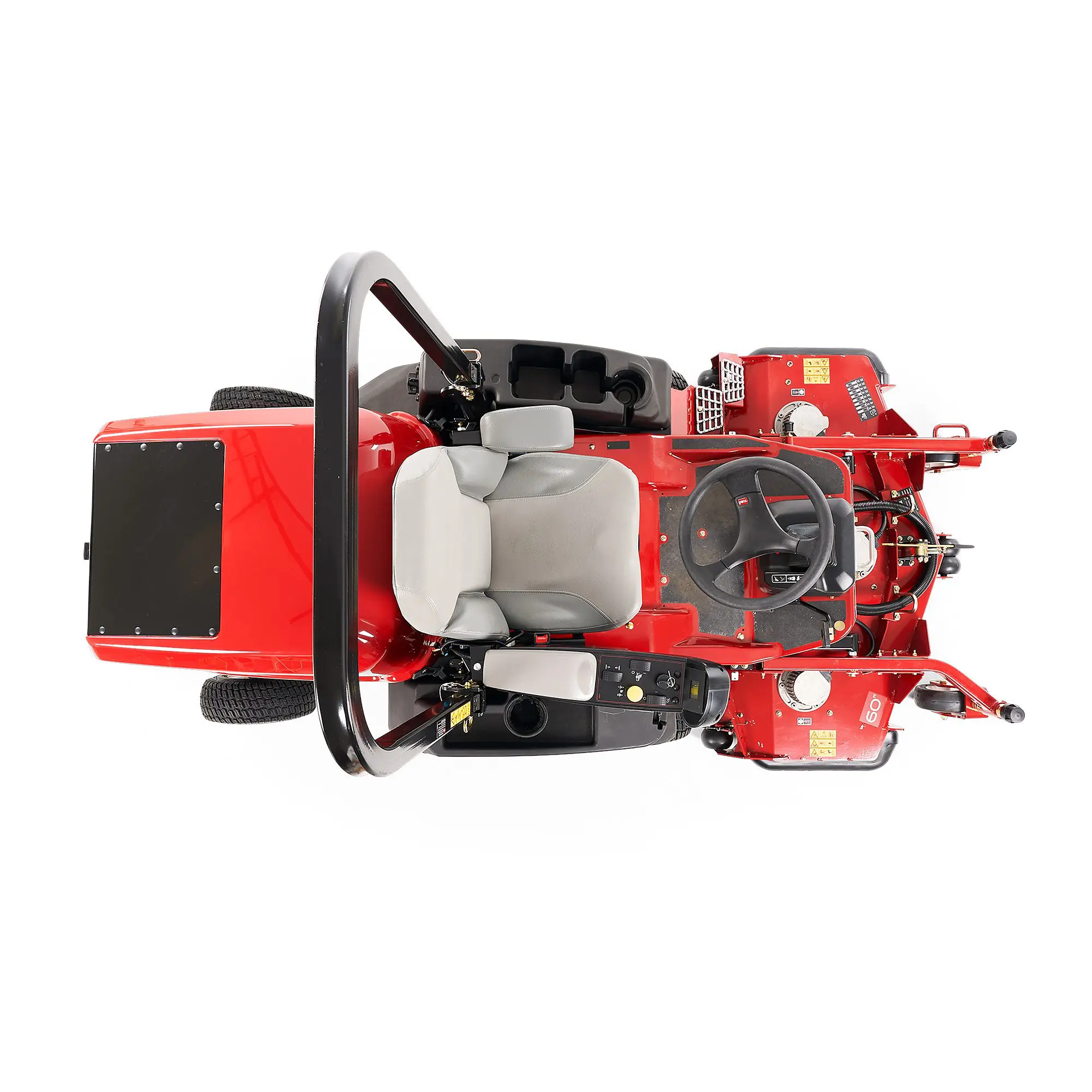

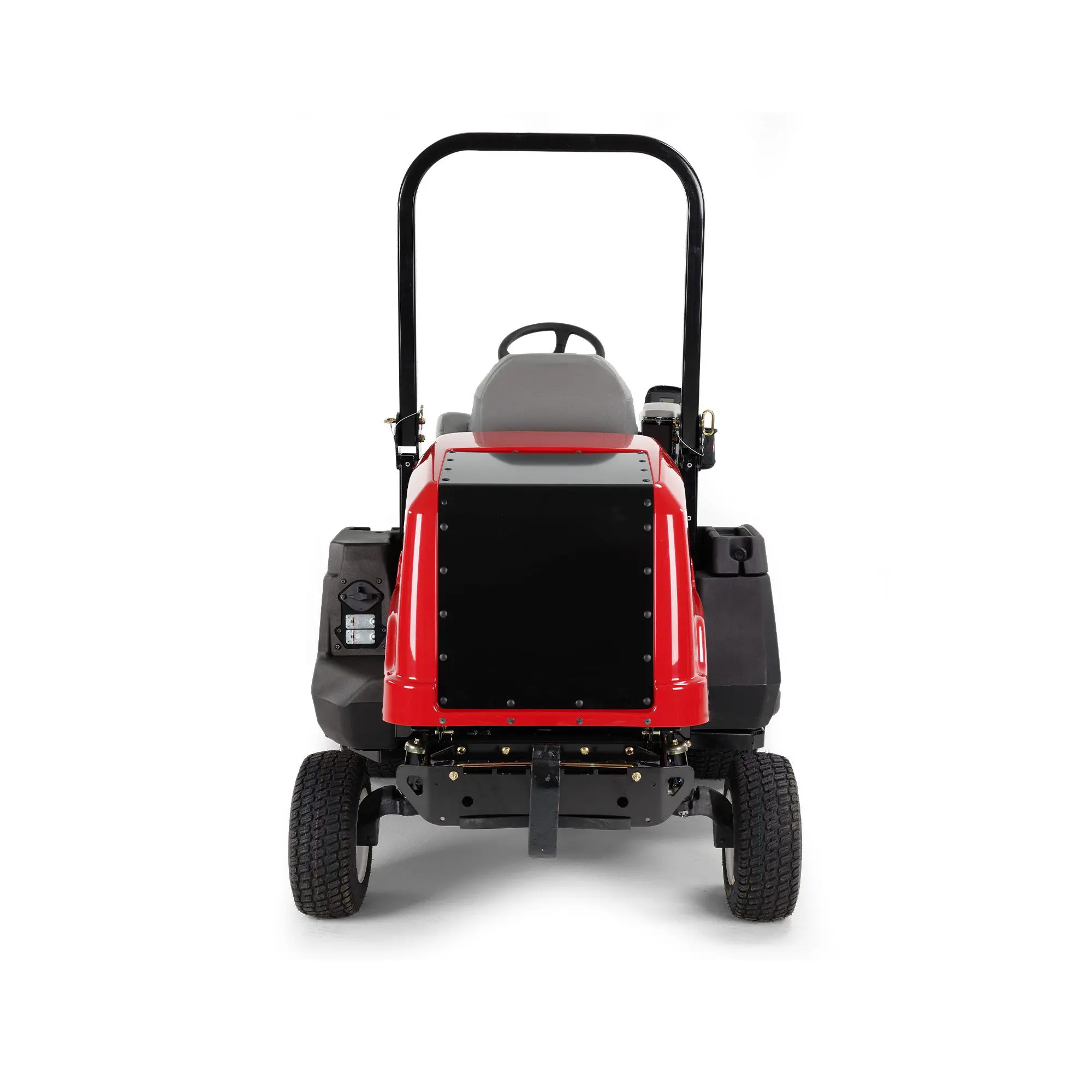

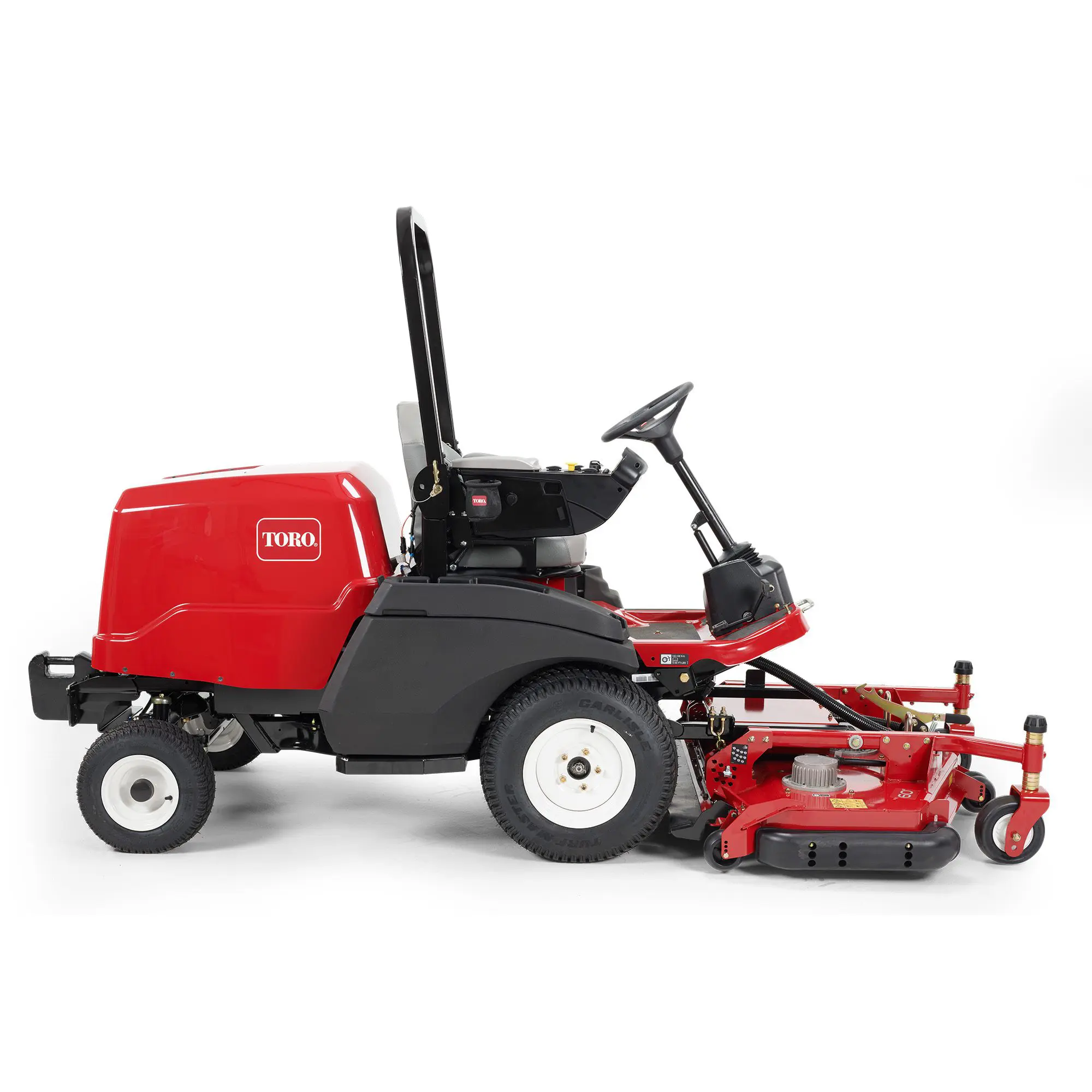

Toro Groundsmaster® e3200 Ride-on Mower

Model: 31800
Toro

Toro Groundsmaster® e3200 Ride-on Mower

Model: 31800
Toro

The Next Groundsmaster eVolution. For 50 years, Toro has been creating innovative world-class out-front rotary mowers that deliver efficient productivity, exceptional reliability, and legendary cut quality. Toro proudly continues this legacy of industry leadership with the all-new lithium-ion battery powered Groundsmaster e3200 out-front rotary mower.

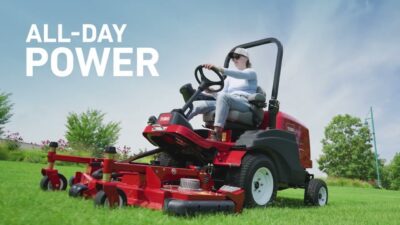

All-Day Power, All-Day Performance The all-new Groundsmaster e3200 can be configured with up to 17 HyperCell™ batteries for all-day runtime* in demanding conditions. Smart controls optimize power consumption by continuously and efficiently providing ample cutting power without bogging down. The reserve power mode allows the operator to set parameters ensuring enough battery power to return to the recharging station. The on-board 3.3kW charger allows for recharging overnight and ready to tackle another day.

Deck Options:

  • 60” (152 cm) side discharge
  • 60” (152 cm) rear discharge
Fleet Finance & Leasing Options Talk to us today 0800 807 333
Enquire Call 0800 807 333
Talk to a rep Find a Store

Features

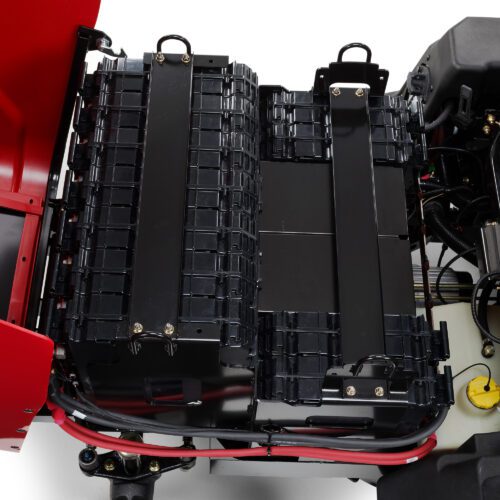

Customize Your Power Needs

Toro’s proprietary, patent-pending HyperCell® lithium-ion technology incorporates a smart battery management system for consistent performance and optimized lifecycle. Expand and customize your power needs by adding additional batteries.

Zero Compromises

The zero-operating emission e3200 shares the same rugged chassis, commercial-grade mowing deck, and operator controls with our traditional diesel-powered platform.

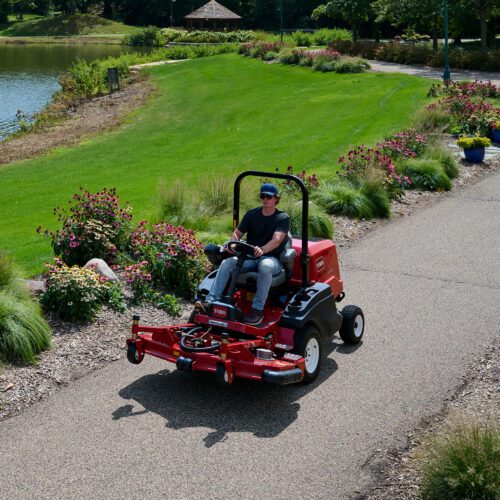

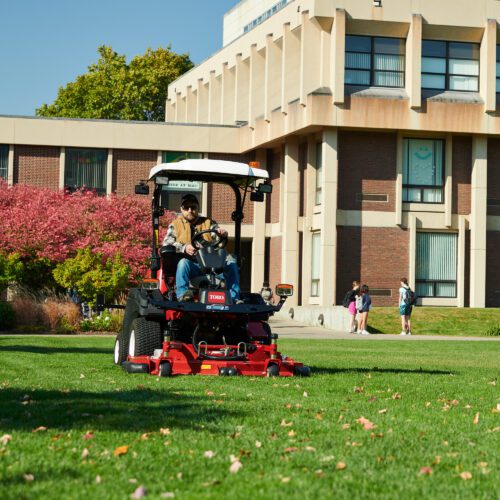

Strong, Quiet Type

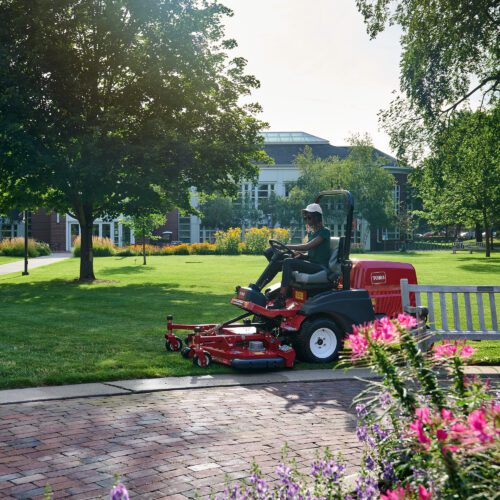

The e3200 operates significantly quieter for stealthy operation in noise sensitive applications and during early morning operation.

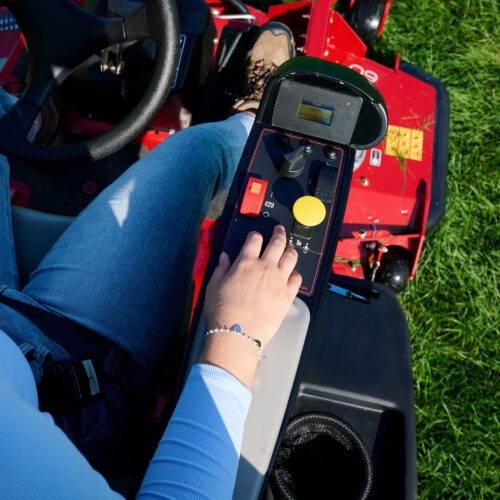

InfoCenter™ Control Panel

Real-time information such as service reminders, alerts, and diagnostic information are delivered to the operator’s fingertips. Precisely control SmartPower, Turnaround, Battery Reserve and Virtual Pedal Stop features directly from the InfoCenter™.

Battery Reserve

Within the InfoCenter™, set a battery reserve power limit which allows the operator to retain a specified amount of power. When that power level is reached, the machine notifies the operator to head back to the shop.

Smart Power®

If the blades get bogged down, Smart Power adjusts their speed for proper cut. Individual deck motors control blade speed for the best after-cut appearance.

Convenient Turnaround

Allows the operator to slightly lift the deck, without fully raising, so the blades can stay engaged.

Virtual Pedal Stop

The Virtual Pedal Stop feature allows the supervisor to limit the unit's top speed within the InfoCenter™. The operator can adjust their top speed within the specified speed range.

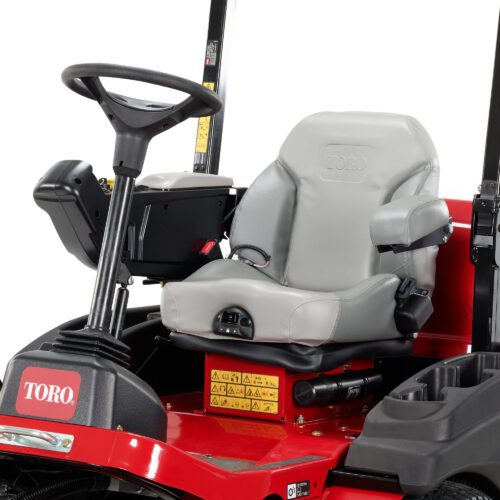

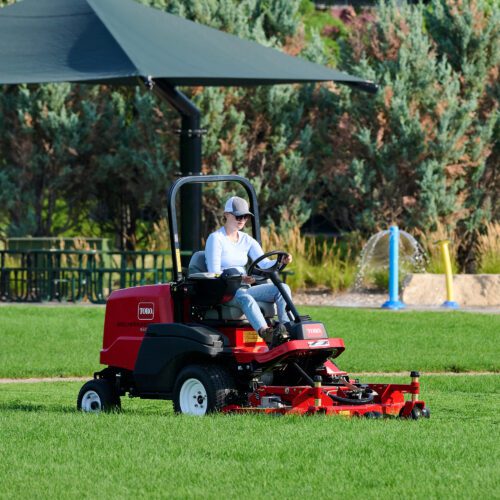

Superior Operator Comfort

Adjustable seating, tilt steering, easy access controls provide optimal operator comfort. Standard, mechanical suspension, and air ride seat options available.

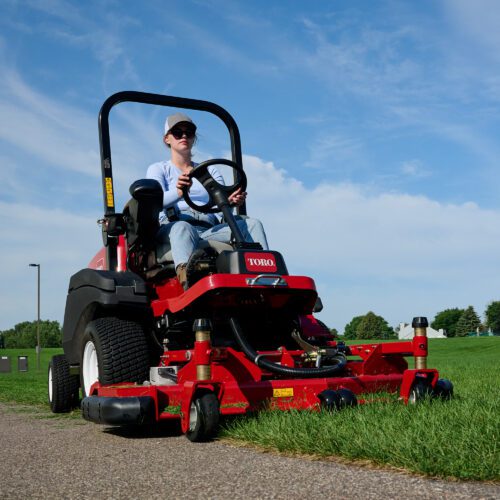

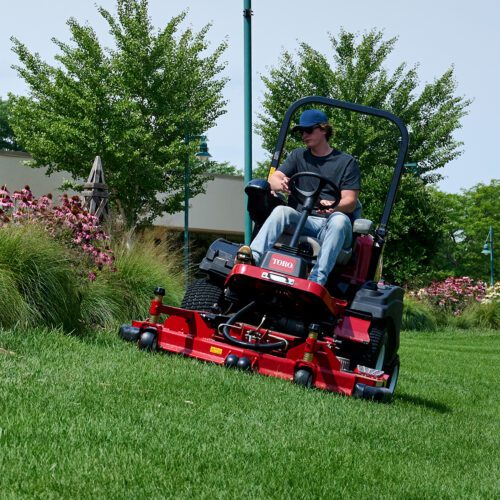

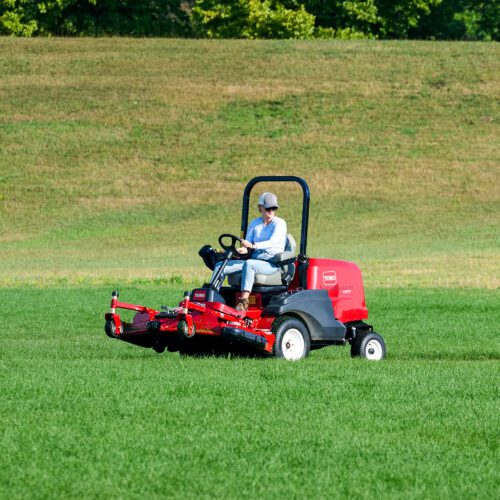

Tackle Any Terrain

Bullnose bumper, rugged spindles, and 7-gauge high strength steel decks are built for all mowing applications. For rougher terrain, the weight transfer function adds additional traction for extra stability.

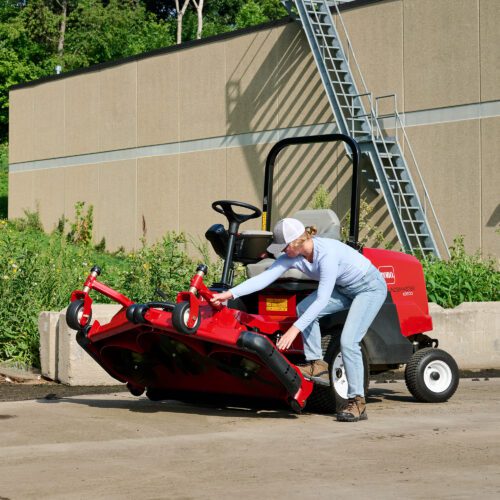

Simple Maintenance

Innovative tilt-up design makes maintenance and cleaning simple. Mowing deck tilts up nearly 90º for easy access.

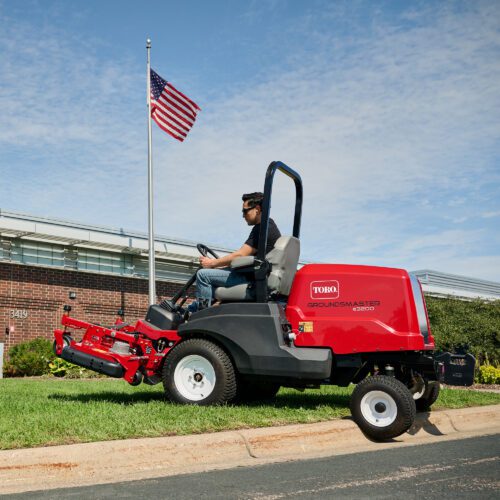

Easily Move Between Jobsites

With ground speed for mowing or transport up to 12.5 mph (20 km/h) and 8" (20 cm) of ground clearance, you can easily climb curbs and get to job sites other mowers simply can’t access.

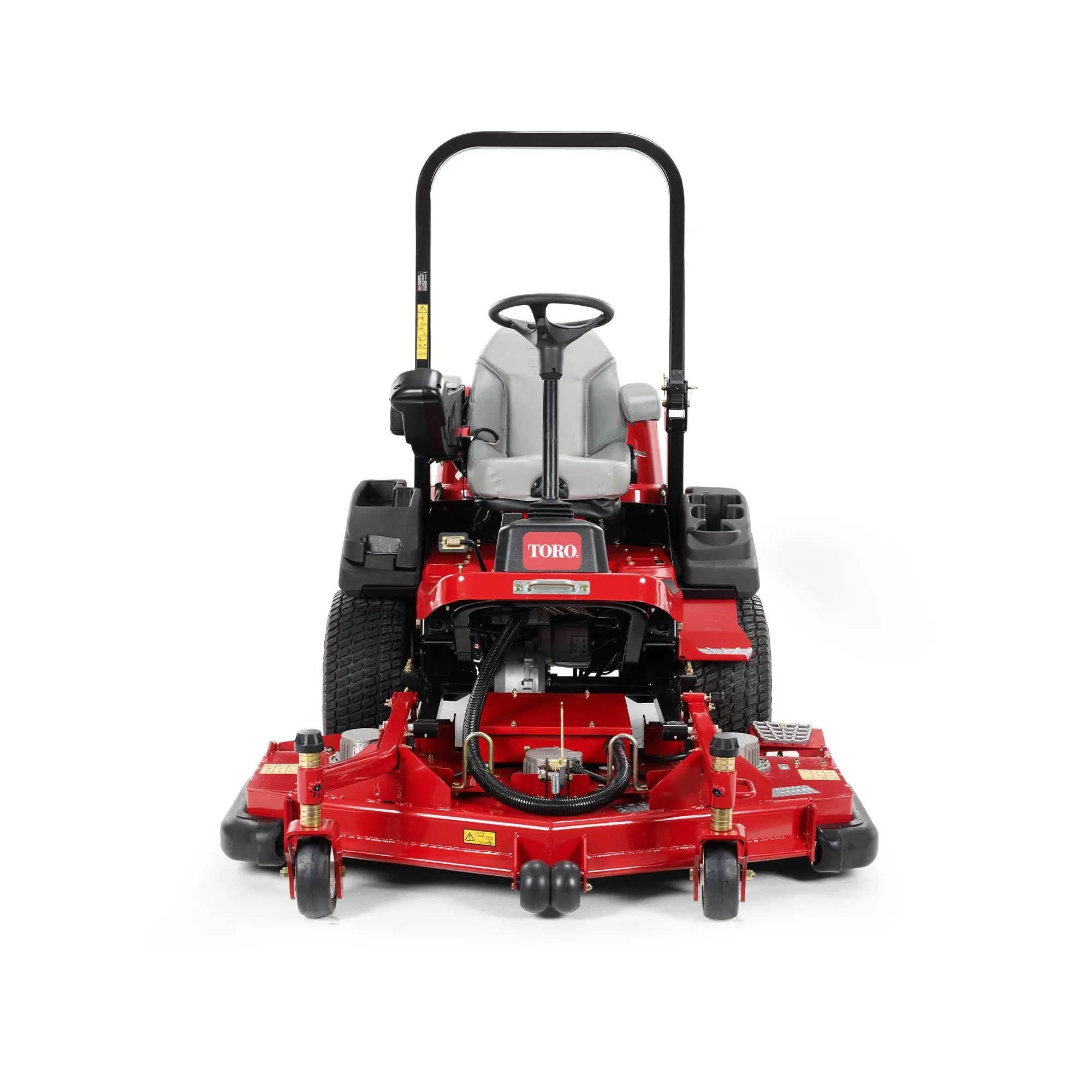

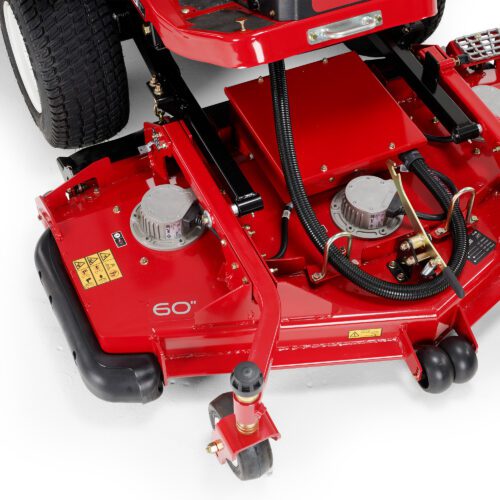

7-Gauge Welded Steel Decks

The deck shells are constructed from high-strength 7-gauge welded steel, for greater durability and long life.

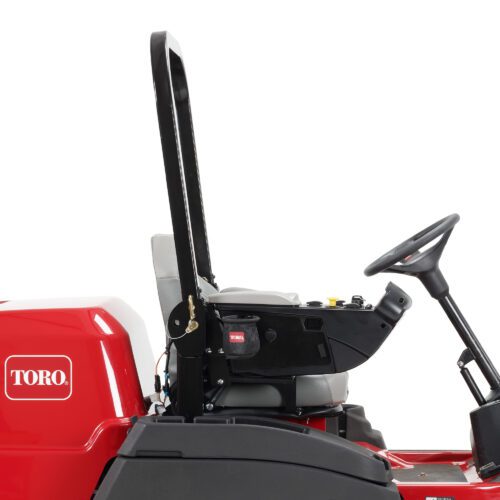

Folding Rollover Protection System (ROPS)

A Rollover Protection System (ROPS), complete with seat belt, comes standard for operator protection in the case of accidental rollovers and tipovers. In situations where sufficient vertical clearance is not available, such as loading on an enclosed trailer, the ROPS can be temporarily unlocked and folded down.

Specifications

Armrests Armrests
Battery Toro HyperCell
Blade Style/Type Rotary
Cab Unit N/A
Cab Unit Description N/A
Charger On-board 100-240V, 12-16A, 3.3 kW charger
Controls Key on/off, traction pedal, deck lift/lower, PTO, cruise control, emergency brake
Cup Holder Standard
Cutting Unit Type/Configuration 60” (152 cm) side and rear discharge options
Deck Construction High-strength 7-gage steel with impact bumper, and side skids. Anti-scalp gauge wheels.
Drivetrain Battery
Electrical System 60 volt power for all systems, 12 volt for USB power plug and accessories
Fuel / Power Source Battery
Gauges/Instrumentation TDM display with alerts, hours and settings. Multiple languages.
Ground Clearance 8” (20 cm) traction unit only
Ground Speed - Forward 0 - 12.4 mph (0 - 20 km/h), customizable setting
Ground Speed - Reverse 0 - 6.0 mph (0 - 10.0 km/h), customizable setting
Height 79" (200 cm) with ROPS up
Height of Cut Range 1” to 6” (25-152 mm) adjustable in 0.5” (12.7 mm) increments
Hydraulic Cylinders Electric powered hydraulic cylinders control mowing deck lift/lower, weight transfer, and power steering functions
Hydraulic Fluid Capacity 4.7 Gal. (17.8 L)
Hydraulic Fluid Type Toro PX Extended Life Hydraulic Fluid
IntelliDash™ Capable No
Interlocks Operator presence switch, deck limit sensor, parking brake, emergency brake, traction neutral
Lighting Optional
Main Frame/Chassis All welded tubular and formed steel
Max Slope Angle Refer to Operator’s Manual
Mowing Rate (Productivity) Up to 7.6 acres/hr (3.1 hectacres/hr) with 60" (152 cm) deck and max speed
Mowing Speed 0 - 12.4 mph (0 - 20 km/h), customizable setting
Oil Capacity 3.6 U.S. qt. (3.4 L)
Operator Area Operator step, beverage holder, controls on right armrest
Optional Accessories HyperCell Energy Expansion Kits, Recycler Kit, blade options, LED Work Light Kit, Road Light Kit, Operator Cooling Fan Kit, Sunshade Canopy, LED Beacon Kit for Sunshade
Overall Cutting Width 60 in / 152 cm
Overall Width 52" (132 cm)
Parking/Service Brakes Dynamic braking with power regeneration, integrated automatic parking brake, emergency brake switch
Power Steering Yes
Power Train (Engine Description) 11 HyperCell™ lithium-ion batteries standard, configurable with up to 17 for all-day runtime
Product Length 107" (272 cm)
Seat Deluxe bolstered seat with retractable seat belt
Spindle Assembly Highly efficient internal permanent magnet (IPM) electric motors driving hardened steel blades
Starting Key Start
Steering System Description Power steering, tilt function
Tires - Front 23" x 10.5" - 12", 4-ply, Turf Tire
Tires - Rear 16" x 6.5" - 8", 4-ply, Turf Tire
Traction Drive 2WD
Traction Drive (System) Electric 2-wheel traction drive transaxle
Weight 2100 lbs. (952 kg) with standard 11 HyperCell batteries and charger
Wheelbase 52" (132 cm)
Width of Cut 60" (152 cm)
