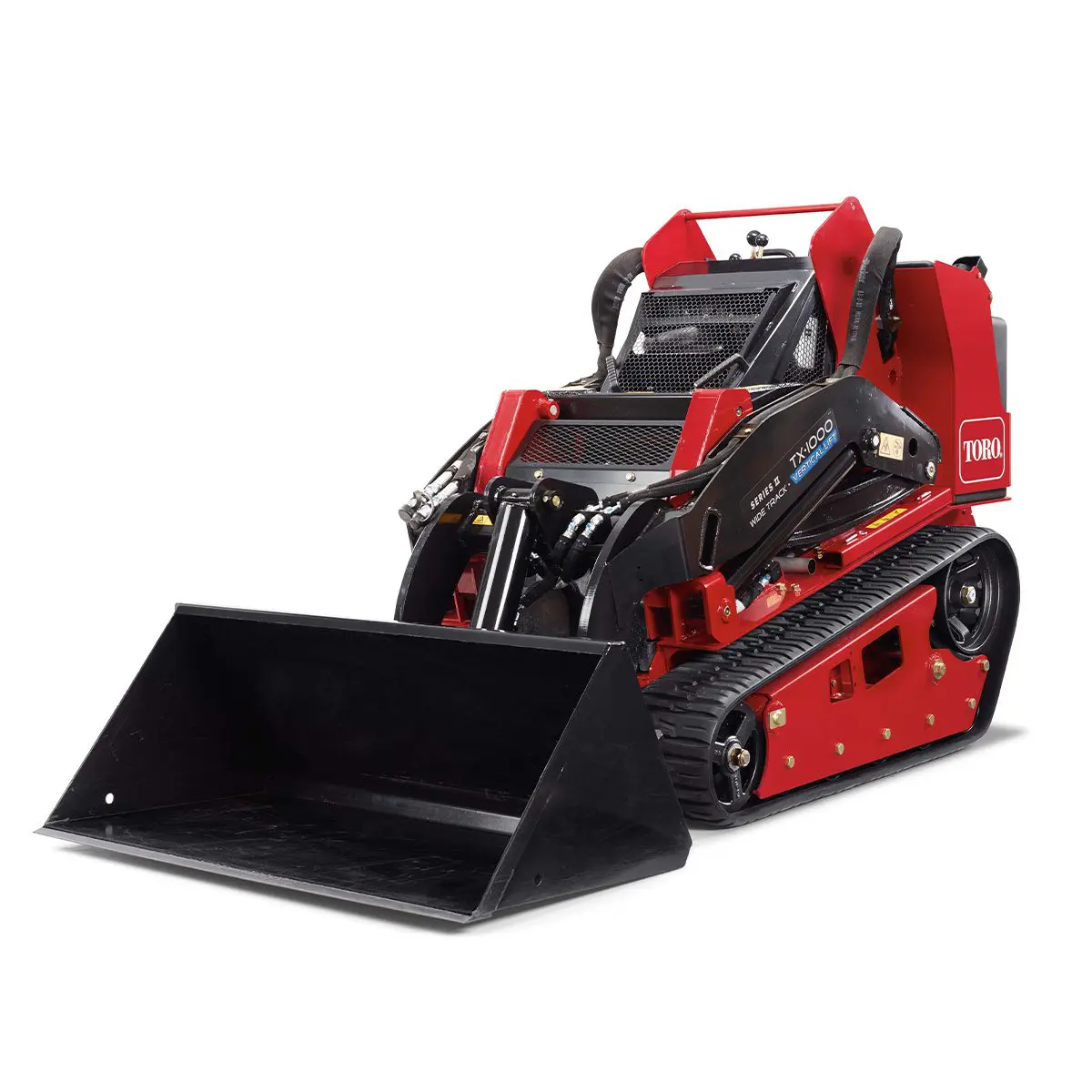

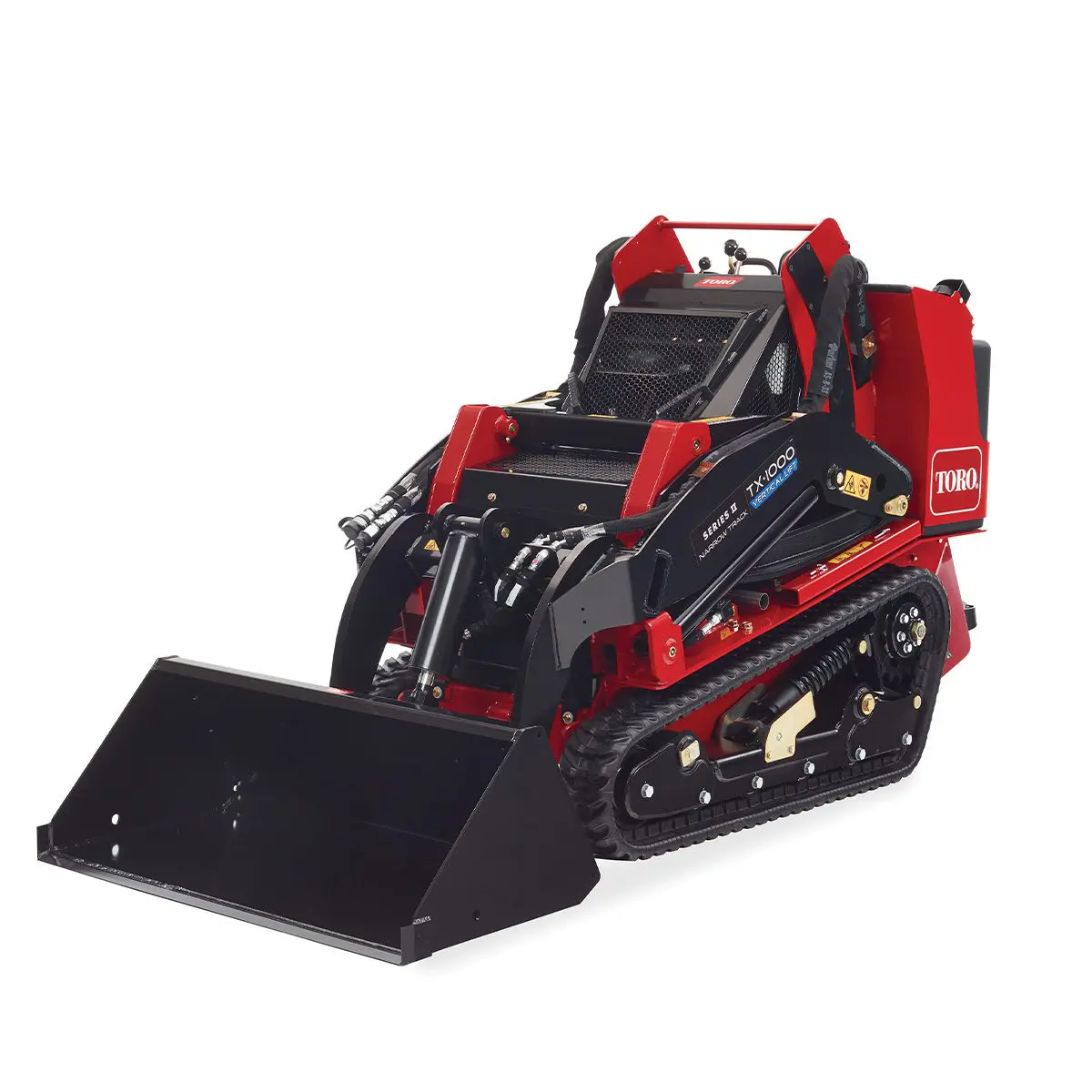

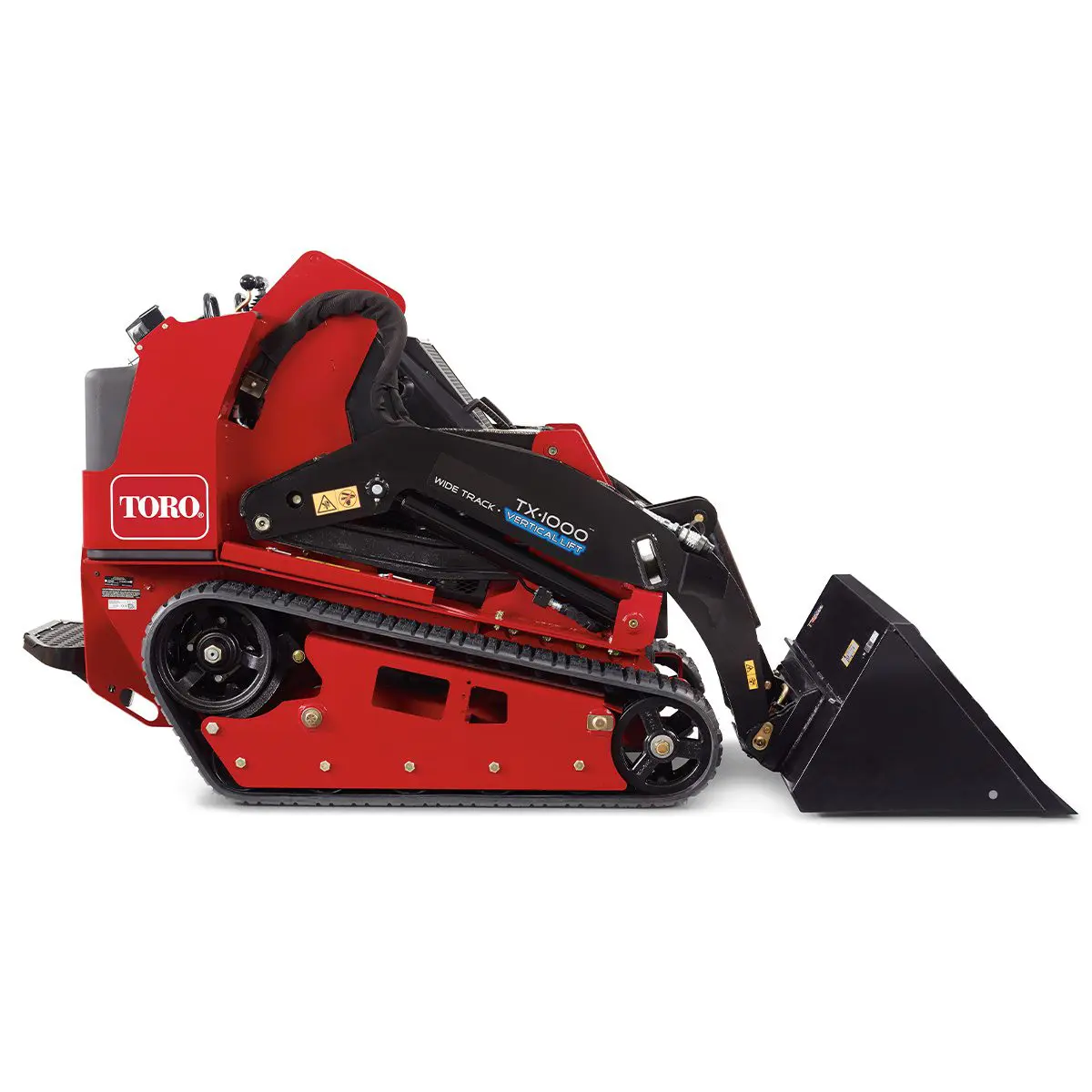

Toro Traxmaster TX1000 Mini Digger

Model: 22328
Toro

Toro Traxmaster TX1000 Mini Digger

Model: 22328
Toro

The Toro® TX 1000 is a giant step forward in performance and versatility. This lightweight, manoeuvrable machine packs unmatched strength and reach in a compact package for the ultimate working advantage. The 488 kgs operating capacity makes the TX 1000 a powerful, compact alternative to larger skid-steer loaders and other machines.

  • 206 cm Hinge Pin Height
  • 488 kg Rated Operating Capacity
  • High Drive Track System
  • Over 20 versatile attachments with Quick Attach System™ (QAS)
  • Unmatched strength and reach in a compact loader package
  • TORO exclusive vertical lift loader
Fleet Finance & Leasing Options Talk to us today 0800 807 333

Features

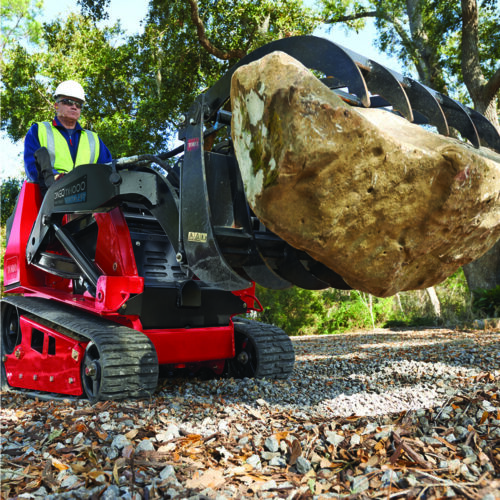

Class-Leading Rated Operating Capacity

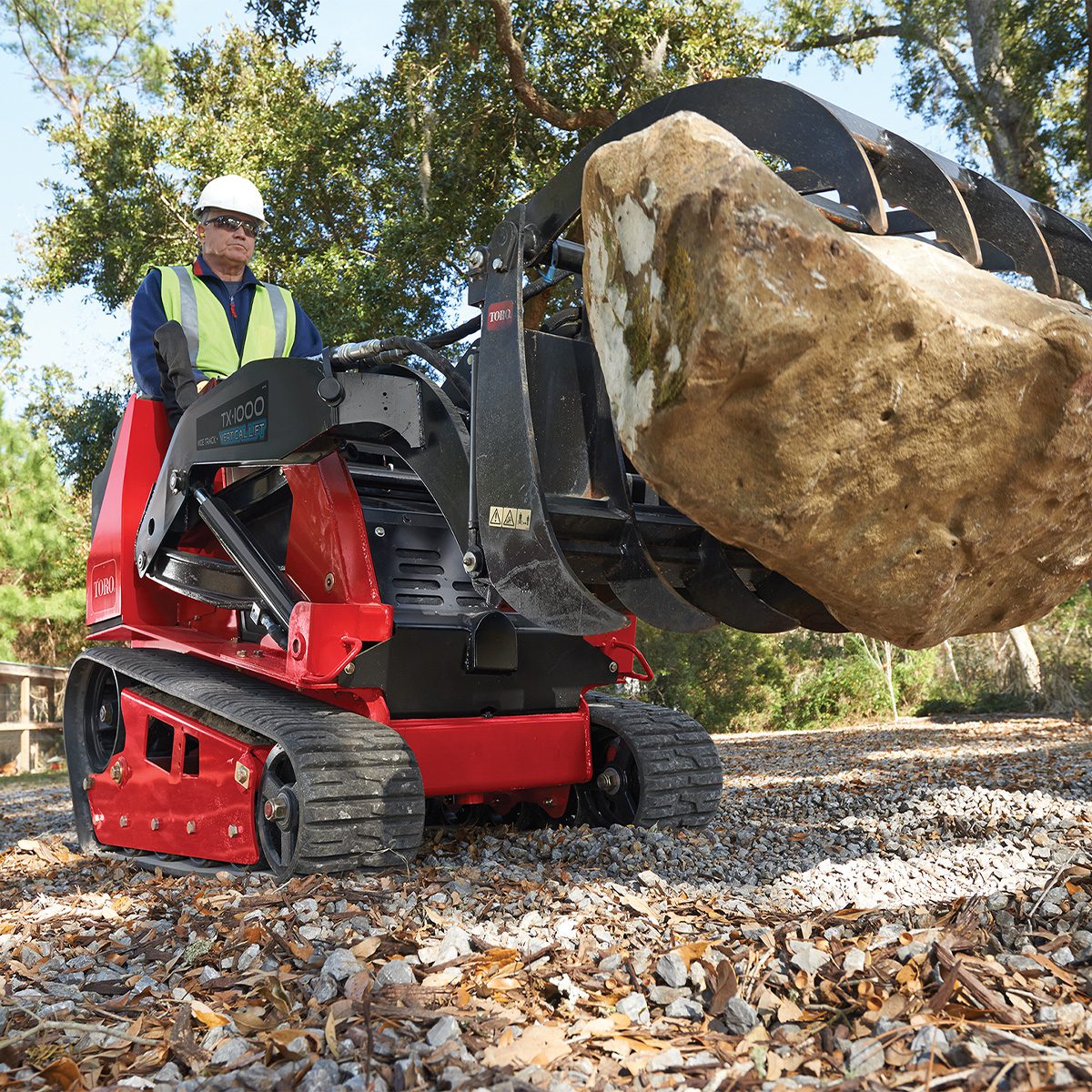

Vertical lift loader arms allow the Dingo TX 1000 to lift and transport heavy loads with a rated operating capacity of 1,000-plus pounds.

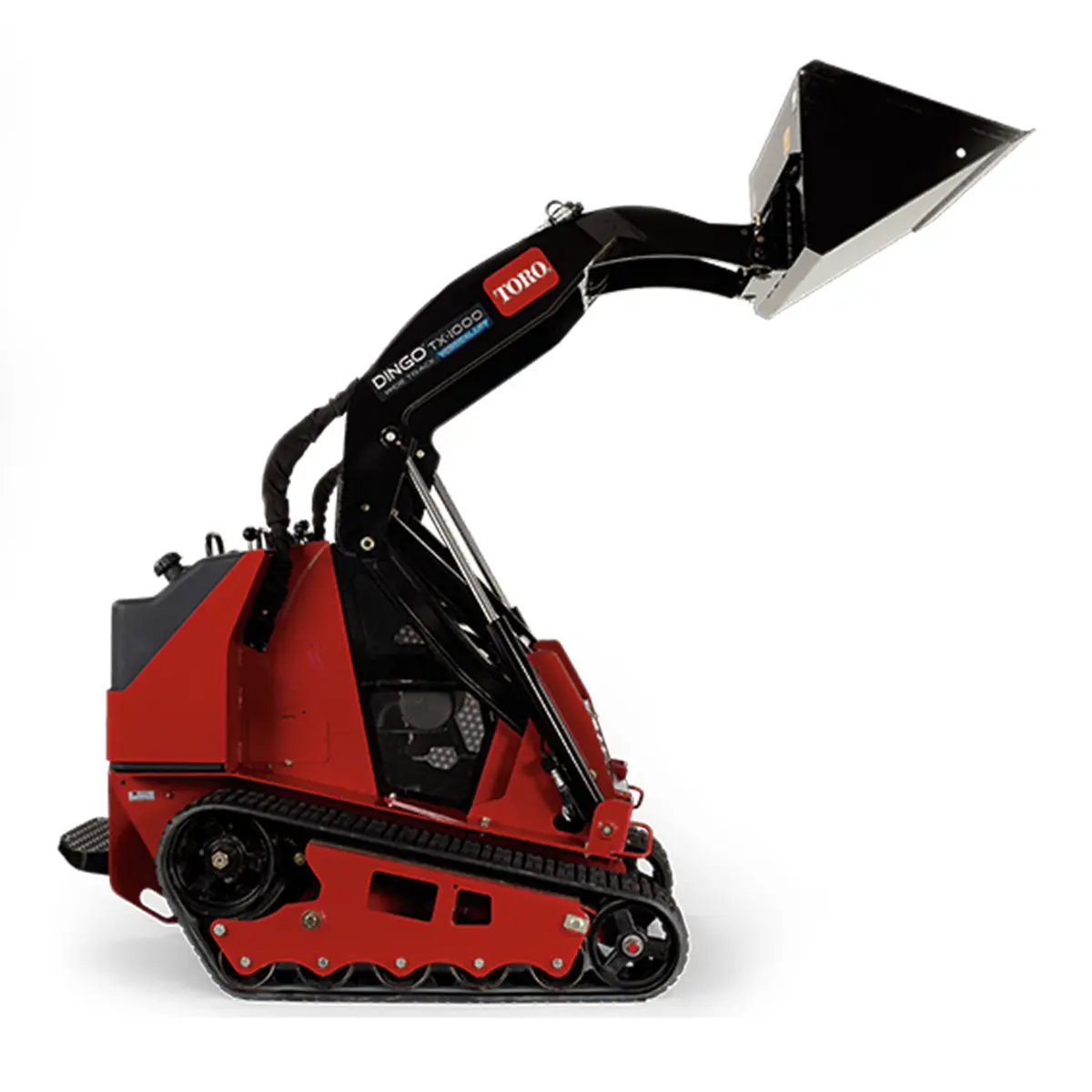

Maximum Height & Reach

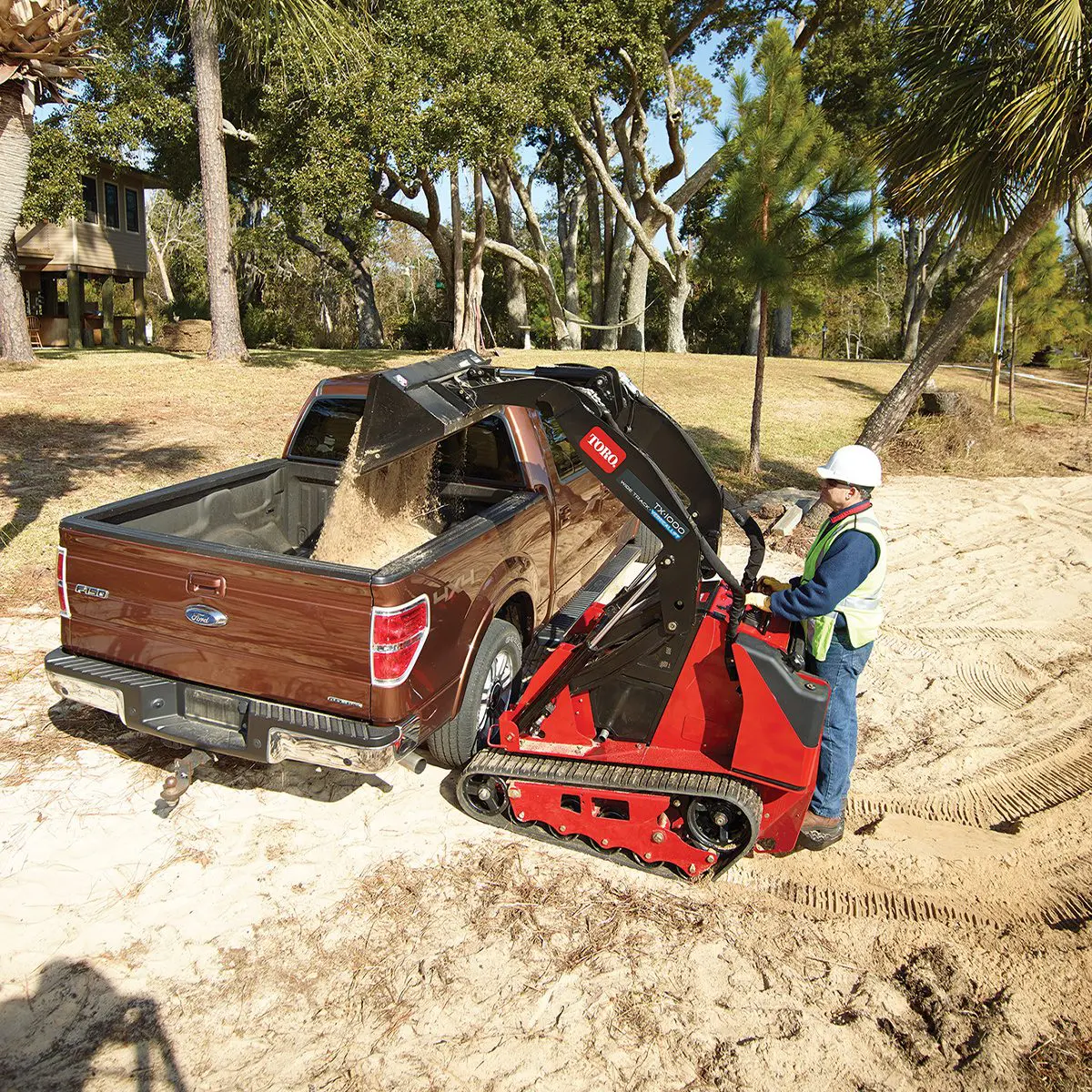

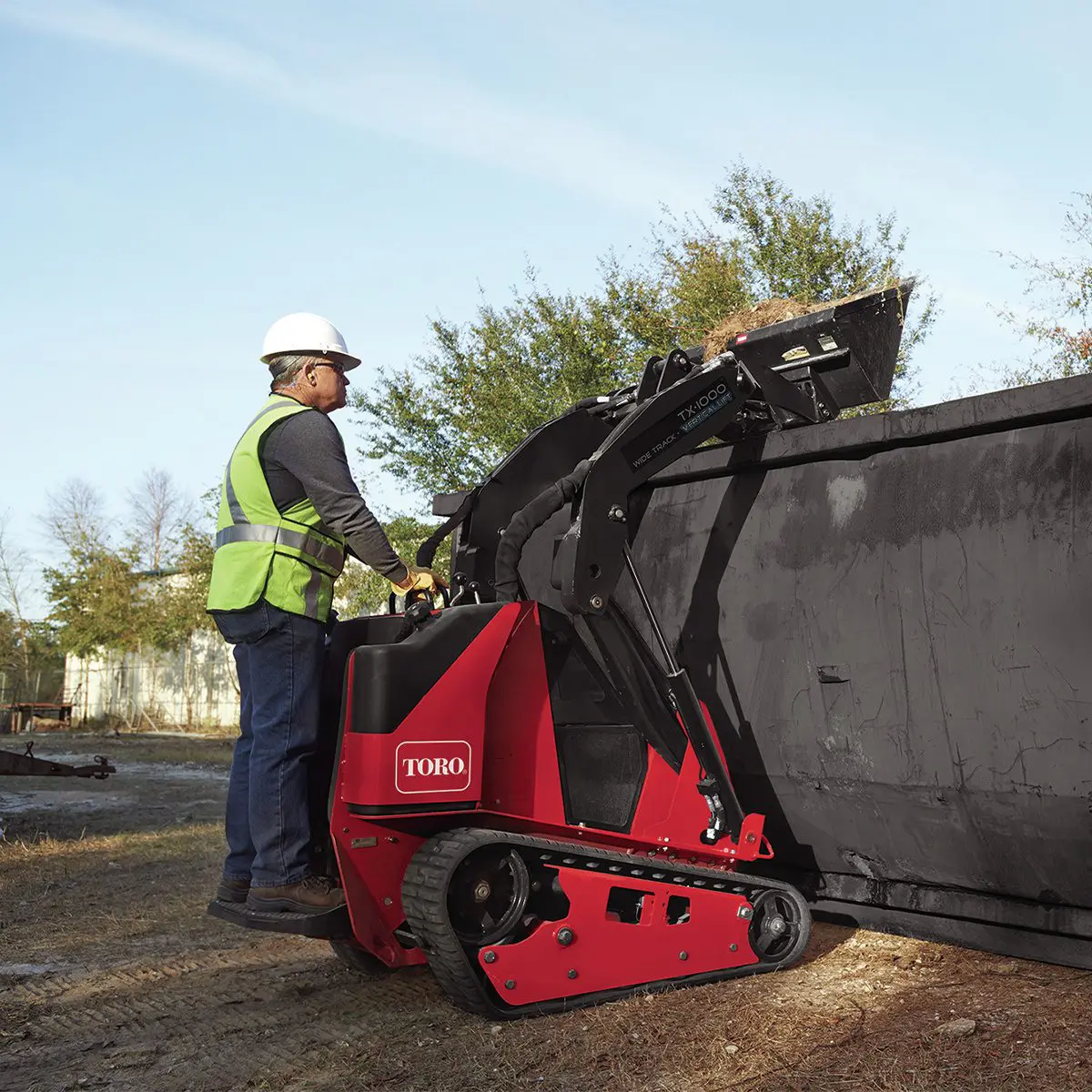

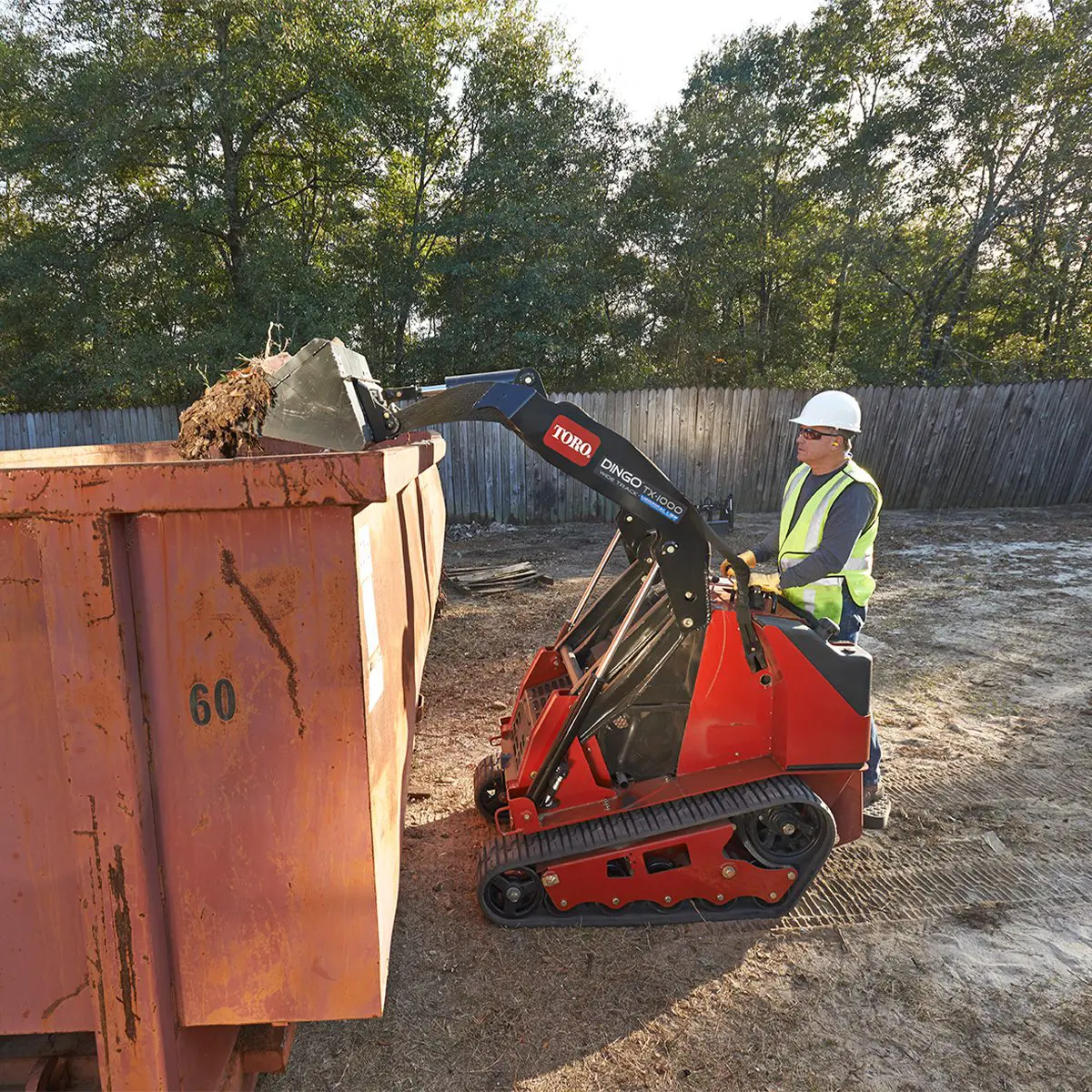

The 81” (206 cm) hinge pin height allows attachments to easily clear the side of 30-yard dumpsters or one-ton trucks.

Compact Size

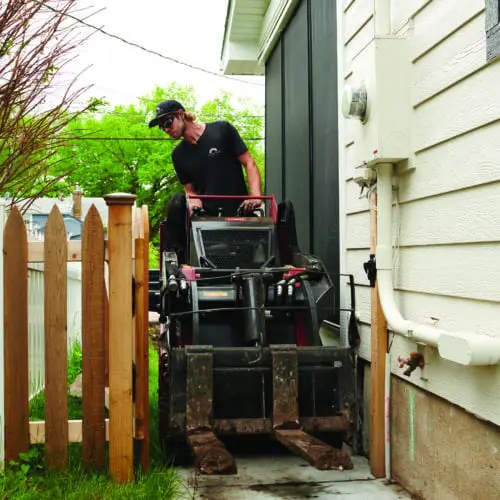

Narrow enough so you can bring hydraulic power to tight areas; through doorways and gates previously accessible only by manual labor. Plus it provides zero radius turn capability for unmatched maneuverability.

Specifications

Air Filter Two-stage, heavy-duty, remote
Cooling System Liquid Cooled
Displacement (cc) 1262
Displacement (cu. in.) 77
Dump Angle 40 degrees
Dump Height (cm) 154.9
Dump Height (inches) 61
Engine Make Kubota
Engine Model D1305
Fuel Tank (gallons) 11.5
Fuel Tank (liters) 44
Fuel Type Diesel
Ground Clearance (cm) 15.2
Ground Clearance (inches) 6
Ground Pressure 3.6 psi
Ground Speed Forward (mph) 4
Ground Speed Foward (km/h) 7.6
Ground Speed Reverse (km/h) 7.6
Ground Speed Reverse (mph) 4
Hinge Pin Height (cm) 205.7
Hinge Pin Height (inches) 81
Hydraulic Flow 13.3 gpm (each pump)
Hydraulic Flow Auxilary 15.2 gpm
Hydraulic Pressure 3000 PSI
Loader Arms Vertical Lift
Manufacturer's Gross HP Rating (HP) 24.8
Manufacturer's Gross HP Rating (kW) 18.5
Max Operating Height (cm) 266.7
Max Operating Height (inches) 105
Oil Capacity (liters) 5.7
Oil Capacity (quarts) 6
Overall Height w/bucket (cm) 135.1
Overall Height w/bucket (inches) 53.2
Overall Height w/o bucket (cm) 135.1
Overall Height w/o bucket (inches) 53.2
Overall Length w/bucket (cm) 255.7
Overall Length w/bucket (inches) 100.7
Overall Length w/o bucket (cm) 207.5
Overall Length w/o bucket (inches) 81.7
Overall Width w/bucket (cm) 104.1
Overall Width w/bucket (inches) 41
Overall Width w/o bucket (cm) 104.1
Overall Width w/o bucket (inches) 41
Rated Operating Capacity* (kg) 453
Rated Operating Capacity* (lbs) 1000
Reach – Fully Raised (cm) 62.2
Reach – Fully Raised (inches) 24.5
Reservoir Capacity (gallons) 10
Reservoir Capacity (liters) 37.8
RPM 2600
Track Length (inches) 127.6
Track Length(cm) 324.1
Track Width (cm) 24
Track Width (inches) 9.5
Tracks Sprocket-drive, 6 road wheels per side
Traction Dual Hydrostatic Pump
Weight (kg) 1265
Weight (lbs) 2790
Wheelbase (inches) 41
