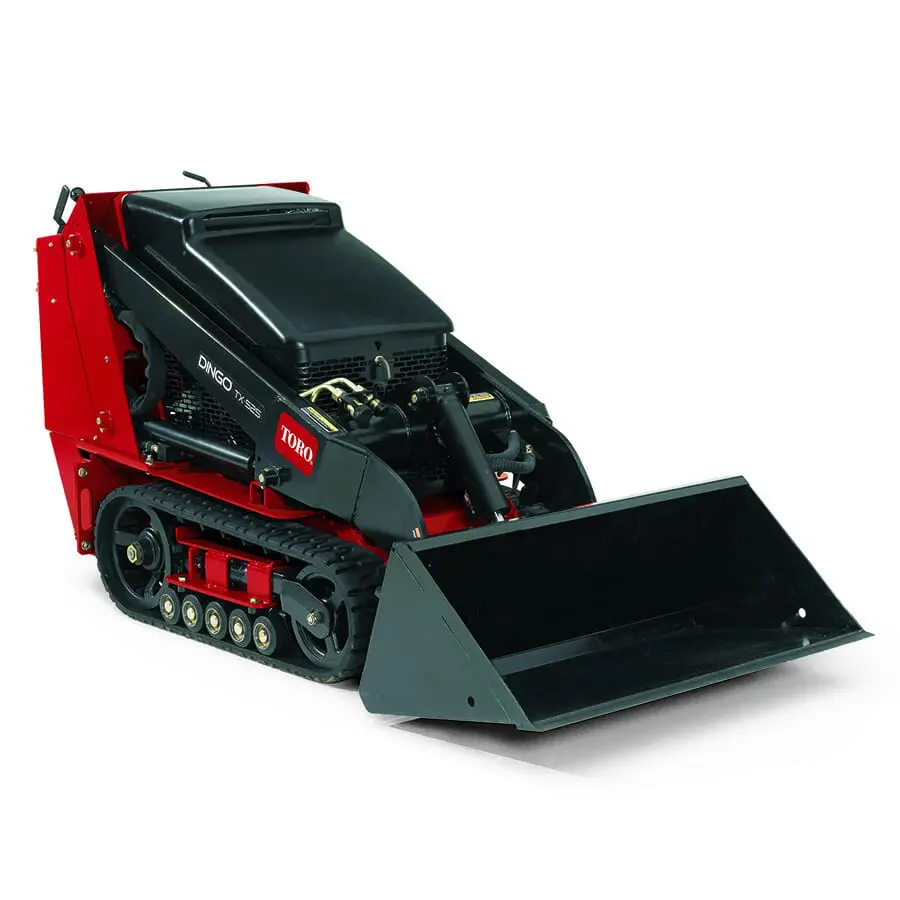

Toro Traxmaster 525 Narrow Track - Compact Utility Loader

Model: 22324
Toro

Toro Traxmaster 525 Narrow Track - Compact Utility Loader

Model: 22324
Toro

The TX 525 was designed with workers in mind, featuring extra torque, longer engine life, and increased hydraulic flow for enhanced performance of ground-engaging attachments. The TX 525 offers amazing hydraulic power, delivering 13.8 gpm and pumping 24 hp to the attachment, yet has a ground pressure as low as 3.4 psi (wide track model). The Toro TX525 Compact Utility Loaders are the most versatile, reliable and hardest working utility loaders around.

The TX 525 Wide track design provides low ground pressure which is easy on turf. Designed with workers in mind, all of its power is harnessed in only three easy to use controls, which make it simple for any worker to step up and be productive immediately!

The following attachments are available: High-speed trencher, High Torque trencher, 4-in-1 narrow or wide buckets, Leveller, Vibratory Plow, Hydraulic Blade, Power Box Rake, Soil Cultivator, Multi-Purpose Tool, Tree Forks, Bore Drive Head & Rod & Reamer Kit, Buckets, Tiller, Stump grinder, Trench filler, Backhoe, Hydraulic Breaker, Grapple Rake, High-Torque Auger Power Head, Adjustable Forks, Cement Bowl, Universal Swivel Auger Power Head.

  • Compact in size
  • 25 HP (18.6 kW) Kubota® engine
  • Turf friendly at only 907 kg
  • Patented, easy-to-use traction control system
  • Compatible with over 20 attachments to complete versatile tasks.
Fleet Finance & Leasing Options Talk to us today 0800 807 333
Enquire Call 0800 807 333
Download brochure Talk to a rep Find a Store

Features

Simple Controls

Three simple controls let operators get to work fast.

Compact Size

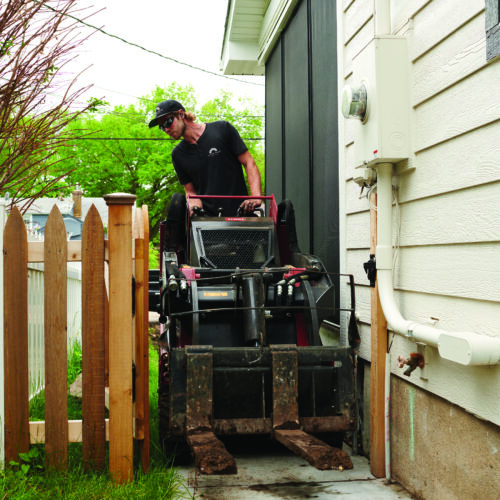

Narrow enough so you can bring hydraulic power to tight areas; through doorways and gates previously accessible only by manual labor. Plus it provides zero radius turn capability for unmatched maneuverability.

4-Pump Hydraulic System

4-pump hydraulic system lets you simultaneously operate the loader, bucket, traction, and auxiliary drives for increased operator efficiency. This system directs hydraulic power precisely where you need it!

Exclusive TX Track Drive

Low center of gravity and large footprint increase stability on side hills and provide smooth operation over rugged terrain; eliminates tire ruts and flat tires.

Liquid-Cooled Diesel

The 23.3 hp (17.3 kw) Kubota diesel engines torque curve combined with the added auxiliary hp provide attachments the added power tough jobs require.

Specifications

Air Filter Two-stage, heavy-duty, remote
Cooling System Liquid Cooled
Displacement (cc) 901
Dump Angle 38 degrees
Dump Height (cm) 117.1
Engine Make Kubota
Engine Model D902E3B
Fuel Tank (liters) 23
Fuel Type Diesel
Ground Clearance (cm) 11.6
Ground Pressure 5.2 psi
Ground Speed Forward (km/h) 7.2
Ground Speed Reverse (km/h) 3.2
Hinge Pin Height (cm) 167.1
Hydraulic Flow 16.9 gpm (each pump)
Hydraulic Flow Auxiliary 13.8 gpm
Loader Arms Radial
Manufacturer's Gross HP Rating (HP) 24.8
Manufacturer's Gross HP Rating (kW) 18.5
Max Operating Height (cm) 228.8
Oil Capacity (liters) 3.63
Overall Height w/bucket (cm) 117
Overall Height w/o bucket (cm) 117
Overall Length w/bucket (cm) 233.6
Overall Length w/o bucket (cm) 179.5
Overall Width w/bucket (cm) 86.5
Overall Width w/o bucket (cm) 86.5
Rated Operating Capacity* (kg) 250
Reach – Fully Raised (cm) 55.3
Reservoir Capacity (liters) 37.8
RPM 3400
Track Length (cm) 245.3
Track Width (cm) 14.9
Tracks Sprocket-drive, 10 road wheels per side
Traction Dual Hydrostatic Pump
Weight (kg) 863
