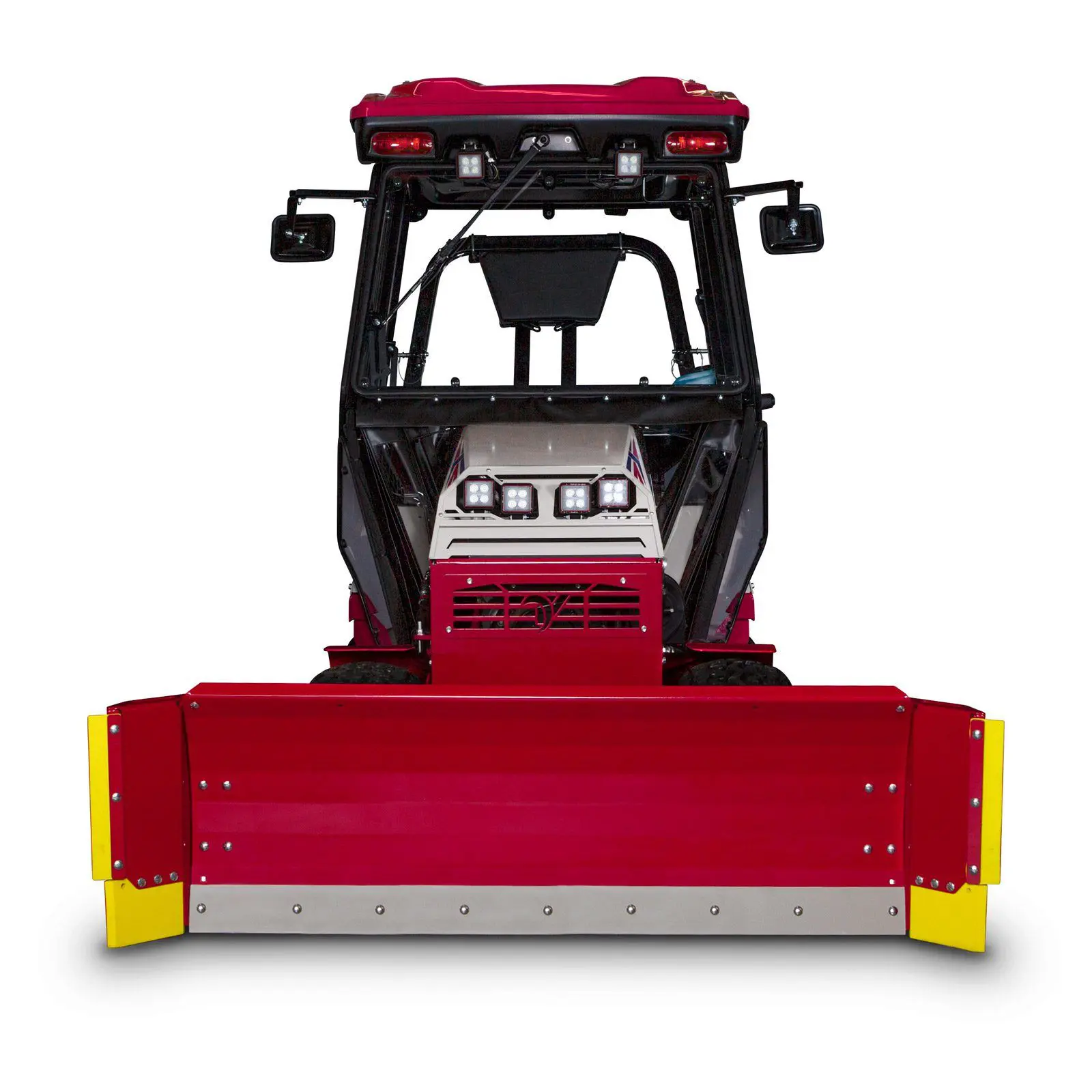

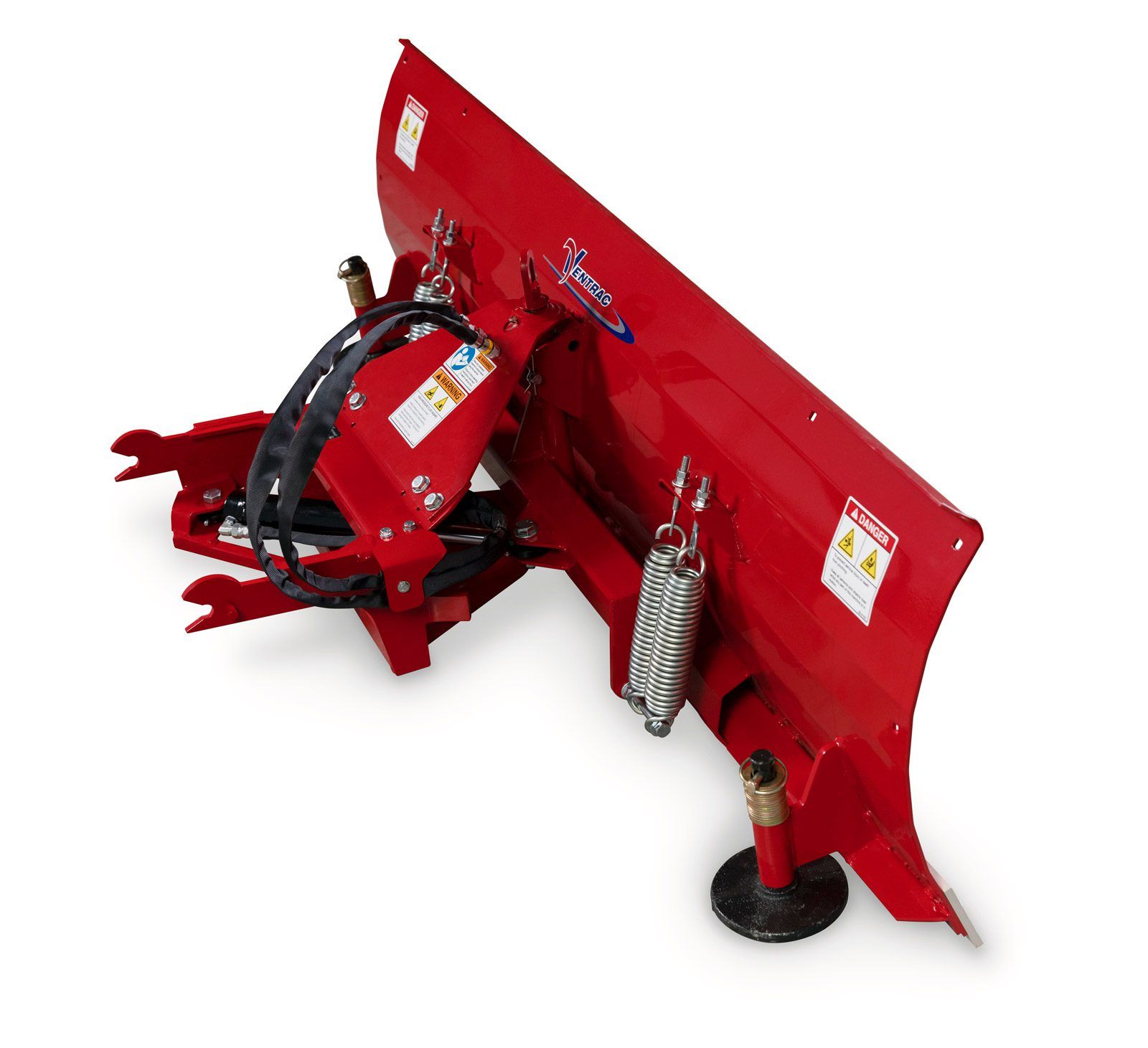

Ventrac Dozer 48" Blade Tractor Attachment

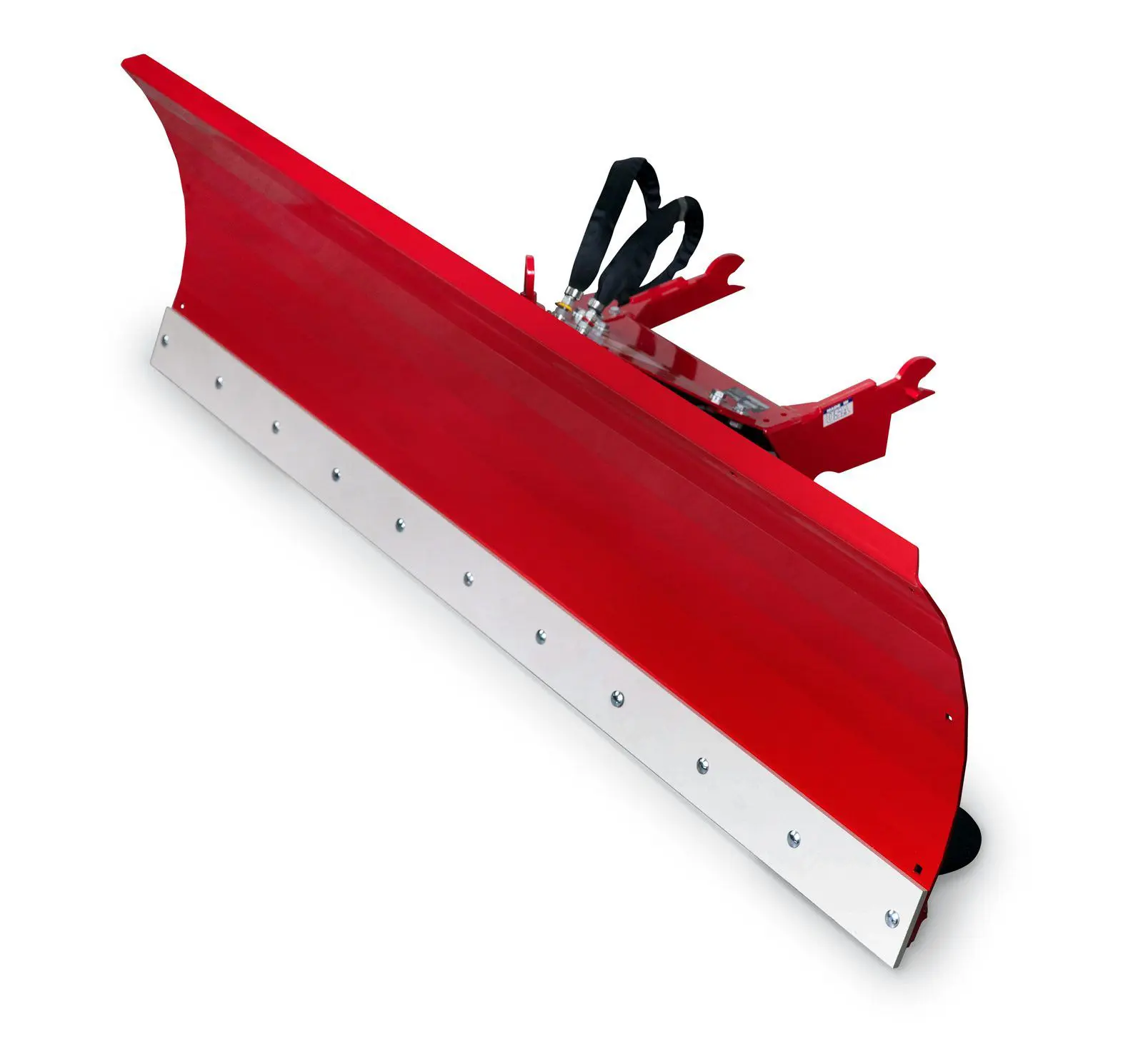

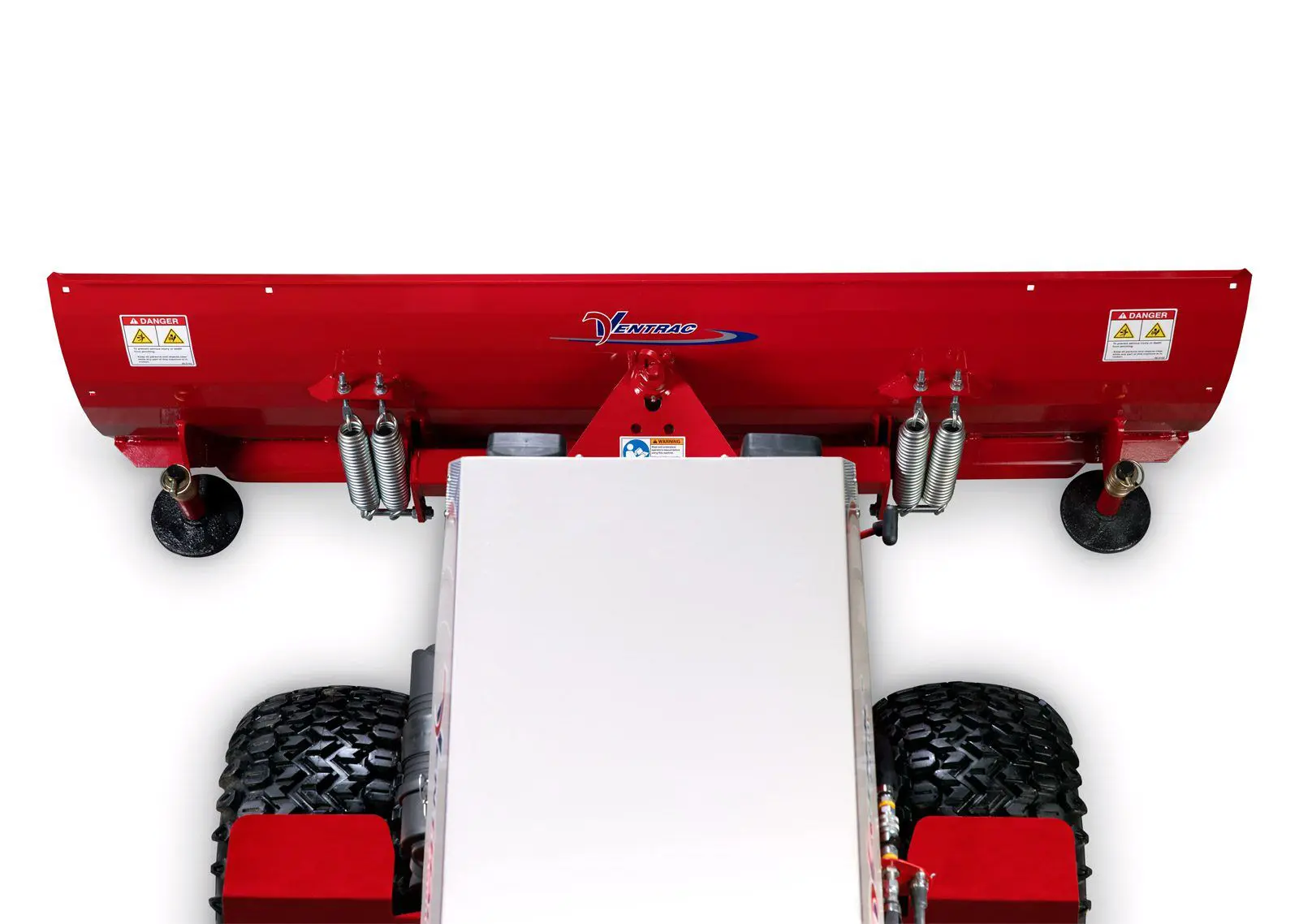

Ventrac KD Power Angle Blades have working widths of 48, 60, and 72 inches (122, 152, 183 centimeters). All control functions are performed with the S.D.L.A. control for raising and lowering the blade or angling it left or right. Adjustable skid shoes accommodate dozing at selected heights, such as moving snow on gravel driveways.
The blades can be operated in a trip position for plowing or in a locked position for digging into material.
Ventrac Power Angle Blades are versatile, labor-saving attachments designed for any number of jobs. From grading, leveling, and backfilling ground to plowing snow, moving material, or cleaning an area, the Ventrac KD series blades are up to the task.
REAR MOUNTING
Using the 3-N-1 adapter & 3-point hitch to operate the blade from the rear of the tractor.
FOUR SEASONS
Use the Ventrac straight blade year-round.
VERSATILITY
Use the Ventrac straight blade to backfill, level or push material.
Description
Ventrac KD Power Angle Blades have working widths of 48, 60, and 72 inches (122, 152, 183 centimeters). All control functions are performed with the S.D.L.A. control for raising and lowering the blade or angling it left or right. Adjustable skid shoes accommodate dozing at selected heights, such as moving snow on gravel driveways.
The blades can be operated in a trip position for plowing or in a locked position for digging into material.
Ventrac Power Angle Blades are versatile, labor-saving attachments designed for any number of jobs. From grading, leveling, and backfilling ground to plowing snow, moving material, or cleaning an area, the Ventrac KD series blades are up to the task.
Sales Model | KD482 | KD602 | KD722 |
Full Description | KD, KD482 48″ Dozer Blade | KD, KD602 60″ Dozer Blade | KD, KD722 72″ Dozer Blade |
Product Type | Attachment | Attachment | Attachment |
CATEGORY | |||
Front Mount | Ventrac Mount System | Ventrac Mount System | Ventrac Mount System |
3000 Series Mount | |||
4000 Series Mount | |||
DIMENSIONS | |||
Length | 68.6Â cm | 68.6Â cm | 68.6Â cm |
Overall Height | 55.9Â cm | 55.9Â cm | 55.9Â cm |
Overall Width | 122Â cm | 152Â cm | 183Â cm |
Weight | 73.9Â kg | 92.1Â kg | 102Â kg |
Shipping Dimensions(LWH) | 64×24.5×15.6Â cm | 76×24.5×15.6Â cm | 88×24.5×15.6Â cm |
Crated Weight | 93.9Â kg | 123Â kg | 134Â kg |
GENERAL | |||
Work Width – 30 degrees | 107Â cm | 132Â cm | 157Â cm |
Work Width – 0 degrees | 122Â cm | 152Â cm | 183Â cm |
Ground Clearance | 33 cm @ 0 deg. | 33 cm @ 0 deg. | 33 cm @ 0 deg. |
Skid Shoes | Â adjustable cast iron skid shoe discs | Â adjustable cast iron skid shoe discs | Â adjustable cast iron skid shoe discs |
Spring Trip | Mechanical On/Off | Mechanical On/Off | Mechanical On/Off |
Hydraulic Power Angle | |||
Hydraulic Cylinder Bore and Stroke | 2×8Â cm | 2×8Â cm | 2×8Â cm |

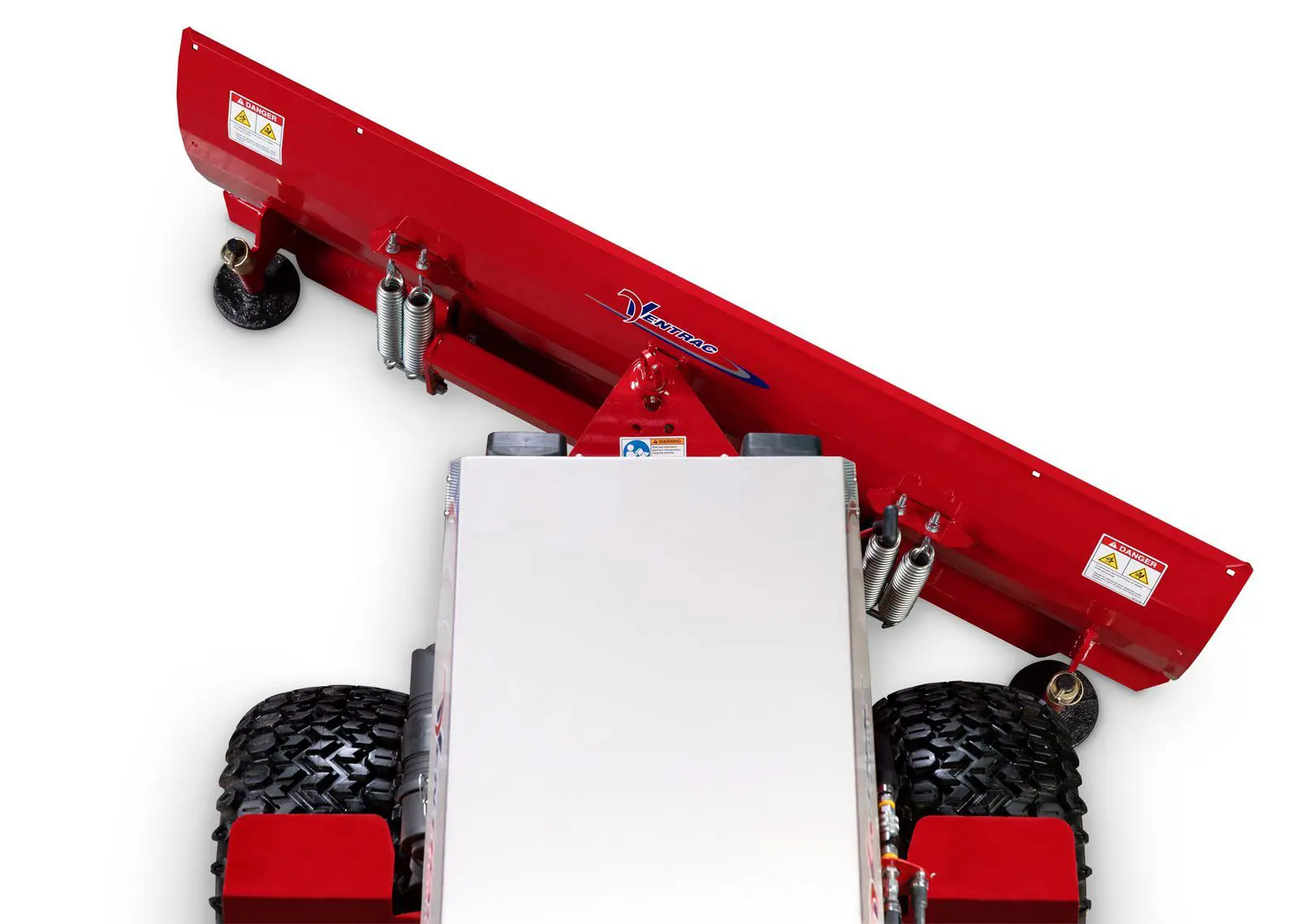

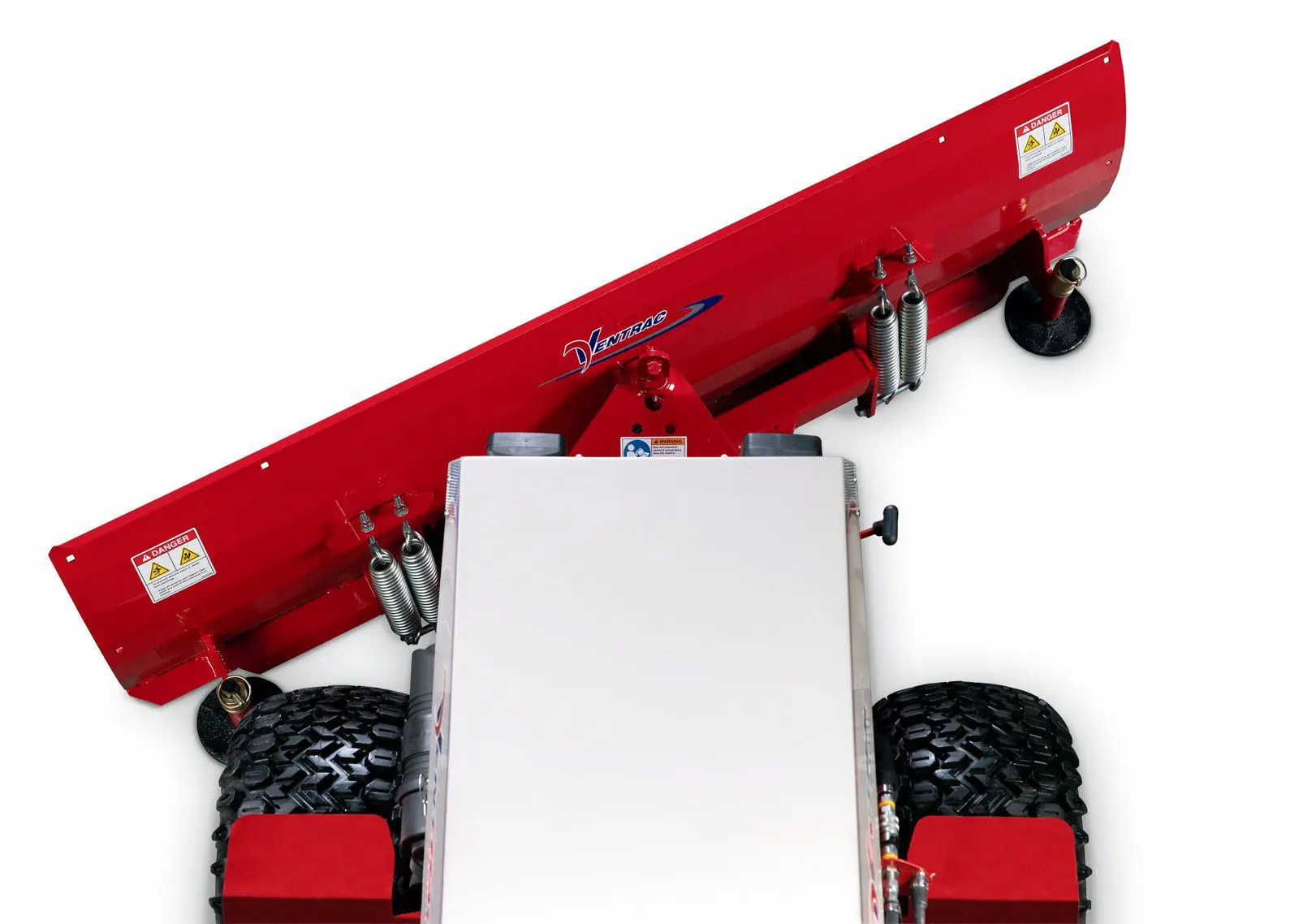

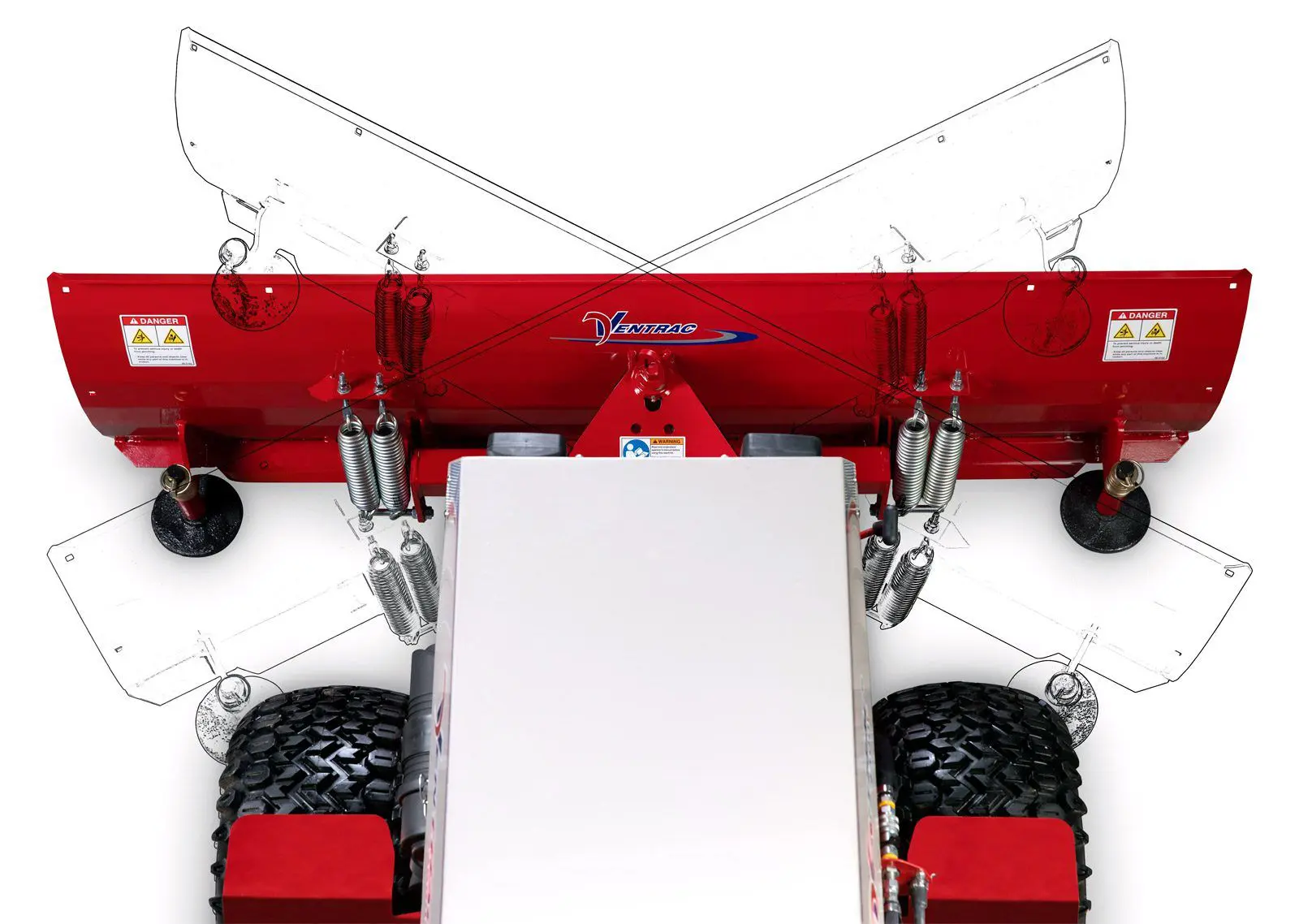

Max Angle (Left/Right) | 30 ° | 30 ° | 30 ° |
Additional information
Brands | VENTRAC |
---|
