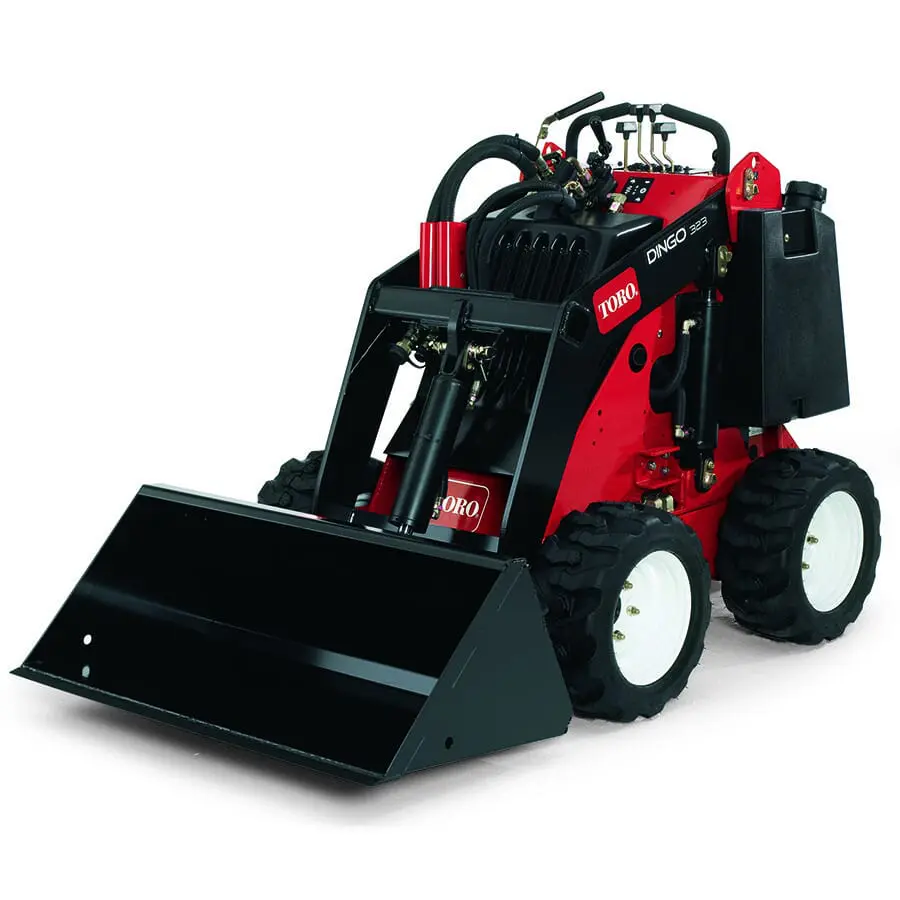

Toro Traxmaster W323 Compact Utility Loader

Model: 22318
Toro

Toro Traxmaster W323 Compact Utility Loader

Model: 22318
Toro

The TORO wheeled petrol W323 Compact Utility Loader is built to deliver a high power -to- weight ratio in the compact utility loader category. Equipped with the TORO designed 4-Paw®, independent 4-wheel drive system, the TX 323 offers incredible power and durability, guaranteeing jobsite productivity. Supporting numerous attachments, the Traxmaster 323 will continue to astonish you with what it can accomplish. A ride-on platform provides improved visibility of your working area and attachments. The narrow width and zero-turn capability allows access to confined spaces and the removable counterweight allows you to add lift capacity or increase down pressure for optimal attachment performance.

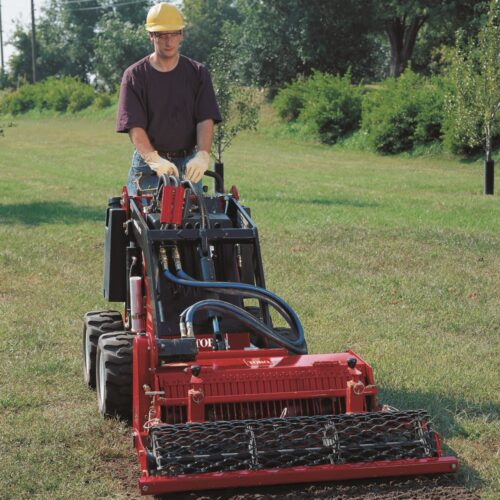

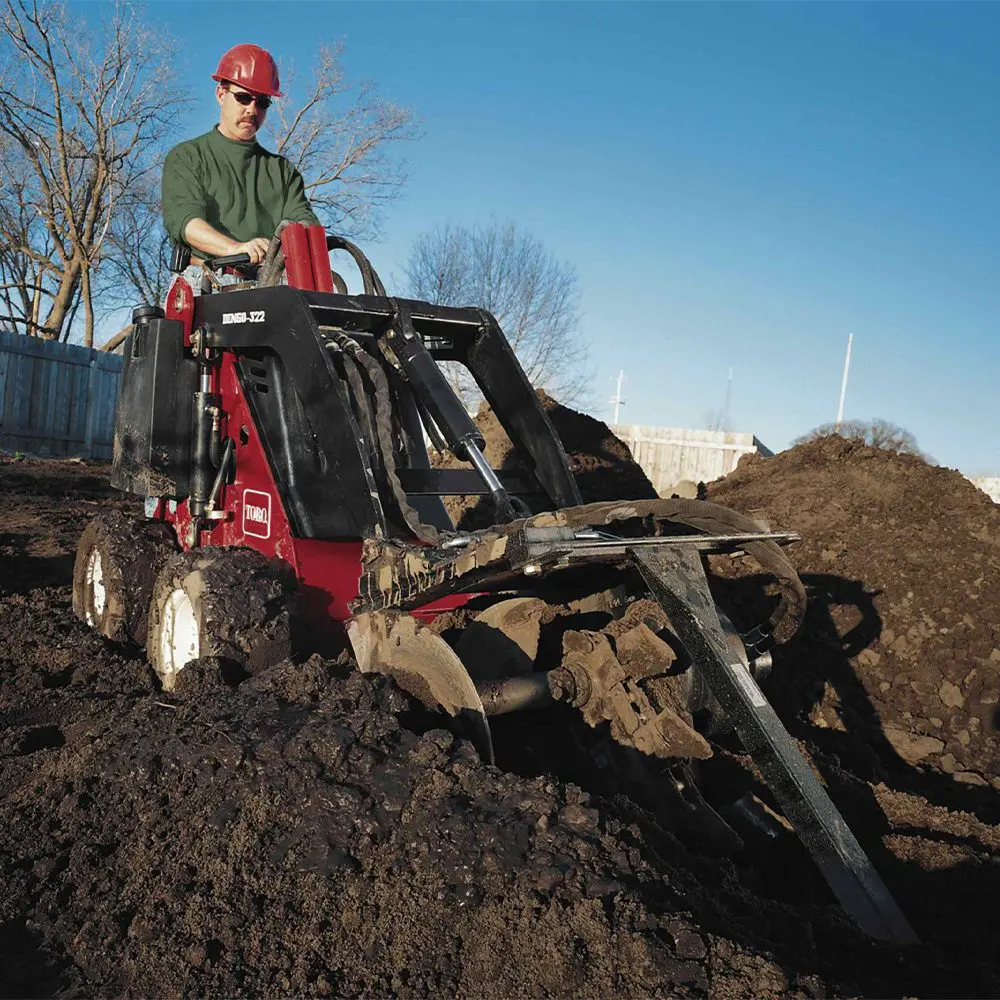

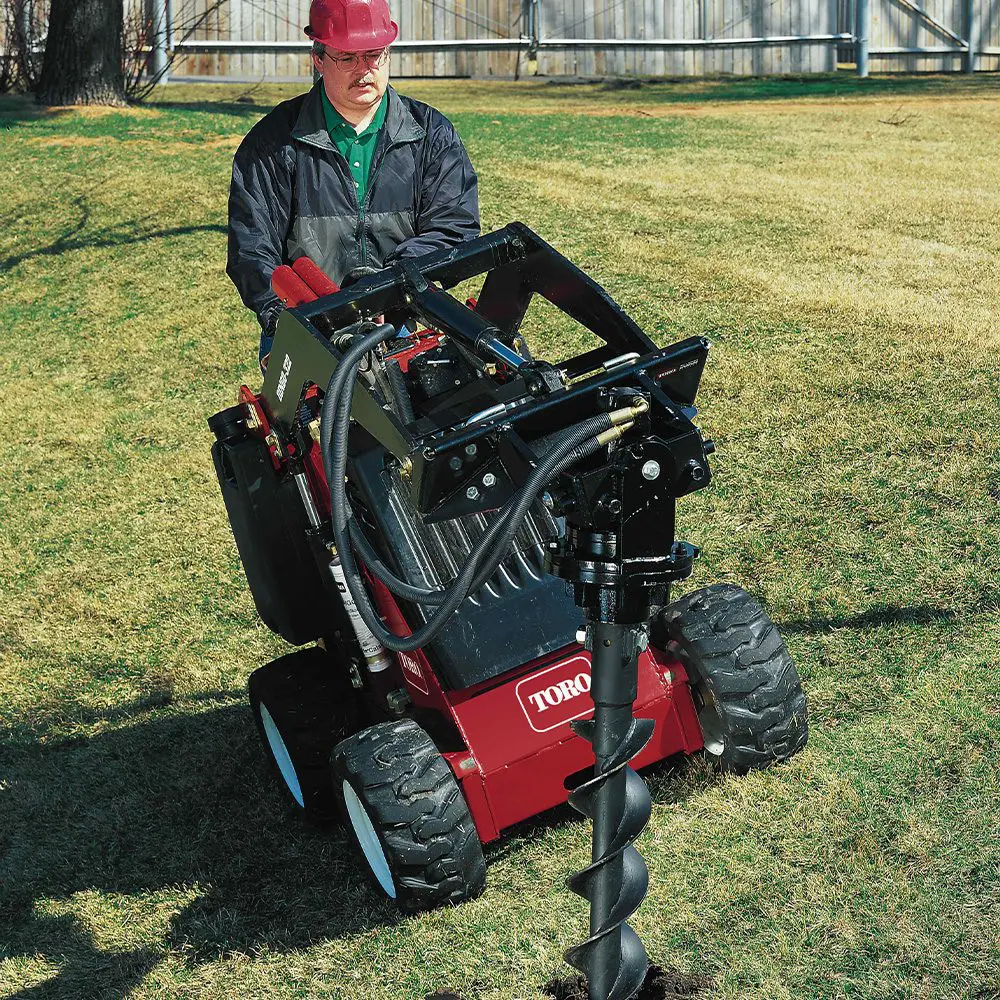

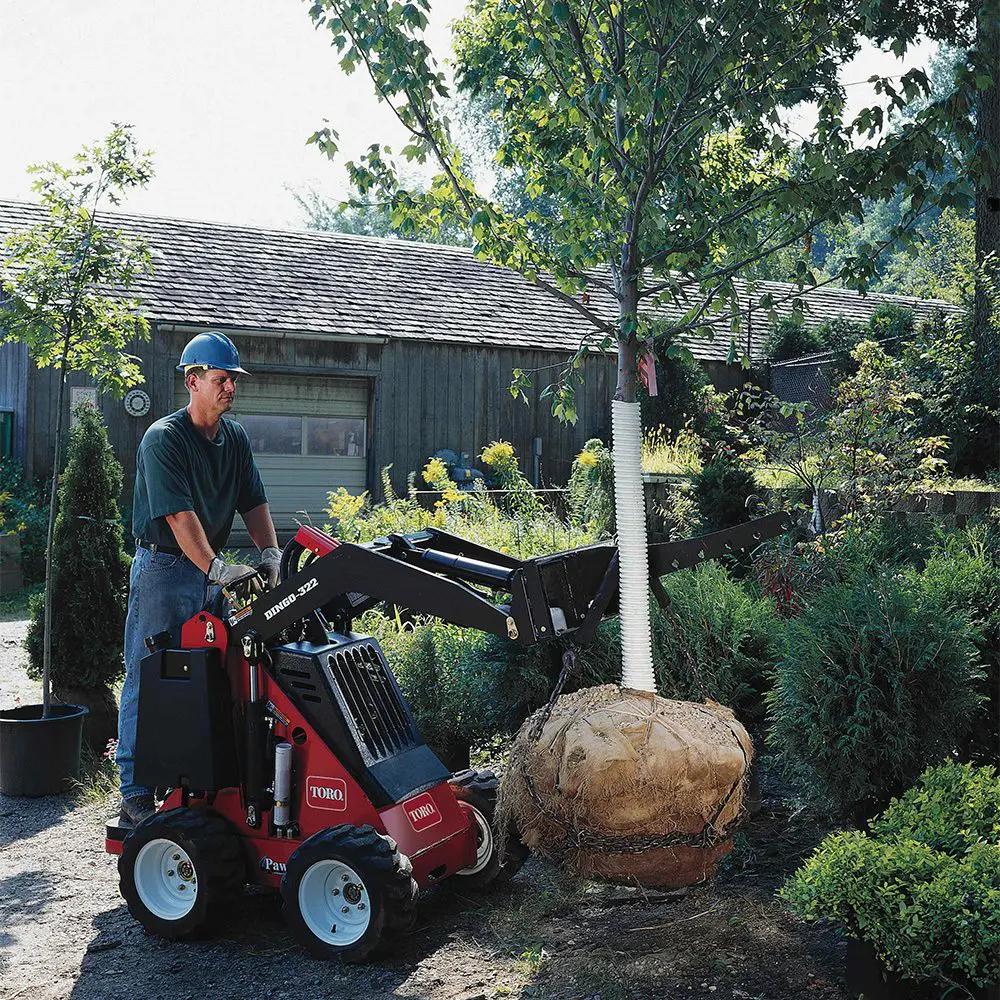

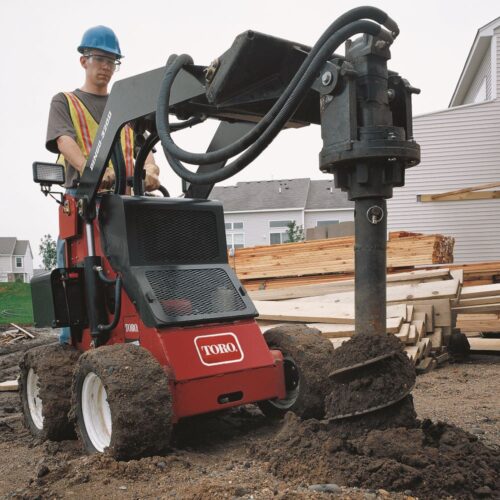

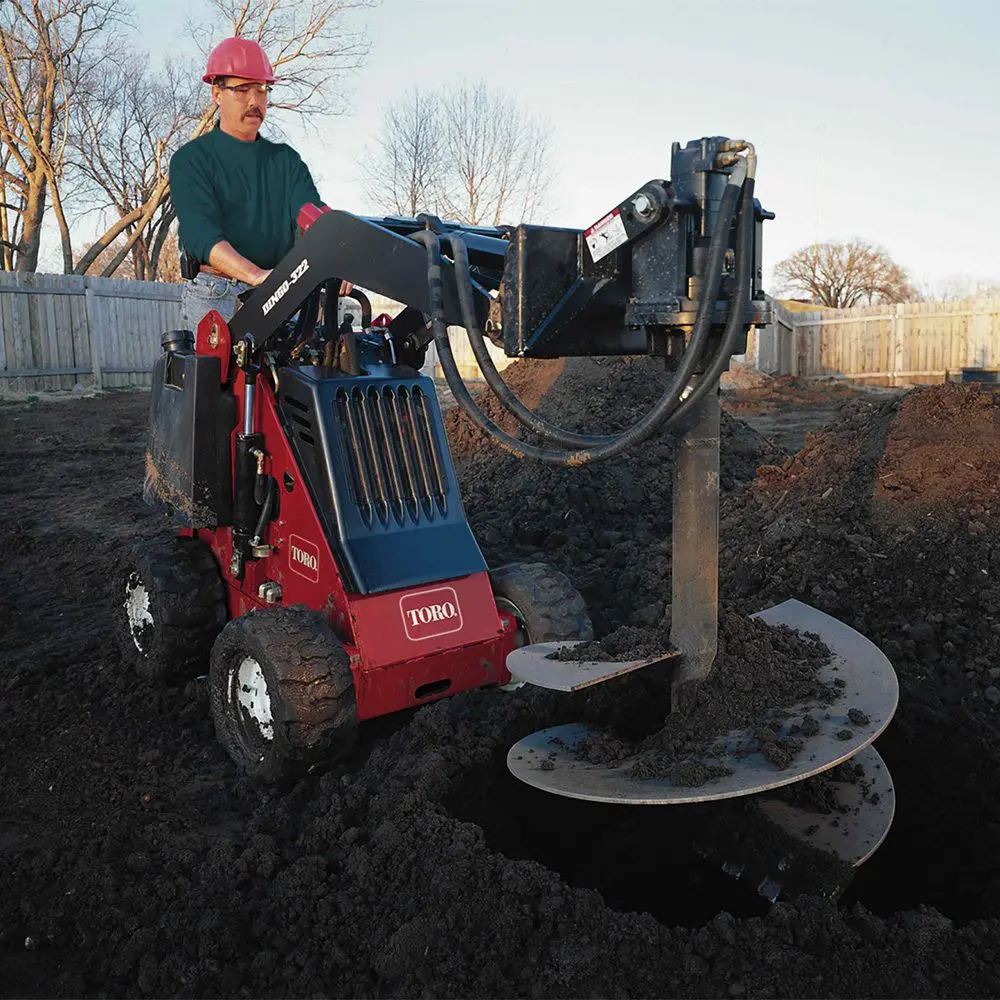

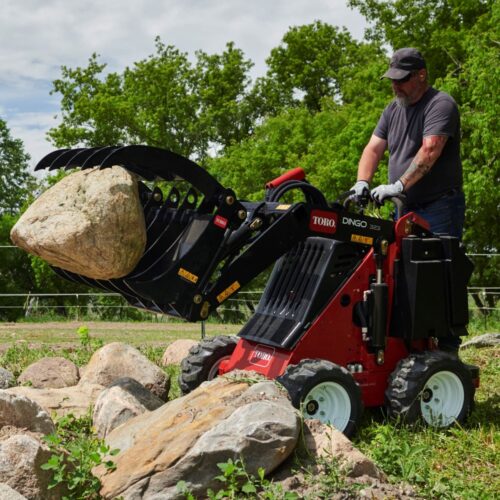

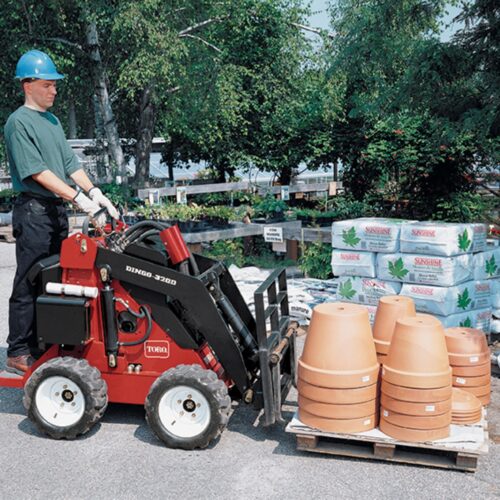

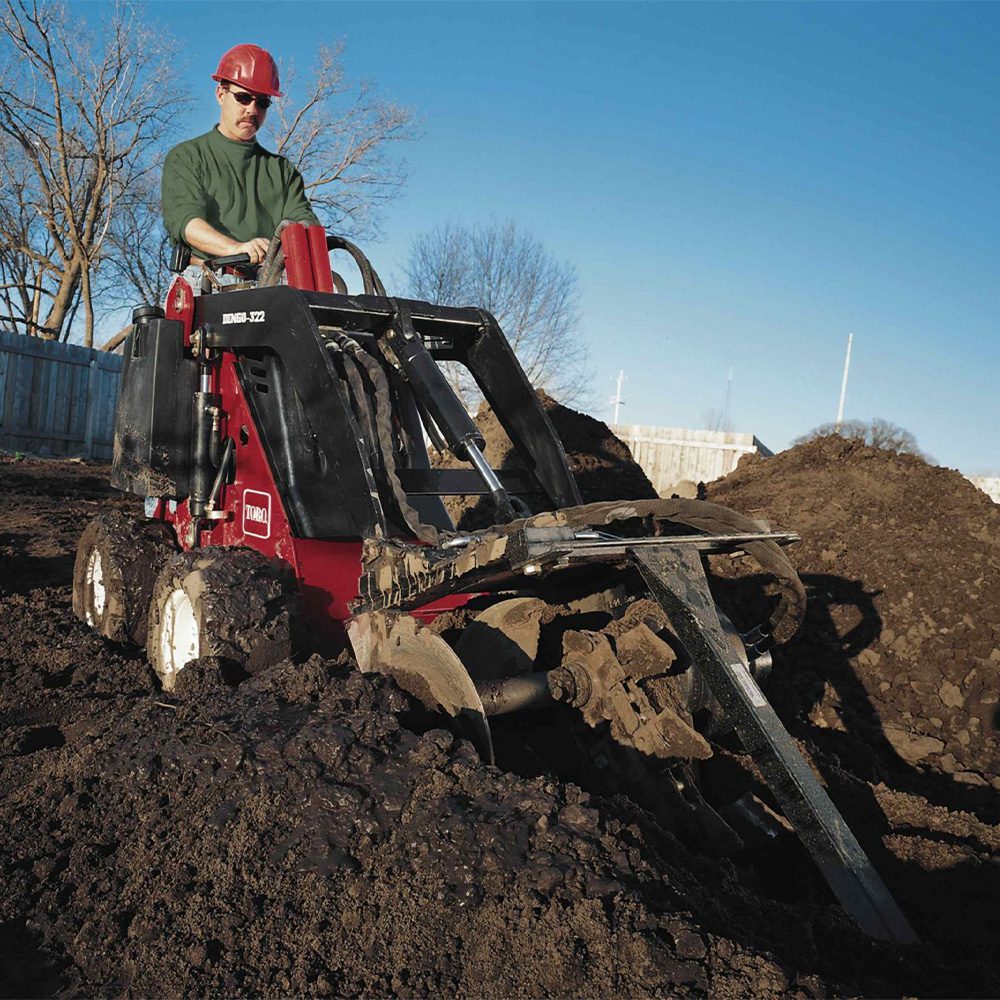

The following attachments are available: High-speed trencher, High Torque trencher, 4-in-1 narrow or wide buckets, Leveller, Vibratory Plow, Hydraulic Blade, Power Box Rake, Soil Cultivator, Multi-Purpose Tool, Tree Forks, Bore Drive Head & Rod & Reamer Kit, Buckets, Tiller, Stump grinder, Trench filler, Backhoe, Hydraulic Breaker, Grapple Rake, High-Torque Auger Power Head, Adjustable Forks, Cement Bowl, Universal Swivel Auger Power Head.

  • 23 HP Kohler® petrol engine
  • Dual 21.2 litre fuel tanks
  • 2-pump system with combined flow of 56.4 lpm at 3,600 rpm hydraulic power
  • 2 ground speeds
  • Over 20 versatile attachments
  • Ride on platform provides improved safety and visibility of working area and attachments
  • Easier ‘do-it-yourself’ maintenance and lower repair costs
Fleet Finance & Leasing Options Talk to us today 0800 807 333
Enquire Call 0800 807 333
Talk to a rep Find a Store

Features

4-Paw® Independent 4-Wheel Drive

Four independent wheel motors deliver hydraulic flow and pressure to all our wheels for improved traction and mobility. Fewer moving parts also mean less maintenance.

Fingertip Controls

Easy-to-reach 4-stick fingertip hand controls enable all functions from the operator position. The operator controls all movements of the machine and attachments with his fingertips.

Highly Manoeuvrable

Short wheelbase design offers excellent manoeuvrability. Get into tight spaces where only hand labour could go before.

Two Transport Speeds

Low speed sends more hydraulic power to the attachment and high speed sends more power to the wheels. The low speed option also helps new operators shorten their learning curve.

Specifications

Air Filter Two-stage, heavy-duty, remote
Cooling System Air Cooled
Displacement (cc) 674
Displacement (cu. in.) 41
Dump Angle 34 degrees
Dump Height (cm) 47
Engine Make Kohler
Engine Model Command Series CH23
Fuel Tank (gallons) 11.2
Fuel Tank (liters) 42.4
Fuel Type Petrol
Ground Clearance (cm) 14.7
Ground Clearance (inches) 5.8
Ground Speed Forward (mph) 3.7
Ground Speed Foward (km/h) 6
Ground Speed Reverse (km/h) 6
Ground Speed Reverse (mph) 3.7
Hinge Pin Height (cm) 167.6
Hinge Pin Height (inches) 66
Hydraulic Flow Auxilary 13.8 gpm
Hydraulic Flow Traction 10.8 gpm high-flow hydraulic circuit, 4 gpm low-flow hydraulic circuit
Loader Arms Radial
Manufacturer's Gross HP Rating (HP) 25
Manufacturer's Gross HP Rating (kW) 18.6
Max Operating Height (cm) 231.6
Max Operating Height (inches) 91.2
Oil Capacity (liters) 1.9
Oil Capacity (quarts) 2
Overall Height (cm) 102.8
Overall Height (inches) 40.5
Overall Height w/o bucket (cm) 123.7
Overall Height w/o bucket (inches) 48.7
Overall Length w/bucket (cm) 157.5
Overall Length w/bucket (inches) 62
Overall Length w/o bucket (cm) 123.7
Overall Length w/o bucket (cm) 157.5
Overall Length w/o bucket (inches) 62
Overall Length w/o bucket (inches) 48.7
Overall Width (cm) 88.9
Overall Width (inches) 35
Rated Operating Capacity - 35% of Tip Capacity (kg) 515
Rated Operating Capacity - 35% of Tip Capacity (lbs) 233
Reach – Fully Raised (cm) 71.1
Reach – Fully Raised (inches) 28
Reservoir Capacity (gallons) 17
Reservoir Capacity (liters) 64
RPM 3600
Weight (kg) 710
Weight (lbs) 1567
Wheelbase (inches) 28
